HTC Desire 650 User manual

Service Manual
HTC 650, 800 & 950
X models
GB
HTC Sweden AB
www.htc-sweden.com

3
Introduction
Contact HTC or your nearest retailer if you have any questions or quiries. Make sure to have the
serial number of your machine available when you call, since all machines are registered and this
helps us provide you with the best possible service. The serial number is located on the right-hand
side of the chassis (seen from behind) and on the right-hand fixing lug. It is also found on the ma-
chine sign placed on the inside of the door to the electric cabinet.
It is possible to read the manufacture date of the machine from the serial number. For in-
stance 80511080, where 8 represents the model - this is an HTC 800 HDX. The next six numbers
are the date of manufacture. The last number is a sequence number and 0 shows that this is the
first machine built that day.
Good luck.
HTC Sweden AB

4
CONTENTS
Introduction...................................................................................................................................... 3
Technical data HTC 650, HTC 800 and HTC 950 ........................................................................... 5
Exploded diagram, HTC 650 chassis ............................................................................................. 6
Parts list, HTC 650 chassis ............................................................................................................. 6
Exploded diagram, HTC 650 Mist Cooler System......................................................................... 8
Parts list HTC 650 Mist Cooler System.......................................................................................... 8
Exploded diagram, HTC 650 handle............................................................................................. 10
Parts list, HTC 650, handle............................................................................................................ 10
Exploded diagram, HTC 650 drive mechanism........................................................................... 12
Parts list, HTC 650 drive mechanism........................................................................................... 12
Exploded diagram, HTC 650 grinding head ................................................................................ 13
Parts list HTC 650 grinding head ................................................................................................. 13
Exploded diagram, HTC 650 grinding holder.............................................................................. 15
Parts list, HTC 650 grinding holder (1x4) .................................................................................... 15
Exploded diagram, HTC 800 chassis ........................................................................................... 16
Parts list, HTC 800 chassis ........................................................................................................... 16
Exploded diagram, HTC 800 Mist Cooler System....................................................................... 18
Parts list HTC 800 Mist Cooler System........................................................................................ 18
Exploded diagram, HTC 800 handle............................................................................................. 20
Parts list, HTC 800, handle............................................................................................................ 20
Exploded diagram, HTC 800 drive mechanism........................................................................... 22
Parts list, HTC 800 drive mechanism........................................................................................... 22
Exploded diagram, HTC 800 grinding head ................................................................................ 23
Parts list HTC 800 grinding head ................................................................................................. 23
Exploded diagram, HTC 800 grinding holder.............................................................................. 25
Parts list, grinding holder (1x4).................................................................................................... 25
Exploded diagram, HTC 950 chassis ........................................................................................... 26
Parts list, HTC 950 chassis ........................................................................................................... 26
Exploded diagram, HTC 950 Mist Cooler System....................................................................... 28
Parts list HTC 950 Mist Cooler System........................................................................................ 28
Exploded diagram, HTC 950 handle............................................................................................. 30
Parts list, HTC 950, handle............................................................................................................ 30
Exploded diagram, HTC 950 drive mechanism........................................................................... 32
Parts list, HTC 950 drive mechanism........................................................................................... 32
Exploded diagram, HTC 950 grinding head ................................................................................ 33
Parts list HTC 950 grinding head ................................................................................................. 33
Exploded diagram, HTC 950 grinding holder.............................................................................. 35
Parts list, HTC 950 grinding holder (1x4) .................................................................................... 35
Changing the inner belt, HTC 650, 800 and 950.......................................................................... 36
Changing the upper belt, HTC 650, 800 and 950......................................................................... 44
On machines with four-piece belt rings: ..................................................................................... 44
Changing the motor, HTC 650, 800 and 950 ................................................................................ 49
Overhauling the grinding holders................................................................................................ 52
Exploded diagram grinding holder .............................................................................................. 52
Parts list, grinding holder (1x4).................................................................................................... 53
Maintenance HTC 650, HTC 800 and HTC 950 RX ...................................................................... 54
Troubleshooting HTC 650 and HTC 800 ...................................................................................... 55
Electronic error codes HTC 650 and HTC 800 - Hitachi ............................................................. 56
Checking the latest error code - Hitachi...................................................................................... 57
Troubleshooting HTC 950 RX ....................................................................................................... 58
Electronic error codes - HTC 950 RX........................................................................................... 59
Resetting the converter HTC 950 RX ........................................................................................... 61
Special tools .................................................................................................................................. 62

5
Technical data HTC 650, HTC 800 and HTC 950
HTC 650
HTC 800
HTC 950
650 HDX
Weight: 440 kg
Weight chassis: 190 kg
Grinding diameter: 650 mm
Weight grinding head: 250 kg
Grinding pressure weights forward: 270 kg
Grinding pressure weights back: 200 kg
Grinding pressure weights back: 180 kg
Weights: 2x33 kg
RPM: 450-1400 rpm
Grinding discs: 4 x Ø270 mm
Motor: 11 kW
Current: 32 A
Voltage: 400 V* (3-phase)
Diode lamps: 24 V
Control current 24 V
800 HDX 800 EX
Weight: 570 kg 550 kg
Weight chassis: 290 kg 290 kg
Grinding diameter: 770 mm 770 mm
Weight grinding head: 280 kg 260 kg
Grinding pressure weights forward: 350 kg 330 kg
Grinding pressure weights back: 290 kg 270 kg
Grinding pressure weights back: 270 kg 250 kg
Weights: 2x33 kg 2x33 kg
RPM: 450-1400 rpm 450-1400 rpm
Grinding discs: 4 x Ø270 mm 4 x Ø270 mm
Motor: 15 kW 11 kW
Current: 32 A 32 A
Voltage: 400 V* (3-phase) 400 V* (3-
phase)
Diode lamps: 24 V 24 V
Control current 24 V 24 V
950 RX
Weight: 600 kg
Weight chassis: 310 kg
Grinding diameter: 920 mm
Weight grinding head: 290 kg
Grinding pressure weights forward: 400 kg
Grinding pressure weights back: 300 kg
Grinding pressure weights back: 280 kg
Weights: 2x50 kg
RPM: 450-1400 rpm
Grinding discs: 4 x Ø270 mm
Motor: 15 kW
Current: 32 A
Voltage: 400 V* (3-phase)
Diode lamps: 24 V
Control current 24 V

6

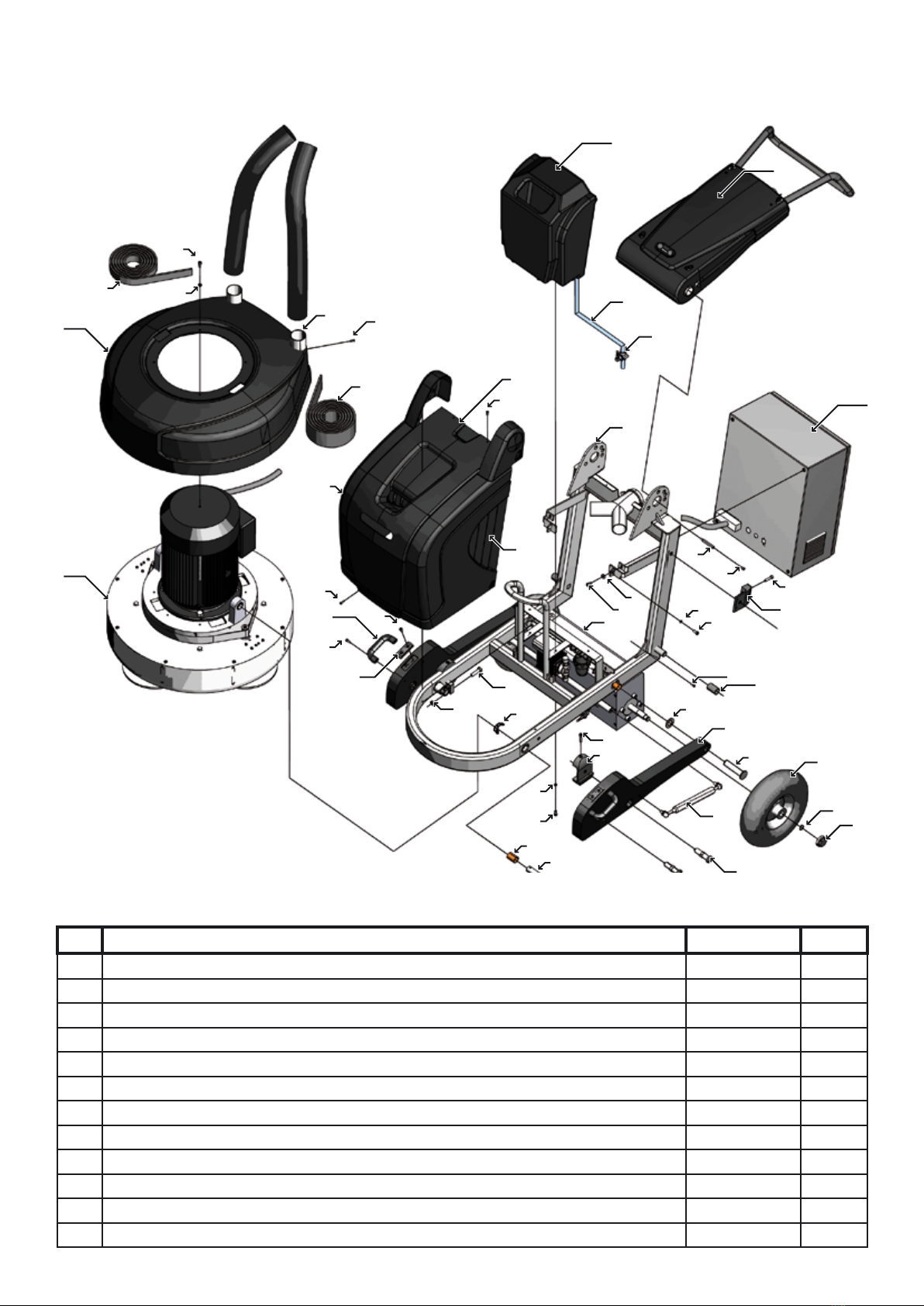

Exploded diagram, HTC 650 chassis
1
2
3
4
6
5
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
15
41
42
43
44 45
46
47
22
48
49
22
50
12
Parts list, HTC 650 chassis
No. Description Art. No. Qty
1 Water tank HTC 650/800 (2005) 111342 1
2 Hose large reinforced PVC 111104 1
3 Water valve to grinder 110007 1
4 Chassis HTC 800 HDX 111382 1
5 Handle complete HTC 800 CE 111374 1
6 Power Unit 11 kW CE 111400 1
7 Spacer screw HTC 650 310255 2
8 Screw MC6S M6X16 8.8 galvanised 310082 2
9 Screw MC6S M835 8.8 galvanised 310189 4
10 Wear protection upper HTC 650 111404 2
11 Screw thermoplastic PT WN 1452 TX 310148 6
12 Washer BRB M6 galvanised 310012 2
13 Washer BRB M8 galvanised 310077 4

7
Parts list, HTC 650 chassis cont.
No. Description Art. No. Qty
14 Screw MC6S M8x16 8.8 galvanised 8.8 310080 4
15 Screw MFT M6x16 galvanised 8.8 310251 4
16 Wear protection, weight stop 111381 2
17 Drive mechanism, HTC 650 111141 1
18 Washer BRB M24 galvanised 310197 4
19 Stop screw P6SS M8x12 45H 310259 2
20 Weight axle 111024 2
21 Wheel HTC 650 111382 2
22 Belongs to wheel HTC 650 111382 2
23 Adjustment bolt Lockable 111037 4
24 Gas spring complete 111385 2
25 Screw MC6S M6x20 310027 4
26 Bow handle 111196 2
27 Weight 32 kg HTC 650 111383 2
28 Sliding strip, weight 111344 2
29 Screw MFT M6x20 8.8 galvanised 310020 4
30 Screw MC6S M8x35 8.8 galvanised 310189 4
31 Washer BRB M6 galvanised 310012 4
32 Screw thermoplastic PT WN 1452 TX 310148 4
33 Wear protection lower HTC 950 111030 1
34 Shaft chassis/grinding head 111392 2
35 Bushing BM25 111133 2
36 Locking pin LSR 25 310243 2
37 Screw M6S M12x45 galvanised 310037 2
38 Nut M6M M12 galvanised 310201 2
39 Cover side left HTC 650 111387 1
40 Cover top HTC 650 111388 1
41 Cover side right HTC 650 111386 1
42 Grinding head HTC 650 11kW 111419 1
43 Splash guard HTC 650EZ 2.5mx100mm 110973 1
44 Cover HTC 650 2004 111237 1
45 Pop rivet 4.8x12.7 310084 4
46 Extractor, grinding cover 111012 2
47 Washer BRB M8 galvanised 310077 4
48 Screw MC6S M8x20 8.8 galvanised 310161 4
49 Velcro male width 38mm 110264 1
50 Suction hose, diam 63 mm 111158 2

8
1
1
2
2
22
2
2
2
3
3
3
3
3
3
4
4
3
5
6
6
7
8
9
10
11 12
13
14
15
16
17
18
19
21
20
21
11
22
23
24
24
25
26
27
28
29
30
5
Exploded diagram, HTC 650 Mist Cooler System
No. Description Art. No. Qty
1 Screw MC6S M5x12 310140 4
2 Hose connection 2601-12-1/4 110205 7
3 Elbow piece MF -2020-1/4 110146 7
4 Water valve 110007 2
5 Hose large reinforced PVC 0.7m 110130 1
6 Bushing 2531-1/2-1/4 111524 2
7 Filter VEH-0052-D2 111395 1
8 Screw MC6S M8x80 galvanised 310217 2
9 Filter XVE-H052-D21 (Extra) 111396
10 Washer BRB M8 galvanised 310077 2
11 Hose connection 1511-6/4-1/4 111523 2
12 Nut Nylock M8 galvanised DIN985 310067 2
13 CONTACT BLOCK ZBE-101 (NO) 110492 1
14 Mounting base, metal 10983 1
15 Operating Device, black knob, 2 positions 111574 1
16 Cable 2 m 111586 1
Parts list HTC 650 Mist Cooler System

9
No. Description Art. No. Qty
17 Nut nylock M6 galvanised DIN985 310072 4
18 Pump EH-C15VC-PR2-IPVC 111394 1
19 Screw MC6S MC6S M6x16 8.8 galvanised 310082 4
20 Rubber hose 1.5 m 111399 1
21 Cable clips 8 mm with M8 hole 111582 1
22 Filter VEF 0138T1B 111398 1
23 Nozzle cover 111487 1
24 Screw MC6S M6x12 8.8 310030 4
25 Washer BRB M6 galvanised 310012 2
26 Nozzle holder 111488 1
27 Nozzle RXT 0060 B1 111397 1
Parts list HTC 650 Mist Cooler System cont.

10
29
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
30
31

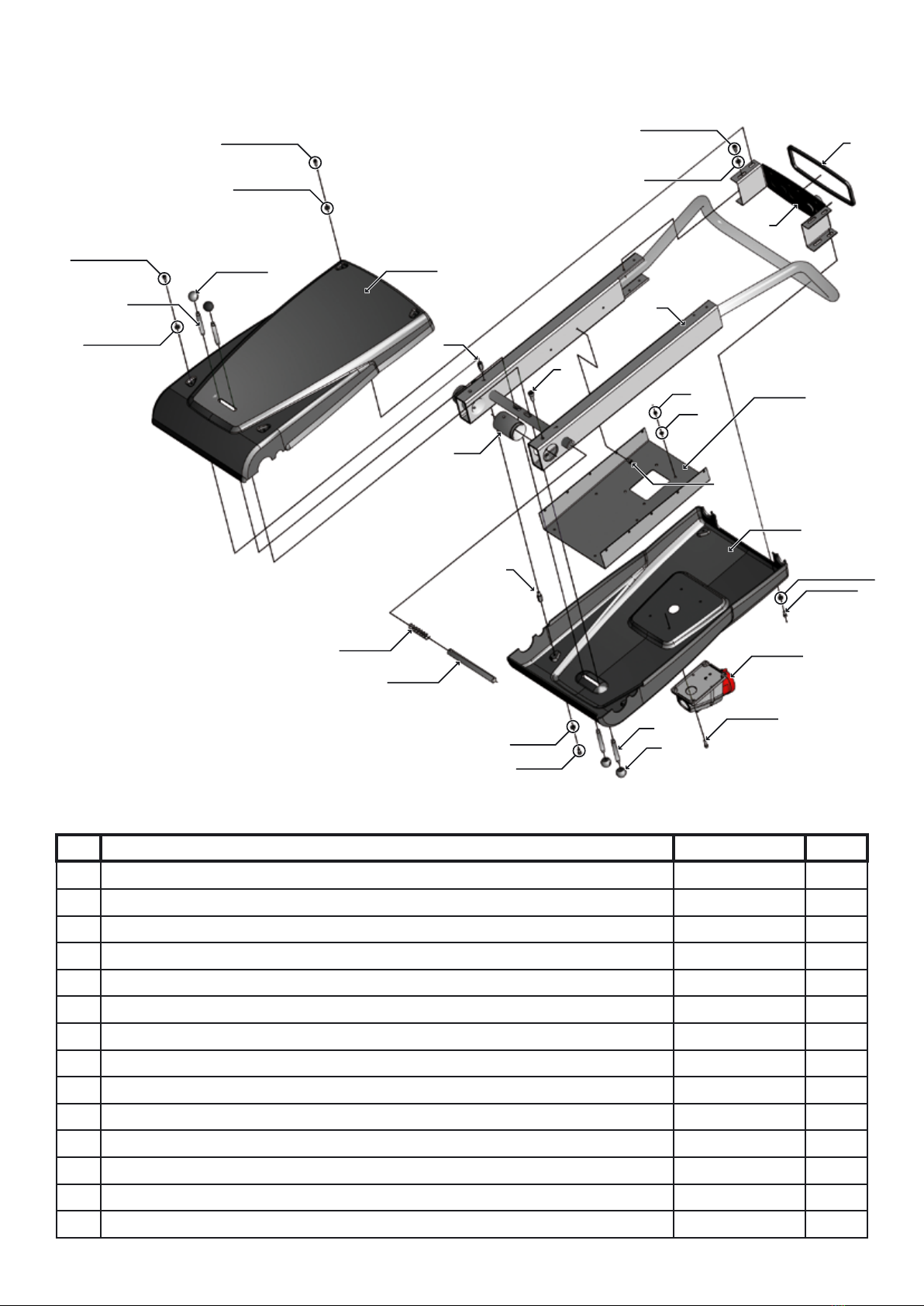

Exploded diagram, HTC 650 handle
No. Description Art. No. Qty
1 Screw MC6S M6X16 8.8 galvanised 310082 4
2 Washer BRB M6 310012 4
3 Packing control panel 111166 1
4 Console instrument panel HTC 800 111289 1
5 Handle HTC 950 111033 1
6 Nut M6M M5 galvanised 310193 4
7 Washer BRB 5,3x10x1 310194 4
8 Connecting plate elec. HTC 950 111010 1
9 Screw MC6S M6X16 8.8 galvanised 310082 6
10 Control casing lower HTC 950 111043 1
11 Washer BRB M6 310012 2
12 Screw MC6S M6X16 8.8 galvanised 310082 2
13 Wall inlet 32A 346-415V 5P RED 110520 1
13 Wall inlet 32A 346-415V BLACK 110613 1
14 Screw MC6S M5x20 galvanised 310185 4
Parts list, HTC 650, handle
