HTC DURATIQ T5 User manual

Translation of manual in original language
i
User Manual
HTC DURATIQ
T5

Contact information
HTC Sweden AB
Box 69
SE-614 22 Söderköping - Sweden
Tel: [phone]
Fax: [phone]
www.htc-floorsystems.com
Trademarks
HTC is a trademark owned by HTC Sweden AB. Other names and products mentioned in
this manual may be registered trademarks owned by the relevant companies.
© 2018 HTC Sweden AB. All rights reserved.

EC Declaration of conformity
Manufacturer: HTC Sweden AB
Box 69
SE-614 22 Söderköping
Sweden
[phone]
Type of equipment: Grinding machine
Make: HTC
Trademark: HTC DURATIQ 5
Year of manufacture: See machine name plate
Serial number: See machine name plate
Original of the EC declaration of conformity (Swedish). Other languages are translations of
the original of the EC declaration of conformity.
Söderköping 01/06/2016
Peter Lundgren Björn Jeansson
Development Manager Product Manager
HTC Sweden AB HTC Sweden AB

Standards
As the manufacturer, we hereby declare under our sole responsibility that the above product
with serial numbers from 2018 and onward conforms to the applicable regulations in:
EN 60335-1:2012 Household and similar electrical appliances -
Safety - Part 1: General requirements.
EN 60335-1:2012 + A11:2014 Household and similar electrical appliances -
Safety - Part 1: General requirements.
EN 60335-2-72:2012
Household and similar electrical appliances -
Safety - Part 2-72: Particular requirements for
floor treatment machines with or without traction
drive, for commercial use.
EN 62233:2008 Measurement methods for electromagnetic fields of household appliances and similar apparatus
with regard to human exposure.
EN 61000-6-4:2007 + A1:2001 EMC
FCC CFR 47 Part 15 (2016) EMC
EN 61000-6-2 (2005) EMC
DIRECTIVE 2006/42/EC Machinery directive.
DIRECTIVE 2014/30/EC EMC
DIRECTIVE 2014/35/EC LVD
ISO 5349-1:2001 Mechanical vibration -- Measurement and evaluation of human exposure to hand-transmitted vibration -- Part 1:
General requirements.
ISO 5349-2:2001 Mechanical vibration -- Measurement and evaluation of human exposure to hand-transmitted vibration -- Part 2:
Practical guidance for measurement at the workplace.
ISO 20643:2005 Mechanical vibration -- Hand-held and hand-guided machinery -- Principles for evaluation of vibration
emission.
ISO 11202:2010
Acoustics -- Noise emitted by machinery and equipment
-- Determination of emission sound pressure levels at a
work station and at other specified positions applying
approximate environmental corrections.
The product was CE marked 2018. The technical documentation is available from the
manufacturer.

HTC DURATIQ
D004753, 01.01 www.htc-floorsystems.com 7
Table of contents
1Introduction................................................................................................. 9
1.1 General...................................................................................................... 9
1.2 Liability....................................................................................................... 9
1.3 Warranty.................................................................................................... 9
2Safety........................................................................................................... 10
2.1 Symbols that are used............................................................................... 10
2.2 Safety rules................................................................................................ 10
3Information about the machine................................................................. 13
3.1 Unpacking the equipment.......................................................................... 13
3.2 Transport ................................................................................................... 13
3.2.1 Transport ............................................................................................... 14
3.2.2 Lifting..................................................................................................... 14
3.3 Storage...................................................................................................... 14
3.4 Machine name plate.................................................................................. 15
3.5 Hand and arm vibrations........................................................................... 16
3.6 Sound power level..................................................................................... 16
4Machine description................................................................................... 17
4.1 General machine description..................................................................... 17
4.2 Control cabinet .......................................................................................... 21
4.3 Control panel (HMI)................................................................................... 22
4.4 Information Panel ...................................................................................... 24
4.5 Connection Panel ...................................................................................... 27
5Operation..................................................................................................... 28
5.1 General...................................................................................................... 28
5.2 Handle setting............................................................................................ 28
5.3 Handling weights....................................................................................... 31
5.4 Cable and Hose Strain Relief Device ........................................................ 32
5.5 Separate grinding head and chassis......................................................... 33
5.6 Access to Grinding Tools........................................................................... 35
5.7 Fitting Grinding Tools................................................................................. 35
6Grinding....................................................................................................... 37
6.1 Grinding by machine.................................................................................. 37
6.2 Emergency Stop Switch ............................................................................ 38
6.3 Making Operation Easier........................................................................... 38
6.4 DURATIQ Remote connectivity ................................................................. 40
7Accessories ................................................................................................ 43
7.1 Water package........................................................................................... 43
7.1.1 Mist Cooler System ............................................................................... 43
7.1.2 Wet grinding .......................................................................................... 44
8Maintenance and repair ............................................................................. 46
8.1 General...................................................................................................... 46
8.2 Cleaning .................................................................................................... 46
8.3 Prior to each new grinding process........................................................... 47
8.4 During operation........................................................................................ 47
8.5 Daily........................................................................................................... 47

HTC DURATIQ
8 www.htc-floorsystems.com D004753, 01.01
8.6 Every week................................................................................................ 47
8.7 Repairs...................................................................................................... 47
8.8 Spare parts................................................................................................ 48
8.9 Warranty.................................................................................................... 48
9Troubleshooting.......................................................................................... 49
9.1 General...................................................................................................... 49
9.2 The machine will not start.......................................................................... 49
9.3 Fuse or earth fault breaker trip frequently ................................................. 50
9.4 The machine cannot cope......................................................................... 51
9.5 Warnings and Error Messages.................................................................. 51
9.5.1 Warnings ............................................................................................... 51
9.5.2 Error Messages..................................................................................... 54
10 Technical Data ............................................................................................ 56
11 Environment................................................................................................ 58
11.1 Chassis...................................................................................................... 58
11.2 Grinding head............................................................................................ 58
11.3 Electrical system ....................................................................................... 59
11.4 Recycling................................................................................................... 59

HTC DURATIQ Introduction
D004753, 01.01 www.htc-floorsystems.com 9
1 Introduction
1.1 General
HTC's machines are used for processing floor surfaces. The machine's area of application
depends on the choice of tool.
In addition to use and general functions, this manual explains the applications and
maintenance of your HTC machine. Contact your local retailer for further information. For
contact information, see the start of the manual.
1.2 Liability
Even though every effort has been made to make this manual as complete and accurate as
possible, we bear no responsibility for incorrect or missing information. HTC reserves the
right to change descriptions in this manual without giving prior notice.
This manual is protected by the Copyright Act and no part of it may be copied or used in any
other way without the written approval of HTC.
1.3 Warranty
This warranty only covers manufacturing defects. HTC bears no responsibility for damage
that arises or occurs during transportation, unpacking or use. In no instance and under no
circumstances shall the manufacturer be held responsible for damage and defects caused by
incorrect use, corrosion or use outside the prescribed specifications. The manufacturer is not
responsible for indirect damage or costs under any circumstances. For complete information
on the manufacturer's warranty period, see HTC's current warranty terms.
Local distributors may have special warranty terms specified in their terms of sale, delivery
and warranty. If there is any uncertainty regarding warranty terms, please contact your
retailer.

HTC DURATIQ Safety
10 www.htc-floorsystems.com D004753, 01.01
2 Safety
This chapter includes the safety rules that must be observed when using HTC's machines.
2.1 Symbols that are used
The symbols below are used in this manual to show the need for extra care when using the
machine.
WARNING
This symbol means Warning! and indicates a risk of personal
injury or material damage.
If the warning is not observed, this could result in death or
serious personal injury.
NOTE
This symbol means Note! and indicates a risk of material
damage in the event of incorrect use.
TIP
This symbol means Tips! and indicates tips and advice on
effective use of the machine or ways of reducing wear and tear
to the machine.
2.2 Safety rules
Users of machines from HTC have the ultimate responsibility for ensuring that everybody
who works with or in the vicinity of the equipment follow all applicable safety rules. Safety
measures must meet the requirements that apply for this type of equipment. Apart from the
standard rules that apply in the workplace, the recommendations in this manual shall also be
observed.
All work must be performed by trained personnel. Users of machines from HTC must have
read through the dedicated manual for the machine. Incorrect use of the equipment could
result in situations that could cause harm to the operator, the surroundings or the machine.

HTC DURATIQ Safety
D004753, 01.01 www.htc-floorsystems.com 11
WARNING
Training is required.
Risk for personal injury and mechanical damage.
Children should be kept under supervision to prevent them
from playing with the machine.
The machine must not be operated by children or in the vicinity
of children. The machine must not be used by those with
impaired physical, sensory or mental abilities or by those who
lack the knowledge that is required for using the machine.
Machines from HTC may only be used in the way recommended by HTC.
Machines from HTC may only be used for commercial purposes.
The machine is only tested for use up to 2000 metres above sea level.
Anyone using the machine shall know about:
• its functions
• location of emergency stops
• the safety rules for the work
The operator shall ensure that:
• no unauthorised person is within the work area when the machine is started up
The workplace shall:
• be suitable for the purpose
• be secured from loose objects that can be thrown out by the machine
• be free from protruding bolts etc. on the surface to be processed
Individuals in the workplace shall always use the recommended personal protective
equipment and wear suitable clothing:
• safety goggles
• protective gloves
• steel toe safety shoes
• hearing protection
• respiratory mask
• do not wear loose fitting clothing or anything that can catch, such as scarves, bracelets,
rings, etc.
General precautions:
• Check the machine is connected to an earthed wall socket.
• Work on live parts shall only be performed by qualified personnel.
• Suitable fire extinguishers shall be clearly marked and close to hand.

HTC DURATIQ Safety
12 www.htc-floorsystems.com D004753, 01.01
• Maintenance of the equipment must not be performed during operation.
This information decal is affixed clearly visible on the machine's electrical cabinet.

HTC DURATIQ Information about the machine
D004753, 01.01 www.htc-floorsystems.com 13
3 Information about the machine
3.1 Unpacking the equipment
Check the packaging and equipment carefully on delivery for any possible transport damage.
If there is any sign of damage, contact the retailer and report the damage. Report packaging
damage to the transport company as well.
Check that the delivery matches the order. If there are any questions, contact the retailer.
3.2 Transport
WARNING
Risk for personal injury and mechanical damage
NOTE
During moving, transport and lifting, the weights shall be in
position 1, see Handling Weights.

HTC DURATIQ Information about the machine
14 www.htc-floorsystems.com D004753, 01.01

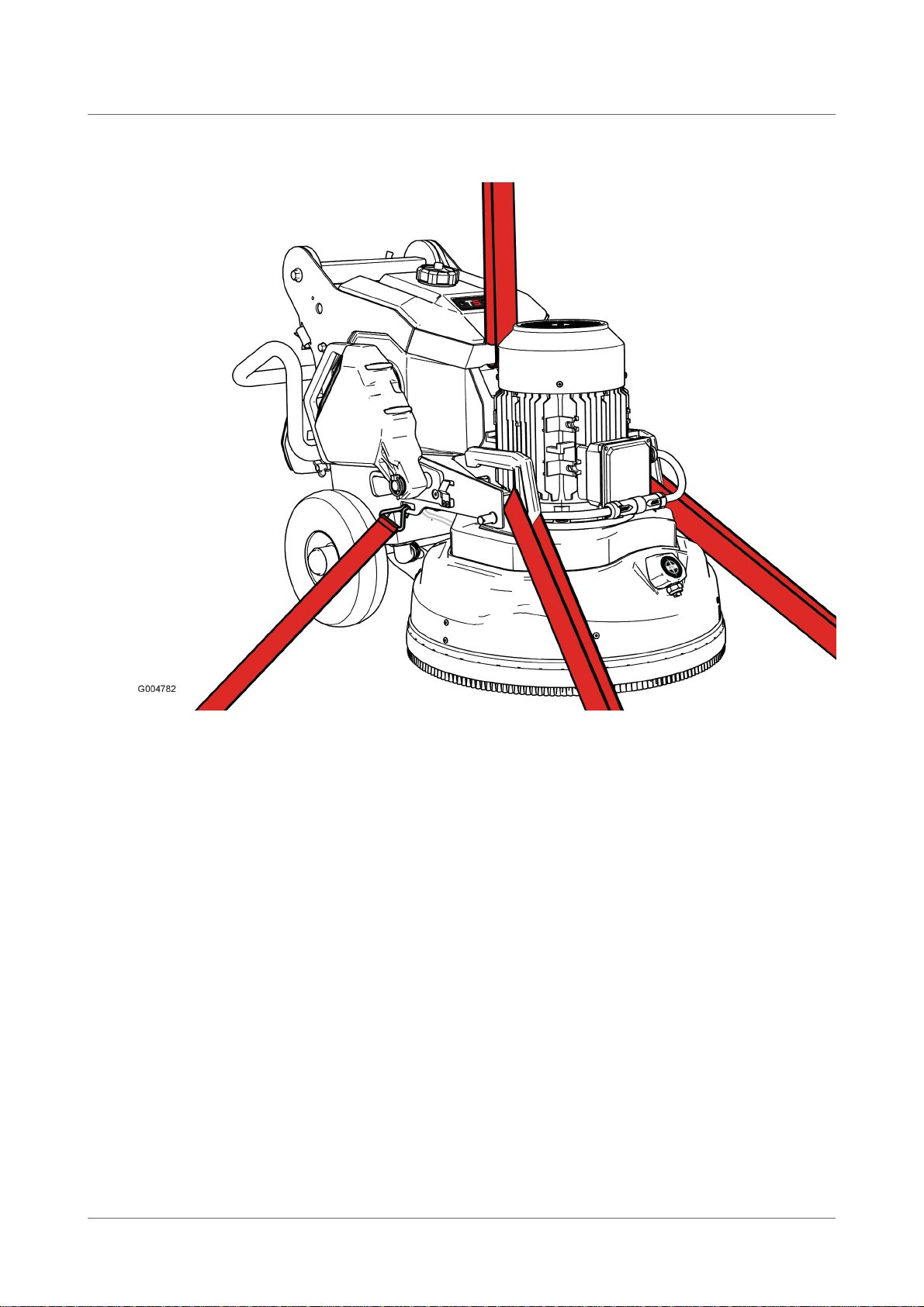

3.2.1 Transport
Always make sure that the machine is securely anchored to its surroundings and that the
grinding head is lowered on to the surface. Tighten the securing straps, or other equipment
used for anchoring during transport over non-moving parts, e.g. the machine's chassis.
3.2.2 Lifting
The machine can be lifted using the lifting eyes provided and a lifting strap. The weights
should be in position 2 and the handle in position 4, see Handling weights page 31 and
Handle setting page 28.
3.3 Storage
The machine should be stored in a heated, dry area when not in use. It may be damaged by
condensation and cold.

HTC DURATIQ Information about the machine
D004753, 01.01 www.htc-floorsystems.com 15
3.4 Machine name plate
The machine name plate provides the following information. The model and serial number
must be specified when ordering spare parts for the machine.
Name Description
Model Model
Part no Part number
Serial no Serial number
MFG date Date of manufacture
Approved standards. Only one example is shown here, the machine
name plate shows the correct approved standards.
See also Standards page 5
Voltage Voltage (VAC)
Rated current Current (A)
Power Power (kW/hp)
Frequency Frequency (Hz)
Weight Weight (kg/lbs)
Enclosure IP class
Recycling, see Recycling page 59

HTC DURATIQ Information about the machine
16 www.htc-floorsystems.com D004753, 01.01
3.5 Hand and arm vibrations
Hand and arm-weighted vibration levels [m/s2] for HTC DURATIQ have been measured using
equipment approved in accordance with ISO 5349-1:2001. The uncertainty of measurement
for the measuring equipment is given as ±2%.
The machine has been tested in accordance with ISO 5349-2:2001 and ISO 20643:2005 in
order to identify the operations that contribute to the most frequent vibration exposures. At
vibration levels > 2.5 m/s2the exposure time should be limited in accordance with the table
below. For vibration levels > 5 m/s2immediate measures must be taken by the employer to
ensure that the exposure time does not exceed the time specified in the table below.
Identified work conditions Measured values [m/s2]Daily permitted exposure
(number of hours)
Grinding/polishing < 2.5 m/s2> 10 h
3.6 Sound power level
This machine has been tested for noise in accordance with ISO 11202.
Measured using class 1 instruments as sound level meters. For information about sound level
power, see chapter Technical Data page 56.

HTC DURATIQ Machine description
D004753, 01.01 www.htc-floorsystems.com 17
4 Machine description
4.1 General machine description
A grinding machine from HTC has been developed for processing various types of floor. It is
used to grind, coarse grind, prepare and polish concrete, natural stone and terrazzo floors or
other materials specified in this manual as recommended by HTC.
The machine is constructed from a number of main components, see below.
The handle can be set in several different positions.
The machine's grinding head is covered by a sloping hood, which provides a close fit to the
floor. The cover together with the connected vacuum system provide the conditions needed
for a good work environment. The cover ensures that the operator does not come into
contact with rotating mechanical parts and exposure to dust is minimised. Because the cover
is floating, the dust uptake is optimised since it is always in contact with the surface.
Always make sure that a dust extractor is connected to the grinder during dry grinding to
prevent as far as possible exposure to dust particles of operators, people in the vicinity, the
grinder and other equipment.
WARNING
Dust.
Risk for personal injury.
The dust that is sucked up may be harmful if inhaled. Follow
local regulations and use breathing protection.
The machine can be easily equipped with a large number of tools, depending on the floor
material to be ground. For more information about different tools, see HTC's website
www.htc-floorsystems.com.
Some grinding machines can be equipped with a Mist Cooler system for effective cooling of
the grinding tools. This system enables a very fine water mist to be diffused through a nozzle
over the floor surface, which cools the tools and thereby makes the grinding more effective.

HTC DURATIQ Machine description
18 www.htc-floorsystems.com D004753, 01.01
No. Description Accessories
1 Water tank Water package
2 Machine cover
3 Motor connector
4 Nozzle for Mist Cooler System Water package
5 Handlebar
6 Handlebar locking rough adjustment
7 Handlebar locking fine adjustment
8 Lifting point
9 Weight Weight unit

HTC DURATIQ Machine description
D004753, 01.01 www.htc-floorsystems.com 19
No. Description Accessories
1 Control panel
2 Handle
3 Handle lock, Allen, 5 mm
4 Electrical connection
5Connection, dust extractor, camlock, male
2
6 Water connection, quick release Water package

HTC DURATIQ Machine description
20 www.htc-floorsystems.com D004753, 01.01
No. Description Accessories
1 Water tank Water package
2 Filter Mist Cooler System Water package
3 Pump Mist Cooler System Water package
4 Water, quick release Water package
5 Cooling fan Cooling unit
6 Connection panel for accessories
7 Cooling flange
