HTI ELECTRONIC TRIKE User manual

2+
IMPORTANT WARNING!
Designed & Manufactured by HTI Toys,
Copse Road, Fleetwood, FY7 7NY – UK
Made in China
V10_EN May 2020
Age:
2Years+
Maximum
user weight:
25Kg
1. For family and domestic use only.
2. Not to be used in traffic.
3. Adult assembly required.
4. Warning! Protective equipment should be worn.
5. This toy has no brake.
6. Warning: It is dangerous to use the toy in areas other than private grounds.
7. Never leave child unattended. Direct adult supervision is required.
8. Never use on roadways, near cars, on or near steep inclines or steps,
swimming pools or other bodies of water.
INSTRUCTION MANUAL
Read and understand this entire manual before assembly or use
This instruction manual contain important information which will help you get the best from your product
and ensure safe and correct assembly, use and maintance. Please read the instruction manual fully
before use. Failure to do so may result in damage to the vehicle or harm to the user. Please keep this
instruction manual for future reference.
Before first time use, charge the battery for at least 8-12 hours, no more than 20 hours.
If you need help or have damaged or missing parts, call the Customer Helpline:
www.htigroup.co.uk
[email protected]
[phone]
ELECTRONIC TRIKE

P. 1 P. 2
1
Pair
Left &
Right
1
Pair
Left &
Right
TABLE OF CONTENTS
ABOUT YOUR NEW ELECTRONIC TRIKE
Thank you for your purchasing our product, Keep these points in mind as you read this guide:
2+ years
Under 25Kg
2.5-3 km/h
PP
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND
ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.
• ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for
adult assembly only. Keep children away when assembling.
DC 6V 4.0AH *1
890*520*600mm
Below 40°C
Avoid to use under
burning sun
8-12 hours,
maximum 20 hours
F 5A, Self-resetting
Max. 300 times
fully charged
Load Capacity:
Speed:
Material:
Charger:
Battery:
Size Of Carriage:
Optimum
Temperature:
Charging Time:
Fuse:
Battery Life:
P. 1
P. 2-3
P. 4
P. 5-7
P. 8-9
P. 10
P. 11
P. 12
P. 13
ABOUT YOUR NEW ELECTRONIC TRIKE
PARTS LIST
PARTS DIAGRAM
ASSEMBLY STEPS
CHARGING YOUR ELECTRONIC TRIKE
HOW TO OPERATE YOUR ELECTRONIC TRIKE
TROUBLESHOOTING GUIDE
MAINTAINING YOUR ELECTRONIC TRIKE
DISPOSAL OF BATTERY
WARNING!
Suitable Age:
PARTS LIST
Front
Fairing
Body 1
Mud
Guard 1Windscreen
Wheel
Decor Front Fork
1
1
1 1
PART
NO.
PART
NAME
Qty
(pcs) REMARKSPICTURE PART NO.
PART
NAME
Qty
(pcs) REMARKSPICTURE
1
3
5
7
2
4
6
230-240V 50Hz
Output: DC 6V
Current: 500mA
Model No.:
LK-D060050
Type: Type G
Back Rest &
Light Pole
Front
Wheel
8

P. 3 P. 4
PARTS LIST
Bolt 1Front
Axle
M4X12
Screw M5 Nut
M5X28
Bolt Rear View
Mirror
PART
NO.
PART
NAME
Qty
(pcs) REMARKSPICTURE PART NO.
PART
NAME
Qty
(pcs) REMARKSPICTURE
ASSEMBLY PACKAGE
4
6
1
6
9
11
13
10
12
14
Spanner Charger
Decal Instruction
Manual
2
1
1
1
15
17
16
18
PARTS DIAGRAM
1
4
7
2
5
8
3
6
9
NOTE: Some parts are on the axles
10
13
11
14
12
22
Vehicle Body *1 Front Fairing*1 Mud Guard*1
Windscreen*1 Wheel Decor*2
Front Wheel*1
Front Fork*2
Back Rest &
Light Pole*1
M4X12 Screw*4
Bolt*1
Front Axle*1
Rear View Mirror*2
M5 Nut*6
M5X28 bolt*6
Spanner
Tools Required
Screwdriver
(not included)
Pliers
(not included)
1
2
2
6
14
14
6
11
12
13
12
11
11
9
9
7
4
3
5
10
10
10
10
10
10 10
10
8
5
1
Pair
Left &
Right

P. 5 P. 6
ASSEMBLY STEPS
• This product requires adult assembly. Please set aside at least 40 minutes for assembly.
• Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state. Care
should be taken in unpacking and assembly of the vehicle. Children should not handle parts, or help in
assembly of the vehicle.
• Please identify all parts before assembly and save all packaging material until assembly is complete to ensure
that no parts are discarded.
• Assembly tools needed: screwdriver(not included), pliers (not included), spanner.
Step 1
Step 2 Step 3
ASSEMBLY STEPS
5
10
15 155
● Close Front and Back Front Fairing 2 .
● Put the cable through the hole and fix with 3pcs M4x12 screws 11 .
● Insert Front Fork 6 into Front Fairing. Fix with 6pcs
M5x28 Bolt 13 and M5 Nut 12 .
● Follow Left / Right Symbol on Front Fork.
● Put the Windscreen 4 onto Front Fairing and fix with
1pc M4x12 screw 11 .
Step 4 Step 5
● Connect the wire of Front Fairing and Body 1 . ● Remove the nut of the Bolt 9 . Put the bolt through
Front Fairing and Body.
Step 6
● Put Mud Guard 3 through the legs of the front fork and fix with M5 nut 12
Step 7
● Install Front Wheel 8 with Front Axle 10 as diagram shown and tighten with spanners provided 15

P. 7 P. 8
BATTERY INSTALLATION & REPLACEMENT
●Loosen the screw by a screwdriver to open the battery compartment.
●Insert / replace the new batteries in the correct direction indicated inside the battery compartment.
●Close the compartment and screw shut securely.
BATTERY SAFETY PRECAUTION
●Non-rechargeable batteries are not to be recharged.
●Rechargeable batteries are to be removed from the toy before being charged.
●Rechargeable batteries are only to be charged under adult supervision.
●Different types of batteries or new and used batteries are not to be mixed.
●Only batteries of the same or equivalent type as recommended are to be used.
●Batteries are to be inserted with the correct polarity. (+ and -)
●Exhausted batteries are to be removed from the toy.
●The supply terminals are not to be short-circuited.
●Do not dispose of batteries in fire; batteries may leak or explode.
●Batteries should be replaced by an adult.
●Do not mix old and new batteries .
●Do not mix alkaline, standard (carbon-zinc) or rechargeable batteries.
DISPOSAL AND RECYCLING
Electrical product waste should not be discarded with household waste. Please actively support us in conserving
resources and protecting the environment by returning the non-working electrical products to an appropriate
disposable/ recycling centre (if available).
Please retain this instruction for reference.
WARNING!
CHARGING YOUR TRIKE
• The PEDAL SWITCH must not be pressed when charging.
• This product has CHARGING PROTECTION: When charging, all the functions will be cut off!

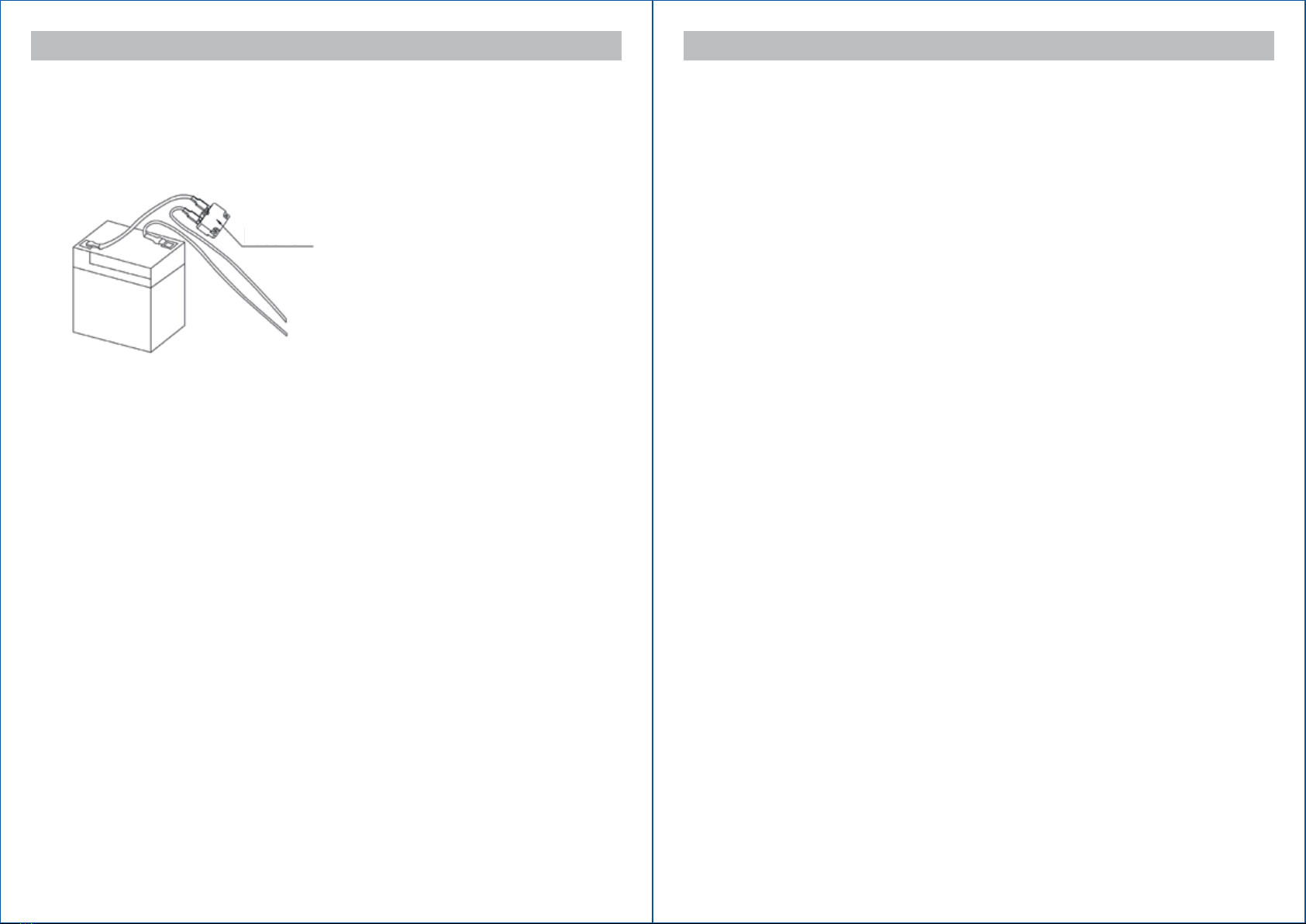

1. Unscrew and open the seat. Connect battery with RED wire. Then screw the seat back in place.
3
2
ASSEMBLY STEPS
Step 8
●Insert 2 x AA batteries into Back Rest & Light Pole 7 . Insert Back Rest & Light Pole 7 into Bike Body to fix it.
Step 9
● Insert Rear View Mirrors 14 into the handles.
2. Plug into the jack. Connector jack is located at the back of the trike body.
3. Plug in the adaptor pin into socket to start charging.
1

P. 10P. 9
WARNING!
Rules for Safe Riding
FORWARD & BACKWARD
HOW TO OPERATE YOUR TRIKE
READ THESE RULES ALOUD TO YOUR CHILD AND THEIR PLAYMATES AND MAKE SURE THEY
UNDERSTAND THEM!
• This Trike has no brake. Always wear a helmet and protective clothing when riding.
• Direct adult supervision required.
• Keep children within safe riding areas.
• Never use in roadway, near motor carriages, on lawn space, on or near steep inclines or steps, swimming pools
or other bodies of water.
• Use the toy only on flat surfaces, such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident. Operate the Trike
only in the daytime or a well-lit area.
• It is not recommended to drive the Trike on wet surfaces or on slopes of greater than 15 degrees.
• Do not use this Trike outdoors when it is raining or snowing.
• Make sure you come to a complete stop before changing directions from forward to reverse.
• Please follow the correct weight and age limits allowed to drive this Trike.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the Trike periodically.
• In order to avoid accidents, please ensure the Trike is safe before riding.
• Do not let any child touch the wheels or be near them when the Trike is moving.
MUST CONFIRM BEFORE USING THAT THE FOLLOWING WORK HAS BEEN COMPLETED:
• Important! Before using the Trike for the first time, the battery needs to be charged for 8 to 12 hours, no more
than 20 hours. Only an adult can charge or recharge the battery.
• Finish assembly according to the steps that the manual described.
• All places that need a screw guarantee the screw has been locked.
CHARGING YOUR TRIKE
Always stop the Trike when changing direction to avoid damage
to the gear box and motor.
IMPORTANT!
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!
- For the purpose of recharging the battery, only use the detachable supply unit provided with this toy. NEVER
substitute the battery or the charger with another brand. Using another battery or charger my cause a fire or
explosion.
- Do not use the battery or charger for any other product. Overheating, fire or explosion could occur.
- NEVER modify the electric circuit system. Tampering with the electric system may cause a shock, fire or explosion
or my permanently damage the system.
- Do not allow direct contact between battery terminals. Fire or explosion can occur.
- Do not allow any type of liquid on the battery or its components.
• PREVENT FIRE AND ELECTRIC SHOCK:
- Explosive gasses are created during charging. Do not charge near heat or flammable materials. Charge the
battery in a well-ventilated area ONLY.
- NEVER pick up the battery by the wires or charger. Damage can occur to the battery and may cause a fire. Pick
up the battery by the case ONLY.
- This toy contains batteries that are non-replaceable.
- Charge the battery in a dry area ONLY.
• Wash hands after handling.
• Do not open the battery. Battery contains lead acid and other materials that are toxic and corrosive.
• Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock. Only adults may
handle or charge the battery. NEVER allow child to handle or charge the battery. Battery is heavy and contains
lead acid (electrolyte).
• Do not drop the battery. Permanent damage to the battery could occur or cause serious injury.
• Before charging the battery, check for wear or damage to the battery, charger, its supply cord and the connectors.
DO NOT charge the battery if any damage to parts has occurred.
• Do not allow the battery to drain completely. Recharge the battery after each use or once a month if not used
regularly.
• Do not charge battery upside down.
• Always secure the battery with the bracket. Battery can fall out and injure a child if carriage tips over.
• A recommendation for adult supervision of young children.
• The toy should be used with caution since skill is required to avoid falls or collisions causing injury to the user or
third parties.
WARNING! • To operate the Trike, select a gear from the gear selection switch, there
are 3 settings- Forward, neutral/off and reverse.
• Once you have selected a gear, depressing the pedal will engage the
motor and move the Trike in the direction you selected.
• If you require to change direction - you must always release the pedal
and come to a complete stop before selecting a new gear. Failing to do
so will result in damage to the gear selection switch and/or the motor
and gear box.
STEERING
• The handle bars can be used to steer the bike left or right, when in
forward motion.
• Please note that when the Trike is being used in reverse, the controls will
also be reversed and some coordination by the driver may be required
to keep the bike under control.
SOUNDS
• The sound effects can be operated by pressing the buttons shown above,
they are not connected to the light on the light pole.
LIGHTS
• The only working lights are the headlight & the rear siren light on the
light pole.
• The headlight is activated when the pedal is pressed and the trike is
being driven.
• The rear siren light on the light pole is operated by the button shown.
AFTER USE
• When you have finished using the Trike set the power switch to the
neutral / off position.
Sound Effect 1
Sound Effect 2
Pedal
Gear Selection Switch
Siren Light on/off

P. 12P. 11
TROUBLESHOOTING GUIDE
• PROBLEM: THE TRIKE DOES NOT RUN.
PROBLEM CAUSE: The battery may be low on power.
After each use, or once a month minimum, charge the battery for 8-12 hours. Do not leave the battery on charge
for more than 20 hours.
POSSIBLE CAUSE: Thermal fuse has tripped.
The Trike is equipped with a self-resetting fuse. When the Trike is overloaded or operated incorrectly; the
self-resetting fuse will be cut off for 5-20 seconds before becoming operational again. The self-resetting fuse is
under the seat (Refer to the picture.)
MAINTAINING THE TRIKE
POSSIBLE CAUSE: Wheel nuts are loose.
If the nuts are not tight, the wheels will not engage the forward gears. Tighten the nut with the nut wrench.
POSSIBLE CAUSE: Battery connector or wires are loose.
Make sure the battery connectors are firmly plugged into each other.
POSSIBLE CAUSE: Battery is dead.
Have you properly maintained the battery according to the directions? Is the battery old? Your battery may need
to be replaced.
POSSIBLE CAUSE: Electric system is damaged.
Water may have corroded the system, or loose dirt, gravel or sand might have jammed the switch.
POSSIBLE CAUSE: Motor is damaged.
The motor needs professional repair.
• PROBLEM: THE BATTERY WILL NOT RECHARGE.
POSSIBLE CAUSE: Battery connector or adapter connector is loose.
Make sure the battery connector and adapter connector are firmly plugged together.
POSSIBLE CAUSE: Charger is not plugged in.
Make sure the charger is plugged into the wall outlet and the power flow to the outlet is on.
POSSIBLE CAUSE: Charger is not working.
Is the charger warm while charging? If not, the charger may be broken and may need to be replaced.
• PROBLEM: THE TRIKE DOES NOT RUN VERY LONG.
POSSIBLE CAUSE: Battery may be undercharged.
You may not be charging the battery long enough. After each use, or once a month minimum, charge the battery
for 8 to 12 hours. Do not leave the battery on charge for more than 20 hours.
POSSIBLE CAUSE: Battery is old.
The battery will eventually lose the ability to hold a charge. Depending on the amount of use, and varying
conditions the battery should operate for one to three years. Replace the battery with a new one.
• PROBLEM: BATTERY BUZZES OR GURGLES WHEN CHARGING.
This is normal and not a cause for concern. It may also be silent when charging, which is also normal.
• PROBLEM: CHARGER FEELS WARM WHEN RECHARGING BATTERY.
This is normal and not a cause for concern.
Fuse: 5A
Battery
• It is the parents' responsibility to check main parts of the Trike before using, must regularly examine for potential
hazard, such as the battery, charge, cable or cord, plug, screws or fastening enclosure of other parts and that in
the event of such damage, the Trike must not be used until that damage had been properly removed.
• Make sure the plastic parts of the Trike are not cracked or broken.
• Occasionally use a lightweight oil to lubricate moving parts such as wheels.
• Park the Trike indoors or cover it to protect it from wet weather.
• Keep the Trike away from sources of heat, such as stoves and heaters. Plastic parts may melt.
• Recharge the battery after each use. Only an adult can handle the battery. Recharge the battery at least once a
month when the Trike is not being used.
• Do not wash the Trike with a hose. Do not wash the Trike with soap and water. Do not drive the Trike in rain or
snowy weather. Water will damage the motor, electric system and battery.
• Clean the Trike with a soft, dry cloth. To restore shine to plastic parts, use a non-wax furniture polish. Do not use
car wax. Do not use abrasive cleaners.
• Do not drive the Trike in loose dirt, sand or fine gravel which could damage moving parts, motors or the electric
system.
• When not using, all the electrical source should be turn off. Turn off the power switch and disconnect the battery
connection.
To avoid the fuse cut off the power,
follow these guidelines:
DO NOT overload the Trike,
Maximum weight allowed: 25 kg
DO NOT tow anything behind the Trike.
DO NOT drive up steep slopes.
DO NOT drive into fixed objects, which may cause the
wheels to spin, causing the motor to overheat.
DO NOT drive in very hot weather, components may
overheat.
DO NOT tamper with the electric system, doing so may
create a short circuit, causing the fuse to trip.

P. 13
DISPOSAL OF BATTERY
●Your sealed lead-acid battery must be recycled or disposed of in an environmentally sound manner.
●Do not dispose of your lead-acid battery in a fire. The battery may explode or leak.
●Do not dispose of a lead-acid battery in your regular, household trash. The incineration, land filling or mixing of
sealed lead-acid batteries with household trash is prohibited by law.
●Return an exhausted battery to your local approved lead-acid battery recycle, such as a local seller of automotive
batteries.
●Contact your local waste management officials for other information regarding the environmentally sound recycling
and disposal of lead-acid batteries.
●The battery must be charged only by adult .Please charge the product before using!
●The toy should not be connected to excessive powers (more than the quantity specified herein), and it should not be
operated during charging process.
● Any rechargeable battery must only be charged under adult's supervision.
●Battery charger should regularly check the wires, plugs, casing and other parts for damage and if found should stop
using and restored.
●All batteries should be inserted with the correct polarity. (+ and -)
●The battery charger used with the toy are to be regularly examined for damage to the cord, plug, enclosure and
other parts, in the event of such damage, they must not be used until that damage had been repaired.
