LUNA2000-(5-30)-S0
Quick Guide
Issue: 01
Part Number: 31500EMA
Date: 2020-09-30

1
1Product Overview

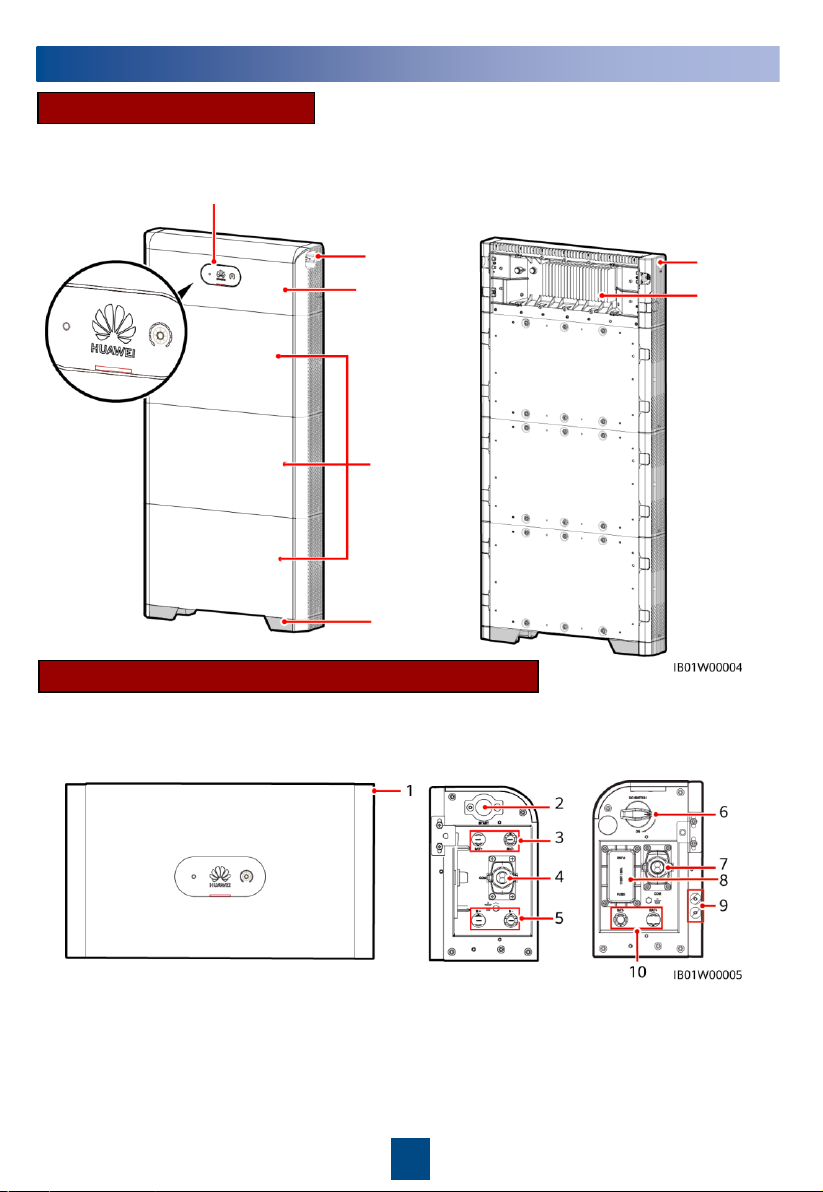

LUNA2000 Battery Appearance
Floor-
mounted
base
Power
control
module
Battery
expansion
modules
DC switch Black start
switch
Heat sink
Indicator
Note: The 15 kWh model is used as an example.
Power Control Module and Battery Expansion Modules
The LUNA2000 battery consists of a power control module and battery expansion modules. The
power control module is 5 kW, and a battery expansion module has a standard capacity of 5
kWh.
(1) Power control module
(2) Black start switch
(3) Battery terminals
(BAT+/BAT
–)
(4) COM port (COM)
(5) Battery cascading terminals
(B+/B
–)
(6) DC switch (DC SWITCH)
(7) COM port (COM)
(8)
Fuse (9) Ground point
(10) Battery terminals
(BAT+/BAT
–)
Front view Left view Right view
Copyright © Huawei Technologies Co., Ltd. 2020.
All rights reserved.
The LUNA2000 battery is applicable to the grid-tied or off-grid systems of residential rooftop PV
plants. It can store and release electric energy based on service requirements.

2

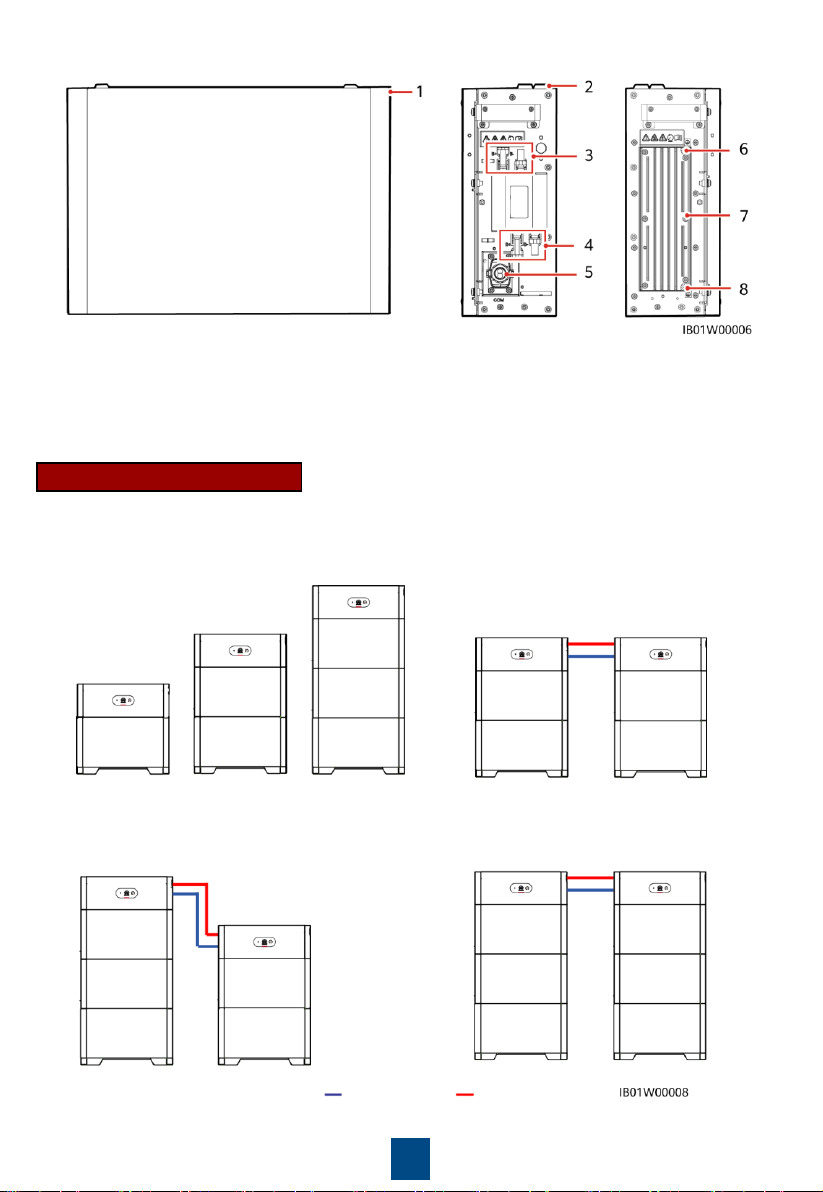

Battery Capacity Description
The battery supports power and capacity expansion. Two power control modules can be connected
in parallel. One power control module supports a maximum of three battery expansion modules.
(1) Battery expansion module
(2) Boss for alignment
(3) Battery cascading
terminals (B+/B
–)
(4) Battery cascading
terminals (B+/B–)
(5) COM port (COM)
(6) Ground point
(7) Heat sink
(8) Ground point
Front view Left view Right view
Signal cable DC input cable
5 kWh
10 kWh
15 kWh 20 kWh
25 kWh 30 kWh

3
Residential Rooftop PV System for Grid Connection
The residential rooftop PV system for grid connection generally consists of the PV module,
LUNA2000 battery, grid-tied inverter, management system, AC switch, and power distribution
box (PDB).
2Device Installation
Installation Requirements
2.1
Installation Environment
Note：Dashed boxes indicate optional components.

4
Installation Space
Mounting Hole Dimensions
Installing the Floor Support
2.2
Avoid drilling holes in the water pipes and cables buried in the wall.
INVERTER

5
The M6x60 expansion bolts delivered with the battery are mainly used for solid concrete walls and
concrete floors. If other types of walls and floors are used, ensure that the walls and floors meet
the load-bearing requirements and select the bolts by yourself.
Keep a distance of 10
mm to 15 mm between
the support and the wall
surface.
Align the
marking-off
template with the
upper surface of
the floor support.
Ground
Level Mounting holes for the
15 kWh module
Mounting holes for the
10 kWh module
Mounting holes for the
5 kWh module
Wall
Baseboard
Marking line

6

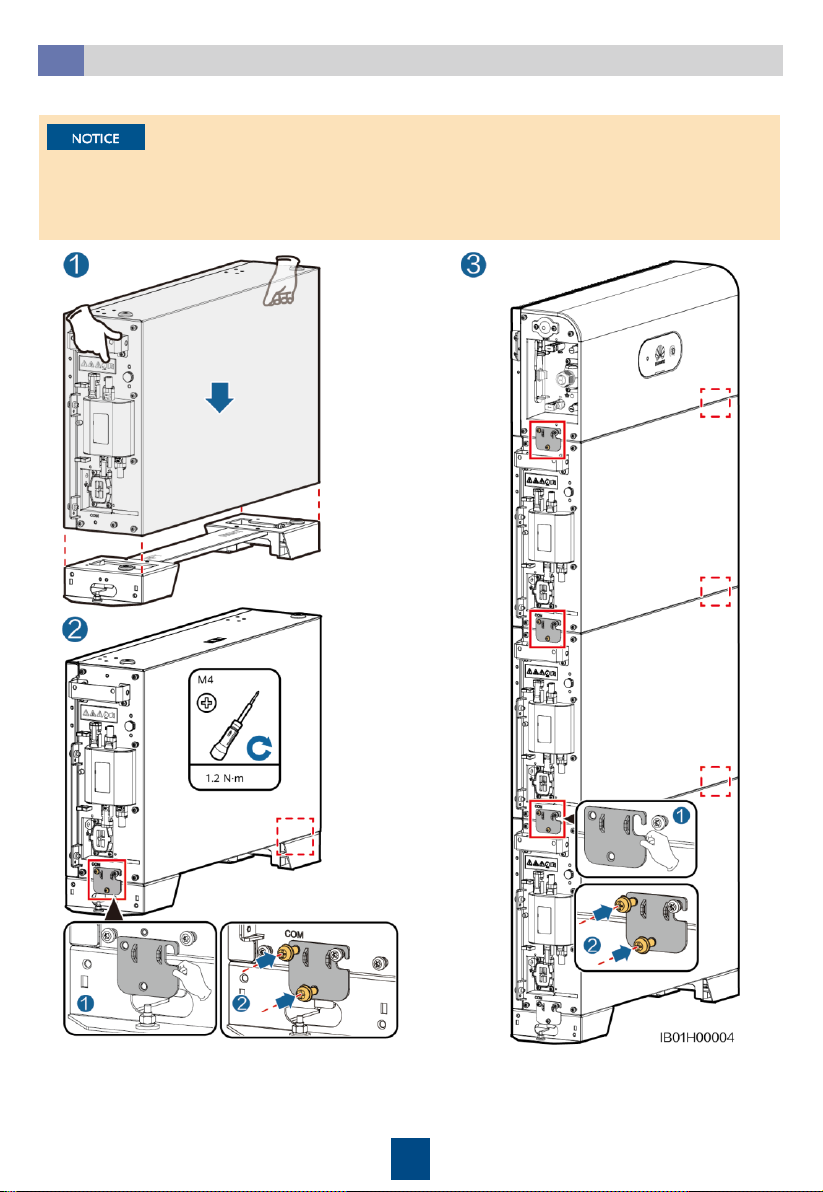

Installing Battery Expansion Modules
2.3
•The following describes how to install the battery expansion modules for a 15 kWh model.
•The installation of battery expansion modules for 5 kWh and 10 kWh models is the same.
One battery expansion module is installed for a 5 kWh model, and two battery expansion
modules are installed for a 10 kWh model.
1. Install the battery expansion modules and power control module on the support.
Align the first battery
expansion module with
the support on the floor
support.
Install the connecting
pieces on both sides
and tighten the four
screws.
Install the remaining battery modules and power module from bottom to top. After
installing a module, secure the left and right connecting pieces, and then install the
next module.

7
2. Secure the power control module to the wall.
Wall-mounted Installation
2.4
Mounting Hole Dimensions
You can adjust the
connecting piece
vertically to align
with the screw holes.

8
Level
Wall
Ground
Mounting holes for
the 15 kWh module
Mounting holes for
the 5 kWh module
Mounting holes for
the 10 kWh module
Support
Avoid drilling holes in the water pipes and cables buried in the wall.
You need to purchase the mounting kits for wall-mounted installation by yourself.
Installing the Support for Wall-mounted Installation
Mounting holes for
support

9
18
2
Installing an Internal Ground
Cable
3.1 Installing Internal DC
Terminals
3.2
Connect the ground
points of modules in
sequence, and secure
the ground cable using
a ground screw.
Insert the positive and
negative connectors
into the positive and
negative battery
cascading terminals
(B+ and B–).
•Connect cables in accordance with local installation laws and regulations.
•Before connecting cables, ensure that the DC switch on the battery and all the switches
connected to the battery are set to OFF. Otherwise, the high voltage of the battery may
result in electric shocks.
3Internal Electrical Connections of the Battery
•Internal electrical cables are delivered with the battery, see the Packing List in the packing
case.
•The Amphenol terminal is used as the DC terminal between the power control module and
the battery expansion modules.
click

10
Connecting Internal Signal Cables
3.3
When a communications terminal is connected to a single
network cable, a waterproof rubber plug must be installed.
2
•Connect cables in accordance with local installation laws and regulations.
•Before connecting cables, ensure that the DC switch on the battery and all the switches
connected to the battery are set to OFF. Otherwise, the high voltage of the battery may
result in electric shocks.
Preparing Cables
4.1
4External Electrical Connections of the Battery
Terminal of
battery modules
Terminal of
power
module
Securely
connected

11
Installing a Ground Cable
4.3
No.
Cable
Type
Conductor Cross
-
Sectional Area
Range
Outer Diameter
1
Ground cable
Single
-core outdoor
copper
-core cable
10 mm
2
-
2
DC input power cable
(inverter to battery
and battery to
battery)
Common outdoor PV
cable in the industry
4
–6 mm2
5.5
–9 mm
3
Signal cable (inverter
to battery and battery
to battery)
Outdoor shielded
twisted pair cable (8
cores)
0.20
–0.35 mm2
6.2
–7mm
Routing Cables Out of the Cable Hole
4.2
Before connecting external
cables, route the cables
through the cable hole to
avoid disconnecting after
installation.
Cut a cable hole based on
the cabling mode, and route
external cables through the
cable hole.
Prepare cables based on site requirements.
•Ground a ground point of the power control module.
•Apply silica gel or paint around the ground terminal after the ground cable is connected.
Power control module

12
Assembling DC Connectors
Click
Positive metal
terminal
Negative metal
terminal
Ensure that the cable
cannot be pulled out
after being crimped.
Positive
connector
Negative
connector
Use the wrench
shown in the figure
to tighten the
locking nut. When
the wrench slips
during the
tightening, the
locking nut has
been tightened.
Ensure that cable
polarities are
correct.
PV-CZM-22100
PV-MS-HZ
Open-end
wrench
Installing DC Input Power Cables
•Use dedicated insulated tools to connect cables. Ensure that battery cables are connected to
correct polarities. If the battery cables are reversely connected, the battery may be damaged.
1. You are advised to connect the battery terminals (BAT+ and BAT–) on the switch side to the
inverter and connect the other side to the cascaded battery.
2. The battery terminals use the Staubli MC4 positive and negative metal terminals and DC
connectors supplied with the solar inverter. Using incompatible positive and negative metal
terminals and DC connectors may result in serious consequences. The caused device damage is
not covered under warranty.
Installing DC Input Power Cables
4.4
click

13
COM Port Pin Definitions
The COM port definitions on both sides of the power control module are the same. It is
recommended that the COM port on the switch side be connected to the inverter and the COM port
on the other side be connected to the cascaded battery.
•When laying out a signal cable, separate it from power cables and keep it away from strong
interference sources to prevent communication interruption.
•Ensure that the protection layer of the cable is inside the connector, that excess core wires
are cut off from the protection layer, that the exposed core wire is totally inserted into the
cable hole, and that the cable is connected securely.
•Use a plug to block the idle cable hole with the waterproof rubber ring, and then tighten the
locking cap.
•If multiple signal cables need to be connected, ensure that the outer diameters of the signal
cables are the same.

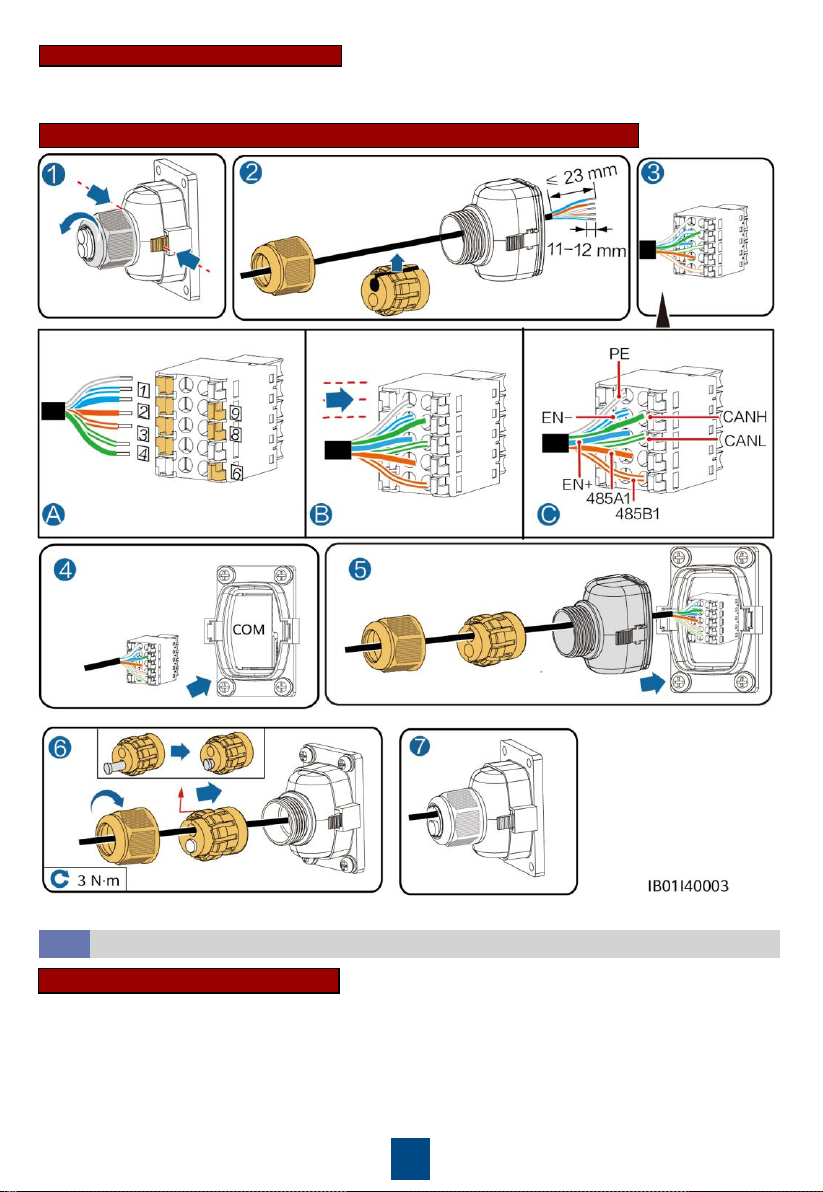

Installing a Signal Cable
4.5
No.
Label
Definition
Description
1
PE
Ground point on the shield
layer
Ground point on the shield layer
2
Enable
-
Enable signal GND
Connects to the enable signal GND of the
inverter.
3
Enable+
Enable signal+/12V+
Connects to the enable signal of the inverter and
the positive terminal of the 12 V power supply.
4
485A1
RS485B, RS485 differential
signal+
Connects to the RS485 signal port of the
inverter.
5
485A2
RS485A, RS485 differential
signal+
6
485B1
RS485B, RS485 differential
signal
–
Connects to the RS485 signal port of the
inverter.
7
485B2
RS485A, RS485 differential
signal
–
8
CANL
Extended CAN bus port
Used for signal cable cascading in battery
cascading scenarios.
9
CANH
Extended CAN bus port
Used for signal cable cascading in battery
cascading scenarios.
10
PE
Ground point on the shield
layer
Ground point on the shield layer

14
Waterproof
rubber plug on
the inverter side
Connecting the Communications Terminal to the Inverter
Cascading Networking
(1) Communications terminal for
cascaded batteries
(2) Communications terminal
connected to the inverter
(Optional) Cable Connections in Cascading Scenarios
4.6
Insert the terminals
according to the
silkscreen number.
6pin–10pin are close to
the groove side.

15
Connecting the Communications Terminal for Cascaded Batteries
Cascading DC Input Connection
Prepare DC connectors and connect DC battery cascading terminals (BAT+ and BAT–) for cascaded
batteries. For details, see section 4.4 "Installing DC Input Power Cables."
Insert the terminals
according to the
silkscreen number.
6pin–10pin are close to
the groove side.

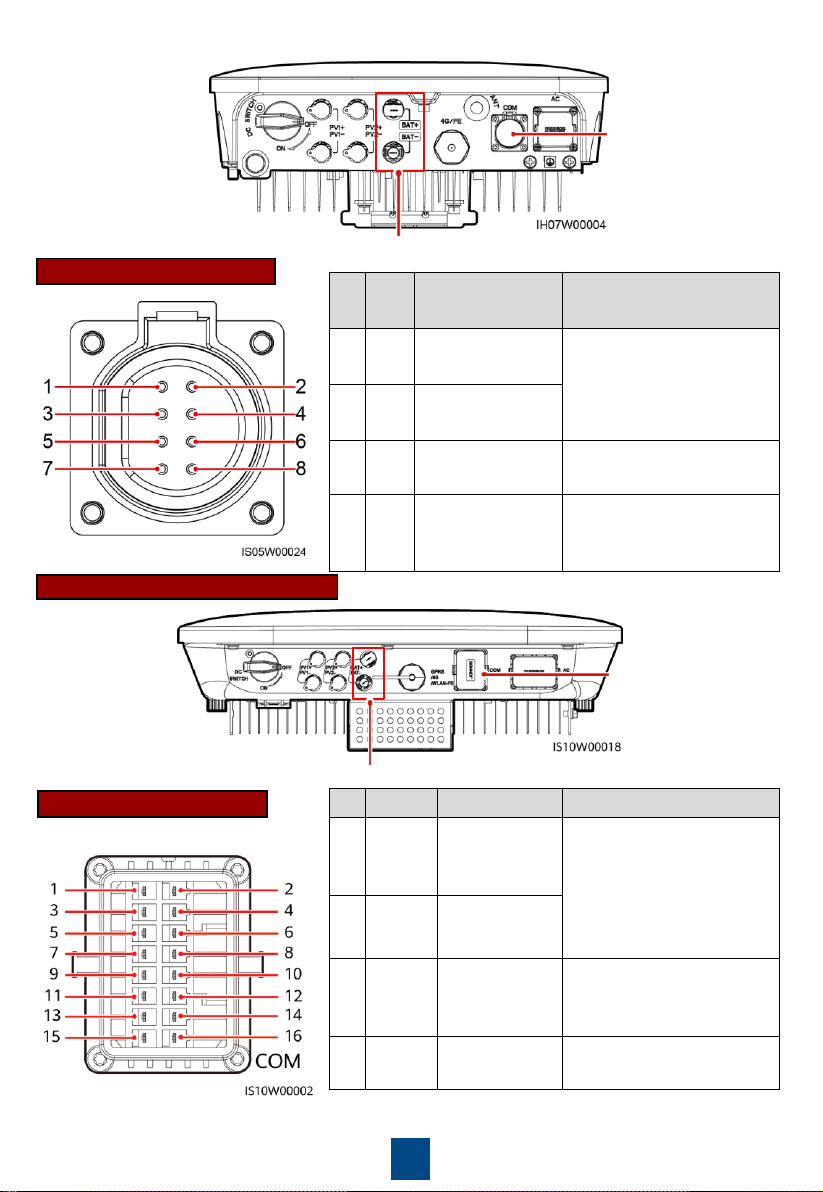

4.7 Connecting Cables to the Inverter
SUN2000-(2KTL-6KTL)-L1

16
COM Port Pin Definitions
No.
Label
Definition
Description
3
485
B2
RS485B, RS485
differential signal–
Used for connecting to
the RS485 signal ports of
the battery.
4
485
A2
RS485A, RS485
differential signal+
5
GND
GND
Used for connecting to
GND of the enable signal.
6
EN+
Enable
signal+
Used for connecting to
the enable signal of the
battery.
SUN2000-(3KTL-12KTL)-M1
No.
Label
Definition
Description
7
485A2
RS485A, RS485
differential
signal+
Used for connecting to
the RS485 signal ports of
the battery.
9
485B2
RS485B, RS485
differential
signal
–
11
EN+
Enable
signal+
Used for connecting to
the enable signal of the
battery.
13
GND
GND
Used for connecting to
GND of the enable signal.
COM Port Pin Definitions
Battery terminals (BAT+/BAT–)
COM port (COM)
COM port (COM)
Battery terminals (BAT+/BAT–)

17

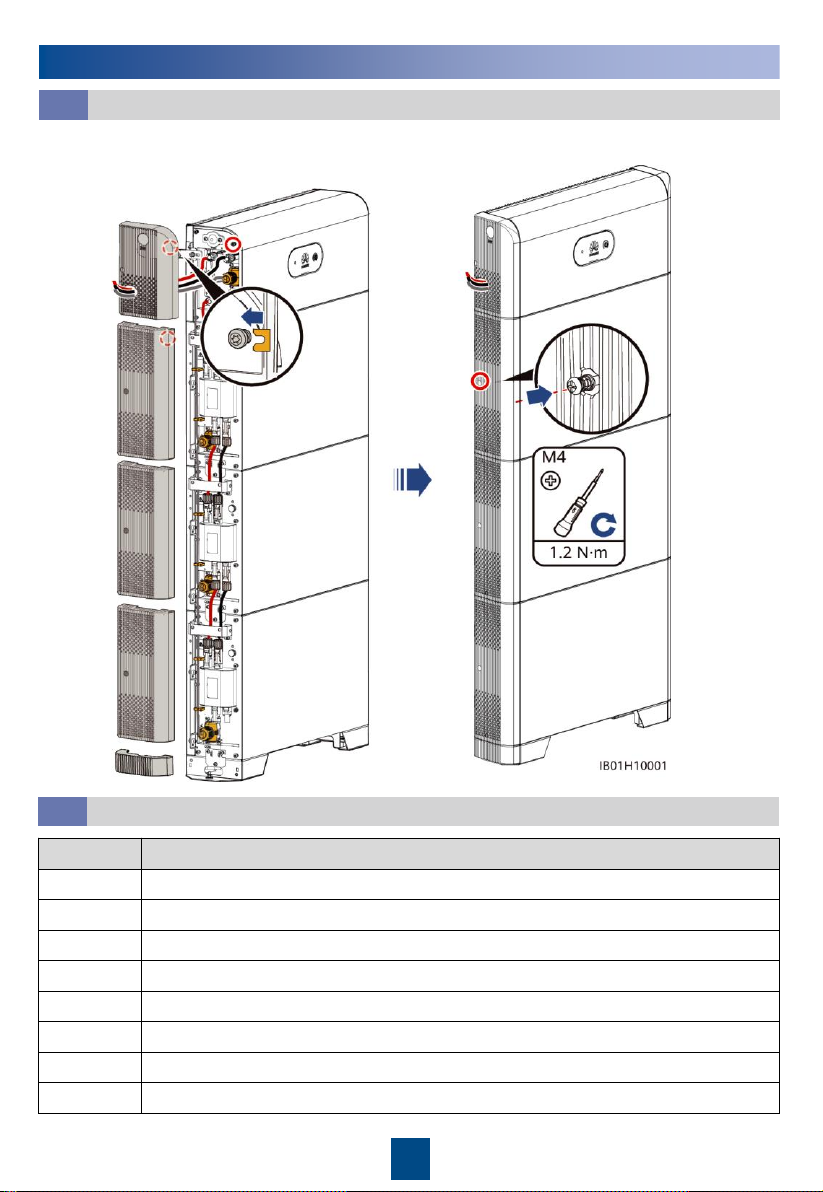

Verifying the Installation
5.2
5Verifying the Installation
No.
Acceptance Criterion
1
The battery is installed correctly and securely.
2
The cables are routed properly as required by the customer.
3
Cable ties are secured evenly and no burr exists.
4
The ground cable is connected correctly and securely.
5
The battery switch and all switches connected to the battery are OFF.
6
The DC input power cables and signal cables are connected correctly and securely.
7
Idle terminals and ports are locked by watertight caps.
8
The installation space is proper, and the installation environment is clean and tidy.
After electrical connections are complete, check that cables are correctly and securely connected,
install the external protective cover, and secure it using screws.
Installing the Cover
5.1

18
Product Overview
6Power-On Commissioning
•After turning on the battery switch, power on the inverter. For details about how to power on
the inverter, see the quick guide for the corresponding inverter model.
•If no PV module is configured, press the black start button.
Turn on the DC switch on the battery. After the battery is installed and powered on for the first
time, the ring LED blinks for three circles. Touch the LED and observe the battery indicator to check
the running status.
Connecting the Battery Supply
6.1
Battery Deployment
6.2
Download and install the FusionSolar app of the latest version by
referring to the quick guide for the corresponding inverter model or
the FusionSolar App Quick Guide. Register as an installer and create a
PV plant or owner (skip this step if an account exists). You can obtain
the FusionSolar App Quick Guide by scanning the QR code.
Type
Status (Blinking at long
intervals: On
for 1s and then
Off for 1s; Blinking at short
Intervals:
On
for 0.2s and then
Off for 0.2s)
Meaning
Running
indication
N/A
Steady green
Steady green
Operating mode
Blinking green
at long
intervals
Blinking green
at long
intervals
Standby mode
Off
Off
Sleep mode
Blinking red
at short
intervals
N/A
Battery power control module environment alarm
N/A
Blinking red at
short intervals
Battery expansion module environment alarm
Steady red
N/A
Battery power control module fault
N/A
Steady red
Battery expansion module fault
Battery
system
indication
N/A
Touch to display green
Indicates battery level. One bar represents 10%.
Steady red
The first three bars indicate the number of faulty
battery expansion modules.

19

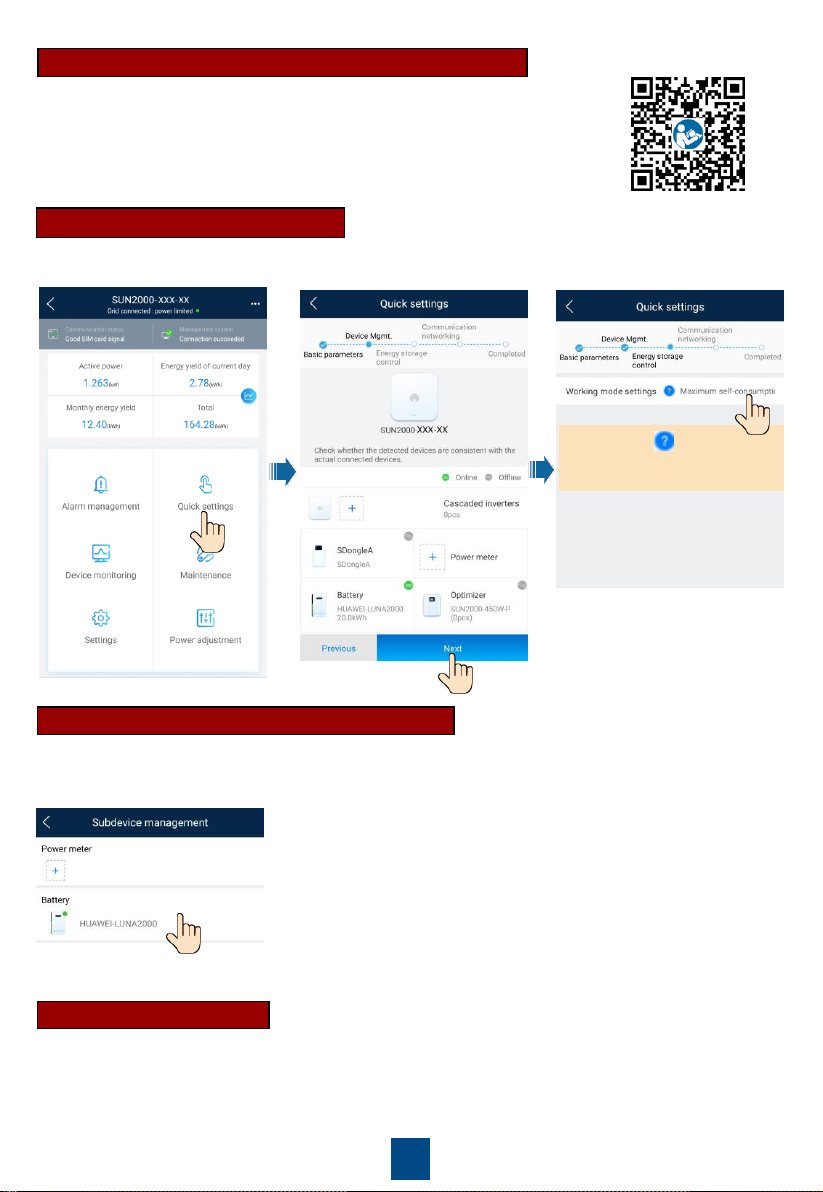

Log in to the FusionSolar app using the installer's account. Tap Quick Settings on the home
screen to add the battery and set the battery working mode.
On the home screen, choose Maintenance > Subdevice management, select the battery model,
and add batteries.
On the home screen, choose Power adjustment > Battery control, and set the battery
parameters and working mode.
Setting Battery Control
Quick Setup (New Deployment)
You can tap to obtain the
detailed working mode
information.
(Optional) Upgrading the Inverter and Smart Dongle
When the app connects to the inverter, a message is displayed, asking you to
upgrade the inverter version. Smart Dongle V100R001C00SPC117 and later
versions support LUNA2000 battery. But the Smart Dongle cannot be upgraded
locally. You need to perform the upgrade through the management system. The
upgrade procedure is updated in the Quick Guide. You can scan the QR code on
the right to obtain the Quick Guide.
Adding a Device (Battery Expansion Scenario)
