About This Document
Purpose
This document describes the battery boxes designed for the UPS2000-A-(1 kVA–3
kVA) series in terms of appearance, technical specications, installation, and
connections.
Intended Audience
This document is intended for:
● Technical support engineers
● Hardware installation engineers
● Commissioning engineers
Symbol Conventions
The symbols that may be found in this document are dened as follows.
Symbol Remarks
Indicates a hazard with a high level of risk
which, if not avoided, will result in death or
serious injury.
Indicates a hazard with a medium level of
risk which, if not avoided, could result in
death or serious injury.
Indicates a hazard with a low level of risk
which, if not avoided, could result in minor
or moderate injury.
Indicates a potentially hazardous situation
which, if not avoided, could result in
equipment damage, data loss, performance
deterioration, or unanticipated results.
NOTICE is used to address practices not
related to personal injury.
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide About This Document
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. ii

Symbol Remarks
Supplements the important information in
the main text.
NOTE is used to address information not
related to personal injury, equipment
damage, and environment deterioration.
Change History
Issue Date Description
05 2022-05-23 Added battery box models
ESS-36V12-9*2AHBPVBB-C,
ESS-72V12-9*2AHBPVBB-C, and
ESS-96V12-9*2AHBPVBB01-C, which are
applicable only in China.
04 2016-05-15 Updated the documentation.
03 2015-10-20 Updated the diagrams of connections
between battery boxes and a UPS.
02 2015-08-29 Updated the document specications.
01 2015-06-25 This is the rst ocial release.
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide About This Document
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. iii

Contents
About This Document................................................................................................................ ii
1 Safety Information.................................................................................................................. 1
2 Appearance and Characteristics...........................................................................................2
2.1 Appearance................................................................................................................................................................................ 2
2.2 Characteristics...........................................................................................................................................................................3
2.2.1 1 kVA UPS Battery Box.......................................................................................................................................................3
2.2.2 2 kVA UPS Battery Box.......................................................................................................................................................4
2.2.3 3 kVA UPS Battery Box.......................................................................................................................................................5
3 Installation Procedure............................................................................................................ 7
3.1 Unpacking and Checking...................................................................................................................................................... 8
3.2 Installation Preparations....................................................................................................................................................... 8
3.3 Procedure................................................................................................................................................................................... 9
4 Connecting Battery Boxes to a UPS.................................................................................. 10
4.1 Connecting Battery Boxes to a 1 kVA UPS...................................................................................................................10
4.2 Connecting Battery Boxes to a 2 kVA UPS...................................................................................................................10
4.3 Connecting Battery Boxes to a 3 kVA UPS...................................................................................................................11
A Acronyms and Abbreviations............................................................................................. 12
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide Contents
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. iv

1 Safety Information
● Only the designated professional technical personnel are allowed to install
and operate battery boxes.
● Read this document closely before operating battery boxes.
● When operating the equipment, comply with local laws and regulations.
● Do not modify default parameters unless required by the document or
approved by technical support engineers.
● To prevent electric shocks, use insulated tools and wear insulation gloves
when connecting cables.
● To prevent personal injury, wear protective shoes when moving battery boxes.
● In the case of re, use a dry powder extinguisher. Liquid extinguishant may
cause electric shocks.
● Do not touch uninsulated battery terminals. Otherwise, electric shocks may
occur.
● Using incorrect battery models may cause explosion. Dispose of used batteries
by following instructions.
● Cut o power supply and remove metal objects such as watches and rings
before maintenance.
● Do not transport the equipment by holding the front panel or wiring port
covers. Move the equipment in compliance with the corresponding
requirements. Figure 1-1 shows the transportation rules.

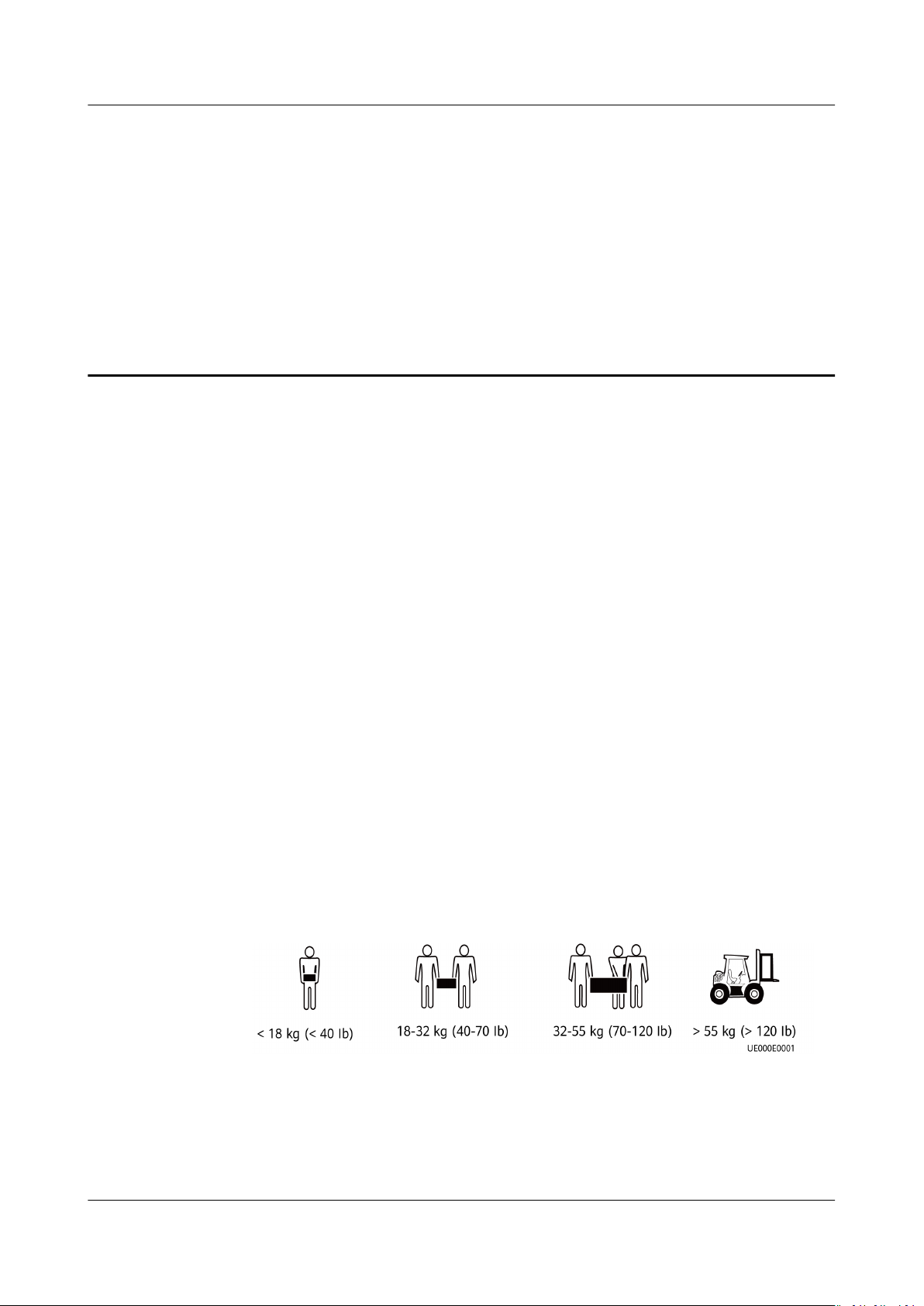

Figure 1-1 Transportation rules
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide 1 Safety Information
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 1

2 Appearance and Characteristics
2.1 Appearance
The model of the standard battery box for the 1 kVA UPS with long backup time is
ESS-36V12-9*2AHBPVBB (or ESS-36V12-9*2AHBPVBB-C, applicable only in China).
The model of the standard battery box for the 2 kVA UPS with long backup time is
ESS-72V12-9*2AHBPVBB (or ESS-72V12-9*2AHBPVBB-C, applicable only in China).
The model of the standard battery box for the 3 kVA UPS with long backup time is
ESS-96V12-9*2AHBPVBB01 (or ESS-96V12-9*2AHBPVBB01-C, applicable only in
China). The three models of battery boxes have similar appearances. This
document uses the standard battery box (ESS-96V12-9*2AHBPVBB01) for the 3
kVA UPS with long backup time as an example, as shown in Figure 2-1.

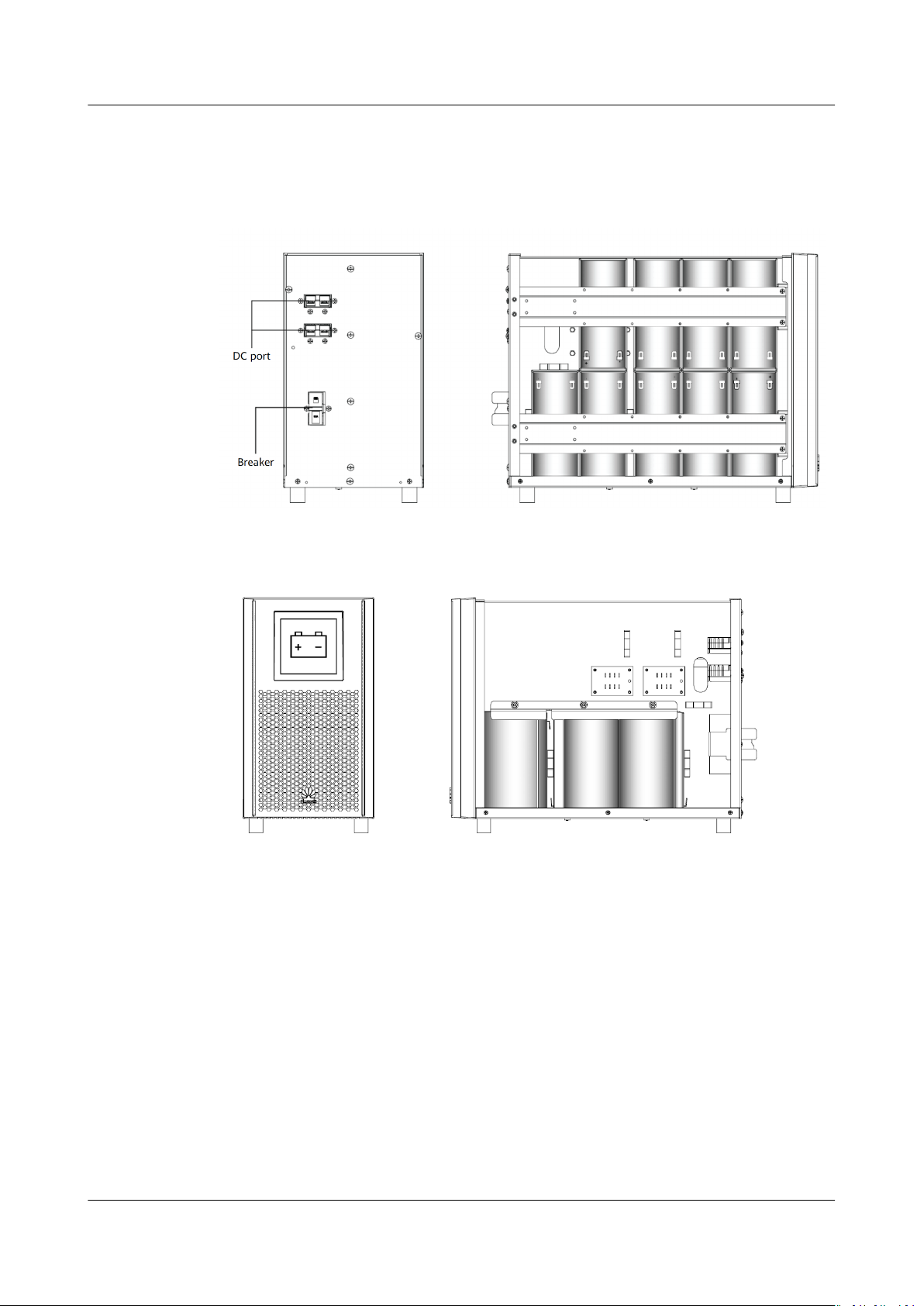

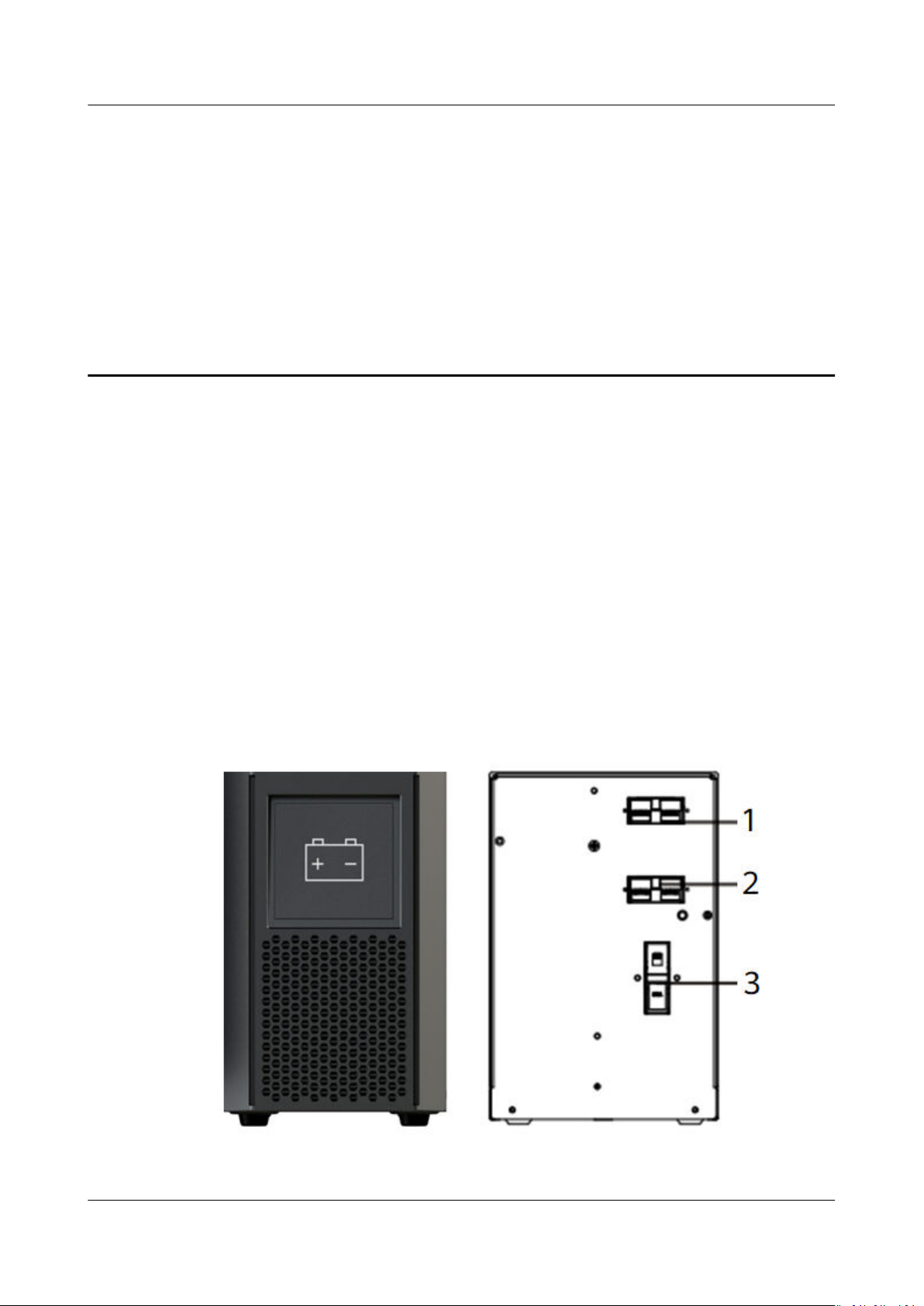

Figure 2-1 Appearance and external ports of the standard battery box
(ESS-96V12-9*2AHBPVBB01) for the 3 kVA UPS with long backup time
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide 2 Appearance and Characteristics
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 2

(1) DC port 1 (2) DC port 2
(3) Protection switch
Table 2-1 lists the input and output ports on the battery box.
Table 2-1 Input and output ports of the battery box
No. Port Port Type
1 DC port 1 SA50 x 2
2 DC port 2 SA50 x 2
2.2 Characteristics
2.2.1 1 kVA UPS Battery Box
Model
ESS-36V12-9*2AHBPVBB (or ESS-36V12-9*2AHBPVBB-C, applicable only in China):
two strings of 9 Ah, 36 V DC built-in batteries
Interior
Contains two battery strings. Each string contains three 9 Ah/12 V DC batteries.
The output voltage of the battery box is 36 V DC.
Basic Features
● Appearance: black
● Panel material: plastic
● Rear panel color: gray (SECC/SGCC)
● Dimensions (H x W x D): 220 mm x 145 mm x 397 mm
● Weight: 20 kg
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide 2 Appearance and Characteristics
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 3

Graphics of the Interior
Figure 2-2 ESS-36V12-9*2AHBPVBB or ESS-36V12-9*2AHBPVBB-C battery box
interior (left)
Figure 2-3 ESS-36V12-9*2AHBPVBB or ESS-36V12-9*2AHBPVBB-C battery box
interior (right)
2.2.2 2 kVA UPS Battery Box
Model
ESS-72V12-9*2AHBPVBB (or ESS-72V12-9*2AHBPVBB-C, applicable only in China):
two strings of 9 Ah, 72 V DC built-in batteries
Interior
Contains two battery strings. Each string contains six 9 Ah/12 V DC batteries. The
output voltage of the battery box is 72 V DC.
Basic Features
● Appearance: black
● Panel material: plastic
● Rear panel color: gray (SECC/SGCC)
● Dimensions (H x W x D): 318 mm x 190 mm x 421 mm
● Weight: 40.4 kg
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide 2 Appearance and Characteristics
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 4

Graphics of the Interior
Figure 2-4 ESS-72V12-9*2AHBPVBB or ESS-72V12-9*2AHBPVBB-C battery box
interior (left)
Figure 2-5 ESS-72V12-9*2AHBPVBB or ESS-72V12-9*2AHBPVBB-C battery box
interior (right)
2.2.3 3 kVA UPS Battery Box
Model
ESS-96V12-9*2AHBPVBB01 (or ESS-96V12-9*2AHBPVBB01-C, applicable only in
China): two strings of 9 Ah, 96 V DC built-in batteries
Interior
Contains two battery strings. Each string contains eight 9 Ah/12 V DC batteries.
The output voltage of the battery box is 96 V DC.
Basic Features
● Appearance: black
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide 2 Appearance and Characteristics
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 5

● Panel material: plastic
● Rear panel color: gray (SECC/SGCC)
● Dimensions (H x W x D): 318 mm x 190 mm x 535 mm
● Weight: 54.2 kg
Graphics of the Interior
Figure 2-6 ESS-96V12-9*2AHBPVBB01 or ESS-96V12-9*2AHBPVBB01-C battery
box interior (left)
Figure 2-7 ESS-96V12-9*2AHBPVBB01 or ESS-96V12-9*2AHBPVBB01-C battery
box interior (right)
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide 2 Appearance and Characteristics
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 6

3 Installation Procedure
NO TICE
Use battery boxes of the same model for installation or replacement. Do not use
battery boxes of dierent models together. For details, see the nameplate on the
enclosure. The following gures are for reference only.

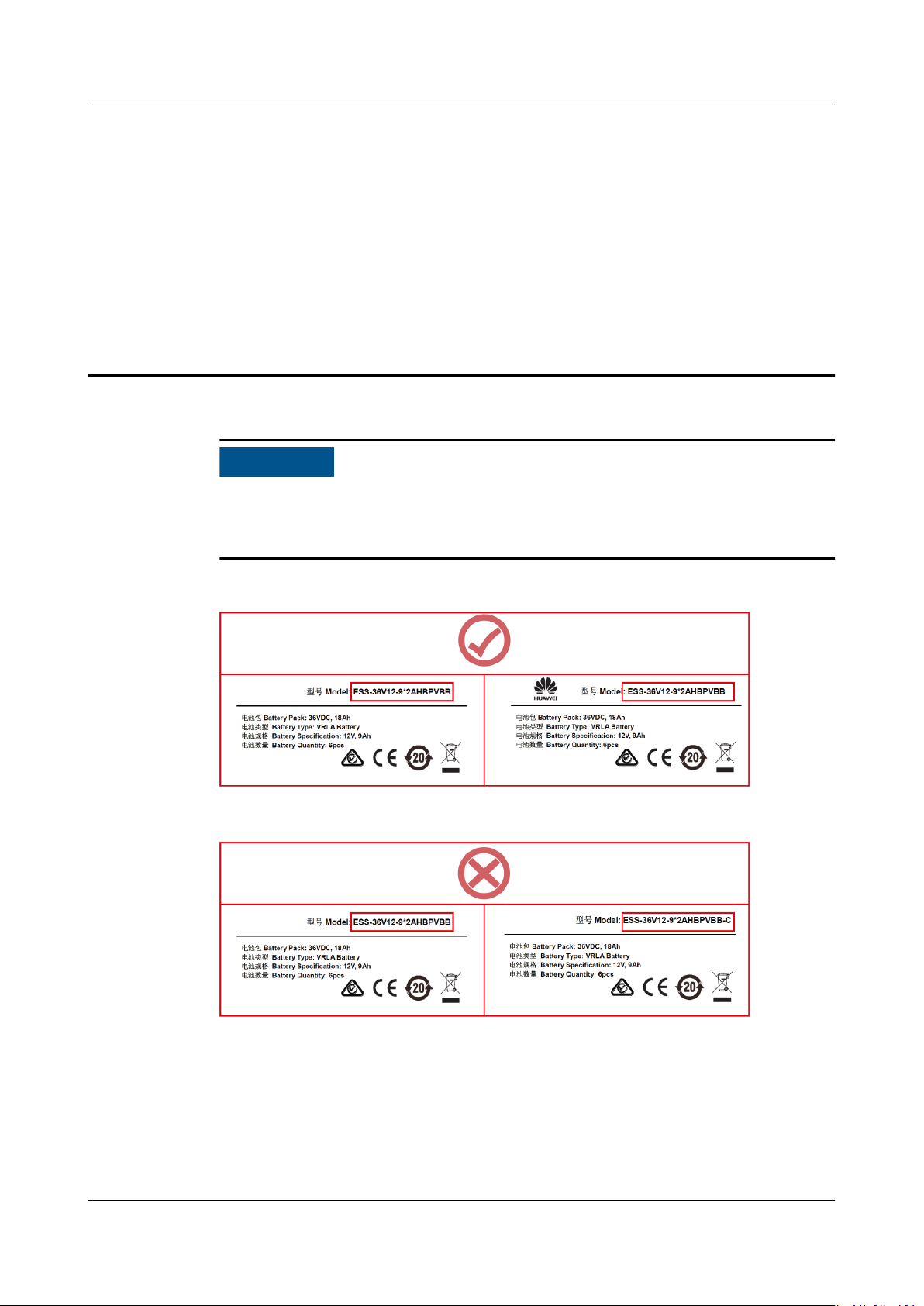

Figure 3-1 Same model
Figure 3-2 Dierent models
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide 3 Installation Procedure
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 7

Figure 3-3 Dierent voltages
3.1 Unpacking and Checking
After a battery box is delivered onsite, unpack it and check that:
● If any damage is found on the battery box appearance, contact the carrier
immediately.
● Check that the battery box barcode (on the rear of the box, near the wiring
port) is consistent with that specied in the order. If not, contact the local
Huawei oce immediately.
● Do not transport the equipment by holding the front panel or wiring port
covers.
● Do not wear rings, watches, or other metal objects when moving the battery
box.
3.2 Installation Preparations
NO TICE
Get tools insulated to prevent electric shocks.

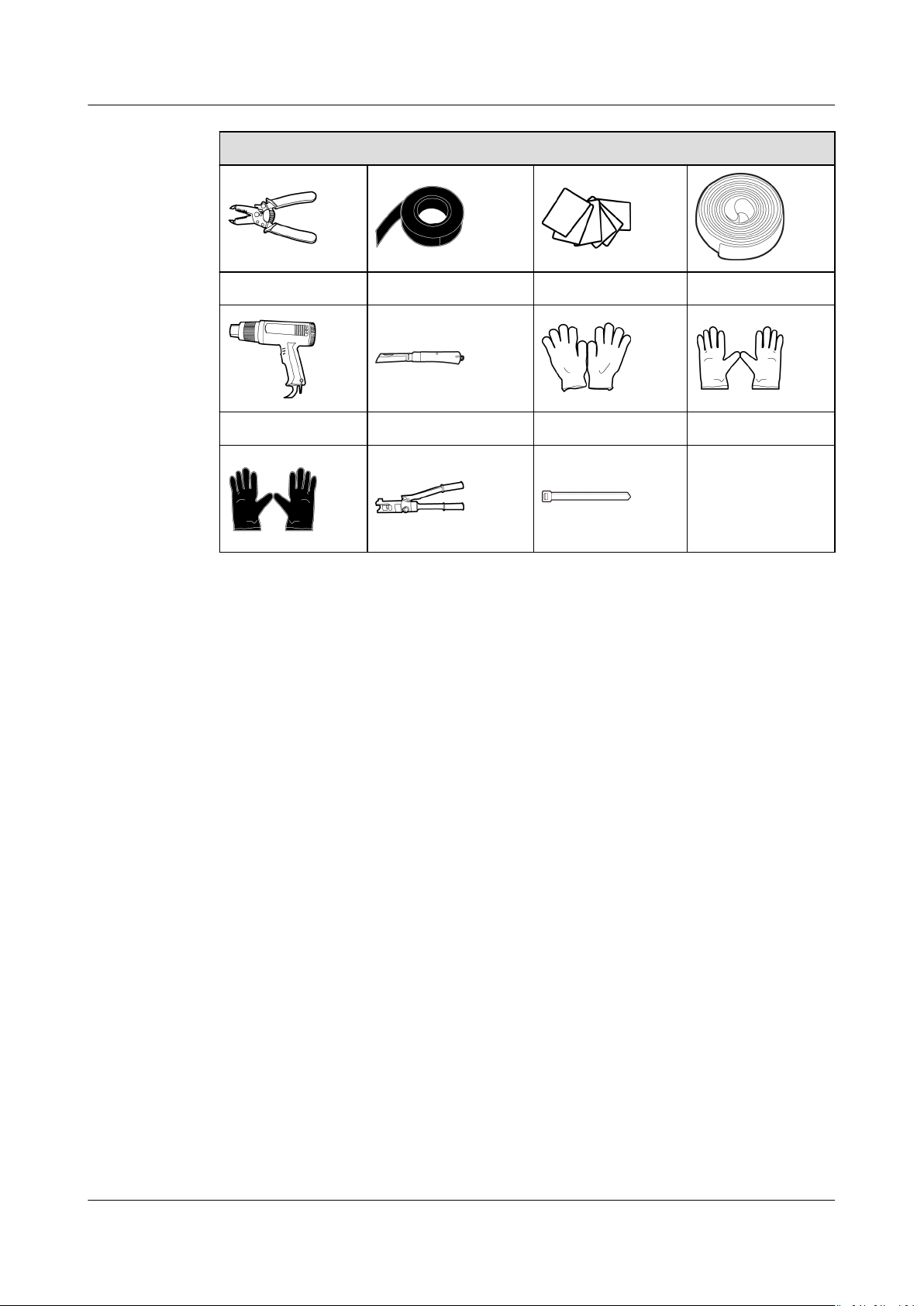

Table 3-1 Installation tools
Name, Specications, and Appearance
Multimeter Phillips screwdriver
(PH2 x 150 mm,
PH3 x 250 mm)
Flat-head
screwdriver (2
mm x 80 mm)
Torque
screwdriver
Wire stripper Insulation tape Cotton cloth Heat-shrink
tubing
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide 3 Installation Procedure
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 8

Name, Specications, and Appearance
Heat gun Electrician's knife Protective gloves ESD gloves
Insulated gloves Hydraulic pliers Cable tie -
-
3.3 Procedure
A tower-mounted battery box does not need any additional installation procedure
but can be placed on a stable installation surface.
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide 3 Installation Procedure
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 9

4 Connecting Battery Boxes to a UPS
4.1 Connecting Battery Boxes to a 1 kVA UPS
● A maximum of two ESS-36V12-9*2AHBPVBB (or ESS-36V12-9*2AHBPVBB-C,
applicable only in China) battery boxes can be connected in parallel.
● A battery box has two output ports that are connected in parallel and have
the same functions. If one of the output ports is used to connect to a UPS or
battery boxes connected in parallel, the other can be used to connect to an
external charger. Other spare ports on the battery box can also be used to
connect to the external charger.
● Before connecting cables, ensure that the battery box circuit breaker is OFF.

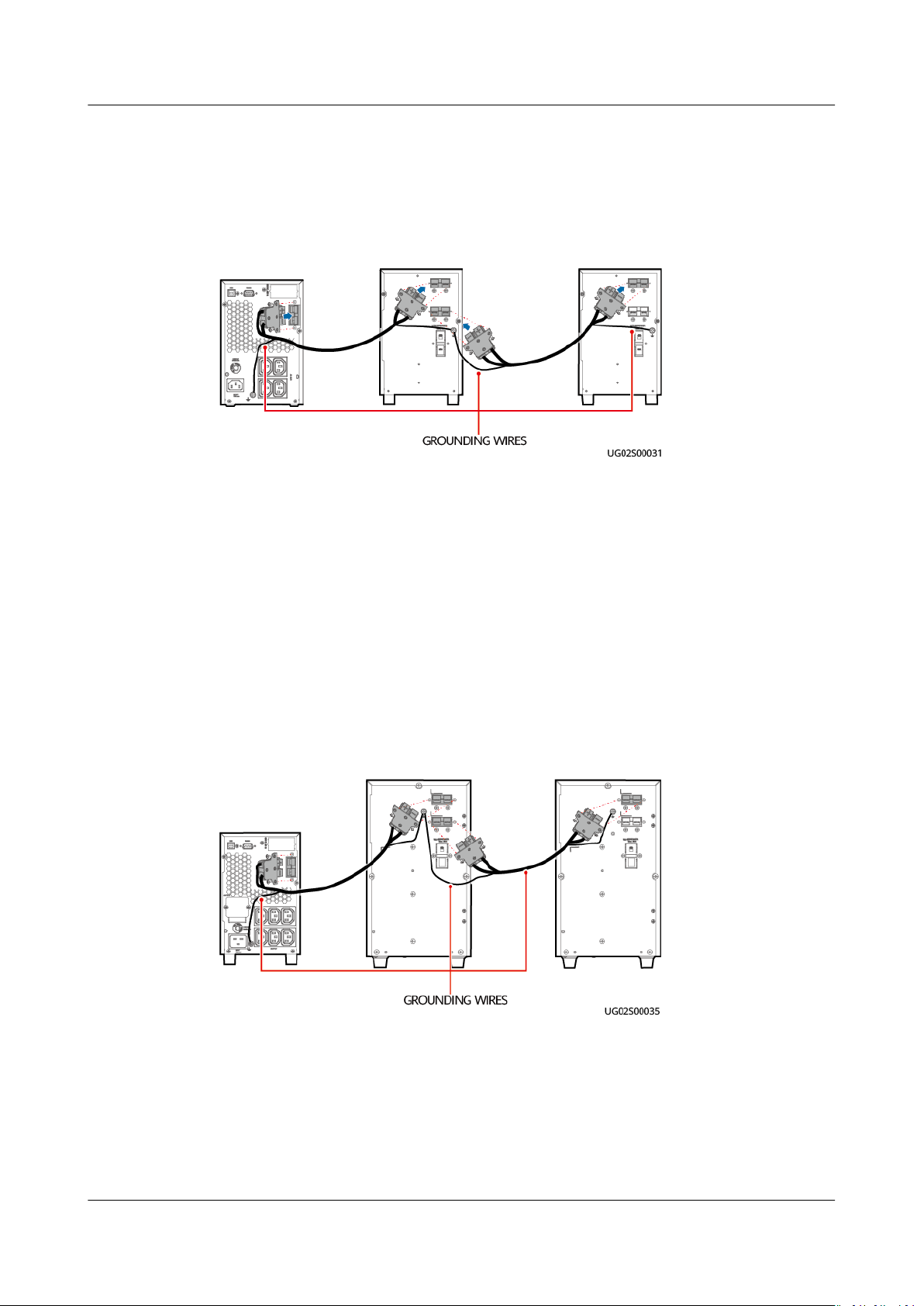

Figure 4-1 Connection between the ESS-36V12-9*2AHBPVBB or
ESS-36V12-9*2AHBPVBB-C battery boxes and a UPS
4.2 Connecting Battery Boxes to a 2 kVA UPS
● A maximum of two ESS-72V12-9*2AHBPVBB (or ESS-72V12-9*2AHBPVBB-C,
applicable only in China) battery boxes can be connected in parallel.
● A battery box has two output ports that are connected in parallel and have
the same functions. If one of the output ports is used to connect to a UPS or
battery boxes connected in parallel, the other can be used to connect to an
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide 4 Connecting Battery Boxes to a UPS
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 10

external charger. Other spare ports on the battery box can also be used to
connect to the external charger.
● Before connecting cables, ensure that the battery box circuit breaker is OFF.
Figure 4-2 Connection between the ESS-72V12-9*2AHBPVBB or
ESS-72V12-9*2AHBPVBB-C battery boxes and a UPS
4.3 Connecting Battery Boxes to a 3 kVA UPS
● A maximum of two ESS-96V12-9*2AHBPVBB01 or ESS-96V12-9*2AHBPVBB01-
C battery boxes can be connected in parallel.
● A battery box has two output ports that are connected in parallel and have
the same functions. If one of the output ports is used to connect to a UPS or
battery boxes connected in parallel, the other can be used to connect to an
external charger. Other spare ports on the battery box can also be used to
connect to the external charger.
● Before connecting cables, ensure that the battery box circuit breaker is OFF.
Figure 4-3 Connection between the ESS-96V12-9*2AHBPVBB01 or
ESS-96V12-9*2AHBPVBB01-C battery boxes and a UPS
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide 4 Connecting Battery Boxes to a UPS
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 11

A Acronyms and Abbreviations
U
UPS uninterruptible power system
UPS2000-A-(1 kVA–3 kVA) Battery Box
Quick Guide A Acronyms and Abbreviations
Issue 05 (2022-05-23) Copyright © Huawei Digital Power Technologies Co., Ltd. 12
