Huawei B315 LTE CPE User manual

B315 LTE CPE
Quick Start

31507338_01

1
1Getting to know your B315
Power indicator
On: the B315 is powered on.
Off: the B315 is powered off.
Network mode
indicator
Steady cyan (turquoise): connected to an LTE
network.
Steady blue: connected to a 3G network.
Steady yellow: connected to a 2G network.
Steady green: connected to an Ethernet network.
Steady red:
–The SIM card is not recognised, the PIN has not
been entered, or the PIN verification failed.
–Failed to connect to a mobile network or an
Ethernet network.
Wi-Fi/WPS
indicator
Steady: Wi-Fi available.
Flashing: a WPS connection is being set up.
Off: Wi-Fi unavailable.

2
LAN/WAN
indicator
Steady:
–At least one of the LAN ports is connected to a
device.
–WAN port is connected to an Ethernet port.
Flashing: data is being transmitted through a LAN
port or the WAN port.
Off:
–No device is connected to a LAN port.
–WAN port is not connected to an Ethernet port.
Signal strength
indicator
On: signal reception available.
Off: signal reception unavailable.
SIM card slot Install a standard SIM card to access the Internet via
an LTE/3G/2G data connection.
External antenna
port
Connect to external antenna after removing the
cover.
WPS button Press and hold for 2 or more seconds until
flashes, to activate WPS connection when Wi-Fi is
turned on.
Power button Press and hold for about 3 seconds to power the B315
on or off.
Reset button
Restoring the default settings of the B315 will erase all
previous settings.
When the B315 is powered on, use a small pointed
object to press and hold for minimum of 3 seconds
until indicator is flashing to restore the B315 to
its factory settings. After the factory defaults are
restored, the B315 will restart automatically.
Power port Connect to compatible power adapter.
LAN port Connect to computer, switch, or other LAN device.
LAN4/WAN port
Working as a LAN port when connected to a
computer, switch, or other LAN device.
Working as a WAN port when connected to an
Ethernet port.

3
USB port
Connect to a USB device.
This port cannot be connected to USB host devices
such as computers.
The B315 supports USB 1.0/USB 2.0 storage devices in
FAT32 format of up to 32 GB. Storage devices with
power supply requirements exceeding USB standards
may not work properly. It is recommended that you
provide an external power supply in these cases.
The B315 is compatible with samba-supported USB
printers.
Telephone port Connect to a telephone/Analogue FAX machine
2Installation
Scenario 1: Accessing the Internet using an LTE, 3G, or
2G network
Step 1: Installing the SIM card
1. Slide off the card slot cover.
2. Insert the SIM card into the card slot. Ensure that the beveled edge of the SIM card
aligns with that of the card slot.
3. Close the card slot cover.

4

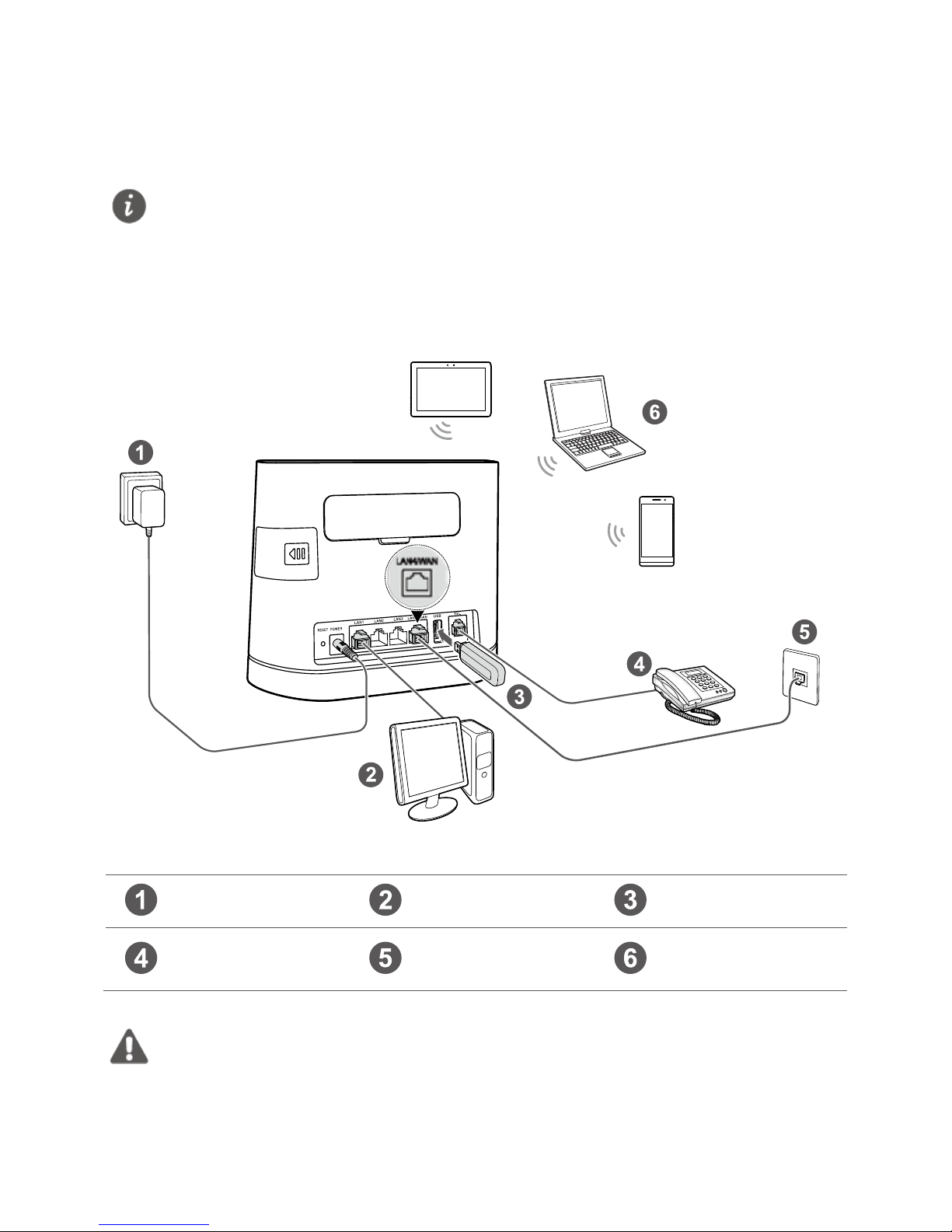

Step 2: Connecting cables
Once connected to a power outlet, the B315 automatically powers on.
Power adapter Computer USB device
Telephone/FAX
Machine
Laptop, tablet,
or smart phone
Do not remove the SIM card when it is in use. Doing so will affect the performance of
your B315 and data stored on the
SIM card may be lost.

To prevent interference caused by radio signals, place the B315 at least 1 meter (3.28
feet) away from telephone and other electrical devices.

Only use a power supply that is recommended and supplied by the manufacturer.
The B315's power adapter model is HW-120100XYW. X andY represent letters or
numbers that vary by region. For details about the specific adapter model, contact
the service provider or the authorised dealer.
Do not connect the B315 to the telephone wall outlet (or any Publ
ic SwitchedTelephone
Network).The excessive heat
could damage the B315.

5

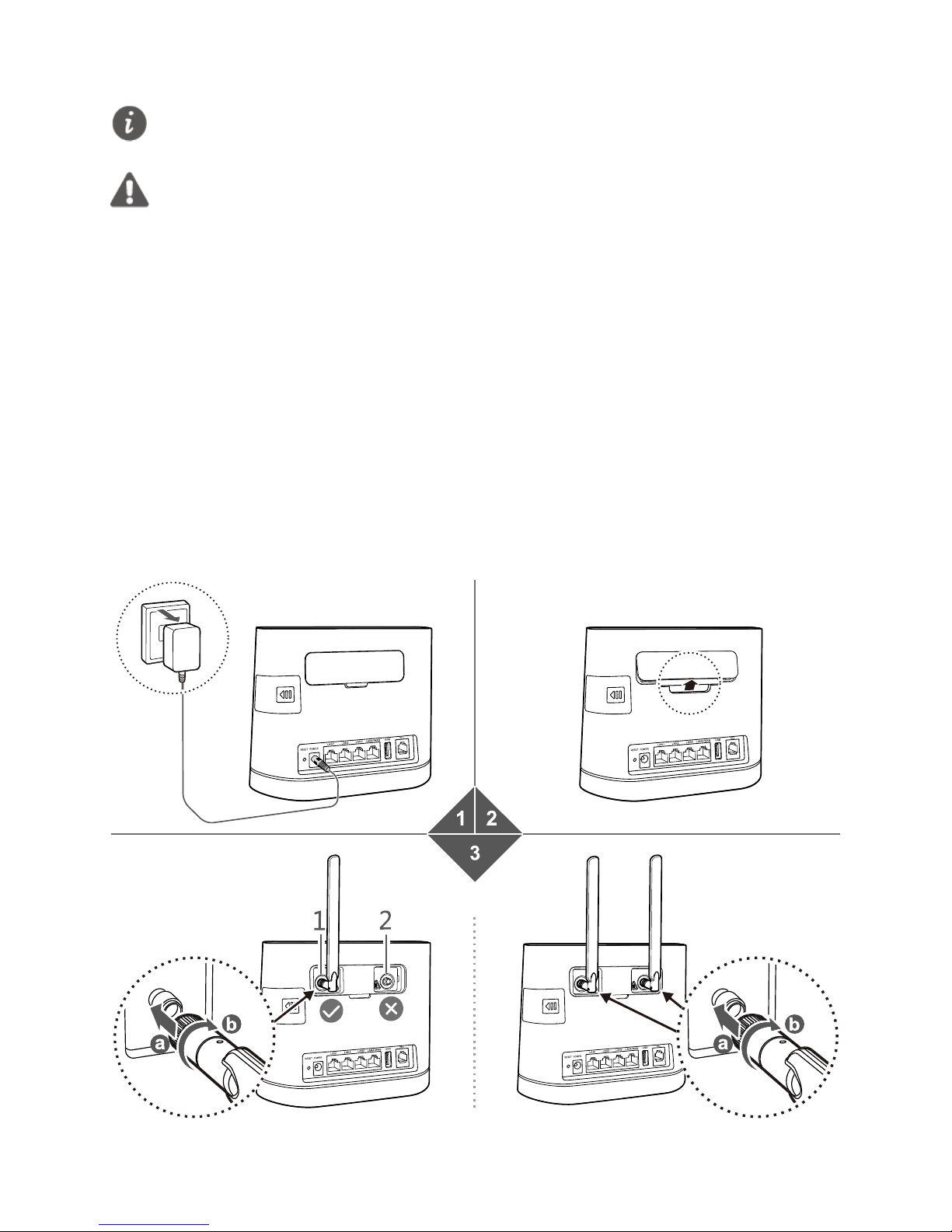

Optional: Installing the external antenna
In areas with poor reception, connect external antenna to the B315's external antenna
port to improve signal recept ion.
1. Power off the B315 and disconnect it from the power outlet.
2. Use a small tool, such as a paper clip, to remove the cover from the antenna ports.
Store the cover in a safe place.
3. Install one or two external antennae depending upon the signal strength. Make sure
the external antennae are securely connected to the antennae ports.
For weak indoor signal strength, an omni-directional outdoor antenna can be purchased
from Telkom SA SOC Ltd. It is recommended that only 1 antenna be used.
If you are using only one external antenna, connect it to port 1.
The external antenna
e may/may not be supplied with the device.

Before installing the external antenna, ensure that the B315 is powered off and
disconnected from the power outlet.

The external antenna that is supplied with the device can only be used indoors.

6
Optional: Adding a printer
1. Install the printer's driver in your computer, and then connect the computer and the
B315 via wired way or Wi-Fi way.
2. Connect printer to the B315 with USB cable and then power on them.
3. Log in to web management page, and choose Settings > Advanced > Storage
Services.
4. Check the Enable samba, and click Apply.
5. Click Add, to configure the parameters as follows.
User name/Password: Follow the page to enter username and password. When
accessing Samba, you need to input these parameters to login.
Right: Select Read only or Read/Write.
Directory: Click Browse and select the root directory of the printer.
6. Choose Start > Run, enter the default IP address of the B315: http://192.168.8.1,
and then press Enter.
7. In the shown dialog box, enter the username and password you have configured on
the Storage Services page to access to the Samba service.
8. Double click the printer icon in the window, follow the wizard and select the
corresponding printer driver to add a printer. Wait a few minutes for the settings to
take affect.
9. Check the status of printer from Control Panel, printer window. Status should be
shown ready. Now you can use the printer.

Take a computer with Windows 7 operating system as an example.

If the external USB printer cannot be used, please consult the printer manufacturer
whether this method is supported.

7
Scenario 2: Accessing the Internet using Ethernet
Connect the B315 to a wall-mounted Ethernet port or an ADSL modem for Internet
access.
Once connected to a power outlet, the B315 automatically powers on.
Power adapter
Computer
USB flash drive
Telephone/ FAX
Machine
Ethernet port
on the wall
Laptop, tablet,
or smart phone

To prevent interference caused by radio signals, place the B315 at least 1 meter (3.28
feet) away from telephone and other electrical devices.

Only use a power supply that is recommended and supplied by the manufacturer.
The B315's power adapter model is HW-120100XYW. X andY represent letters or
numbers that vary by region. For details about the specific adapter model, contact
the service provider or the authorised dealer.
Do not connect the B315 to the telephone wall outlet (or any Public SwitchedTelephone
Network), because doing so could damage the B315 due to excessive heat.

8
3Setting up a Wi-Fi connection
Step 1: Enabling Wi-Fi on the B315
When the indicator is steady on, the Wi-Fi funct ion of the B315 is turned on.
Step 2: Recording the SSID and Wi-Fi key
The default SSID and Wi-Fi key are printed on the label at the bottom of the B315.
Step 3: Setting up a Wi-Fi connection on your client
Method 1: Setting up a Wi-Fi connection manually

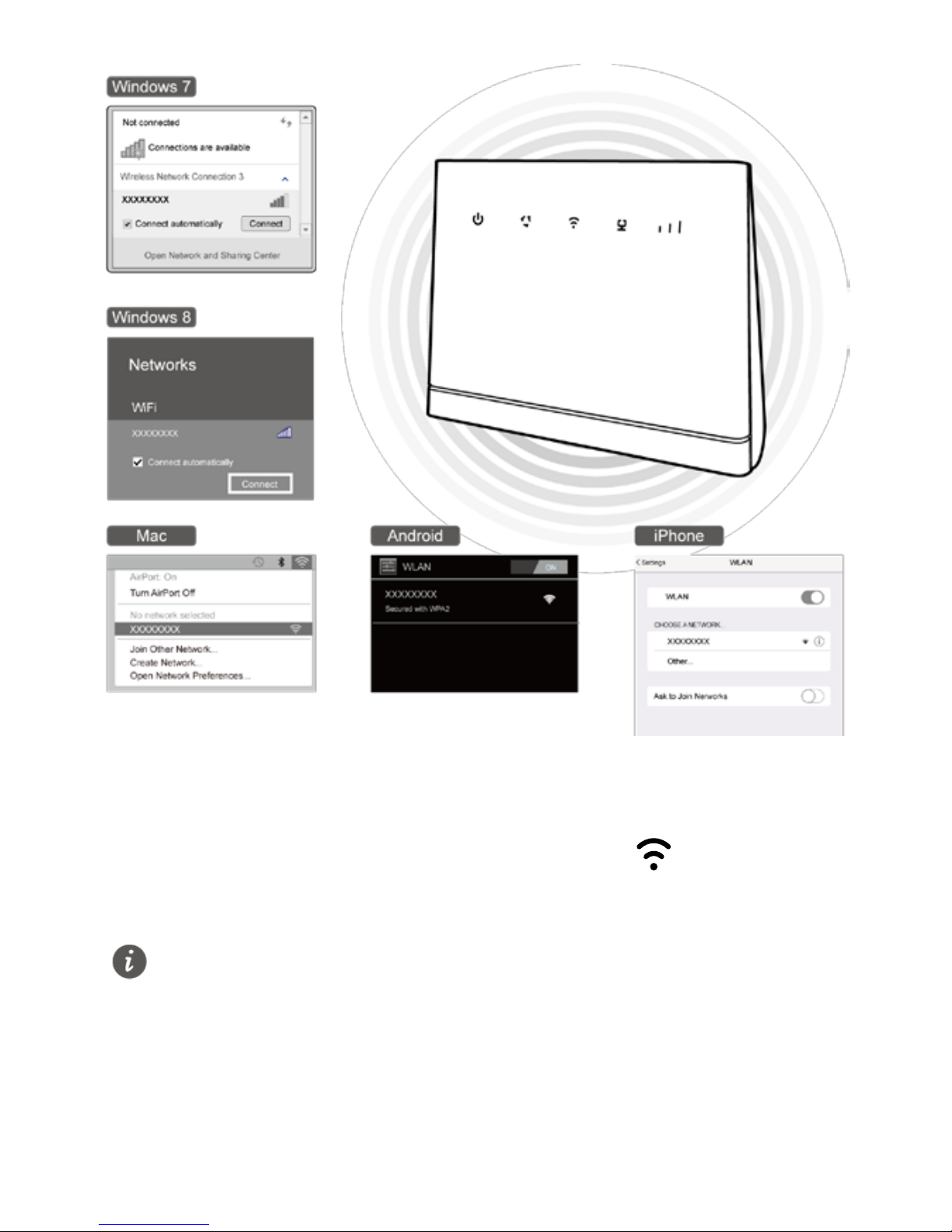

1. From your Wi-Fi enabled client, scan for wireless networks in your area.
2. Connect to the network name that matches the SSID found on the device label.
3. When prompted for password, enter the Wi-Fi Key found on the device label. (The
Wi-Fi key is case sensitive.) Your client will notify you when it is connected.
Ma
ke sure your client (computer, tablet, or smart phone) also supportsWi-Fi.
For details about how to manually enable or disable the Wi
-Fi function, refer to the
WLAN settings section of the help information on the web management page.
Refer to
section 4 for more information
To prevent unauthoris
ed access to your Wi-Fi network, it is recommended that the
SSID
and Wi
-Fi key be changed at random. For details, see the help information on the web
management page.
Refer to section 4 for more information

9
Method 2: Setting up a Wi-Fi connection through WPS
If the client supports WPS, you can set up a WPS connection as follows:
1. Ensure that Wi-Fi is enabled on the client.
2. Press and hold the WPS button for 2 or more seconds. The indicator then
starts flashing.
3. Activate the WPS connection on the client within 2 minutes.
For instructions about how to enable a WPS connect
ion on the client, see the client's
user guide.

10
4Configuring your B315
1. After a client is connected to the B315 through Wi-Fi or LAN port, launch a browser
on the client and visit web management page (http://192.168.8.1).
2. Enter the user name (admin by default) and password (admin by default) to log in to
the web management page.
3. Follow the quick setup wizard to check or set network connection parameters step
by step. For details, see the help information on the web management page.
Once you are done, try opening a web page on the client to verify whether you have
Internet access.

To protect your account, change the password after your first login. For details, see
the help information on the web management page.

If you modify the SSID and Wi-Fi key, you must set up the Wi-Fi connection on the
client again.

11
5Frequently asked questions
What can I do if I cannot log in to the web management page?
1. Check if the power indicator on the B315 is steady on. If not, power on the B315.
2. Check whether the connection between the client and B315 is working properly.
–If the client is connected to the B315 using a network cable, check whether the
LAN/WAN indicator is steady on or flashing.
–If the client is connected to the B315 through Wi-Fi, go to the Wi-Fi connection
page to check the connection status.
3. Check that the client is set to automatically obtain an IP address and DNS server
address.
What can I do if the B315 cannot access the Internet?
1. Check if the power indicator on the B315 is steady on. If not, power on the B315.
2. Go to the web management page of the B315 to check the network status (Refer to
section 4 for more information ).
–If no SIM card is detected, power off the B315 and disconnect the power adapter,
remove and reinstall the SIM card and try again.
–If PIN code is not verified, enter the PIN code as required, and try again.
–If no network is available, move the B315 to a more appropriate place, such as the
window, to get better signal, and try again.
–If the dial-up connection failed, make sure the APN and account informat ion are
correctly set, and try again.
3. If the problem persists, contact your local Internet Service Provider (ISP).
Why am I unable to access Wi-Fi on a client?
1. Check if the power indicator on the B315 is steady on. If not, go to the web
management page of the B315 to enable the Wi-Fi function.
2. Check whether the client is within the range of the B315. If not, adjust the placement
of the B315 or the client.
3. Check whether the Wi-Fi password is correct. Note that the Wi-Fi password is case-
sensitive. The default password is printed on the label at the bottom of the B315. To
change the password, go to the web management page (Refer to section 4 for more
information)
4. Check whether your client's network adapter supports 802.11b/g/n, otherwise the
client cannot connect to the B315.

12
5. If the problem persists, restart your B315 or restore it to its factory settings. Note
that restoring your B315 will erase all your customized settings.
6For more help
If you are experiencing any issues with the B315:
Restart the B315.
See the help information on the web management page.
Restore the B315 to its factory settings.
Contact your service provider.
Please visit http://consumer.huawei.com/en/support/hotline for recently updated
hotline and email address in your country or region.
Figures in this guide are for your reference only. Specific models may vary slightly
.
Contact
your service provider for more detailed information.

13
7Safety information
This sect ion contains important information about the operation of your device. It also
contains informat ion about how to use the device safely. Read this informat ion
carefully before using your device.
Electronic device
Do not use your device where prohibited. Do not use the device if it causes a danger or
interference with other electronic devices.
Interference with medical equipment
Follow the rules and regulat ions set forth by hospitals and health care facilit ies. Do
not use your device where prohibited.
Some wireless devices may affect the performance of hearing aids or pacemakers.
If you use a pacemaker, locate the device on the side opposite the pacemaker, and
do not carry the device in your front pockets.
Areas with flammables and explosives
Do not use the device where flammables or explosives are stored (in a gas station, oil
depot, or chemical plant, for example). Using your device in these environments
increases the risk of explosion or fire. In addition, follow the site instruct ions
indicated in text or symbols.
Do not store or transport the device in containers with flammable liquids, gases, or
explosives.
Operating environment
Avoid dusty, damp, dirty environments or magnetic fields. Use of the device in these
environments may result in circuit malfunctions.
Before connect ing and disconnecting cables, power off the device and disconnect it
from the power supply. Ensure that your hands are dry during operation.
Place the device on a stable surface.
Keep the device away from electronic appliances that generate strong magnetic or
electric fields, such as microwave ovens or refrigerators.
Power off your device and disconnect all cables connected to it, to minimise/protect
it during thunderstorms or lightning strikes.
Ideal operating temperatures are 0°C to 40°C. Ideal storage temperatures are
-20°C to +70°C. Extreme heat or cold may damage your device or accessories.
Keep the device and accessories in a well-ventilated and cool area away from direct
sunlight. Do not enclose or cover your device with any objects. Do not place the

14
device in a container with poor heat dissipation, such as a box or bag.
To protect your device or accessories from fire or electrical shock hazards, avoid
contact with any liquid or very high humidity.
Keep the device away from sources of heat and fire, such as a heater, microwave
oven, stove, water heater, radiator, or candle.
Do not place any object, such as a candle or a water container, on the device. If any
foreign object or liquid enters the device, immediately stop using it, power it off, and
disconnect all cables connected to it. Then, contact an authorized service center.
Do not block device openings. Reserve a minimum of 10 cm around the device to
dissipate heat.
Stop using your device or applications, if the device is overheating. Wait until the
device is totally cooled down before re-starting. If your skin is exposed to an
overheated device for an extended period, low temperature burn symptoms, such as
red spots and darker pigmentat ion, may occur.
Do not touch the device's antenna/e. Communication quality may be reduced.
Keep children and/or pets away from the device or accessories. Doing so may
prevent damage.
Observe local laws and regulations, and respect the privacy and legal rights of others.
The device should be installed and operated with a minimum distance of 20 cm
between equipment that generates heat.
Keep the device in a place with good reception.The distance between the device
and other metal materials (such as metal brackets or metal doors and windows)
should be greater than 25 cm, and the distance between 2 or more similar devices
should be greater than 30 cm.
Child safety
Comply with all precautions with regard to child safety. Allowing children to play
with the device or its accessories may be dangerous.The device includes detachable
parts that may present a choking hazard. Keep away from children.
The device and its accessories are not intended for use by children. Children should
only use the device with adult supervision.
Accessories
Use of an unapproved or incompatible power adapter, charger or battery may cause
fire, explosion or other hazards.
Choose only accessories approved for use with this model by the device
manufacturer. The use of any other types of accessories may void the warranty, may
violate local regulat ions and laws, and may be dangerous. Please contact your
retailer for information about the availability of approved accessories in your area.

15
Power adapter safety
The device should be installed close to a mains power supply.
Unplug the power adapter from electrical outlets and the device, when not in use.
Do not drop or cause an impact to the power adapter.
If the power cable is damaged (for example, the cord is exposed or broken), or the
plug loosens, stop using it at once. Continued use may lead to electric shocks, short
circuits, or fire.
Do not touch the power cord with wet hands or pull the power cord to disconnect
the power adapter.
Do not touch the device or the power adapter with wet hands. Doing so may lead to
short circuits, malfunctions, or electric shocks.
Do not expose the power adapter to water, other liquids, or excessive humidity
Ensure that the power adapter meets the requirements of Clause 2.5 in IEC60950-
1/EN60950-1/UL60950-1 and has been tested and approved according to national or
local standards.
Cleaning and maintenance
During storage, transportation, and operation of the device, keep it dry and protect
it from collision.
Keep the device and accessories dry. Do not attempt to dry it with an external heat
source, such as a microwave oven or hair dryer.
Do not expose your device or accessories to extreme heat or cold. These
environments may cause the device to malfunction and may lead to a fire or
explosion.
Avoid collision, which may lead to device malfunctions, overheat ing, fire, or
explosion.
If the device is not going to be used for an extended period of time, power it off, and
disconnect all cables connected to it.
If anything unusual occurs (for example, if the device emits smoke or any unusual
sound or smell), immediately power it off, disconnect all cables connected to it, and
contact an authorized service center.
Do not trample, pull, or excessively bend any cable. Doing so may damage the cable,
causing the device to malfunction.
Before you clean or maintain the device, power it off, and disconnect all cables
connected to it.
Do not use any chemical detergent, powder, or other chemical agents (such as
alcohol and benzene) to clean the device or accessories.These substances may cause
damage to parts or present a fire hazard. Use a clean, soft, and dry cloth to clean the
device and accessories.

16
Do not place magnetic strip cards, such as credit cards and phone cards, near the
device for extended periods of time. Doing so may cause damage to the magnetic
strip.
Do not dismantle, tamper of modify the device and its accessories. This voids the
warranty and releases the manufacturer from liability for damage
Emergency calls
The availability of emergency calls is subject to your cellular network quality, service
provider policy, and local laws and regulat ions. Never rely solely on your device for
critical communications like medical emergencies.
Disposal and recycling information
This symbol (with or without a solid bar) on the device, batteries (if included),
and/or the packaging, indicates that the device and its electrical accessories (for
example, a headset, adapter, or cable) and batteries should not be disposed of as
household garbage. These items should not be disposed of as unsorted municipal waste
and should be taken to a certified collection point for recycling or proper disposal.
For more detailed information about device or battery recycling, contact your local city
office, household waste disposal service, or retail store.
Disposal of the device and batteries (if included) is subject to WEEE Directive Recast
(Direct ive 2012/19/EU) and Battery Directive (Directive 2006/66/EC). The purpose of
separating WEEE and batteries from other waste is to minimize the potential
environmental impacts and human health risk of any hazardous substances that may be
present.
Reduction of hazardous substances
This device is compliant with the REACH Regulation [Regulation (EC) No 1907/2006]
and RoHS Directive Recast (Directive 2011/65/EU). Batteries (if included) are compliant
with the Battery Directive (Directive 2006/66/EC). For up-to-date information about
REACH and RoHS compliance, please visit the web site
http://consumer.huawei.com/certification.
EU regulatory conformance
Statement
Hereby, Huawei Technologies Co., Ltd. declares that this device is in compliance with
the essential requirements and other relevant provisions of Direct ive 1999/5/EC.
For the declaration of conformity, visit the web site
http://consumer.huawei.com/certification.
The following marking is included in the product:

17
Observe national and local regulations where the device is used.
This device may be restricted for use, depending on the local network.
Restrictions in the 2.4 GHz band:
Norway: This subsection does not apply for the geographical area within a radius of 20
km from the centre of Ny-Ålesund.
8Legal Notice
Copyright © Huawei Technologies Co., Ltd. 2015. All rights reserved.
No part of this manual may be reproduced or transmitted in any form or by any means
without prior written consent of Huawei Technologies Co., Ltd. and its affiliates
("Huawei").
The product described in this manual may include copyrighted software of Huawei and
possible licensors. Customers shall not in any manner reproduce, distribute, modify,
decompile, disassemble, decrypt, extract, reverse engineer, lease, assign, or sublicense
the said software, unless such restrict ions are prohibited by applicable laws or such
actions are approved by respective copyright holder
Trademarks and Permissions
, , and are trademarks or registered trademarks of Huawei
Technologies Co., Ltd.
LTE is a trade mark of ETSI.
Other trademarks, product, service and company names mentioned may be the
property of their respect ive owners.
Notice
Some features of the product and its accessories described herein rely on the software
installed, capacities and settings of local network, and therefore may not be activated
or may be limited by local network operators or network service providers.
Thus, the descript ions herein may not exactly match the product or its accessories
which you purchase.
Huawei reserves the right to change or modify any information or specifications
contained in this manual without prior notice and without any liability.

18
DISCLAIMER
ALL CONTENTS OF THIS MANUAL ARE PROVIDED "AS IS". EXCEPT AS REQUIRED BY
APPLICABLE LAWS, NO WARRANTIES OF ANY KIND, EITHER EXPRESS OR IMPLIED,
INCLUDING BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF
MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE MADE IN
RELATION TO THE ACCURACY, RELIABILITY OR CONTENTS OF THIS MANUAL.
TOTHE MAXIMUM EXTENT PERMITTED BY APPLICABLE LAW, IN NO EVENT SHALL
HUAWEI BE LIABLE FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR
CONSEQUENTIAL DAMAGES, OR LOSS OF PROFITS, BUSINESS, REVENUE, DATA,
GOODWILL SAVINGS OR ANTICIPATED SAVINGS REGARDLESS OF WHETHER SUCH
LOSSES ARE FORSEEABLE OR NOT.
THE MAXIMUM LIABILITY (THIS LIMITATION SHALL NOT APPLYTO LIABILITY FOR
PERSONAL INJURY TOTHE EXTENT APPLICABLE LAW PROHIBITS SUCH A
LIMITATION) OF HUAWEI ARISING FROM THE USE OF THE PRODUCT DESCRIBED IN
THIS MANUAL SHALL BE LIMITED TO THE AMOUNT PAID BY CUSTOMERS FOR THE
PURCHASE OF THIS PRODUCT.
Import and Export Regulations
Customers shall comply with all applicable export or import laws and regulations and
be responsible to obtain all necessary governmental permits and licenses in order to
export, re-export or import the product mentioned in this manual including the
software and technical data therein.
Privacy Policy
To better understand how we protect your personal information, please see the privacy
policy at http://consumer.huawei.com/privacy-policy.
