Huawei Vodafone R207 Technical specifications

Product Description
R207 Mobile WiFi Product Description
V100R001
Issue 02
Date 2014-04-21
HUAWEI TECHNOLOGIES CO., LTD.

R207 Mobile WiFi V100R001
Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 2 of 19
Huawei Technologies Co., Ltd. provides customers with comprehensive technical support and service.
Please feel free to contact our local office or company headquarters.
Huawei Technologies Co., Ltd.
Address: Huawei Industrial Base
Bantian, Longgang
Shenzhen 518129
People's Republic of China
Website: http://consumer.huawei.com/en/
Copyright © Huawei Technologies Co., Ltd. 2014. All rights reserved.
No part of this document may be reproduced or transmitted in any form or by any means without prior
written consent of Huawei Technologies Co., Ltd.
Trademarks and Permissions
and other Huawei trademarks are trademarks of Huawei Technologies Co., Ltd.
All other trademarks and trade names mentioned in this document are the property of their respective
holders.
Notice
The information in this document is subject to change without notice. Every effort has been made in the
preparation of this document to ensure accuracy of the contents, but all statements, information, and
recommendations in this document do not constitute a warranty of any kind, express or implied.

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 3 of 19
About This Document
Summary
This document provides information about the major functions, supported services
and system architecture.
The following table lists the contents of this document.
Chapter Details
1 Overview The supported network modes, basic services and functions, and
the appearance of the product.
2 Features The supported features and technical specifications of the
product.
3 Services and
Applications The services and applications of the product.
4 System
Architecture The architecture of the product.
5 Packing List The items contained in the package of the product.

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 4 of 19
History
Issue Details Date
01 First release. 2014-04-02
02 recension 2014-04-21

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 5 of 19
Contents
1 Overview..........................................................................................................................6
1.1 Brief Introduction.............................................................................................................................. 6
2 Features...........................................................................................................................8
2.1 Main Features .................................................................................................................................. 8
2.2 Technical Specifications................................................................................................................... 9
2.2.1 Hardware................................................................................................................................. 9
2.2.2 Software .................................................................................................................................11
3 Services and Applications ...........................................................................................13
3.1 Data Service................................................................................................................................... 13
3.1.1 Wireless Modem.................................................................................................................... 13
3.1.2 USB Modem.......................................................................................................................... 14
3.2 SMS................................................................................................................................................ 14
4 System Architecture.....................................................................................................15
4.1 System Architecture ....................................................................................................................... 15
4.2 Functional Modules........................................................................................................................ 16
5 Packing List...................................................................................................................17

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 6 of 19
1 Overview
1.1 Brief Introduction
R207 Mobile WiFi (hereinafter referred to as the R207) is a high-speed packet access
mobile hotspot. It is a multi-mode wireless terminal for SOHO (Small Office and Home
Office) and business professionals.
The R207 supports the following standards:
zHigh Speed Packet Access Plus (HSPA+)
zHigh Speed Uplink PacketAccess (HSUPA)
zHigh Speed Downlink PacketAccess (HSDPA)
zUniversal Mobile Telecommunications System (UMTS)
zEnhanced Data rates for Global Evolution (EDGE)
zGeneral Packet Radio Service (GPRS)
zGlobal System for Mobile communications (GSM)
The R207 provides the following services:
zHSPA+ packet data service of up to 21.6 Mbit/s
zHSPA (HSUPA/HSDPA)/UMTS packet data service of up to 14.4 Mbit/s
zEDGE/GPRS packet data service of up to 236.8 kbit/s
zUMTS/GSM Short Message Service (SMS)
You can connect the R207 with the USB interface of a computer, or connect the R207
with the Wi-Fi. In the service area of the HSPA+/HSPA/UMTS/EDGE/GPRS/GSM
network, you can surf the Internet and send/receive messages/emails cordlessly. The
R207 is fast, reliable, and easy to operate. Thus, mobile users can experience many
new features and services with the R207. These features and services will enable a
large number of users to use the R207 and the average revenue per user (ARPU) of
operators will increase substantially.

Issue 02 (
2
2
014-04-21)
Sho
w
w
s the app
e
Com
m
e
arance of t
h
m
ercial in Co
n
h
e R207.
n
fidence
R207 Mobile WiFi
Product
P
a
V100R001
Description
a
ge 7 of 19

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 8 of 19
2 Features
2.1 Main Features
The R207 mainly supports the following features:
zHSPA+ (DL) data service of up to 21.6 Mbit/s
zHSDPA(DL) data service of up to 14.4 Mbit/s
zHSUPA(UL) data service of up to 5.76 Mbit/s
zUMTS data service of up to 384 kbit/s
zEDGE data service of up to 236.8 kbit/s
zGPRS data service of up to 85.6 kbit/s
zPS domain data service based on UMTS and GSM
zSMS based on CS/PS domain of GSM and UMTS
zWi-Fi
zPress and Play
zIPv6 /IPv4 dual stack (optional)
zBuilt-in DHCP Server, DNS RELAY and NAT
zTraffic statistic
zStandard Micro USB interface
zHiLink features (Driverless, Zero installation)
zLED indicators
zBuilt-in UMTS and WLAN high gain antenna
zWindows Vista SP1/SP2, Windows 7, Windows 8 (32 and 64 Bit) (does not
support Windows RT), MAC OS X 10.6, 10.7 and 10.8 with latest upgrades

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 9 of 19
2.2 Technical Specifications
2.2.1 Hardware
Table 2-1 lists the hardware specifications.
Table 2-1 Hardware specifications
Item Specifications
Technical
standard WAN: HSPA+/HSPA/UMTS/EDGE/GPRS/GSM
WLAN: IEEE 802.11b/g/n
Operating
frequency HSPA+/HSPA/UMTS：2100/900MHz
EDGE/GPRS/GSM：1900/1800/900/850MHz
WLAN：2400MHz～2483.5MHz
Internal memory 128 MB Flash, 64 MB Memory
Maximum
transmitter
power
UMTS: 24 (+1/-3) dBm
WLAN 802.11b: 14 (+/-3) dBm
802.11g: 11 (+/-3) dBm
802.11n: 9 (+/-3) dBm
Receiver
sensitivity UMTS: Confirm to 3GPP Requirements
WLAN 802.11b -76 dBm@11 Mbit/s
-82 dBm@1 Mbit/s
WLAN 802.11g: -65 dBm@54 Mbit/s
WLAN 802.11n: -64 dBm@65 Mbit/s
WLAN speed 802.11b: Up to 11 Mbit/s
802.11g: Up to 54 Mbit/s
802.11n: Support MCS0–MCS7; Up to 72.2 Mbit/s.
Maximum power
consumption 3.5 W
Power supply AC: 100–240 V
DC: 5 V, 1 A
Battery Type: Li (rechargeable)
Capacity: 3.7 V, 1500 mAh

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 10 of 19
Item Specifications
Maximum working time: 5–6 hours (depending on the network)
Maximum standby time: 300 hours (depending on the network)
External
interfaces USB interface: Micro USB
SIM card interface: standard 6-pin SIM card interface
Indicators Signal Green: Strong signal
Orange: Weak signal
Red: No signal
Wi-Fi Green: Wi-Fi turned on
Battery Green: Sufficient battery
Blinking green: Charging the battery
Red: Low battery
SMS Green: New message
Blinking green: Inbox full
Power Blinks slowly: The Mobile WiFi enters the standby
mode
Button Power switch, Reset switch
Antenna zBuilt-in GSM/UMTS main diversity antenna
zBuilt-in UMTS diversity antenna
zBuilt-in WLAN antenna
Dimensions
(D × W × H) 60.0 mm×92.8 mm×14.0 mm
Weight about 74 g (including the battery)
Temperature Operating: 0℃to +35℃
Storage: -20℃to +60℃
Humidity 5% to 95% ( non-condensing)

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 11 of 19
2.2.2 Software
Table 2-2 lists the software specifications.
Table 2-2 software specifications
Item Description
SMS zWriting/Sending/Receiving
zSending/Receiving extra-long messages
zStorage: Up to 500 messages can be saved in the
internal memory of the R207.
zNew message prompt
Network connection
setup
zAPN management: create, delete and edit.
zSet up network connection
WLAN setup zSSID broadcasting and hiding
zOpen system and shared key authentication
zASCII and HEX keys
z64/128-bit WEP encryption
z256-bit WPA2-PSK encryption
zAES encryption algorithm
zTKIP and AES integrated encryption algorithm
zAutomatic adjustment of ratios
zTurn off Wi-Fi automatically
zWLAN MAC filter
Firewall setup zFirewall Switch
zLAN IP Filter
zVirtual Server
zDMZ Service
zUPnP Service
zWAN Ping block
NAT setup zCONE NAT
zSymmetric NAT
zVPN passthrough
DHCP setup zDHCP server enabling and disabling
zAddress pool of the DHCP server setup
zDHCP lease time setup
Software installation Automatic installation (PnP)
IPv6/IPv4 dual stack
(optional)
zDHCPv6/v4 server and client
zDNSv6/v4 server and client
zDisplay IPv6/v4 WAN address

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 12 of 19
Item Description
Other Network connection settings:
zAutomatic network selection and registration
zManual network selection and registration
Network status display: signal, operator name, system
mode, and so on.
Selection of network connection types, for example:
z3G Only
z2G Only
zAuto
PIN management: activate/deactivate PIN, PIN lock,
changing PIN, unblocking by using the PUK.
System requirement zWindows Vista SP1/SP2, Windows 7, Windows 8 (32
and 64 Bit) (does not support Windows RT)
zMac OS X 10.6, 10.7 and 10.8 with latest upgrades
zYour computer’s hardware system should meet or
exceed the recommended system requirements for the
installed version of OS

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 13 of 19
3 Services and Applications
3.1 Data Service
3.1.1 Wireless Modem
The R207 can be used as a wireless modem when the Wi-Fi is enabled. You can
access the Internet service through setting up the wireless network connection with
the R207.
A maximum of ten wireless users can access the R207 at the same time. You can set
up the WLAN with the access point (AP) function.

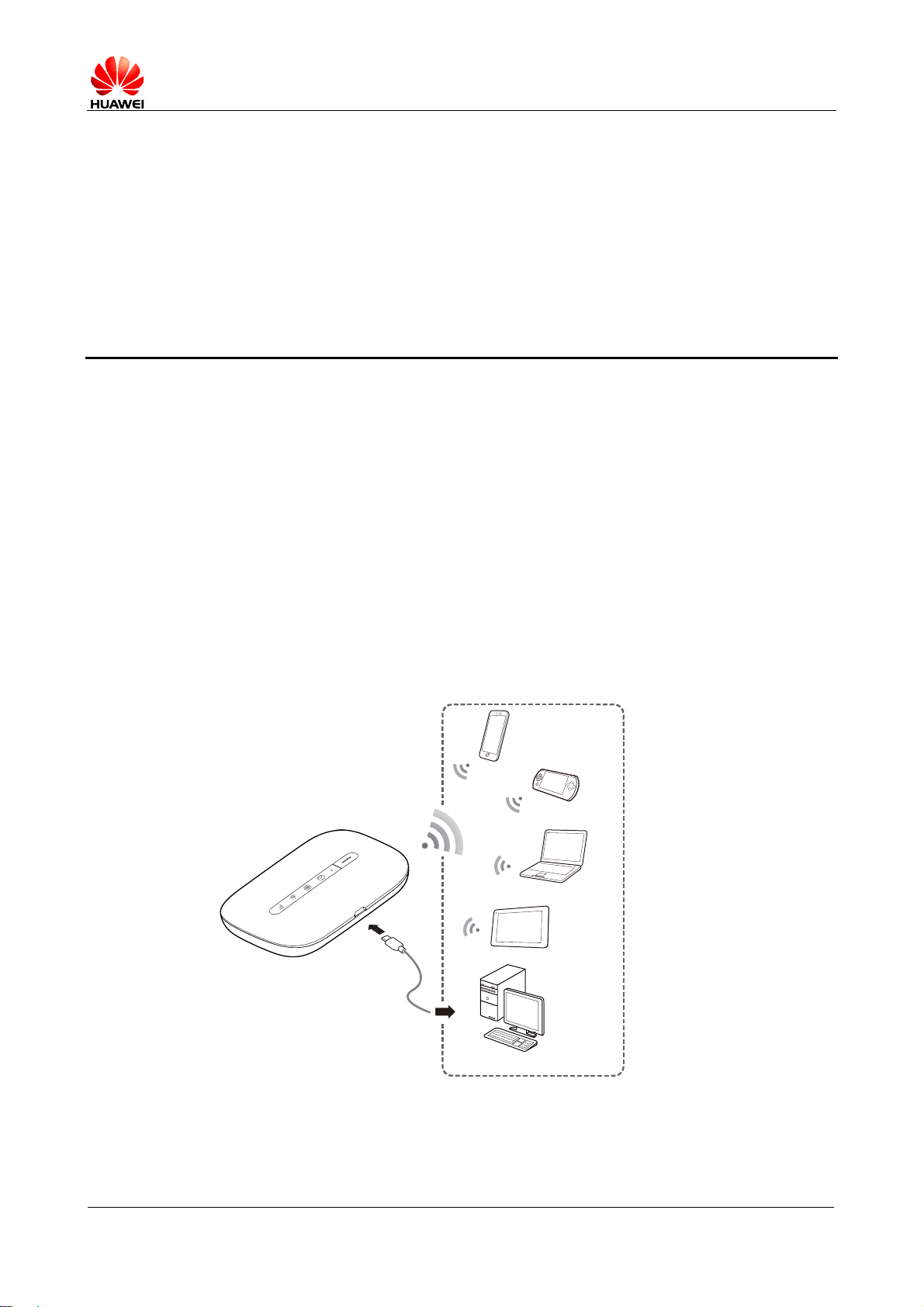

Figure 3-1 Multi-device access via Wi-Fi and USB at the same time

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 14 of 19
3.1.2 USB Modem
After you connect the R207 and PC with a USB data cable, the Web page is displayed
on the PC desktops automatically. You can directly use the default settings (or
configure APN on the R207 Web page) and set up a network connection. Then you
can send or receive E-mail, access the network through wireless connection, and
download files through wireless data channels.
Figure 3-2 One-device access via USB
3.2 SMS
The R207 supports message writing/sending/receiving. You can manage messages
through the Web page, such as an inbox, an outbox and a draft.

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 15 of 19
4 System Architecture
4.1 System Architecture

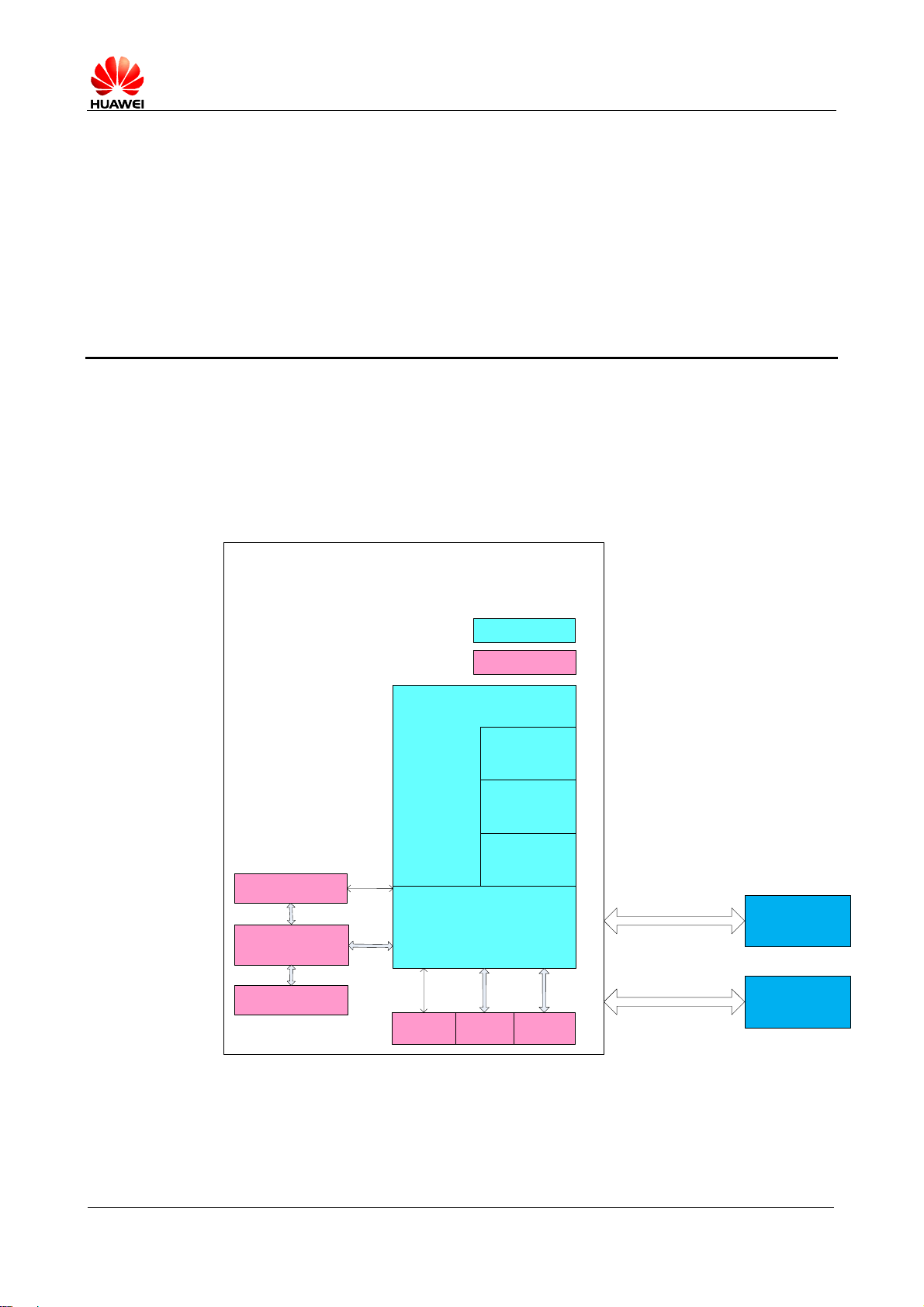

Figure 4-1 shows the system architecture.
Figure 4-1 System architecture
Protocol stack
Bottom layer drivers
(include USB, Wi-Fi
and user interface)
Application
systerm
Web page
Web server
User
interface USB
Wi-Fi
Baseband signal
processing
Radio frequency
module
Power module
Software module
Mobile WiFi
PC
Mobile
phone/Tablet
USB/Wi-Fi
Wi-Fi
Hardware module

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 16 of 19
4.2 Functional Modules
1. Radio frequency module: It sends/receives radio signals and
modulates/demodulates the radio frequency (RF) signals and baseband signals.
2. Baseband signal processing: It processes
HSPA+/HSPA/UMTS/EDGE/GPRS/GSM baseband digital signals, including:
zModulating/Demodulating HSPA+/HSPA/UMTS baseband signals
zModulating/Demodulating EDGE/GPRS/GSM baseband signals
zEncoding/Decoding HSPA+/HSPA/UMTS channel
zEncoding/Decoding EDGE/GPRS/GSM channel
3. Bottom layer driver: It drives peripherals, including USB device, Wi-Fi device,
indicator, button and SIM card.
4. Protocol stack system: It processes protocols of
HSPA+/HSPA/UMTS/EDGE/GPRS/GSM and TCP/IP.
5. Application system: It provides management system, including SMS, PS
domain service, Wi-Fi configuration, network service, Web service and Web page.
The user can set management parameters by Web page.
6. User interface: It provides human-computer interaction, including indicator and
button.

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 17 of 19
5 Packing List
This chapter describes the items contained in the package of the R207.
Table 5-1 lists the items contained in the package of the R207.
Table 5-1 Packing list of the R207
Item Quantity Remarks
Mobile WiFi 1 Standard
Rechargeable Battery (1500 mAh) 1 Standard
USB Cable (120cm) 1 Standard
Quick Start 1 Standard
Safety Information 1 Standard
Charger 1 Standard
Warranty Card 1 Optional

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 18 of 19
A Acronyms and Abbreviations
2G The Second Generation
3G The Third Generation
AES Advanced Encryption Standard
APN access point name
ARPU average revenue per user
ASCII American Standard Code for Information Interchange
CS circuit switched
DHCP Dynamic Host Configuration Protocol
DMZ demilitarized zone
DNS Domain Name Server
EDGE Enhanced Data Rates for GSM Evolution
GPRS General Packet Radio Service
GSM Global System for Mobile Communications
HSPA+ High Speed Packet Access Plus
HSUPA High Speed Uplink Packet Access
HSDPA High Speed Downlink Packet Access
IEEE Institute of Electrical and Electronics Engineers
IP Internet Protocol
LAN Local Area Network
LED Light Emitting Diode
MAC Medium Access Control
Modem Modulator Demodulator
NAT Network Address Translation

R207 Mobile WiFi V100R001 Product Description
Issue 02 (2014-04-21) Commercial in Confidence Page 19 of 19
OS Operating System
PC personal computer
PIN personal identification number
PS packet switched
PUK PIN unblocking key
SIM subscriber identity module
SMS short messaging service
SOHO small office home office
SSID Service Set Identifier
TKIP Temporal Key Integrity Protocol
UMTS Universal Mobile Telecommunications System
UPnP Universal Plug and Play
USB Universal Serial Bus
VPN Virtual Private Network
WAN wireless area network
WEP wired equivalent privacy
Wi-Fi Wireless Fidelity
WLAN wireless local area network
WPA Wi-Fi Protected Access
