Hubbell Electric Heater Company EMV Operating instructions

OPERATING AND MAINTENANCE MANUAL
FOR PACKAGED ELECTRIC TEPID
WATER HEATING SYSTEM
ELECTRIC HEATER COMPANY
BASE MODEL “ EMV ”

HUBBELL
ELECTRIC HEATER COMPANY
P.O. BOX 288
STRATFORD, CT 06615
PHONE: [phone]
FAX: [phone]
INTERNET: http://www.hubbellheaters.com/
-- IMPORTANT --
Always reference the full model number and serial number when calling the factory.
WARNING / CAUTION
1. Tank is to be completely filled with water and all air is to be vented before energizing.
2. Due to the rigors of transportation, all connections should be checked for tightness before heater is placed
in operation.
3. Safety relief valve must be installed in tapping provided.
4. The refractory material used in heating elements may absorb some moisture during transit, periods of
storage, or when subjected to a humid environment. This moisture absorption results in a cold insulation
resistance of less than twenty (20) megohms. If this heater has been subjected to the above condition,
each heating element must be checked for insulation resistance before energizing. A low megohm
condition can be corrected by removing the terminalhardware and baking the element in an oven at 350°F
-700°F for several hours or until the proper megohm reading is obtained.
5. KEEP AWAY FROM LIVE ELECTRICAL CIRCUITS.
Do not perform any maintenance, make any adjustments, or replace any components inside the control
panel with the high voltage power supply turned on. Under certain circumstances, dangerous potentials
may exist even when the power supply is off. To avoid casualties, always turn the power supply safety
switch to off, turn the charge or ground the circuit before performing any maintenance or adjustment
procedure.
6. The unit is designed to operate at pressure not more than 150 psi.
7. Generalized instructions and procedures cannot anticipate all situations. For this reason, only qualified
installers should perform the installations. A qualified installer is a person who has licensed training and a
working knowledge of the applicable codes regulation, tools, equipment, and methods necessary for safe
installation of an electric resistance water heater. If questions regarding installation arise, check your local
plumbing and electrical inspectors for proper procedures and codes. If you cannot obtain the required
information, contact the company.
2

TABLE OF CONTENTS
SECTION TITLE PAGE #
I GENERAL DESCRIPTION AND CONSTRUCTION 5
II INSTALLATION 7
III SCHEDULED MAINTENANCE AND OPERATION 9
IV TROUBLESHOOTING 12
V SERVICING&REPLACEMENTOFPARTS 13
VI ELEMENT CHARTS 22
3

4

SECTION I - GENERAL DESCRIPTION AND CONSTRUCTION
GENERAL DESCRIPTION
This manual describes a packaged electric water heater system designed to meet the requirements of ANSI
Z358.1-1998 for tepid water delivery to an emergency drench system. The complete assembly consists of the
storage tank, immersion electric heating element(s), thermostat(s), safety relief valve, safety high temperature cut
out, mixing valve, and any other required electrical operating control. Optional equipment may be supplied with
your unit. Please consult the product drawing for details specific to your assembly. The unit is factory assembled,
insulated, jacketed, wired, tested, and ready for electrical and plumbing service connections.
CONSTRUCTION
TANK
The standard storage tank is constructed of steel and internally lined with specially formulated Hydrastone cement
to a ½-inch minimumthickness. The tank is designed for a maximum allowable working pressure of 150 psi (300
psi TP).
TANK CONNECTIONS
The heater is supplied with separate cold water and tepid water connections. A 1-½ inch FNPT connection is
supplied for the cold water inlet. The cold water is deflected by means of a baffle within the tank. A 1-¼ inch
FNPT union connection is supplied at the mixing valve for tepid water. A ¾ inch FNPT connection is located on
the side of the heater for mounting a combination safety temperature and pressure relief valve. An overflow line
should be utilized from the relief valve outlet to a floor drain. A ¾ inch GHT connection is supplied for draining.
See drawing for locations.

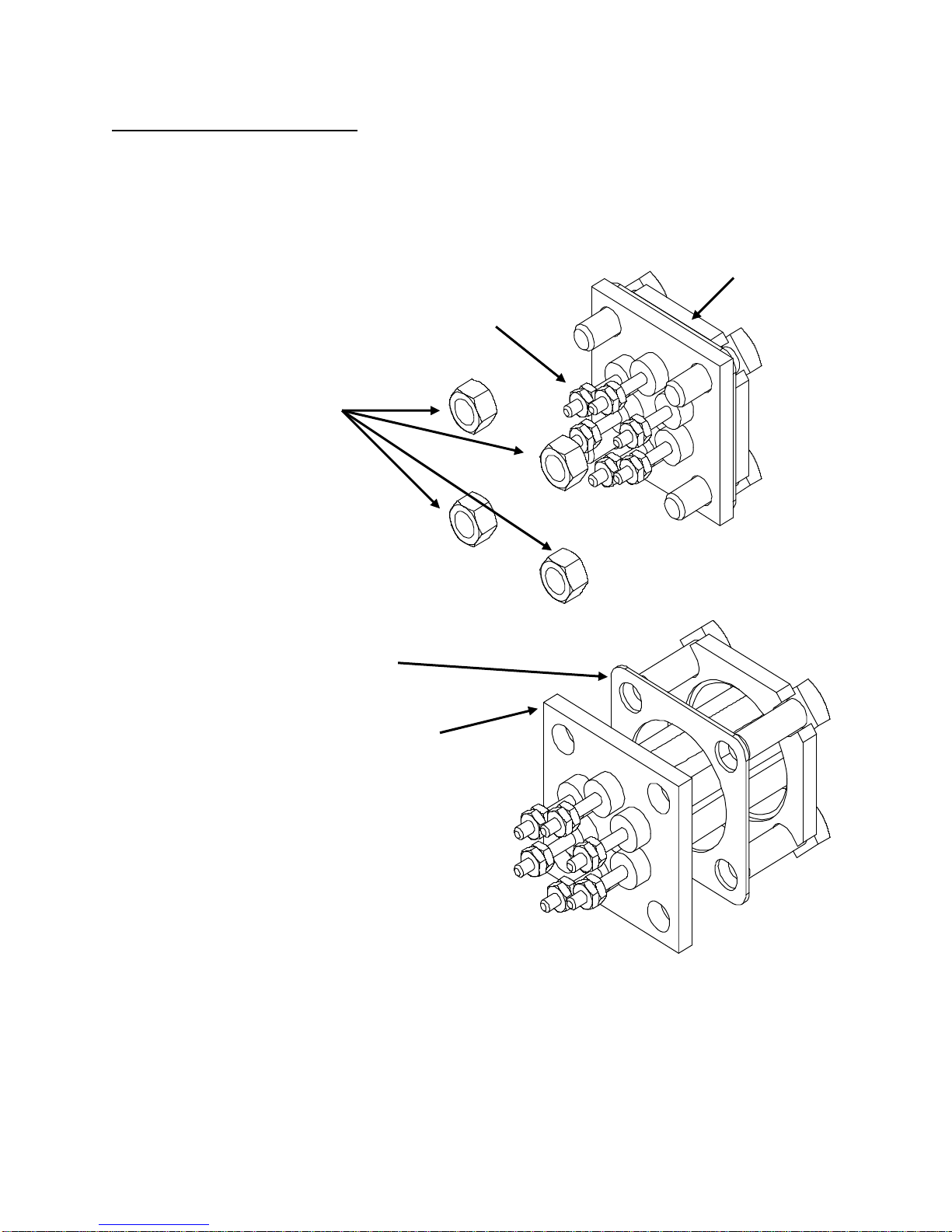

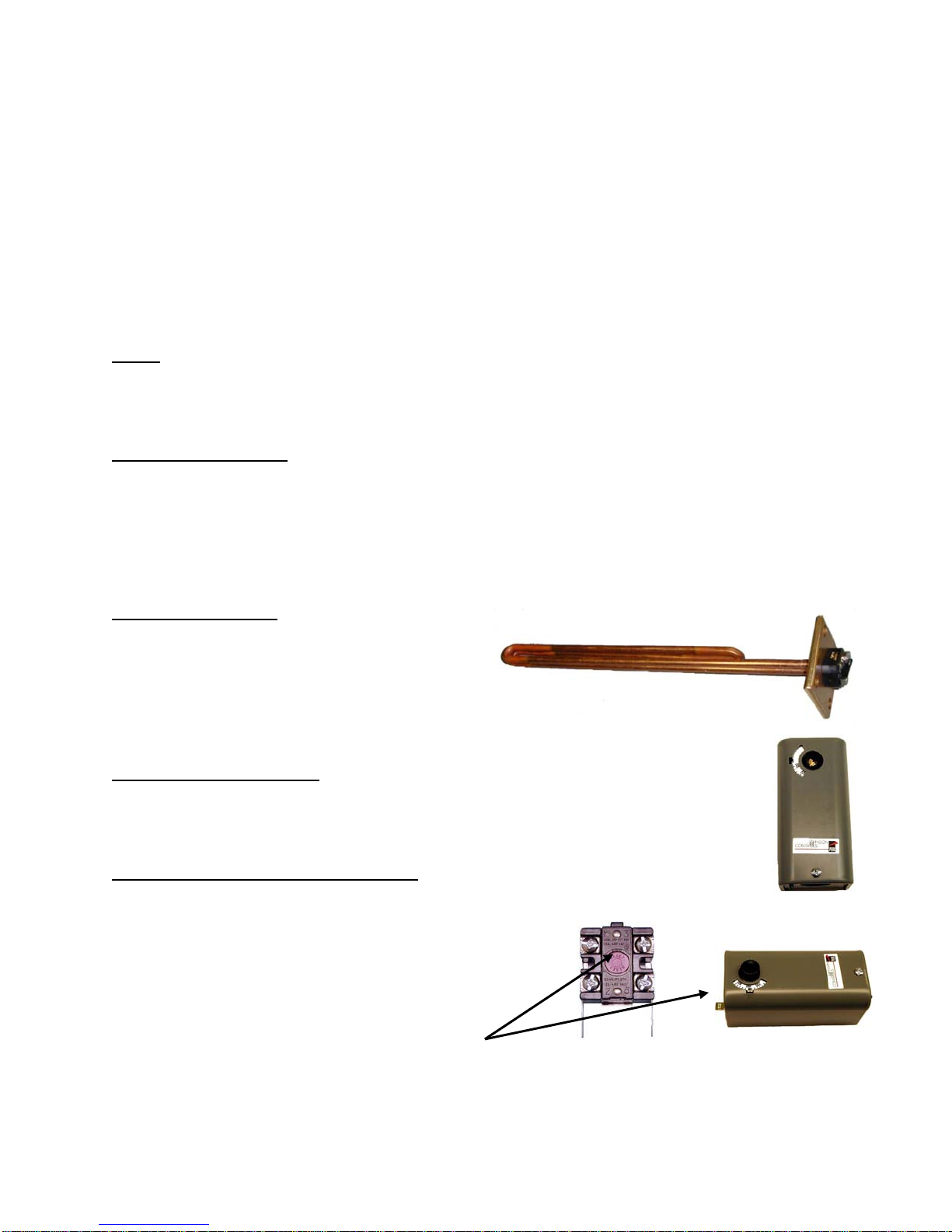

HEATING ELEMENT
The water heater is supplied with an electric immersion
heating element assembly(s), composed of a copper
sheathed element(s) that are brazed into a brass flange.
Each assembly is fastened to a corresponding tank
flange using a gasket and four (4) 3/8-16 x 1-inch long
hex head steel bolts and nuts. See drawing for voltage and power ratings.

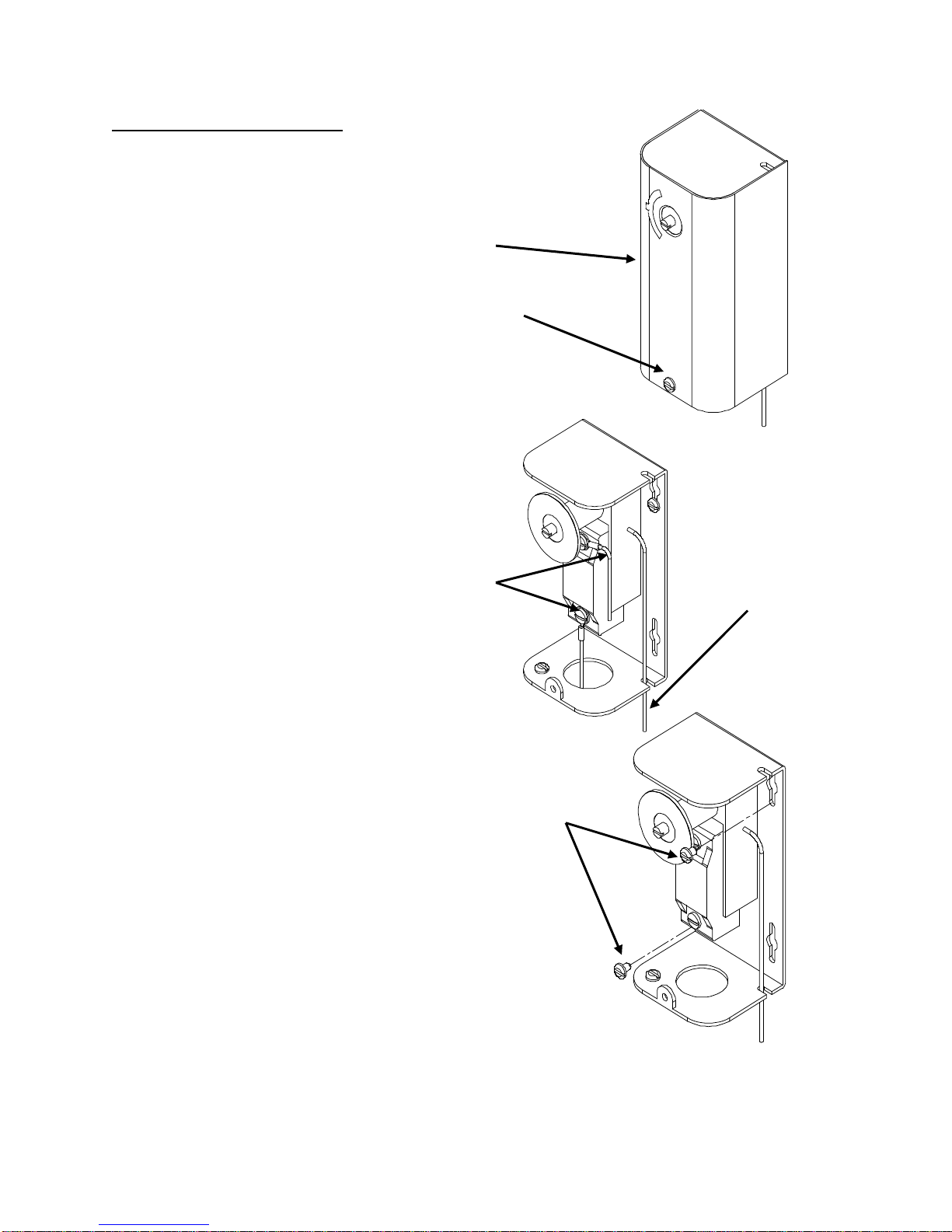

CONTROL THERMOSTAT
The water heater is supplied with an immersion thermostat factory preset at 170°. The immersion
thermostat can be adjusted through a range of 100° - 180° F and is adjustable with a flat tip
screwdriver.

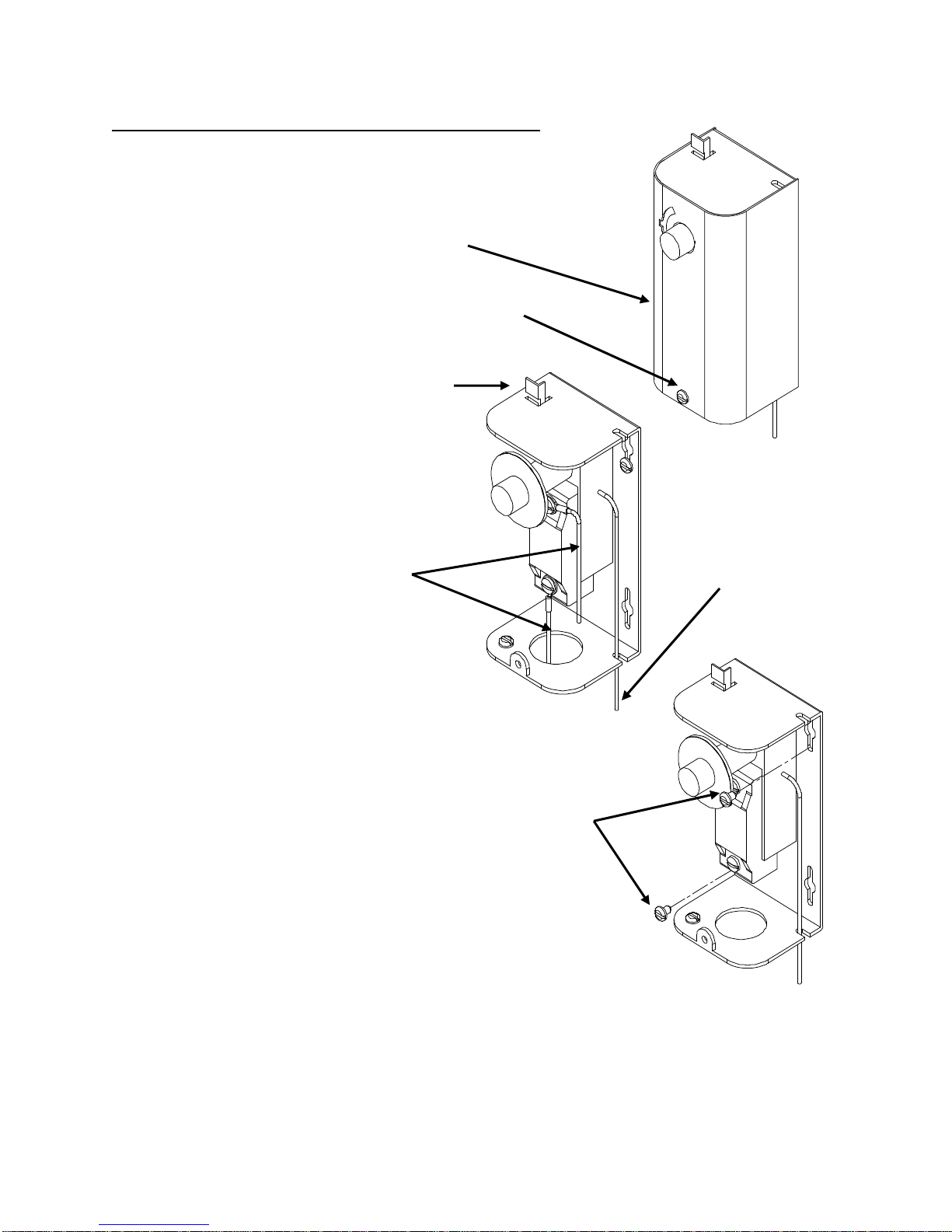

TEMPERATURE HIGH LIMIT SWITCH
As a safety device, a surface mounted high temperature cut-off switch with manual reset is
supplied. As an option, an immersion high temperature cut-off switch with manual reset may be provided. Either
high temperature cut-out switch is factory preset at 190°F. In the
event of an over-temperature condition, the thermostat will
disengage the power from the system. The high limit must be
manually reset
thereafter to restart the heater.
Manual Reset Surface Mounted High Immersion High
Temp.Cut-OffSwitch Temp.Cut-OffSwitch
(Standard) (Optional)
5

MIXING VALVE
The mixing valve is a triple redundant, thermostatic pressure balanced valve
specifically designed for emergency safety shower/face/eyewash
application. The valve is factory mounted and piped to the water heater. The
mixing valve meets OSHA and ANSI requirements and is capable of
providing 85°F output regardless of inlet pressure and temperature
variations, and the temperature setting is tamper proof and can not be
inadvertently adjusted in the field. Alternate mixing valve tepid water set
temperatures of 70°, 75°, 80°, and 90°F are available.
AUTOMATIC AIR VENT VALVE
An automatic air vent valve is supplied in the highest point of the
system to allow trapped air in the system to escape.
DUAL TEMPERRATURE AND PRESSURE GAUGE
A combination temperature (70° - 250° F) and pressure (0 – 200 psi) gauge
with 3-inch dial is installed in the tank.
OUTER SHELL AND INSULATION
The tank is encapsulated in 3-inch thick polyurethane foam insulation. The insulation is protected by a high impact
non-corroding colorized composite protective jacket.
OPTIONS
The following optional features may be included in your water heater. Reference included drawing specific to
your heater for further details.
Low Temperature Alarm Dry Contacts
A low temperature thermostat is available with dry contacts to remotely alarm when the tank water temperature
falls below a specified setpoint. The low temperature thermostat is adjustable from 30-110°F.
High Temperature Alarm Dry Contacts
High temperature alarm dry contacts are available with the optional immersion high limit cut-out switch to
remotely alarm when the tank water temperature rises above the high limit setpoint.
Outdoor Weather Package
The optional outdoor weather package includes a 304 stainless steel outer protective jacket, a weather resistant
electrical housing, and 6” high tank legs to raise the entire unit off the floor.
Flow Alarm
An optional flow alarm may be included to signal that there is tepid water flow.
Explosion Proof Construction
The system may be constructed for installation in a hazardous location.
Mixing Valve Enclosure
An optional fiberglass enclosure provides added protection for the mixing valve in outdoor environments.
Multiple Units
Multiple units may be piped together to meet the needs of larger demand systems.
Alternate Heat Sources
An optional heat exchanger may be factory installed to utilize steam or boiler water as the heating source.
6

SECTION II – INSTALLATION
WARNING / CAUTION
DO NOT TURN ON THE ELECTRIC POWER SUPPLY to this equipment until heater is completely filled
with water and all air has been released. If the heater is NOT filled with water when the power is turned on,
the heating elements will burn out.
For protection against excessive pressures and temperatures, local codes require the installation of a
temperature-and-pressure (T&P) relief valve certified by a nationally recognized laboratory that maintains
periodic inspection of production of listed equipment of materials, as meeting the requirements for Relief
Valves and Automatic Gas Shutoff for Hot Water Supply Systems. ANSI Z21.22-1971. THE CUSTOMER IS
RESPONSIBLE TO PROTECT PROPERTY AND PERSONNEL FROM HARM WHEN THE VALVE
FUNCTIONS.
All water heaters have a risk of leakage at some unpredictable time. IT IS THE CUSTOMER'S
RESPONSIBILITY TO PROVIDE A CATCH PAN OR OTHER ADEQUATE MEANS, SO THAT THE
RESULTANT FLOW OF WATER WILL NOT DAMAGE PROPERTY.
WATER HEATER PLACEMENT
1. Place the heater on a solid foundation in a clean, dry location nearest to the point of most frequent
tepid water use
2. The water heater should be protected from freezing and waterlines insulated to reduce energy and
water waste.
3. Leave a minimum of 18” clearance for element withdrawal.
4. Do not install in an area where flammable liquids or combustible vapors are present, except when
installed with the explosion proof option.
PIPING INSTALLATION
NOTE: The most effective means for preventing deterioration from accelerated corrosion due to galvanic
and stray current is the installation of dielectric fittings/unions. The installation of these fittings is the
responsibility of the installing contractor.
1. Connect the cold water inlet and tepid water outlet to the appropriate connections as shown below;
refer to the drawing for location and sizes.
2. Install the combination temperature and pressure safety relief valve in the tapping provided. Note that this
is required by law for safety considerations.

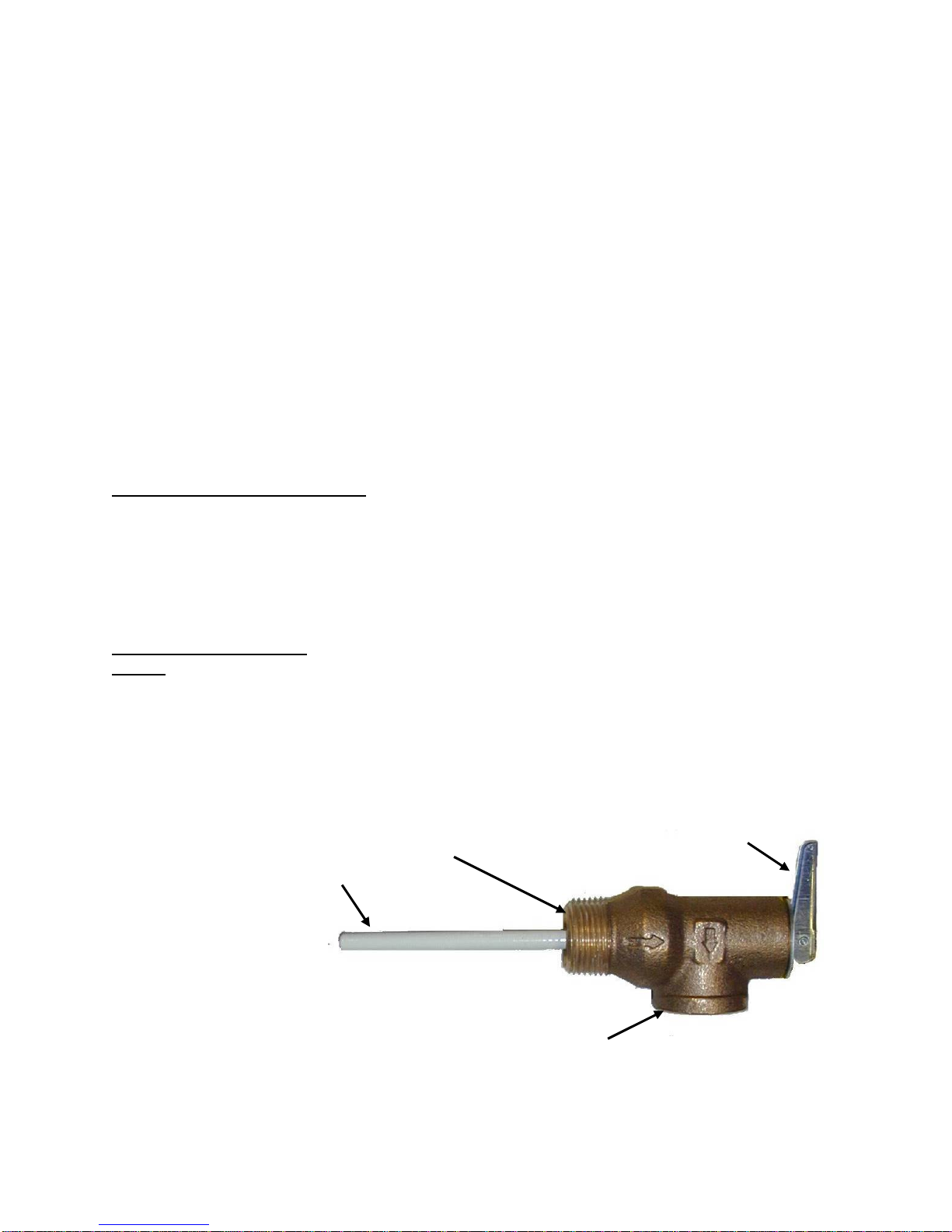

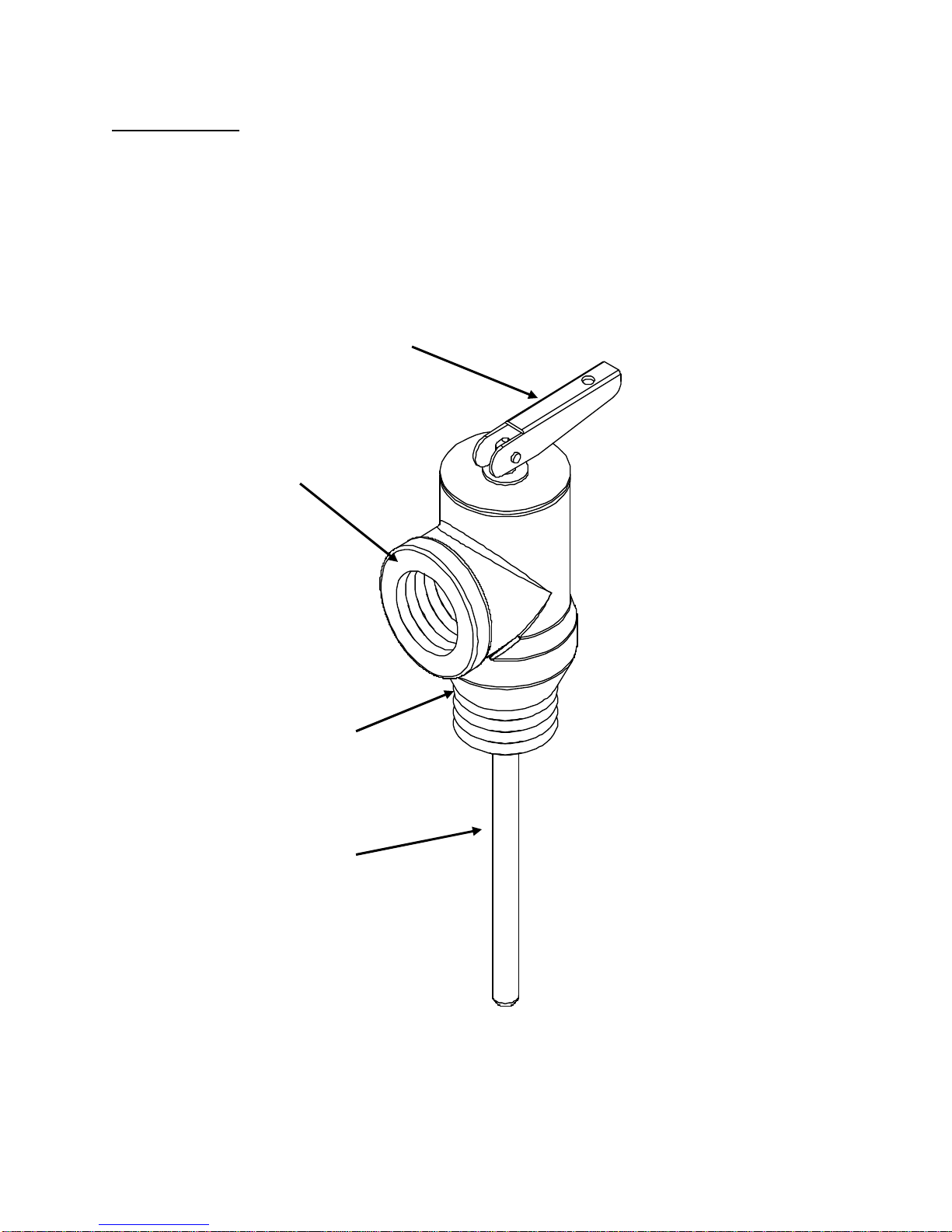

Install into provided tapping Manual Release Lever
Temperature Probe
Outlet to floor drain
Temperature and Pressure Relief Valve
7

3. Install a relief valve overflow pipe to a nearby floor drain. CAUTION: No valve of any type should
be installed between the relief valve and tank or in the drain line.
4. On startup, thermal expansion will cause the water to expand. Hubbell recommends that a thermal
expansion tank or supplementary pressure relief device be installed in the hot water outlet to allow for
this expansion.
FILLING THE HEATER
1. Completely close the drain valve.
2. Open the highest tepid water outlet to allow all air to escape from piping.
3. The black plastic knob on the air vent valve must be opened two turns to allow air to escape from the
system.
4. Open the valve to the cold water inlet and allow the heater and piping system to completely fill, as
indicated by a steady flow of water from the open outlet.
ELECTRICAL INSTALLATION
1. Enter junction box with properly sized feeder leads.
2. Connect these power leads to wires enclosed in junction box with wire nuts.
3. All other electrical connections are made at the factory; therefore, no other electrical connections are
necessary.
FINAL CHECKS
1. Check all connections for tightness.
2. Ensure that all the above steps are completed.
3. After the water is heated for the first time, monitor the water temperature as described in Section III,
Quarterly Inspection.
8

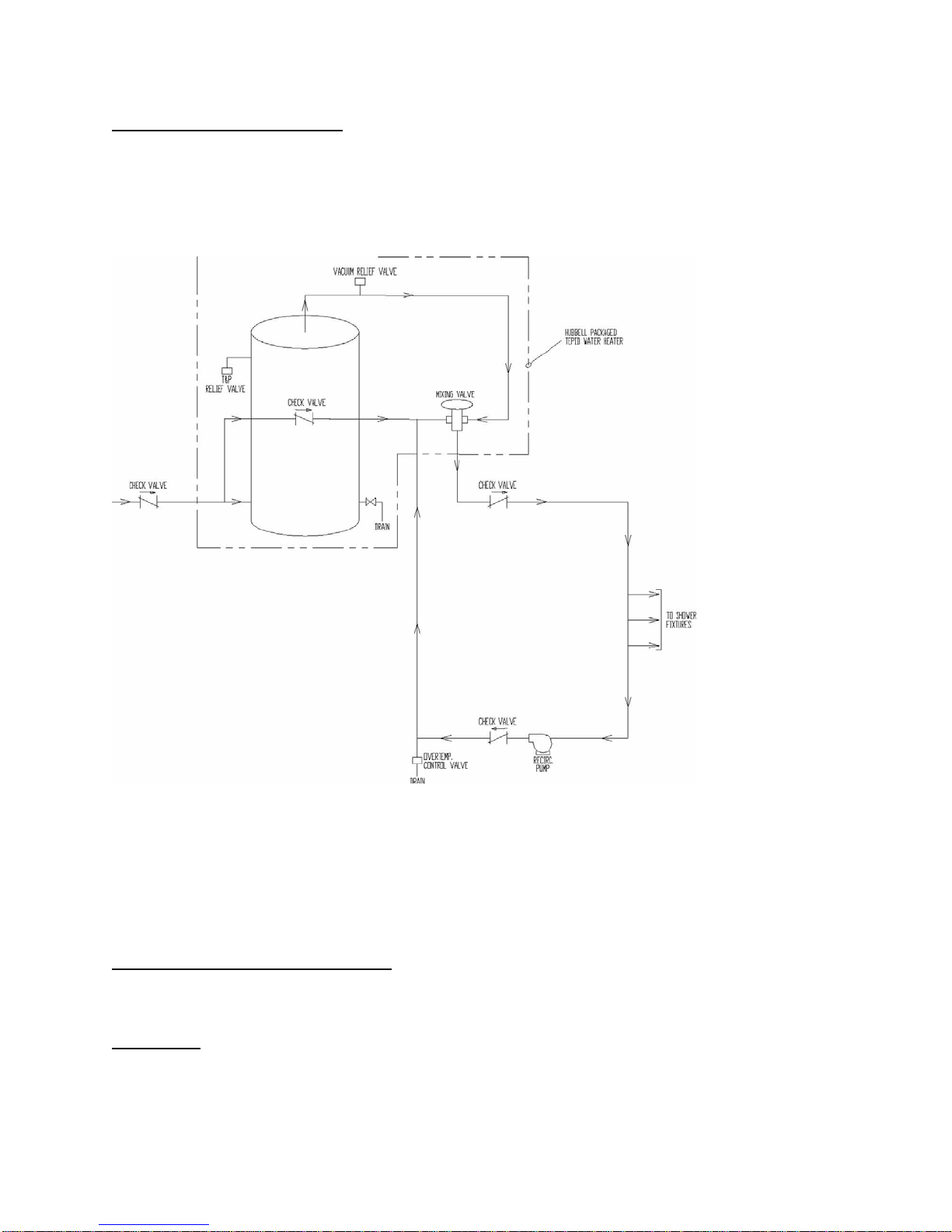

RECIRCULATION PACKAGE
A recirculation loop can be used to provide tepid water at the emergency fixtures for applications where
the water heater is a great distance away. This loop usually continuously recirculates the water via a
small pump that returns the water to the heater. The water returned from the loop feeds back into the
water heater mixing valve. Therefore, the loop is continuously maintained at the mixing valve
temperature thus assuring proper temperature water at the fixtures.
SECTION III - SCHEDULED MAINTENANCE AND OPERATION
WARNING / CAUTION
Before performing any maintenance procedure, make certain power supply is OFF and cannot accidentally be
turned on.
MAINTENANCE AND OPERATION
The water heater is automatic in its operation. It will maintain a full tank of water at the temperature setting of
the thermostat. The water heater should not be turned on without first making sure that the tank is full of
water and that all air has been released.
FREEZING
The tank should be fully drained in the event the electricity has been turned off and if there is danger of
freezing.
9

MONTHLY INSPECTION – MIXING VALVE
NOTE: The mixing valve should be tested in conjunction with regular OSHA required shower/eyewash
testing. These tests confirm that the equipment is safe and operational and also serve to purge potential
bacteria laden water from the system.
1. Monitor temperature
a. Record all information on the Mixing Valve Inspection and Test Log, see page 11.
b. Using an accurate thermometer, turn on the shower/eyewash and record the maximum start-up spike
temperature of the water.
c. After a few minutes of running, record the normal temperature.
d. If the temperature does not match required temperature (±3°F), recalibrate the mixing valve. See Section
V, Service and Replacement of Parts, Re-Calibrate Mixing Valve.
2. Monitor flow rate
a. OHSA/ANSI recommends a potable water system maintain a pressure of 30-psig minimum with a flow
rate of 20-GPM minimum to a shower head and 3-GPM minimum to an eye/face wash fixture.
b. One simple method of testing is to collect the water in a 5-gallon container. At the required flow rate, the
shower head will fill the container in approximately 15 seconds and the eye/face wash will fill the
container in approximately 15 seconds.
QUARTERLY INSPECTION
1. Monitor thermostat
a. Let water heater completely heat to a designated thermostat setting.
b. After thermostat satisfies (that is, when the thermostat actually clicks off), draw water from the relief
valve.
c. Compare water temperature of drawn water to the temperature setting of the thermostat when it
satisfies. Normal variation between the two points is approximately + 7°F.
d. If these two readings do not coincide within acceptable tolerances and verification has been made of
the accuracy of the temperature-reading gauge, replace the thermostat.
2. Lift test lever on relief valve and let water run through valve for a period of approximately 10 seconds.
This will help flush away any sediment that might build up in water passageways.
3. Inspect element flange for leakage as follows:
a. Shut off Power Supply.
b. Remove element housing cover.
c. Visually inspect heating element gasket for evidence of leaks.
d. Rub finger around gasket that is between the heating element and tank flange for any evidence of
moisture. If moisture is present or a water drip is observed, follow procedure outlined in Section V.
4. Check for loose electrical connections. Tighten as necessary.
ANNUAL INSPECTION
1. Flush tank as follows
a. Shut off power supply.
b. Close valve on hot water outlet piping.
c. Open valve on drain piping.
d. Cold water inlet line pressure will be strong enough to flush sediment from the bottom of the tank out
through the drain. Let water run for 3-4 minutes.
e. Close drain valve.
f. Open hot water valve.
g. Turn power supply ON.
10

MIXING VALVE INSPECTION AND TEST LOG
COMPANY:
HEATERSERIALNUMBER:
DATE START-UP
SPIKE OUTPUT TEMPERATURE COMMENTS TESTED BY
11

SECTION IV – TROUBLESHOOTING
Symptom Probable Cause Corrective Action / Remedy
No hot water in tank Circuit breaker tripped at source. Reset circuit breaker.
High limit switch tripped. Reset high limit switch.
Loose wires. Torque screws holding wires.
Heating element inoperable. Check heating element operation by clamping
an Amprobe around each wire to the element.
The ampere reading should agree with the
nameplate ‘AMP’ figure.
Low line voltage. Have source electrical system checked by an
electrician.
Faulty thermostat. Move thermostat dial through full range. A
definite ‘click’ should be heard. If not, replace
thermostat.
Water temperature in
tank below settings at
all times
Faulty thermostat. Check thermostat adjustment. Monitor
thermostat as described in Section III, Quarterly
Inspection. Replace if necessary.
Heating element not working on all
phases Check to see that heating element is working on all phases, by checking the resistance
(ohms) value for each element and comparing
with the chart included in Section VI.
Heater improperly sized Verify heater is properly sized for the flow rate
and temperature rise of your system. Replace
elements with proper size as necessary.
Relief valve discharges
continuously Excessive temperature or pressure in tank Temperature and pressure relief valves are made to operate if the water temperature exceeds
210°F or water pressure exceeds the pressure
rating of the safety relief valve. If trouble is
excessive temperature, then thermostat is not
shutting off at the right setting and thermostat
must be replaced.
Tepid water
temperature too hot Blockage in cold water inlet to mixing valve Disconnect mixing valve and clean out cold water inlet pipe.
Mixing valve out of calibration Re-calibrate mixing valve as described in
Section V, Service and Replacement of Parts,
Re-Calibrate Mixing Valve.
Tepid water
temperature too cold Blockage in hot water inlet to mixing valve Disconnect mixing valve and clean out hot water inlet pipe.
Mixing valve out of calibration Re-calibrate mixing valve as described in
Section V, Service and Replacement of Parts,
Re-Calibrate Mixing Valve.
12

SECTION V - SERVICING & REPLACEMENT OF PARTS
WARNING / CAUTION
Before servicing or replacing any part make sure to turn the power supply switch to the OFF position.

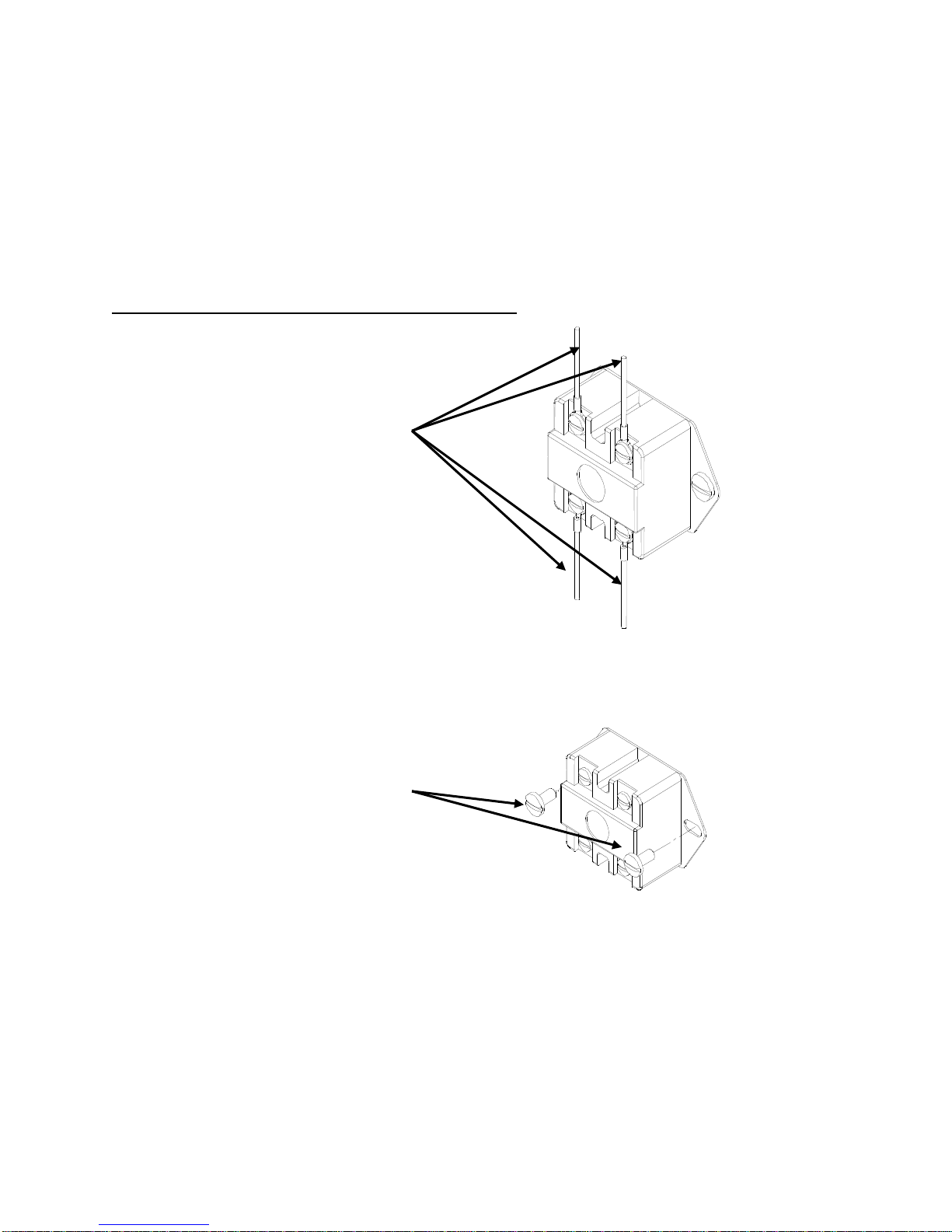

SURFACE TEMPERATURE HIGH LIMIT CUT-OFF
1. Disconnect power from unit.
2. Remove access cover.
3. Disconnect the four (4) 14 gauge wires.
Control Wires
4. Remove the two (2) mounting screws.
Mounting Screws
5. Replace control and install new high limit switch by performing above steps in reverse order.
See wiring diagram included with drawing for assistance.
13

IMMERSION TEMPERATURE HIGH LIMIT CUT-OFF
1. Disconnect power from unit.
2. Remove access cover.
3. Remove high limit cover screw and cover.
Cover
Cover Screw
Reset Switch
4. Disconnect the two (2) 14 gauge wires.
Wires Capillary Tube
5. Remove capillary tube and bulb from thermowell.
6. Remove two (2) mounting screws.
MountingScrews
7. Remove control and install new high limit switch by performing
above steps in reverse order. (Note: Be sure to place capillary tube into
slot in base prior to installing cover.)
14

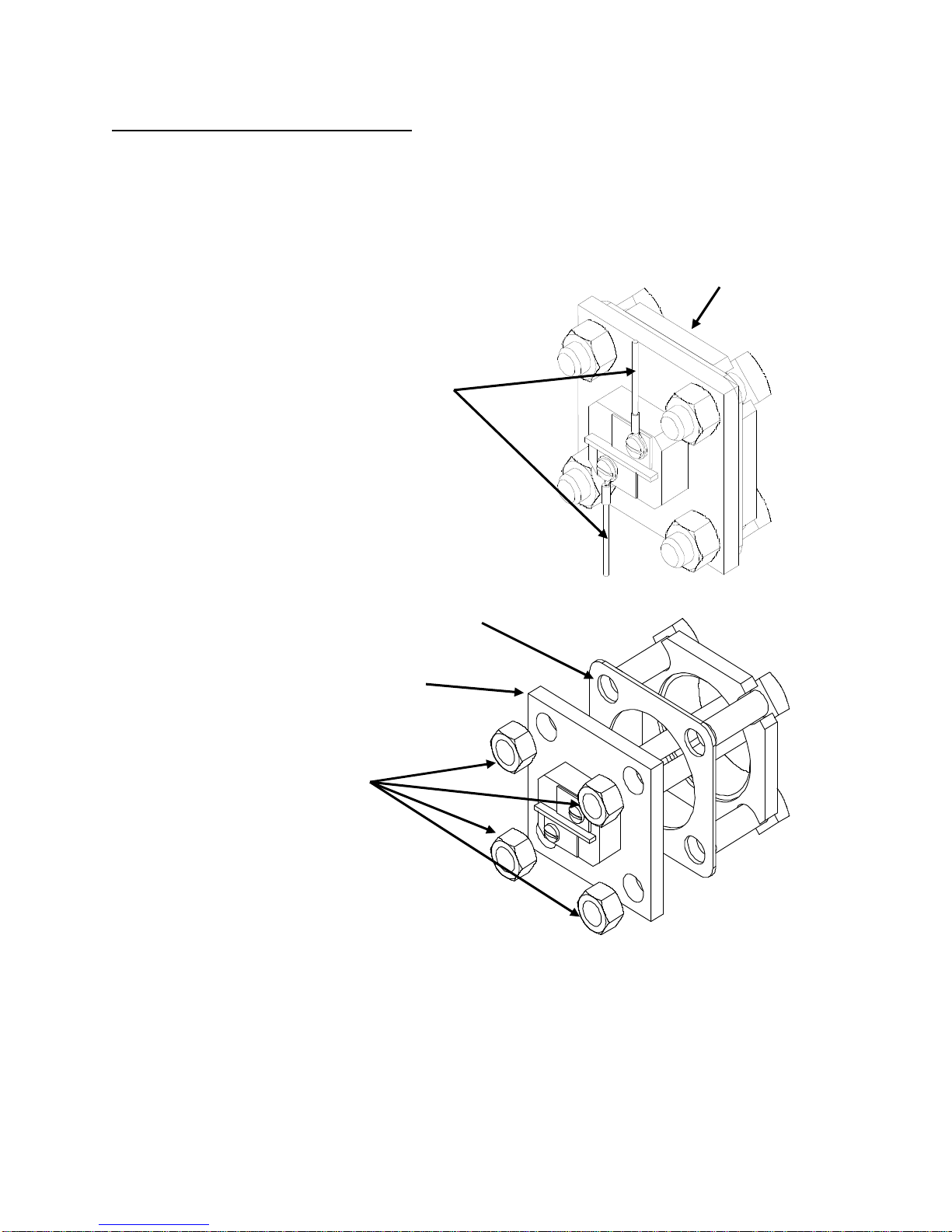

SINGLE PHASE HEATING ELEMENT
1. Disconnect power from unit.
2. Shut off incoming water supply.
3. Attach hose to drain connection.
4. Lift manual release lever on relief valve to let air into system or break union on outgoing water line.
5. Drain water from tank.
6. Disconnect the wires from the heating element terminals.
Tank Flange
Wires
7. Remove the 3/8-16 nuts.
8. Withdraw element assembly and remove gasket.
Gasket
Element Assembly
Nuts
9. Install new gasket and insert new heating element.
10. Rewire element according to type of unit as shown
in your drawing.
11. Fill tank and check around gasket for any leaks.
15

3-PHASE HEATING ELEMENT
1. Disconnect power from unit.
2. Shut off incoming water supply.
3. Attach hose to drain connection.
4. Lift manual release lever on relief valve to let air into system or break union on outgoing water line.
5. Drain water from tank.
6. Disconnect the wires from the heating element terminals.
7. Remove the 3/8-16 nuts.
Tank Flange
Element Terminals
Nuts
8. Withdraw element assembly and remove gasket.
Gasket
Element Assembly
9. Install new gasket and insert new heating
element.
10. Rewire element according to the drawing and in
accordance with the jumper configuration as
shown below for your heater.
11. Fill tank and check around gasket for any leaks.
16

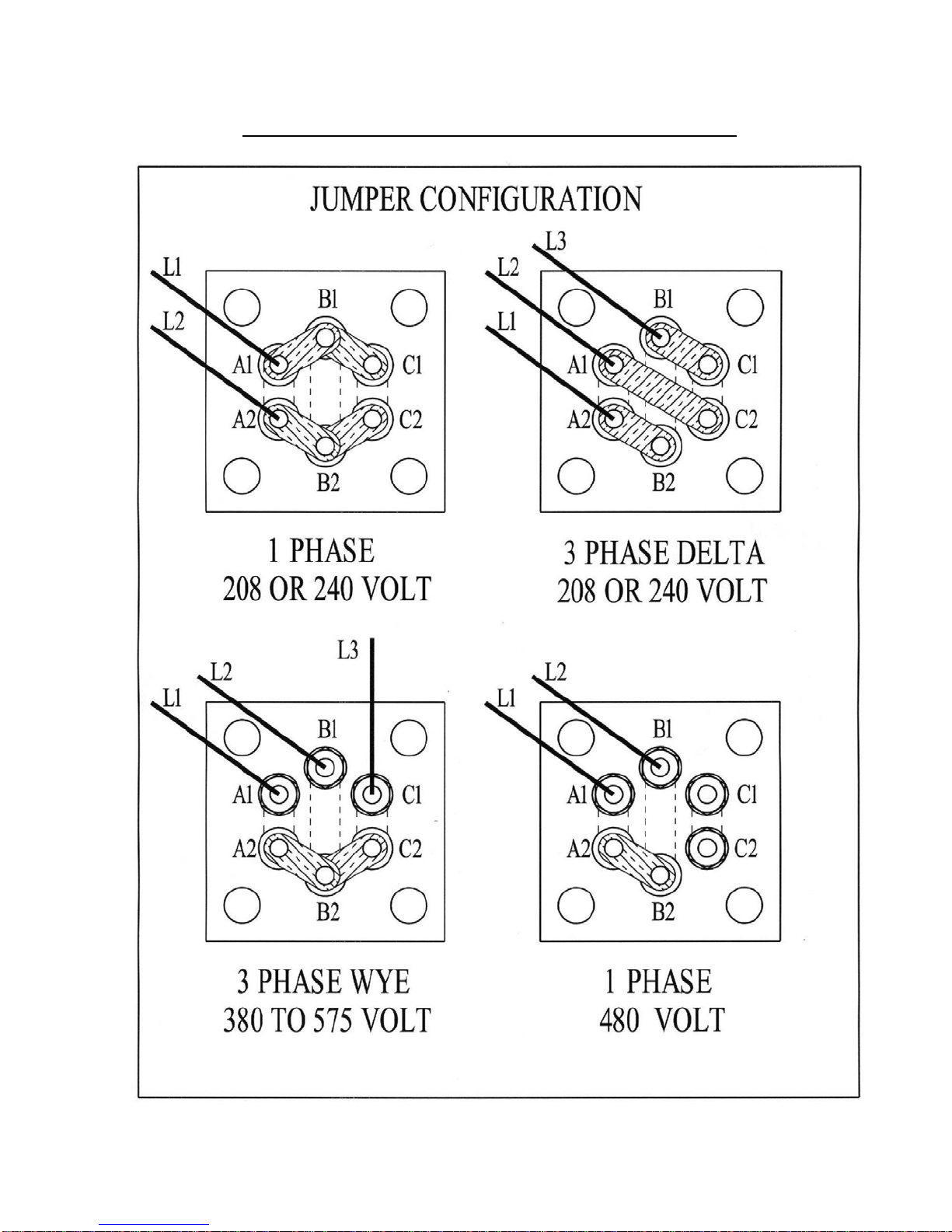

3-PHASE ELEMENT JUMPER CONFIGURATION
17

IMMERSION THERMOSTAT
1. Disconnect power from unit.
2. Remove access cover and locate thermostat.
3. Remove high limit cover screw and cover.
Cover
Cover Screw
4. Disconnect the two (2) 14 gauge wires.
Wires
Capillary Tube
5. Remove capillary tube and bulb from .
thermowell.
6. Remove two (2) mounting screws.
Mounting Screws
7. Replace thermostat using reverse procedure. (Note: Be
sure to place capillary tube into slot in base prior to
installing cover.)
18

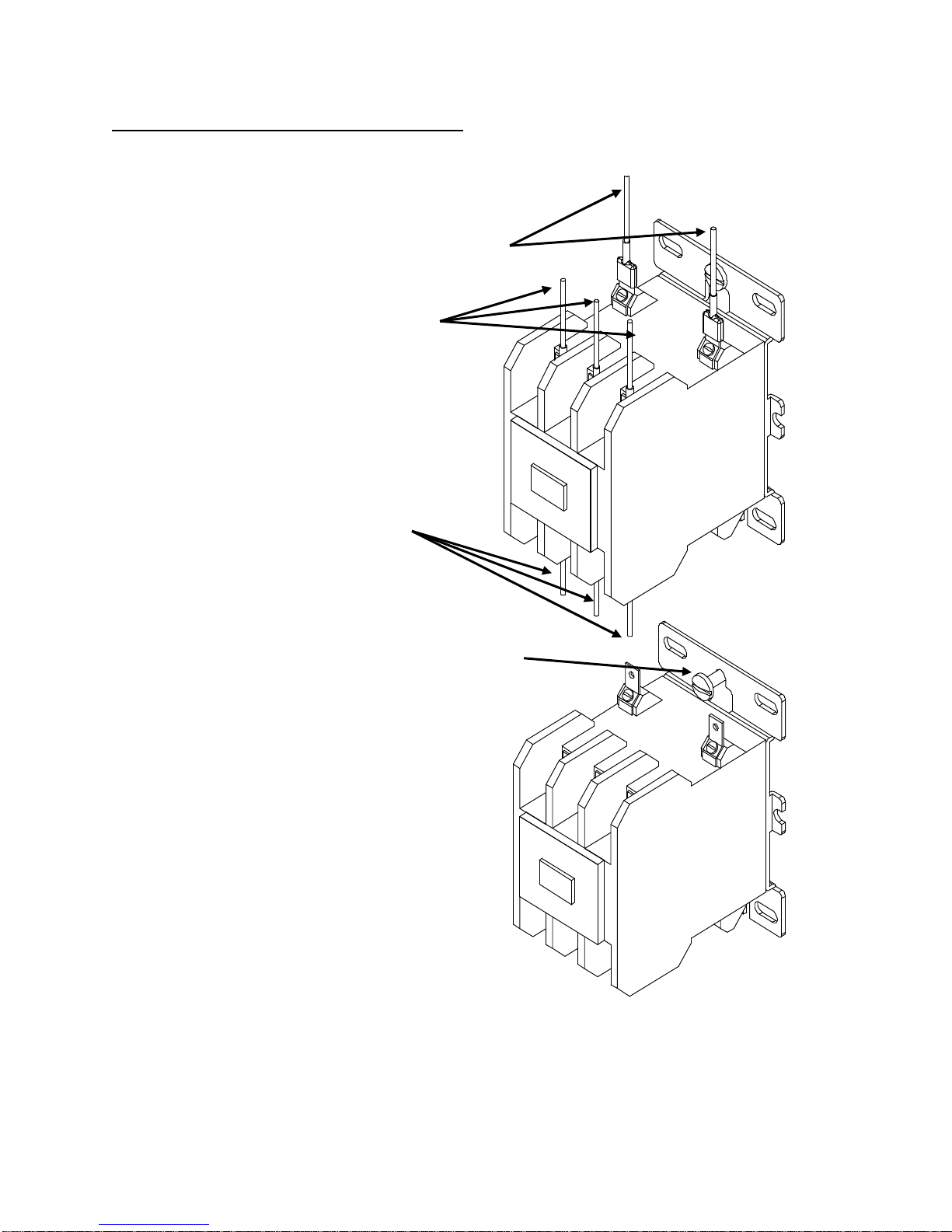

MAGNETIC CONTACTOR (3-PHASE ONLY)
1. Disconnect power from unit.
2. Disconnect line and load wires to contactor.
3. Disconnect two (2) 14 gauge control circuit wires.
Control Wires
Line Wires
Load Wires
4. Loosen two (2) holding screws and remove contactor.
Mounting Screws
(Bottom screw not shown)
5. Replace with new contactor using reverse
procedure.
19

RELIEF VALVE
1. Disconnect power from unit.
2. Shut off incoming water supply.
3. Lift test lever on relief valve to relieve pressure in tank.
4. Disconnect overflow piping.
5. Unscrew relief valve, remove assembly and replace with new one.
6. Connect overflow piping.
7. Turn on incoming water supply and check for leaks.
8. Turn safety switch to ON position.
Test Lever
Overflow Piping Outlet
Tank Connection
Temperature Probe
20
