HuddleCamHD 20X User manual

Please check HUDDLECAMHD.com for
the most up to date version of this document Ver 1.4 11/20
HuddleCamHD 20x
USB 3.0 PTZ CAMERA
INSTALLATION & OPERATION MANUAL

Page 2 of 18
Ver 1.4 11/20
Precautions………………………………………………………………………………………….
Safety Tips…………………………………………………………………………………………….
•Please read this manual carefully before using the camera.
•Avoid damage from stress, violent vibration or liquid intrusion during
transportation, storage or installation.
•Take care of the camera during installation to prevent damage to the camera
case, ports, lens or PTZ mechanism.
•Do not apply excessive voltage. (Use only the specified voltage.) Otherwise, you
may experience electrical shock.
•Keep the camera away from strong electromagnetic sources.
•Do not aim the camera at bright light sources (e.g. bright lights, the sun, etc.) for
extended periods of time.
•Do not clean the camera with any active chemicals or corrosive detergents.
•Do not disassemble the camera or any of the camera's components. If problems
arise, please contact your authorized dealer.
•After long term operation, moving components can wear down. Contact your
authorized dealer for repair.
In The Box…………………………………………………………………………….
Supplied Equipment
•HD Color Video Camera (1)
•12V/2.0A DC Power Adapter (1)
•Installation Bracket (1)
•Installation Screw (1)
•USB 3.0 Data Cable (3m), Serial Control Cable, RS-485 Adapter
•IR Remote Controller (1)
•User Manual (1)

Page 3 of 18
Ver 1.4 11/20
1
2
3
4
2
5
Physical Description………………………………………………………………………
1. Front View…………………………………………………………………………………
1. Lens
2. IR Receiver
To receive IR remote controller signal.
3. Power LED
Blue LED lights when unit is powered and on.
4. Stand by LED
Orange LED lights when unit is powered and in standby.
5. IR Receiver
To receive IR remote controller signal.

Page 4 of 18
Ver 1.4 11/20
7
8
9
2
10
6
2. Rear View………………………………………………………………………………………….
6. USB 3.0 Interface
For connection to PC USB 3.0 port (also compatible with USB 2.0 port and driver).
7. IR Selective Switch
When using only one remote to control more than one camera, this switch will
assign a unique ID to each camera.
8. VISCA In Port
For hard wired remote control from a 3rd party PC, joystick, etc...
9. RS485 IN / OUT
Used for daisy chaining multiple cameras for RS-232 & RS-485 control.
10. DC IN 12V Socket
Only use the Power Adapter supplied with this camera.

Page 5 of 18
Ver 1.4 11/20
1. Bottom View………………………………………………………………………………….
1. Dip-Switch
Used for selecting baud rate and the remote signal output switch.
2. Tripod
Will accept 1/4-20 bolt from 3rd party tripod, wall or ceiling mount.

Page 6 of 18
Ver 1.4 11/20

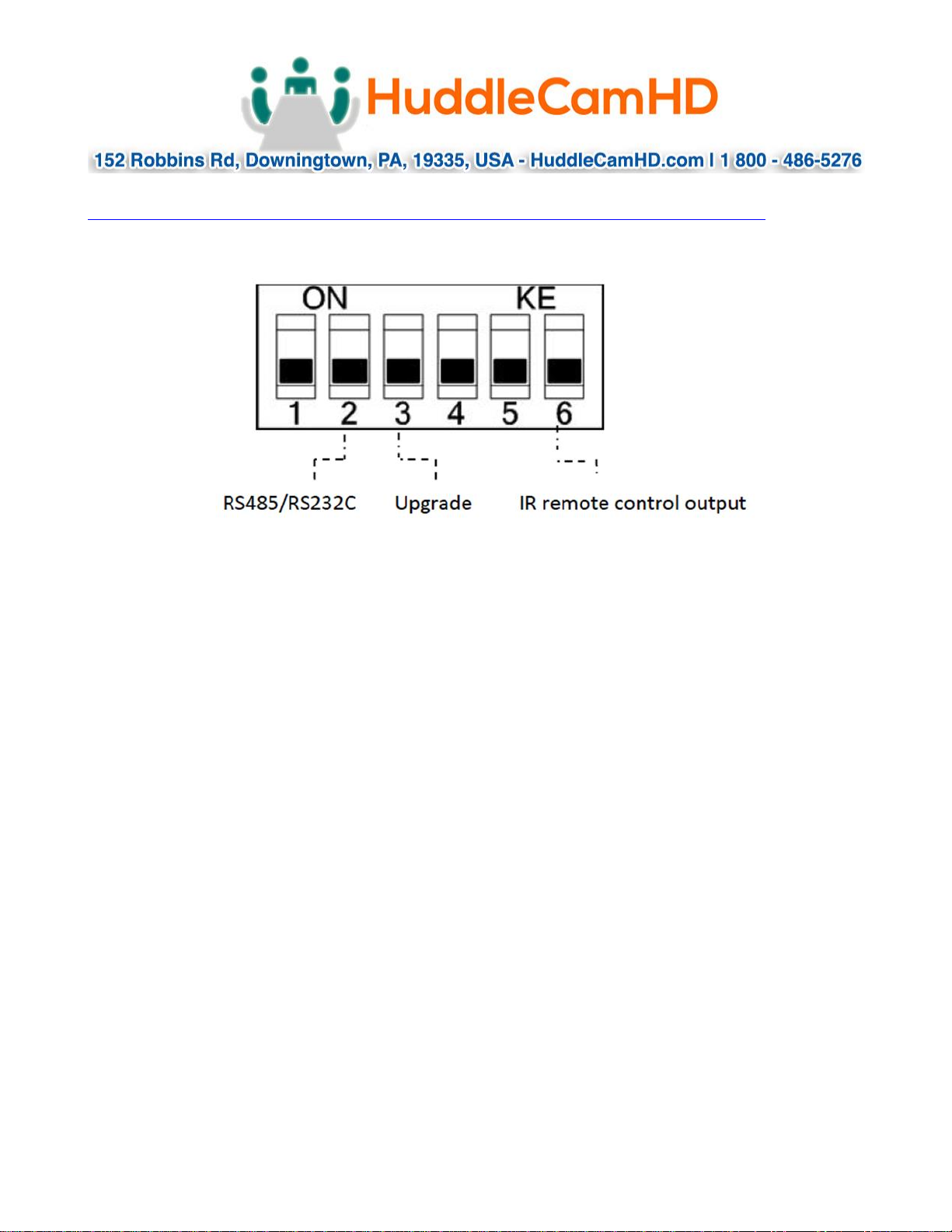

4. Dip-Switch Settings…………………………………………………………………………..
Note: When changing Dip-Switch settings, make all changes with camera powered off.
Dip-Switch 1, 4, & 5 – Reserved.
Dip-Switch 2 – Switch for settings the control protocol.
ON = RS-485 control & PELCO-D.
OFF = RS-232 control & VISCA.
Dip-Switch 3 - Switch for firmware upgrading.
Note: When ON, USB 3 output will be disabled.
Dip Switch 6 – Switch for toggling IR remote control.
ON = IR remote control disabled.
OFF = IR remote control enabled.

Page 7 of 18
Ver 1.4 11/20
Cable Connection Info…………………………………………………………………………
RS-232C - IN Reference………………………………………………………………………
RS232 OUT, RS-485 – In / Out Reference……………………………………………

Page 8 of 18
Ver 1.4 11/20
RS-485 Reference……………………………………………………………………………….
OSD MENU……………………………………………………………………………………………..
On Screen Display Menu - Use the OSD menu to access and change the camera’s
settings.
Note: You cannot manually move the camera (pan/tilt) when the OSD menu is visible
on the screen.
The Dome OSD Menu is as follows:
•Protocol
oAddress Default Value: 1
Range: 1 - 7
oProtocol Default Value: Visca
Range: Visca, Pelco-D
oBaudrate Default Value: 9600
Range: 2400, 4800, 9600, 38400
•Pan/Tilt
oIR Address Default Value: 1
Range: 1 – 3 (IR switch dependent)
oPan Speed Default Value: 14
Range: 1 - 24
oTilt Speed Default Value: 10
Range: 1 - 18
oPicture Freeze Default Value: Off
Range: On, Off
oLoc Resume Default Value: Off
Range: Off, 30, 60, 90

Page 9 of 18
Ver 1.4 11/20
•Information
oVersion (Firmware version)
oModel HuddleCamHD G3
oDate (Manufacture Date)
The Lens OSD Menu is as follows:
•Exposure
oBrightness Default Value: 50
Range: 0 – 255 (increments of 5)
oBacklight Default Value: Off
Range: On, Off
oAE Default Value: Auto
Range: Auto, Shutter
oShutter Default Value: 1/30
Range: 1/25, 1/30, 1/50, 1/60, 1/75, 1/90, 1/100, 1/120, 1/125, 1/150,
1/180, 1/215, 1/250, 1/300, 1/350, 1/425, 1/500, 1/600, 1/725, 1/1000,
1/1250, 1/1500, 1/1750, 1/2000, 1/2500, 1/3000, 1/3500, 1/4000, 1/6000,
1/10000
oAnti-Flicker Default Value: 60
Range: 50, 60
•Color
oContrast Default Value: 50
Range: 0 - 255
oHue Default Value: 50
Range: 1 - 100
oSaturation Default Value: 50
Range: 1 - 100
oSharpness Default Value: 50
Range: 1 - 127
oWB Default Value: Auto
Range: Auto, Manual
oColorTemp Default Value: 4900
Range: 1500 – 15000 (increments of 100)
•Image
oImage Flip Default Value: Off
Range: Off, All, Flip, Mirror
oFrame Default Value: 30
Range: 30/25
oImage Mode Default Value: Normal
Range: Bright, Beauty, Normal, Clear

Page 10 of 18
Ver 1.4 11/20

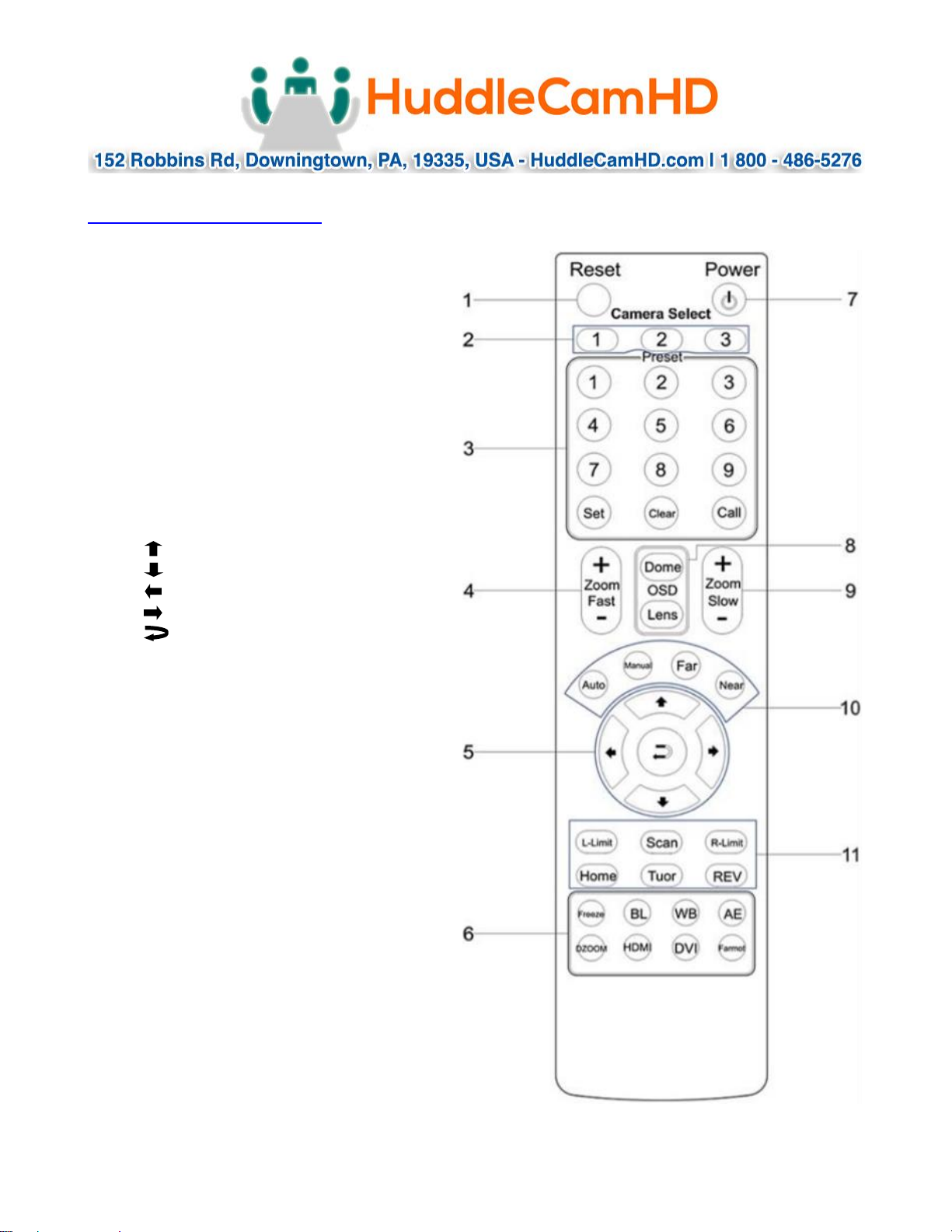

IR Remote Controller (Note: Some buttons do not operate for all camera models)
1. Reset:
Restarts the camera and restores it
to Factory Default settings.
(Note: Will delete all memory).
2. Camera Selection
Select Camera ID: 1, 2 or 3
3. Preset Positions
1-9: Preset Positions
Set: Setting Preset Position
Clear: Clear Preset Position
Call: Call Preset Position
Note: To Set / Call preset position 1, you
should press number key “1”, then press
Set / Call to Set or Call the position
4. Fast Zoom in/out Control Zone
+: Zoom in quickly
-: Zoom out quickly
5. Pan/Tilt Controller
Move Up
Move Down
Move Left
Move Right
Auto Pan
6. Additional Function Zone
Freeze: Image Freeze
BL: Back-light Compensation
WB: White Balance
AE: Auto Exposure
D Zoom: Digital Zoom
HDMI: Swap to HDMI video output
DVI: Swap to DVI video output
Format: Swap between different formats
7. Power Supply Switch
Power On / Off button
8. OSD Menu Zone
Dome OSD: Enter Pan Tilt Zoom OSD menu
Lens OSD: Enter lens OSD menu
9. Slow Zoom In/Out Zone
+: Zoom in slowly
-: Zoom out slowly
10. Focus Control Zone
Auto: Turn on auto focus
Manual: Turn on manual focus
Far: Set focus at farther distance
Near: Set focus at nearer distance
11. Pan/Tilt Function Zone
L-Limit: Set left boundary limit scanning position
Scan: Enable Boundary Scanning (Auto Panning)
R-Limit: Set right boundary limit scanning position
Home: Go to camera’s Home position
Tour: Enable automatic patrol tour of presets
Rev: Enable image flip for ceiling mounting
