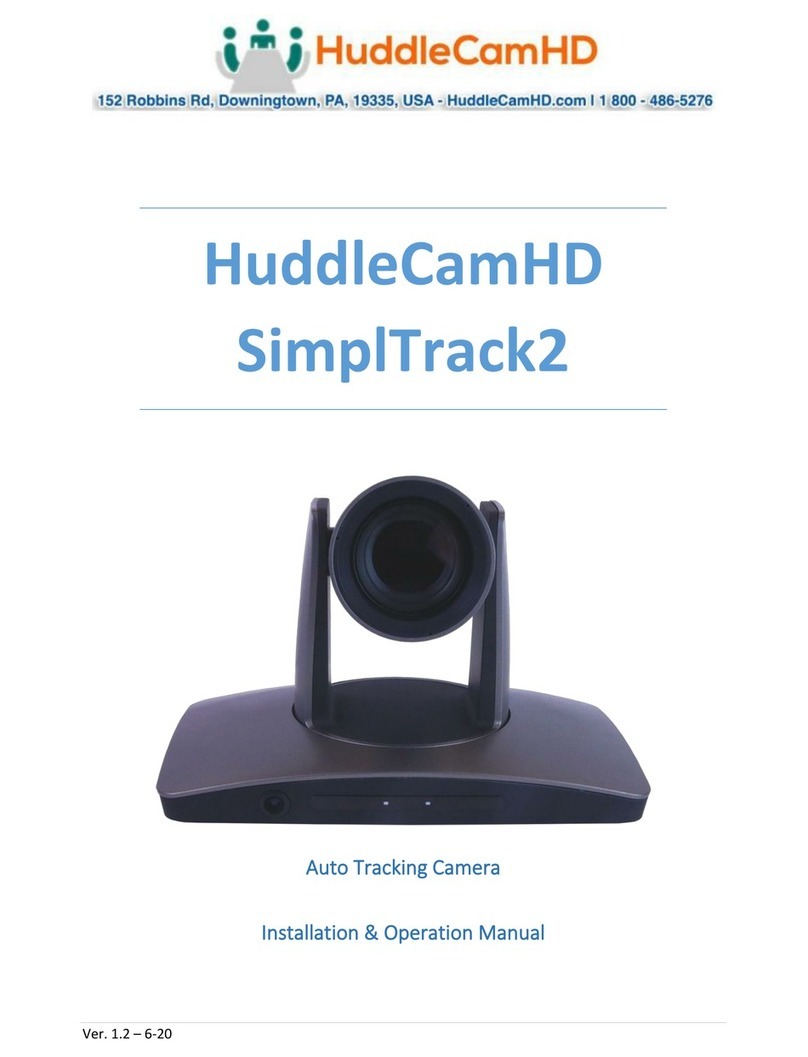

HuddleCamHD HUD-HC20X-SIMPL2 User manual

Ver. 1.4 –6-21
HuddleCamHD
SimplTrack2
Auto Tracking Camera
Installation & Operation Manual

Ver. 1.4 –6-21
i
Table of Contents .
Precautions……………..……………..………..……………..……………..…………………..……………………………………………..
Page ii
Safety Tips…………………..……………..……………..……………..……………..……………..……………..........................
Page ii
What’s in the Box……………..……………..………..…..……………..……………..……………..…………………………………….
Page ii
Supplied Hardware…………………………………………………………………………………………………………………………
Page ii
Technical Specifications………………………………………………………………………………………………………………………
Page 1
Physical Descriptions……………..……………..………..……………..……………..…………………..……………………………….
Page 2
Front View of Camera……………..……………..……………..……………..……………..………………………………………..
Page 3
Rear View of Camera……………..……………..……………..……………..……………..………………………………………….
Page 4
Basic Connection Instructions……………..……………..………..……………..……………..…………………..…………………
Page 5
Network Connection…..……………..……………..……………..……………..……………..……………..….………………….
Page 5
SDI Connection……………..……………..……………..……………..……………..……………..………………..…………………
Page 5
USB Connection……………..……………..……………..……………..……………..……………..………………...……………….
Page 5
DVI Connection………………………………………………………………………………………………………………………………
Page 5
Setting up the Camera…………………………………………………………………………………………………………………………
Page 6
Connect Camera…………………………………………………………………………………………………………………………….
Page 6
Configure Tracking………………………………………………………………………………………………………………………….
Page 7
Interface Descriptions……………..……………..………..……………..……………..…………………..……………………………..
Page 10
Tracking Software……………..……………..………..……………..……………..…………………..………………………………
Page 10
Device Management Interface……………..……………..……………..……………..……………..……………………..
Page 10
Video Configuration Interface……………..……………..……………..……………..……..……………..……………….
Page 11
Remote Playback………………………………………………………………………………………………………………………
Page 12
Connect Camera……………..………………..……………..……………..……………..…………………………………………
Page 13
Network Configuration……………..……………..………………………...………………..………………………………….
Page 14
Remote Configuration……………..……………..………………………...………………..……………………………………
Page 14
Remove Camera……………..……………..………………………...………………..…………………………….................
Page 19
Configure Video Settings……………..……………..………………………...………………..……………………………….
Page 20
Configure Tracking Settings……………………………………………………………………………………………………………
Page 21
Basic 1……………………………………………………………………………………………………………………………………….
Page 21
Basic 2……………………………………………………………………………………………………………………………………….
Page 22
Senior 1…………………………………………………………………………………………………………………………………….
Page 24
Senior 2…………………………………………………………………………………………………………………………………….
Page 25
Photobooth Functionality…………………………………………………………………………………………………………………..
Page 26
Record Video………………………………………………………………………………………………………………………………….
Page 26
Taking Photos…………………………………………………………………………………………………………………………………
Page 27
On Screen Display (OSD)……………..……………..………..……………..……………..…………………..………………………….
Page 29
Video……………..……………..………..……………..……………..……………..……………..…………..……………………………
Page 29
Exposure……………..……..……………..……………..………….……..……………..……………..…….……………………………
Page 29
Color……………..……..…………….…..……………..……………..……………..……………………………………………………….
Page 30
Pan Tilt Zoom……………..………..……………..……………..……………..……………..…………………..………………………
Page 30
System……………..…………..…………..……………..……………..……………..……………..……………………………………..
Page 30
Using the IR Remote……………..……………..………..……………..……………..…………………..………………………………..
Page 31
IR Remote Shortcuts……………..……………..………..……………..……………..…………………..……………………………
Page 32
VISCA Commands……………..……………..………..……………..……………..…………………..…………………………………….
Page 33
ACK / Completion……………..……………..……………..……………..……………..……………..………..……………………..
Page 33
Error Messages……………..……………..……………..……………..……………..……………..……………..……………………
Page 33
Commands……………..……………..……………..……………..……………..……………..……………………..………………….
Page 34
Inquiry Commands……………..……………..……………..……………..……………..……………..…..…………………………
Page 37
Tips & Tricks……………..………..…..……………..……………..……………..……………..…………………………...……………….
Page 39
Care of the Unit……………..……………..…………....……………..……………..……………..……………………..………………..
Page 39
Troubleshooting……………..……………..……………..……………..……………..……………..…………………..………………….
Page 40
Notes…………………………………………………………………………………………………………………………………………………..
Page 41

Ver. 1.4 –6-21
ii
Precautions .
Safety Tips .
•Please read this manual carefully before using the camera.
•Avoid damage from stress, violent vibration or liquid intrusion during
transportation, storage, or installation.
•Take care of the camera during installation to prevent damage to the camera
case, ports, lens, or PTZ mechanism.
•Do not apply excessive voltage, use only the specified voltage. Otherwise, you
may experience an electrical shock.
•Keep the camera away from strong electromagnetic sources.
•Do not aim the camera at bright light sources (e.g. bright lights, the sun, etc.) for
extended periods of time.
•Do not clean the camera with any active chemicals or corrosive detergents.
•Do not disassemble the camera or any of the camera's components. If problems
arise, please contact your authorized dealer.
•After long term operation, moving components can wear down. Contact your
authorized dealer for repair.
What’s in the Box .
Supplied Hardware .
•20X SimplTrack2 Camera
•Power Supply
•IR Remote
•RS-232 control cable
•This User Manual
•3m / 9.8’ USB 3.0 A-B Cable

Ver. 1.4 –6-21
1
Technical Specifications .
Main Features
Resolutions
1080p-60/50/30/25 1080i-60/50 720p-60/50/30 704x480-30 320x240-30
(RTSP & RTMP streams limited to 30 FPS)
Image Sensor
1/2.8” EXMOR, 2.14 Mega Pixel
Lens
20X Optical, f=4.7-94mm
Digital Zoom
1x ~ 11x
Minimal Illumination
0.5 lux
Shutter
1/1 ~ 1/10000
White Balance
Auto, ATW, One Push, Indoor, Outdoor, Manual, Sodium Lamp, Fluo Lamp
Tracking Horizontal FoV
3° ~ 59°
Tracking Vertical FoV
2° ~ 36°
Reference Horizontal FoV
86°
Reference Vertical FoV
52°
Horizontal Pan Range
±170
Vertical Tilt Range
-30° ~ +90°
Image Mirror
Supported
Image Flip
Not supported
Backlight Compensation
Not supported
PoE
Not supported
Local Storage
Supported (TF Micro SD slot)
Number of Presets
255
Preset Accuracy
0.1°
Input / Output Interface
HD Outputs
1 x RJ45 IP Network stream 10/100M Adaptive Ethernet port
1 x 3G-SDI: BNC type, 800mVp-p, 75Ω, Along to SMPTE 424M standard
1 x DVI: DVI-I Dual Link
1 x USB 3.0: B-type female
Audio Input
1-ch 3.5mm audio interface, Line In (RTSP & RTMP Network Stream only)
(Unbalanced stereo)
Communication Interface
1 x RS-232 IN: 8pin mini-din, Mac Distance: 30m, VISCA protocol
Storage Interface
1 x TF Micro SD slot (not included)
Power Jack
DC 12V 2.5A
IP video Features
Video Encoding
H.264 & H.265
Video Stream
Four (4) IP video output streams available
1st Stream Resolution
1080p-30, 720p-30, 704x480-30, 320x240-30
2nd Stream Resolution
720p-30, 704x480-30, 320x240-30
3rd Stream Resolution
720p-30, 704x480-30, 320x240-30
4th Stream Resolution
704x480-30, 320x240-30
Video Bit Rate
1 ~ 16383 Kbps
Supported Protocols
TCP/IP, UDP, HTTP, RTSP, RTMPS, DHCP, Multicast, etc.
USB Video Features
Operating System
Windows 7 / 8.1 / 10, Mac OS, Linux (Control software is Windows only)
Video Format
USB 3.0 –1080p-60/50/30/25, 1080i-60/50, 720p-60/50
UVC PTZ Control
Supported, UVC 1.1 ~ 1.5

Ver. 1.4 –6-21
2
Software Specifications
PC Requirements
Windows 8.1 / 10 OS, P4 / 128M RAM / 40GHD / Support for scaled
graphics card, support for DirectX8.0 or more advanced version.
Storage Requirements
50MB
Network Requirements
10/100M Wired or Wireless connectivity to a LAN
Minimum Resolution
1920x1080
General Specifications
Input Voltage
DC IN 12V
Current Consumption
1.0A (Max)
Power Consumption
12W (Max)
Operating Temperature
32°F to 104°F (0°C to 40°C)
Storage Temperature
-4°F to 140°F (-20°C to 60°C)
Humidity Range
10% ~ 80%
Camera Size (W x D x H)
9.6” x 5.7” x 6.4” | 243mm x 145mm x 163mm
Camera Weight
2.64 lbs | 1.2 kg
Box Size (W x D x H)
11.75” x 9.5” x 11.5” | 298.45mm x 241.3mm x 292.1mm
Box Weight
5.7 lbs | 2.59 kg

Ver. 1.4 –6-21
3
Physical Descriptions .
Front View of Camera .
1. Tracking Camera Lens
a. 20X Optical Zoom
b. Field of View: 3° (tele) to 59° (wide)
2. Reference Camera Lens
a. 86° (Horizontal) x 52° (Vertical)
2
1

Ver. 1.4 –6-21
4
Rear View of Camera .
1. 3.5mm Audio Input (Embeds over RTSP or RTMP)
2. Micro SD Card Slot (Allows for Photobooth functionality)
3. RJ45 - Ethernet Port (Allows for setup & RTSP/RTMP video feed)
4. DVI-D Video Output (Includes DVI to HDMI converter for HDMI output)
5. SDI Video Output (Outputs up to 1080p60)
6. 8-Pin Mini Din VISCA Input (Supports RS-232 & RS-485)
7. USB 3.0 video Output (Outputs up to 1080p60)
8. DC12V 2.5A Power Connector
1
3
4
5
6
7
8
2

Ver. 1.4 –6-21
5
Basic Connection Instructions .
Network Connection ___ .
1. Connect a live network connection, from a network with a DHCP server, to the camera.
2. Connect the included Power Supply to the camera.
3. Wait for camera to come to Home Position.
4. Install the SimplTrack software on your Windows PC on the same network as the camera
5. Open the SimplTrack software to connect to your camera
Note: To pull the main RTSP stream please use the following URL
rtsp://<camera ip>:<rtsp port>/main.h264
(example: rtsp://192.168.111.85:5000/main.h264)
Note: To pull the sub RTSP stream please use the following URL
rtsp://<camera ip>:<rtsp port>/sub.h264
(example: rtsp://192.168.111.85:5000/sub.h264)
Note: To pull the 3rd or 4th RTSP stream please use the following URL
rtsp://<camera ip>:<rtsp port>/<3 or 4>.h264
(example: rtsp://192.168.111.85:5000/<3 or 4>.h264)
SDI Connection _ .
1. Connect an SDI cable to the SDI output on the camera.
2. Connect the SDI cable to your equipment with an available SDI input.
a. Adjust output resolution via the Software Interface
b. Adjust output frame rate via the Software Interface
USB Connection _ .
1. Connect a USB 3.0 cable to the USB output on the camera.
2. Connect the USB output of the camera to an available USB 3.0 port on your PC
a. Camera will auto adjust frame rate & resolution upon connecting to a video
software
DVI Connection .
1. Connect a DVI cable to the DVI output of the camera.
a. You can also connect a DVI to HDMI converter to the DVI output and run HDMI from
the camera.
2. Connect the DVI/HDMI cable to your equipment
NOTE: The camera will auto power cycle upon connection to video software. It will auto scale the best
resolution
Failure to follow these sequences may result in no connection.

Ver. 1.4 –6-21
6
Setting up the Camera _ __
Connect Camera _____
Begin by physically connecting the camera to power, a Local Area Network (LAN), and USB, SDI, or DVI if
you plan on utilizing them. View page 6 for more information.
Now that your camera is connected to a LAN, open the tracking software to connect to your camera.
1. Click “Start Search” in the bottom section of the software to search for cameras on the same
subnet mask as your PC.
a. Note: The camera utilizes DHCP by default, if your PC is also utilizing DHCP this search
should find your camera.
2. Alternatively, you can use “+ Add Device” at the top to manually add a camera to the software
using the cameras IP address & Port (Default: 5001), or import using a *.csv
a. Note: Although not needed by default, the login credentials are Username: “admin”,
Password: “admin”
3. Now that your camera is connected, click “Main View” at the top of the software to begin
setting up the tracking parameters.

Ver. 1.4 –6-21
7
Configure Tracking _____
Now that you have a camera connected, you can select an empty cell and right-click the camera to
select a video feed for that cell, as shown below.
•Teacher-close-up: Main RTSP feed (PTZ camera)
•Teacher-panorama: Sub RTSP feed (Reference camera)
•Teacher-close-up: RTSP stream 3 feed (PTZ camera)
•Teacher-panorama: RTSP stream 4 feed (PTZ camera)
1. The first thing you’ll want to do is set preset 0 & preset 1. Use the guide below to properly set
the preset positions.

Ver. 1.4 –6-21
8
Configure Tracking (Continued) _ _____
2. From here, open “Settings” from the bottom left of the tracking software. This will open the
Basic 1 menu.
3. Set the tracking zone and blocking zones for your environment.
a. Note: As shown above, the tracking zone encompasses anywhere that may include a
face. The blocking zones are set anywhere that could be tracked that shouldn’t be, such
as individuals walking by the doorway, or faces reflected in the table.

Ver. 1.4 –6-21
9
Configure Tracking (Continued) __ _ _____
4. Click “Save” to save the Tracking & Blocking zones.
5. Click “Basic 2” along the top left of the software to open the secondary page of tracking
parameters.
6. In Basic 2, you can adjust the Tracking limitations of the camera.
a. Tracking Settings: Enable/Disable Tilt Motion, Auto Zoom, Permanent Track, & Outside
Platform.
b. Tracking Parameters: Tracking Sensitivity, Pan Speed, Tilt Speed, Zoom Limit, & Lost
Timeout as required by your room.
c. Target Lost Action: Dropdown and select “No. 0 preset” to ensure the camera is
tracking properly.
d. Power On State: Select how the camera performs when powered on.
7. Click “Save” to save the adjusted settings.
8. When you’re finished adjusting the tracking parameters, click “Exit” to return to “Main View”.
a. For more information on the options available within Settings, view Configure Tracking
Settings on page 22.

Ver. 1.4 –6-21
10
Interface Descriptions .
Tracking Software .
Device Management Interface .
1
Device Management interface
7
*Selected* device within Device
Management
2
Video configuration interface
8
Add selected camera from Online Device
section
3
View & download video and/or photos.
*Micro SD card required
9
Modify network settings of selected Online
Device
4
Manually add device using IP address, Port
number, Username & Password
10
Refresh Online Device list
5
Delete selected device from Device
Management list
11
Start/Stop searching for Online Devices
6
Configure network settings of camera
12
*Unselected* device from Online Device
section

Ver. 1.4 –6-21
11
Video Configuration Interface .
1
Cameras connected to Device Management
7
Preset control
2
Camera video feed
8
Enable/Disable tracking & Tracking Status
3
PC performance & time
9
Open tracking settings
4
Pan, Tilt, & OSD Menu control
10
Connected camera resolution & frame rate
5
Lens control
11
Snapshot, Enable/Disable recording,
Enable/Disable audio
6
OSD Menu enter/return
12
Stop video, full screen, and gallery view

Ver. 1.4 –6-21
12
Remote Playback__________________________________________
To utilize Remote Playback you will need to install a Micro SD card into the Micro SD Card slot on the
back of the camera.
1
Device list
7
Pause/Play video feed
2
Video feed of recording
8
Currently selected time (in hours) for video
feed
3
Video feed playback speed
Options include: Fast, normal, & slow speed
9
Recorded video (in hours)
4
Recorded video dropdown date
10
Currently selected time (in minutes) for
video feed)
5
Takes a snapshot of the current video feed.
11
Current time of video feed (in seconds)
6
Opens a selection window for downloading
the recorded video

Ver. 1.4 –6-21
13
Connect Camera .
To add a camera to the Device Management list, you can go about this by searching in the Online
Device section, or manually by using the + Add Device button in the Device Management section.
When utilizing the Online Device section, you can simply click Search, and the Tracking Software will
automatically search the subnet your network for any HuddleView & SimplTrack2 cameras. Select the
camera and click + Add to Client to add it to the Device Management list.
When utilizing the + Add Device button within the Device Management section, you can connect your
camera through it’s IP address, Port number, & optional Username & Password; or you can Import a
*.csv file.

Ver. 1.4 –6-21
14
Network Configuration .
To configure the network settings, select the camera from the Online Device list and click Modify
Netinfo. You can also adjust the network settings of a connected camera by selecting it from the Device
Management list and clicking Remote Configuration, then traversing to the Network section.
Remote Configuration .
Remote Configuration includes: Streaming, Network, RTMP, Protocol, Upgrade, Username/Password,
& Record.
•Stream Type: Select the RTSP feed you wish to adjust.
oOptions include: Main stream, Sub stream, Stream 3, & Stream 4.
•Resolution: Change the resolution of the stream you wish to adjust.
oMain Stream resolutions: QVGA(320x240), D1(704x480), HD720, & 1080P
oSub Stream resolutions: QVGA, D1 & HD720
oStream 3 resolutions: QVGA, D1 & HD720
oStream 4 resolutions: QVGA & D1

Ver. 1.4 –6-21
15
Remote Configuration (Continued) _
•Video Rate Type: Adjust the video rate type
oOptions include: CBR (Constant Bit Rate) & VBR (Variable Bit Rate)
•Max Rate (Kbps): Sets the maximum kilobytes per second of the Video Rate Type.
oRange: 0 - 16383
•Frame Rate: Adjust the frame rate of the RTSP feed
oOptions include: Full FPS, 1 - 30
•Key Frame Interval: Adjust the I Key Frame Interval
oRange 0 –255
•Video Coding Type: Adjust the Video Encoding type
oOptions include: H.264 & H.265
•Encode Level: Adjust the level at which the video is encoded
oOptions include: Base, Main & High
•Channels: Adjust the audio channel of the embedded audio
oOptions include: Mono & Stereo
•Encode Type: Adjust the Audio Encoding type of the embedded audio
oOptions include: AAC
•Sample Rate: Adjust the audio sample rate of the embedded audio
oOptions include: 16KHz, 44.1KHz, & 48KHz
•Audio Rate: Adjust the audio rate of the embedded audio
oOptions include: 48Kbps, 64Kbps, 96Kbps, & 128Kbps
•Input Pin: Adjust the audio connection type
oOptions include: LineIn & MicIn
•Volume: Adjust the audio level of the embedded audio
oRange: 0 –100
The Network category allows you to assign a dynamic or static IP address for the camera, in addition to
settings the port numbers for RTSP & control.
•Connect With: Adjust the network connection method
oOptions include: DHCP (Dynamic) & Static IP
Note: While in DHCP you can only adjust RTSP Port & App Port
•IP Address: Displays IP Address & allows for adjustment the IP address of your camera
oDefault value: DHCP; or 192.168.1.180 while in Static or no connection to a DHCP server

Ver. 1.4 –6-21
16
Remote Configuration (Continued) _
•Mask: Adjust the Subnet Mask of your camera
oDefault value: 255.255.255.0
•Gateway: Adjust the gateway of your camera
oDefault value: 192.168.1.1
•DNS 1: Adjust the DNS 1 (Dynamic Name System)
oDefault value: 0.0.0.0
•DNS 2: Adjust the DNS 2 (Dynamic Name System)
oDefault value: 0.0.0.0
•RTSP Port: Adjust the RTSP connection port
oDefault value: 554
•App Port: Adjust the app control port
oDefault value: 5001
The RTMP category allows you to define a RTMP server.
•RTMP # Checkbox: This checkbox allows you to enable or disable a RTMP stream.
•Stream # Dropdown: Select the stream you would like to utilize
oOptions include: Main Stream, Sub Stream, Stream 3 & Stream 4
•RTMP Text Field: This field allows you to input the RTMP server address you wish to stream to.

Ver. 1.4 –6-21
17
Remote Configuration (Continued) _
The Protocol category allows you to set the control parameters of the camera.
•Enable: Enable or disable 3rd party control to the camera
oOptions include: Enable & Disable
•Protocol: Adjust the control protocol method
oOptions include: TCP & UDP
•Camera as: Adjust whether the camera acts as a server or a controllable device
oOptions include: Server & Client
•IP: Adjust the IP address to which the camera sends commands to while in Server mode
oDefault value: 0.0.0.0
•Port: Adjust the Port number of the device you are connecting to while in Server mode
oDefault value: 5678
The Upgrade category allows you to upgrade the firmware of the camera.
•Upgrade File: Browse your computer for the firmware upgrade file
•File Version: Displays the version number of the file once selected
•Camera Version: Displays the version number of the camera currently connected
•Upgrade Status: Displays the status of the firmware upgrade
