HUDSON STEEL P-10 User manual

Bike Manual
VORTEC

INSTRUCTIONS FOR USE
1) ThemodelP-10bikeisdesignedtobeusedasagroupcycleinfitnessstudiosand
health clubs. It has a fixed wheel driven flywheel and should only be used under
professional supervision.
2) Installation–itisimportantthattheP-10Vortecbikeiscorrectlyassembledandwe
recommend that installation and assembly be carried out by suitably qualified personnel.
3) Handlebar and seat adjustment. It is important that the handlebar and seat are set at theheight
correct for your body. Ask your instructor for assistance.
Adjusting the handlebar height - Make sure it is securely tightened and that there is no lateral or
vertical movement of the handlebar. Undo the Quick Release lever which is located in front of
main tube. Slide the handlebar/stem up or down to the required height and then re-tighten again .
Adjusting the seat height ¡ refer to above mention.
The seat/slider position can also be adjusted forwards or backwards. Undo the Quick Release
lever located underneath of the bottom slider.
Slide the seat/top slider assembly forwards or backwards until reach the required position then
securely re-tighten the Quick Release lever.
NOTE: there is a safety line engraved on the seat post and handlebar stem. On no
account should the seat post or handlebar stem ever be raised above this line.
4) Pedalsandtoestraps–yourfeetshouldbesecurelypositionedinthetoeclipsduringthe
exercise. Put your foot as far forward as you can into the toe-clip and then pull the strap tight.
5) Resistancesystem-P-10bikeiswithdurablebeltdirectdrivetransmissionsystem,to
adjust the exercising resistance on the completed spinning bike, undo the simply loosen or
tighten using consol's touch panel to make adjustment.
For emergency stop then press down the brake lever for stopping the wheel.
6) The P-10 bike should operate on a level surface with no lateral movement.
There are heightadjuster pads located on either side underneath of front and rear.
7) Maintenance–likeanyothermechanicalcyclingdevice,theP-10bikeshouldberegularly
maintained. Ask your supplier for a detailed mantenance programme.
1

ASSEMBLY DIAGRAMS
2
VORTEC

ASSEMBLY

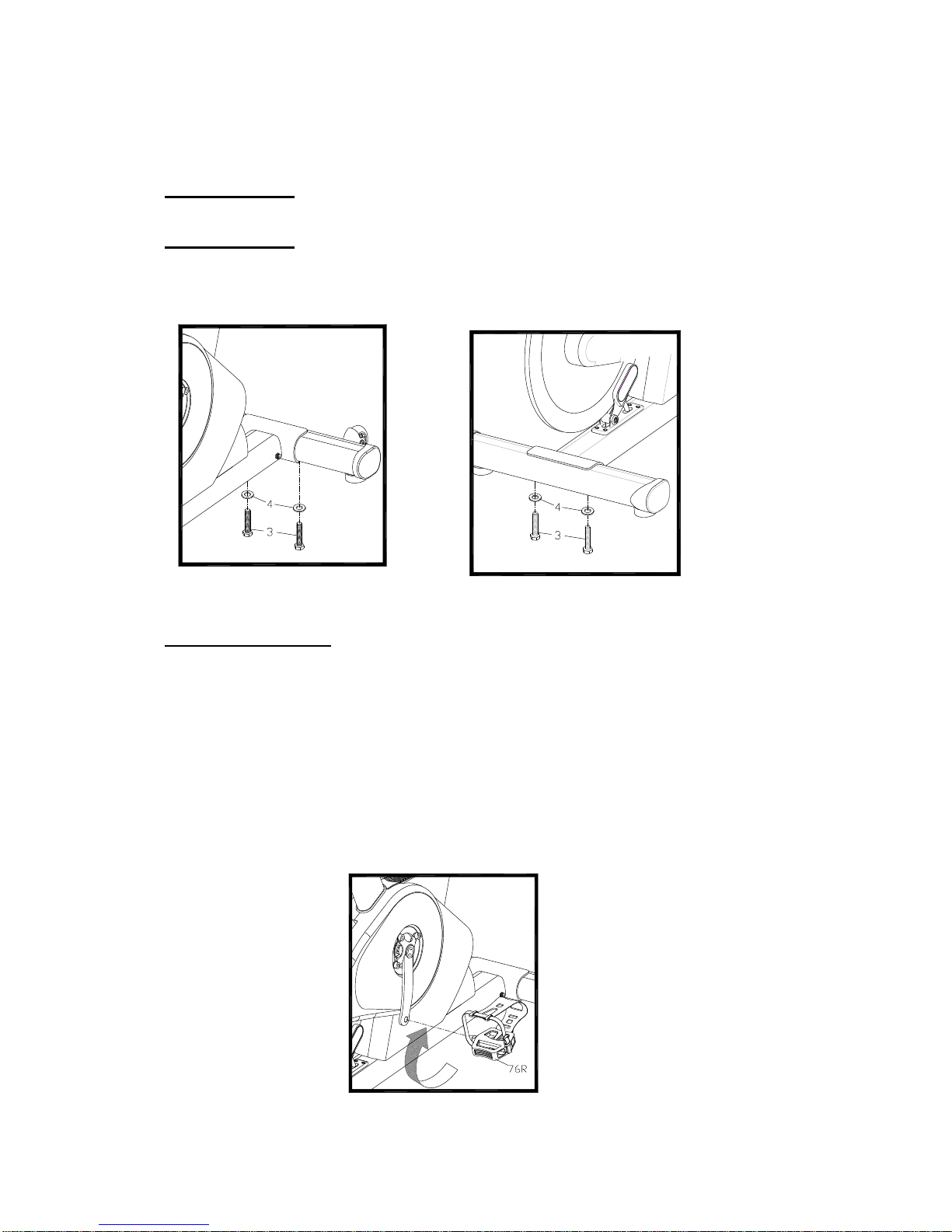

Step 1 (foot)
Attach the front foot (7) to the frame using the bolt (3) and washer (4).
Step 2 (foot)
Attach the rear foot (2) to the frame using the bolt (3) and washer (4).
Step 3. (pedals)
attach the pedals (76R/76L) into the crank arms (70R/70L), each pedal
is marked with the letter R(right) or R(right) to denote the side of the bike
they are on. NOTE: the right hand crank is on the same side as the
chain cover (78R). Be careful to align the threads correctly to avoid any
damaged. A little grease on the thread should help the pedals to screw in
easily and correctly, tighten using a 15mm spanner, both pedals threads
should tighten towards the front of the bike.
3
STEP3
STEP2
STEP 1
P10-WEBRACER

Step 4. &5 (handlebar & stem) and Consol assemble
Adjust handlebar stem (16) to a proper position then using lock lever (21) to fixed ,
assemble cable (117) through and out from top cover/consol bracket (10).
put handlebar onto the handlebar bottom holder that on the top of stem then clamp
with top cover/consol bracket (10) by 4 fixing bolt(12) ,adjust handlebar until at right
angle then tighten 4 fixing bolt (12).
Open lock lever(21) to adjust stem height again then tighten stem by lock lever (21).
Note:Be careful on the cable(117) do not be damage during top cover clamping
together with bottom cover for handlebar tighten .
Assemble consol (9) together with cable(117) .
Attached Consol on consol's bracket (10) and tighten by 4 screw(8) .
Step 6&7. (saddle & seat post)
Insert seat post (32) into frame's seat tube, assembly saddle (23) on
saddle top slider (30). Adjust slider using lock lever (31) for forwards or
backwards and then tighten until reach the proper position. Using
lock lever (21) to adjust seat post (32) height and then tighten it in proper
position.
NOTE: Do not arise above safety line.
4
STEP 4
STEP 6 STEP 7
STEP5
VORTEC

Step 8. (bottle cage)
Attach bottle cage(14) on handlebar bottle hold bracket then use 2 screw
(13) to fix bottle cage on the bracket by a 4mm allen key .
5
VORTEC
STEP 8

P-10 PART LIST
NO. Unit Q'ty Remark
1Frame KIT 1
2Rear Ground Tube 60*86*3T*545L PCS 1
3Bolt M10¡P1.5¡30L PCS 4 CP
4Washerψ22¡ψ10¡2t PCS 4 CP
5Adjustable Foot Pad M10¡P1.5 PCS 4
6Foot Tube's End Cap 60¡86 PCS 4
7Front Foot Tube 60¡86¡3t¡545L PCS 1
8Screw M5¡P0.8¡10L Stainless PCS 4
9Vortec #8109 Consol PCS 1
10 HB top fixed cover with consol's bracket PCS 1
11 Handlebar Set KIT 1
12 Screw M6¡P1.0¡20L PCS 4 Stainless
13 Water Bottle Cage fix Screw M5¡P0.8) PCS 2 Stainless
14 Water Bottle Cage UL-127A PCS 1
15 Brake Lever Stainless w/Plastic PCS 1
16 Stem KIT 1 Alloy
17 S/T's Sleeve 40¡97 / 28¡70L PCS 2 BK
18 Main Tube's Seal Ring 40¡97 PCS 2 BK
19 Lock pieceψ23¡24L PCS 2
20 Washerψ22¡ψ10¡2t PCS 2 CP
21 S/T's Lock Lever PCS 2 CP
22 Set Screw M6¡P0.8¡8L W/ Locktile PCS 2 CP
23 Saddle PCS 1
24 Seat post upper slider's End Cap PCS 1 BK
25 Seat Post Bottom Slider's End Cap PCS 1 BK
26 Stem Upper Slider's End Cap PCS 1 BK
27 Stem Bottom Slider's End Cap PCS 1 BK
28 Screw M6¡P1.0¡10L PCS 3 Stainless
29 Floating piece ψ22¡ψ9.5¡15 PCS 1 Stainless
30 Rear Slider KIT 1 Alloy
31 Lock Lever M12¡P1.75¡22L¡ψ8¡10L PCS 2
32 Seat Post KIT 1 Alloy
33 Fly Wheel Axleψ25¡ψ20¡155.5L PCS 1
34 Bearing 6004 ZZ SKF PCS 2
35 Cast Wheelψ359.8¡ψ334.7¡86t¡5PK PCS 1
36 Alloy Ringψ450¡ψ360¡16t PCS 1
37 BB Axle's Sleeveψ24¡ψ20.1¡56L PCS 1 CP
38 Nut M17¡P1.0¡8t PCS 2 CP
39 Screw M5¡P0.8¡10L PCS 5 Black
40 Nut M12¡P1.25¡9t PCS 2 CP
6
Item/Description

NO. Unit Q'ty Remark
41 Washerψ27¡ψ13¡3t PCS 2 CP
42 Washerψ10¡ψ6¡1t PCS 2 UCP
43 Bolt M6¡P1.0¡50L PCS 2
44 Cover for Magnet's Bass:31¡88.7¡2t KIT 2
45 Magnetψ25¡10t ,Identify：+ - pole . PCS 6
46 Plastic Bass for Magnet Set KIT 1
47 Magnet's Set Inner Sleeve . PCS 1 Stainless
48 Screw M6¡P1.0¡35L PCS 1 Stainless
49 Nut w/Nylon insert M6¡P1.0 PCS 1 Stainless
50 Magnet's set Fix plate PCS 1 Nylon
51 Sleeveψ8¡15L PCS 1 Stainless
52 Screw M5¡P0.8¡6L PCS 6 Stainless
53 Cable connecting barψ10¡54 . PCS 1 Stainless
54 Pullyψ18¡ψ9.5¡13.7L PCS 1 UCP
55 Spring fixing Axleψ9¡20L . PCS 2 CP
56 Screw M5¡P0.8¡5L PCS 4 CP
57 Rebound Spring . PCS 1
58 Screw M5¡P0.8¡15L PCS 4 Stainless
59 Adjusting wire for tune adjustment . KIT 1
60 PUMoving Wheelψ76¡24t¡85A Hardness. PCS 2
61 Bearing 608ZZ PCS 4
62 Nutψ8¡30L PCS 2 CP
63 Screw M6¡P1.0¡12L. PCS 2 CP
64 B.B Sleeveψ24¡ψ20.1¡23.1L PCS 1 UCP
65 Bearing 6204 ZZ SKF PCS 2
66 Nut w/Nylon Insert M20¡P1.0 PCS 1 BK
67 B.B Axleψ25¡ψ20¡141.5L . PCS 1
68 Belt Pullyψ265¡5PK. PCS 1 BK
69 Plastic Pullyψ263¡6PJ . PCS 1 BK
70L Crank for Left side. PCS 1
70R Crank for Right Side . PCS 1
71 Spring Washerψ10 PCS 8 CP
72 Screw M10¡P1.5¡15L PCS 8 Stainless
73 Magnetψ10¡5t¡3000 Gauss . PCS 1
74 Flange Nuty M10¡P1.25¡7t PCS 2 BK
75 Dusty Cover PCS 2 BK
76L LU-214 alloy body w/ toe clip& strap. PCS 1
76R LU-214 alloy body w/ toe clip& strap. PCS 1
77 Belt 5PK(1180) PCS 1
78L Left Out Cover PCS 1 BK,ABS
78R Right Out Cover PCS 1 BK,ABS
79 POP Cover PCS 2 TPR
80 Screw M5¡P0.8¡10L PCS 4 BK 7
Item/Description

NO. Unit Q'ty Remark
81 Battery cover PCS 2 ABS
82 Screw M6¡P1.0¡10L PCS 1 Stainless
83 Screw M5¡P0.8¡15L PCS 6 Stainless
84 Screw Fixing Plate 77.5¡34¡3t PCS 1 UCP
85 Screw M8¡P1.25¡20L PCS 1 UCP
86 Adjustment's Bolt M6¡9.5¡31.7L PCS 2 UCP
87 Washerψ13¡ψ6¡1.5t PCS 2 UCP
88 Nut w/Nylon Insert M6¡P1.0 PCS 2 CP
89 Washerψ16¡ψ8.5¡1.5t PCS 5 UCP
90 Nut W/Nylon Insert M8¡P1.25 PCS 3 UCP
91 Cantilever Plate 92.5¡110¡3t PCS 1 UCP
92 Washerψ21¡ψ8.5¡2t PCS 2 UCP
93 Screw M8¡P1.25¡60L PCS 2 UCP
94 Inner Sleeveψ12¡ψ8.5¡4t PCS 3 UCP
95 Spring ψ2 *ODψ17 *100L PCS 1
96 KIT 1
97 KIT 1
98 Beltψ265¡4PJ PCS 1
99 Bearing 6000 ZZ SKF PCS 2
100 Pullyψ150¡5PJ(Axle:ψ10¡76¡M6) PCS 1
101 C Clip (C10). PCS 1
102 Belt J3(955) PCS 1
103 Belt J2(538) PCS 1
104 Screw M6¡P0.8¡10L PCS 1 CP
105 Washerψ10¡ψ5¡1t PCS 1 CP
106 Generator's fixing Plate . PCS 1 UCP
107 Fego AA-1141 Generator PCS 1
108 Screw M5¡P0.8¡10L PCS 9 BK
109 Screw M4¡P0.7¡10L PCS 2 UCP
110 PCS 1 UCP
111 Sensor fixing bracket for SR212 PCS 1
112 Sensor w/Cable:ψ6¡300L¡46mm(2PIN) PCS 1
113 Lead Acid Battery with Cable pcs 1
114 Motor Fixing Bracket: 90¡48¡3t PCS 1
115 Motor PCS 1
116 Pad PCS 1
117 Consol's cable 480L+QQ wire 170L+100. PCS 1
118 "U"Bracket fixing pivotψ8¡12L. PCS 1
119 U Shape Bracket 12¡30¡2.5t PCS 1 UCP
120 Brake Lever's fixing sleeveψ8¡28 . PCS 1 Stainless
8
Motor's Adjusting Cable.
Brake Cable
BK-5301 Control Pannel w/bracket
Item/Description

Diagrams
9
VORTEC
VORTEC
2A4V

File number File Name 8108 manuel in english
development of
sectoral RND Date
developed 2010/8/24 Page 1/6 Version A/0
Approved Audit Prepared

File number File Name 8108 manuel in english
development of
sectoral RND Date
developed 2010/8/24 Page 2/6 Version A/0
Approved Audit Prepared
二、functional specification :
1. manual
2. 12 preset profile
3. HRC functions
4. 4 user features
5. Wireless heart function
Function display range Input key set the range
SPEED 0.0~99.9KPH/MPH
TIME 00：00 ～99：00 (COUNT UP) ＋－
99：00～00：00 (COUNT DOWN) ＋－1:00~99:00
DISTANCE 0 ～999.9
CALORIES 0 ～9999
LEVEL s1~16 ＋－1~16
PULSE 0～240 ＋－
RPM 0 ～999
WATT 0 ～999
USER U1~U4 ＋－U1~U4
PULSE/RECOVERY
F1~F6
ODO 0 ～9999
AGE 10~99
PROGRAM 0~12

File number File Name 8108 manuel in english
development of
sectoral RND Date
developed 2010/8/24 Page 3/6 Version A/0
Approved Audit Prepared
三、Buttons definition:
1. RECOVERY：
Press the KEY to test the heart rate detectors.
When the movement to a stage at the end of RECOVERY KEY, in the TIME window SHOW 00:60 (60 seconds) to 00:00 after the start COUNT DOWN
SHOW F1 ~ F6 (previous 10 seconds to detect.)
2.START/STOP：
a. Press the Start Key program started, and began the cumulative value.
b. Click in motion again when the KEY program execution suspended, Display shows the current and stop the flashing movement PROFILE location
Stop Madara thread attributed the origin; in 30 seconds without press Start Key or Speed signal is not detected, will into the standby state.
3. ENTER：
This key is Enter key.
4. UP ＋
Adjust the value up key is pressed values will increase.
5. DOWN －
Adjust the value of key is pressed down value will decrease.
5. MODE
in Title screen, press the button, select MODE.
四、Start machine shows：
1. When the POWER ON (when the pedal BIKE) state, all the windows are all shown with the sound of Bi 2 SEC also sounded, and then enter the Title screen.
2. LCD matrix display screen to Marquee VORTEC.

File number File Name 8108 manuel in english
development of
sectoral RND Date
developed 2010/8/24 Page 4/6 Version A/0
Approved Audit Prepared
3. Press MODE button to enter the MODE select the M (Manual) P (Program) H (HRC) M ... cycle.
4. When you select the desired mode and press ENTER KEY to enter setup.
5. Sleep Mode：
In 30 seconds without any key press or RPM input, will enter the Sleep Mode,
After entering Sleep Mode, Display OFF. Only the foot pedal can only wake up (RPM input)
6. Reset Mode ：
Under any circumstances continue to press the STOP Key 3 Sec entered the Reset action, all the contents of the whole show,
and reset the action after the action is completed,Reply to the initial state for the user to select Power On program MENU
五、Function mode：
1. Manual mode (P0):
a. In the MENU screen, select Manual press ENTER KEY to confirm and enter the field after the time starts to flash.
b. UP / DOWN to adjust the time
c. not set time from 00:00 to 99:59 starting up the maximum number, every minute, do jump to the next stage.
d. Press ENTER to confirm or enter the campaign mode START
e. resistance exercise has started to adjust a total of 16 segments, each of a preset resistance to 1.
f. Press UP and DOWN KEY to adjust resistance.
g. When the flashing segment to adjust the maximum order to stop after 16, the minimum adjusted paragraph 1 after reaching the stop order.
2. PROGRAM PROFILE mode:
a. selected in the PROGRAM PROFILE screen, press the ENTER KEY PROGRAM PROFILE confirm.
b. UP / DOWN to adjust the time

File number File Name 8108 manuel in english
development of
sectoral RND Date
developed 2010/8/24 Page 5/6 Version A/0
Approved Audit Prepared
c. not set time from 00:00 to 99:59 starting up the maximum number, every minute, do jump to the next stage.
d. Press ENTER to confirm or enter the campaign mode START
e. resistance exercise has started to adjust a total of 16 segments, each of a preset resistance to 1.
f. Press UP and DOWN KEY to adjust the resistance movement during each blink to adjust the number of segments
with the change in the back section.
g. When the flashing segment to adjust the maximum order to stop after 16, the minimum adjusted paragraph 1 after reaching the stop order.
3. H.R.C mode:
a. In the MENU screen mode, press MODE Key select HRC, press ENTER confirmed.
b. Press ENTER to enter age, heart rate reached, the time set, Up / Down's can change the settings.
c. not set time from 00:00 to 99:59 starting up the maximum number, every minute, do jump to the next stage.
d. Press ENTER to confirm or enter the campaign mode START
e. exercise has started, do the following judge
f . started the implementation of the program after exercise heart rate values compared with the target heart rate value,
if the target heart rate value of the actual heart rate value ≦『target heart rate values 15:00』,The movement
automatically increase every 15 seconds Level 2 until Level 16.
g. in the state of motion in the implementation of the program value of heart rate values compared with the target heart rate,
target heart rate if the value of the actual heart rate value ≦『target heart rate value 5』,The movement automatically
increase every 15 seconds Level 1 until Level 12.
h. in the state of motion in the implementation of the program value of heart rate values compared with the target heart rate,
target heart rate if the value of the actual heart rate value 『≧ 5』target heart rate values,The movement automatically
reduced every 15 seconds Level 1 until Level 5.

File number File Name 8108 manuel in english
development of
sectoral RND Date
developed 2010/8/24 Page 6/6 Version A/0
Approved Audit Prepared
i. in the state of motion in the implementation of the program value of heart rate values compared with the target heart rate,
target heart rate if the value of the actual heart rate value 『target heart rate values ≧15 hours』,The movement
automatically reduced every 15 seconds Level 2 until Level 3.
j.
in the state of motion in the implementation of the program value of heart rate values compared with the target heart rate,
target heart rate if the value of the actual heart rate values ≧『value of 30 when the target heart』,The campaign will
display a warning graphics, and will automatically reduce the Level 2 until Level1.
l. resistance adjustment either automatically or user self-adjustment programs implemented in their own section and the number
of segments after the segment number will change along with them.
