HUDSON STEEL Manhattan Super Gym User manual

 MULTIGYM
C9B

14
15

─ 3 ─
Important Safety Instructions
Before beginning any fitness program, you should obtain a complete
physical examination from your physician. When using exercise equipment,
basic precautions should always be taken, including the following:
* Read all instructions before using the equipment. These instructions are
written to ensure your safety and to protect the unit.
* Do not allow children on or near the equipment.
* Use the equipment only for its intended purpose as described in this guide.
Do not use accessory attachments that are not recommended by the
manufacturer: such attachments might cause injuries.
* Wear proper exercise clothing and shoes for your workout----no loose
clothing.
* Be careful when getting on or off the equipment.
* Do not overexert yourself or work to exhaustion.
* If you feel any pain or abnormal symptoms, stop your workout immediately
and consult your physician.
* Never operate the unit when it has been dropped or damaged.
* Never drop or insert anything into any opening in the equipment.
* Always check the unit and its cables before each use. Make sure that all
fasteners and cables are secure and in good working condition.
* Frayed or worn cables can be dangerous and may cause injury. Periodically
check these cables for any indication of wear.
* Keep hands, limbs, loose clothing and long hair well out of the way of
moving parts.
* Do not attempt to lift more weight than you can control safely.
* Do not use the equipment outdoors.
PERSONAL SAFETY DURING ASSEMBLY
* Read each step in the assembly instructions and follow the steps in
sequence. Do not skip ahead. If you skip ahead, you may learn later that you
have to disassemble components and that you may have damaged the
equipment.
* Assemble and operate the equipment on a solid, level surface. Locate the
unit a few feet from walls or furniture to provide easy access. The
equipment is designed for your enjoyment. By following these precautions
and using common sense, you will have many safe and pleasurable hours
of healthful exercise with the equipment.

Instructions

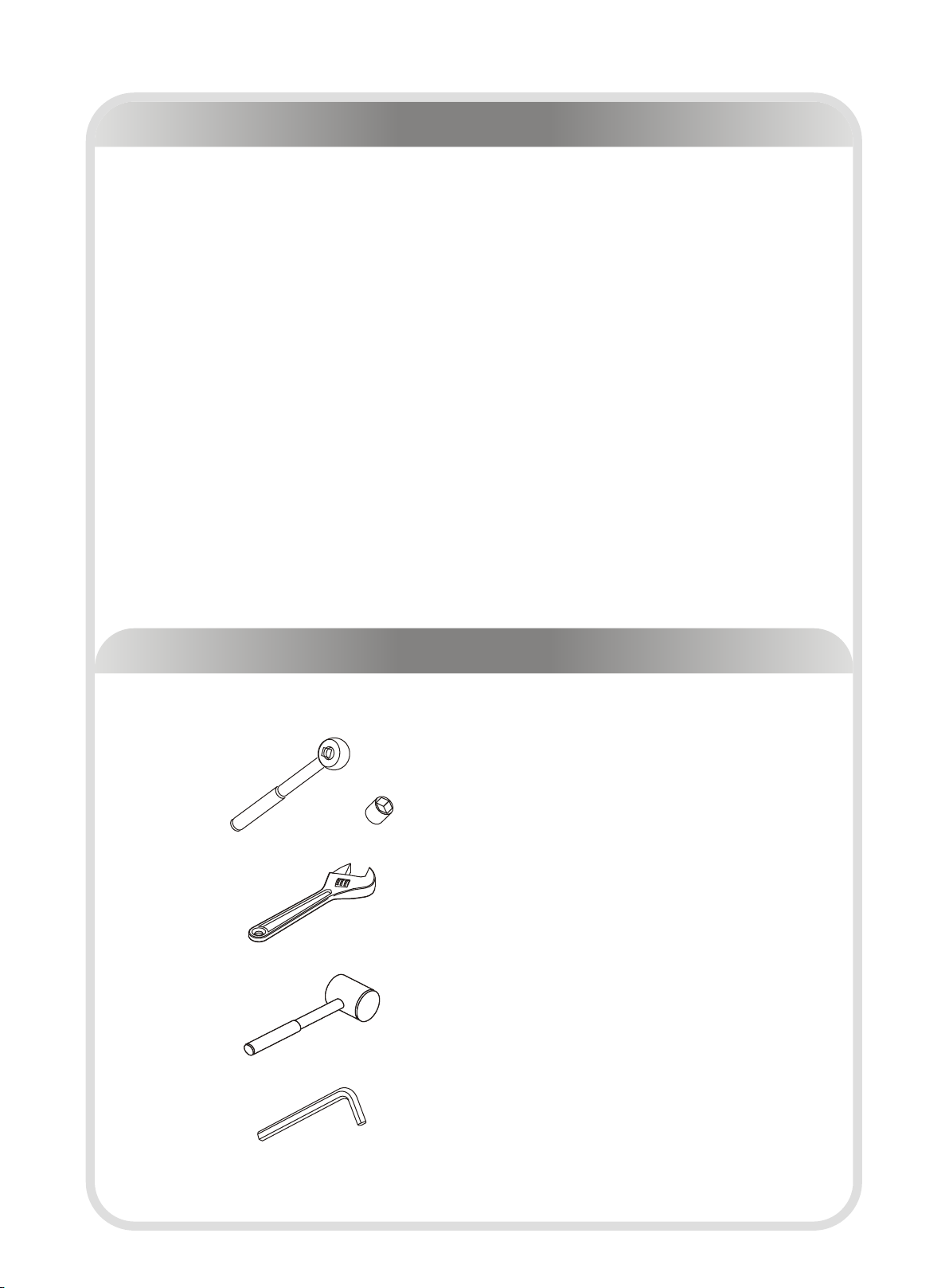

Tools Required
─ 4 ─
Before beginning assembly please take the time to read instructions
thoroughly. Please use the various lists in this manual to make sure that all
parts have been included in your shipment. When ordering, use part number
and description from the lists. Use only our replacement part when servicing.
Failure to do so will void your warranty and could result in personal injury.
The equipment is designed to provide the smoothest, most effective exercise
motion possible. After assembly, you should check all functions to ensure
correct operation. If you experience problems, first recheck the assembly
instructions to locate any possible errors made during assembly. If you are
unable to correct the problem, call your authorized dealer. Be sure to have
your serial number and this manual when calling. When all parts have been
accounted for, continue on.
Ratchet Wrench and Socket
Adjustable Wrench
Rubber Mallet
Hex Key Wrench Set

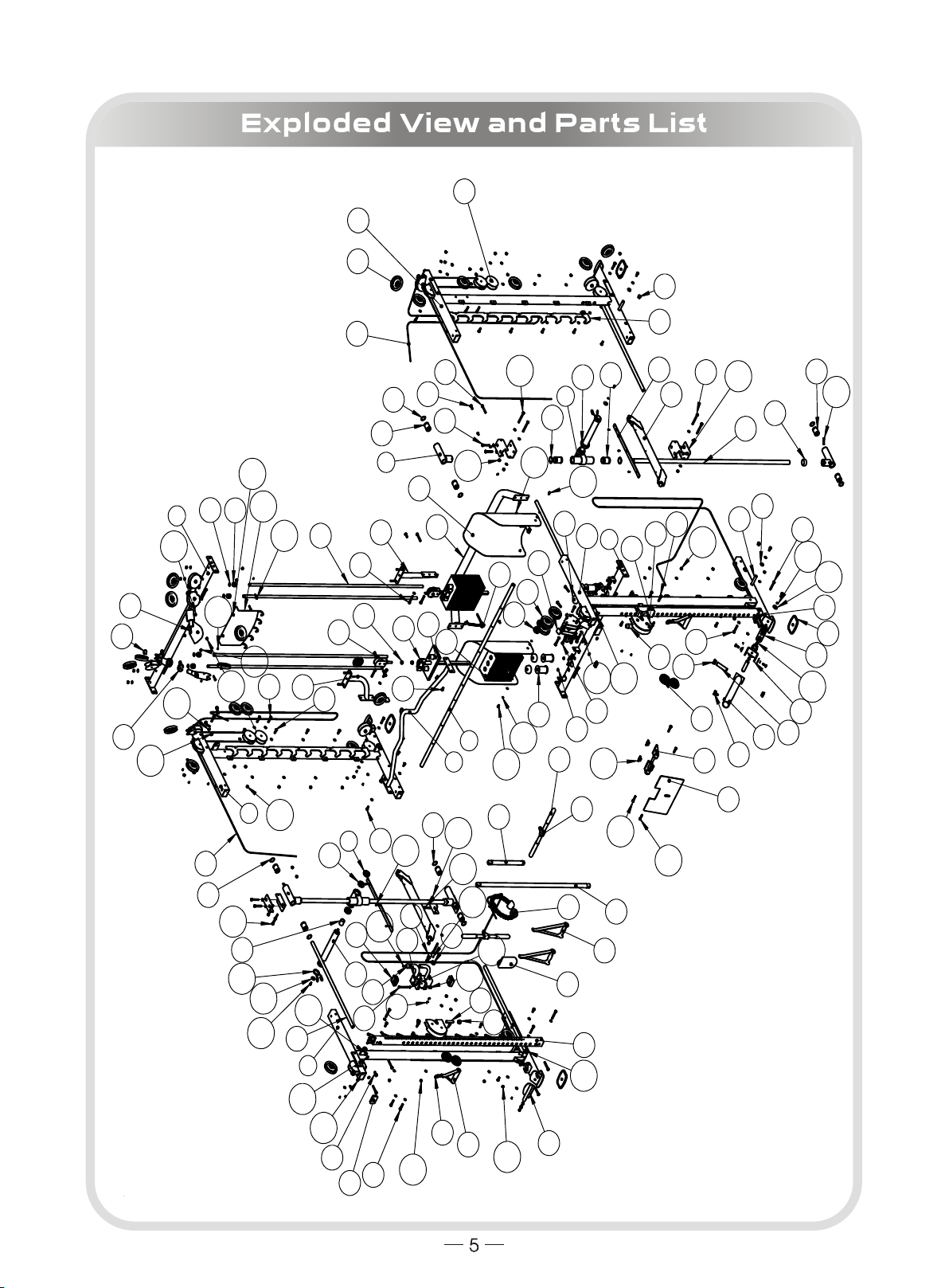

72
102
1
116
43
108
3
108
108
93
84
41
7
96
45
16
84
35
110
26
112
100
113
114
75
114
90
89
116
56
44
118
95
119
20
120
121
122
123
123
27
98
9
125
107
126
127
18
128
30
105
38
54
34
8
104
46
48
212
2
93
50
14
51
15
13
49
96
4
52
19
21
22
23
24
25
56
53
109
106
31
78
33
62
63
32
71
36
39
40
111
12
42
47
84
108
29
55
57
58
117
59
60
61
6
64
65
66
67
68
69
115
108
74
75
76
77
124
79
108
81
95
83
109
85
86
87
88
114
91
115
92
93
94
80
5
95
97
100
99
101
103
17
10
112
11
28 70
82
73
129

Item NO. Description Qty Item NO. Description Qty
1 Left Stand 1 1 23 Rear Frame 1
2 Left Stand 2 1 24 Foot Cove 4
3 Top Bridge 1 25 Cable Assembly 1 2
4 Weight Frame 1 26 Cable Assembly 2 2
5 Transverse beam 1 27 Guide Bar 2
6 Barbell Grip 1 28 Left Slip Frame 1
7 Movement Frame 2 29 Right Slip Frame 1
8 Baffle 6 30 Plastic Tube Guide 4
9 Movement Frame 4 31 Pop Pin 2
10 Weight Plate Bar Cover 2 32 Top Pulley Frame 2
11 Protective Frame 2 33 Turn Frame 1
12 Plastic Plate 2 34 Double Pulley Frame 2
13 Level Guide bar 4 35 Motional Pulley Frame 2
14 Vertical Guide bar 2 36 Support Frame 4
15 U-shaped 1 37 Shroud 2
16 Battery Frame 1 38 L-shaped plate 2
17 Guide bar 4 39 Pulley Connecing Frame 2
18 Toothed Plate 4 40 Shaft 2
19 Hook Rack 1 41 Shaft For Pulley Bracket 2
20 Intensify Frame1 1 42 Drivepipe 2
21 Intensify Frame2 1 43 Foot Frame 1
22 Connecting Shaft 4 44 Right Stand 1 1

7
Item NO. Description Qty Item NO. Description Qty
45 Right Stand 2 1 67 Bumper 2
46 Support Foot Frame 1 68 Rubber Plug 4
47 End Cap 4 69 Weight Rubber Bumper 4
48 Long handle 1 70 Rubber Fixed Block 2
49 Short pull handle assembly 1 71 Top Plate 2
50 Short handle 1 72 Weight Plate 30
51 Long Lat Strap 2 73 Selector Pin W/Coil 2
52 Triceps Rope 1 74 Linear Bearing 30(1.18") 4
53 Foot Lat Strap 1 75 Linear Bearing 25(63⁄64") 8
54 Lat Strap 2 76 Adjustable Bolt 1
55 Guide Cover 4 77 Bushing φ38*φ25.4*18
(φ1.5"*φ1"*0.71") 2
56 Big pulley 26 78 Bushingφ28*φ16*18
(φ1.1"*0.63"*0.71") 4
57 Small pulley 6 79 Nylon Spacer 4
58 Small Guide pulley 2 80 Spacer 4
59 Aluminum Cap φ25(φ63⁄64") 2 81 Bearing 8
60 Aluminum Ring φ25(φ63⁄64") 2 82 Circlip For Hole φ55(φ2.16") 4
61 Grip 2 83 Circlip For Hole φ47(φ1.85") 4
62 Grip 2 84 Circlip For Hole φ40(φ1.57") 8
63
Plug 50*70
(1.97"*2.76")
4 85 Circlip For Shaft φ30(φ1.18") 2
64 Plug φ24(φ15⁄16") 2 86 O-ring 4
65
Plug 38*38
(1.50"*1.50")
4 87 Flange Nut M12(15⁄32") 4
66 Disc Bumper 2 88 Gear Hook 6

8
Item NO. Description Qty Item NO. Description Qty
89 Hex Head Bolt M12*30
(25⁄64"*1.18") 8 110 Spring Washer φ12(φ15⁄32") 8
90 Hex Head Bolt M10*120
(25⁄64"*4.72") 1 111 Spring Washer φ10(φ25/64") 4
91 Hex Head Bolt M10*100
(25⁄64"*3.94") 8 112 Spring Washer φ8(φ5/16") 12
92 Hex Head Bolt M10*75
(25⁄64"*2.95") 8 113 Flat Washer φ11*φ38*2 (φ7⁄16"*φ3/2"*0.08") 4
93 Hex Head Bolt M10*70
(25⁄64"*2.95") 18 114 Flat Washer φ24*φ13*2.5 (φ15⁄16"*φ33⁄64"*0.10") 8
94 Hex Head Bolt M10*65
(25/64"*2.56") 2 115 Flat Washer φ11*φ20*2 (φ7⁄16"*φ25⁄32"*0.08") 212
95 Hex Head Bolt M10*50
(25/64"*1.97") 30 116 Flat Washer φ9*φ16*1.6 (φ23⁄64"*φ5⁄8"*0.06") 18
96 Hex Head Bolt M10*30
(25/64"*1.18") 26 117 End Cap 2
97 Hex Head Bolt M10*25
(25/64"*0.98") 8 118 Spring 2
98 Hex Head Bolt M10*20
(25/64"*0.79") 4 119 Socket Head Cap Screw M8*20 (5/16"*0.79”) 2
99 Hex Head Bolt M8*95
(5⁄16"*3.74") 2 120 Rubber Bumper 4
100 Hex Head Bolt M8*15
(5⁄16"*0.59") 10 121 Hex Head Bolt M8*50 (5⁄16"*1.97") 12
101 Socket Head Cap Screw M10*25
(25/64"*0.98”) 4 122 Shoulder Bollt 2
102 Button Head Cap Screw M8*40
(5/16"*1.57") 4 123 Hex Head Bolt M10*95 (25/64"*3.74") 8
103 Flat Head Cap Screw M6*15
(15⁄64"*0.59") 2 124 Flat Head Cap Screw M10*55 (25⁄64"*2.16") 8
104 Flat Head Cap Screw M5*10
(13⁄64"*0.39") 6 125 L-shaped Plate 6
105 Socket Set Screw M10*8
(25/64"*0.31") 8 126 L-shaped Bolt Plate 2
106 Socket Set Screw M8*10
(5/16"*0.39") 4 127 Training Guide Plate 1
107 Socket Set Screw M5*3
(13/64"*0.12") 4 128 Flat Head Hexagon Riveted Nuts 2
108 Nylon lock Nut M10(25/64") 95 129 Hex Head Bolt M10*15
(25/64"*0.59") 2
109 Nylon lock Nut M8(5/16") 8

STEP 1
9
Item NO. Description Qty Item NO. Description Qty
1 Left Stand 1 1 115 Flat Washer φ11*φ20*2
(φ7⁄16"*φ25⁄32"*0.08") 24
2 Left Stand 2 1 123 Hex Head Bolt M10*95
(25/64"*3.74") 8
44 Right Stand 1 1 124 Flat Head Cap Screw M10*55
(25⁄64"*2.16") 4
45 Right Stand 2 1 125 L-shaped Plate 6
93 Hex Head Bolt M10*70
(25⁄64"*2.95") 4 126 L-shaped Bolt Plate 2
108 Nylon lock Nut M10(25/64") 12
1
124
124
126
108
115
93
125
115
123
126
125
108
44
125
123
93
123
115
125
123
125
2
115
45

10

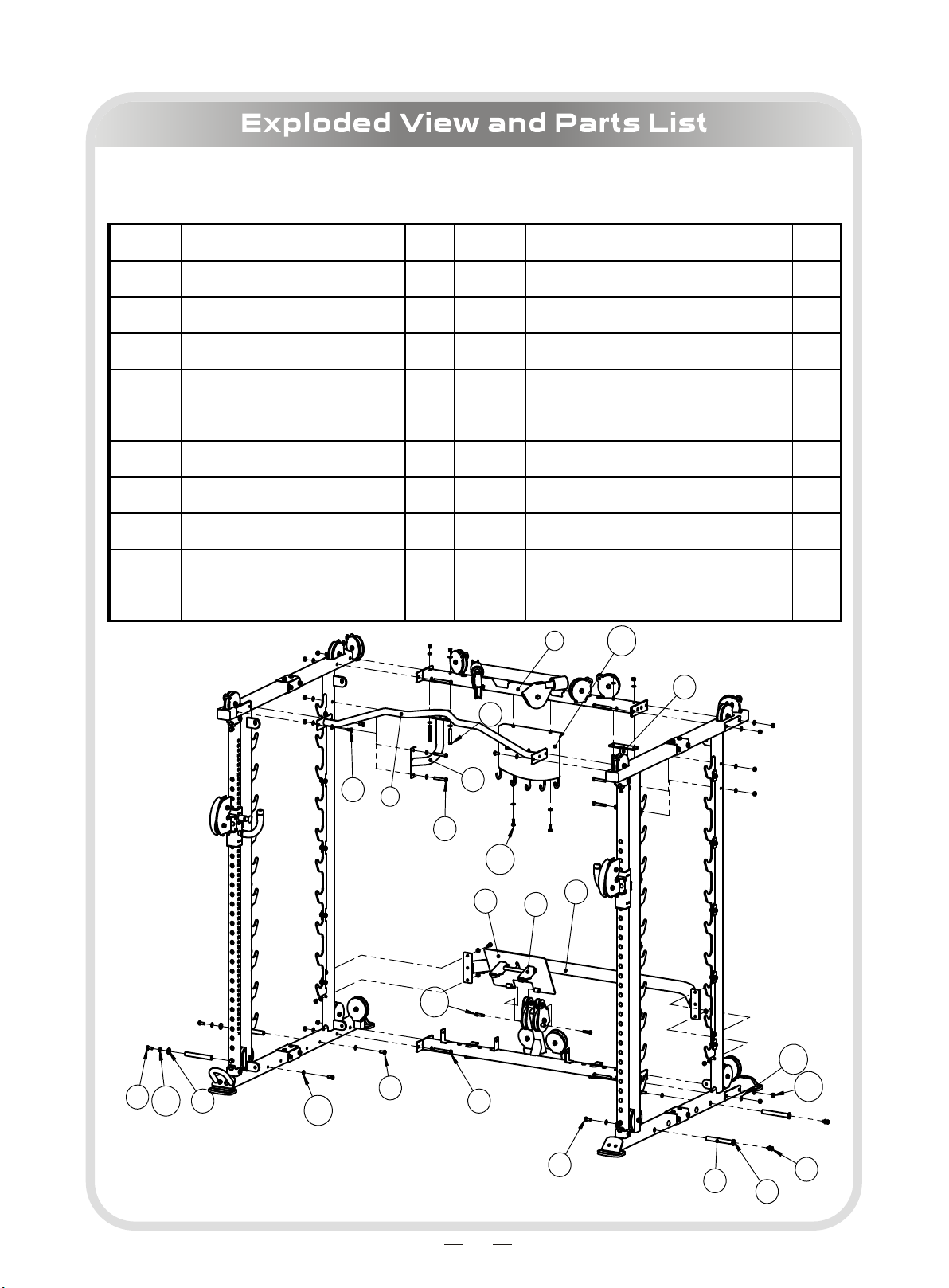

STEP 2
115
46
122
3 127
21
20
5
23
43
97
47
108
115
97
97 115 22
98
93
93
91
91
22
129
Item NO. Description Qty Item NO. Description Qty
3 Top Bridge 1 91 Hex Head Bolt M10*100
(25⁄64"*3.94") 8
4 Weight Frame 1 93 Hex Head Bolt M10*70
(25⁄64"*2.95") 10
5 Transverse beam 1 96 Hex Head Bolt M10*30
(25/64"*1.18") 2
20 Intensify Frame1 1 97 Hex Head Bolt M10*25
(25/64"*0.98") 8
21 Intensify Frame2 1 98 Hex Head Bolt M10*20
(25/64"*0.79") 4
22 Connecting Shaft 4 108 Nylon lock Nut M10(25/64") 22
23 Rear Frame 1 115 Flat Washer φ11*φ20*2
(φ7⁄16"*φ25⁄32"*0.08") 42
43 Foot Frame 1 122 Shoulder Bollt 2
46 Support Foot Frame 1 127 Training Guide Plate 1
47 End Cap 4 129 Hex Head Bolt M10*15
(25/64"*0.59") 2

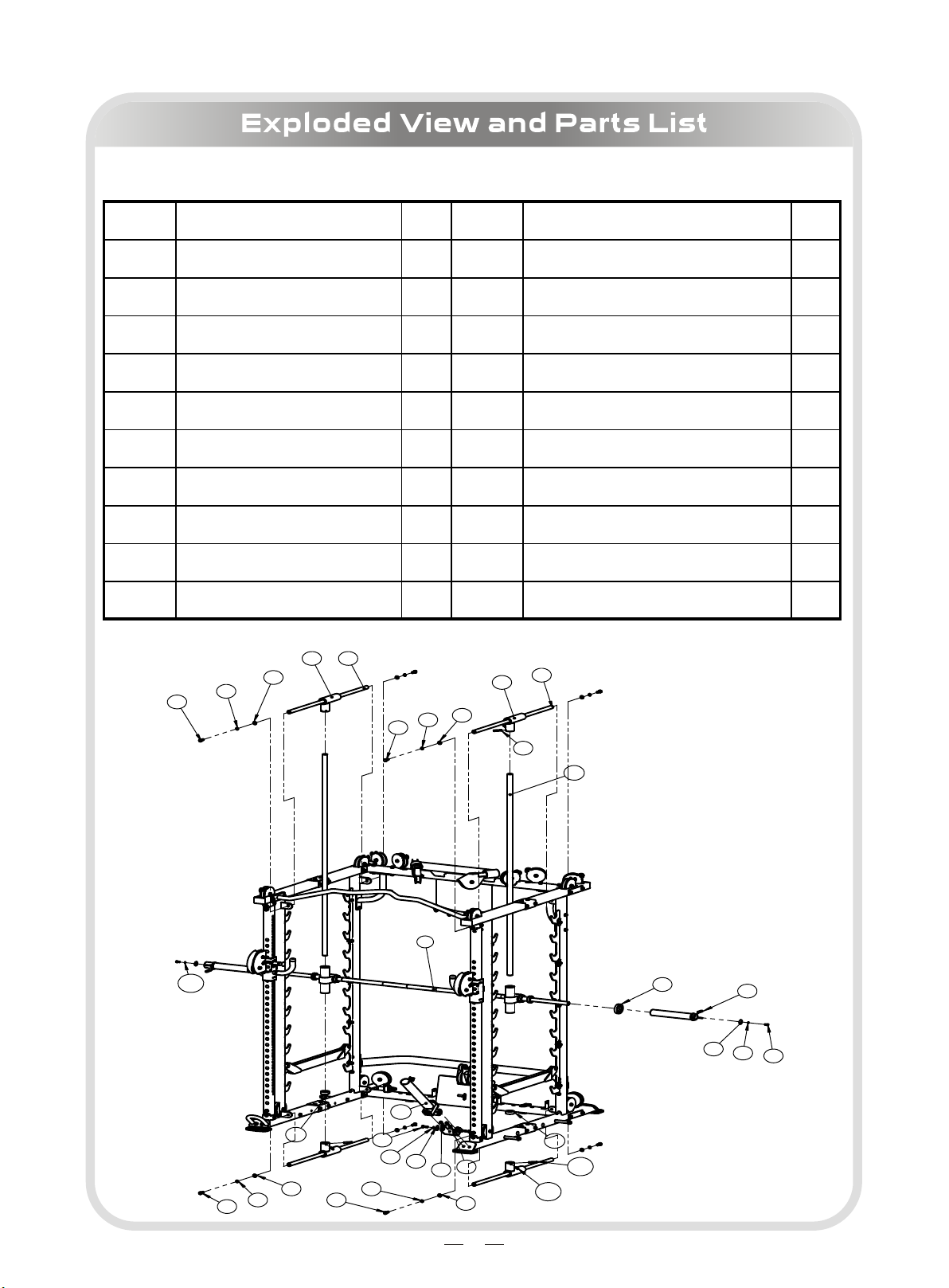

STEP 3
11
Item NO. Description Qty Item NO. Description Qty
6 Barbell Grip 1 105
Socket Set Screw M10*8
(25/64"*0.31")
8
9 Movement Frame 4 110 Spring Washer φ12(φ15⁄32") 8
13 Level Guide bar 4 111 Spring Washer φ10(φ25/64") 4
14 Vertical Guide bar 2 112 Spring Washer φ8(φ5/16") 2
16 Battery Frame 1 113
Flat Washer φ11*φ38*2
(φ7⁄16"*φ3/2"*0.08")
2
66 Disc Bumper 2 114
Flat Washer φ24*φ13*2.5
(φ15⁄16"*φ33⁄64"*0.10")
8
67 Bumper 2 115
Flat Washer φ11*φ20*2
(φ7⁄16"*φ25⁄32"*0.08")
4
89
Hex Head Bolt M12*30
(25⁄64"*1.18")
8 117 End Cap 2
96
Hex Head Bolt M10*30
(25/64"*1.18")
2 118 Spring 2
101
Socket Head Cap Screw M10*25
(25/64"*0.98”)
2 119
Socket Head Cap Screw M8*20
(5/16"*0.79”)
2
112
89
111
110
119
105
110
101
14
113
89
105
114
67
9
110
6
114
89
89
13
118
913
114
114
110
115
96
67
66
105
117
16
112

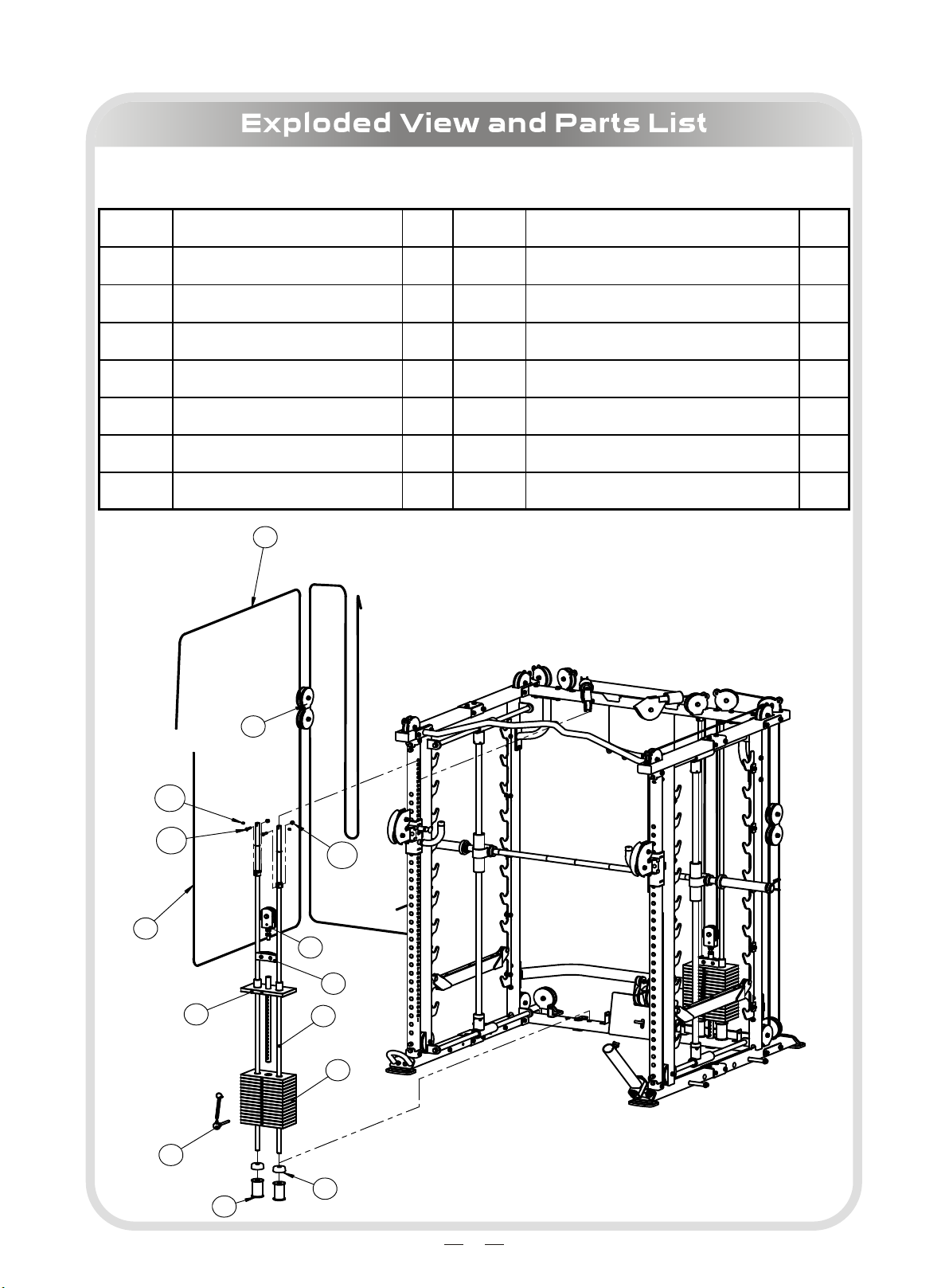

STEP 4
12
Item NO. Description Qty Item NO. Description Qty
17 Guide bar 4 70 Rubber Fixed Block 2
25 Cable Assembly 1 2 71 Top Plate 2
26 Cable Assembly 2 2 72 Weight Plate 30
35 Motional Pulley Frame 2 73 Selector Pin W/Coil 2
36 Support Frame 4 102
Button Head Cap Screw M8*40
(5/16"*1.57")
4
39 Pulley Connecing Frame 2 106
Socket Set Screw M8*10
(5/16"*0.39")
4
69 Weight Rubber Bumper 4 109 Nylon lock Nut M8(5/16") 4
106
36
25
73
102
17
72
35
39
26
71
69
70
109

STEP 5
13
Item NO. Description Qty Item NO. Description Qty
37 Shroud 2 52 Triceps Rope 1
38 L-shaped plate 2 53 Foot Lat Strap 1
48 Long handle 1 54 Lat Strap 2
49 Short pull handle assembly 1 100
Hex Head Bolt M8*15
(5⁄16"*0.59")
10
50 Short handle 1 112 Spring Washer φ8(φ5/16") 10
51 Long Lat Strap 2 116
Flat Washer φ9*φ16*1.6
(φ23⁄64"*φ5⁄8"*0.06")
10
100
49
51
116
54
112
53
50
48
52
37
38

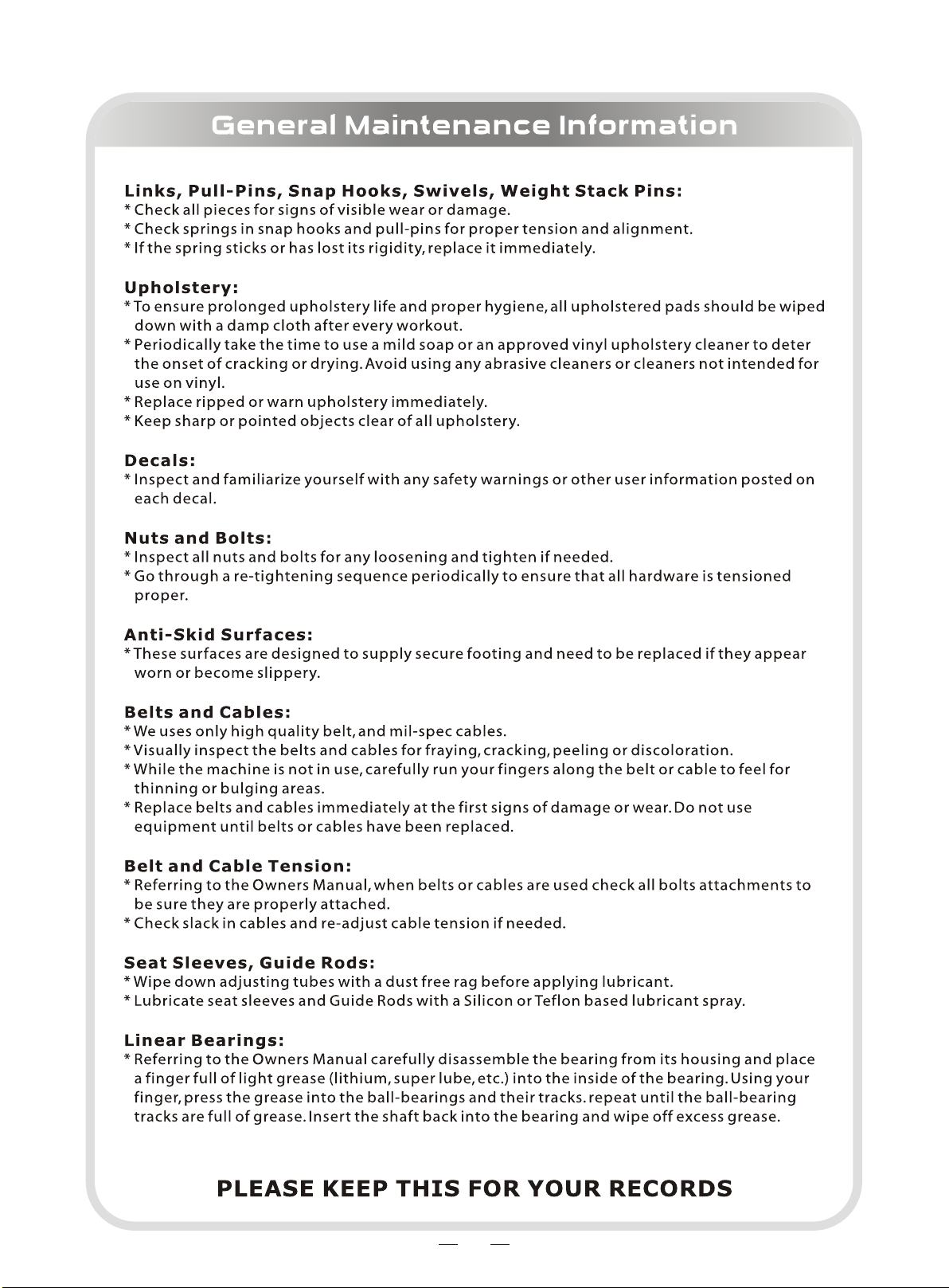

14

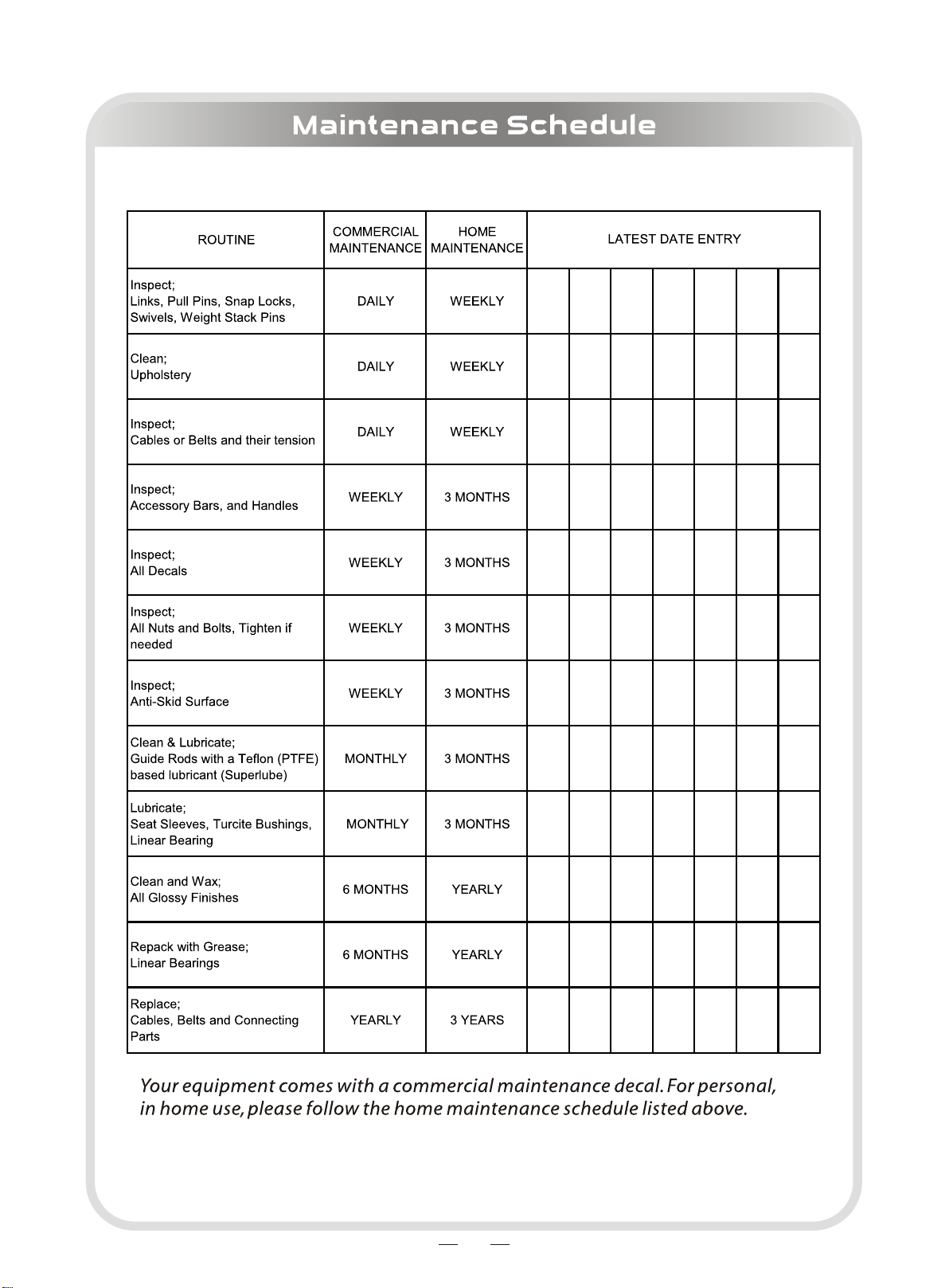

15
