Hunt HQZ-1WKDA User manual

User Manual
OUTDOOR DOME IP CAMERA
V1.0_20191022

WARNING
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS
PRODUCT TO RAIN OR MOISTURE.
DO NOT INSERT ANY METALLIC OBJECT THROUGH VENTILATION GRILLS.
CAUTION
CAUTION
RISK OF ELECTRIC SHOCK
DO NOT OPEN
CAUTION：TO REDUCE THE RISK OF ELECTRIC SHOCK.
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
COPYRIGHT
THE TRADEMARKS MENTIONED IN THE MANUAL ARE LEGALLY REGISTERED TO
THEIR RESPECTIVE COMPANIES.

Table of Contents
1. PREFACE ..................................................................... 1
2. PRODUCT SPECIFICATIONS....................................... 1
3. PRODUCT INSTALLATION ........................................... 7
I. Monitor Settings ........................................................ 7
II. Hardware Installation .............................................. 8
Connector Instruction ............................................ 9
Installing the Micro SD Card ................................. 9
Installation Steps................................................... 10
With a Mounting Plate (Optional) .................... 10
Bracket & Lens Adjustment ................................... 1
Preventing Foggy Lens .......................................... 1
Dome Cover Installation........................................ 1
PoE (Power Over Ethernet) .................................... 2
III. IP Assignment............................................................ 3
IV. Install Active Control ............................................... 7
For users using IE 6.0 or above ............................. 7
Another Method ..................................................... 9
For Non-IE Web Browser Users ............................ 10
4. LIVE VIDEO ............................................................... 14
I. Full Screen Mode .................................................. 15
II. Live Video Panel ................................................... 15
III. Submenu ................................................................. 16
5. CAMERA CONFIGURATION .................................... 18
I. System ...................................................................... 18
System Information .............................................. 19
Server Information ............................................... 19
OSD Setting........................................................... 20
Time Setting .......................................................... 21
EasyLink (Optional).............................................. 21
User Management ............................................... 23
Anonymous User Login ....................................... 23
Universal Password .............................................. 23
Add User................................................................ 23
U s e r L i s t......................................................... 24
Default Account.................................................. 24
System Update ..................................................... 25
Firmware Upgrade .............................................. 25
Reboot System ..................................................... 25
Factory Default .................................................... 25
Setting Management ......................................... 25
II. Network.................................................................... 26
IP Settings .............................................................. 27
IP Assignment ....................................................... 27
IPv6 Assignment ................................................... 27
Port Assignment ................................................... 28
UPnP ....................................................................... 28
RTSP Setting........................................................... 30
Multicast Setting .................................................. 31
ONVIF ..................................................................... 31
Bonjour................................................................... 32
LLTD......................................................................... 32
Advanced ............................................................. 33
Https (Hypertext Transfer Protocol Secure) ..... 33
SNMP ...................................................................... 36
Access List ............................................................. 38
QoS/DSCP ............................................................. 38
IEEE 802.1x ............................................................. 39
PPPoE & DDNS ....................................................... 40
PPPoE Setting........................................................ 41
Send mail after PPPoE dialed............................ 41
DDNS Setting......................................................... 41
State ....................................................................... 41
Server Settings ...................................................... 43
Mail Setting ........................................................... 44
FTP Setting ............................................................. 44
Samba (Network Storage)................................. 45
Google Drive Setting........................................... 45
Dropbox Setting ................................................... 49
Wireless Setting ..................................................... 50
Status of Networks in Wireless Setting .............. 50
Connecting to an ad-hoc Wi-Fi network ........ 51
WEP Setting ........................................................... 55
WPA-PSK/ WPA2-PSK Setting.............................. 55
III. A/V Settings ............................................................. 56
Image Setting ....................................................... 57
Camera ................................................................. 57
Privacy Mask......................................................... 57
Image Setting....................................................... 58
Video Setting......................................................... 63
Video System ........................................................ 63
Streaming Settings ............................................... 66
Snapshot Setting .................................................. 70
3GPP Streaming Setting...................................... 70
Audio ..................................................................... 71
IP Camera to PC.................................................. 71
Adjust Volume ...................................................... 71
Sound Detection.................................................. 71
IV. Event List................................................................... 73
Event Setting ......................................................... 74
Motion Detection ................................................ 74
Tampering Detection.......................................... 75
Record File ............................................................ 77
Record Time Setting ............................................ 77
Network Dis-connected ..................................... 78
Network IP Check................................................ 78
Facial Recognition ............................................... 79
Face Detection/Recognition ............................ 80
Face Database Edit ............................................ 82
Group Setting ....................................................... 88
Face Database Manager.................................... 91
Human Data ......................................................... 91
Group and Organization.................................... 96
Log.......................................................................... 97
Face Event Search ............................................... 98
Schedule ............................................................... 99
Schedule ............................................................... 99
Snapshot & Record ........................................... 100
I/O Setting ........................................................... 101

2
Input Setting........................................................ 101
Output Setting.................................................... 102
Log List ................................................................. 103
SD Card ............................................................... 104
Playback ............................................................. 104
Record ................................................................. 106
SD Management ............................................... 108
SD Card Files ....................................................... 108
Copy to PC ......................................................... 109
6. NETWORK CONFIGURATION................................. 111
Configuration I ........................................................... 111
Configuration II .......................................................... 111
Configuration III ......................................................... 112
7. I/O CONFIGURATION ............................................ 113
I. I/O Connection .................................................... 113
II. I/O Setup................................................................ 114
Input Setting ........................................................ 114
Output Setting ..................................................... 114
8. FACTORY DEFAULT................................................. 116
9. UNIVERSAL PASSWORD ......................................... 117
10.PACKAGE CONTENTS ............................................ 120
11.MICRO SD CARD COMPATIBILITY (OPTIONAL) ... 121

1
1. Preface
This is a 1 / 2.9” Megapixel CMOS Sensor Outdoor IP camera with a
built-in web server. The user can view real-time video via IE browser. It
supports H.264+, H.264 and M-JPEG video compression, providing
smooth and high video quality. The video can be stored in Micro SD
card and playback remotely.
With a user friendly interface, it is an easy-to-use IP camera for security
applications.
2. Product Specifications
Main Features:
2 Megapixel IR Vandal Dome IP Camera
H.264+/ H.264/ M-JPEG Compression
Sony Starvis Sensor
Face Detection / Tracking / Capture
Facial attribute recognition
Liveness Detection
Face Recognition
Group management
Face Snapshot & Event management
Face Recognition with built-in database for 20,000 faces
True Wide Dynamic Range 120dB
ROI Function
Digital Noise Reduction
Power over Ethernet

2
Day & Night Manual Switch Time Control
Wide Temperature Range
IR LED Built-in 30M
IR Cut Filter Mechanism
Micro SD Card Backup
2-way Audio
IP66, IP68, IK10
Support iPhone/Android/Mac
SDK for Software Integration including Face Detection & Capture
Free Bundle 36 Ch Recording Software
Hardware
CPU
Multimedia SoC
VPU
Intel® Movidius™ Myriad™ 2
RAM
1GB
Flash
256MB
Image Sensor
1 / 2.8” Megapixel CMOS Starvis Sensor
Sensitivity
Color : 0.005 Lux (AGC ON)
B / W : 0.001 Lux (AGC ON)
Lens Type
6-22mm 3.6X Bulid-in Zoom Lens @ F1.6
View Angle
18.49~44.07°(H), 10.42~24.27 °(V)
ICR
IR cut Filter Mechanism
I/O
1 DI/ 1 DO
RS-485
Yes
Video Output
Yes
Audio
G.711(64K) and G.726(32K,24K) audio
compression
Input : 3.5mm phone jack
Output: 3.5mm phone jack, Support 2-way.
Power over Ethernet
Yes
Power Consumption
DC 12V Max: 6.20 W
PoE Max: 7.52 W
Operating
Temperature
*IR ON: 50°C
-20°C ~ 60°C [*IR OFF]
Wide Dynamic Range
120dB

3
S/N Ratio
50dB
Dimensions
137mm () x 102mm (H)
Weight
1000 g
IR LEDs
LEDs
High Power LEDs x4, 850nM
IR Distance
30M
Network
Ethernet
10/ 100 Base-T
Network Protocol
IPv6, IPv4, HTTP, HTTPS, SNMP, SSL, TLS , DNS , ICMP,
IGMP, ARP, SNTP, QoS/DSCP, IEEE 802.1X,
RTSP/RTP/RTCP, TCP/IP, UDP, SMTP, FTP, PPPoE,
DHCP, DDNS, NTP, UPnP, SAMBA, Bonjour, Google
drive, Drop box, Onvif profile S
Artificial Intelligence Feature
Face Detection/Tracking/Capture
Detection Time
Required
55ms/Frame
Detection Frame Rate
Up to 20FPS
Maximum Faces
Number
16
Minimum Face Size
60*60 pixels
Face Orientation Angle
Yaw Angle [-60°~+60°]
Pitch Angle [-30°~+30°]
Roll Angle [-45°~+45°]
Accuracy Rate
99%
False Alarm Rate
0.5%
Repeated capture rate
<10%
Liveness Detection
Liveness Detection
Time Required
165ms/Frame
Detection Frame Rate
10FPS
Accuracy Rate
97.2%
False Alarm Rate
1 %
Facial Attribute Identification
Attribute
Identification
55ms/Frame

4
Time Required
Detection Frame Rate
Up to 20FPS
Minimum Face Size
80*80 pixels
Face Orientation Angle
Yaw Angle [-30°~+30°]
Pitch Angle [-30°~+30°]
Roll Angle [-30°~+30°]
Accuracy Rate
Age: ± 5; gender: 98%; expression accuracy:
90%; others: over 95%
False Alarm Scenarios
Overexposure, Low lighting, Serious
backlighting scenarios, Exaggerated expression
Attribute Types
Gender
Male, female
Age
0-99
Glasses
No glasses, wearing glasses and sunglasses
Mask
Yes, no
Ethnicity
Black, white, yellow
Beard
Yes, no
Expression
Angry, calm, disgust, happy, sad, scared,
surprised, confused, squint, scream
Face Recognition
Time for facial feature
extraction
70ms/Frame
Time for face
identification
10ms/image in a library of 10000 faces
Identification speed
Up to 9 FPS
Minimum Face Size
80*80 pixels
Face Orientation Angle
Yaw Angle [-30°~+30°]
Pitch Angle [-30°~+30°]
Roll Angle [-30°~+30°]
Accuracy of facial
identification
Library of 2000 faces: >97%@1% FPR
Library of 10000 faces: >94%@1% FPR
Face Database
20,000 Faces
False Alarm Scenarios
Overexposure, Low lighting, Serious
backlighting scenarios, Exaggerated expression

5
System
Video Resolution[16:9]
1920x1080@30fps, 1280x720@30fps,
640x480@30fps, 320x240@30fps
Video Adjust
Brightness, Contrast, Hue, Saturation, Sharpness,
AGC, Night Mode, True-WDR, Flip, Mirror, Noise
Reduction, Day&Night Adjustable
Features
ROI, Motion Detection, Privacy Mask, Anti Fog,
Tampering Detection , Push Video , P2P(Optional),
Face recognition, Face Detection & Capture,
Face attribute recognition, Face tracking
Triple Streaming
Yes
Image Snapshot
Yes
Full Screen Monitoring
Yes
Privacy Mask
Yes, 3 USER defined areas
Compression Format
H.264+/ H.264/ M-JPEG
Video Bitrates Adjust
CBR, VBR
Motion Detection
Yes, 3 different areas
Event
Face Detection, Face Attribute Recognition, Face
Recognition, Face Group, Motion Detection, IP
check, Network break down (wire only), DI,
Schedule
Triggered Action
Mail, FTP, Save to SD card, DO, SAMBA , Dropbox ,
Google Drive
Security
Password protection, IP address filtering, HTTPS
encrypted data transmission, 802.1X port-based
authentication for network protection, QoS/DSCP
Firmware Upgrade
HTTP mode, can be upgraded remotely
Simultaneous
Connection
Up to 10
Integration
Hunt CMS, NVR, APP, and Recording Software;
SDK for 3rd party integration
Micro SD Card Management
Recording Trigger
Face Detection, Face Attribute Recognition, Face
Recognition, Face Group, Motion Detection, IP
check, Network break down (wire only),Schedule,
DI
Video Format
AVI , JPEG
Video Playback
Yes
Delete Files
Yes
Web Browsing Requirement

6
OS
Windows 7, 8 , 10 ,XP, Microsoft IE 11 or above
Mobile Support
iOS 8 or above, Android 4.4.2 or above.
Hardware Suggested
Intel Dual Core 2.8G, RAM: 4GB, Graphic card:
128MB
*SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTIFICATION.

7
3. Product Installation
I. Monitor Settings
Caution: This setting only applies to Windows 7 system users.
a. Right-Click on the desktop. Select Properties
b. Change color quality to highest (32bit).

8
II. Hardware Installation

9
Connector Instruction
Set up configurations based on the network environment. For I/O setting,
please refer to I/O Configuration chapter for more.
Installing the Micro SD Card
Insert the Micro SD card into the slot which is right beneath the camera unit
for installation, and push the Micro SD card again to for ejection.

10
Installation Steps
With a Mounting Plate (Optional)
Mount the whole plate
unto the surface where
the installation takes
place first.
It is also recommended
that the surface where
you mount the camera is
smooth and closely flat
with the camera.
Match the gaps and the
screws with the plate
surface facing the
direction as the picture
depicts. Attach the
Camera body with the
Mounting Plate.
Adjust the 3 Axis Diagram.
Install the Dome Cover.

1
Bracket & Lens Adjustment
Adjust the 3-Axis bracket of the camera to appropriate angle.
Preventing Foggy Lens
To avoid lens fog while the dome housing is open during installation, take out
the Silica Gel from the small package and place it inside the dome to reduce
the humidity level.
Dome Cover Installation
Make sure there are no cables around the screws, and slowly lock the four
corners at the same time, applying equal force. Do not fully lock one screw at
a time; otherwise the closing might not be equally thorough.

2
Before you close the dome cover, make sure that the black rubber edge
sticks to the cover completely. Crooked or uneven conditions may cause the
waterproof defective.
PoE (Power Over Ethernet)
802.3af, 15.4W PoE Switch is recommended (Optional)
Power over Ethernet (PoE) is a technology that integrates power into a
standard LAN infrastructure. It allows providing power to a network device,
such as an IP phone or a network camera, using the same cable for network
connection. It eliminates the need for power outlets at the camera locations
and enables easier application of uninterruptible power supplies (UPS) to
ensure 24 hours a day, 7 days a week operation.

3
III. IP Assignment
i. Open the software IP Scanner to assign the IP address of the IP Camera.
Find it in Applications folder from the CD attached of the product package.
ii. Execute the English version of IP Scanner: IPScannerENG
iii. There are 3 kinds of IP configuration.
Fixed IP (Public IP or Virtual IP)
DHCP (Dynamic IP)
Dial-up (PPPoE)

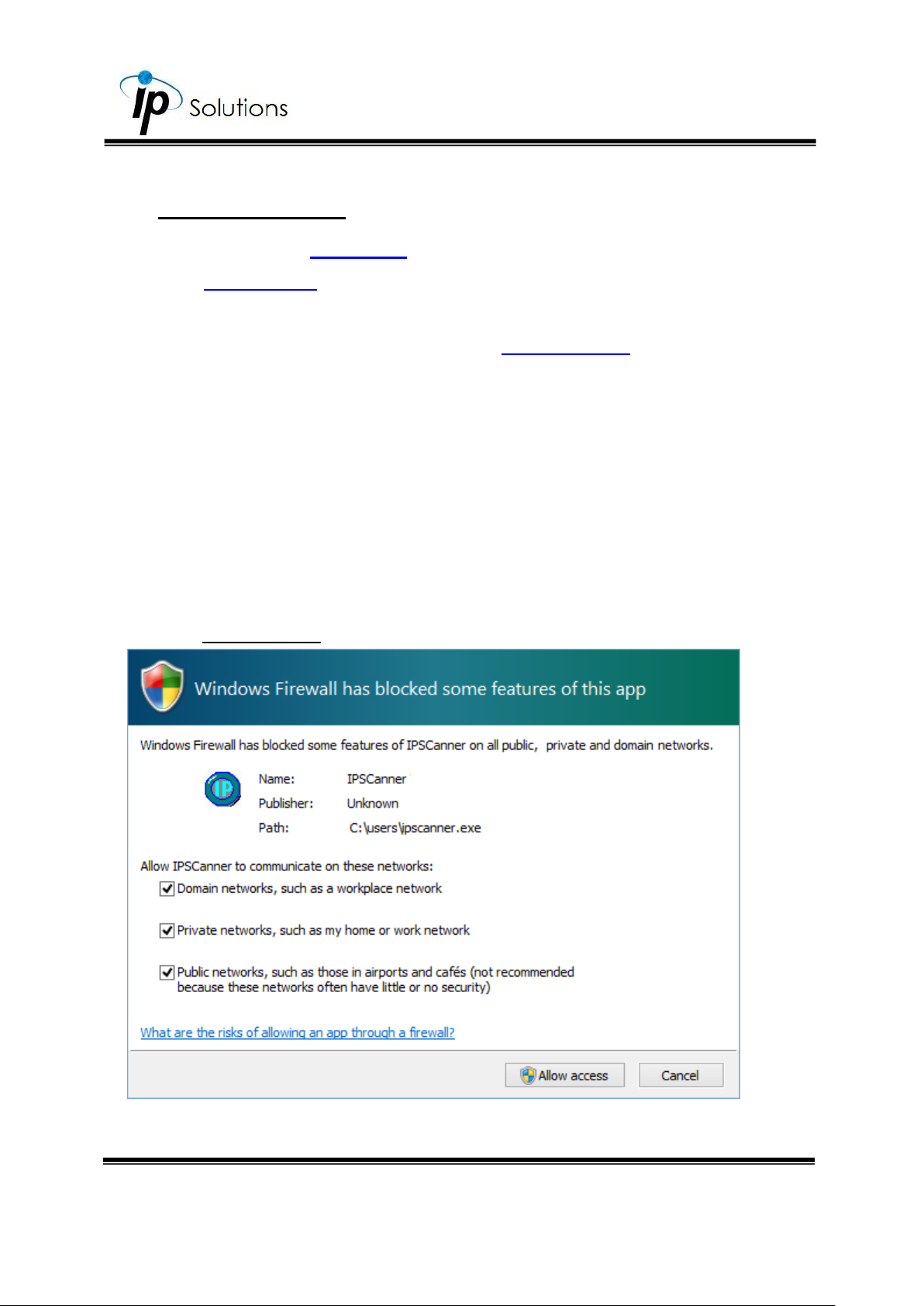

iv. For Windows XP SP2 or above, a Windows Security Alert may pop up.
Choose the network type based on your surveillance environment, and
click on Allow access.

4
v. IP Scanner will search for all the IP Cameras connected on the LAN. The user
can click Search IPCam to search again.
vi. Click one of the IP Cameras listed on the left side. The network configuration
of this IP camera will be shown on the right side once you highlight the
device with your mouse. You can change the name of the IP Camera to
your preference (e.g.: Office, warehouse). Change the parameters and
click Submit.

5
You can select different network cards that you are currently connected to
from the drop-down menu at the top right corner. You can also select the
online device from a specific network card in Device lists, or choose Select
All to include all network card devices in Device lists.
vii. Please make sure the subnet of the PC IP address and the IP Camera IP
address are the same.
The same Subnet Different Subnets
IP Camera IP address: 192.168.1.200 IP Camera IP address: 192.168.2.200
PC IP address: 192.168.1.100 PC IP address: 192.168.1.100
To Change the PC IP address
Control PanelNetwork ConnectionsLocal Area Connection
PropertiesInternet Protocol (TCP/IP) Properties
Make sure your IP Camera and PC are in the same Subnet. If not, change
the IP Camera subnet or the PC IP subnet accordingly below.

6

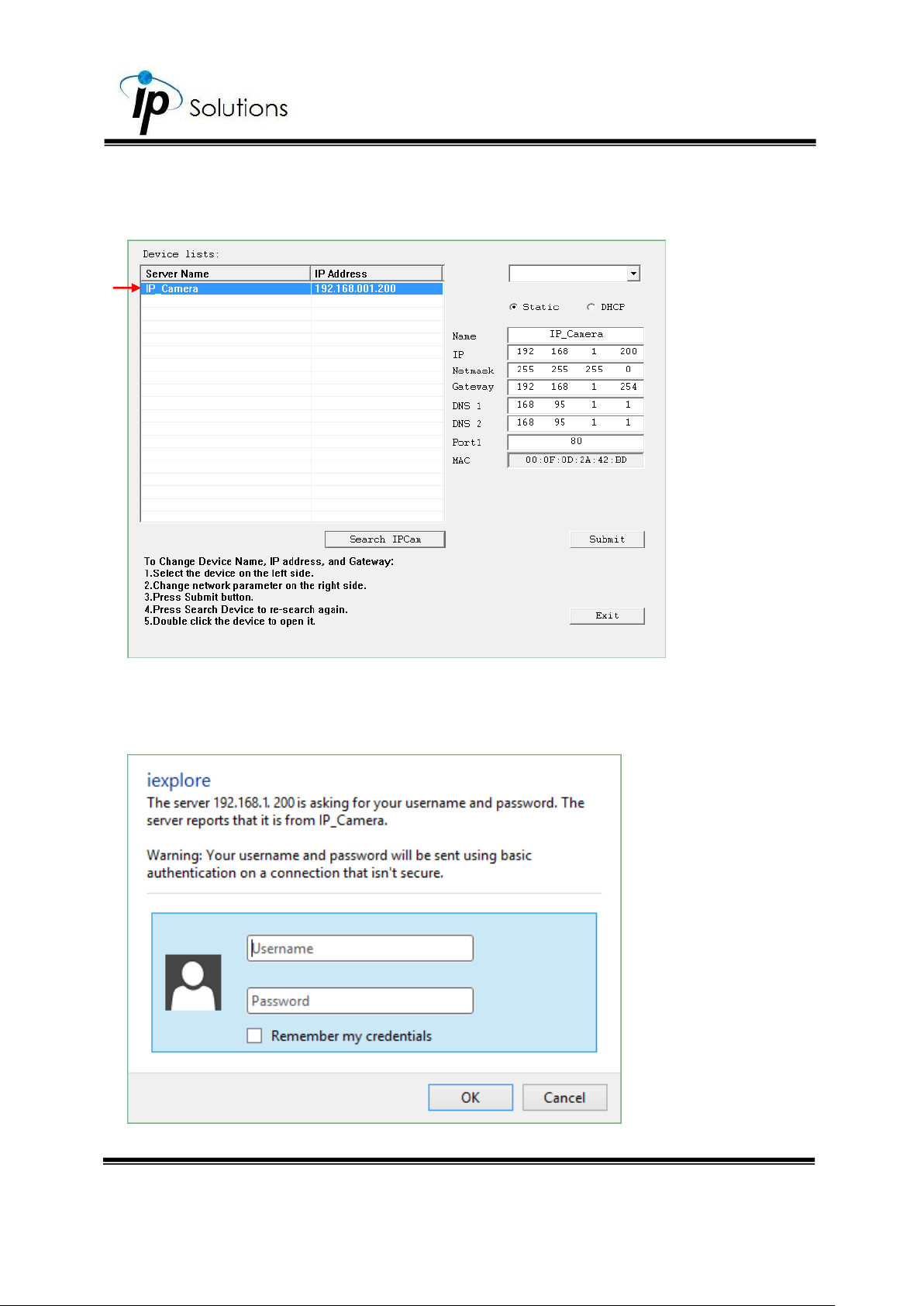

viii. To quickly access remote monitoring, left-click the mouse twice on the
selected IP Camera listed under Device list of IP Scanner.
ix. A default network browser of the camera control interface will open. Enter
admin for both Username and Password to gain access.
