Hunter 99093 User manual

Compatible with:
2xxxx Types A - Z
51000-58999 fan series
59500-59999 fan series
Select Casablanca Fans
Models 99093, 99094
MA008-01 • 08/15/13
With Glass
4-Light Fitter
With Glass
4-Light Fitter
Installation Manual

MA008-01 • 08/15/13
1.888.830.1326
2

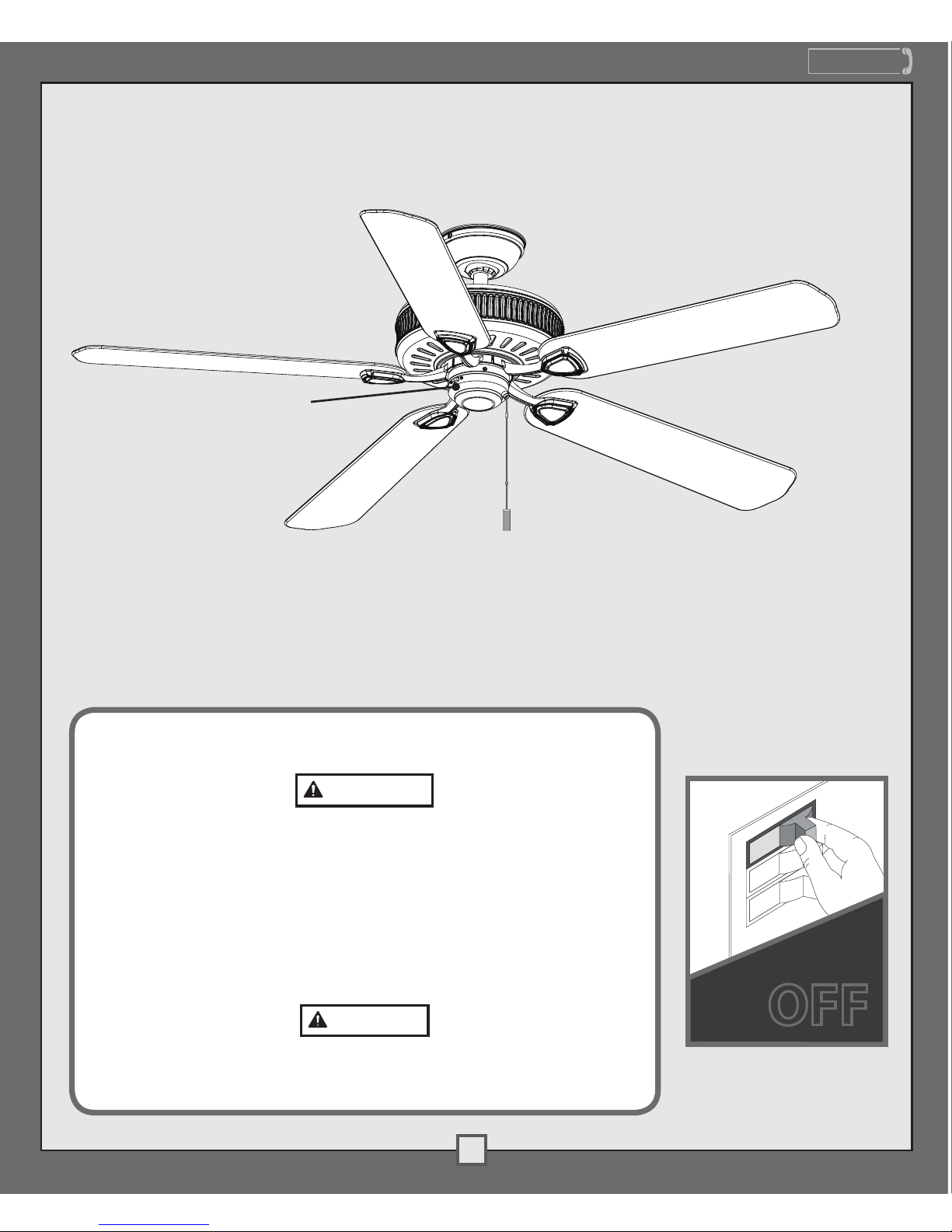

Your light kit is compatible with most ceiling fans. The light kit will attach to the fan’s
switch housing. Begin on page 3 where you will choose the type of switch housing that
most closely resembles the one on your fan. From there, you will be directed to the set of
assembly instructions that are appropriate for installing the light kit to your fan.
Read entire installation instructions carefully before
beginning installation and save these instructions.
BEFORE YOU BEGIN
Switch
Housing
READ AND SAVE THESE INSTRUCTIONS
This product conforms to UL Standard 507.
WARNINGS
w.1 - To reduce the risk of re, electrical shock, or personal injury,
mount fan directly from building structure and/or an outlet box marked
acceptable for fan support of 70 lbs. (31.8 kg) and use the mounting screws
provided with the outlet box.
w.2 - To avoid possible electrical shock, before installing or servicing your
fan, disconnect the power by turning off the circuit breakers to the outlet
box and associated wall switch location. If you cannot lock the circuit
breakers in the off position, securely fasten a prominent warning device,
such as a tag, to the service panel.
c.1 - All wiring must be in accordance with national and local electrical codes
ANSI/NFPA 70. If you are unfamiliar with wiring, use a qualied electrician.
CAUTIONS
Turn Power
OFF

MA008-01 • 08/15/13
1.888.830.1326
3
If your fan’s switch housing cap resembles
this one, remove the whole switch
housing by removing the switch housing
screws with a Phillips head screwdriver.
Remove the two cap screws from the
inside of the switch housing. Reinstall
the switch housing. Tighten the switch
housing screws. Then follow the TYPE-A
ASSEMBLY INSTRUCTIONS on pages 4-5.
If your fan’s switch housing cap
resembles this one, remove the cap
screws with a Phillips head screwdriver.
Then follow the TYPE-A ASSEMBLY
INSTRUCTIONS on pages 4-5.
Switch
Housing
Cap
Cap
Screw

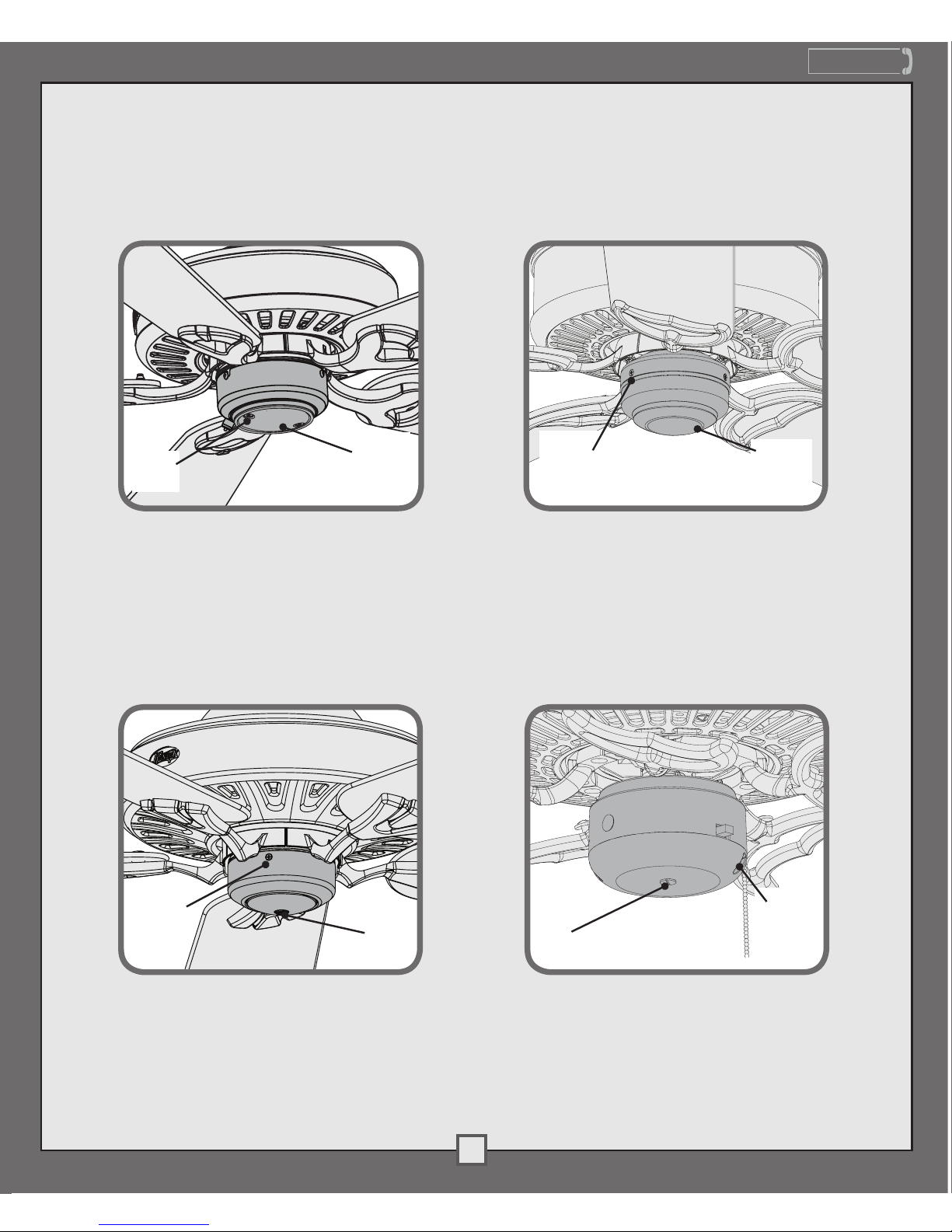

WHICH ASSEMBLY METHOD WILL I USE?
Switch
Housing
Cap
Switch
Housing
Screw
If your fan’s switch housing cap resembles
this one, remove the whole switch
housing by removing the switch housing
screws with a Phillips head screwdriver.
Remove the plug button using a standard
screwdriver. Then follow the TYPE-C
ASSEMBLY INSTRUCTIONS on pages 8-9.
Switch
Housing
Screw
Plug
Button
If your fan’s switch housing cap
resembles this one, remove the whole
switch housing by removing the switch
housing screws with a Phillips head
screwdriver. Remove the plug button.
Then follow the TYPE-B ASSEMBLY
INSTRUCTIONS on pages 6-7.
Switch
Housing
Screw Plug
Button
Choose one of the four images below that most closely resembles the switch
housing on your fan; then follow the instructions under the image.

MA008-01 • 08/15/13
1.888.830.1326
4
Using the single pin connectors, connect
the black or blue wire from the fan to the
black wire from the light kit. Connect the
white wire from the fan to the white wire
from the light kit.
TYPE-A ASSEMBLY INSTRUCTIONS
Do not allow the light kit to hang
only by the wire connections!
If your fan does not have pin connectors on the
wires coming from the switch housing, install
the wiring harness provided. Using the provided
wire connectors connect the white wire from the
fan to the white wire from the wire harness and
connect the black or blue wire from the fan to
the black wire from the wire harness.
Wire
Connector
Switch
Housing
Remove the pre-installed light kit screws
and replace them with the longer light
kit screws provided.
Lift the light kit up to meet the lower
switch housing. Align the light kit screws
with the threaded holes in the lower
switch housing. Tighten screws securely.
Light Kit
Screw
Light Kit
Screw
1 2
3 4
Wire
Harness

MA008-01 • 08/15/13
1.888.830.1326
5
TYPE-A ASSEMBLY INSTRUCTIONS (CONTINUED)
Installing the pull chain pendant -
Attach the pull chain pendant to the
end of the short chains coming from the
switch housing and the light kit.
Installing the bulb - Install a bulb into each
socket. When necessary, replace bulbs with
bulbs of same type and wattage.
To install the shade, rst loosen the thumb
screws. Raise the shade to the light xture.
Tighten all thumbscrews securely.
Thumb Screw
Shade
ON
Turn Power
Turn on power. Your
installation is complete!
65
7 8

MA008-01 • 08/15/13
1.888.830.1326
6

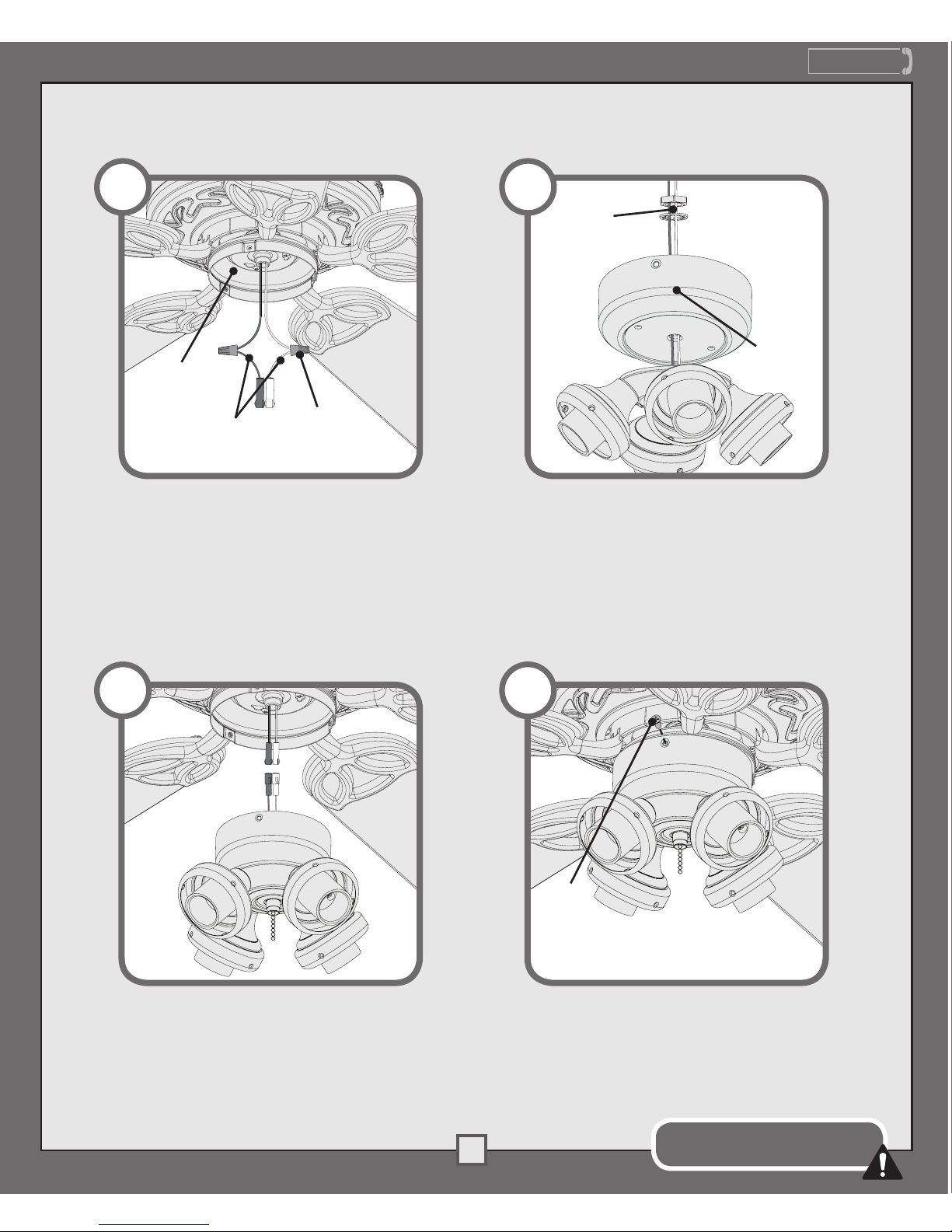

TYPE-B ASSEMBLY INSTRUCTIONS
Using the single pin connectors, connect
the black or blue wire from the fan to the
black wire from the light kit. Connect the
white wire from the fan to the white wire
from the light kit.
If your fan does not have pin connectors on
the wires coming from the switch housing,
install the wiring harness provided. Using
the provided wire connectors connect the
white wire from the fan to the white wire
from the wire harness and connect the
black or blue wire from the fan to the black
wire from the wire harness.
Feed the wires through the center hole in
the switch housing, the washer, and the nut.
Push the center hole in the gasket over the
threaded rod of the light kit. Then install the
switch housing by twisting clockwise onto
the threaded rod. Install the washer and nut
onto threaded rod and tighten securely.
Lift the light kit assembly up so that the
screw holes in the lower switch housing
line up with the holes in the upper switch
housing. Install the switch housing
screws and tighten securely.
Wire
Connector
Switch
Housing
Do not allow the light kit to hang
only by the wire connections!
1 2
Switch
Housing
Screw
43
Washer
and Nut
Switch
Housing
Wire
Harness

MA008-01 • 08/15/13
1.888.830.1326
7
TYPE-B ASSEMBLY INSTRUCTIONS (CONTINUED)
Installing the pull chain pendant -
Attach the pull chain pendant to the
end of the short chains coming from the
switch housing and the light kit.
Installing the bulb - Install a bulb into each
socket. When necessary, replace bulbs with
bulbs of same type and wattage.
To install the shade, rst loosen the thumb
screws. Raise the shade to the light xture.
Tighten all thumbscrews securely.
Shade
ON
Turn Power
Turn on power. Your
installation is complete!
7 8
Thumb Screw
65
Shade

MA008-01 • 08/15/13
1.888.830.1326
8
Feed the wires through the switch
housing cap, washer, and nut. Then
install the switch housing cap by twisting
clockwise onto the threaded rod, making
sure the gasket stays in line with the top
of the light kit. Install the washer and nut
onto threaded rod and tighten securely.

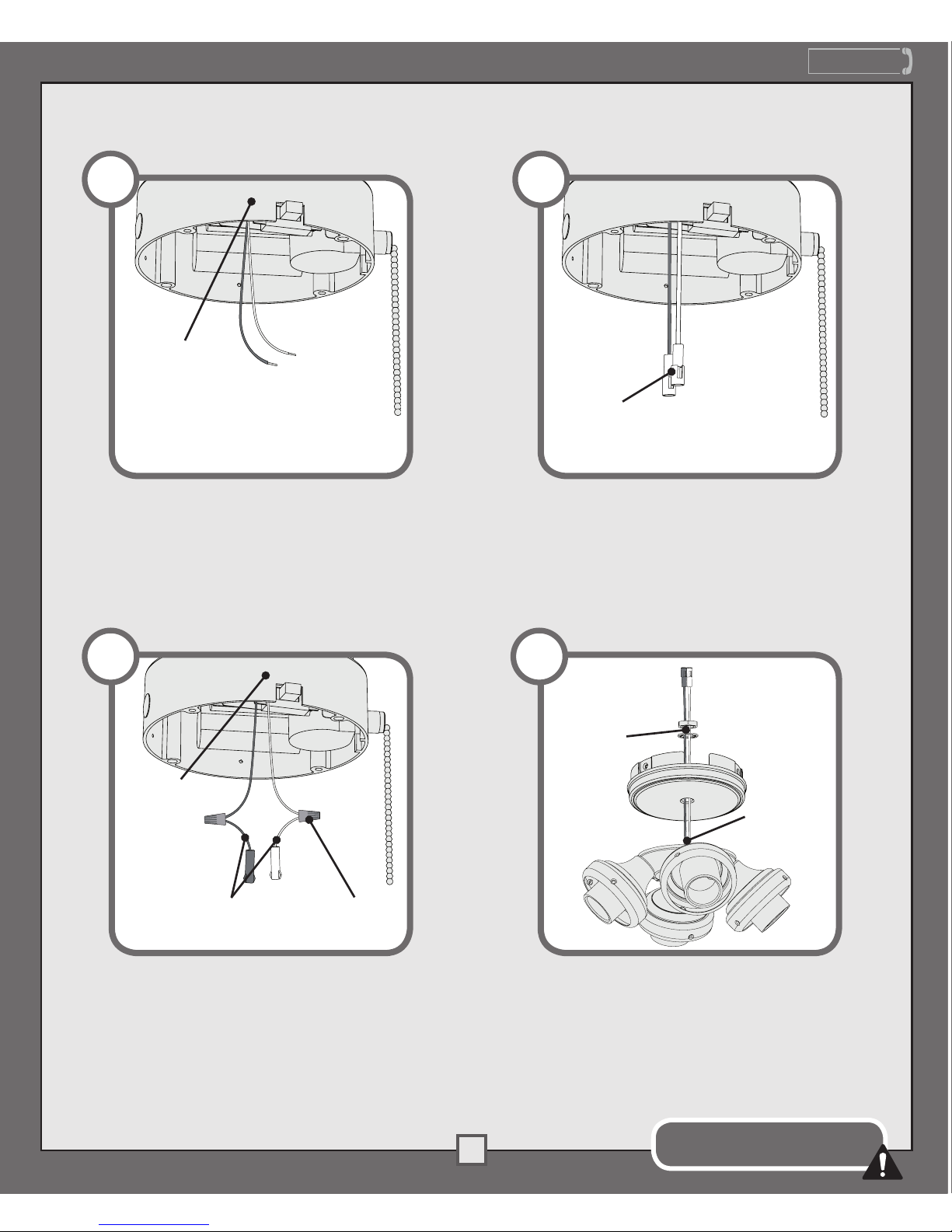

TYPE-C ASSEMBLY INSTRUCTIONS
If your fan does not have pin connectors on
the wires coming from the switch housing,
install the wiring harness provided. Using
the provided wire connectors connect the
white wire from the fan to the white wire
from the wire harness and connect the
black or blue wire from the fan to the black
wire from the wire harness.
Do not allow the light kit to hang
only by the wire connections!
Threaded
Rod
Washer
and Nut
3
OR
If your fan does not have pin connectors
on the wires coming from the switch
housing, go to step 2.
Switch
Housing
1a
If the fan has pin connectors, cut the
wires just above the fan pin connectors
with wire cutters. Discard the pin
connectors. Go to step 2.
Pin
Connectors
1b
Wire
Connector
Wire
Harness
2
Switch
Housing

MA008-01 • 08/15/13
1.888.830.1326
9

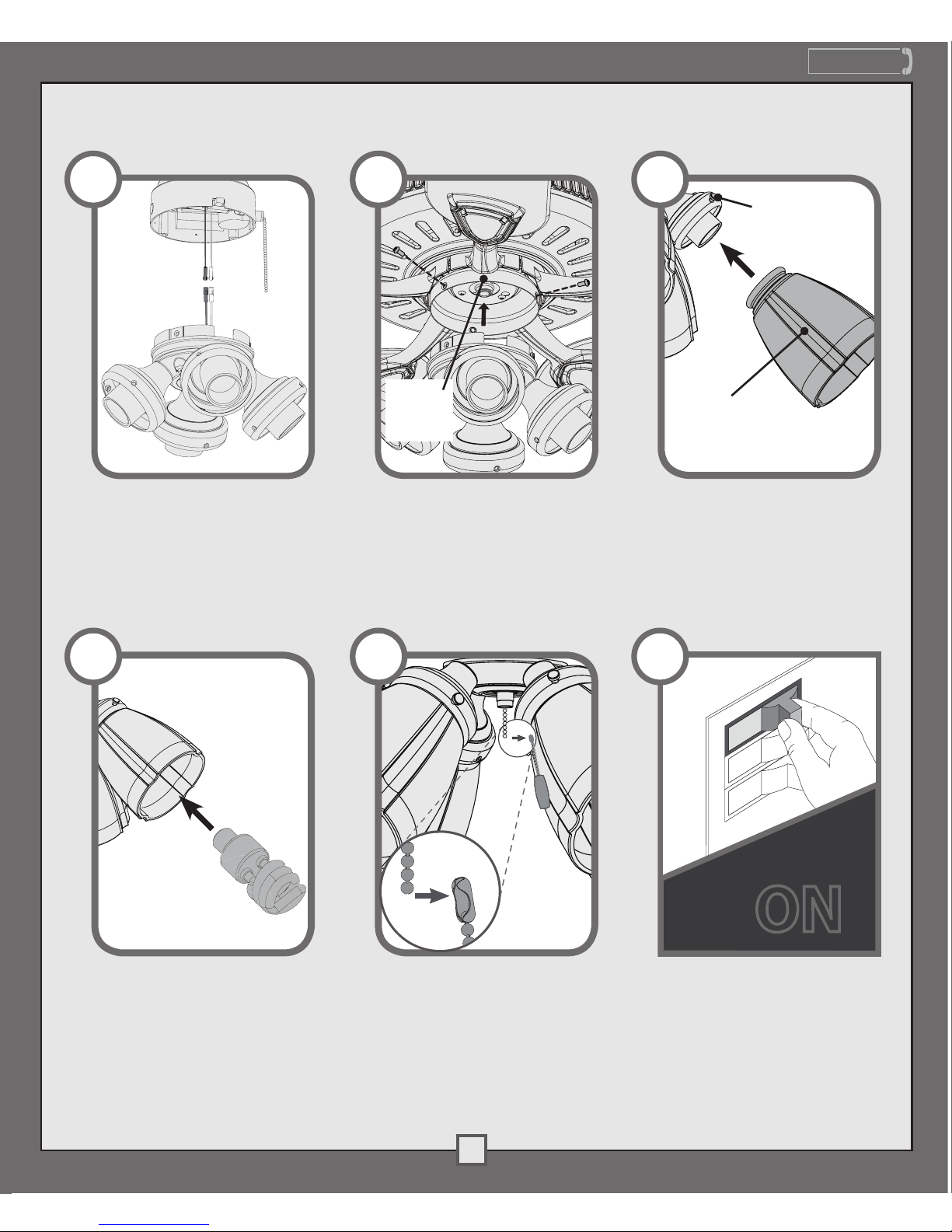

Lift the light kit assembly up so
that the screw holes in the lower
switch housing line up with the
holes in the upper switch housing.
Install the switch housing screws
and tighten securely.
TYPE-C ASSEMBLY INSTRUCTIONS (CONTINUED)
Using the single pin connectors,
connect the black or blue wire
from the fan to the black wire
from the light kit. Connect the
white wire from the fan to the
white wire from the light kit.
4
Installing the pull chain
pendant - Attach the pull chain
pendant to the end of the
short chains coming from the
switch housing and the light kit.
ON
Turn Power
Turn on power. Your
installation is complete!
8 9
Installing the bulb - Install a
bulb into each socket. When
necessary, replace bulbs with
bulbs of same type and wattage.
7
To install the shade, rst loosen
the thumb screws. Raise the
shade to the light xture. Tighten
all thumbscrews securely.
Thumb Screw
Shade
6
Upper
Switch
Housing
5

MA008-01 • 08/15/13
1.888.830.1326
10
ONE YEAR WARRANTY
This product is warranted to the original purchaser by Casablanca Fan Company/
Hunter Fan Company against defects in material and workmanship for one (1)
year from date of purchase. During the warranty period, we will repair or, at our
option, replace a defective product at no charge. For information on how to obtain
service, contact the Casablanca/Hunter Service Department by calling our toll-
free number at 888-830-1326. Damage to the product caused by mishandling,
improper installation or modication is not covered by this warranty. This warranty
is given in lieu of all other warranties expressed or implied. Some states do not allow
limitations of time on an implied warranty, therefore the above limitations may not
apply in every case. This warranty states specic legal rights which may vary from
state to state.
TROUBLESHOOTING
Lights don’t come on.
• Make sure that the bulbs are properly installed.
• Make sure power switch is on.
• Pull the pull chain to make sure it is on.
• Check the circuit breaker to ensure the power is turned on.
• Check the pin connections in the light kit.
• Refer to the fan manual for locating the fan’s wiring. Verify that the light and
power wires are correctly connected to the ceiling and the light kit.
If you have problems installing or operating your light kit, do not return this product
to the dealer. Call our Consumer Affairs Hotline.
888-830-1326
