Your new Hunter® light kit is an addition to your home or oce that
will provide comfort and performance for many years. is installation
and operation manual gives you complete instructions for installing
and operating your light kit.
We are proud of our work. We appreciate the opportunity to supply
you with the best products available anywhere in the world.
Before installing your light kit, for your records and warranty assistance,
record information from the carton and Hunter nameplate label.
Cautions and Warnings
•READ THIS ENTIRE MANUAL CAREFULLY BEFORE BEGINNING
INSTALLATION. SAVE THESE INSTRUCTIONS.
• Use only Hunter replacement parts.
• To reduce the risk of personal injury, install this light xture only on
Hunter® fan types A through Z. Note: e fan type can be found on
the ceiling fan package or on the nameplate label located on top of
the motor housing of the ceiling fan.
• To avoid possible electrical shock, before installing light xtures,
disconnect the power by turning o the circuit breakers both to
the outlet box and to its associated wall switch location. If you
cannot lock the circuit breakers in the o position, securely fasten a
prominent warning device, such as a tag, to the service panel.
• Connect house wiring to the fan before attaching the light xture to
the fan.
• All wiring must be in accordance with national and local electrical
codes and ANSI/NFPA 70. If you are unfamiliar with wiring, use a
qualied electrician.
Welcome

3
43546-01 • 04/08/09 • Hunter Fan Company
Installation Methods of Hunter® Ceiling Fans Type A-Z
Removable Switch Housing
Non-removable Switch Housing
e Hunter Original
Your ® light kit can be installed in one of three
ways, depending on the type of switch housing. e steps
in this manual include instructions for all three installation
methods. Fans with a removeable switch housing, fans
with a non-removeable switch housing, and
e Hunter Original.

4
43546-01 • 04/08/09 • Hunter Fan Company

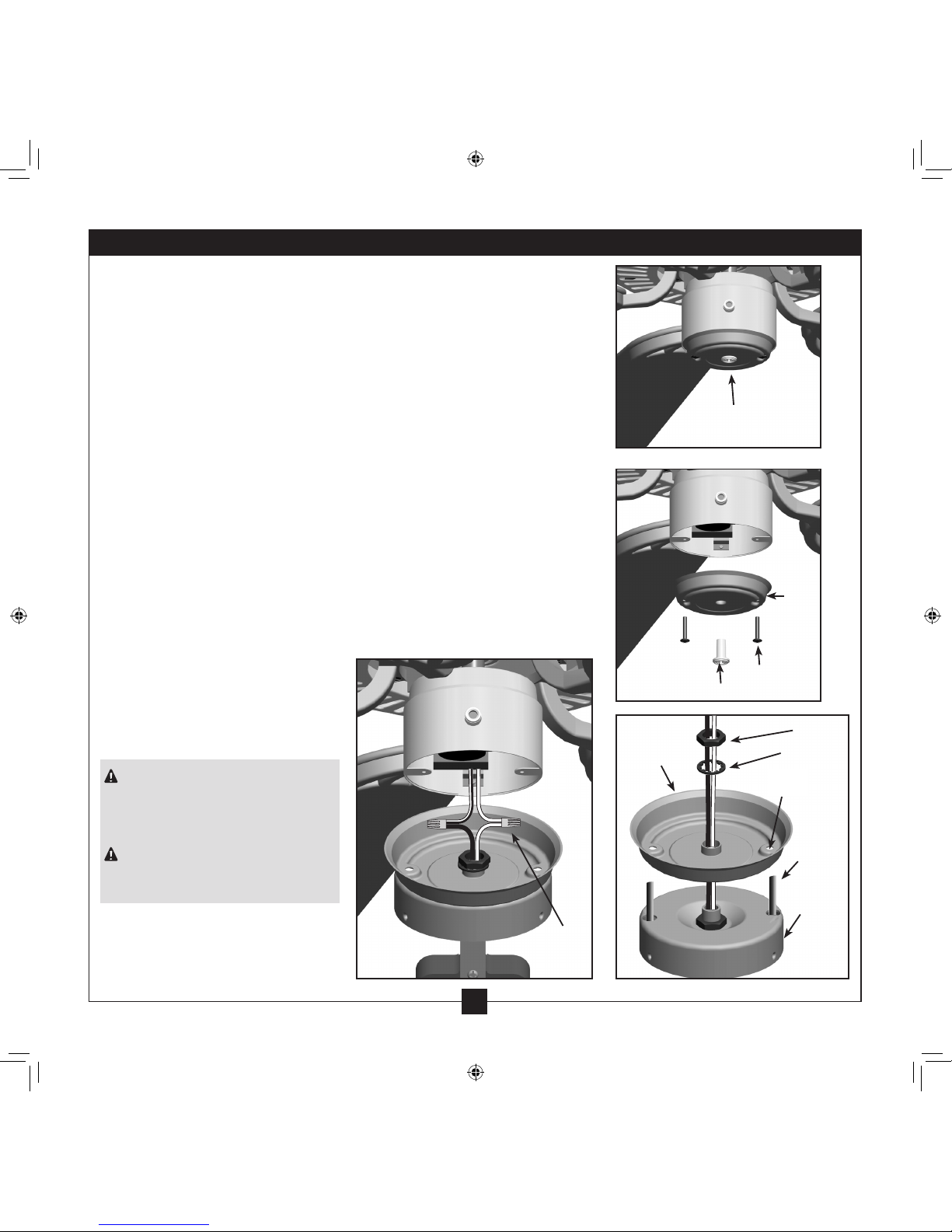

1. Unscrew the three screws from the upper switch housing. Disconnect
the 9-pin plug connectors. Remove the lower switch housing.
2. Push the plug button from inside the lower switch housing to remove
the plug button and switch housing cap.
NOTE: Save the plug button and switch housing cap should you
choose to remove the light xture in the future.
CAUTION: If your fan is operated by remote control, take care not to
damage the small components on the circuit board inside the housing.
3. Feed the two wires from the light xture through the center hole in
the lower switch housing.
4. Screw the threaded rod of the light xture into the center of the lower
switch housing until you feel resistance. Unscrew the light xture
slightly until the holes of the light xture are aligned with the holes in
the lower switch housing.
5. Finish attaching the light xture to the lower switch housing using the
two attachment screws included. Securely tighten the two screws.
6. Install the nut and washer inside the upper switch housing onto the
threaded rod from the upper light housing.
Removable Switch Housing
9-Pin Plug
Connector
Lower Switch
Housing
Plug Button
Screw
Steps 1-2
Lower
Switch
Housing
Light
Fixture
WARNING: Improper installation could cause the light xture to fall.
Steps 3-6
Washer
Nut
Attachment
Screws
Threaded
Rod
Installing the Light Kit on Fans With Removable Switch Housing

5
43546-01 • 04/08/09 • Hunter Fan Company
Installing the Light Kit on Fans With Removable Switch Housing (Continued)

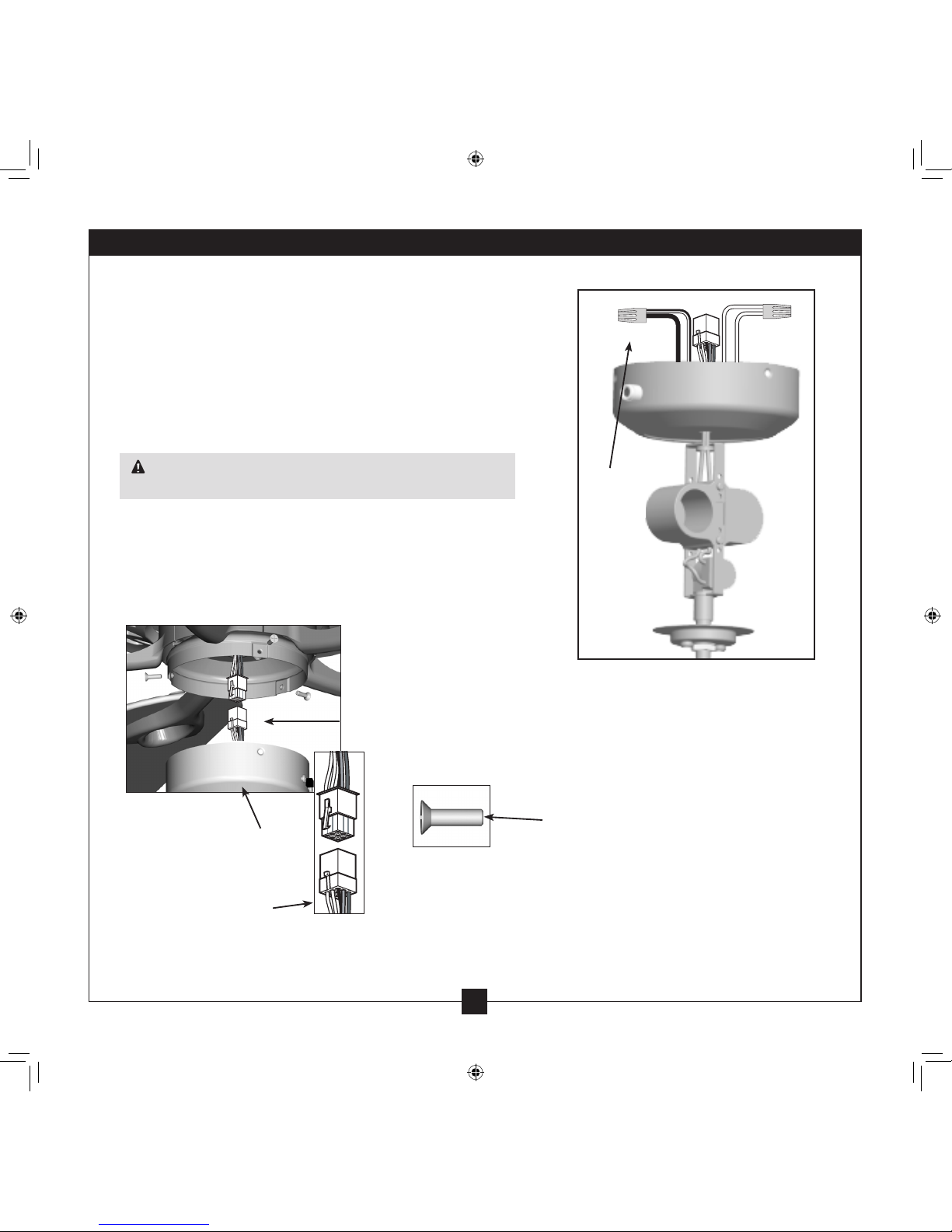

7. Remove the wire connectors from the two wires in the switch
housing labeled “Connect Light Here” or “For Light Use.”
To connect the wires, hold the bare metal leads together
and place a wire connector over them, then twist the wire
connector clockwise until tight.
Connect the black wire with a white stripe from the switch
housing to the black wire from the light kit. Connect the white
wire from the switch housing to the white wire from the light
kit. Secure all wire connections using wire connectors.
CAUTION: Be sure no bare metal wires or wire strands are
visible after making the connections.
8. Reconnect the 9-pin plug connector.
9. Reinstall screws to reattach the lower switch housing to the
upper switch housing.
10. Go to the instructions for Installing the Bulbs, Chains, and
Globe.
Wires
and Wire
connectors
Step 7
Plug
Connector
Lower Switch
Housing
Housing
Assembly Screw
Plug
Connector
Detail
Steps 9-10

6
43546-01 • 04/08/09 • Hunter Fan Company

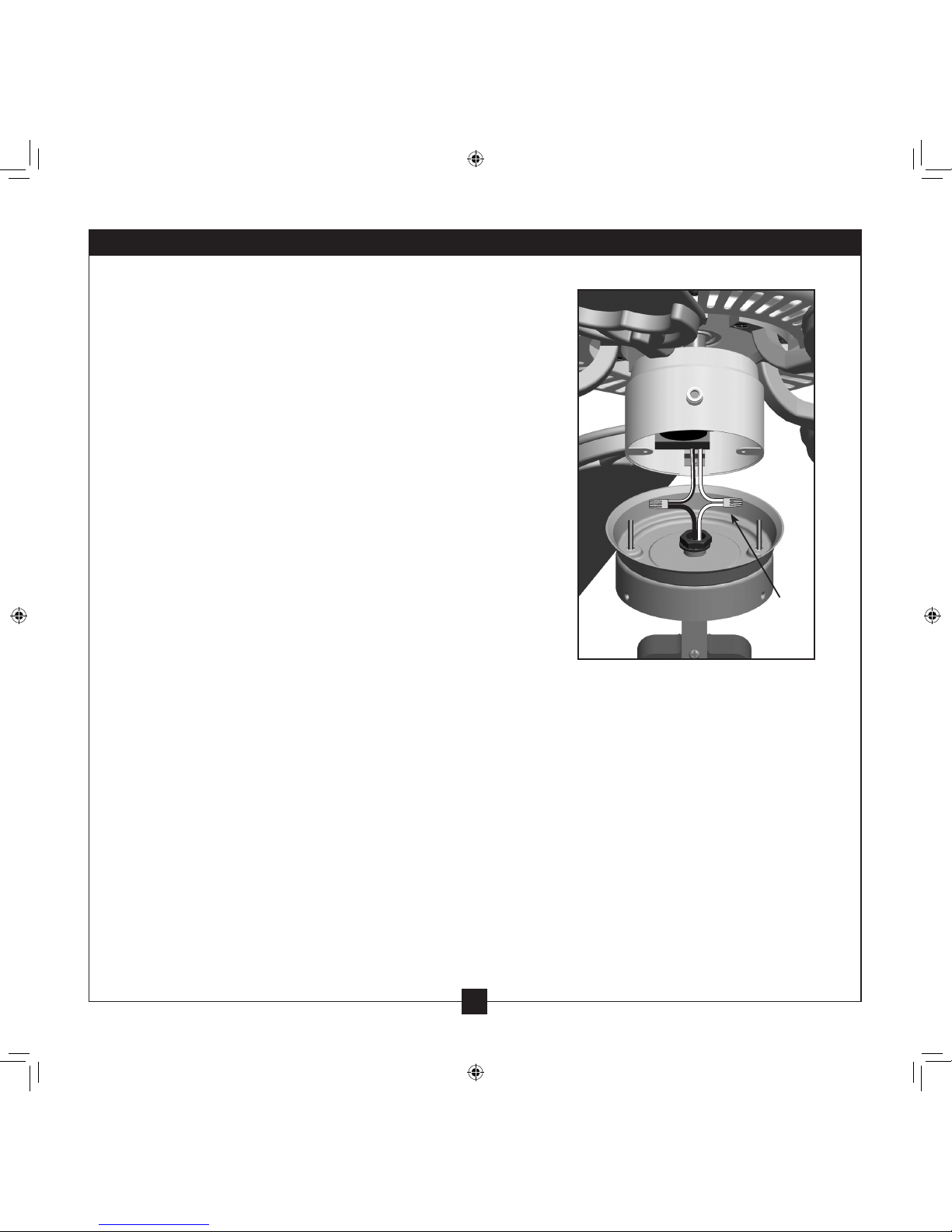

1. Uninstall the two attachment screws from the switch housing cover.
2. Remove the plug or screw from the center of the switch housing cover.
3. read the switch housing cover onto the upper light housing. Align the
screw holes in the upper light housing with the screw holes in the switch
housing cover. Install the nut and washer onto the threaded rod from the
light kit to secure the switch housing cover.
4. Remove the wire connectors from the two wires in the switch housing
labeled “Connect Light Here” or “For Light Use.” One wire is white and the
other wire is black with a white stripe.
5. Feed the two wires from the switch housing through the threaded rod in
the upper light housing.
6. To connect the wires, hold the bare metal leads together and place a wire
connector over them, then twist the wire connector clockwise until tight.
Connect the black wire with a white stripe from the switch housing to
the black wire from the light kit. Connect the white wire from the switch
housing to the white wire from the light kit. Secure all wire connections
using wire connectors.
7. Align the threaded screw holes in the switch housing cover with the
threaded holes in the switch
housing. Attach the switch housing
cover and light xture to the
switch housing using the included
attachment screws.
CAUTION: Be sure no bare metal
wires or wire strands are visible after
making the connections.
WARNING: Improper installation
could cause the light xture to fall.
Switch
Housing
Cover
Plug
Nut
Washer
Screw
Hole
Switch
Housing
Cover
Attachment
Screw
Light Fixture
Non-Removable Switch
Housing
Steps 1-2
Steps 3-6
Attachment
Screw
Wires
and Wire
connectors
Step 7
Installing the Light Kit on Fans With Non-Removable Switch Housing

7
43546-01 • 04/08/09 • Hunter Fan Company
Installing the Light Kit on Fans With Non-Removable Switch Housing Cont.
8. Attach the light xture to the switch housing with the two
screws included with the light xture, aligning the holes in the
light xture, switch housing cover, and switch housing.
9. Securely tighten the two screws.
10. Go to the instructions for Installing the Bulbs, Chains, and
Globe.
Wires
and Wire
connectors
Steps 8-9

8
43546-01 • 04/08/09 • Hunter Fan Company
1. Uninstall the two screws from the switch housing plate.
NOTE: Save the switch housing cap should you choose to remove the light
xture in the future.
2. Remove the wire connectors from the two wires in the switch housing
labeled “Connect Light Here” or “For Light Use.” One wire is white and the
other wire is black wire with a white stripe. read the two wires through
the hole in the center of the light xture.
3. To connect the wires, hold the bare metal leads together and place a wire
connector over them, then twist the wire connector clockwise until tight.
Connect the black/white striped wire from the switch housing to the black
wire from the light kit. Connect the white wire from the switch housing
to the white wire from the light kit. Secure all wire connections using wire
connectors.
CAUTION: Be sure no bare metal wires or wire strands are visible after
making the connections.
4. Attach the light xture to the switch housing with the two screws,
included with the light xture, aligning the holes in the xture, switch
housing cover, and switch housing.
5. Securely tighten the two screws.
6. Go to the instructions for Installing the
Bulbs, Chains, and Globe.
Switch
Housing
Plate
Screw
Light
Fixture
Switch
Housng
Cover
(included
with
the light
fixture)
WARNING: Improper installation
could cause the light xture to
fall, or result in electrical shock or
personal injury.
Steps 3-6
Installing the Light Kit on the Hunter Original

9
43546-01 • 04/08/09 • Hunter Fan Company

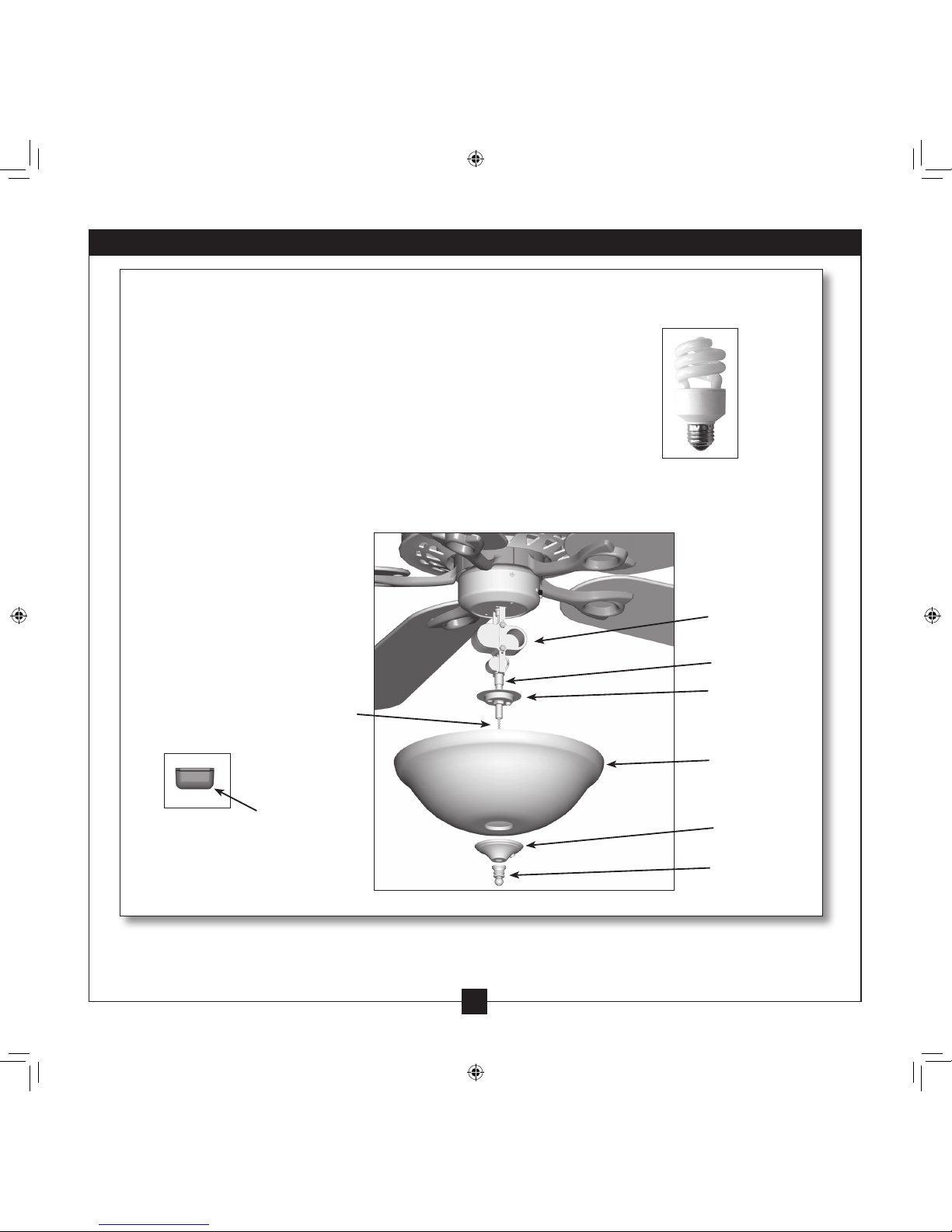

1. First install included CFL medium base bulbs.
2. Attach the extra pull chain (included) to the fan pull chain using the
plastic breakaway connector. (You may nd the plastic breakaway
connector on the end of the extra chain.)
3. read the fan pull chain through the hole in the metal disc. en,
thread the fan pull chain through the hole in the center of the glass
bowl.
4. read the light pull chain through the hole in the center of the glass
bowl.
5. Place the cover plate up against the glass bowl. Align the holes in the
cover plate and glass bowl.
6. read the fan pull chain and
light pull chain through the
appropriate holes.
7. read the light pull chain
through the nial and screw the
nial onto the threaded rod end
until tight.
For Light Bulbs
Metal Rod
Metal Disc
Pull Chain
Glass Bowl
Cover Plate
Finial
Breakaway
Connector
CFL
(included)
Installing Bulbs, Chain, and Globe

10
43546-01 • 04/08/09 • Hunter Fan Company
Troubleshooting
Light does not come on.
1. Make sure bulbs are installed properly.
2. Make sure breakers or fuses are on.
3. Verify that the light power lead is connected at the ceiling. Refer to
your ceiling fan manual for locating assembly and wiring.
Glass rattles.
1. Make sure the glass globe is secure.
If you need parts or service assistance, please call
888-830-1326 or visit us at our Web site at
http://www.hunterfan.com.
Hunter Fan Company
7130 Goodlett Farms Pkwy. # 400
Memphis, Tennessee 38016
is Light Fixture Weighs 6 lbs. Printed in China
Troubleshooting
