Hunter 44008-01 User manual

1
44008-01
Programmable Thermostat
Models 44668 & 44660
20080916

2
(continued)
Table of Contents
PROGRAMMING
INTRODUCTION
INSTALLATION
Read This Before Installing Thermostat 5
What You Need 8
Remove Old Thermostat 8
Wire Labeling 9
Mount Wallplate and Thermostat 10
Connect Wires and Mount Thermostat to Wallplate 11
Option Menu 13
Remote Sensor Channel Set-Up (does not apply to thermostat model 44660) 15
Setting Time and Day 17
12 Hr. / 24 Hr. Time Format 18
Programming Introduction 19
Personal Program Schedule 20
Programming 22
Weekday/Weekend Programming 23
7-Day Programming 26
Everyday Programming 28
Program Options 30

3
Table of Contents (continued)
PROGRAMMING (continued)
OPERATIONS
Programmable Fan 30
System Selection Key 32
Fan Key 32
Reviewing the Current Temperature Setting 33
Temporary Manual Override 34
Permanent Manual Override 35
Vacation (Programmable) Hold 36
Auto Season Changeover 37
Home Today 38
Energy Monitor 40
Filter Monitor 41
SPAN Settings 42
Auto Recovery 43
Keyboard Lock 44
Backlighting (INDIGLO®Night-Light) 45
Low Battery Warning 46
Error Mode 46
Problems & Solution 46

4
TROUBLESHOOTING
OPERATIONS (continued)
Technical Support 48
Technical Support 49
WIRING DIAGRAMS

5
Read This Before Installing Thermostat
IMPORTANT
1Read the entire installation section of this Owner’s Manual thoroughly before you begin to install or
operate your Hunter Thermostat.
INSTALLATION
2All installation is normally performed at your thermostat.
ARMCHAIR PROGRAMMING
3You can program your thermostat before installation by inserting the batteries and following the instruc-
tions starting on page 12. This can be done while you
relax in your favorite chair and is a very good way to
familiarize yourself with all the functions of your Hunter
Thermostat.
SYSTEM COMPATIBILITY
4Your Thermostat is designed to operate with most gas, oil, electric, or 2-wire hot water heating and air
conditioning systems. It will also operate single-stage
heat pumps that do not have auxiliary or emergency
heat. These have 24 volt or millivolt control systems
and represent most central heating, air conditioning, or
space heating units in the United States.
This thermostat will not control 120/240 Volt systems or
millivolt systems.
COMPRESSOR PROTECTION
5The thermostat provides a 3.5 minute delay after shutting off the heating or cooling system before it
can be restarted. This feature will prevent damage to
your compressor caused by rapid cycling.

6
TEMPERATURE RANGE
6Your thermostat can be programmed between 45°F and 95°F (7°C and 35°C). However, it will display
room temperatures from 15°F to 99°F (-9°C and 37°C).
“HI” will be displayed if the temperature is higher than
99°F (37°C), and “LO” will be displayed if the tempera-
ture is lower than 15°F (-9°C).
AUTO RECOVERY
7Your thermostat is set from the factory to gradually recover the room temperature from an energy sav-
ing program to your comfort program. Therefore, the
thermostat may turn your system on several minutes
prior to your programmed time. This operation is nor-
mal, but can be turned off. Refer to the Options Menu
information on pages 15.
BATTERY WARNING
8Two fresh AA alkaline batteries should provide well over one year of service. However, when the batter-
ies become drained, the Low Battery Indicator will ash
on the display. when this message occurs, install new
alkaline batteries. You have appoximately one minute
to change the batteries and keep the thermostat’s clock
and program settings. Once the batteries have become
too low to ensure proper operation, your system will
be turned off. The display will be cleared except for the
ashing Low Battery Indicator on the LCD display, and
all programming will be lost.
CAUTION: When only the battery Icon ashes on the display, the thermostat is shut down and your
system will no longer operate. In this condition, there is
no temperature control of your dwelling. NOTE: If you
plan to be away from the premises over 30 days, we
recommend that you replace the old batteries with new
alkaline batteries prior to leaving.

7
REMOTE SENSORS (does not apply to thermostat
model 44660)
1Your thermostat can support 3 remote sensors that will measure the temperature from three different lo-
cations - two indoor and one outdoor. To congure your
thermostat to work with the remote sensors, follow the
instructions for Sensor Channel selection on page 13 of
this manual. To congure the remote sensors, consult
the Remote Sensor Instruction Manual.
NOTE (does not apply to thermostat model 44660):
This device complies with Part 15 of the FCC Rules. Op-
eration is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this
device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses
and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause
harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harm-
ful interference to radio or television reception, which can
be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit dif-
ferent from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV techni-
cian for help.

8
INSTALLATION
Wall Mounting Plate Thermostat Cover
Wall Mounting Plate Thermostat Cover
What You Need
This thermostat includes two #8 slotted screws and two wall an-
chors for mounting. To install your thermostat, you should have
the following tools and materials.
CAUTION: Do not remove any wiring from existing
thermostat before reading the instructions carefully.
WIRES MUST BE LABELED PRIOR TO REMOVAL.
■ IMPORTANT! Turn off the power to the furnace at
the main power panel or at the furnace.
■ Remove existing thermostat cover. See Figure 1.
Some thermostats will have screws or other lock-
ing devices that must rst be removed. Once wall
mounting plate is exposed, look for wires.
If wires are not visible, they may be connected to the
back of the wallplate. Again, look for screws, tabs, etc.
Some models have doors that open to expose wires
and mounting screws. (See Figure 1).
Remove Old Thermostat
TYPICAL HOME THERMOSTATS
Figure 1
■ Slotted Screwdriver(s) ■ Electric drill and 3/16" bit
■ Phillips Screwdriver ■ Two 1.5 V (AA) size alkaline bat-
teries
■ Hammer

9
(continued)
Wire Labeling
■ Each wire coming from the wall to the existing
thermostat is connected to a terminal point on that
thermostat. Each of these terminal points is usually
marked with a code letter as shown in Table A on
page 11.
■ IMPORTANT! BEFORE DISCONNECTING ANY
WIRES, APPLY THE SELF-ADHESIVE LABELS
PROVIDED TO THE WIRE AS SHOWN IN TABLE A
ON PAGE 11. (For example, attach the label marked
W to the wire that goes to the W or H terminal on
your existing thermostat.) IGNORE THE COLOR OF
THE WIRES since these do not always comply with
the standard.
IMPORTANT!
If wires marked Y & C are both present, C may be a
Common wire and should not be used. If you have
a wire marked C, do not connect it to any terminal.
This wire is used only for non-battery powered
thermostats.
■ After labeling wires, disconnect them from the
existing thermostat terminals.
■ Remove existing wallplate. To make sure wires do
not fall back into wall opening, you may want to tape
them to the wall.
■ If hole in wall is larger than necessary for wires, seal
this hole so that no hot or cold air can enter the back
of the thermostat from the wall. This air could cause
a false thermostat reading.

10
INSTALLATION

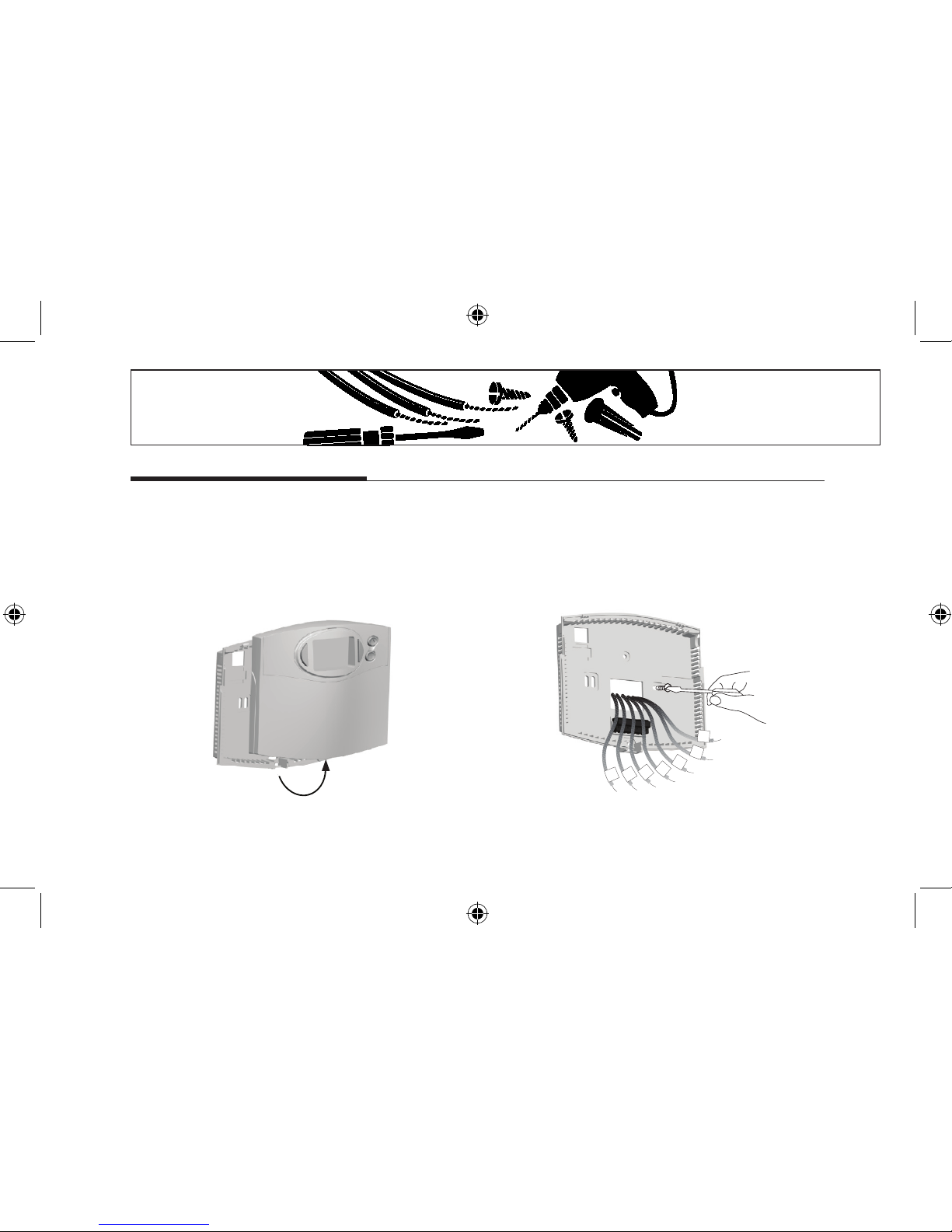

Mount Wallplate and Thermostat
■ Remove the wallplate from your thermostat by
pressing the release tab on the bottom of the
thermostat. (See Figure 2.)
■ Position wallplate on wall and pull existing wires
through large opening. Then level for appearance.
Mark holes for plastic anchors provided if your
existing holes do not line up with those on the Hunter
wallplate.
■ Drill holes with 3/16" bit and gently tap anchors into
the opening. Insert mounting screws provided into
wall anchor and tighten. (See Figure 3.) holes until
ush with wall.
■ Reposition wallplate to wall, pulling wires through
large opening. Insert provided mounting screws into
wall anchors and tighten.
G
W/B
Y1
Y/O
RC
RC1
RH
Y1
Figure 3
Figure 2

11
GRCRHYW
if your existing
thermostat is marked...
label the wire
with this sticker:
G / F
G
G
W / H / B
W/B
W/B
Y / C* / M / O
Y/0
Y/0
RC / VC
RC
RC
RH / R / VR / 4
RH
RH
24 Volt
24 Volt cool
air conditioning
compressor
heating
fan
Y1
Y1
Y1
heat pump
compressor
Connect Wires and Mount Thermostat to
Wallplate
■ Straighten bare end of each wire and cut or strip it
to 1/4” maximum. Insert each labeled wire into its
matching terminal.
NOTE: If a wire marked “C” is present, DO NOT connect
it to the thermosat.
■ Hold the wires in each terminal and tighten the
terminal screws securely, otherwise a loose wire
could cause operational problems with your system
or thermostat.
■ Push excess wire back into hole to prevent
interference with mounting of the thermostat.
■ Make sure the Thermostats System Switch is set to
OFF.
■ Insert two AA size alkaline batteries, observing the
polarity marked on the unit.

12
■ On the back of the thermostat, nd Switch SW1 at the lower
right-hand corner.
1) If your system is a gas furnace, then position the
switch to HG.
2) If your system is an electric furnace, then position the
switch to HE.
3) If your system is a single stage heat pump, then
position the switch to SSHP.
■ Insert the upper tabs on the thermostat body into the slot
at the top of the wallplate. Press bottom of the thermostat
body to snap it into the wallplate. (NOTE: Do not force the
thermostat onto the wallplate, as the terminal pins may be
damaged. If it does not snap properly, the thermostat may not
work.)
■ Switch on the main power at the panel or furnace.
If you have not already programmed your thermostat, refer to
page 13 to start setting up your programs.
Page 34 will show you how to bypass the thermostats
programming and activate temporary or permanent holds.
See page 37 for other available options the thermostat has to
offer.

13
PROGRAMMING

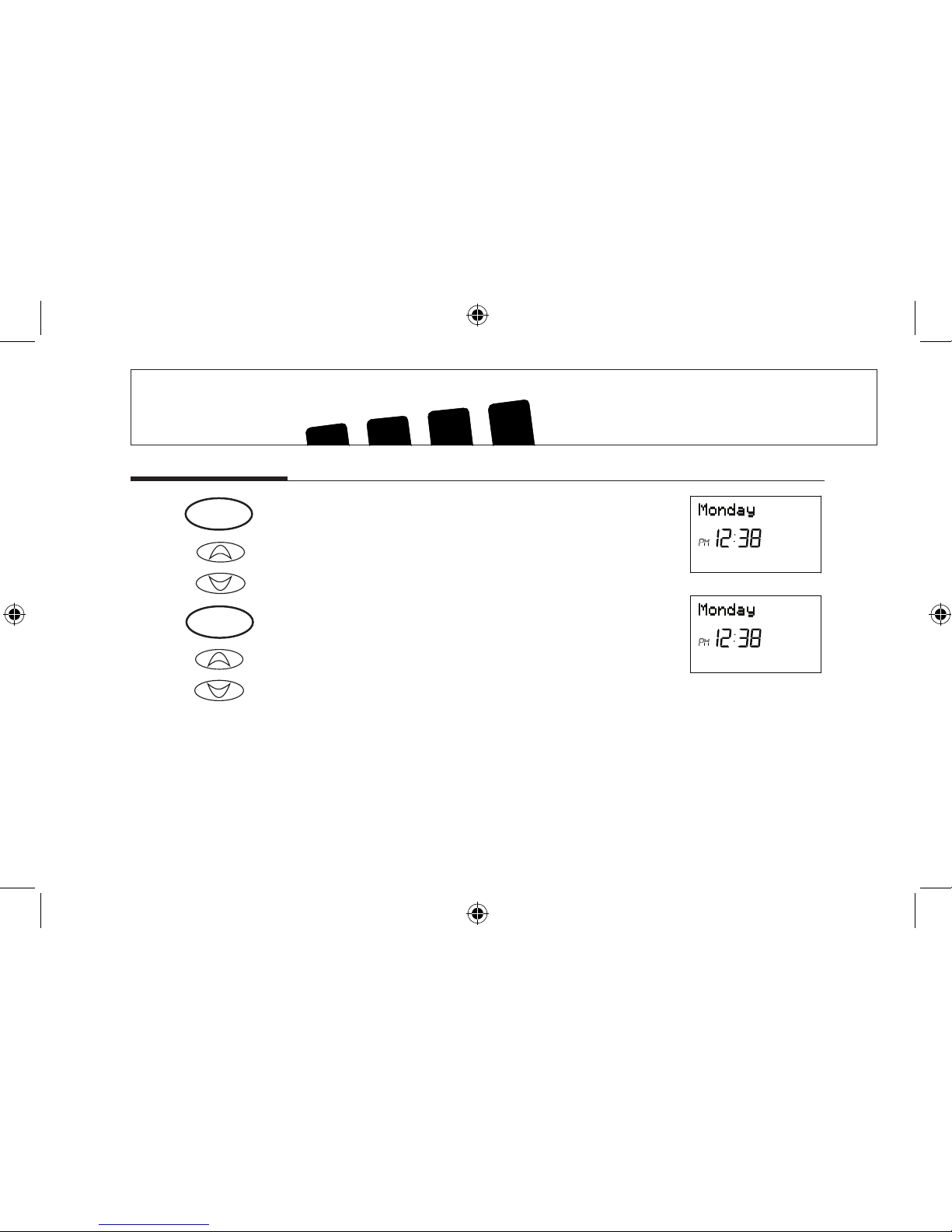

Option Menu
Your thermostat has many settings that can be adjusted to t your system and preferences.
■ Press to enter the Option Menu and to change to the next option selection.
■ Press at any time to return to normal mode.
Language Selection
■ or to select English, Spanish, or French.
Battery Status
■ to see how much power remains in the
thermostat’s battery.
option
ret/clear
option 1
option 2

14
Fahrenheit or Celsius (F°/C°) selection
■ or to change the thermostat display be-
tween Fahrenheit and Celsius.
12 Hour or 24 Hour Clock selection
■ or to change the time format display be-
tween 12 hour (AM / PM) and 24 hour (Military).
SPAN selection
■ or to change the SPAN setting to 1, 2, or
3. The factory setting is 2. Setting 1 will cause shorter cycle
times. Setting 3 will cause longer cycle times.
option 3
option 4
option 5
Auto Season Changeover Deadband
■ or to set the deadband between Heating
and Cooling when the System Selection is set to Auto. See
page 37 for more information on the Auto Season Change-
over feature.
option 6
X3
X3

15
PROGRAMMING
Auto Recovery selection
■ or to enable “YES” or disable “NO” the
Auto Recovery Mode. The factory setting is “YES.”
■ To change between Heat or Cool recovery modes.
NOTE: Auto Recovery is one of the ENERGY STAR®features of this thermostat. Refer to the Auto Recovery
section on pages 43-44 for more information.
Remote Sensor Channel (does not apply to thermostat model 44660)
■ to reach the Sensor Channel Set screen.
■ to select sensor for RF channel setting ( for Indoor 1,
for Indoor 2, or for Outdoor)
option 7
option
sensor
8
1
2

16
PROGRAMMING
9
option
■ or to set RF communication channel (1-15)
for the selected remote sensor.
■ If you do not have, or are not using the a second or outdoor
remote sensor, set the channel to - -.
NOTE: The thermostat will not control your HVAC sysytem from the remote sensor set up as Outdoor .
However, it is crucial that you DO NOT place remote sensor or outdoors.
1
2
LCD Contrast adjustment
■ or to change the LCD contrast between 0
and 9. Lower numbers lighten the display. Higher numbers
darken the display. The factory setting is 5.

17
PROGRAMMING

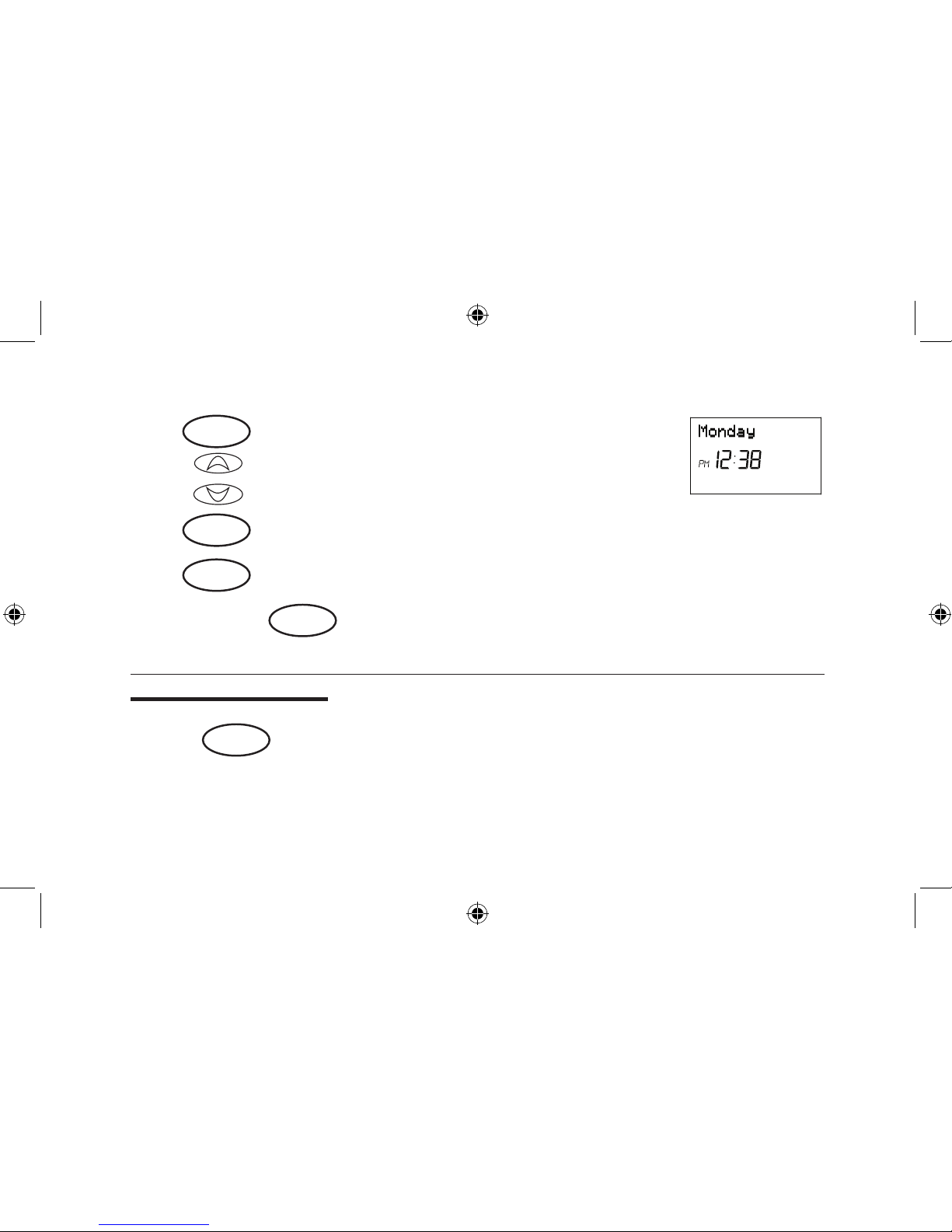

Setting Time and Day
Step 1 ■ Press to enter time and day setting mode. The current hour
and the AM / PM indicator will be ashing.
■ Press to change the Hour up or down to the current hour.
Note the AM / PM indicator, as the display will change at 12
AM and 12 PM.
Step 2 ■ Press again to change from hour setting to minute setting.
The current minute will be ashing.
■ Press to change the Minute up or down to the current minute.
or
or
day/time
day/time

18
12 Hr. / 24 Hr. Time Format
Your thermostat is set from the factory in normal 12 (AM / PM) format. To change to 24 hour (military)
time, press at any time while the Hour, Minute, or Day is ashing to toggle between the 12
hour and 24 hour formats. The AM / PM indicator will not be displayed in the 24 hour mode. Both the cur-
rent time and all programs will change automatically to the selected format. The time format may also be
changed in the Option Menu.
Step 3 ■ Press again to change from minute setting to day setting. The
current day will be ashing.
■ Press to change the Day up or down to the current day.
Step 4 ■ Press again to change back to the normal display.
NOTE: You may press at any time during Day and Time setting to return to the normal display.
or
day/time
ret/clear
day/time
or
ret/clear
option

19
PROGRAMMING
Programming Introduction
Studies conducted by the Department of Energy esti-
mate that setting your thermostat back 10°F (6°C) for
two 8-hour periods during winter can reduce your fuel
bill by as much as 33%. By setting your thermostat up
5°F (3°C) for two 8-hour periods during summer you
can reduce your fuel bill up to 25%.
Your thermostat is capable of holding up to 4 separate
programs for each day of the week.
You can program weekdays as a group, weekends as a
group, all 7 days individually or everyday as a group.
The system fan may also be set to run continuously
during a program time period.
Your Hunter thermostat is pre-programmed to meet the
ENERGY STAR® guidelines for energy efciency.
■ At power-up or after a reset, all 7 days of the week have these default programs:
Temperature in F° (C°)
Program Number Time Heat Cool
1 6:00am 68°F (20°C) 78°F (26°C)
2 8:00am 60°F (16°C) 85°F (29°C)
3 4:00pm 68°F (20°C) 78°F (26°C)
4 10:00pm 60°F (16°C) 82°F (28°C)
■ The following sections describe how to change these programs.

20
Personal Program Schedule
Before changing programs, use this Personal Program
Schedule to determine which times and temperature
settings will best satisfy both your comfort and energy
saving requirements.
Use a pencil so you can revise your records each time
you change your temperature settings.
Heating
Day Prog. 1 Prog. 2 Prog. 3 Prog. 4
Mon. Time Temp Time Temp Time Temp Time Temp
Tues. Time Temp Time Temp Time Temp Time Temp
Wed. Time Temp Time Temp Time Temp Time Temp
Thurs. Time Temp Time Temp Time Temp Time Temp
Fri. Time Temp Time Temp Time Temp Time Temp
Sat. Time Temp Time Temp Time Temp Time Temp
Sun. Time Temp Time Temp Time Temp Time Temp
(continued)
