Know Your ermostat

44118-01 • 08/06/2012 ©2012 Hunter Fan Company
4

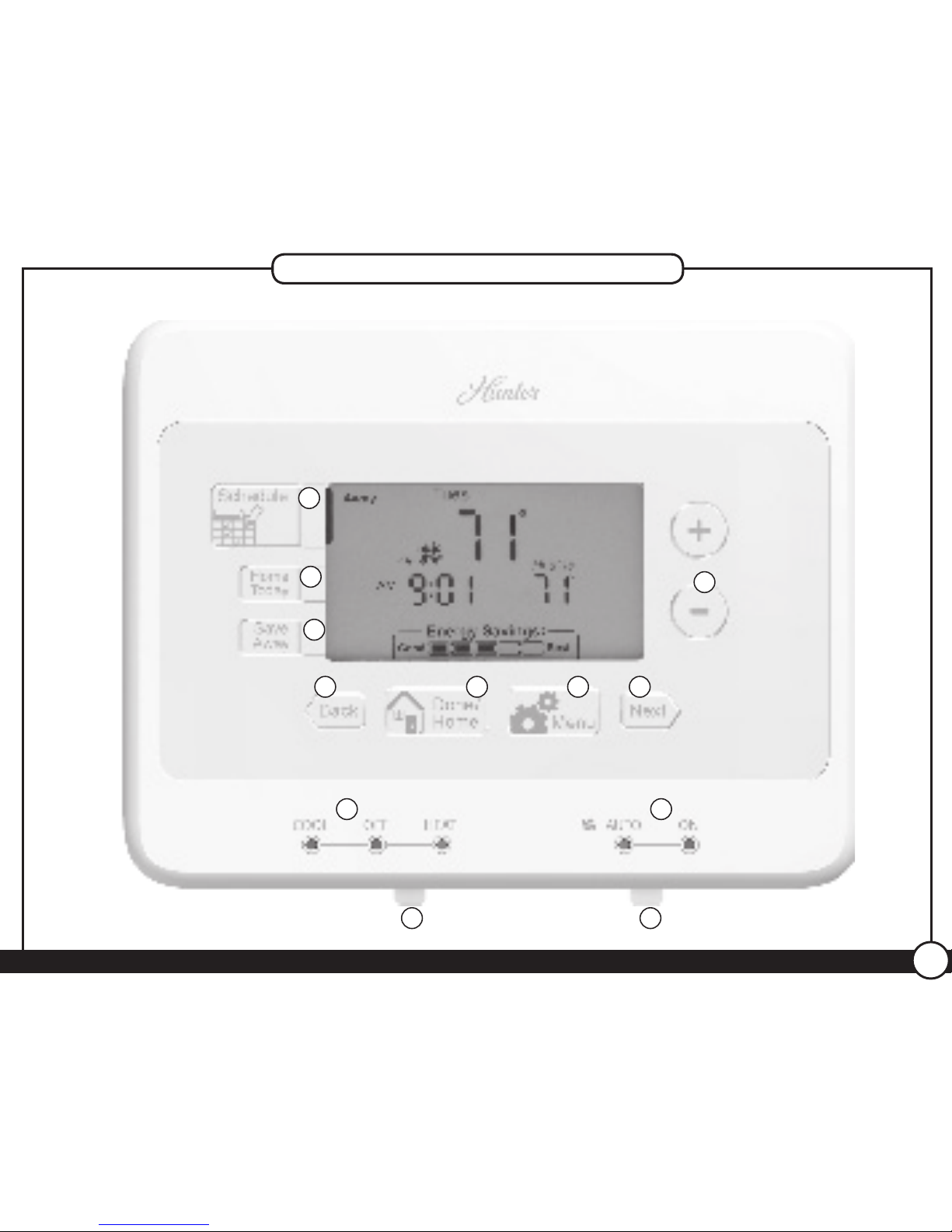

1. Enters Schedule Setup for altering scheduled programs.
2. Sets the Home Today feature for when you are home during a regularly
scheduled Away period.
3. Sets the Save Away feature for when you will not be home during a regularly
programmed time.
4. Conrms completion of an action or returns you to the Home screen.
5. Allows access to the advanced features of the thermostat.
6. Moves you forward or backward while setting up features or schedules.
7. Adjusts time and temperature settings as well as moving up or down menu lists.
8. Indicates whether the system is set to Heat, Cool, or Off.
9. Shows if the fan is set to Auto or On modes.
10. Allows you to switch between Heat, Cool, and Off modes.
11. Allows you to switch between fan Auto and On modes.
Know Your ermostat

44118-01 • 08/06/2012 ©2012 Hunter Fan Company 5
Know Your ermostat
1
8
5
3
27
6
11
9
10
6 4

44118-01 • 08/06/2012 ©2012 Hunter Fan Company
6

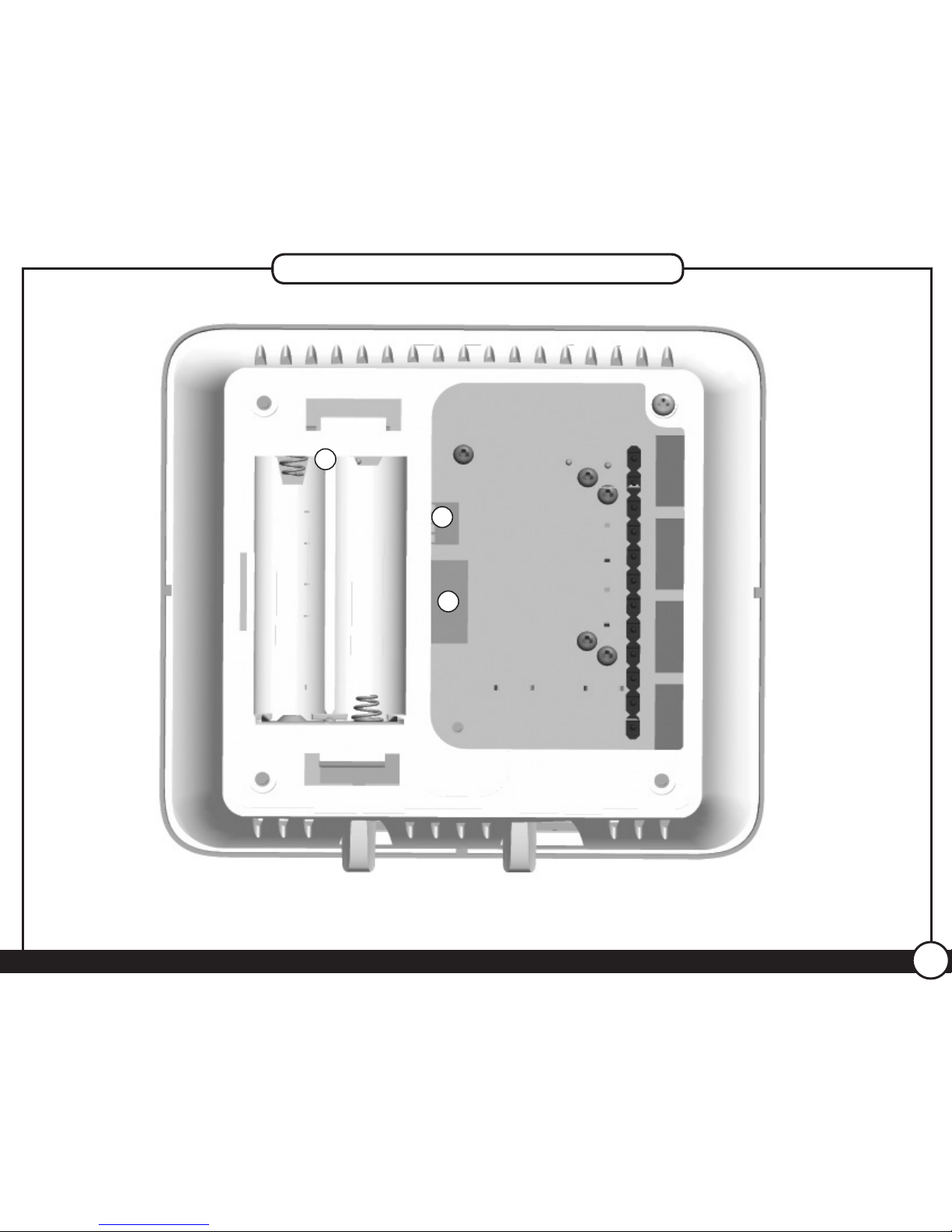

1. Holds 2 “AA” Batteries.
2. HE/HG Switch - allows you to set your furnace to Gas/Oil or Electric, based on the type
of system you have.
3. Conventional/Heat Pump System Switch - Allows your thermostat to operate your HVAC
system properly by selecting the system type that you have.
*Conventional System: Uses a condensing unit for cooling and a separate
furnace system for heating.
*Heat Pump System: Uses the condensing unit for both heating and cooling.
NOTE: If you are unsure of your system type it may be necessary to contact our
technical support department, your HVAC manufacturer, or a local HVAC technician
to determine this. Improper selection of your system type could cause the thermostat to
not operate your system properly.
Know Your ermostat

44118-01 • 08/06/2012 ©2012 Hunter Fan Company 7
1
3
2
Know Your ermostat

44118-01 • 08/06/2012 ©2012 Hunter Fan Company
8
1. Shows the current day of the week or weekend.
2. Indicates the thermostat is running in schedule mode.
3. Flashes when the furnace lter should be checked for replacement.
4. On when the current schedule period is running.
5. Shows the current mode of the fan: Auto or On.
6. C will display when in Celsius mode. Nothing will display when set to Fahrenheit.
7. Indicates the current active schedule period.
8. Shows the system fan is running.
9. Indicates the current room temperature.
10. Shows when the Home Today feature is running.
11. On when the current operating mode, heat or cool, is running.
12. Current operating mode, heat or cool.
13. Low battery warning, indicates you need to replace the batteries in the thermostat.
14. Indicates the current time in am or pm .
15. Current Set temperature the thermostat is scheduled to run.
16. Indicates the Thermostat is running in save away mode.
17. Indicates in hours or days how long the Save Away period is set for.
18. Energy saver bar helps you make decisions on conserving energy.
19. Indicates the thermostat is locked and will not accept input.
Know Your ermostat

44118-01 • 08/06/2012 ©2012 Hunter Fan Company 9
Know Your ermostat
o
:
At Home Auto
PM
Hours Energy Savings:
Good Best! Lock
Mon
Filter
Heat to
C
1
3
5
7
89
2
13
15
16
17
14
o
6
12
18 19
4
10
11

44118-01 • 08/06/2012 ©2012 Hunter Fan Company
10
Setting Day and Time
Once you install the batteries, the thermostat will prompt you to set the current day
and time.

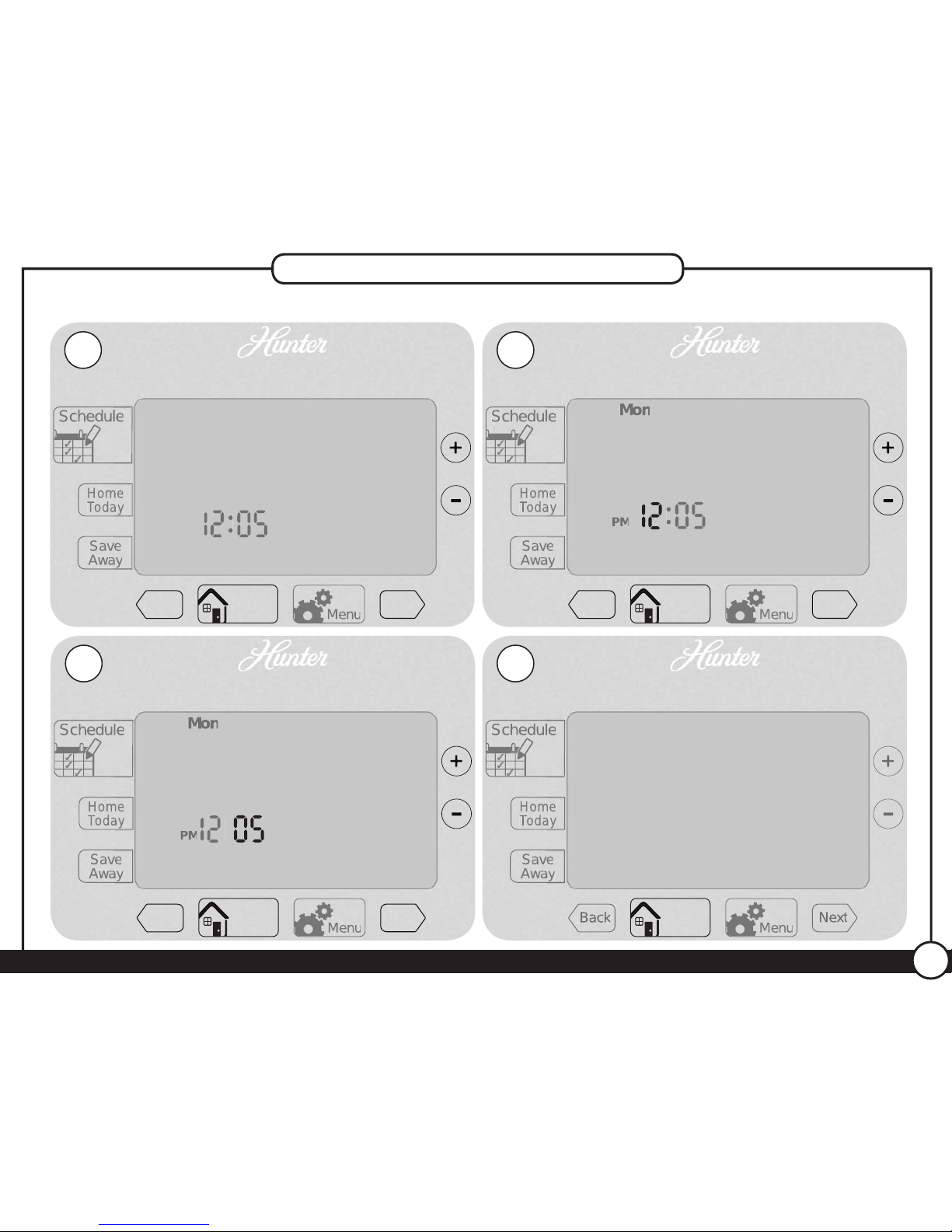

1. You will notice that “Mon” will be ashing at the top left of your screen. Use the
or buttons to move to your current day of the week and press the Next button to
advance to the next step.
2. Use the or button to change between am and pm. Choose Next to advance.
3. Next you will select your current hour by using the or buttons. The Next button
advances you to the next step.
4. Set your minutes using the or and press Done/
Home to nish or Back if you need to
make a correction to a previous step.
5. When nished, the thermostat will show “Updated!” to conrm your settings
are saved.
6. Your thermostat will next prompt you to set your programming, see page 14
step 2 if you wish to alter your programs at this time.

44118-01 • 08/06/2012 ©2012 Hunter Fan Company 11
Setting Day and Time
Done/
Home
Menu
Back Next
Schedule
Save
A
way
AwayA
Home
To
da
y
1-2
Mon
:
PM
Done/
Home
Menu
Back
Next
Schedule
Save
A
way
AwayA
Home
To
da
y
5
Updated!
Done/
Home
Menu
Back Next
Schedule
Save
A
way
AwayA
Home
To
da
y
3
Mon
PM
:
:
Done/
Home
Menu
Back Next
Schedule
Save
A
way
AwayA
Home
To
da
y
4
Mon
PM
:

44118-01 • 08/06/2012 ©2012 Hunter Fan Company
12
*The schedule time can be set in 15 minute increments, and remains the same for both Heat
and Cool programs.
*The scheduled temperature can be set in increments of 1°F (1°C).
*After 15 minute without a key press, the thermostat will return to the home display screen.
*When setting the schedule time, note the AM / PM indicator.
*At any stage during your scheduling, you can use the Back or Next buttons to move forward or
backwards through the steps. Done/
Home will save any changes, even if you have not scheduled or
altered all settings.
* Arrows beside each schedule mode and beside heat/cool modes will indicate which ones
are active.
Read the scheduling section thoroughly to ensure you understand your scheduling options and
which will best t with your lifestyle. The following notes should help you with scheduling:
Scheduling Introduction
This thermostat has been pre-programmed to provide optimal energy savings. No
programming is necessary. We recommend you run these programs for a few days before
adjusting your programming. If it is necessary to change these settings, use the scheduling
table on the next page to record your new settings. You will also nd the default schedule there
as well.

44118-01 • 08/06/2012 ©2012 Hunter Fan Company 13
Personal Scheduling Charts
Day Away Asleep Home
Monday-Friday
Start Time: 8:00am
End Time: 6:00pm
Heat Temp: 63OF (17OC)
Cool Temp: 82OF (28OC)
Start Time: 10:00pm
End Time: 6:00am
Heat Temp: 67OF (19OC)
Cool Temp: 76OF (24OC)
Heat Temp: 71OF (22OC)
Cool Temp: 74OF (23OC)
Saturday
Start Time: 8:00am
End Time: 6:00pm
Heat Temp: 63OF (17OC)
Cool Temp: 82OF (28OC)
Start Time: 10:00pm
End Time: 6:00am
Heat Temp: 67OF (19OC)
Cool Temp: 76OF (28OC)
Heat Temp: 71OF (22OC)
Cool Temp: 74OF (23OC)
Sunday
Start Time: 8:00am
End Time: 6:00pm
Heat Temp: 63OF (17OC)
Cool Temp: 82OF (28OC)
Start Time: 10:00pm
End Time: 6:00am
Heat Temp: 67OF (19OC)
Cool Temp: 76OF (28OC)
Heat Temp: 71OF (22OC)
Cool Temp: 74OF (23OC)
Default Schedule
Note: Use a pencil so these records may be changed at a later time if necessary.
Day Away Asleep Home
Monday-Friday
Start Time:
End Time:
Heat Temp:
Cool Temp:
Start Time:
End Time:
Heat Temp:
Cool Temp:
Heat Temp:
Cool Temp:
Saturday
Start Time:
End Time:
Heat Temp:
Cool Temp:
Start Time:
End Time:
Heat Temp:
Cool Temp:
Heat Temp:
Cool Temp:
Sunday
Start Time:
End Time:
Heat Temp:
Cool Temp:
Start Time:
End Time:
Heat Temp:
Cool Temp:
Heat Temp:
Cool Temp:
Alternate Schedule
*The Home schedule automatically calculates the remaining times from Away and Asleep and
assigns them the Home temperature.

44118-01 • 08/06/2012 ©2012 Hunter Fan Company
14
Setting Your Schedule

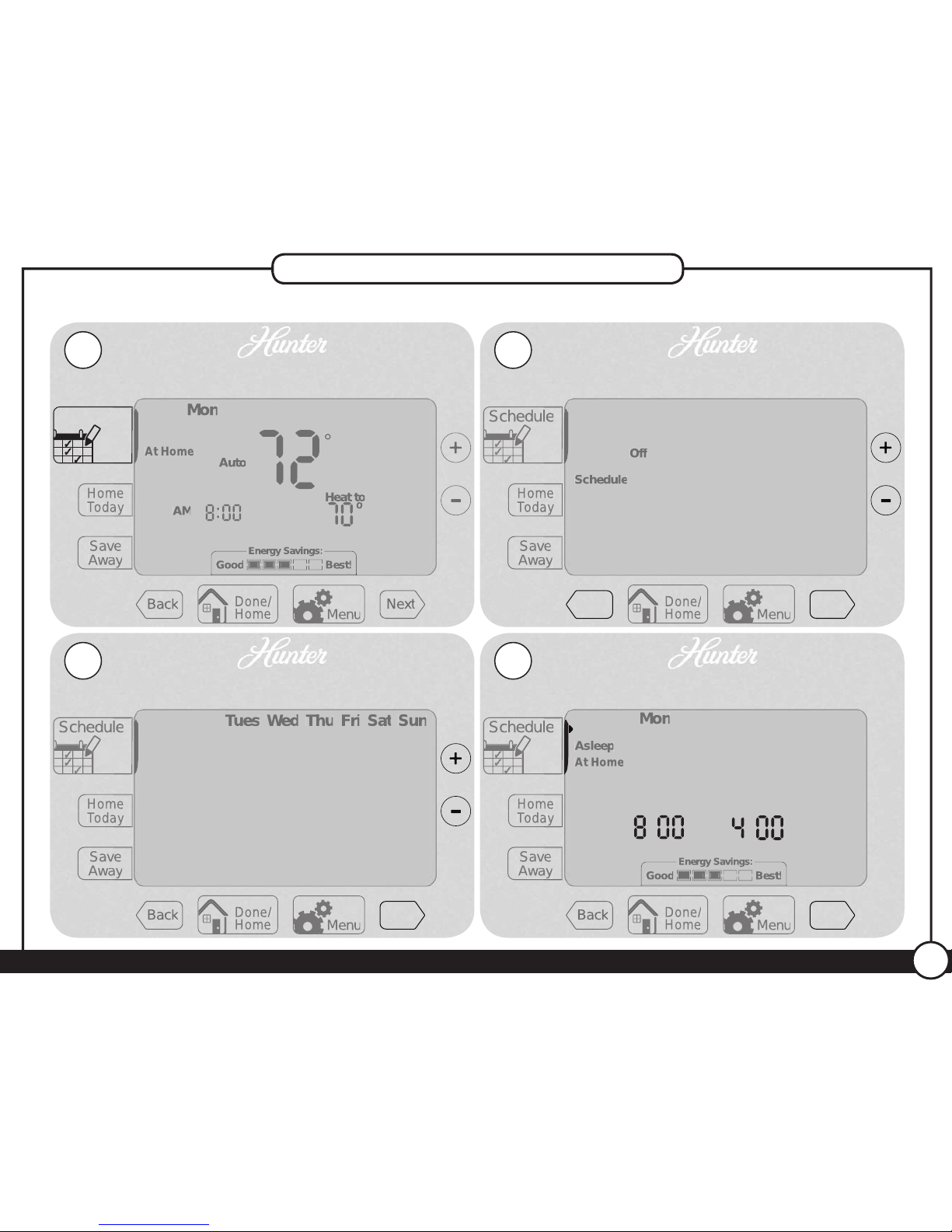

1. Press the Schedule Button to enter Scheduling mode.
2. Use the or buttons to select “On” and then Next to move forward to Scheduling.
Note: If you do not wish to use the scheduling option on your thermostat, refer to page 22,
step 2.
3. Monday will be ashing on the screen, to proceed with scheduling, press Next . If you wish
to start programming another day, press the or button until it shows at the top of the
screen and press Next .

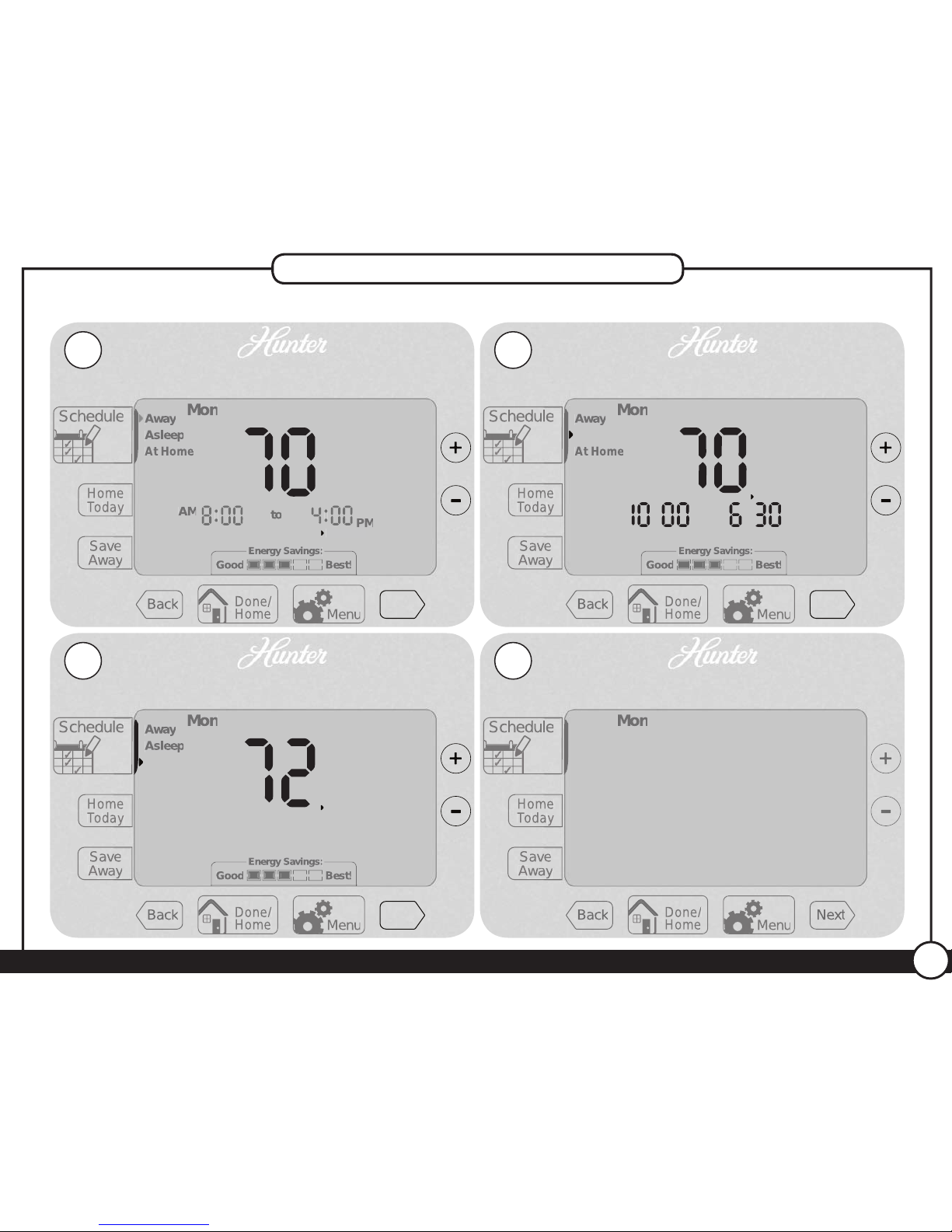

4. By default “Away” will be ashing on screen to start your scheduling. Use the Next button
to proceed to the next step.
5. Use the or buttons to adjust the start time on the left of the screen for the period and
press Next . Again you will use the or buttons to adjust the end time on the right of the
screen for this scheduled period. Press Next again.

44118-01 • 08/06/2012 ©2012 Hunter Fan Company 15
Setting Your Schedule
Done/
Home
Menu
Back
Next
Schedule
Save
A
way
AwayA
Home
To
da
y
3
Sun
Sat
Fri
Thu
Wed
Tues
Mon
Done/
Home
Menu
Back Next
Schedule
Save
A
way
AwayA
Home
To
da
y
2
Off
Schedule
On
Done/
Home
Menu
Back
Next
Schedule
Save
A
way
AwayA
Home
To
da
y
4-5
Away
Asleep
At Home
to
:
AM
:
PM
Energy Savings:
Good
Best!
Mon
Done/
Home
Menu
Back
Next
Schedule
Save
A
way
AwayA
Home
To
da
y
1
Mon
At Home
o
Auto
o
Heat to
Energy Savings:
Good
Best!
:
AM

44118-01 • 08/06/2012 ©2012 Hunter Fan Company
16
6. Set the temperature for your heating cycle as indicated by the ashing ”Heat to” icon on
your screen. Use the and buttons to change the temperature and press Next . You will
be asked to set your cooling cycle, indicated by the ashing “Cool to”. Set this temperature
with your or buttons and hit Next .
7. The thermostat will start this process again for “Asleep”. Repeat steps 1-5 to schedule the
time and set the temperature for your sleep period. When nished press Next to get to “At
Home”.
8. When setting “At Home”, you will only be asked to set a temperature. The thermostat
calculates your “At Home” time by what remains unscheduled from your “Away” and
“Asleep” periods. Set your “Heat To” temperature rst and press Next , then Set your “Cool
To” temp and press Next to nish Scheduling your current day.
9. When you have completed scheduling your day, the screen will ash “Schedule Updated!”
and return you to the day select screen.
Setting Your Schedule

44118-01 • 08/06/2012 ©2012 Hunter Fan Company 17
Setting Your Schedule
Done/
Home
Menu
Back
Next
Schedule
Save
A
way
AwayA
Home
To
da
y
6
Mon
Away
Asleep
At Home
o
Cool to
to
AM
:
:
PM
Heat to
Energy Savings:
Good
Best!
Done/
Home
Menu
Back
Next
Schedule
Save
A
way
AwayA
Home
To
da
y
9
Mon
Schedule
Updated!
Done/
Home
Menu
Back
Next
Schedule
Save
A
way
AwayA
Home
To
da
y
7
Mon
Away
Asleep
At Home
o
Cool to
to
PM
:
:
AM
Heat to
Energy Savings:
Good
Best!
Done/
Home
Menu
Back
Next
Schedule
Save
A
way
AwayA
Home
To
da
y
8
Mon
Away
Asleep
At Home
o
Cool to
Heat to
Energy Savings:
Good
Best!

44118-01 • 08/06/2012 ©2012 Hunter Fan Company
18
Setting Your Schedule
10. The day select screen will now show “Copy Day” and ask you if you wish to copy the day
you just scheduled to any other days. Select “YES” and Next or see step 13 for selecting
“NO”.
11. Select each day you wish to copy the schedule to by using the or buttons to turn days
on or off and the Next or Back buttons to scroll through the days. An arrow above each
day will indicate it has been selected.
Note: The original day you schedule will not show on the screen as it is the one being copied.
12. Select Done/
Home and the screen will show the days that now have the same schedule and ash
“COPIED”. You will be taken back to the day select screen to schedule your remaining days.
Repeat steps 3-12 to nish scheduling.
Note: If you select “NO” and then Next you will be asked to select the next day to schedule,
bypassing the “Copy” function. Repeat steps 3-11 for each day you wish to schedule
separately.
13. When all days have been scheduled, whether using the copy function or not, the screen
will ash “Schedule Updated!” along with all the days, and return you to the home screen.
Note: To go back and edit schedules, you will follow the same process as outlined above.

44118-01 • 08/06/2012 ©2012 Hunter Fan Company 19
Setting Your Schedule
Done/
Home
Menu
Back
Next
Schedule
Save
A
way
AwayA
Home
To
da
y
10
Mon
Copy Day
Done/
Home
Menu
Back Next
Schedule
Save
A
way
AwayA
Home
To
da
y
11
SunSatFriThuWedTues
Done/
Home
Menu
Back
Next
Schedule
Save
A
way
AwayA
Home
To
da
y
12
FriThuWedTuesMon
Done/
Home
Menu
Back
Next
Schedule
Save
A
way
AwayA
Home
To
da
y
13
Schedule
Updated!

44118-01 • 08/06/2012 ©2012 Hunter Fan Company
20
Temporary Temperature Change
With Temporary Temperature Change you have the ability to alter the temperature for
only the current running schedule.
1. Press the or button once to activate the screen, the backlight will come on.
2. Use the or buttons again to select a new temperature.
3. Press the Done/
Home button to save changes.
Note: Temporary Temperature Change is not a permanent setting. Your thermostat
will only run the new temperature until the next scheduled period change.
After your thermostat changes to a new schedule set, your thermostat will
forget the temporary setting and resume your existing schedule.
4. To escape Temporary Temperature Change, press the Done/
Home button. The screen will
ash “Schedule ON” to indicate the thermostat has resumed your regular schedule.
