Husky Trim-Plus H1503TP-R User manual
OPERATOR’S MANUAL
Trim-Plus
H1503TP-R
3 Gallon Oil Free Portable Air Compressor
H1503TP-R OM - Ver. 12/10
3!6%4()3-!.5!,&/2&5452%2%&%2%.#%
9OURAIRCOMPRESSORHASBEENENGINEEREDANDMANUFACTUREDTO(USKYSHIGHSTANDARDFORDEPENDABILITYEASEOFOPERA
TIONANDOPERATORSAFETY7HENPROPERLYCAREDFORITWILLGIVEYOUYEARSOFRUGGEDTROUBLEFREEPERFORMANCE
7!2.).'4OREDUCETHERISKOFINJURYTHEUSERMUSTREADANDUNDERSTANDTHEOPERATORSMANUALBEFOREUSING
THISPRODUCT
4HANKYOUFORBUYINGA(USKYPRODUCT
CUSTOMER SERVICE
1-866-242-4298
Reconditione
d
Reconditioned
2
This unit was fully tested and inspected prior to shipment and will operate properly when instructions are followed. Refer to your owner’s manual for basic
troubleshooting. To avoid unnecessary return to the store, simply call Compressor Support toll free for additional assistance.
DO NOT RETURN TO STORE
IMPORTANT
STOP STOP
Compressor Support: 1-866-242-4298
• Air compressor will automatically shut off when maximum PSI is reached. When the tank pressure drops to the cut in pressure (low pressure) and the on/off
switch is in the ON position, the unit will automatically restart.
Please have your model number and serial number available. These can be found on the data label on your product. Retain a copy of your receipt with purchase
date for reference.
NOTICE
PRODUCT FOR CONSUMER USE ONLY. Not intended for commercial use.
Introduction ......................................................................................................................................................................2
General Safety Rules ....................................................................................................................................................3-4
Specific Safety Rules .......................................................................................................................................................5

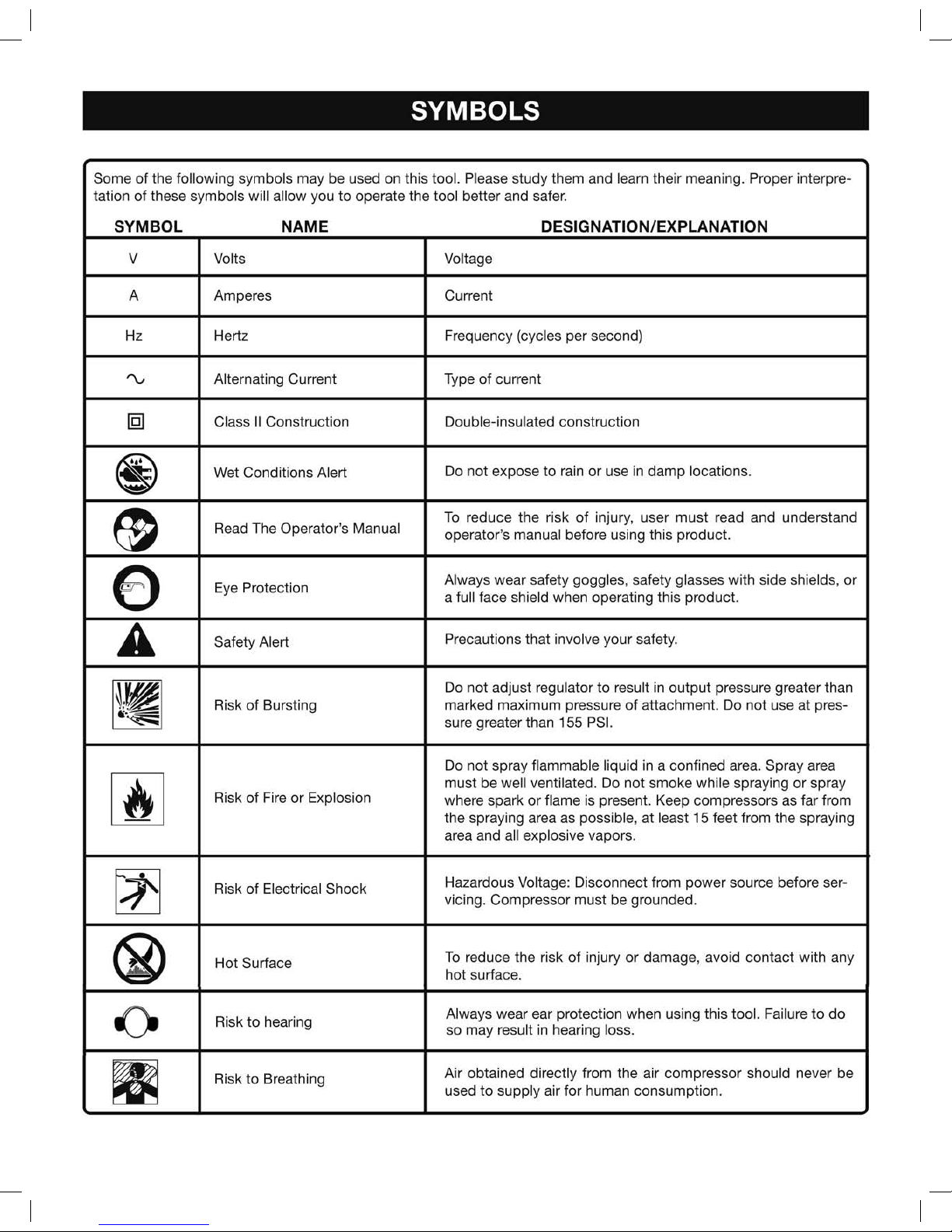

Symbols.........................................................................................................................................................................6-7
Electrical...........................................................................................................................................................................8
Glossary of Terms ............................................................................................................................................................9
Tools Needed ...................................................................................................................................................................9
Features ....................................................................................................................................................................10-11
Assembly...................................................................................................................................................................11-12
Transport and lifting........................................................................................................................................................13
Operation...................................................................................................................................................................14-15
Maintenance...................................................................................................................................................................16
Troubleshooting..............................................................................................................................................................17
Warranty .........................................................................................................................................................................18
TABLE OF CONTENTS
• On occasion, maximum pressure in tank will remain until next use thus resulting in a sense of no power. (See bullet above)
• To avoid power loss, overheating and ensure power, use additional air hose rather than extension cords.
• It is the consumer’s responsability to drain oil lubed units prior to shipment to meet ICC, state and local fire regulations.
+)2)6%07%*)8=690)7
2IZIVTSMRXER]XSSPXS[EVH]SYVWIPJSVSXLIVW
/IITXLII\XIVMSVSJXLIEMVGSQTVIWWSVHV]GPIER
ERHJVIIJVSQSMPERHKVIEWI%P[E]WYWIEGPIER
GPSXL[LIRGPIERMRK2IZIVYWIFVEOIJPYMHWKEWSPMRI
TIXVSPIYQFEWIHTVSHYGXWSVER]WXVSRKWSPZIRXWXS
GPIERXLIYRMX*SPPS[MRKXLMWVYPI[MPPVIHYGIXLIVMWOSJ
HIXIVMSVEXMSRSJXLIIRGPSWYVITPEWXMG
7)6:-')
8SSPWIVZMGIQYWXFITIVJSVQIHSRP]F]UYEPMJMIH
VITEMVTIVWSRRIP7IVZMGISVQEMRXIRERGITIVJSVQIH
F]YRUYEPMJMIHTIVWSRRIPQE]VIWYPXMREVMWOSJMRNYV]
(MWGSRRIGXTS[IVWYTTP]STIRHVEMRZEPZIXSHI
GSQTVIWWXEROERHEPPS[[EXIVXSHVEMRERHEPPS[
EMVGSQTVIWWSVXSFIGSQIGSSPXSXLIXSYGLFIJSVI
WIVZMGMRK8YVRTVIWWYVIVIKYPEXSVORSFJYPP]GPSGO[MWI
EJXIVWLYXXMRKSJJGSQTVIWWSV
;LIRWIVZMGMRKEXSSPYWISRP]MHIRXMGEPVITPEGI
QIRXTEVXW*SPPS[MRWXVYGXMSRWMRXLI1EMRXIRERGI
WIGXMSRSJXLMWQERYEP9WISJYREYXLSVM^IHTEVXWSV
JEMPYVIXSJSPPS[1EMRXIRERGIMRWXVYGXMSRWQE]GVIEXIE
VMWOSJMRNYV]
Turn pressure regulator knob fully counter
clockwise after shutting off compressor.
5
�
�
sure of attachment. Do not use at pressure greater than
the rated maximum pressure of this compressor.
6
.EVERUSEANELECTRICALADAPTORWITHTHISGROUNDEDPLUG
Replace a damage or worn cord immediately.
Replace a damaged or worn cord immediately.
9
TOOLS NEEDED
The following tools are needed to tighten the thread ends of coil hose to the male and female quick couplers.
47/!$*534!",%72%.#(%3
0RESSURE3WITCH
!UTOMATICALLYCONTROLSTHEONOFFCYCLINGOFTHECOMPRES
SOR)TSTOPSTHECOMPRESSORWHENTHECUTOFFPRESSUREIN
THETANKISREACHEDANDSTARTSTHECOMPRESSORWHENTHE
AIRPRESSUREDROPSBELOWTHECUTINPRESSURE
03)0OUNDS0ER3QUARE)NCH
-EASUREMENTOFTHEPRESSUREEXERTEDBYTHEFORCEOFTHE
AIR4HEACTUALPSIISMEASUREDBYAPRESSUREGAUGEONTHE
COMPRESSOR
0UMP
0RODUCESTHECOMPRESSEDAIRWITHARECIPROCATINGPISTON
CONTAINEDWITHINTHECYLINDER
2EGULATOR0RESSURE'AUGE
$ISPLAYSTHECURRENTLINEPRESSURE,INEPRESSUREISADJUST
EDBYROTATINGTHEPRESSUREREGULATORKNOB
3AFETY6ALVE
0REVENTSAIRPRESSUREINTHEAIRTANKFROMRISINGOVERA
PREDETERMINEDLIMIT
3#&-3TANDARD#UBIC&EET0ER-INUTE
!UNITOFMEASUREOFAIRDELIVERY
4ANK0RESSURE'AUGE
)NDICATESTHEPRESSUREINTHEAIRTANK
4HERMAL/VERLOAD3WITCH
!UTOMATICALLYSHUTSOFFTHECOMPRESSORIFTHETEMPERATURE
OFTHEELECTRICMOTOREXCEEDSAPREDETERMINEDLIMIT
',/33!29/&4%2-3
!IR&ILTER
0OROUSELEMENTCONTAINEDWITHINAMETALORPLASTICHOUS
INGATTACHEDTOTHECOMPRESSORCYLINDERHEADWHICH
REMOVESIMPURITYFROMTHEINTAKEAIROFTHECOMPRESSOR
!IR4ANK
#YLINDRICALCOMPONENTWHICHCONTAINSTHECOMPRESSEDAIR
#HECK6ALVE
$EVICETHATPREVENTSCOMPRESSEDAIRFROMFLOWINGBACK
FROMTHEAIRTANKTOTHECOMPRESSORPUMP
#UT)N0RESSURE
4HELOWPRESSUREATWHICHTHEMOTORWILLAUTOMATICALLY
RESTART
#UT/FF0RESSURE
4HEHIGHPRESSUREATWHICHTHEMOTORWILLAUTOMATICALLY
SHUTOFF
%LECTRIC-OTOR
$EVICEWHICHPROVIDESTHEROTATIONALFORCENECESSARYTO
OPERATETHECOMPRESSORPUMP
-ANUAL/N/FF3WITCH
#ONTROLWHICHTURNSTHEAIRCOMPRESSORONOROFF4HE
PRESSURESWITCHWILLNOTAUTOMATICALLYSTARTANDCONTROLTHE
COMPRESSORUNLESSTHEMANUAL/N/FF3WITCHISINTHE/.
LPOSITION
.04.ATIONAL0IPE4HREAD
.ATIONAL0IPE4HREADISA53STANDARDFORTAPERED.04
ORSTRAIGHT.03THREADSUSEDTOJOINPIPESANDFITTINGS
!THREADSEALINGTAPEMUSTBEUSEDTOPROVIDEALEAKFREE
SEALONPIPETHREADEDCONNECTIONS
0RESSURE2EGULATOR+NOB
2EGULATESTHEOUTGOINGPRESSUREFROMTHEAIROUTLETTOTHE
TOOL)TISPOSSIBLETOINCREASEORDECREASETHEPRESSUREAT
THEOUTLETBYADJUSTINGTHISCONTROLKNOB
10
COIL HOSE
INFLATION NEEDLE
BLOW GUN ADAPTER
SAFETY NOZZLE
INFLATION NEEDLE (2)
1/4” MALE QUICK CONNECT PLUG (2)
1/4” FEMALE QUICK CONNECT PLUG (2)
TAPERED NOZZLE
RUBBER BLOW
GUN NOZZLE
TIRE CHUCK
THREAD SEALING TAPE
TIRE GAUGE
BLOW GUN
1/4” NPT MALE ADAPTER
1/4” FEMALE ADAPTER
1/4” FEMALE
QUICK CONNECT
COUPLER
FEATURES
PRODUCT SPECIFICATIONS
Running Horsepower................................................1.5 HP
Air Tank Capacity........................................................ 3 gal.
Air Pressure.....................................................155 psi max.
Air Delivery..........................................2.5 SCFM @ 90 psi
Lubrication..............................................................Oil-Free
Gauges................................................. 3.0/1.5 in. diameter
Input............................... 120 V, 60 Hz,AC only, 10.5 Amps
Net Weight.................................................................30 lbs.
MANUAL ON/OFF SWITCH
TANK PRESSURE
SAFETY VALVE
RUBBER FOOT
OUTLET
PRESSURE
PRESSURE
REGULATOR KNOB
QUICK
COUPLER
CARRY HANDLE
TANK
DRAIN VALVE
FEATURES
ASSEMBLY
KNOW YOUR AIR COMPRESSOR
See Figure 2.
Before attempting to use this product, familiarize yourself
with all operating features and safety rules.
ACCESSORY KIT
The accessory kit includes a 25’ (± 1’) coil Hose, 1/4 in.
female quick connect plugs, 1/4 in. male quick connect
plugs, Thread Sealing Tape, Tire chuck, Tire Gauge, Blow
gun, Osha approved safety nozzle, Inflation needle blow gun
adapter, 1/4 in. NPT male adapter, 1/4 in. female adapter,
1/4 in. female quick connect coupler, Inflation needles,
Tapered nozzle, Rubber blow gun nozzle.
OIL-FREE UNIVERSAL MOTOR
Your air compressor features permanently lubricated
bearings.
PRESSURE REGULATOR KNOB
Use the pressure regulator knob to adjust the amount of
air being delivered through the hose.
REGULATOR PRESSURE GAUGE
The current line pressure is displayed on the regulator
pressure gauge. This pressure can be adjusted by rotating
the pressure regulator knob.
SAFETY VALVE
The safety valve is designed to automatically release air if
the air receiver pressure exceeds the preset maximum.
TANK PRESSURE GAUGE
The tank pressure gauge indicates the pressure of the air
in the tank.
7!2.).'
)FANYPARTSAREMISSINGDONOTOPERATETHECOMPRESSOROR
AIRTOOLSUNTIL THEMISSINGPARTSAREREPLACED&AILURETODO
SOCOULDRESULTINPOSSIBLESERIOUSPERSONALINJURY
7!2.).'
$ONOTATTEMPTTOMODIFYTHISTOOLORCREATEACCESSO
RIESNOTRECOMMENDEDFORUSEWITHTHISTOOL!NYSUCH
ALTERATIONORMODIFICATIONISMISUSEANDCOULDRESULT
INAHAZARDOUSCONDITIONLEADINGTOPOSSIBLESERIOUS
PERSONALINJURY
UNPACKING
This product has been shipped completely assembled.
Carefully remove the accessories from the box. Make
sure that all items listed in the packing list are included.
I
nspect the compressor and accessories carefully to make
sure no breakage or damage occurred during shipping.
Do not discard the packing material until you have
carefully inspected and satisfactorily operated the tool.
If any parts are damaged or missing, please call
1-866-242-4298 for assistance.
11
PACKING LIST
Air Compressor
25’ (± 1’) coil Hose (1)
1/4 in. female quick connect plugs (2)
1/4 in. male quick connect plugs (2)
Thread Sealing Tape (1)
Tire chuck (1)
Tire Gauge (1)
Blow gun (1)
Osha approved safety nozzle (1)
Inflation needle blow gun adapter (1)
1/4 in. NPT male adapter (1)
1/4 in. female adapter (1)
1/4 in. female quick connect coupler (1)
Inflation needles (2)
Tapered nozzle (1)
Rubber blow gun nozzle (1)
Operator’s Manual (1)
Replacement Parts List (1)
12
ASSEMBLY
ATTACHING HOSE
Attach the supplied quick-connect fitting to hose (note:
wrap threaded ends with supplied thread sealing tape
before securing fittings to hose).
Push male end of hose into quick coupler already
installed on the compressor.
BREAKING IN THE PUMP
See figure 3 - 5
Check and tighten all bolts, fittings, etc.
Turn the pressure regulator knob fully clockwise to
open the air flow.
Place the switch in the OFF (0) position and plug in the
power cord.
Open the drain valve completely.
Place the switch in the ON ( l ) and run the air
compressor for 10 minutes to break in pump parts.
Place the switch in the OFF (0) position.
Close the drain valve.
WARNING:
Do not attach any tools to the open end of the hose until
start-up has been completed. QUICK COUPLER Fig. 3
Fig. 4
Fig. 5
SWITCH
PRESSURE REGULATOR KNOB
DRAIN VALVE
13
LIFTING
LIFTING
See Figure 6.

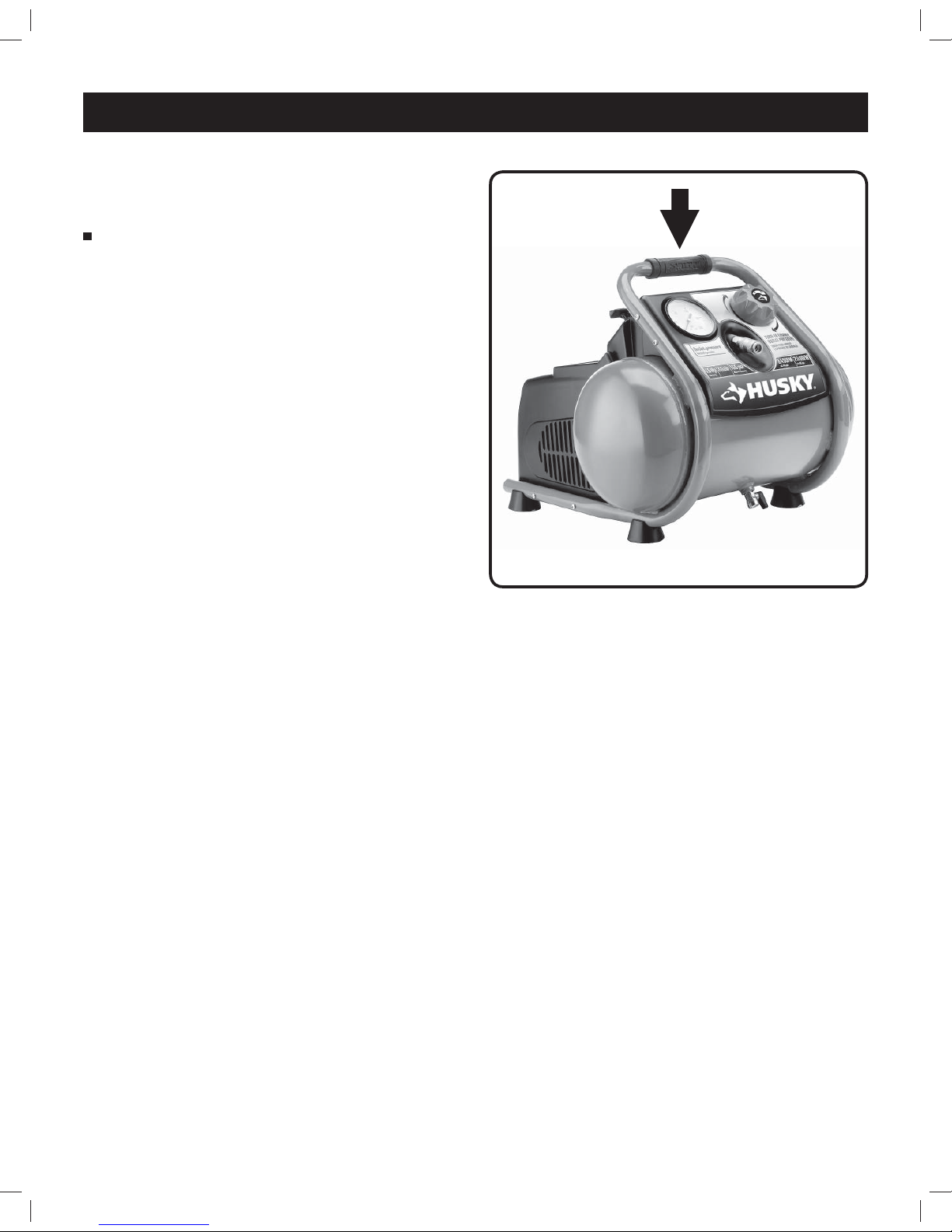

For lifting the unit use only the red carry handle.
Fig. 6
14
Fig. 7B
Fig. 7A
THREAD
SEALING
TAPE
THREAD
SEALING
TAPE
See Figures 7A - 7B
Ensure tank drain is closed.
Turn regulator knob counter clockwise until outlet
pressure is at zero (0).
Ensure power switch is in the OFF (0) position and air
compressor is unplugged.
If not ready installed, attach hose to compressor as
previously instructed.
Attach 1/4 in. NPT male connector fitting to accessory
or tool you intend to use.
Insert the other and of the male connector to the quick
coupler on the open end of hose
Operating air powered tools requiring up to 2.5 SCFM.
Inflating tires, air beds, sports equipment, etc.
Turn the switch ON (I) and allow tank pressure to build.
NOTE: Always use the minimum amount of pressure
necessary for your application. Using a higher pressure
than needed could cause serious injury and may
permanently damage the tool.
Always ensure the swith is in the OFF (O) position and
the regulator pressure gauge reads zero before chang-
ing air tools or disconnecting the hose from the air
outlet. Failure to do so could result in possible serious
personal injury.
Connect the power cord to the power supply.
Rotate pressure regulator knob to desired line pres-
sure. Turning the knob clockwise increases air pres-
sure at the outlet; turning countercolockwise reduces air
pressure at the outlet.
Following all safety precautions in this manual and the
manufacturer’s instructions in the air tool manual, you
may now proceed to use your air-powered tool.
Check the air tool manual to insure the correct air
pressure regulator setting for optimum operation of
your air tools. If you arre using an air tool not originally
included with the air tool kit supplied with this air
compressor, your tool may require more air consumption
than this air compressor is designed to supply.
Always read your air tool owners manual to match the
correct air supply to your air tool to avoid damage
to the tool or risk of personal injury.
If using an inflation accessory, control the amount of air
flow with the pressure regulator knob. Turning the knob
fully counterclockwise will completely stop the flow of
air.
When finished, always drain the tank and unplug the
unit. Never leave the unit plugged in and/or running
unattended.
15
/0%2!4)/.
$2!).).'4(%4!.+
3EE&IGURE
4OHELPPREVENTTANKCORROSIONANDKEEPMOISTUREOUT
OFTHEAIRUSEDTHETANKOFTHECOMPRESSORSHOULDBE
DRAINEDDAILY
4ODRAIN
+EEPTHECOMPRESSORTILTEDUNTILALLMOISTUREHAS
BEENREMOVED
(OLDINGTHEHANDLETILTTHECOMPRESSORTOWARDTHE
DRAINVALVESOTHATITSSETINALOWERPOSITION
$RAINMOISTUREFROMTANKINTOASUITABLECONTAINER
./4% #ONDENSATEISAPOLLUTINGMATERIALANDSHOULDBE
DISPOSEDOFINCOMPLIANCEWITHLOCALREGULATIONS
)FDRAINVALVEISCLOGGEDRELEASEALLAIRPRESSUREREMOVE
ANDCLEANVALVETHENREINSTALL
7!2.).'
5NPLUGTHEAIRCOMPRESSORANDRELEASEALLAIRFROM
THETANKBEFORESERVICING&AILURETODEPRESSURIZETANK
BEFOREATTEMPTINGTOREMOVEVALVEMAYCAUSESERIOUS
PERSONALINJURY
4URNOFFDRAINVALVEUNTILCOMPLETELYCLOSED
#(%#+).'4(%3!&%496!,6%
3EE&IGURE
$!.'%2
$ONOTATTEMPTTOTAMPERWITHTHESAFETYVALVE!NY
THINGLOOSENEDFROMTHISDEVICECOULDFLYUPANDHIT
YOU&AILURETOHEEDTHISWARNINGCOULDRESULTINDEATH
ORSERIOUSPERSONALINJURY
4HESAFETYVALVEWILLAUTOMATICALLYRELEASEAIRIFTHEAIR
RECEIVERPRESSUREEXCEEDSTHEPRESETMAXIMUM4HEVALVE
SHOULDBECHECKEDBEFOREEACHDAYOFUSEBYPULLINGTHE
RINGBYHAND
4URNTHEAIRCOMPRESSORONANDALLOWTHETANKTOFILL
4HECOMPRESSORWILLSHUTOFFWHENTHEPRESSUREREACH
ESTHEPRESETMAXIMUM
4URNTHEAIRCOMPRESSOROFF
0ULLTHERINGONTHESAFETYVALVETORELEASEAIRFORT
SECONDS
2ELEASETHERING!IRMUSTIMMEDIATELYSTOPESCAPING
WHENTHERINGISRELEASED!NYCONTINUEDLOSSOFAIR
AFTERRELEASINGTHESAFETYVALVERINGINDICATESAPROBLEM
WITHTHESAFETYVALVE$ISCONTINUEUSEANDSEEKSERVICE
BEFORECONTINUEDUSEOFTHEAIRCOMPRESSOR
&IG
&IG
3!&%49
6!,6%
$2!).
6!,6%
7!2.).'
)FAIRLEAKSAFTERTHERINGHASBEENRELEASEDORIFTHE
VALVEISSTUCKANDCANNOTBEACTUATEDBYTHERING$O
.OTUSETHEAIRCOMPRESSORUNTILTHESAFETYVALVEHAS
BEENREPLACED5SEOFTHEAIRCOMPRESSORINTHISCONDI
TIONCOULDRESULTINSERIOUSPERSONALINJURY
&I
SAFETY
VALVE
DRAIN VALVE
&IG
&IG
3EE&IGURE
3EE&IGURE
&IG
SAFETY
VALVE
DRAIN VALVE
&IG
&IG
3EE&IGURE
3EE&IGURE
&IG
SAFETY
VALVE
DRAIN VALVE
&IG9
&IG8
3EE&IGURE8
3EE&IGURE9
2ELEASETHERING!IRWILLSTOPESCAPINGWHENTHERING
ISRELEASEDATAPPROXIMATELYPSI!NYCONTINUEDLOSS
OFAIRAFTERRELEASINGTHESAFETYVALVERINGINDICATESA
PROBLEMWITHTHESAFETYVALVE$ISCONTINUEUSEANDSEEK
SERVICEBEFORECONTINUEDUSEOFTHEAIRCOMPRESSOR
)FAIRLEAKSBELOWPSIAFTERTHERINGHASBEENRELEASED
ORIFTHEVALVEISSTUCKANDCANNOTBEACTUATEDBYTHE
RING$O.OTUSETHEAIRCOMPRESSORUNTILTHESAFETY
VALVEHASBEENREPLACED5SEOFTHEAIRCOMPRESSORIN
THISCONDITIONCOULDRESULTINSERIOUSPERSONALINJURY
Fig. 8
DRAIN VALVE
DRAIN VALVE
SAFETY VALVE Fig. 9
If drain valve is clogged, release all air pressure by pulling
the safety valve. Remove and clean valve, then reinstall.
SAFETY VALVE
If drain valve is clogged, release all air pressure by pulling
the safety valve. Remove and clean valve, then reinstall.
Fig. 9
Fig. 8
DRAIN VALVE
16
Tank has sufficient pressure.
No electrical power.
Blown shop/home fuse
Tripped shop/home breaker
Thermal overload open
Loss of power or overheating
Pressure switch is bad
Compressor will turn on when tank
pressure drops to cut-in pressure
Check to be sure unit is plugged in.
Replace shop/home fuse.
Reset shop/home breaker, determine
why problem happened.
Motor will restart when cool
Check for proper use of extension cord
Replace pressure switch
Tank has sufficient pressure.
No electrical power.
Blown shop/house fuse.
Tripped shop/home breaker.
Thermal overload open.
Loss of power or overheating.
Pressure switch is bad.
Compressor will turn on when tank
pressure drops to cut-in pressure.
Check to be sure unit is plugged in.
Replace shop/house fuse.
Reset shop/home breaker, determine
why problem happened.
First unplugged the compressor and
wait until it becomes cool. After that
compressor can be used
Check for proper use of extension cord.
Replace pressure switch.
CUSTOMER SERVICE
1-866-242-4298
OPERATOR’S MANUAL
Trim-Plus
H1503TP-R
3 Gallon Oil Free Portable Air Compressor
Reconditione
d
Reconditioned
'5!2$%%34%-!.5!,0!2!&5452!3#/.35,4!3
3UCOMPRESORDEAIREHASIDODISE×ADOYFABRICADODECONFORMIDADCONLASESTRICTASNORMASDE(USKYPARABRINDAR
FIABILIDADFACILIDADDEUSOYSEGURIDADPARAELOPERADOR#ONELDEBIDOCUIDADOLEBRINDARÉMUCHOSA×OSDESØLIDOY
EFICIENTEFUNCIONAMIENTO
!$6%24%.#)!0ARAREDUCIRELRIESGODELESIONESELUSUARIODEBELEERYCOMPRENDERELMANUALDELOPERADOR
ANTESDEUSARESTEPRODUCTO
,EAGRADECEMOSLACOMPRADEUNPRODUCTO(USKY
SERVICIO DE CLIENTE
1-866-242-4298
MANUAL DEL USUARIO
Trim-Plus
H1503TP-R
Compresor de aire portátil sin aceite con tanque de 11 litros
H1503TP-R OM - Ver. 12/10
Reacondicionad
o
Reacondicionado
2
Introducción.................................................................................................................................................................... 2
Reglas de seguridad generales...................................................................................................................................3-4
Reglas de seguridad específicas ................................................................................................................................4-5
Símbolos .....................................................................................................................................................................6-7
Aspectos eléctricos ....................................................................................................................................................... 8
Glosario de términos...................................................................................................................................................... 9
Herramientas necesarias ............................................................................................................................................... 9
Características ........................................................................................................................................................ 10-11
Armado.................................................................................................................................................................... 11-12
Elevación...................................................................................................................................................................... 13
Funcionamiento.......................................................................................................................................................14-15
Mantenimiento.............................................................................................................................................................. 16
Solución de problemas................................................................................................................................................. 17
Garantía ....................................................................................................................................................................... 18
ÍNDICE DE CONTENIDO
PRODUCTO PARA EL USO RESIDENCIAL SOLAMENTE. No destinado para uso profesional o industrial.
Introducción.................................................................................................................................................................... 2
Reglas de seguridad generales...................................................................................................................................3-4
Reglas de seguridad específicas ................................................................................................................................4-5
Símbolos .....................................................................................................................................................................6-7
Aspectos eléctricos ....................................................................................................................................................... 8
Glosario de términos...................................................................................................................................................... 9
Herramientas necesarias ............................................................................................................................................... 9
Características ........................................................................................................................................................ 10-11
Armado.................................................................................................................................................................... 11-12
Elevación...................................................................................................................................................................... 13
Funcionamiento.......................................................................................................................................................14-15
Mantenimiento.............................................................................................................................................................. 16
Solución de problemas................................................................................................................................................. 17
Garantía ....................................................................................................................................................................... 18
ÍNDICE DE CONTENIDO
PRODUCTO PARA EL USO DEL CONSUMIDOR SOLAMENTE. No destinado al uso comercial.
Table of contents
Languages:
Other Husky Air Compressor manuals
Husky
Husky F226VWD User manual
Husky
Husky FP2205 Series User manual
Husky
Husky HDR310 User manual
Husky
Husky 0300813A User manual
Husky
Husky A05051 User manual
Husky
Husky H1504ST2 User manual
Husky
Husky F2S20VWD User manual
Husky
Husky 671-049 User manual
Husky
Husky C801H User manual
Husky
Husky 395-226 User manual
