Introduction
Product description
The product is a pedestrian-controlled rotary lawn
mower. The models LB 548i and LB 553iV use BioClip
to cut the grass into fertilizer.
The model LC 551iV collects the grass in a grass
catcher. Remove the grass catcher to get rear discharge
of the grass. Attach a mulch kit (accessory) to cut the
grass into fertilizer.
Intended use
Use the product to cut grass. Do not use the product for
other tasks.

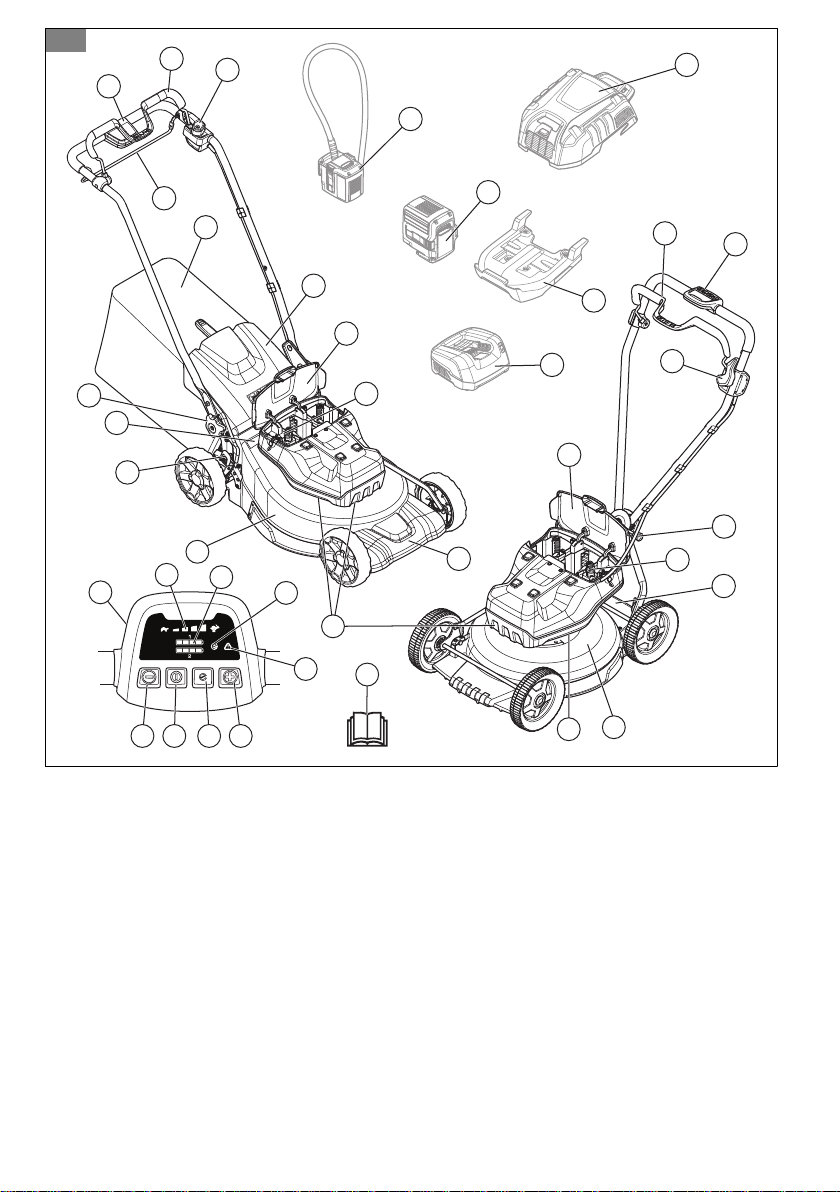

Product overview (LB 548i, LC 551iV)
(Fig. 1)
1. Control panel
2. Motor brake handle
3. Start inhibitor
4. Grass catcher (LC 551iV)
5. Rear cover (LC 551iV)
6. Safety key
7. Handle knob (LC 551iV)
8. Handle adjustment lever (LB 548i)
9. Battery cover
10. Cutting height control (LC 551iV)
11. ON/OFF button
12. SavE button
13. SavE indicator
14. Battery indicator
15. Speed level indicator
16. Decrease speed button
17. Increase speed button
18. Error LED
19. Cutting cover
20. Air intakes
21. Protection cover (LC 551iV)
22. Rating plate
23. Drive bail (LC 551iV)
24. Battery charger (Accessory)
25. Battery (Accessory)
26. Multi battery (Accessory)
27. Adapter plate (Accessory)
28. Multi battery adapter (Accessory)
29. Operator's manual
Product overview (LB 553iV)
(Fig. 2)
1. Control panel
2. Motor brake handle
3. Start inhibitor
4. Safety key
5. Handle adjustment lever
6. Battery cover
7. Cutting height control
8. ON/OFF button
9. SavE button
10. SavE indicator
11. Battery indicator
12. Speed level indicator
13. Decrease speed button
14. Increase speed button
15. Error LED
16. Cutting cover
17. Air intakes
18. Protection cover
19. Rating plate
20. Drive control lever
21. Battery charger (Accessory)
22. Battery (Accessory)
23. Multi battery (Accessory)
24. Adapter plate (Accessory)
25. Multi battery adapter (Accessory)
26. Operator's manual
1630 - 002 - 24.09.2021 11

Symbols on the product
(Fig. 3) WARNING: This product
can be dangerous and
cause serious injury or
death to the operator or
others. Be careful and
use the product
correctly.
(Fig. 4) Read the operator's
manual carefully and
make sure that you
understand the
instructions before you
use this product.
(Fig. 5) Keep persons and
animals at a safe
distance from the work
area.
(Fig. 6) Look out for thrown
objects and ricochets.
(Fig. 7) Warning: Keep hands
and feet away from the
rotating blade.
(Fig. 8) Warning: Keep hands
and feet away from
rotating parts.
(Fig. 9) Remove the safety key
before you do repair
work or maintenance.
(Fig.
10)
Environmental mark.The
product or package of
the product is not
domestic waste.
Recycle it at an
approved disposal
location for electrical
and electronic
equipment.
(Fig.
11)
The product agrees with
applicable EC directives.
(Fig.
12)
The product agrees with
applicable Eurasian
Customs Union
directives.
(Fig.
13)
The product agrees with
applicable UkrSEPRO
directives.
(Fig.
14)
The product agrees with
applicable RCM
directives. Applies to
AU/NZ only.
(Fig.
15)
Noise emission to the
environment according
to the European
Community’s Directive.
The product’s emission
is specified in the
Technical data chapter
and on the label.
12 1630 - 002 - 24.09.2021

Protected against
splashing water.
(Fig. 20) Start proce-
dure: push
ON/OFF but-
ton, loosen
start inhibitor,
push motor
brake handle
down.
(Fig.
16)
Release motor brake
handle to stop.
(Fig.
17) Slow
(Fig.
18) Fast
(Fig.
19) Scannable code
Note: Other symbols/decals on
the product refer to certification
requirements for some markets.
Label on the product
(Fig. 21)
Keep hands and feet away from
the rotating blades.
Product liability
As referred to in the product
liability laws, we are not liable
for damages that our product
causes if:
•the product is incorrectly
repaired.
•the product is repaired with
parts that are not from the
manufacturer or not approved
by the manufacturer.
•the product has an accessory
that is not from the
manufacturer or not approved
by the manufacturer.
•the product is not repaired at
an approved service center or
by an approved authority.
Safety
Safety definitions
Warnings, cautions and notes
are used to point out specially
important parts of the manual.
WARNING: Used if there
is a risk of injury or death
for the operator or
bystanders if the
instructions in the
manual are not obeyed.
CAUTION: Used if there
is a risk of damage to the
product, other materials
1630 - 002 - 24.09.2021 13

or the adjacent area if
the instructions in the
manual are not obeyed.
Note: Used to give more
information that is necessary in
a given situation.
General safety instructions
WARNING: Read the
warning instructions that
follow before you use the
product.
•This product is dangerous if
used incorrectly or if you are
not careful. Injury or death can
occur if you do not obey the
safety instructions.
•This product produces an
electromagnetic field during
operation. This field may
under some circumstances
interfere with active or passive
medical implants. To reduce
the risk of serious or fatal
injury we recommend persons
with medical implants to
consult their physician and the
medical implant manufacturer
before operating this product.
•Always be careful and use
your common sense. If you
are not sure how to operate
the product in a special
situation, stop and speak to
your Husqvarna dealer before
you continue.
•Keep in mind that the operator
will be held responsible for
accidents that involve other
persons or their property.
•Keep the product clean. Make
sure that you can clearly read
signs and decals.
•Never allow children or people
unfamiliar with these
instructions to use the
appliance. Local regulations
may restrict the age of the
operator
•Always monitor a person, with
decreased physical capacity or
mental capacity, that uses the
product. A responsible adult
must be there at all times.
•Do not use the product if you
are tired, ill, or under the
influence of alcohol, drugs or
medicine. This has a negative
effect on your vision,
alertness, coordination and
judgment.
•Do not use the product if it is
defective.
•Do not change this product or
use it if it is possible that it has
been changed by others.
14 1630 - 002 - 24.09.2021

Work area safety
WARNING: Read the
warning instructions that
follow before you use the
product.
•Remove objects such as
branches, twigs and stones
from the work area before you
use the product.
•Objects that hit against the
cutting equipment can eject
and cause damage to persons
and objects. Keep bystanders
and animals at a safe distance
from the product.
•Never use the product in bad
weather such as fog, rain,
strong winds, intense cold and
risk of lightning. To use the
product in bad weather or in
moist or wet locations is tiring.
Bad weather can cause
dangerous conditions, such as
slippery surfaces.
•Look out for persons, objects
and situations that can prevent
safe operation of the product.
•Look out for obstacles, such
as roots, stones, twigs, pits
and ditches. Long grass can
hide obstacles.
•To cut grass on slopes can be
dangerous. Do not mow
excessively steep slopes. Do
not use the product on ground
that slopes more than 15°
•Exercise extreme caution
when changing direction on
slopes. Operate the product
across the face of slopes. Do
not move up and down.
•Be careful when you go near
hidden corners and objects
that prevent a clear view.
Work safety
WARNING: Read the
warning instructions that
follow before you use the
product.
•Use this product to cut grass
lawns only. It is not permitted
to use it for other tasks.
•Use personal protective
equipment. Refer to
Personal
protective equipment on page
16 .
•Make sure that you know how
to stop the motor quickly in an
emergency.
•Do not operate the product in
rain or wet conditions. The risk
of electrical shock increases if
water enters the product.
•Do not operate the product
unless the blade and all
covers are attached correctly.
An incorrectly attached blade
1630 - 002 - 24.09.2021 15

can come loose and cause
personal injury.
•Make sure that the blade does
not hit objects such as stones
and roots. This can do
damage to the blade and bend
the motor shaft. A bent axle
causes heavy vibration and a
very high risk that the blade
becomes loose.
•If the blade hits an object or if
vibrations occur, stop the
product immediately. Stop the
motor, pull up the safety key
and remove the battery.
Examine the product for
damages. Repair damages or
let an authorised service agent
do the repair.
•Never attach the motor brake
handle permanently to the
handle when the motor is
started.
•Put the product on a stable,
flat surface and start it. Make
sure that the blade does not
hit the ground or other objects.
•Always stay behind the
product when you operate it.
•Let all the wheels stay on the
ground and keep 2 hands on
the handle when you operate
the product. Keep your hands
and feet away from the
rotating blades.
•Do not tilt the product when
the motor is started.
•Be careful when you pull the
product rearward.
•Never lift up the product when
the motor is started. If you
must lift the product, first stop
the motor, pull up the safety
key and remove the battery.
•Do not walk rearward when
you operate the product.
•Stop the motor when you
move across areas without
grass, for example paths
made of gravel, stone and
asphalt.
•Do not run with the product
when the motor is started.
Always walk when you operate
the product.
•Stop the motor before you
change the cutting height.
Never make adjustments with
the motor started.
•Never let the product stay out
of view with the motor started.
Stop the motor and make sure
that the cutting equipment
does not rotate.
Safety instructions for operation
Personal protective equipment
WARNING: Read the
warning instructions that
16 1630 - 002 - 24.09.2021

follow before you use the
product.
•Personal protective equipment
cannot fully prevent injury but
it decreases the degree of
injury if an accident does
occur. Let your dealer help
you select the right equipment.
•Use heavy-duty slip-resistant
boots or shoes. Do not use
open shoes or go with bare
feet.
•Use heavy, long pants.
•Use protective gloves when
necessary, for example when
you attach, examine or clean
the cutting equipment.
Safety devices on the product
WARNING: Read the
warning instructions that
follow before you use the
product.
•Do not use a product with
defective safety devices.
•Do a check of the safety
devices regularly. If the safety
devices are defective, speak
to your Husqvarna service
agent.
To do a check of the cutting
cover
The cutting cover decreases
vibrations in the product and
decreases the risk of injury from
the blade.
• Examine the cutting cover to
make sure that there are no
damages such as cracks.
Safety key
The safety key is below the
battery lid. The safety key
connects the battery that
supplies the motor with power.
To do a check of the safety key
The safety key connects the
battery that supplies the motor
with power.
• Start and stop the motor. If
the safety key operates
correctly, the motor can only
start when the key is in the
safety lock.
Motor brake handle
The motor brake handle stops
the motor. When the motor
brake handle is released, the
motor stops.
To do a check of the motor
brake, start the motor and then
release the motor brake handle.
If the motor does not stop in 3
1630 - 002 - 24.09.2021 17

seconds, let an approved
Husqvarna service agent adjust
the motor brake.

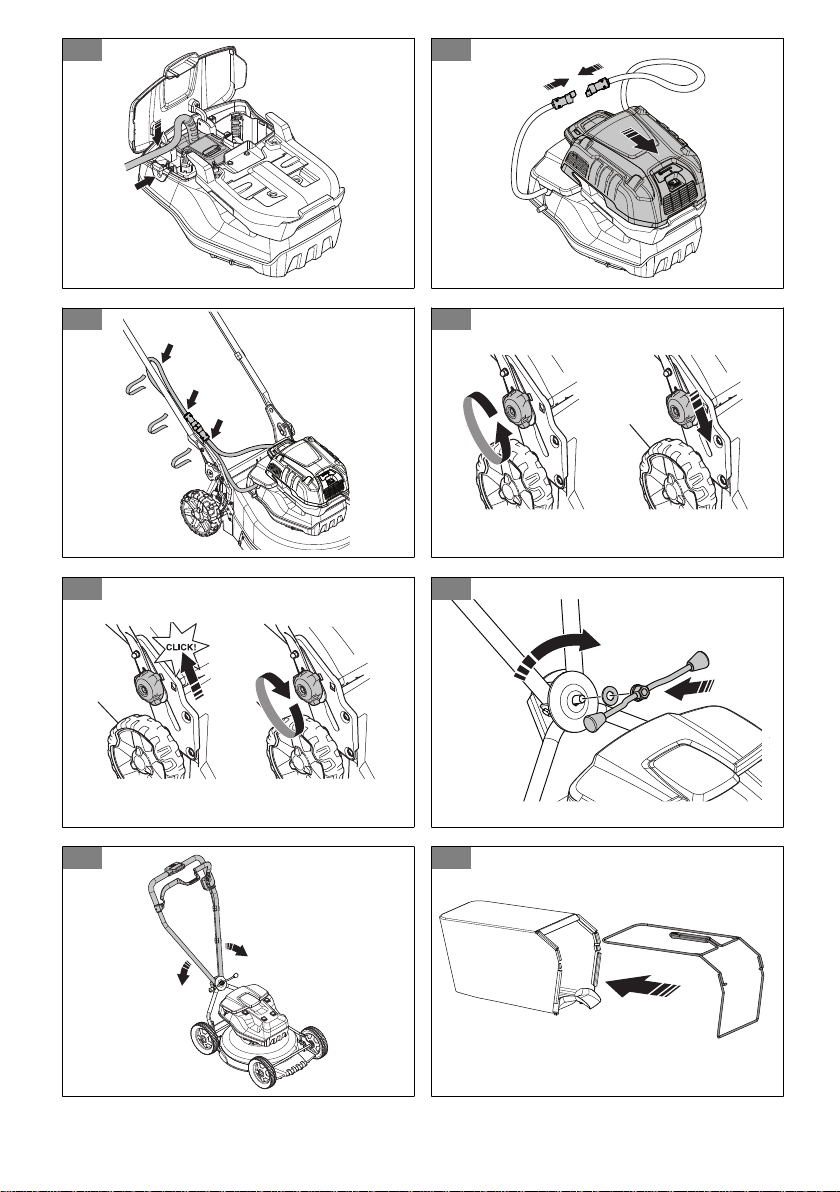

(Fig. 22)
To examine the start inhibitor
Do a check of the start inhibitor
to make sure that it prevents
operation of the motor.
1. Push the motor brake handle
in the direction of the
handlebar. The start inhibitor
stops the movement.
2. Push the start inhibitor out.
(Fig. 23)
3. Release the start inhibitor
and make sure that it goes
back to its initial position.
Battery safety
WARNING: Read the
warning instructions that
follow before you use the
product.
•Use Husqvarna rechargeable
batteries as a power supply for
related Husqvarna products
only. To prevent injury, do not
use the battery as a power
supply for other devices.
•Do not use non-rechargeable
batteries.
•Risk of electrical shock. Do not
connect the battery terminals
to keys, coins, screws or other
metal. This can cause a short
circuit of the battery.
•Do not put objects into the air
slots of the battery.
•Keep the battery away from
sunlight, heat or open flame.
The battery can explode and
cause burns and/or chemical
burns.
•Keep the battery away from
rain and wet conditions.
•Keep the battery away from
microwaves and high
pressure.
•Do not try to disassemble or
break the battery.
•If the battery leaks, do not let
the liquid touch your body or
eyes. If you have touched the
liquid, clean the area with a
large quantity of water and get
medical aid.
•Use the battery in
temperatures between -10°C
and 40°C.
•Do not clean the battery or the
battery charger with water.
See To clean the battery and
the battery charger on page
26 .
•Do not use a defective or
damaged battery.
18 1630 - 002 - 24.09.2021

•Keep batteries in storage
away from metal objects such
as nails, coins, jewellery.
Battery charger safety
WARNING: Read the
warning instructions that
follow before you use the
product.
•Use the QC battery chargers
to charge Husqvarna
replacement batteries only.
•Risk of electrical shock or
short circuit. Do not put
objects into the air slots of the
charger. Do not try to
disassemble the battery
charger. Do not connect the
charger terminals to metal
objects. Use an approved
mains socket.
•This product produces an
electromagnetic field during
operation. This field may
under some circumstances
interfere with active or passive
medical implants. To reduce
the risk of serious or fatal
injury, we recommend persons
with medical implants to
consult their physician and the
medical implant manufacturer
before operating this product.
•Regularly make sure that the
power cord of the battery
charger is not damaged and
that there are no cracks in it.
•Do not lift the battery charger
by the power cord. To
disconnect the battery charger
from a mains socket, pull out
the plug. Do not pull the power
cord.
•Keep the power cord and
extension cables away from
water, oil and sharp edges.
Make sure that the cable is not
pinched in doors, fences or
equivalent. It can cause the
charger to become energized.
•Do not clean the battery
charger with water.
•The battery charger can be
used by children aged from 8
years and above and persons
with reduced physical,
sensory, or mental capabilities
or lack of experience and
knowledge if they have been
given supervision or
instruction concerning use of
the battery charger in a safe
way and understand the
hazards involved. Children
shall not play with the battery
charger. Cleaning and user
maintenance shall not be
made by children without
supervision.
1630 - 002 - 24.09.2021 19

•Do not charge non-
rechargeable batteries in the
battery charger.
•Do not use the battery charger
near flammable materials or
materials that can cause
corrosion. Do not cover the
battery charger. Pull out the
plug to the battery charger if
there is smoke or fire.
•Do not use a defective or
damaged battery charger.
•Only charge the battery
indoors in a room with good
airflow and away from
sunlight. Do not charge the
battery in wet conditions.
Safety instructions for
maintenance
WARNING: Read the
warning instructions that
follow before you use the
product.
•Remove the safety key before
you do maintenance on the
product.
•Do the maintenance work
correctly to increase the
lifetime of the product and
decrease the risk of accidents.
Let an approved service agent
do the professional repairs.
Speak to your nearest service
agent for more information.
•Only do the maintenance work
written in this operator's
manual.
•Put on heavy duty gloves
when you use the cutting
equipment. The blade is very
sharp and cuts can easily
occur.
•Keep the cutting edges sharp
and clean for the best and
safest performance.
•Let your service agent
regularly examine the product
and make necessary
adjustments and repairs.
•Replace damaged, worn or
broken parts.
•Obey the instructions for how
to change accessories. Only
use accessories from the
manufacturer.
•When not in operation, keep
the product, battery and
battery charger apart in a dry,
indoor and locked area. Make
sure that children and persons
that are not approved cannot
get access to the product,
battery or battery charger.
20 1630 - 002 - 24.09.2021
