Husqvarna LTH19530 User manual

583 95 93-23 Rev. 1
ILLUSTRATED PARTS LIST
MFG. ID NO. 96041016903
CUSTOMER CATALOG NO. LTH19530
PRODUCT NO. 960 41 01-69
47
47

2
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
6
2
1
3
11
4
10
5
9
8
7
wheel_art_1-tex
WHEELS AND TIRES
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
1 532 05 91-92 Cap Valve Tire
2 532 06 51-39 Stem Valve
3 532 42 52-61 Rim Asm 6" x 3.25 Front
4 532 42 16-52 Tube Front (Service Item Only)
5 532 12 34-10 Tire Front 13 x 5.0-6
6 532 12 49-57 Fitting Grease (Front Wheel Only)
7 532 12 49-59 Bearing Flange (Front Wheel Only)
8 532 17 50-39 Cap Axle Blk 1 50 x 1 00
9 532 10 62-30 Tire Rear 16 x 6 - 5
10 532 00 71-54 Tube Rear (Service Item Only)
11 532 42 52-62 Rim Asm 8" x 5.375 Rear
- - 532 14 43-34 Sealant, Tire (10 oz. Tube)
1 532 19 68-41 Decal, Warning Engine Symbols
2 581 62 73-01 Decal, Badge
3 532 17 83-02 Decal, Oper Cruise Symbol
4 532 44 40-13 Decal, Side Panel
5 532 44 38-33 Decal, Rpl.
6 532 15 97-37 Decal, Brake Clutch
7 532 15 97-36 Decal, Chassis Hot Muffler
8 532 16 88-69 Decal, Tick Mark
9 532 14 50-05 Decal, Battery Dnge/Poi
10 532 40 03-89 Decal, Warning Symbols
11 532 42 51-12 Decal, Warning Deflector
12 532 42 15-43 Decal, Mower V-Belt Schematic
13 532 14 08-37 Decal, Saddle Brake Parking
14 532 12 44-33 Decal, 80 DBA Australia
- - 532 16 25-98 Decal, Drawbar Load Limit
- - 532 16 69-60 Decal, Bypass
- - 532 43 96-81 Pad, Footrest, LH
- - 532 43 96-82 Pad, Footrest, RH
- - 532 44 39-96 Manual, Operators (English)
12
11
13
6
3
8
14
2
5
1
2
10
7
7
9
4
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69
DECALS
27
27

3
M
FUSE
STARTER
SOLENOID
BATTERY
CLUTCH/BRAKE
(PEDAL UP)
REVERSE SWITCH
(NOT IN REVERSE)
SEAT SWITCH
(NOT OCCUPIED)
SHORTING
CONNECTOR
CHASSIS
HARNESS
IGNITION
UNIT
HOUR
METER
CHASSIS HARNESS
CONNECTOR
(MATING SIDE)
DASH HARNESS
CONNECTOR
(MATING SIDE)
FUEL
LINE
FUEL SHUT-OFF
SOLENOID
(IF SO EQUIPPED)
JUNCTION
CONNECTOR
S
M
B
G
L
2
3
1
6
A2
A1
M
63
52
41
6
5
4
3
2
1
SPARK
PLUGS GAP
(2 PLUGS ON
TWIN CYL. ENGINES)
(OPTIONAL)
NON-REMOVABLE
CONNECTIONS
REMOVABLE
CONNECTIONS
WIRING INSULATED CLIPS
NOTE: IF WIRING INSULATED
CLIPS WERE REMOVED FOR
SERVICING OF UNIT, THEY
SHOULD BE RE-INSTALLED TO
PROPERLY SECURE YOUR
WIRING.
SCH11
IGNITION SWITCH
CIRCUIT
POSITION
OFF
B+A1
RUN/OVERRIDE
B+S+A1START
M+G+A1
B+A1RUN
“MAKE”
L+A2
ATTACHMENT CLUTCH
(CLUTCH OFF)
BLACK
BLACK /WHITE
BLUE
BLUE BLACK
BLACKBLACK
BLACK
BLACK
BLACK
BLACK
BLACK
DER
RED
WHITE
WHITE
GRAY
GRAY
BLACK
BLACK
POWER OUTLET
(OPTIONAL)
12V
BLACK
A
AMMETER
(OPTIONAL)
RED
BLACK
BROWN
HEADLIGHTS
LIGHT SWITCH
ORANGE
LIGHTING SYSTEM OUTPUT
5AMPAC@3600RPM
ALTERNATOR
14 VOLTS AC MIN. @ 3600 RPM (LIGHTS OFF)
DIODE
28 VOLTS AC MIN. @ 3600 RPM
(CHARGING SYSTEM DISCONNECTED)
CHARGING SYSTEM OUTPUT
3 AMP DC @ 3600 RPM
NOTE
YOUR TRACTOR IS
EQUIPPED WITH A SPECIAL
ALTERNATOR SYSTEM.
THE LIGHTS ARE NOT
CONNECTED TO THE
BATTERY, BUT HAVE THEIR
OWN ELECTRICAL SOURCE.
BECAUSE OF THIS, THE
BRIGHTNESS OF THE LIGHTS
WILL CHANGE WITH ENGINE
SPEED. AT IDLE THE LIGHTS
WILL DIM. AS THE ENGINE IS
SPEEDED UP, THE LIGHTS
WILL BECOME THEIR
BRIGHTEST.
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69
SCHEMATIC
38
38

4
30
33
34
22
79 21
26
40
71
16
TR09S
90
28
55
With Service Minder Option
4646
2
43
27
99
25
106
29
87
141
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69

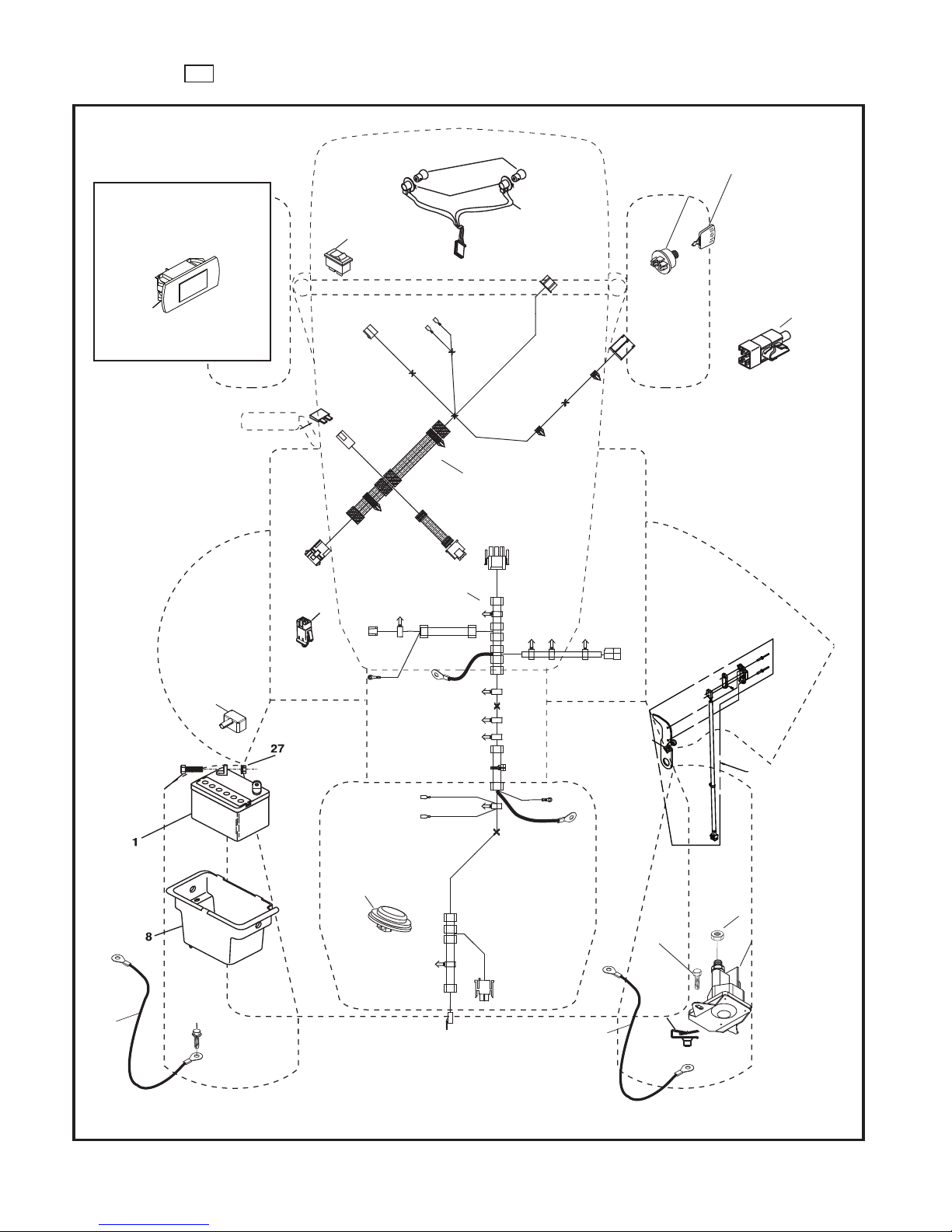

ELECTRICAL
32
32

5
KEY PART
NO. NO. DESCRIPTION
1 532 14 49-24 Battery
2 874 76 04-12 Bolt Hex Head 1/4-20 x 3/4
8 532 19 32-28 Box Battery
16 532 17 61-38 Switch Interlock Push-In
21 532 40 02-52 Harness Socket Light w/4152J
22 532 00 41-52 Bulb Light
25 581 49 80-01 Cable Starter
26 532 17 51-58 Fuse
27 873 51 04-00 Nut Keps Hex 1/4-20 unc
28 532 42 16-86 Cable, Ground
29 532 40 15-45 Switch, Seat
30 532 19 33-50 Switch, Ign
33 532 41 19-33 Key/Chain
34 532 11 07-12 Switch Light/Reset
40 581 02 31-01 Harness Ign. Dash
43 532 19 25-07 Solenoid
46 532 40 17-63 Gauge Hourmeter
55 817 06 05-12 Screw Thdrol 5/16-18 x 3/4
71 581 02 30-01 Harness Chassis
79 532 17 52-42 Socket Asm Bulb Twistlock
87 532 19 78-02 Switch Interlock Clutch Cable
90 532 43 53-95 Cover, Terminal Battery
99 817 67 04-12 Screw Hexwsh
106 532 17 48-14 Pal Nut 1/4 lugs
141 532 41 69-77 Kit T2 ROS
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69
ELECTRICAL
32
32

6
68
68
68
68
183
183
236
236 34
235
235
137
177
175
130
151
234
214
234
205 202 25
203
206
14
297
191
204
15 130
130
18
176
176
182
130
150
176
176
5
137
3
238
239
52
217
189
189
152
68
68
213
218
228
228
194
180
58
189
189
chassis-tex_TEX LT HUSQ_29_r1
159
159
37
194
194
162
282
282
282
36
36
285
286
283
199
284
287
306
125
146
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69

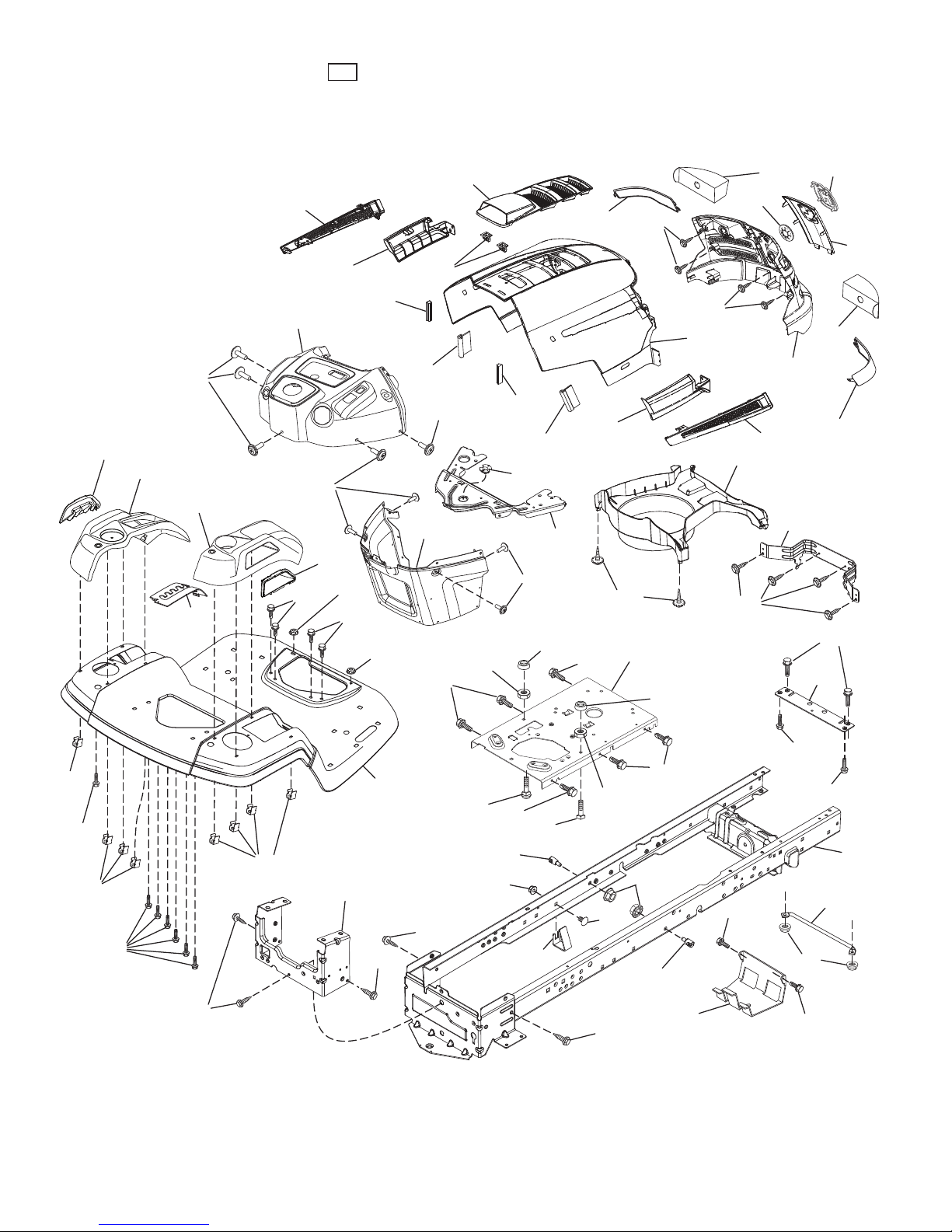

CHASSIS AND ENCLOSURES
39
39

7
3 532 40 50-12 Logo
5 532 43 89-64 Dash
14 532 44 12-67 Hood
15 532 41 10-79 Lens LH
18 532 44 13-68 Grille
25 532 41 10-78 Lens RH
34 532 44 72-53 Plate Engine
36 817 06 05-12 Screw 5/16-18 x 3/4
37 532 44 12-66 Fender
52 873 68 05-00 Nut Crown Lock 5/16
58 532 41 22-80 Drawbar, Upper
68 817 49 05-08 Screw THDROL 5/16-18 x 1/2
125 581 68 48-01 Clip Fuel Line
130 532 41 63-58 Screw #10 x .750 BOS Thread
137 532 40 75-90 Bumper Dash
146 581 85 79-01 Bolt
150 532 40 66-62 Air Duct
151 532 40 78-07 Bracket Pivot
152 532 19 95-35 Shield Browning
159 817 00 06-12 Screw 3/8-16 x 3/4
162 532 14 24-32 Screw
175 532 19 94-72 Crossmember
176 532 40 07-76 Screw 10-24 x 5/8
177 532 19 52-28 Bushing Steering
180 532 41 46-85 Chassis
182 532 40 71-76 Dash Lower
183 874 52 05-20 Bolt 5/16-18 x 1-1/4
189 817 00 05-12 Screw 5/16-18 x 3/4
191 532 41 65-01 Insert Reflective RH
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
194 873 90 05-00 Nut Lock Hex Flange 5/16-18
199 532 41 34-85 Plate Deck Lift
202 532 44 13-42 Vent Side Hood RH
203 532 44 13-43 Vent Side Hood LH
204 532 44 13-75 Vent Top Hood
205 532 44 13-44 Skirt Side RH
206 532 44 13-45 Skirt Side LH
213 874 76 05-12 Bolt 5/16-18 x 3/4
214 532 19 91-45 Clip Retainer
217 532 40 91-67 Rod Pivot Hood
218 532 19 63-95 X-Piece Hood Stop
228 532 19 51-61 Stud Fastener
234 532 40 47-42 Bumper Hood
235 532 40 61-29 Spacer Fender
236 873 93 05-00 Nut Lock 5/16-18 unc
238 532 44 13-74 Trim
239 532 40 48-83 Clip Tinnerman
282 532 41 41-10 Clip Retainer Console
283 532 44 20-39 Console Deck Lift
284 532 43 98-23 Console Shift
285 532 41 63-15 Console Insert RH
286 532 41 63-17 Console Insert LH
287 817 60 04-06 Screw Hex Washead 1/4-20 x 3/8
297 532 40 66-65 Insert Reflective LH
306 873 90 06-00 Nut Lock
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69
CHASSIS AND ENCLOSURES
39
39

8
185
161
185
51
231
170
drive-tex_T2_pedal_17
186
64
188
35
184
167
160
42
221
210
211
166
211
214
215
153
153
222
29
15
159
163
189
49
187
50
51
190
52
51
17
56
114
122
121
80
125
125
216
143
183
205
205
2
1
2
37
33
73
73 99
116
159
116
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69

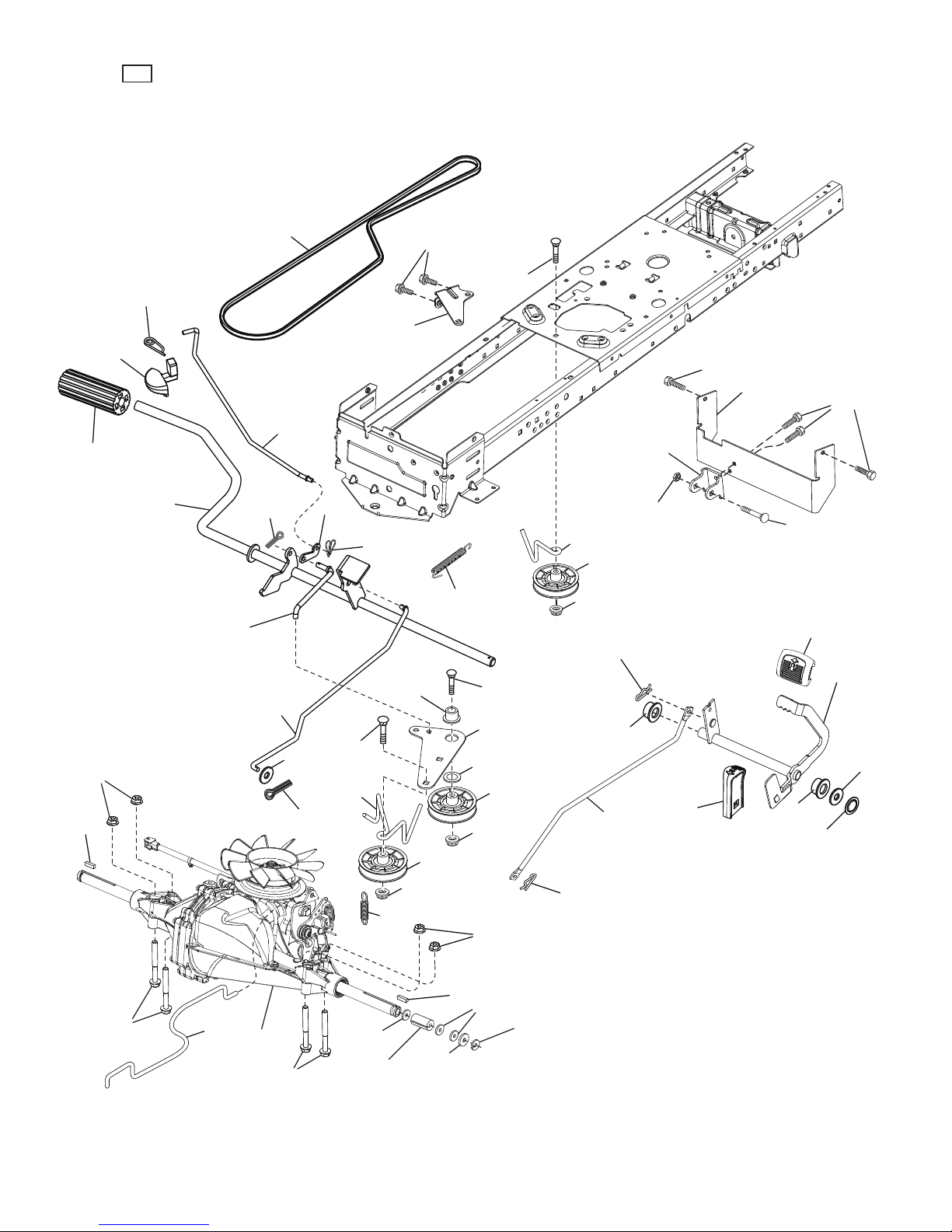

DRIVE
40
40

9
KEY PART
NO. NO. DESCRIPTION
1 – – – – – – Transaxle, Hydro T2-BABC-1X2B-1GX1
(421645) (Order parts from transaxle
manufacturer)
2 532 12 35-83 Key
15 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
17 532 19 72-96 Spring, Brake
29 532 42 32-39 Rod, Brake
33 812 00 00-01 Ring E
35 532 40 10-31 Rod, Brake, Park
37 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
42 532 12 48-72 Cover, Foot Pedal
49 872 11 06-14 Bolt
50 532 19 43-27 Pulley Idler Flat
51 873 90 06-00 Lock Nut 3/8-16
52 532 19 43-26 Idler V-Groove 910" Offset
56 532 12 59-07 V-Belt, Drive
64 532 19 78-65 Shaft Asm. Pedal Brake Control
73 874 49 05-44 Bolt 5/16-18 Gr. 5
80 581 55 07-01 Strap Torque
99 532 40 84-18 Rod Asm Bypass Spring
114 873 80 05-00 Nut Lock 5/16-18 unc
116 873 90 05-00 Nut Lock Hex Flange 5/16-18
121 532 17 56-11 Bracket Strap Torque
122 872 01 05-20 Bolt 5/16-18 x 2.50
125 817 00 05-12 Screw 5/16-18 x 3/4
143 817 49 05-08 Screw Thdrol 5/16-18 x 1/2
153 532 12 47-88 Retainer Spring
159 876 02 04-12 Pin Cotter 1/8 x 3/4
160 532 16 94-84 Retainer Clip
161 532 10 57-09 Spring, Return, Clutch
163 532 41 33-22 Rod Pedal Control
166 532 42 91-64 Nut Push .625
167 532 40 52-57 Latch Brake Parking
170 532 41 34-30 Keeper Belt Centerspan
183 532 15 69-72 Spacer Axle
184 532 44 14-07 Handle Parking Brake
185 872 11 06-22 Bolt
186 532 19 43-21 Spacer Retainer
187 819 13 32-10 Washer
188 532 19 43-23 Link Clutch Ground Drive
189 532 19 43-17 Bellcrank Ground Drive
190 532 19 43-18 Keeper Bellcrank Ground Drive
205 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
210 532 40 09-80 Rockr Asm. Pdeal Control
211 532 12 01-83 Bearing Nylon
214 532 42 12-63 Pad Pedal Forward
215 532 40 17-23 Pad Pedal Reverse
216 532 19 61-31 Bracket Pulley Idler
221 532 40 31-87 Retainer Spring Clip Handle
222 879 21 20-10 Washer 21/32 x 1-1/4 10 Ga.
231 532 40 72-87 Idler V-Groove 1.688
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69
DRIVE
40
40

10
21
20
OPTIONAL EQUIPMENT
Spark Arrester
29
18
15
37
28
engine-tex_BS_36
12
42
85
9
90
84
45
1
122
69 2
79
97
96
37
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69

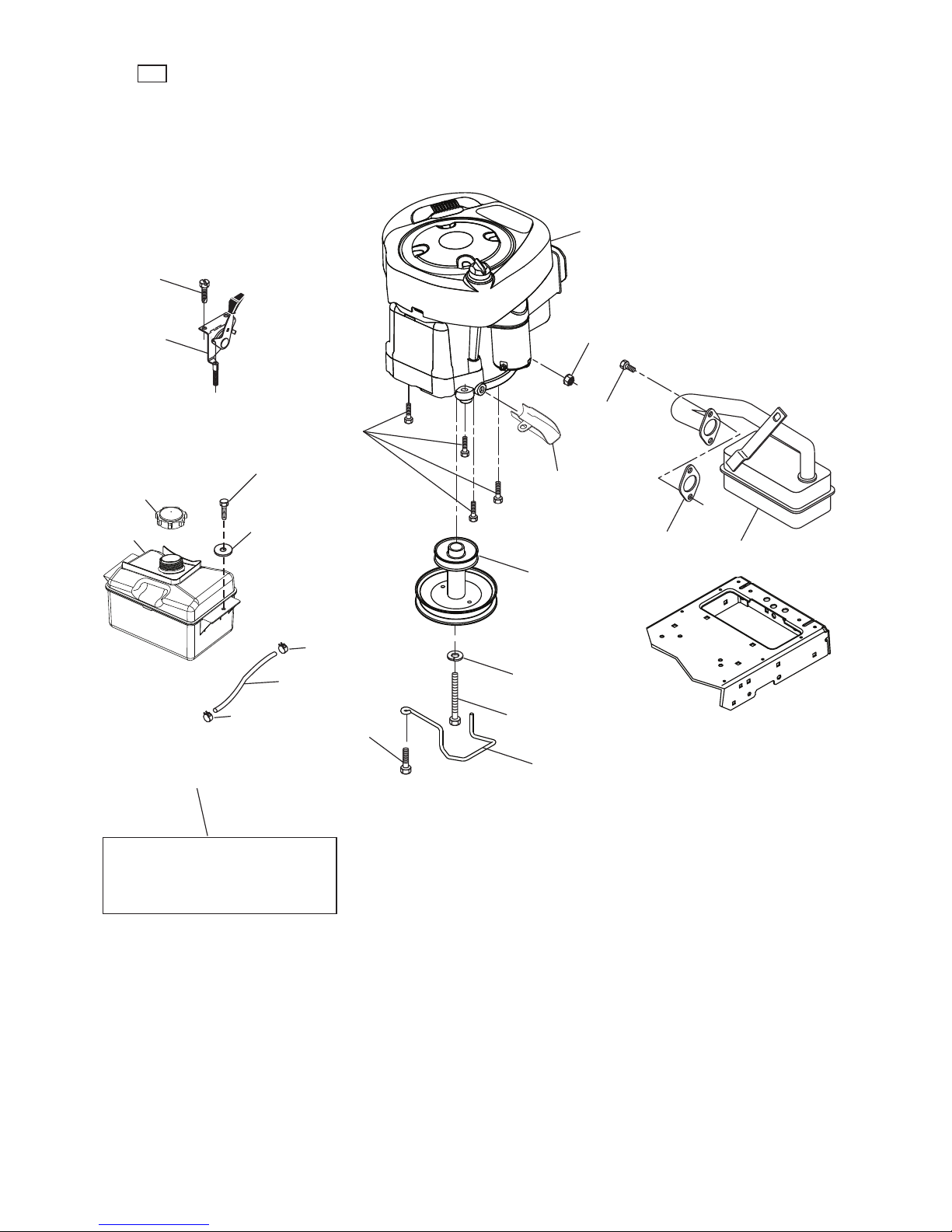

ENGINE
24
24

11
KEY PART
NO. NO. DESCRIPTION
1 – – – – – – Engine Briggs Model No. 31Q677-
3493-G5 (438681) (Order parts from
engine manufacturer)
2 532 13 73-52 Muffler
9 532 19 43-19 Keeper Belt Engine
12 532 14 01-86 Pulley Engine
15 532 40 75-45 Tank Fuel
18 532 43 02-20 Cap Asm
20 532 18 38-97 Control Throttle
21 532 41 63-58 Screw #10 x 0.750 BOS Thread
28 532 13 70-40 Fuel Line
29 532 13 71-80 Spark Arrester Kit
37 532 12 34-87 Clamp Hose
42 810 04 07-00 Washer Lock 7/16
45 873 51 04-00 Nut Keps Hex 1/4-20 unc
69 532 16 52-91 Gasket
79 532 19 23-34 Screw 5/16-18 x 3/4
84 817 06 06-20 Screw 3/8-16 x 1/4
85 532 17 39-37 Bolt Hex 7/16-20 x Gr. 5-1.5
90 817 00 06-16 Screw 3/8-16 x 1
96 819 09 14-16 Washer 9/32 x 7/8 x 16 Ga.
97 817 67 04-12 Screw 1/4-20 x 3/4
122 532 42 19-22 Extension Drain Oil
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69
ENGINE
24
24
Engine Power Rating Information
The gross power rating for individual gas engine models is labeled in accordance with SAE (Society of Automotive
Engineers) code J1940 (Small Engine Power & Torque Rating Procedure), and rating performance has been obtained
and corrected in accordance with SAE J1995 (Revision 2002-05). Torque values are derived at 3060 RPM; horsepower
values are derived at 3600 RPM. Actual gross engine power will be lower and is affected by, among other things, ambi-
ent operating conditions and engine-to-engine variability. Given both the wide array of products on which engines are
placed and the variety of environmental issues applicable to operating the equipment, the gas engine will not develop
the rated gross power when used in a given piece of power equipment (actual “on-site” or net power). This difference is
due to a variety of factors including, but not limited to, accessories (air cleaner, exhaust, charging, cooling, carburetor,
fuel pump, etc.), application limitations, ambient operating conditions (temperature, humidity, altitude), and engine-to-
engine variability. Due to manufacturing and capacity limitations, Briggs & Stratton may substitute an engine of higher
rated power for this Series engine.

12
61
steering-tex_STDHRS_10_r1
19
60
59
58
5
62
15
14
13
13
53
8
70
68
69
16
28
28
13
22
64
4
15
14
35
6
74
9
8
74
7
9
87
67
67
66
74
74
6
2
63
63
57
63
1
21
71
72
33
45
20
26
122
122
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69
STEERING ASSEMBLY
41
41

13
KEY PART
NO. NO. DESCRIPTION
1 532 43 97-40 Wheel, Steering
2 532 41 81-68 Axle Asm., Front
4 532 41 68-45 Spindle Asm., LH
5 532 41 68-46 Spindle Asm., RH
6 532 12 49-31 Washer Thrust
7 532 12 17-48 Washer 25/32 x 1-5/8 x 16 Ga.
8 812 00 00-29 Ring, Klip #T5304-75
9 532 12 12-32 Cap, Spindle
13 532 12 17-49 Washer 25/32 x 1-1/4 x 16 Ga.
14 810 04 06-00 Washer, Lock Hvy Hlcl Spr 3/8
15 873 54 06-00 Nut, Crown Lock 3/8-24 unf
16 532 42 93-73 Shaft Steering
19 532 19 47-29 Plate Steering
20 532 44 14-25 Boot, Steering
21 532 18 67-37 Adapter, Wheel Steering
22 532 42 05-37 Strg. Supt. Lower
26 532 43 97-43 Insert, Wheel Steering
28 817 00 06-12 Screw 3/8-16 x 3/4
33 810 04 05-00 Washer Lock 5/16
35 532 19 47-32 Gear, Sector Plate
45 819 11 38-12 Washer 11/32 x 3/8 x 12 Ga.
53 532 18 89-67 Washer Hardened .793 x 1.637 x .060
57 532 40 74-65 Bracket Upstop
58 532 19 47-47 Bolt Shoulder Sector Pivot CFM
59 532 19 47-48 Washer Thrust Sector Steering
60 873 97 10-00 Nut Flange Lock 5/8-11
61 532 19 47-40 Draglink, LH
62 532 19 47-41 Draglink, RH
63 817 00 05-12 Screw 5/16-18 x 3/4
64 532 19 98-49 Retainer Clip Spring Steering
66 871 02 07-48 Bolt Hex Fghd 7/16-14 x 3 Serr
67 532 19 47-37 Bushing PM Front Axle
68 873 90 07-00 Nut Lock Flange 7/16-14 Gr. 5
69 532 19 91-62 Washer 1.5 x .505 x .118
70 532 41 70-65 Bracket Deck Susp. Front
71 532 19 07-52 Shaft Extension Steering
72 532 42 89-82 Bolt 5/16-18 x 4 w/Patch
74 532 12 49-37 Bearing
122 532 44 49-62 Cap Gear Sector
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69
STEERING ASSEMBLY
41
41

14
6
38
2
4
3
33
34
35
36
2631
39
30
29
1
28
5
17
43
18
19
20
21
25
24
22
23
20
32
9
10 11
12
14
15
16
13
8
tex-deck_SRD_25_r1
27
40
42
42
41
38
11
76
26
70
7
7
37
67
152

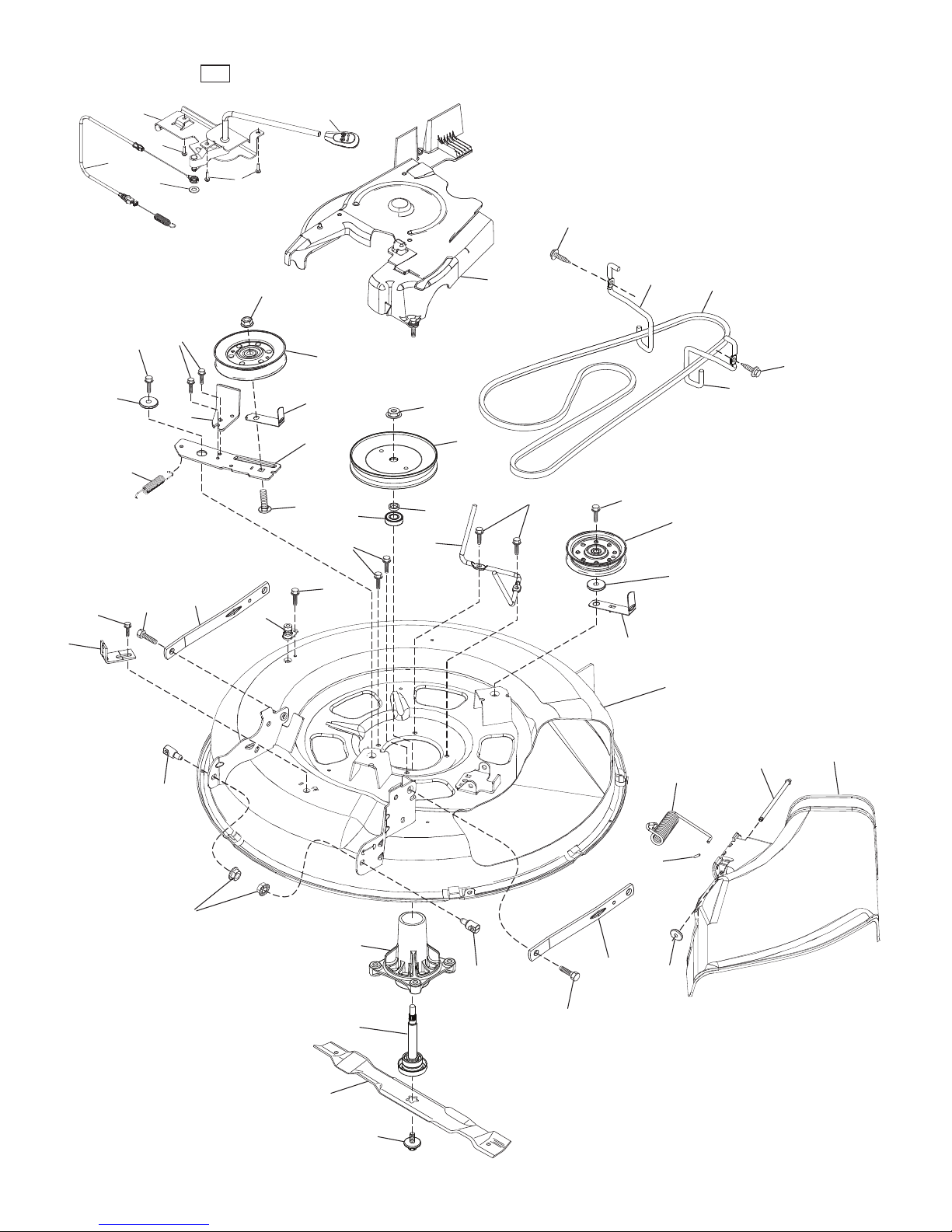

TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69
MOWER DECK
44
44

15
KEY PART
NO. NO. DESCRIPTION
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
1 532 44 20-48 Deck Weldment 30"Srd
2 532 19 51-61 Stud Fastner W/'D'anti-Rotatio
3 873 90 05-00 Nut Lock Hex Flange 5/16 - 18
4 532 41 76-45 Bracket Clutch Cable
5 817 00 05-10 Bolt 5/16-18
6 532 41 88-63 Arm Susp Mower Rear Srd
7 532 41 63-58 Screw #10 x 0.750 BOS Thread
8 532 42 02-52 Arm Idler 30"Srd
9 532 19 90-92 Spacer Retainer
10 817 00 06-16 Screw 3/8 - 16 X 1 Smgml Tap/R Blk
11 532 13 77-29 Screw Thd Roll 1/4 - 20 X 5/8
12 532 19 94-70 Arm Brake Mower 38" RH Tex
13 872 11 06-12 Bolt Carr Sh 3/8 - 16 X 1 - 1/2 Gr5
14 532 15 60-85 Keeper Belt Idler
15 532 14 67-63 Pulley Ikler V-Groove Dim 4.25
16 873 90 06-00 Nut Lock FlG 3/8 - 16 unc
17 532 40 02-34 Nut Flange Lock Top
18 532 18 76-90 Washer Spacer Mandrel
19 532 11 04-85 Bearing Ball Mandrel
20 532 17 39-84 Screw Thd Roll Dod Pt Hex
21 532 41 69-10 Keeper Belt Mandrel 30"
22 532 17 58-20 Pulley Idler Flat
23 817 49 06-28 Screw Thdrol 3/8 - 16 X 1-3/4
24 819 13 20-12 Washer 13/32 X 1 - 1/4 X 12 Ga
25 532 42 02-53 Keeper Belt 30"Srd
26 532 42 02-55 Cover Mandrel Mwr 30"Black
27 532 41 92-71 V-Belt Gnd Dr
28 532 41 73-44 Shield Asm Deflect Mwr 30s Blk
29 532 42 08-95 Pin Hinge 30
30 532 19 70-26 Spring Torsion Dfl 38/42/46 Gr
31 532 11 04-52 Nut Push Phos & Oil
32 532 40 18-72 Spring Return Deck 38/46"
33 532 18 72-81 Housing Mandrel 4pt Service
34 532 19 28-72 Shaft Asm Mndrl N/Greaseable38
35 532 41 92-73 Blade Mower Hp/Mulch Srd
36 532 19 30-03 Bolt/Washer Asm 7/16 - 20 unf
37 819 13 13-16 Washer 13/32 x 13/16 x 16 Ga.
38 532 19 65-39 Bolt Shoulder
39 532 10 53-04 Cap Sleeve
40 532 41 92-70 Keeper Belt Engine LH
41 532 41 92-65 Keeper Belt Engine RH
42 817 00 06-12 ScrewHexwshTHDR3/8-16x3/4BL
43 532 41 68-77 Pulley Mandrel 6 5 Pd 30"
67 532 40 30-12 Handle clutch cable
70 532 40 12-46 Clutch Asm. Manual
76 532 41 55-98 Washout Port
152 532 43 51-11 Manual Clutch Cable
- - 532 19 28-70 Mandrel Assembly (Includes Hous-
ing, Shaft Assembly, And Bearing
Only - Pulley/Nut/Washer And Blade
Bolt/Washers Not Included)
- - 532 43 44-89 Replacement Mower Complete
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69
MOWER DECK
44
44

16
2 532 42 20-27 Shaft Asm., Lift
3 532 19 52-31 Lever Asm., Lift RH
7 532 41 15-55 Grip, Lever
10 532 19 63-14 Spring Torsion
87 532 19 42-09 Pin Cotter 7/16 Bow Tie Lock
88 532 41 07-10 Spring Lift Assist
89 819 19 19-12 Washer Clear Zinc
90 532 19 42-08 Pin Cotter 5/16 Bow Tie Lock
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
91 532 19 51-81 Link Asm Lift LH Rear
97 817 00 06-12 Screw Hex Wsh. THDR 3/8-16 x 3/4
98 532 19 52-64 Link Lift Susp. Front Mower
100 873 93 06-00 Nut Centerlock 3/8-16 unc
101 532 40 70-03 Link Asm Lift FXD
113 819 17 19-12 Washer 17/32 X 1-3/16 x 126F
KEY PART
NO. NO. DESCRIPTION
7
3
87
10
88
2
113
90 98
97
97
lift-tex_18_r4
91
87
100
89
87
89
101*
*Key 91 may be substituted for Key 101

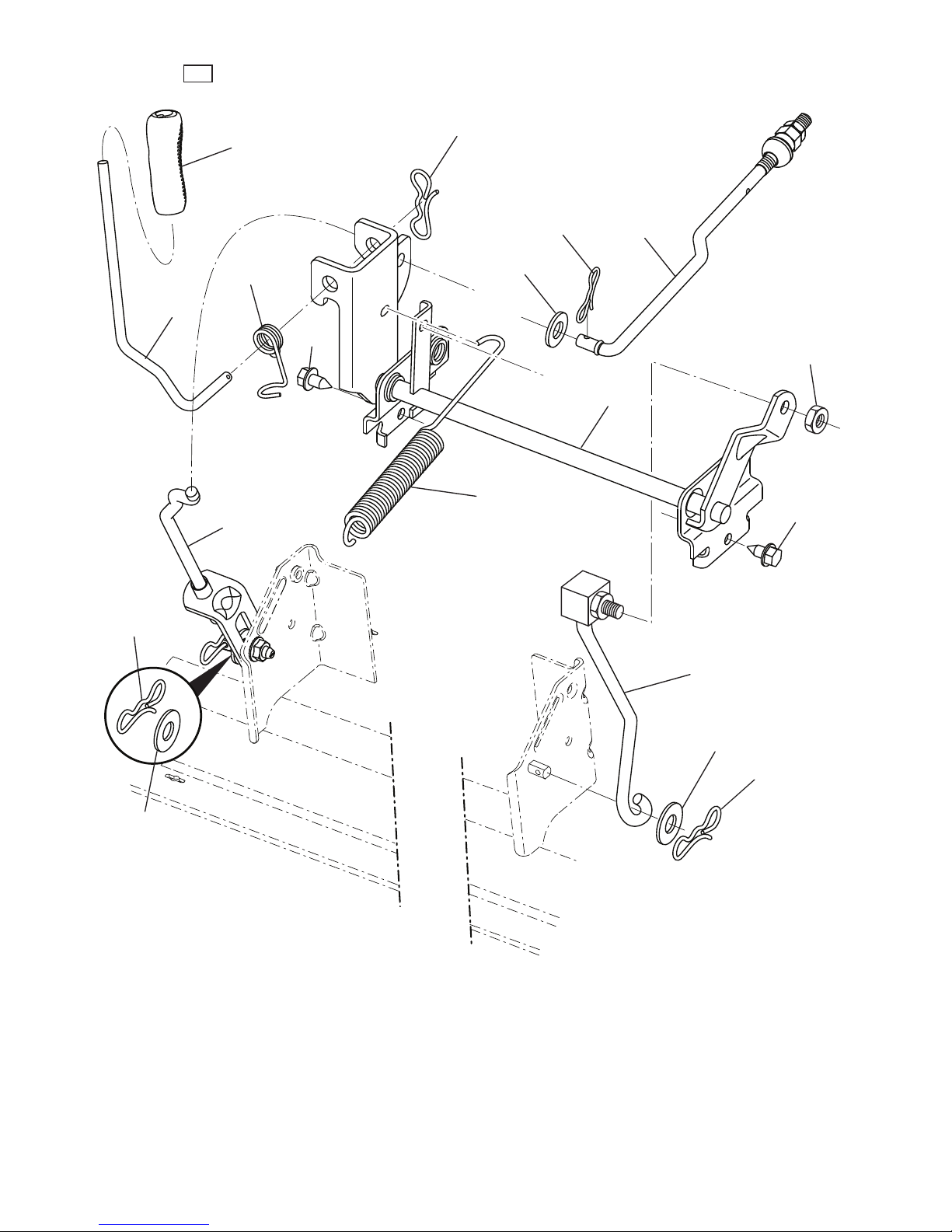

TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69
MOWER LIFT
45
45

17
1 532 43 98-22 Seat
2 532 18 01-66 Bracket Pivot Fender
3 532 14 06-75 Strap, Asm Fender
6 873 80 06-00 Nut, Lock w/Ins. 3/8-16 unc
7 532 12 41-81 Spring, Seat Cprsn
8 532 17 18-77 Bolt 5/16-18 unc x 3/4 w/Sems
10 532 19 69-77 Pan, Seat
21 532 17 18-52 Bolt, Shoulder 5/16-18
37 873 80 05-00 Nut, Lock 5/16-18 unc
40 532 19 76-61 Handle Slide Seat
41 532 19 82-00 Spring Latch Seat
43 874 76 06-12 Bolt Fin Hex 3/8-16 unc x 3/4
44 819 13 38-12 Washer 13/32 x 2-3/8 x 12 Ga.
KEY PART
NO. NO. DESCRIPTION
NOTE: All component dimensions given in U.S. inches
1 inch = 25.4 mm
2
6
1
40
10
37
37
21
21
3
41
7
8
7
8
8
8
seat-tex_6-tex LT
44
43
KEY PART
NO. NO. DESCRIPTION
TRACTOR - - MODEL NO. LTH19530 (96041016903), PRODUCT NO. 960 41 01-69
SEAT ASSEMBLY
42
42

05.15.13 BD/TH
