Husqvarna 325P5X SERIES User manual

EE
EEnn nngg ggll llii iiss sshh hh
323P4 325P5
X-series
Operator
′ s manual
Please read the operator’s manual carefully and make sure you
understand the instructions before using the machine.

2 – English
KEY TO SYMBOLS
Symbols
WARNING! The machine can be a dangerous
tool if used incorrectly or carelessly, which can
cause serious or fatal injury to the operator or
others.
Please read the operator’s manual carefully
and make sure you understand the
instructions before using the machine.
Always wear:
• A protective helmet where there is a risk of
falling objects
• Approved hearing protection
• Protective goggles or a visor
This product is in accordance with applicable
EC directives.
This machine is not electrically insulated. If
the machine touches or comes close to
high-voltage power lines it could lead to
death or serious bodily injury. Electricity
can jump from one point to another by
arcing. The higher the voltage, the greater
the distance electricity can jump.
Electricity can also travel through
branches and other objects, especially if
they are wet. Always keep a distance of at least 10 m between
the machine and high-voltage power lines and/or any objects
that are touching them. If have to work within this safe
distance you should always contact the relevant power
company to make sure the power is switched off before you
start work.
This machine has a long reach. Make sure that no people or
animals come closer than 15 m when the machine is running.
Always wear approved protective gloves.
Wear sturdy, non-slip boots.
Other symbols/decals on the machine refer to special
certification requirements for certain markets.
The engine is switched off by moving the stop
switch to the stop position. CAUTION! The
stop switch automatically returns to the start
position. In order to prevent unintentional
starting, the spark plug cap must be removed
from the spark plug when assembling, checking and/or
performing maintenance.
Always wear approved protective gloves.
Regular cleaning is required.
Visual check.
Protective goggles or a visor must be worn.
Filling with chain oil and adjusting oil flow

English – 3
CONTENTS
Contents Note the following before starting:
Please read the operator’s manual carefully.
Long-term exposure to noise can result in permanent hearing
impairment. So always use approved hearing protection.
KEY TO SYMBOLS
Symbols ....................................................................... 2
CONTENTS
Contents ...................................................................... 3
Note the following before starting: ................................ 3
INTRODUCTION
Dear Customer, ............................................................ 4
WHAT IS WHAT?
What is what? .............................................................. 5
GENERAL SAFETY PRECAUTIONS
Important ...................................................................... 6
Personal protective equipment ..................................... 6
Machine ′ s safety equipment ........................................ 7
ASSEMBLY
Fitting the cutting head ................................................ 14
Fitting the bar and chain .............................................. 14
Adjusting the harness .................................................. 14
Filling with oil ................................................................ 14
Assembling and dismantling the two-piece shaft
(325P5) ........................................................................ 14
Fitting the impact guard (325P5) ................................. 15
Assembly of the saw attachment (325P5) ................... 15
FUEL HANDLING
Fuel safety ................................................................... 16
Fuel .............................................................................. 16
Fuelling ........................................................................ 17
STARTING AND STOPPING
Check before starting ................................................... 18
Starting and stopping ................................................... 18
WORKING TECHNIQUES
General working instructions ....................................... 20
MAINTENANCE
Carburettor ................................................................... 23
Muffler .......................................................................... 24
Cooling system ............................................................ 25
Spark plug .................................................................... 25
Air filter ......................................................................... 25
Maintenance schedule ................................................. 27
TECHNICAL DATA
Technical data .............................................................. 28
EC-declaration of conformity ........................................ 29
!
WARNING! Under no circumstances may the
design of the machine be modified without
the permission of the manufacturer. Always
use genuine accessories. Non-authorized
modifications and/or accessories can result
in serious personal injury or the death of the
operator or others.
!
WARNING! A pole saw is a dangerous tool if
used carelessly or incorrectly and can cause
serious, even fatal injuries. It is extremely
important that you read and understand the
contents of this Operator’s Manual.

4 – English
INTRODUCTION
Dear Customer,
Congratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689, when the
Swedish King Charles XI ordered the construction of a factory on the banks of the Husqvarna River, for production of muskets.The
location was logical, since water power was harnessed from the Huskvarna River to create the water-powered plant. During the
more than 300 years of beeing, the Husqvarna factory has produced a lot of different products, from wood stoves to modern kitchen
appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first motor driven lawn mowers appeared, followed by chain
saws in 1959, and it is within this area Husqvarna is working today.
Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our highest priority.
The business concept is to develop, manufacture and market motor driven products for forestry and gardening as well as for
building and construction industry. Husqvarna
′ s aim is also to be in the front edge according to ergonomics, usability, security and
environmental protection. That is the reason why we have developed many different features to provide our products within these
areas.
We are convinced that you will appreciate with great satisfaction the quality and performance of our product for a very long time to
come. The purchase of one of our products gives you access to professional help with repairs and service whenever this may be
necessary. If the retailer who sells your machine is not one of our authorised dealers, ask for the address of your nearest service
workshop.
It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this operator ′ s
manual as a valuable document. By following its ′ content (using, service, maintenance etc) the life span and the second-hand value
of the machine can be extended. If you will sell this machine, make sure that the buyer will get the operator ′ s manual.
Thank you for using a Husqvarna product.
Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and
appearance of products without prior notice.

English – 5

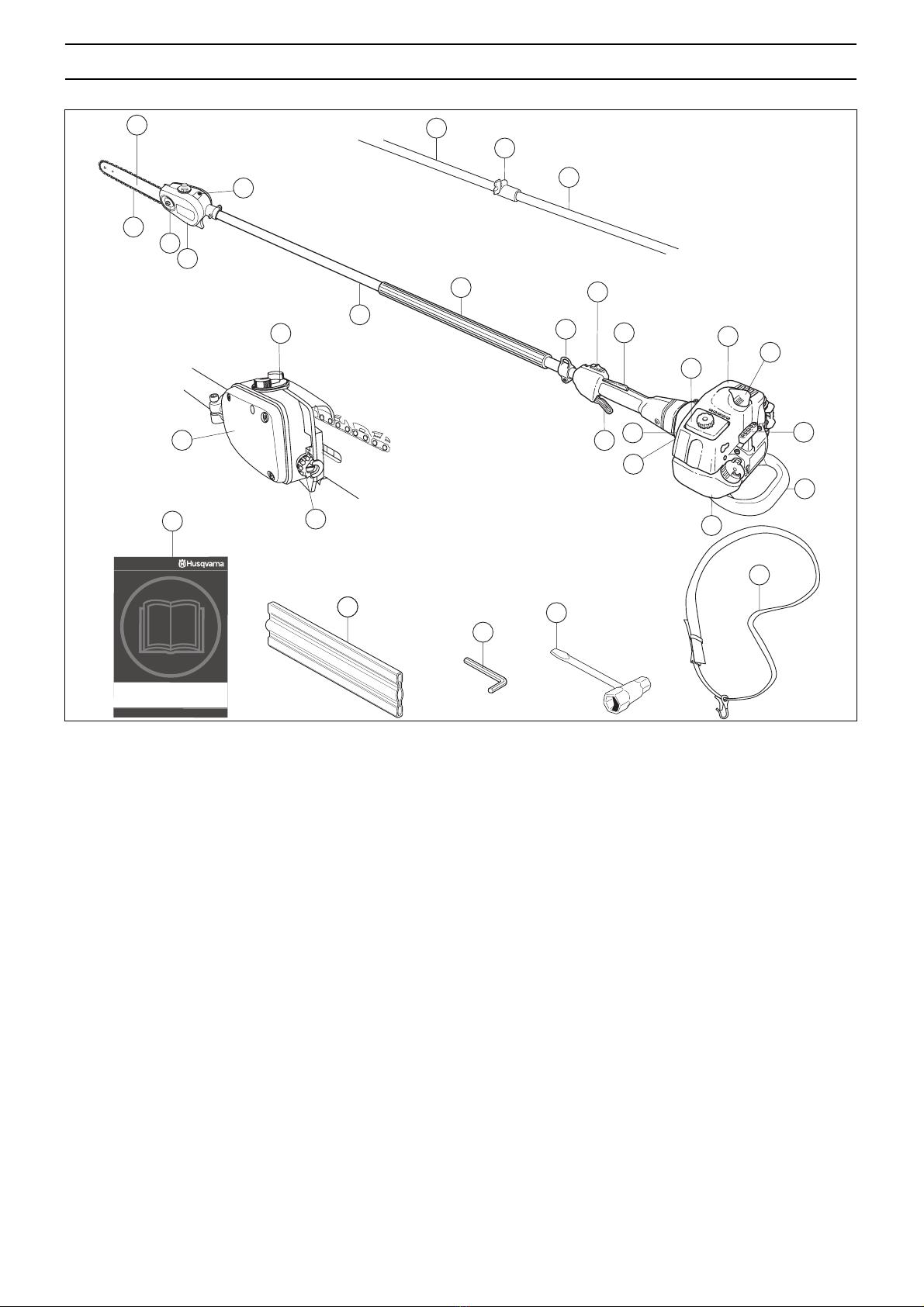

WHAT IS WHAT?
What is what?
15
1
4
10
12
11
14
2
7
17
2323
23
22
8
9
13
29
28
26
35
6
21
27
25
24
20
19
18
16
30
1 Chain lubrication adjustment screw
2 Shaft
3 Front handle
4 Throttle control
5 Stop switch
6 Throttle lock
7 Harness support hook
8 Cylinder cover
9 Starter handle
10 Fuel tank
11 Choke control
12 Air purge
13 Air filter cover
14 Protective guard for saw chain
15 Bar nut
16 Chain tensioning screw
17 Chain
18 Bar
19 Chain oil tank
20 Filling with chain oil
21 Operator ′ s manual
22 Transport guard, bar
23 Allen key
24 Combination spanner
25 Harness
26 Shaft coupling (325P5)
27 Upper shaft (325P5)
28 Lower shaft (325P5)
29 Impact guard (325P5)
30 Spark plug cap and spark plug

6 – English
GENERAL SAFETY PRECAUTIONS
Important
Personal protective equipment
PROTECTIVE HELMET AND VISOR
HEARING PROTECTION
Wear hearing protection that provides adequate noise
reduction.
EYE PROTECTION
Blows from branches or objects that are thrown out by a
cutting attachment can damage the eyes.
GLOVES
Gloves should be worn when necessary, e.g., when fitting
cutting attachments.
BOOTS
Wear sturdy, non-slip boots.
CLOTHING
Wear clothes made of a strong fabric and avoid loose clothing
that can catch on twigs and branches. Always wear heavy,
long pants. Do not wear jewellery, shorts sandals or go
barefoot. Secure hair so it is above shoulder level.
FIRST AID KIT
Always have a first aid kit nearby.
IMPORTANT!
The machine is only designed for cutting branches and
twigs.
Never use a machine that has been modified in any way
from its original specification.
Never use the machine if you are tired, if you have drunk
alcohol, or if you are taking medication that could affect your
vision, your judgement or your co-ordination.
Wear personal protective equipment. See instructions
under the heading Personal protective equipment.
Never use the machine in extreme weather conditions such
as severe cold, very hot and/or humid climates.
Never use a machine that is faulty. Carry out the checks,
maintenance and service instructions described in this
manual. Some maintenance and service measures must be
carried out by trained and qualified specialists. See
instructions under the heading Maintenance.
All covers and guards must be fitted before starting. Ensure
that the spark plug cap and ignition lead are undamaged to
avoid the risk of electric shock.
!
WARNING! Never allow children to use or be
in the vicinity of the machine. As the
machine is equipped with a spring-loaded
stop switch and can be started by low speed
and force on the starter handle, even small
children under some circumstances can
produce the force necessary to start the
machine. This can mean a risk of serious
personal injury. Therefore remove the spark
plug cap when the machine is not under
close supervision.
IMPORTANT!
A pole saw is a dangerous tool if used carelessly or
incorrectly and can cause serious, even fatal injuries. It is
extremely important that you read and understand the
contents of this Operator’s Manual.
You must use approved personal protective equipment
whenever you use the machine. Personal protective
equipment cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident does happen. Ask
your dealer for help in choosing the right equipment.
!
WARNING! Listen out for warning signals or
shouts when you are wearing hearing
protection. Always remove your hearing
protection as soon as the engine stops.

English – 7
GENERAL SAFETY PRECAUTIONS
Machine ′′′′ s safety equipment
This section describes the machine ′ s safety equipment, its
purpose, and how checks and maintenance should be carried
out to ensure that it operates correctly. See the ”What is
what?” section to locate where this equipment is positioned
on your machine.
The life span of the machine can be reduced and the risk of
accidents can increase if machine maintenance is not carried
out correctly and if service and/or repairs are not carried out
professionally. If you need further information please contact
your nearest service workshop.

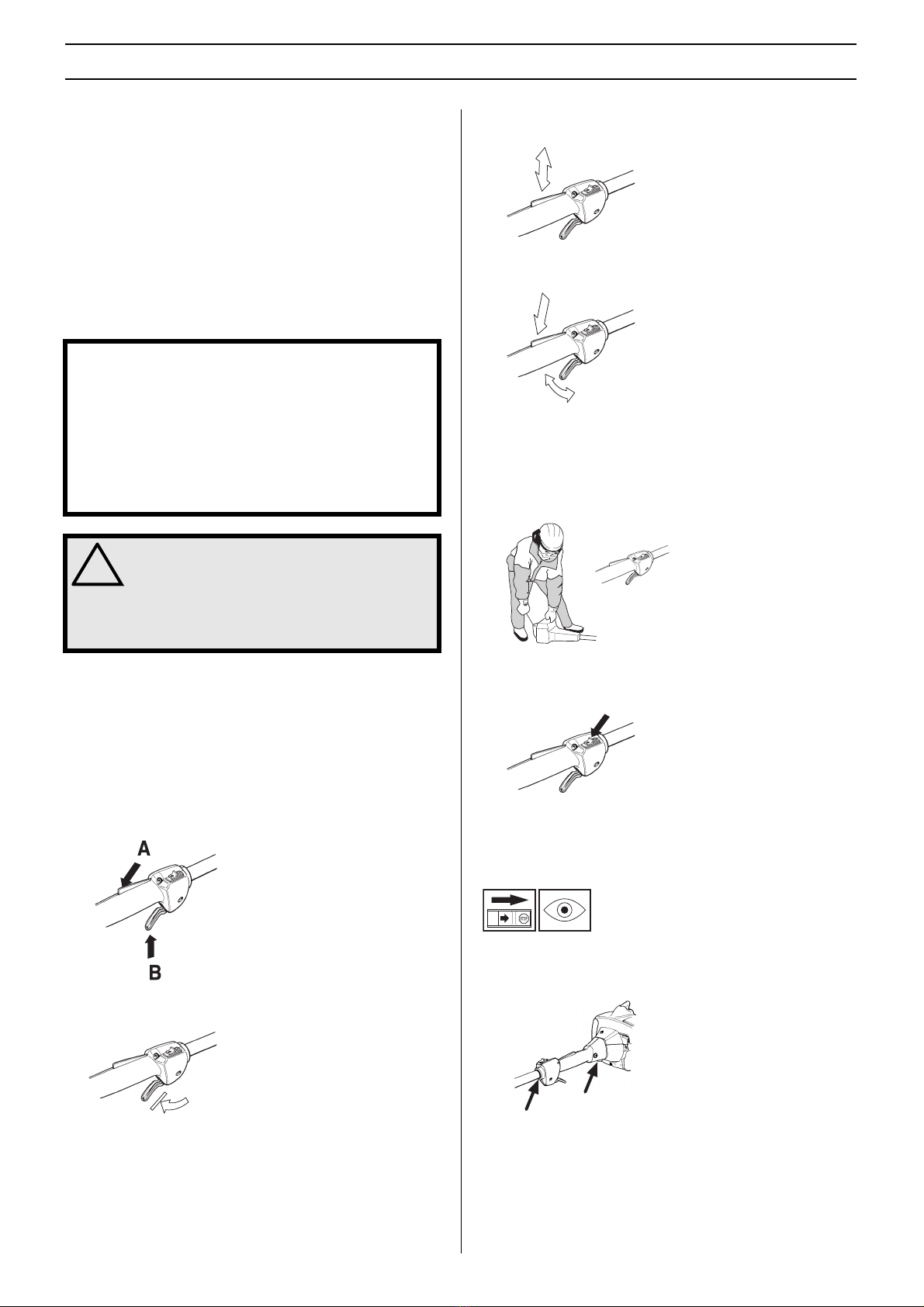

Throttle lock
The throttle lock is designed to prevent accidental operation
of the throttle control. When you press the lock (A) (i.e. when
you grasp the handle) it releases the throttle control (B).
When you release the handle the throttle control and the
throttle lock both move back to their original positions. This
movement is controlled by two independent return springs.
This arrangement means that the throttle control is
automatically locked at the idle setting.
Make sure the throttle control is locked at the idle setting
when the throttle lock is released.
Press the throttle lock and make sure it returns to its original
position when you release it.
Check that the throttle control and throttle lock move freely
and that the return springs work properly.
See instructions under the heading Start. Start the hedge
trimmer and apply full throttle. Release the throttle trigger and
check that the blades stop and remain stationary. If the blades
move when the throttle trigger is in the idle position then the
carburettor idle setting must be adjusted. See instructions
under the heading Maintenance.
Stop switch
Use the stop switch to switch off the engine.
Start the engine and make sure the engine stops when you
move the stop switch to the stop setting.
Vibration damping system
Your machine is equipped with a vibration damping system
that is designed to minimize vibration and make operation
easier.
IMPORTANT!
All servicing and repair work on the machine requires
special training. This is especially true of the machine
′ s
safety equipment. If your machine fails any of the checks
described below you must contact your service agent.
When you buy any of our products we guarantee the
availability of professional repairs and service. If the retailer
who sells your machine is not a servicing dealer, ask him for
the address of your nearest service agent.
!
WARNING! Never use a machine with faulty
safety equipment. The machine’s safety
equipment must be checked and maintained
as described in this section. If your machine
fails any of these checks contact your
service agent to get it repaired.

8 – English
GENERAL SAFETY PRECAUTIONS
The machine ′ s vibration damping system reduces the transfer
of vibration between the engine unit/cutting equipment and
the machine ′ s handle unit.
Regularly check the vibration damping units for cracks or
deformation. Check that the vibration damping element is
undamaged and securely attached.

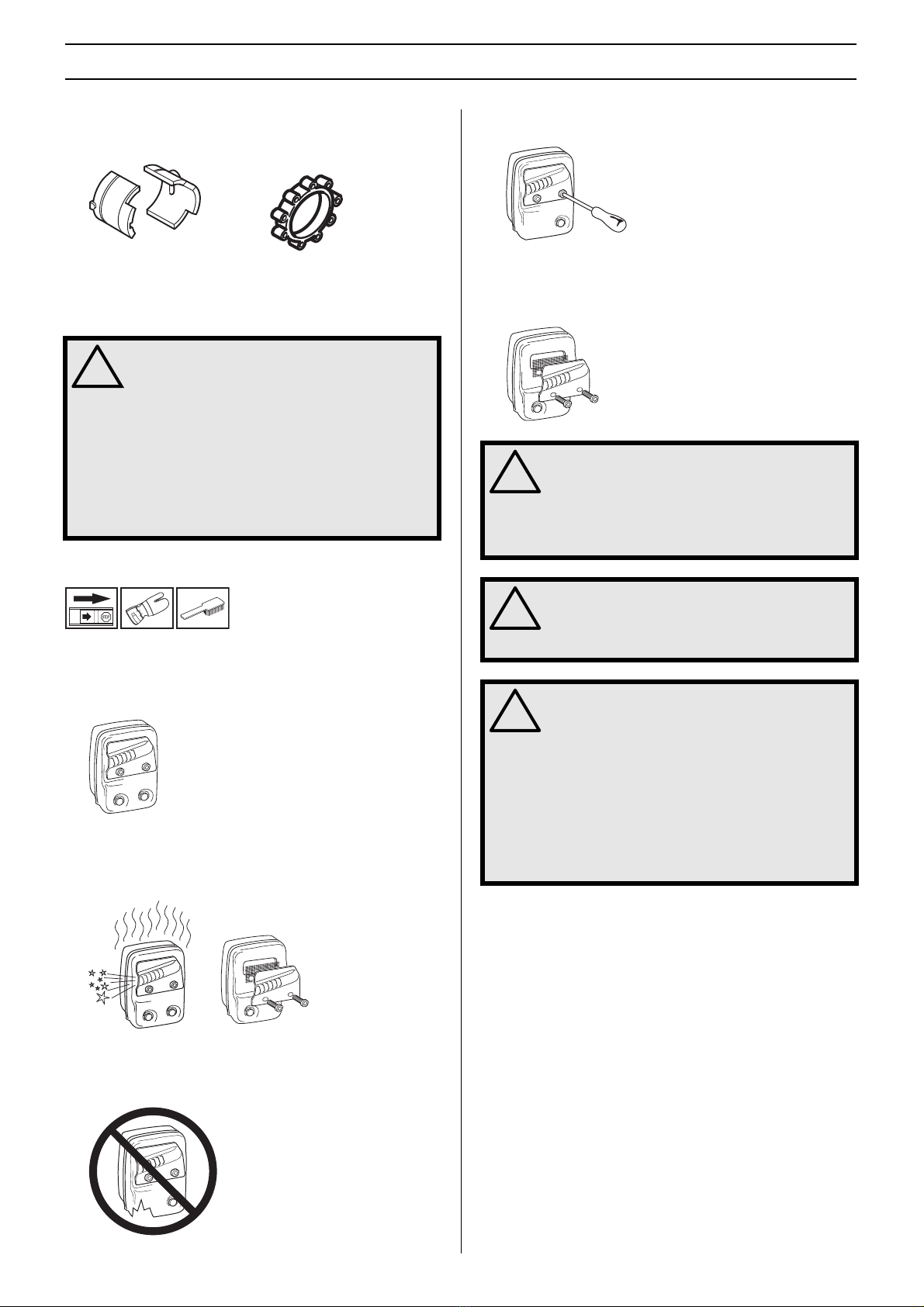

Muffler
The muffler is designed to keep noise levels to a minimum
and to direct exhaust fumes away from the user.
A muffler fitted with a catalytic converter is also designed to
reduce harmful exhaust gases.
In countries that have a warm and dry climate there is a
significant risk of fire. We therefore fit certain mufflers with a
spark arrestor mesh. Check whether the muffler on your
machine is fitted with this kind of mesh.
For mufflers it is very important that you follow the instructions
on checking, maintaining and servicing your machine.
Never use a machine that has a faulty muffler.
Regularly check that the muffler is securely attached to the
machine.
If the muffler on your machine is fitted with a spark arrestor
mesh this must be cleaned regularly. A blocked mesh will
cause the engine to overheat and may lead to serious
damage.
!
WARNING! Overexposure to vibration can
lead to circulatory damage or nerve damage
in people who have impaired circulation.
Contact your doctor if you experience
symptoms of overexposure to vibration.
Such symptoms include numbness, loss of
feeling, tingling, pricking, pain, loss of
strength, changes in skin colour or
condition.These symptoms normally appear
in the fingers, hands or wrists. The risk
increases at low temperatures.
!
WARNING! Mufflers fitted with catalytic
converters get very hot during use and
remain so for some time after stopping.This
also applies at idle speed. Contact can result
in burns to the skin. Remember the risk of
fire!
!
WARNING! The inside of the muffler contain
chemicals that may be carcinogenic. Avoid
contact with these elements in the event of a
damaged muffler.
!
WARNING! Bear in mind that:
Engine exhaust fumes contain carbon
monoxide, which can cause carbon
monoxide poisoning. For this reason you
should not start or run the machine indoors,
or anywhere that is poorly ventilated.
The exhaust fumes from the engine are hot
and may contain sparks which can start a
fire. Never start the machine indoors or near
combustible material!

English – 9
GENERAL SAFETY PRECAUTIONS

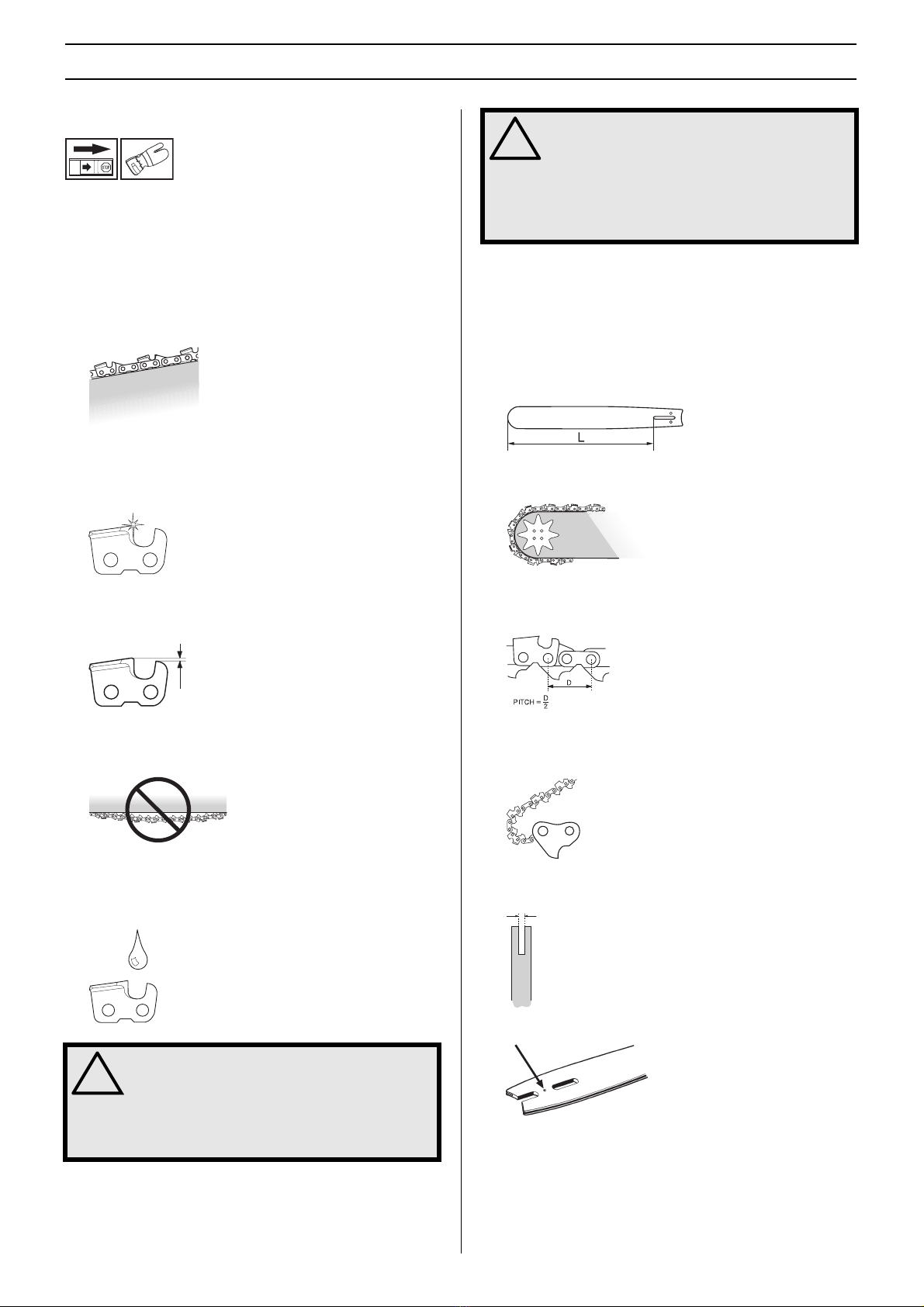

Cutting equipment
This section describes how you can achieve maximum
clearing capacity and extend the life of the cutting attachment
through correct maintenance and using the right type of
cutting attachment.
• Check the cutting equipment with regard to damage and
crack formation. Damaged cutting equipment should
always be replaced.
• Only use cutting equipment recommended by us!
• Keep the chain’s cutting teeth properly sharpened!
Follow our instructions and use the recommended file
gauge. A damaged or badly sharpened chain increases
the risk of accidents.
• Maintain the correct raker clearance! Follow our
instructions and use the recommended raker gauge.
Too large a clearance increases the risk of kickback.
• Keep the chain properly tensioned! If the chain is slack
it is more likely to jump off and lead to increased wear on
the bar, chain and drive sprocket.
• Keep cutting equipment well lubricated and properly
maintained! A poorly lubricated chain is more likely to
break and lead to increased wear on the bar, chain and
drive sprocket.
Specification of bar and saw chain
When the cutting attachment supplied with your machine has
to be replaced, because it is worn out or damaged, you must
only fit the types of bar and saw chain recommended by us.
Bar
• Length (inches/cm)
• Number of teeth on bar tip sprocket (T). Small number =
small tip radius = low risk of kickback.
• Chain pitch (inches). The spacing between the drive links
of the chain must match the spacing of the teeth on the
bar tip sprocket and drive sprocket.
• Number of drive links. The number of drive links is
determined by the length of the bar, the chain pitch and
the number of teeth on the bar tip sprocket.
• Bar groove width (inches/mm). The groove in the bar must
match the width of the chain drive links.
• Lubrication hole and hole for the chain tensioner.
!
WARNING! Never use a machine with faulty
safety equipment. The machine’s safety
equipment must be checked and maintained
as described in this section. If your machine
fails any of these checks contact your
service agent to get it repaired.
!
WARNING! Always stop the engine before
doing any work on the cutting attachment.
This continues to rotate even after the
throttle has been released. Ensure that the
cutting attachment has stopped completely
and disconnect the HT lead from the spark
plug before you start to work on it.

10 – English
GENERAL SAFETY PRECAUTIONS
Chain
• Saw chain pitch (inches). (The distance between three
drive links, divided by two.)
• Drive link width (mm/inches)
• Number of drive links.
Sharpening your chain and adjusting raker
clearance
General information on sharpening cutting teeth
• Never use a blunt chain. When the chain is blunt you have
to exert more pressure to force the bar through the wood
and the cuttings will be very small. If the chain is very blunt
it will not produce any cuttings at all. Wood powder would
be the only result.
• A sharp chain eats its way through the wood and
produces long, thick cuttings.
• The cutting part of the chain is called the cutting link and
this consists of a cutting tooth (A) and the raker lip (B).The
cutting depth is determined by the difference in height
between the two.
• When you sharpen a cutting tooth there are five important
factors to remember.
- Filing angle
- Cutting angle
- File position
- Round file diameter
- File depth
It is very difficult to sharpen a chain correctly without the right
equipment. We recommend that you use our file gauge. This
will help you obtain the maximum kickback reduction and
cutting performance from your chain.
!
WARNING! The risk of kickback is increased
with a badly sharpened chain!
AB
!
WARNING! The following faults will increase
the risk of kickback considerably:
File angle too large
Cutting angle too small
File diameter too
small
1
5

English – 11
GENERAL SAFETY PRECAUTIONS
Sharpening cutting teeth
To sharpen cutting teeth you will need a round file and a file
gauge.
• Check that the chain is correctly tensioned. A slack chain
will move sideways, making it more difficult to sharpen
correctly.
• Always file cutting teeth from the inside face outwards.
Reduce the pressure on the return stroke. File all the teeth
on one side of the bar first.Then turn the saw over and file
the remaining teeth from the other side.
• File all the teeth to the same length. When the length of
the cutting teeth is reduced to 4 mm (0.16") the chain is
worn out and should be replaced.
General advice on setting raker clearance
• When you sharpen the cutting teeth you reduce the raker
clearance (=cutting depth). To maintain optimal cutting
performance you must file back the raker lip to the
recommended height.
• On a low-kickback cutting link the front edge of the raker
lip is rounded. It is very important that you maintain this
radius or bevel when you adjust the raker clearance.
• We recommend that you use our raker gauge to achieve
the correct clearance and bevel on the raker lip.
Setting the raker clearance
• Before setting the raker clearance the cutting teeth should
be newly sharpened.
We recommend that you adjust the raker clearance every
third time you sharpen the chain. NOTE! This
recommendation assumes that the length of the cutting
teeth is not reduced excessively.
• To adjust the raker clearance you will need a flat file and a
raker gauge.
• Place the gauge over the raker lip.
• Place the file over the part of the lip that protrudes through
the gauge and file off the excess.The clearance is correct
when you no longer feel any resistance as you draw the
file over the gauge.
!
WARNING! The risk of kickback is increased
if the raker clearance is too large!

12 – English
GENERAL SAFETY PRECAUTIONS

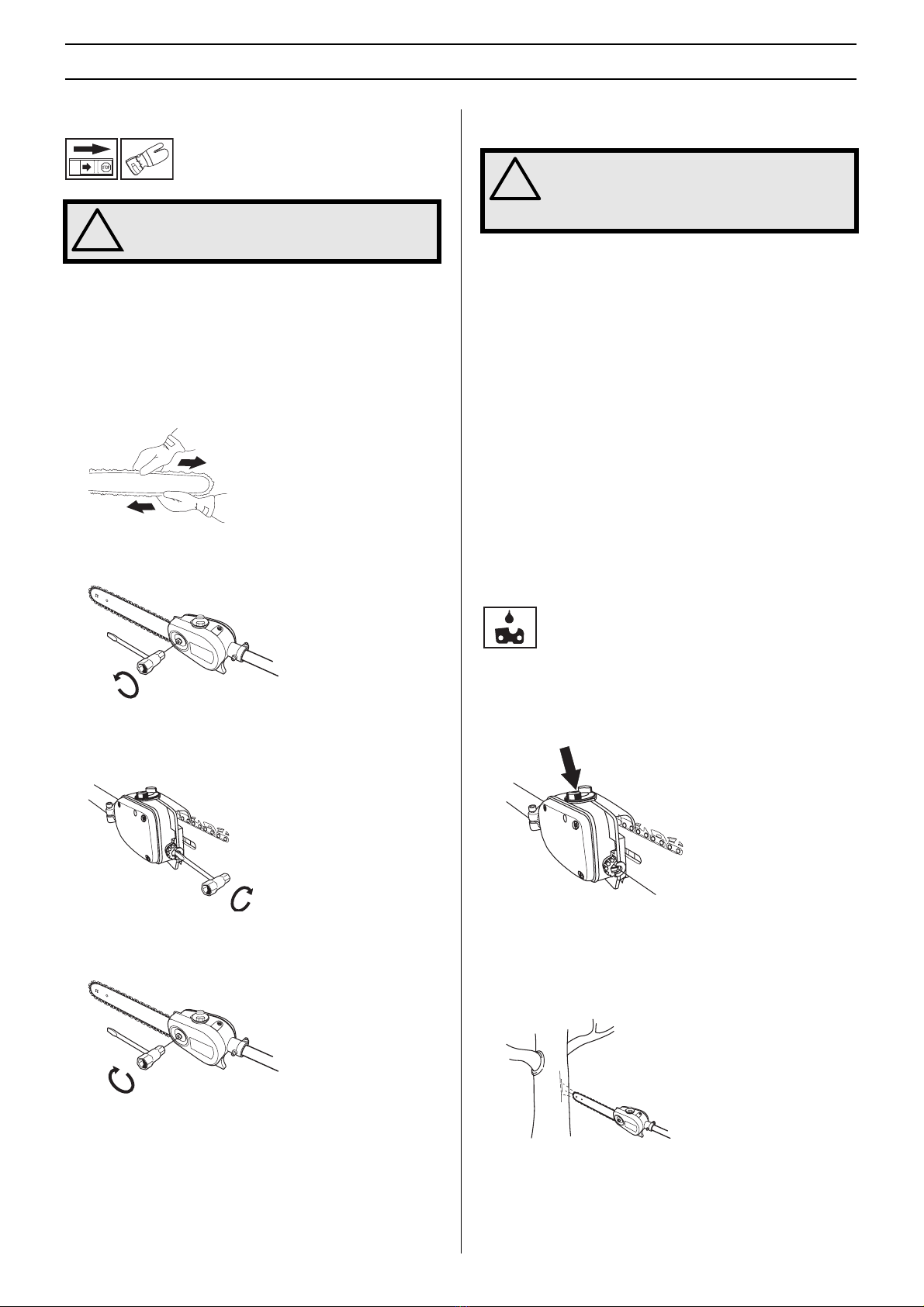

Tensioning the chain
• The more you use a chain the longer it becomes. It is
therefore important to adjust the chain regularly to take up
the slack.
• Check the chain tension every time you refuel. NOTE! A
new chain has a running-in period during which you
should check the tension more frequently.
• Tension the chain as tightly as possible, but not so tight
that you cannot pull it round freely by hand.
•
- Undo the bar nut.
- Tension the chain by turning the chain tensioning
screw clockwise. Use a combination spanner or turn
by hand. The chain should be tensioned until it fits
snugly on the underside of the bar.
- Tighten the bar nut using the combination spanner.
Check that the chain can be pulled round easily by
hand.
Lubricating cutting equipment
Chain oil
• Chain oil must demonstrate good adhesion to the chain
and also maintain its flow characteristics regardless of
whether it is warm summer or cold winter weather.
• As a chain saw manufacturer we have developed an
optimal chain oil which, with its vegetable oil base, is also
biodegradable. We recommend the use of our own oil for
both maximum chain life and to minimise environmental
damage.
• If our own chain oil is not available, standard chain oil is
recommended.
• In areas where oil specifically for lubrication of saw chains
is unavailable, ordinary EP 90 transmission oil may be
used.
• Never use waste oil! This is dangerous for yourself, the
machine and the environment.
Filling with chain oil
The oil pump is preset at the factory to satisfy most lubrication
requirements. A full oil tank normally lasts about the same
time as a full fuel tank. Therefore check the amount of oil in
the oil tank when filling the fuel to prevent damage to the saw
chain and bar that may arise due to a lack of lubrication.
Checking chain lubrication
• Check the chain lubrication each time you refuel.
Aim the tip of the bar at a light coloured surface about 20
cm (8 inches) away. After 1 minute running at 3/4 throttle
you should see a distinct line of oil on the light surface.
Adjusting chain lubrication
When cutting dry or hard species of wood it may be
necessary to increase lubrication. Turn the adjuster screw
anticlockwise to increase the oil flow. Remember that this will
!
WARNING! A slack chain may jump off and
cause serious or even fatal injury.
!
WARNING! Poor lubrication of cutting
equipment may cause the chain to snap,
which could lead to serious, even fatal
injuries.

English – 13
GENERAL SAFETY PRECAUTIONS
increase oil consumption, check the level in the oil tank
regularly. Turn the adjuster screw clockwise to decrease the
oil flow.
What to do if lubrication does not work:
• Check that the oil channel in the bar is not obstructed.
Clean if necessary.
• Check that the oil channel in the gear housing is clean.
Clean if necessary.
• Check that the bar tip sprocket turns freely. If the chain
lubrication system is still not working after carrying out the
above checks you should contact your service workshop.
Checking wear on cutting equipment
Chain
Check the chain daily for:
• Visible cracks in rivets and links.
• Whether the chain is stiff.
• Whether rivets and links are badly worn.
We recommend you compare the existing chain with a new
chain to decide how badly the existing chain is worn.
When the length of the cutting teeth has worn down to only 4
mm the chain must be replaced.
Chain drive sprocket
Regularly check the degree of wear on the drive sprocket.
Replace if wear is excessive.
Bar
Check regularly:
• Whether there are burrs on the edges of the bar. Remove
these with a file if necessary.
• Whether the groove in the bar has become badly worn.
Replace the bar if necessary.
• Whether the tip of the bar is uneven or badly worn. If a
hollow forms on the underside of the bar tip this is due to
running with a slack chain.
• To prolong the life of the bar you should turn it over daily.
!
WARNING! A faulty cutting attachment may
increase the risk of accidents.

14 – English
ASSEMBLY
Fitting the cutting head
• Fit the cutting head on the shaft so that the screw (A) is
aligned with the hole in the shaft as shown.
• Tighten screw A.
• Tighten screw B.
CAUTION! Make sure that the drive shaft inside the shaft
engages with the cut-out in the cutting head.
Fitting the bar and chain
Unscrew the bar nut and remove the protective cover.
Fit the bar over the bar bolt. Place the bar in its rearmost
position. Place the chain over the drive sprocket and in the
groove on the bar. Begin on the top side of the bar.
Make sure that the edges of the cutting links are facing
forward on the top edge of the bar.
Fit the cover and locate the chain adjuster pin (A) in the hole
in the bar. Check that the drive links of the chain fit correctly
on the drive sprocket (B) and that the chain is in the groove in
the bar (C). Tighten the bar nut finger-tight.
Tension the chain by turning the chain tensioning screw
clockwise. Use a combination spanner or turn by hand. The
chain should be tensioned until it fits snugly on the underside
of the bar.
• The chain is correctly tensioned when there is no slack on
the underside of the bar, and it can still be turned easily by
hand. Tighten the bar nut with the combination spanner
while holding up the tip of the bar.
• When fitting a new chain, the chain tension has to be
checked frequently until the chain is run-in. Check the
chain tension regularly. A correctly tensioned chain
ensures good cutting performance and long life.
Adjusting the harness
You should always use the harness with the machine to give
maximum control over the machine and reduce the risk of
fatigue in your arms and back.
• Put on the harness.
• Hook the machine onto the harness support hook.
• Adjust the length of the harness so that the support hook
is roughly level with your right hip.
Filling with oil
• Open the cap on top of the bar head
• Fill with Husqvarna saw chain oil.
•Refit the cap.
Assembling and dismantling the
two-piece shaft (325P5)

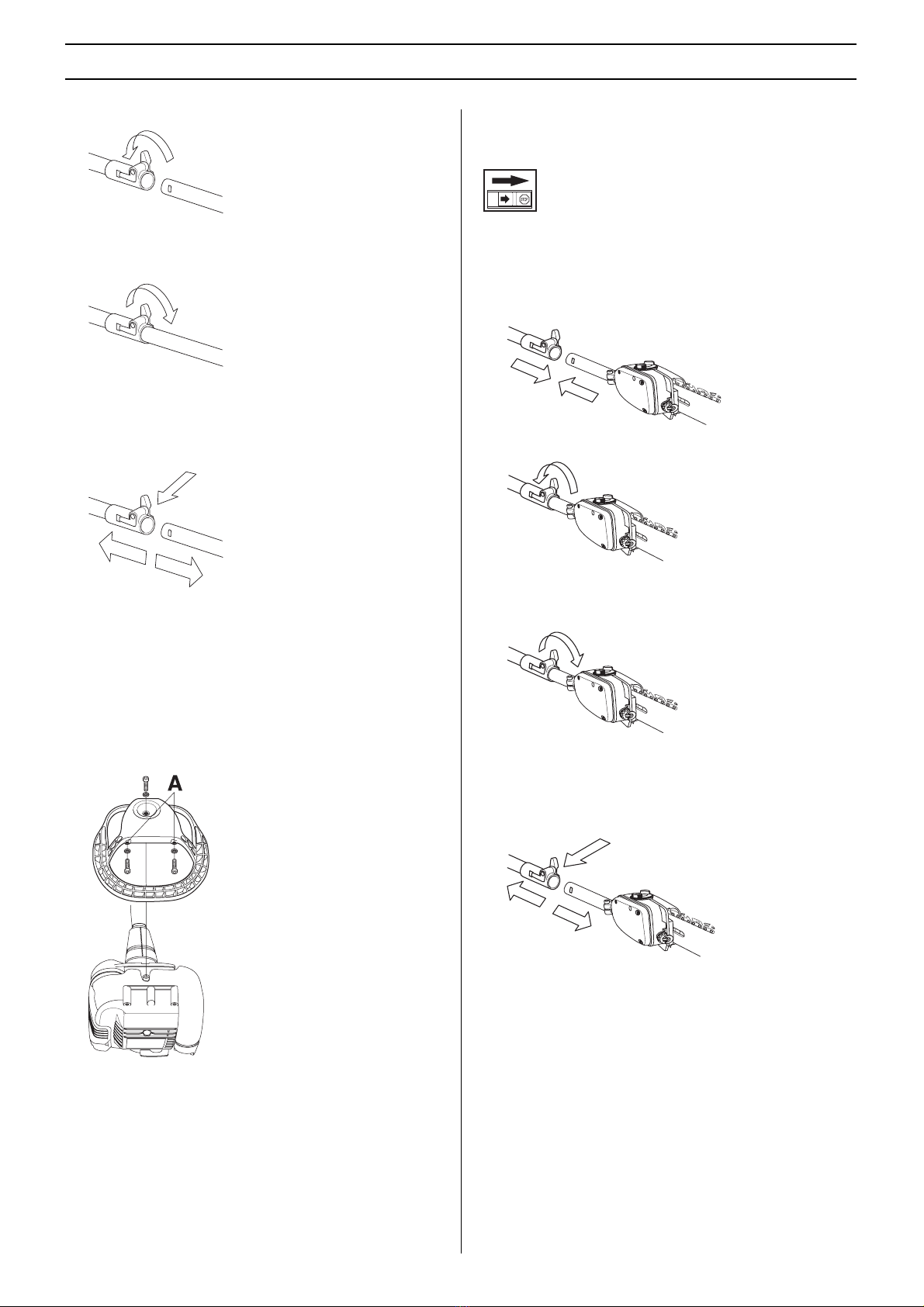

Assembly:
• Make sure the knob is loose.
• Align the cut-out in the upper shaft with the coupling's lock
plate on the lower shaft. The parts then lock together.
A
B

English – 15
ASSEMBLY
• Tighten the knob.
Dismantling:
Undo the knob (at least three turns).
• Push the knob towards the coupling.
• Carefully twist the upper shaft to unlock it.
• Hold both parts of the shaft and pull the upper shaft out of
the coupling.
Fitting the impact guard (325P5)
If the machine has a protective guard bolted under the engine
this should be removed before the impact guard is
assembled.
Fit the guard using the three screws and washers. Fit the two
short screws in hole A. Tighten the screws to a torque of 4
Nm. After the machine has been in use for around 20 hours,
re-tighten the screws to 4 Nm.
Assembly of the saw attachment
(325P5)
Assembly
• Make sure the knob is loose.
• Align the cut-out in the upper shaft with the coupling's lock
plate on the lower shaft. The parts then lock together.
• Tighten the knob.
Dismantling
• Undo the knob (at least three turns).
• Push the knob towards the coupling.
• Carefully twist the upper shaft to unlock it.
• Hold both parts of the shaft and pull the upper shaft out of
the coupling.

16 – English
FUEL HANDLING
Fuel safety
Never start the machine:
1 If you have spilt fuel on it. Wipe off the spillage and allow
remaining fuel to evaporate.
2 If you have spilt fuel on yourself or your clothes, change
your clothes.Wash any part of your body that has come in
contact with fuel. Use soap and water.
3 If the machine is leaking fuel. Check regularly for leaks
from the fuel cap and fuel lines.
Transport and storage
• Store and transport the machine and fuel so that there is
no risk of any leakage or fumes coming into contact with
sparks or naked flames, for example, from electrical
machinery, electric motors, electrical relays/switches or
boilers.
• When storing and transporting fuel always use approved
containers intended for this purpose.
• When storing the machine for long periods the fuel tank
must be emptied. Contact your local petrol station to find
out where to dispose of excess fuel.
• Ensure the machine is cleaned and that a complete
service is carried out before long-term storage.
• The transport guard must always be fitted to the cutting
attachment when the machine is being transported or in
storage.
• In order to prevent unintentional starting of the engine, the
spark plug cap must always be removed during long-term
storage, if the machine is not under close supervision and
when performing all service measures.
Fuel
CAUTION! The machine is equipped with a two-stroke engine
and must always been run using a mixture of petrol and two-
stroke engine oil. It is important to accurately measure the
amount of oil to be mixed to ensure that the correct mixture is
obtained. When mixing small amounts of fuel, even small
inaccuracies can drastically affect the ratio of the mixture.
Petrol
CAUTION! Always use a quality petrol/oil mixture at least 90
octane (RON). If your machine is equipped with a catalytic
converter (see chapter on Technical data) always use a good
quality unleaded petrol/oil mixture. Leaded petrol will destroy
the catalytic converter.
Use low-emission petrol, also known as alkylate petrol, if it is
available.
• The lowest octane recommended is 90 (RON). If you run
the engine on a lower octane grade than 90 so-called
knocking can occur. This gives rise to a high engine
temperature, which can result in serious engine damage.
• When working at continuous high revs a higher octane
rating is recommended.
!
WARNING! Take care when handling fuel.
Bear in mind the risk of fire, explosion and
inhaling fumes.
!
WARNING! Fuel and fuel fumes are highly
inflammable and can cause serious injury
when inhaled or allowed to come in contact
with the skin. For this reason observe
caution when handling fuel and make sure
there is adequate ventilation.

English – 17
FUEL HANDLING
Two-stroke oil
• For best results and performance use HUSQVARNA two-
stroke engine oil, which is specially formulated for our air-
cooled two-stroke engines.
• Never use two-stroke oil intended for water-cooled
engines, sometimes referred to as outboard oil (rated
TCW).
• Never use oil intended for four-stroke engines.
• A poor oil quality and/or too high oil/fuel ratio may
jeopardise function and decrease the life time of catalytic
converters.
• Mixing ratio
1:50 (2%) with HUSQVARNA two-stroke oil or equivalent.
1:33 (3%) with other oils designed for air-cooled, two-
stroke engines classified for JASO FB/ISA EGB, or higher.
Mixing
• Always mix the petrol and oil in a clean container intended
for fuel.
• Always start by filling half the amount of the petrol to be
used. Then add the entire amount of oil. Mix (shake) the
fuel mixture. Add the remaining amount of petrol.
• Mix (shake) the fuel mixture thoroughly before filling the
machine’s fuel tank.
• Do not mix more than one month’s supply of fuel at a time.
• If the machine is not used for some time the fuel tank
should be emptied and cleaned.
Fuelling
• Clean the area around the fuel cap. Contamination in the
tank can cause operating problems.
• Ensure that the fuel is well mixed by shaking the container
before filling the tank.

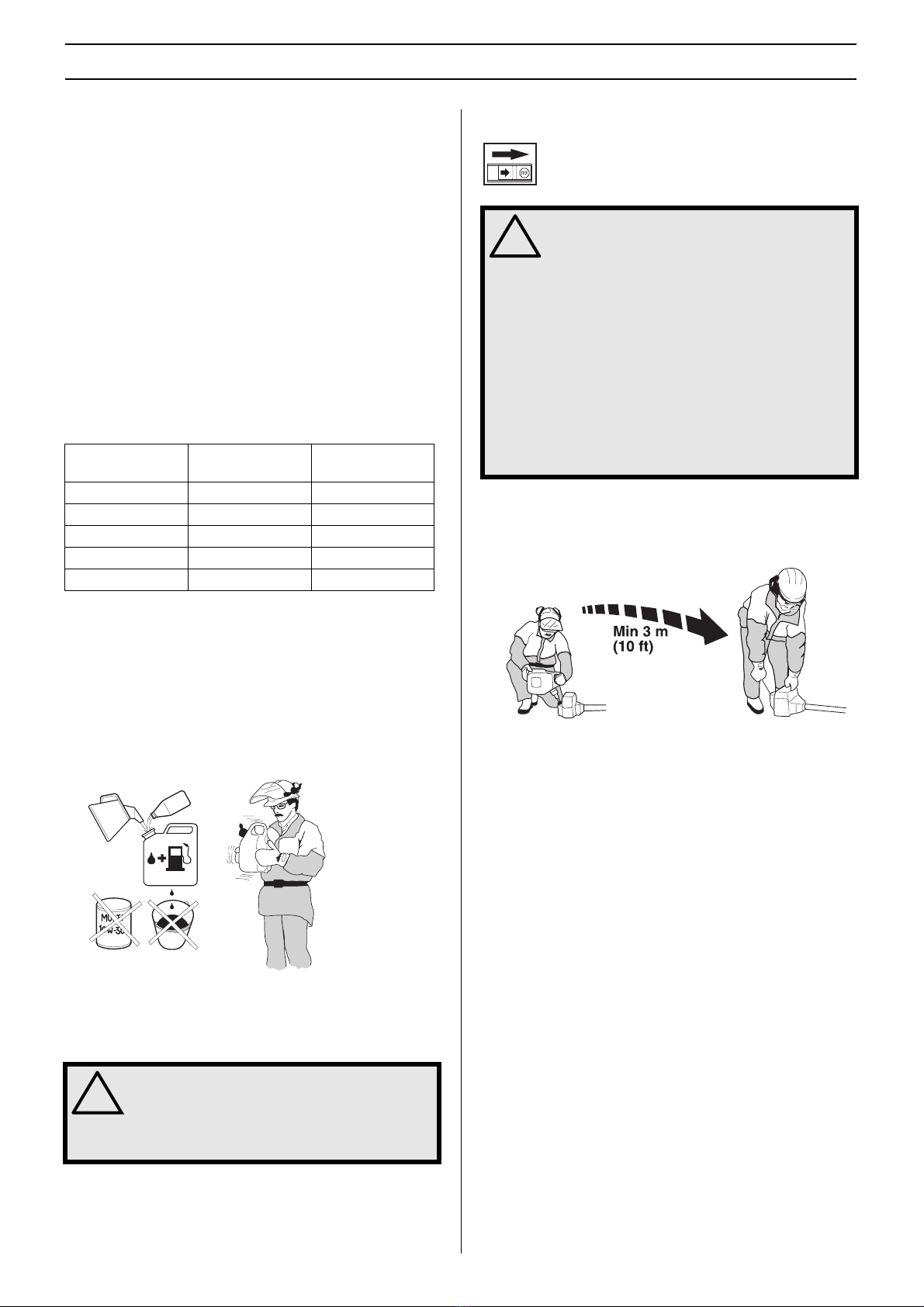

Petrol, litre Two-stroke oil,
litre
2% (1:50) 3% (1:33)
50,10 0,15
10 0,20 0,30
15 0,30 0,45
20 0,40 0,60
!
WARNING! The catalytic converter muffler
gets very hot during and after use. This also
applies during idling. Be aware of the fire
hazard, especially when working near
flammable substances and/or vapours.
!
WARNING! Taking the following precautions,
will lessen the risk of fire:
Do not smoke or place hot objects near fuel.
Always shut off the engine before refuelling.
Always stop the engine and let it cool for a
few minutes before refuelling.
When refuelling, open the fuel cap slowly so
that any excess pressure is released gently.
Tighten the fuel cap carefully after refuelling.
Always move the machine away from the
refuelling area before starting.

18 – English
STARTING AND STOPPING

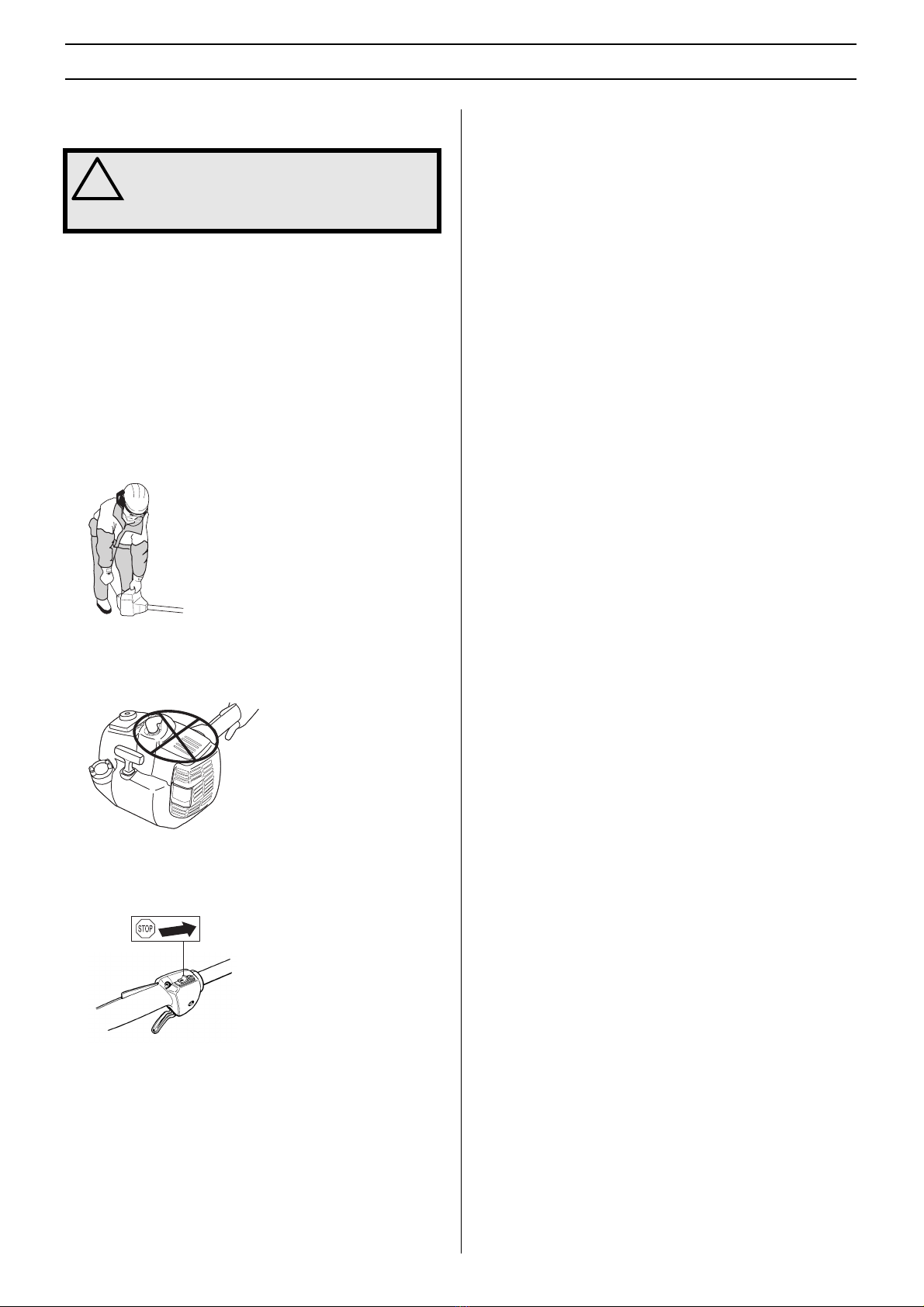

Check before starting
• Inspect the working area. Remove any objects that could
be thrown out.
• Check the cutting attachment. Never use blunt, cracked or
damaged equipment.
• Check that the machine is in perfect working order. Check
that all nuts and screws are tight.
• Make sure the chain is adequately lubricated. See
instructions under the heading Lubricating the cutting
attachment.
• Check that the cutting attachment always stops when the
engine is idling.
• Only use the machine for the purpose it was intended for.
• Make sure that the handle and safety features are in good
working order. Never use a machine that lacks a part or
has been modified outside its specifications.
Starting and stopping
Cold engine
Primer bulb:
Press the primer bulb repeatedly until fuel begins to fill the
bulb. The bulb need not be completely filled.
Choke:
Set the choke control in the choke position.
Warm engine
Primer bulb:
Press the primer bulb repeatedly until fuel begins to fill the
bulb. The bulb need not be completely filled.
Choke:
Set the throttle to the start position by moving the choke
control to the choke position and then returning it to its original
position.
!
WARNING! The complete clutch cover and
shaft must be fitted before the machine is
started, otherwise the clutch can come loose
and cause personal injury.
Always move the machine away from the
refuelling area before starting. Place the
machine on a flat surface. Ensure the cutting
attachment cannot come into contact with
any object. Make sure no unauthorised
persons are in the working area, otherwise
there is a risk of serious personal injury. The
safety distance is 15 metres.

English – 19
STARTING AND STOPPING
Starting
Hold the body of the machine on the ground using your left
hand (CAUTION! Not with your foot!). Grip the starter handle,
slowly pull out the cord with your right hand until you feel
some resistance (the starter pawls grip), now quickly and
powerfully pull the cord.Never twist the starter cord around
your hand.
Repeat pulling the cord until the engine starts. When the
engine starts. return choke control to run position and apply
full throttle; the throttle will automatically disengage from the
start setting.
CAUTION! Do not pull the starter cord all the way out and do
not let go of the starter handle when the cord is fully extended.
This can damage the machine.
CAUTION! Do not put any part of your body in marked area.
Contact can result in burns to the skin, or electrical shock if
the spark plug cap has been damaged. Always use gloves.
Do not use a machine with damaged spark plug cap.
Stopping
The engine is stopped by moving the stop switch to the stop
position.
CAUTION! The stop switch automatically returns to the start
position. In order to prevent unintentional starting, the spark
plug cap must be removed from the spark plug when
assembling, checking and/or performing maintenance.
!
WARNING! When the engine is started with
the choke in either the choke or start throttle
positions the cutting attachment will start to
rotate immediately.

20 – English

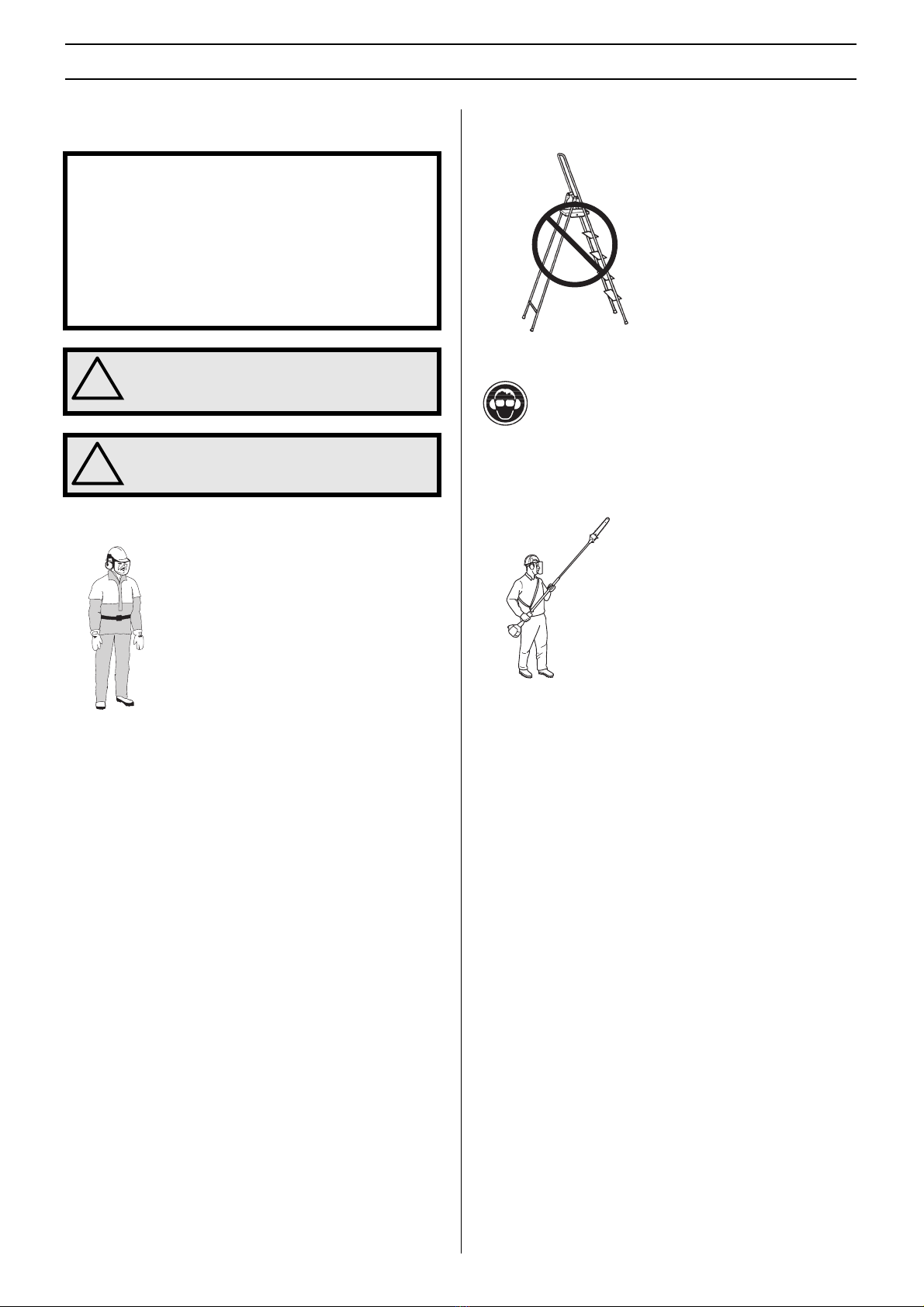

WORKING TECHNIQUES
General working instructions
Personal protection
• Always wear boots and other equipment described under
the heading Personal protective equipment.
• Always wear working clothes and heavy-duty long
trousers.
• Never wear loose clothing or jewellery.
• Make sure your hair does not hang below shoulder level.
Safety instructions regarding the
surroundings
• Never allow children to use the machine.
• Ensure that no-one comes closer than 15 m while you are
working.
• Never allow anyone else to use the machine without first
ensuring that they have understood the contents of the
operator’s manual.
• Never work from a ladder, stool or any other raised
position that is not fully secured.
Safety instructions while working
• Always ensure you have a safe and stable working
position.
• Always use both hands to hold the machine. Hold the
machine at the side of your body.
• Use your right hand to control the throttle setting.
• Make sure that your hands and feet do not come near the
cutting attachment when the engine is running.
• When the engine is switched off, keep your hands and feet
away from the cutting attachment until it has stopped
completely.
• Watch out for stumps of branches that can be thrown out
during cutting.
• Always lay the machine on the ground when you are not
using it.
• Check the working area for foreign objects such as
electricity cables, insects and animals, etc, or other
objects that could damage the cutting attachment, such
as metal items.
• If any foreign object is hit or if vibrations occur stop the
machine immediately. Disconnect the HT lead from the
spark plug. Check that the machine is not damaged.
Repair any damage.
• If anything gets caught up in the cutting attachment while
you are working, switch off the engine and let it stop
completely and remove the ignition lead before cleaning
the cutting attachment.
• This machine is not electrically insulated. If the machine
touches or comes close to high-voltage power lines it
could lead to death or serious bodily injury.
IMPORTANT!
This section takes up the basic safety precautions for
working with a pole saw.
If you encounter a situation where you are uncertain how to
proceed you should ask an expert. Contact your dealer or
your service workshop.
Avoid all usage which you consider to be beyond your
capability.
!
WARNING! The machine can cause serious
personal injury. Read the safety instructions
carefully. Learn how to use the machine.
!
WARNING! Cutting tool. Do not touch the
tool without first switching off the engine.
