Oper ator ′ s manual
Please r ead the operator’s manual carefully and make sure you understand the instructions
before using the machine.

KEY T O SYMBOLS
2 – English
Symbols
W ARNING! Clearing saws,
brushcutters and trimmers can be
dangerous! Careless or incorrect
use can result in serious or fatal
injury to the operator or others. It is
extremely important that you read
and understand the contents of the
operator’s manual.
Please read the operator’s manual
carefully and make sure you
understand the instructions before
using the machine.
Always wear:
• A protective helmet where there
is a risk of falling objects
• Approved hearing protection
• Approved eye protection
Max. speed of output shaft, rpm
This product is in accordance with
applicable EC directives.
Watch out for thrown objects and
ricochets.
The operator of the machine must
ensure, while working, that no
persons or animals come closer
than 15 metres.
Machines fitted with saw blades or
grass blades can be thrown violently
to the side when the blade comes
into contact with a fixed object.This is
called blade thrust. The blade is
capable of amputating an arm or leg.
Always keep people and animals at least 15 metres from
the machine.
Arrows which show limits for handle
positioning.
Always wear approved protective
gloves.
Wear sturdy, non-slip boots.
Only use non-metallic, flexible
cutting attachments, i.e. trimmer
heads with trimmer cord.
Noise emission to the environment
according to the European
Community’s Directive. The
machine’s emission is specified in
chapter Technical data and on label.
Other symbols/decals on the mac hine refer to special
certification requirements for certain markets.
The engine is s witched off by moving
the stop switch to the stop position.
CAUTION! The stop switch
automatically returns to the start
position. In order to prevent
unintentional starting, the spark plug
cap must be removed from the spark plug when
assembling, checking and/or performing maintenance.
Always wear approved protective
gloves.
Regular cleaning is required.
Visual check.
Approved eye protection must always
be used.
50FT
15 m
50FT
15m

CONTENTS
English – 3
Contents Note the f ollowing before
starting:
Please read the oper ator’s manual carefully.
KEY TO SYMBOLS
Symbols 2
CONTENTS
Contents 3
Note the f ollowing before starting: 3
INTR ODUCTION
Dear Customer , 4
WHA T IS WHAT?
What is what on the clear ing saw? 5
GENERAL SAFETY PRECA UTIONS
Impor tant 6
Personal protective equipment 6
Machine ′ s safety equipment 7
Cutting equipment 10
ASSEMBL Y
Fitting the handlebar (323RII) 12
Fitting the handlebar (327Rx, 327RDx) 12
Assemb ling and dismantling the two-piece shaft
(327RDx) 13
Assembling the cutting equipment 14
Fitting a blade guard, grass blade and grass cutter 14
Fitting the blade guard and saw blade 14
Fitting other guards and cutting attachments 15
Adjusting the harness and clearing saw 16
Standard harness 16
FUEL HANDLING
Fuel saf ety 17
Fuel 17
Fuelling 18
ST ARTING AND STOPPING
Chec k before starting 19
Starting and stopping 19
W ORKING TECHNIQUES
Gener al working instructions 21
MAINTENANCE
Carb urettor 26
Muffler 28
Cooling system 29
Bevel gear 29
Air filter 29
Two-piece shaft 30
Spark plug 30
Maintenance schedule 31
TECHNICAL D ATA
T echnical data 32
EC-declaration of conformity 33
!
W ARNING! Long-term exposure to noise
can result in permanent hearing
impairment. So always use approved
hearing protection.
!
W ARNING! Under no circumstances may
the design of the machine be modified
without the permission of the
manufacturer. Always use genuine
accessories. Non-authorized
modifications and/or accessories can
result in serious personal injury or the
death of the operator or others.
!
W ARNING! A clearing saw, brushcutter
or trimmer can be dangerous if used
incorrectly or carelessly, and can cause
serious or fatal injury to the operator or
others. It is extremely important that you
read and understand the contents of this
operator’s manual.

4 – English
INTR ODUCTION
Dear Customer ,
Cong ratulations on your choice to buy a Husqvarna product! Husqvarna is based on a tradition that dates back to 1689,
when the Swedish King Karl XI ordered the construction of a factory on the banks of the Husqvarna River, for production
of muskets. The location was logical, since water power was harnessed from the Huskvarna River to create the water-
powered plant. During the more than 300 years of beeing, the Husqvarna factory has produced a lot of different products,
from wood stoves to modern kitchen appliances, sewing machines, bicycles, motorcycles etc. In 1956, the first motor
driven lawn mowers appeared, followed by chain saws in 1959, and it is within this area Husqvarna is working today.
Today Husqvarna is one of the leading manufacturers in the world of forest and garden products, with quality as our
highest priority. The business concept is to develop, manufacture and market motor driven products for forestry and
gardening as well as for building and construction industry. Husqvarna
′ s aim is also to be in the front edge according to
ergonomics, usability, security and environmental protection. That is the reason why we have developed many different
features to provide our products within these areas.
We are convinced that you will appreciate with great satisfaction the quality and performance of our product for a very
long time to come. The purchase of one of our products gives you access to professional help with repairs and service
whenever this may be necessary. If the retailer who sells your machine is not one of our authorised dealers, ask for the
address of your nearest service workshop.
It is our wish that you will be satisfied with your product and that it will be your companion for a long time. Think of this
operator
′ s manual as a valuable document. By following its ′ content (using, service, maintenance etc) the life span and
the second-hand value of the machine can be extended. If you will sell this machine, make sure that the buyer will get
the operator
′ s manual.
Thank you for using a Husqvarna product.
Husqvarna AB has a policy of continuous product development and therefore reserves the right to modify the design and
appearance of products without prior notice.

English – 5
WHA T IS WHA T?
What is what on the c learing saw?
24
27
26
23
28
18
19
20
1
25
21
4
9
7
30
8
5
3
1
2
4
14
10
17 31
6
16
15
12
13
32 11
22
29
1 Blade
2 Grease filler cap, bevel gear
3 Bevel gear
4 Cutting attachment guard
5 Shaft
6 Handlebar
7 Throttle control
8 Stop switch
9 Throttle lockout
10 Suspension ring
11 Cylinder cover
12 Starter handle
13 Fuel tank
14 Choke control
15 Air purge
16 Air filter cover
17 Handle adjustment
18 Locking nut
19 Support flange
20 Support cup
21 Drive disc
22 Trimmer head
23 Socket spanner
24 Operator ′ s manual
25 Transport guard
26 Allen key
27 Locking pin
28 Harness
29 Shaft coupling (327RDx)
30 Start throttle button
31 Adjusting the throttle wire
32 Spark plug cap and spark plug

GENERAL SAFETY PRECA UTIONS
6 – English

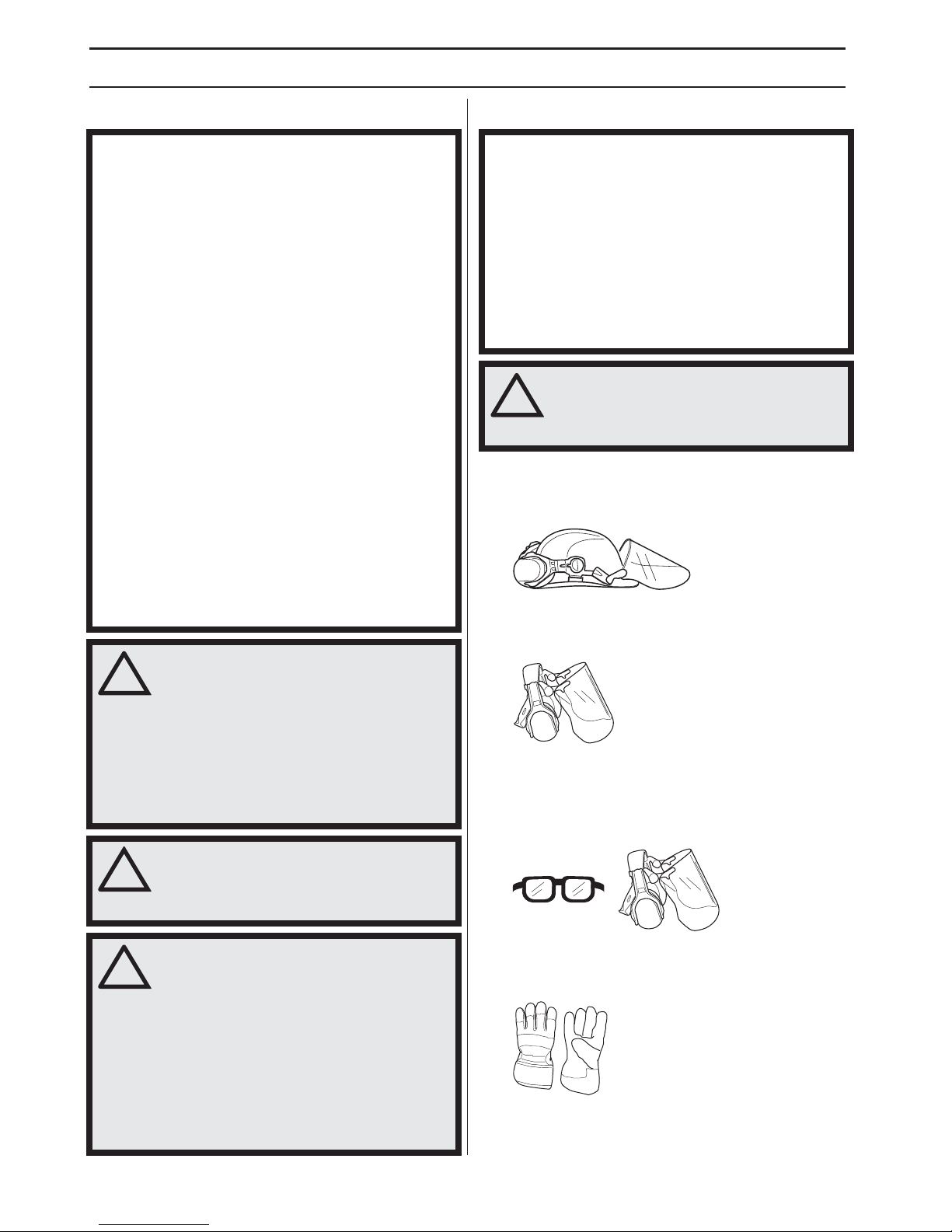

Impor tant Personal protective equipment
HELMET
A helmet should be w orn if the trees being cleared are
taller than 2 m.
HEARING PROTECTION
Wear hearing protection that provides adequate noise
reduction.
EYE PROTECTION
Always wear approved eye protection. If you use a visor
then you must also wear approved protective goggles.
Approved protective goggles must comply with standard
ANSI Z87.1 in the USA or EN 166 in EU countries.
GLOVES
Gloves should be worn when necessary, e.g., when fitting
cutting attachments.
IMPORTANT!
The machine is only designed for trimming grass, grass
clearing and/or forestry clearing.
The only accessories you can operate with this engine
unit are the cutting attachments we recommend in the
chapter on Technical data.
Never use the machine if you are tired, if you have drunk
alcohol, or if you are taking medication that could affect
your vision, your judgement or your co-ordination.
Wear personal protective equipment. See instructions
under the heading Personal protective equipment.
Never use a machine that has been modified in any way
from its original specification.
Never use a machine that is faulty. Carry out the checks,
maintenance and service instructions described in this
manual. Some maintenance and service measures
must be carried out by trained and qualified specialists.
See instructions under the heading Maintenance.
All covers, guards and handles must be fitted before
starting. Ensure that the spark plug cap and ignition
lead are undamaged to avoid the risk of electric shock.
The machine operator must ensure that no people or
animals come closer than 15 metres while working.
When several operators are working in the same area
the safety distance should be at least twice the tree
height and no less than 15 metres.
!
W ARNING! The ignition system of this
machine produces an electromagnetic
field during operation. This field may
under some circumstances interfere with
pacemakers. To reduce the risk of
serious or fatal injury, we recommend
persons with pacemakers to consult
their physician and the pacemaker
manufacturer before operating this
machine.
!
W ARNING! Running an engine in a
confined or badly ventilated area can
result in death due to asphyxiation or
carbon monoxide poisoning.
!
W ARNING! Never allow children to use or
be in the vicinity of the machine. As the
machine is equipped with a spring-
loaded stop switch and can be started by
low speed and force on the starter
handle, even small children under some
circumstances can produce the force
necessary to start the machine. This can
mean a risk of serious personal injury.
Therefore remove the spark plug cap
when the machine is not under close
supervision.
IMPOR TANT!
A clearing saw, brushcutter or trimmer can be
dangerous if used incorrectly or carelessly, and can
cause serious or fatal injury to the operator or others. It
is extremely important that you read and understand the
contents of this operator’s manual.
You must use approved personal protective equipment
whenever you use the machine. Personal protective
equipment cannot eliminate the risk of injury but it will
reduce the degree of injury if an accident does happen.
Ask your dealer for help in choosing the right equipment.
!
W ARNING! Listen out for warning signals
or shouts when you are wearing hearing
protection. Always remove your hearing
protection as soon as the engine stops.

GENERAL SAFETY PRECA UTIONS
English – 7
BOO TS
Wear boots with steel toe-caps and non-slip sole.
CLOTHING
Wear clothes made of a strong fabric and avoid loose
clothing that can catch on twigs and branches. Always
wear heavy, long pants. Do not wear jewellery, shorts
sandals or go barefoot. Secure hair so it is above shoulder
level.
FIRST AID KIT
Always have a first aid kit nearby.
Mac hine ′ s safety equipment
This section descr ibes the machine ′ s safety equipment,
its purpose, and how checks and maintenance should be
carried out to ensure that it operates correctly. See the
”What is what?” section to locate where this equipment is
positioned on your machine.
The life span of the machine can be reduced and the risk
of accidents can increase if machine maintenance is not
carried out correctly and if service and/or repairs are not
carried out professionally. If you need further information
please contact your nearest service workshop.
Thr ottle lockout
The throttle loc kout is designed to prevent accidental
operation of the throttle control. When you press the lock
(A) (i.e. when you grasp the handle) it releases the throttle
control (B). When you release the handle the throttle
control and the throttle lockout both move back to their
original positions. This movement is controlled by two
independent return springs.This arrangement means that
the throttle control is automatically locked at the idle
setting.
Make sure the throttle control is locked at the idle setting
when the throttle lockout is released.
Press the throttle lockout and make sure it returns to its
original position when you release it.
Check that the throttle control and throttle lockout move
freely and that the return springs work properly.
See instructions under the heading Start. Start the
machine and apply full throttle. Release the throttle and
check that the cutting attachment stops and remains at a
standstill. If the cutting attachment rotates with the throttle
in the idle position then the carburettor idle setting must
be checked. See instructions under the heading
Maintenance.
IMPORTANT! All servicing and repair work on the
machine requires special training.This is especially true
of the machine
′ s safety equipment. If your machine fails
any of the checks described below you must contact
your service agent. When you buy any of our products
we guarantee the availability of professional repairs and
service. If the retailer who sells your machine is not a
servicing dealer, ask him for the address of your nearest
service agent.
!
W ARNING! Never use a machine with
faulty safety equipment. The machine’s
safety equipment must be checked and
maintained as described in this section.
If your machine fails any of these checks
contact your service agent to get it
repaired.
A
B

GENERAL SAFETY PRECA UTIONS
8 – English
Stop switch
Use the stop switch to switch off the engine.
Start the engine and make sure the engine stops when
you move the stop switch to the stop setting.
Cutting attachment guard
This guard is intended to prevent loose objects from being
thrown towards the operator. The guard also protects the
operator from accidental contact with the cutting
attachment.
Check that the guard is undamaged and not cracked.
Replace the guard if it has been exposed to impact or is
cracked.
Always use the recommended guard for the cutting
attachment you are using. See chapter on Technical data.
Vibration damping system
Your machine is equipped with a vibration damping
system that is designed to minimize vibration and make
operation easier.
Using incorrectly wound cord or a blunt or incorrect
cutting attachment (wrong type or incorrectly filed, see
instructions under the heading Filing the blade) increases
the level of vibration.
The machine′s vibration damping system reduces the
transfer of vibration between the engine unit/cutting
equipment and the machine′s handle unit.
Regularly check the vibration damping units for cracks or
deformation. Check that the vibration damping element is
undamaged and securely attached.
Quick release
There is an easily accessible, quick release fitted at the
front as a safety precaution in case the engine catches
fire, or in any other situation that requires you to free
yourself from the machine and harness. See instructions
under the heading Adjusting the harness and clearing
saw.
Check that the harness straps are correctly positioned.
Once the harness and machine have been adjusted,
check that the harness quick release works correctly.
Muffler
The muffler is designed to keep noise levels to a minimum
and to direct exhaust fumes away from the user. A muffler
!
WARNING! Never use a cutting
attachment without an approved guard.
See the chapter on Technical data. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
!
WARNING! Overexposure to vibration
can lead to circulatory damage or nerve
damage in people who have impaired
circulation. Contact your doctor if you
experience symptoms of overexposure
to vibration. Such symptoms include
numbness, loss of feeling, tingling,
pricking, pain, loss of strength, changes
in skin colour or condition. These
symptoms normally appear in the
fingers, hands or wrists. The risk
increases at low temperatures.

GENERAL SAFETY PRECAUTIONS
English – 9
fitted with a catalytic converter is also designed to reduce
harmful exhaust gases.
In countries that have a warm and dry climate there is a
significant risk of fire.We therefore fit certain mufflers with
a spark arrestor mesh. Check whether the muffler on your
machine is fitted with this kind of mesh.
For mufflers it is very important that you follow the
instructions on checking, maintaining and servicing your
machine.
Never use a machine that has a faulty muffler.
Regularly check that the muffler is securely attached to
the machine.
If the muffler on your machine is fitted with a spark
arrestor mesh this must be cleaned regularly. A blocked
mesh will cause the engine to overheat and may lead to
serious damage.
Locking nut
A locking nut is used to secure some types of cutting
attachment.
When fitting, tighten the nut in the opposite direction to the
direction of rotation of the cutting attachment. To remove
it, undo the nut in the same direction as the cutting
attachment rotates. (CAUTION! The nut has a left-hand
thread.) Tighten the nut using the socket spanner.
When loosening and tightening the saw blade nut, there
is a risk of injury from the teeth of the saw blade. You
should therefore always ensure that your hand is shielded
by the blade guard when doing this. Always use a socket
spanner with a shaft that is long enough to allow this. The
arrow in the diagram shows the area where you should
operate the socket spanner when loosening or tightening
the nut.
The nylon lining inside the locking nut must not be so worn
that you can turn it by hand. The lining should offer a
resistance of at least 1.5 Nm. The nut should be replaced
after it has been put on approx. 10 times.
!
WARNING! Mufflers fitted with catalytic
converters get very hot during use and
remain so for some time after stopping.
This also applies at idle speed. Contact
can result in burns to the skin.
Remember the risk of fire!
!
WARNING! The inside of the muffler
contain chemicals that may be
carcinogenic. Avoid contact with these
elements in the event of a damaged
muffler.
!
WARNING! Bear in mind that:
The exhaust fumes from the engine are
hot and may contain sparks which can
start a fire. Never start the machine
indoors or near combustible material!
!

GENERAL SAFETY PRECAUTIONS
10 – English

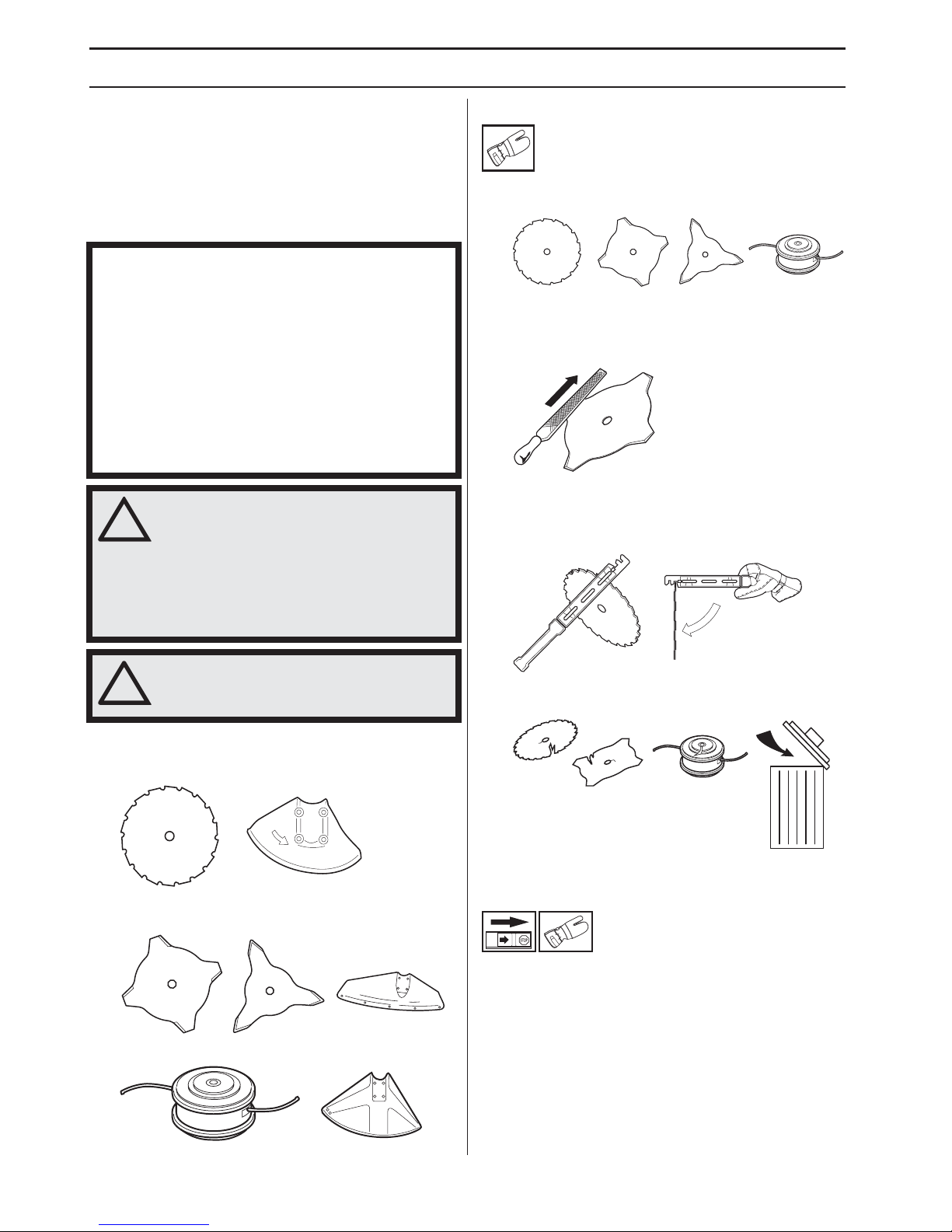

Cutting equipment
This section describes how to choose and maintain your
cutting equipment in order to:
• Reduce the risk of blade thrust.
• Obtain maximum cutting performance.
• Extend the life of cutting equipment.
Cutting equipment
Saw blades are intended for cutting fibrous types of wood.
Grass blades and grass cutters are intended for cutting
coarse grass.
A trimmer head is intended for trimming grass.
General rules
Only use cutting attachments with the guards we
recommend! See the chapter on Technical data.
Keep the teeth of the blade correctly sharpened! Follow
our instructions and use the recommended file gauge. An
incorrectly sharpened or damaged blade increases the
risk of accidents.
Keep the correct setting on the saw blade! Follow our
instructions and use the recommended setting tool. An
incorrectly set saw blade increases the risk of jamming
and blade thrust, and damage to the saw blade.
Check the cutting attachment for damage or cracks. A
damaged cutting attachment should always be replaced.

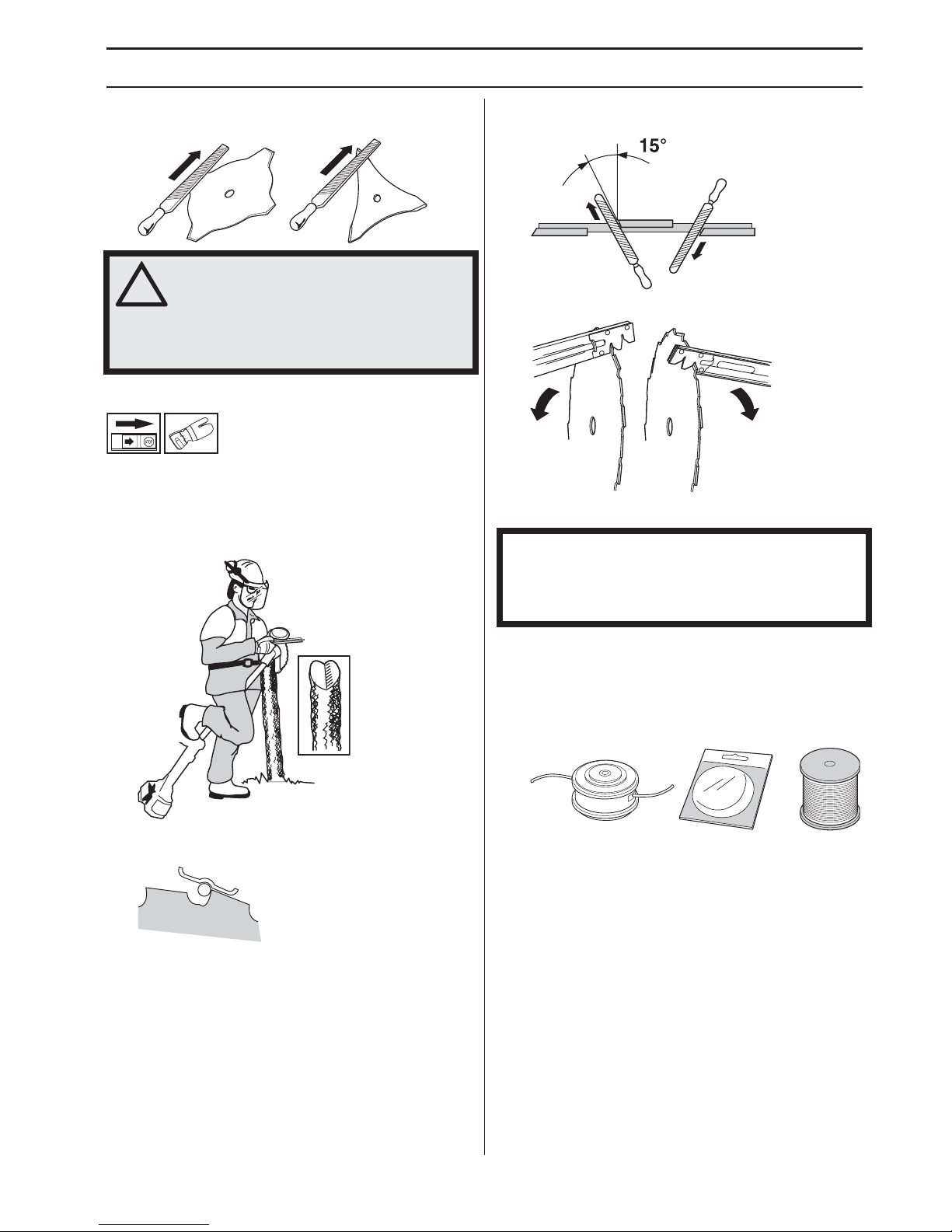

Sharpening grass cutters and grass
blades
• See the cutting attachment packaging for correct
sharpening instructions. Sharpen blades and cutters
using a single-cut flat file.
IMPORTANT!
Only use cutting attachments with the guards we
recommend! See the chapter on Technical data.
Refer to the instructions for the cutting attachment to
check the correct way to load the cord and the correct
cord diameter.
Keep the teeth of the blade correctly sharpened! Follow
our recommendations. Also refer to the instructions on
the blade packaging.
Maintain the correct blade setting! Follow our
instructions and use the recommended file gauge.
!
WARNING! Always stop the engine
before doing any work on the cutting
attachment.This continues to rotate even
after the throttle has been released.
Ensure that the cutting attachment has
stopped completely and disconnect the
HT lead from the spark plug before you
start to work on it.
!
WARNING! Using an incorrect cutting
attachment or an incorrectly sharpened
blade increases the risk of blade thrust.

GENERAL SAFETY PRECAUTIONS
English – 11
•Sharpen all edges equally to maintain the balance of
the blade.
Sharpening the saw blade
• See the cutting attachment packaging for correct
sharpening instructions.
A correctly sharpened blade is essential for working
efficiently and to avoid unnecessary wear to the blade and
clearing saw.
• Make sure that the blade is well supported when you
file it. Use a 5.5 mm round file with a file holder.
• The filing angle is 15°. File alternate teeth to the right
and those in between to the left. If the blade has been
heavily pitted by stones it may be necessary to dress
the top edges of the teeth with a flat file, in exceptional
cases. If so, this should be done before filing with a
round file. The top edges must be filed down by the
same amount for all the teeth.
Adjust the blade setting. This should be 1 mm.
Trimmer head
• Only use the recommended trimmer heads and
trimmer cords. These have been tested by the
manufacturer to suit a particular engine size. This is
especially important when a fully automatic trimmer
head is used. Only use the recommended cutting
attachment. See the chapter on Technical data.
• Smaller machines generally require small trimmer
heads and vice versa. This is because when clearing
using a cord the engine must throw out the cord
radially from the trimmer head and overcome the
resistance of the grass being cleared.
• The length of the cord is also important. A longer cord
requires greater engine power than a shorter cord of
the same diameter.
• Make sure that the cutter on the trimmer guard is
intact.This is used to cut the cord to the correct length.
• To increase the life of the cord it can be soaked in
water for a couple of days. This will make the line
tougher so that it lasts longer.
!
WARNING! Always discard a blade that is
bent, twisted, cracked, broken or
damaged in any other way. Never attempt
to straighten a twisted blade so that it
can be reused. Only use original blades
of the specified type.
IMPORTANT!
Always ensure the trimmer cord is wound tightly and
evenly around the drum, otherwise the machine will
generate harmful vibration.

ASSEMBLY
12 – English
Fitting the handlebar (323RII)
• Remove the screw at the rear of the throttle handle.
• Slide the throttle handle onto the right side of the
handlebar, (see diagram).
• Align the screw hole in the throttle handle with the hole
in the handlebar.
• Refit the screw in the hole in the rear of the throttle
handle.
• Screw the screw through the handle and handlebar.
Tighten it.
• Unscrew the knob from the handlebar mounting.
• Position the handlebar as shown. Fit the mounting
components and tighten the knob lightly.
• Put on the harness and hang the machine from the
support hook. Now make a final adjustment so that
the machine is in a comfortable working position when
it hangs from the harness. Tighten the knob.
Fitting the handlebar (327Rx,
327RDx)
• Remove the screw at the rear of the throttle handle.
• Slide the throttle handle onto the right side of the
handlebar, (see diagram).
• Align the screw hole in the throttle handle with the hole
in the handlebar.
• Refit the screw in the hole in the rear of the throttle
handle.
• Screw the screw through the handle and handlebar.
Tighten it.
• Unscrew the knob from the handlebar mounting.

ASSEMBLY
English – 13
• Position the handlebar as shown. Fit the mounting
components and tighten the knob lightly.
• Put on the harness and hang the machine from the
support hook. Now make a final adjustment so that
the machine is in a comfortable working position when
it hangs from the harness. Tighten the knob.
Assembling and dismantling the
two-piece shaft (327RDx)
Assembly
• Loosen the coupling by turning the knob.
• Align the tab of the attachment (A) with the arrow on
the coupling (B).
• Push the attachment into the coupling until the
attachment snaps into place.
• Before using the unit, tighten the knob securely.
Dismantling
• Loosen the coupling by turning the knob (at least 3
times).
• Push and hold the button (C). While securely holding
the engine end, pull the attachment straight out of the
coupling.
A
B
C

ASSEMBLY
14 – English

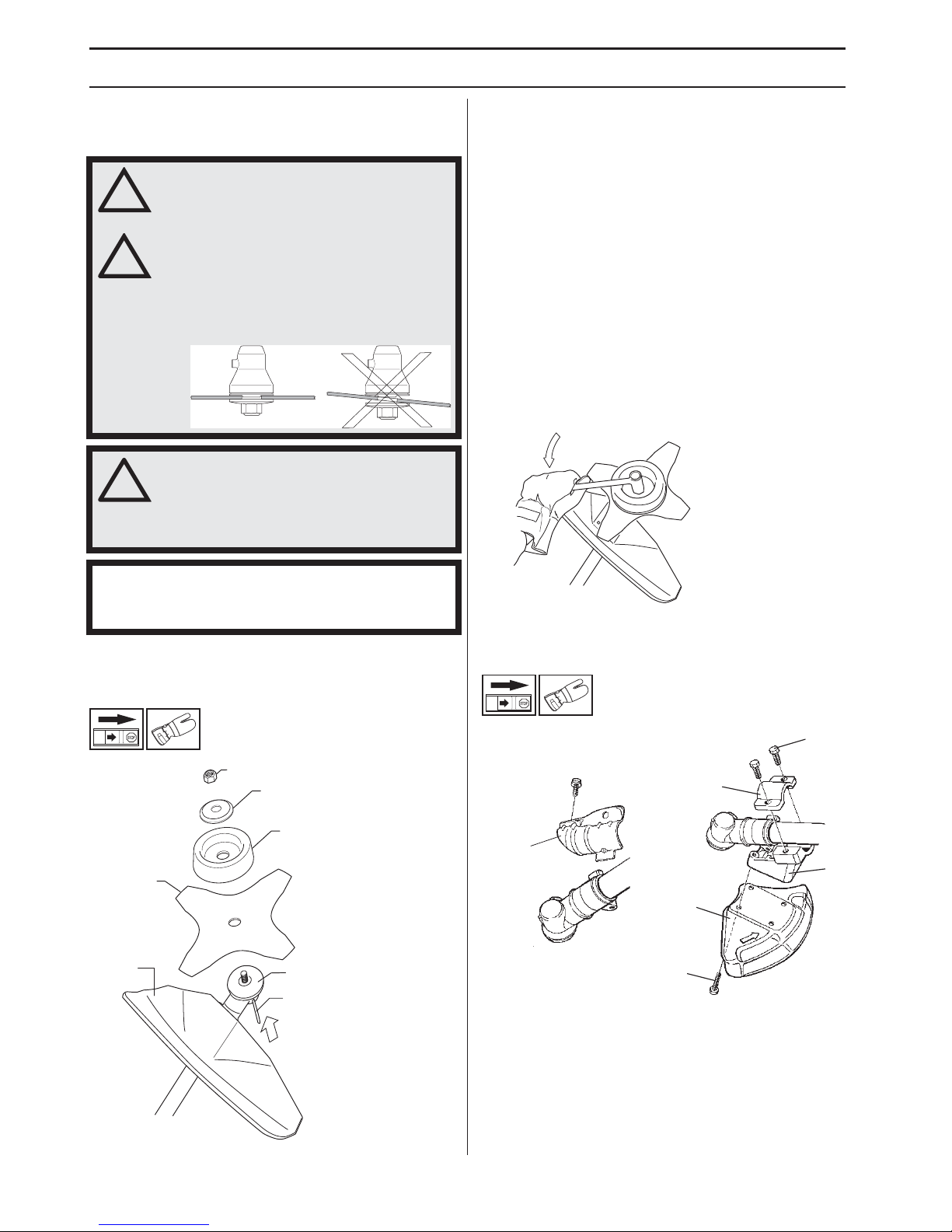

Assembling the cutting
equipment
Fitting a blade guard, grass blade
and grass cutter
•Hook the blade guard/combination guard (A) onto the
fitting on the shaft and secure with the bolt.
CAUTION! Use the recommended blade guard. See
the Technical data section.
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Place the blade (D), support cup (E) and support
flange (F) on the output shaft.
• Fit the nut (G). The nut must be tightened to a torque
of 35-50 Nm (3.5-5 kpm). Use the socket spanner in
the tool kit. Hold the shaft of the spanner as close to
the blade guard as possible. To tighten the nut, turn
the spanner in the opposite direction to the direction
of rotation (Caution! left-hand thread).
Fitting the blade guard and saw
blade
•Remove the mounting plate (H). Fit the adapter (I) and
bracket (J) with the two screws (K) as shown. Fit the
blade guard (A) to the adapter using the 4 screws (L)
as shown.
!
WARNING!
When fitting the cutting attachment it is
extremely important that the raised
section on the drive disc/support flange
engages correctly in the centre hole of
the cutting attachment. If the cutting
attachment is fitted incorrectly it can
result in serious and/or fatal personal
injury.
!
!
WARNING! Never use a cutting
attachment without an approved guard.
See the chapter on Technical data. If an
incorrect or faulty guard is fitted this can
cause serious personal injury.
IMPORTANT! If a saw blade or grass blade are to be
used the machine must be equipped with the correct
handlebar, blade guard and harness.
G
F
D
B
C
A
E
A
L
I
J
K
H

ASSEMBLY
English – 15
CAUTION! Use the recommended blade guard. See
the Technical data section.
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Place the blade (D) and support flange (F) on the
output shaft.
• Fit the nut (G). The nut must be tightened to a torque
of 35-50 Nm (3.5-5 kpm). Use the socket spanner in
the tool kit. Hold the shaft of the spanner as close to
the blade guard as possible. To tighten the nut, turn
the spanner in the opposite direction to the direction
of rotation (Caution! left-hand thread).
• When loosening and tightening the saw blade nut,
there is a risk of injury from the teeth of the saw blade.
You should therefore always ensure that your hand is
shielded by the blade guard when doing this. Always
use a socket spanner with a shaft that is long enough
to allow this. The arrow in the diagram shows the area
where you should operate the socket spanner when
loosening or tightening the nut.
Fitting other guards and cutting
attachments
•Fit the trimmer guard/combination guard (A) intended
for use with the trimmer head/plastic blades. Hook the
guard onto the fitting on the shaft and secure it with
the bolt (L).
• Fit the drive disc (B) on the output shaft.
• Turn the blade shaft until one of the holes in the drive
disc aligns with the corresponding hole in the gear
housing.
• Insert the locking pin (C) in the hole to lock the shaft.
• Screw on the trimmer head/plastic blades (H) in the
opposite direction to the direction of rotation.
• To dismantle, follow the instructions in the reverse
order.
F
D
B
C
G
H
H

ASSEMBLY
16 – English
Adjusting the harness and
clearing saw
Standard harness
Quick release
At the front is an easily accessible, quick release. Use this
if the engine catches fire or in any other emergency
situation that requires you to free yourself from the
machine and harness.
Spreading the load on your shoulders
A well-adjusted harness and machine makes work much
easier. Adjust the harness for the best working position.
Tension the side straps so that the weight is evenly
distributed across both shoulders.
Correct height
Adjust the shoulder strap so that the cutting attachment is
parallel to the ground.
Correct balance
Let the cutting attachment rest lightly on the ground. If you
use a saw blade it should balance about 10 cm above the
ground to prevent contact with stones and the like. Adjust
the position of the suspension ring to balance the clearing
saw correctly.
!
WARNING! When using a clearing saw it
must always be hooked securely to the
harness. Otherwise you will be unable to
control the clearing saw safely and this
can result in injury to yourself or others.
Never use a harness with a defective
quick release.

FUEL HANDLING
English – 17
Fuel safety
Never start the machine:
1 If you have spilt fuel on it. Wipe off the spillage and
allow remaining fuel to evaporate.
2 If you have spilt fuel on yourself or your clothes,
change your clothes. Wash any part of your body that
has come in contact with fuel. Use soap and water.
3 If the machine is leaking fuel. Check regularly for
leaks from the fuel cap and fuel lines.
Transport and storage
•Store and transport the machine and fuel so that there
is no risk of any leakage or fumes coming into contact
with sparks or naked flames, for example, from
electrical machinery, electric motors, electrical relays/
switches or boilers.
• When storing and transporting fuel always use
approved containers intended for this purpose.
• When storing the machine for long periods the fuel
tank must be emptied. Contact your local petrol
station to find out where to dispose of excess fuel.
• Ensure the machine is cleaned and that a complete
service is carried out before long-term storage.
• The transport guard must always be fitted to the
cutting attachment when the machine is being
transported or in storage.
• In order to prevent unintentional starting of the engine,
the spark plug cap must always be removed during
long-term storage, if the machine is not under close
supervision and when performing all service
measures.
Fuel
CAUTION! The machine is equipped with a two-stroke
engine and must always been run using a mixture of
petrol and two-stroke engine oil. It is important to
accurately measure the amount of oil to be mixed to
ensure that the correct mixture is obtained. When mixing
small amounts of fuel, even small inaccuracies can
drastically affect the ratio of the mixture.
Petrol
CAUTION! Always use a quality petrol/oil mixture at least
90 octane (RON). If your machine is equipped with a
catalytic converter (see chapter on Technical data) always
use a good quality unleaded petrol/oil mixture. Leaded
petrol will destroy the catalytic converter.
Use low-emission petrol, also known as alkylate petrol, if
it is available.
• The lowest octane recommended is 90 (RON). If you
run the engine on a lower octane grade than 90 so-
called knocking can occur. This gives rise to a high
engine temperature, which can result in serious
engine damage.
• When working at continuous high revs a higher octane
rating is recommended.
Two-stroke oil
• For best results and performance use HUSQVARNA
two-stroke engine oil, which is specially formulated for
our air-cooled two-stroke engines.
• Never use two-stroke oil intended for water-cooled
engines, sometimes referred to as outboard oil (rated
TCW).
• Never use oil intended for four-stroke engines.
• A poor oil quality and/or too high oil/fuel ratio may
jeopardise function and decrease the life time of
catalytic converters.
• Mixing ratio
1:50 (2%) with HUSQVARNA two-stroke oil.
1:33 (3%) with oils class JASO FB or ISO EGB
formulated for air-cooled, two-stroke engines.
!
WARNING! Take care when handling fuel.
Bear in mind the risk of fire, explosion
and inhaling fumes.
!
WARNING! Fuel and fuel fumes are
highly inflammable and can cause
serious injury when inhaled or allowed to
come in contact with the skin. For this
reason observe caution when handling
fuel and make sure there is adequate
ventilation.
Petrol, litre Two-stroke oil, litre
2% (1:50) 3% (1:33)
50,10 0,15
10 0,20 0,30
15 0,30 0,45
20 0,40 0,60

FUEL HANDLING
18 – English
Mixing
• Always mix the petrol and oil in a clean container
intended for fuel.
• Always start by filling half the amount of the petrol to
be used. Then add the entire amount of oil. Mix
(shake) the fuel mixture. Add the remaining amount of
petrol.
• Mix (shake) the fuel mixture thoroughly before filling
the machine’s fuel tank.
• Do not mix more than one month’s supply of fuel at a
time.
• If the machine is not used for some time the fuel tank
should be emptied and cleaned.
Fuelling
• Always use a fuel container with an anti-spill valve.
• Clean the area around the fuel cap. Contamination in
the tank can cause operating problems.
• Ensure that the fuel is well mixed by shaking the
container before filling the tank.
!
WARNING! The catalytic converter
muffler gets very hot during and after
use. This also applies during idling. Be
aware of the fire hazard, especially when
working near flammable substances and/
or vapours.
!

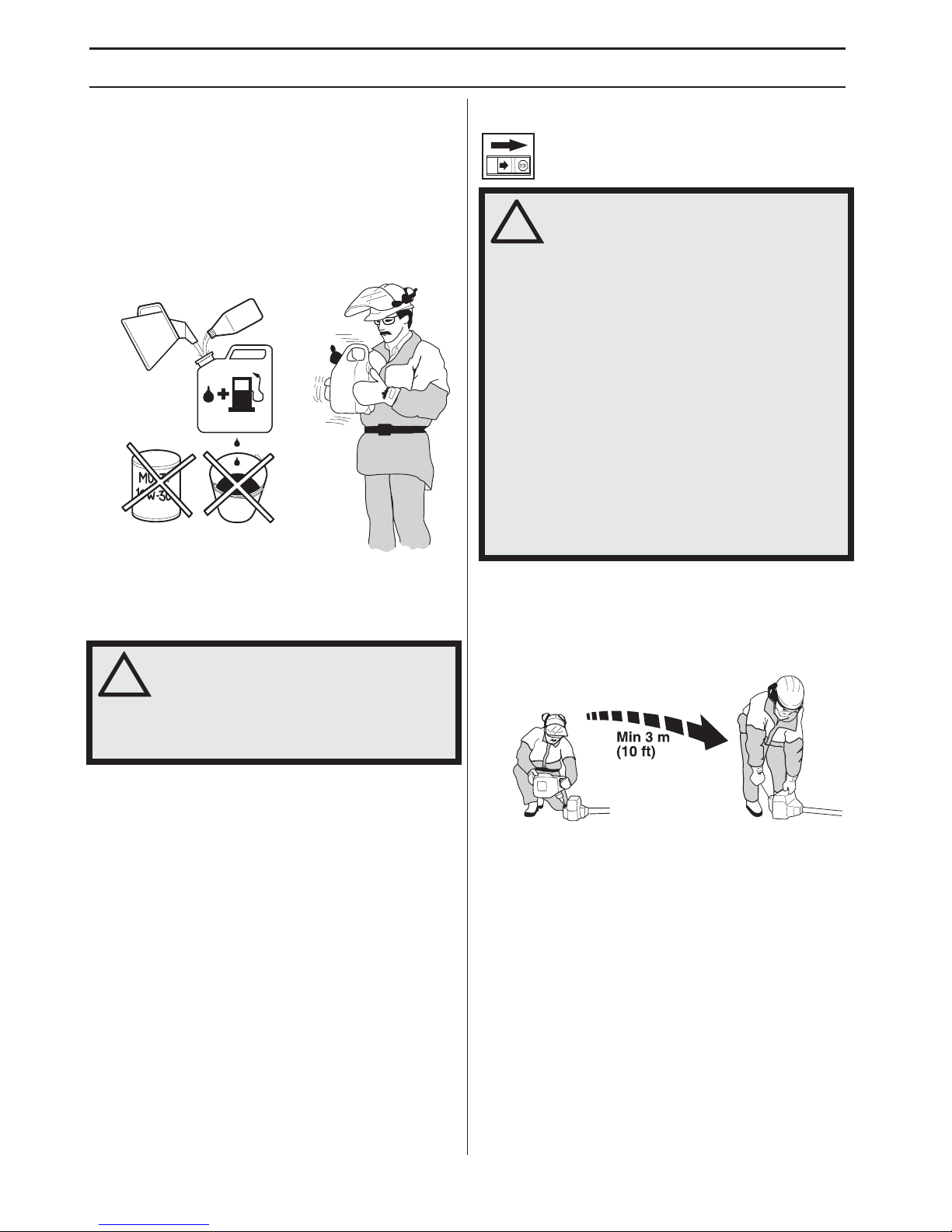

WARNING! Taking the following
precautions, will lessen the risk of fire:
Do not smoke or place hot objects near
fuel.
Always shut off the engine before
refuelling.
Always stop the engine and let it cool for
a few minutes before refuelling.
When refuelling, open the fuel cap slowly
so that any excess pressure is released
gently.
Tighten the fuel cap carefully after
refuelling.
Always move the machine away from the
refuelling area before starting.

STARTING AND STOPPING
English – 19
Check before starting
•Check the blade to ensure that no cracks have formed
at the bottom of the teeth or by the centre hole. The
most common reason why cracks are formed is that
sharp corners have been formed at the bottom of the
teeth while sharpening or that the blade has been
used with dull teeth. Discard a blade if cracks are
found.
• Check that the support flange is not cracked due to
fatigue or due to being tightened too much. Discard
the support flange if it is cracked.
• Ensure the locking nut has not lost its captive force.
The nut lock should have a locking force of at least 1.5
Nm.The tightening torque of the locking nut should be
35-50 Nm.
• Check that the blade guard is not damaged or
cracked. Replace the blade guard if it is exposed to
impact or is cracked.
• Check that the trimmer head and trimmer guard are
not damaged or cracked. Replace the trimmer head or
trimmer guard if they have been exposed to impact or
are cracked.
• Never use the machine without a guard nor with a
defective guard.
• All covers must be correctly fitted and undamaged
before you start the machine.
Starting and stopping
Starting
Primer bulb: Press the air purge repeatedly until fuel
begins to fill the bulb. The bulb need not be completely
filled.
!
WARNING! The complete clutch cover
and shaft must be fitted before the
machine is started, otherwise the clutch
can come loose and cause personal
injury.
Always move the machine away from the
refuelling area before starting. Place the
machine on a flat surface. Ensure the
cutting attachment cannot come into
contact with any object.
Make sure no unauthorised persons are
in the working area, otherwise there is a
risk of serious personal injury.The safety
distance is 15 metres.

STARTING AND STOPPING
20 – English
Choke: Set the choke control in the choke position.
Hold the body of the machine on the ground using your
left hand (CAUTION! Not with your foot!). Grip the starter
handle, slowly pull out the cord with your right hand until
you feel some resistance (the starter pawls grip), now
quickly and powerfully pull the cord. Never twist the
starter cord around your hand.
Repeat pulling the cord until the engine starts. When the
engine starts. return choke control to run position and
apply full throttle; the throttle will automatically disengage
from the start setting.
CAUTION! Do not pull the starter cord all the way out and
do not let go of the starter handle when the cord is fully
extended. This can damage the machine.
CAUTION! Do not put any part of your body in marked
area. Contact can result in burns to the skin, or electrical
shock if the spark plug cap has been damaged. Always
use gloves. Do not use a machine with damaged spark
plug cap.
For throttle handles with a start throttle
lock:
Set the throttle to the start position by first pressing the
throttle lockout and the throttle trigger, then pressing the
start throttle button (A). Then release the throttle lockout
and the throttle trigger, followed by the start throttle
button.The throttle function is now activated.To return the
engine to idle, press the throttle lockout and throttle
trigger again.
Stopping
Stop the engine by switching off the ignition.
CAUTION! The stop switch automatically returns to the
start position. In order to prevent unintentional starting,
the spark plug cap must be removed from the spark plug
when assembling, checking and/or performing
maintenance.
!
WARNING! When the engine is started
with the choke in either the choke or
start throttle positions the cutting
attachment will start to rotate
immediately.
