Huviron SK-NP621 User manual

Chapter 1. Install and Specification
1.1 Safety Cautions
1.2 Package
1) This camera may be damaged by electrical and physical shock.
Use regulated 12V DC, 1A power supply. Do not throw or drop it onto floor.
2) This camera can be used outdoor. But if it is used outdoor, it is required to use
the sunvisor and avoid direct light from the sun. Do not use it under water.
3) In case it is installed at high location, be sure to mount securely to prevent the
unit from falling below.
4) In case the unit fails, DO NOT try to disassemble the product.
Contact or consult the distributor or an authorized technician for after-sales
service.
Warranty void for the product disassembled without an authorization from the
distributor or an authorized technician.
5) All responsibility by using this unit is on the user.
5. Loosen the bolt by using the 3mm wrench included.
6. Face the direction of the camera to monitor.
7. Tighten the bolt to complete adjustment.
1.7 Specification
1.7.1 Camera Specification
1.6 How To Install
1. Make a hole of Ø25mm in diameter for passing cable.
2. Drill four holes on the wall or ceiling and insert the anchors.
3. Arrange the cables and fix the screws.
4. Attach the sunvisor and fix the sunvisor fixing bolt.
1.3 Accessories for installation
1.4 Dimension
1.7.4 Electric Specification
1.7.5 Alarm Input/Output
1.7.6 Audio Input/Output
2
1.5 Camera setup(Control board)
①FOCUS, ②ZOOM :
③EXT. VIDEO :
④POWER :
⑤Rx/Tx :
⑥LINK :
⑦SYSTEM RESET :
⑧FACTORY RESET :
Use a '+' type driver for adjusting focus and zoom.
(In case of operation Focus/Zoom, don't put stress excessively.)
Extra video output terminal for installation.
Plug your test monitor in hear. The cable is option
Light would turn on when power is on.
Light would turn on when the user connect by the network.
Light would turn on when the LAN cable is connected to the unit.
Press the button to reset whenthe unit isnot working normally.
Turn on the power and wait 2 minutes. Press the button
for 3 seconds to set the ID and Passwords for administration and IP setting
values to the Factory default.
[Reference] Please refer to Video Check in Chapter 2 and Chapter 5. System Setting
regarding default value.(Refer to the manual in the CD.)
3
7
4
6
1.7.2 Camera Function
1.7.3 Network Specification
85
Software & User Manual CD
Camera Quick Guide
If the product is to be put out of operation definitively, take it to a
local recycling plant for a disposal which is not harmful to the
environment.
ANCHOR 6x30 4EA
SCREW 4x35 TP1 BIND SUS, 4EA
HEXAGON WRENCH 3.0mm
L TYPE, 1EA
BOLT 1/4"-20UNC L=6, 1EA
3
21
5
7
4 6
8
*Focus/Zoom adjustment direction
1. Unfasten the screw of the bottom door
2. Adjust the Focus and Zoom trimmers
3. Tighten the screw of the bottom door
ANCHOR 6x30, 4EA
WALL
SCREW Tp1 4x35, 4EA
BOLT
SUNVISOR
WRENCH
BOLT
Privacy Zone
Day&Night
WDR
Sense Up
White Balance
ON / OFF(6 Programmable Zones)
Auto / Night / Day
WDR(1 ~ 5), (Back Light, Front Light)
Auto(1 ~ 14)
Auto / Indoor / Outdoor / Fluorescent / User
Function Specification
Auto : 1/25 ~ 1/5,000(NTSC), 1/12.5 ~ 1/8,000(PAL)
Suppress Rolling, Manual
Electronic Shutter
86.4
131.3
236
241.1
Ø6 Ø25
Specification Classification
Item
Summary
Function
OS
Network Interface
Setting
Security
PC OS
Web Browser
Compression
Resolution
Compression Rate
Frame Rate
Bit Rate
Simultaneous Access
Video Recording
Motion Detection
Privacy Zone
OSD
Alarm Input/Output
Dynamic IP
IP Router
DDNS
Network Support
Supported Protocol
Embedded Linux
RJ45 10/100BaseT, Ethernet
By web browser
User authentication
WINDOWS XP, WINDOWS VISTA, WINDOWS 7
IE 7.0 or higher
H.264, MPEG-4, MJPEG
200 : 1(Typical)
Max. 30fps(@1920x1080)
64 ~9000kbps
Max. 10 users
Support
Support
Support
Support
Support
Support
Support
Leased Line, Cable Modem, Support Dynamic
IP and Static IP, ADSL usable under Router
TCP/IP, UDP/IP, RTP, RTSP, RTCP, NTP,
HTTP, DHCP, FTP, SMTP, DNS, DDNS
Recording in client PC with CMS or FTP Server
1920x1080 / 1280x1024 /
1280x960 / 1280x720 /
1024x768 / 640x480 / 320x240
Item Specification
Model No.
Type
Image Sensor
Effective Pixels
Scanning System
Alarm Input/Output
IR LED
Lens
Resolution
Min.Illumination
SK-NP621
Megapixel network Day&Night IR camera
1/2.8" SONY PROGRESSIVE SCAN EXMOR CMOS
1984(H) x 1225(V)
Progressive Scan
Input : 1, Output : 1
70PCS
Vari-focal auto iris megapixel lens
LED OFF : 0.01 Lux
LED ON : 0 Lux(60M Range)
1920x1080 / 1280x1024 /
1280x960 / 1280x720 / 1024x768 / 640x480 / 320x240
Classification Specification
Power Supply
Current Consumption
Operation Temp.
Preservation Temp.
Dimension
Weight
Max. 1A(DC 12V) IR LED ON
-45℃ ~ 50℃
-20℃ ~ 60℃
86.4(W) x 101.9(H) x 131.3(D)mm
Approx. 1kg
Regulated 12V DC, PoE(Power over Ethernet) - IEEE802.3af
MIC(Red)
LINE OUT(Black)
D
DC 12V/100mA out
A
Alarm-in
B
GND
C
Alarm-out
2 MEGA PIXEL
NETWORK IR PIPE CAMERA
SK-NP621
QUICK GUIDE

1.7.5 Basic Setting Table
[Reference] In case to reset hardware and network setting, ID and password of user
andAdministrator will be automaticallyreturned to the above default value.
*Frame rate can be affected by the external video output option.
So factory default is off. When you install the camera, enable this option. Then disable
it after the installation.
Static IP
Enable
192.168.1.30
192.168.1.1
255.255.255.0
80
554
5000 ~ 5999
admin/admin
root/root, guest/guest
iplinker.net
H.264 30fps@ (1920x1080)
None
None
OFF
rtsp://<ip address>:554/stream1
rtsp://<ip address>:554/stream2
rtsp://<ip address>:554/stream3
After installation, deactivate it.
Network
Static IP/Dynamic IP
IP Server Enable
IP Address
Gateway
Subnet Mask
RTSP Port
RTP Port Range
ID and Password
User ID/Password
Domain of Related Server
DDNS Server
Stream setting
Stream 1
Stream 2
Stream 3
Video out*
Administrator
ID/Password
Web Connection
Port
Item Default(Basic setting) Remarks

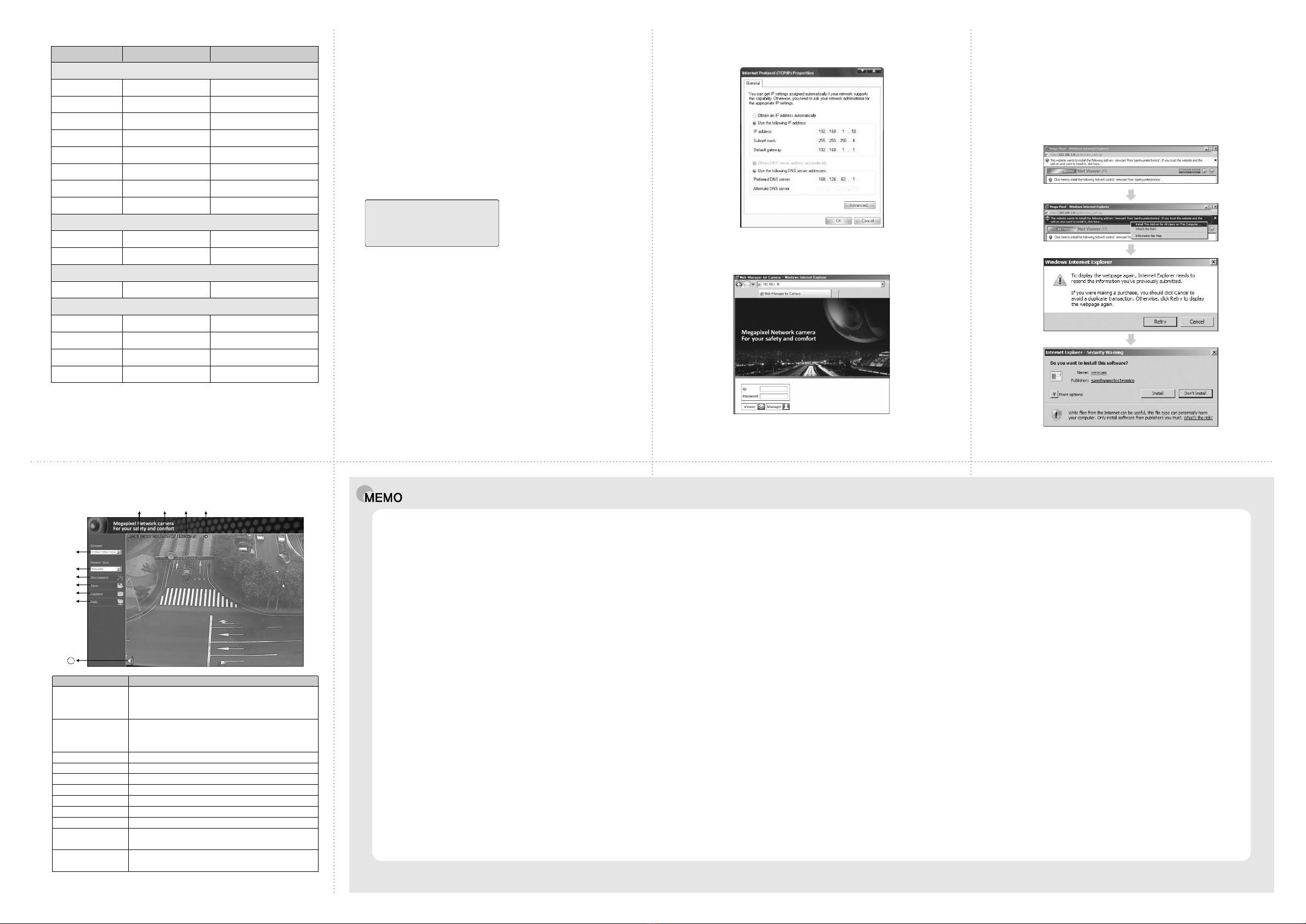

Chapter 2. Installation and Video Check
2.1 Installation
2.2 Network Setting and Video Check
On the assumption that User PC and the camera are used under static IP, and
the camera is to be directly connected with User PC or Local Network.
The installation procedure is to be;
1) Connect the camera and PC with LAN Cable.
2) Power on camera.
※Use regulated 12V DC, 1A
※Use PoE(Power Over Ethernet) : The cable includes data and power, so it's
easy to install the camera. So, you can save time to install and cost. When you
connect the camera with PoE and DC adaptor, Only PoE is used.
3) Wait about 2 minute after power on camera, the system will be booted.
To connect the unit in user's PC, change the setting valueof PC network environment.
on your PC.
Default network setting value of the unit is to be;.
<Caution> Before changing the setting value, please memorize the previous setting
value
2.2.1 Change the setting value of PC network environment
2.2.2 Connect the camera with web browser
Set IP Address, Subnet Mask and Gate-way of user's PC with 192.168.1.50 /
255.255.255.0 / 192.168.1.1 as shown on below picture.
Run web browser and input the default IP address(192.168.1.30) in URL line
and press "Enter". Then, below picture is to be shown.
※If the page does not open, Please refer to "Chapter 11 appendix" in the CD.
2.2.3 Input ID/Password
2.2.4 Active-X auto installation
Shown the main page, input ID and Password and click on "Viewer" to see the
video feed.(Default administrator's ID &Password is 'admin'.)
Click "install" on the security certificate to load the Active-X control.
If you choose "Don't install", the web viewer would not work.
<Caution>
[Reference]
Please change default value of ID/Password into new ones after the
installation.
Please refer to 5.3 Administrator's ID and Password Change regarding
'Change Administrator'.
10 11 129
3B25775A
13
2.2.5 Complete the installation
Upon installation, Web Viewer appears and image of camera is to be seen.
11
⑩
①
②
③
④
⑤
⑥
⑧⑦ ⑨
Item Description
⑩Status Icon
⑪Stream Info.
Connect or disconnect to the stream
Saves the stream as a moving picture file in the .avi format
Saves the snapshot as an image file in the .bmp format
Specify the file saving path
Display camera title
Display the date
Display current time
Select stream codec and resolution menu related to
live-view was defined only by the admin.
(H.264/MPEG/MJPEG)
Default size is 640X480.
Adjust the screen to the optimal size(Recommendation :
Select the same size with stream resolution)
Display the site information such as Day/Night, Motion,
Alarm input/output
Display the stream information such as Audio and
recording condition
①Stream selection
②Window size
④Recording
⑤Capture
⑥Saving path
⑦Camera name
⑧Date
⑨Time
③Connection/Disconnection
IP Address : 192.168.1.30
Subnet Mask : 255.255.255.0
Gateway : 192.168.1.1
②
③
①
※The specification is subject to change without any prior notice to improve the quality.
