Hydrel 3100 Series User manual

1. Install supplied J-bolt anchor assembly over electrical supply conduit stub-outs [by others] and into a concrete
pad pour form [by others]. The electrical supply conduit stub-outs must pass through the center of the template
bracket of the J-bolt anchor assembly .
NOTES:
zElectrical supply conduit stub-outs should be no higher than 3" (76mm) above grade with supply wires at a
recommended 12" (305mm) minimum length.
zMaximum conduit stub-out number and size: Two (2)- ¾” (25mm) conduit stub-outs or three (3)- ½” (20mm) conduit
stub-outs.
zThe concrete pad pour form should be a minimum of 9" across the top in any direction and a minimum of 18" deep.
2. Orient the J-bolt anchor assembly to ensure that the access door of the 3100 bollard is in the desired location
when the bollard is installed.
NOTES:
zFor proper bollard installation, the top of the template bracket must be flush and level with final grade.
zSee reverse side of this sheet for recommended J-bolt anchor assembly orientation.
3. Fill the concrete pad pour form [by others] with concrete [by others] to the top surface of the template bracket .
For best results, ensure that top surface of concrete is smooth and level.
NOTES:
zFor proper bollard installation, the Anchor Bolt Top Fasteners must be above grade and removable.
These will be used later to secure the bollard 3100 bollard to the J-bolt anchor assembly.
4. Allow concrete pad to cure securing J-bolt anchor assembly into the pad before installing 3100 series bollard fixture.
NOTES:
zProtect J-bolt and conduit stub-outs from damage prior to installation of 3100 bollard fixture.
zSee 3100 Bollard Installation Instructions for complete assembly.
A
3100 BOLLARD
12881 Bradley Ave
Sylmar,CA91342
Phone: [phone]
Fax:[phone]
www.hydrel.com
©2006 Hydrel
Rev. 7/10/06
INS-3100_RD_J-BOLT_rev1
INSTALLATION INSTRUCTIONS
NOTE: HYDREL RESERVES THE RIGHT TO MODIFY SPECIFICATION WITHOUT
NOTICE. Any dimension on this sheet is to be assumed as a reference
dimension: "Used for information purposes only. It does not govern
manufacturing or inspection requirements." (ANSI Y14.5-1973)
3110, 3120
Front
Supply Wires
12” (305 mm)
Minimum Length
Conduit Stub-outs
3” (76 mm)
Maximum Height
Concrete
18” (457 mm)
Minimum Depth

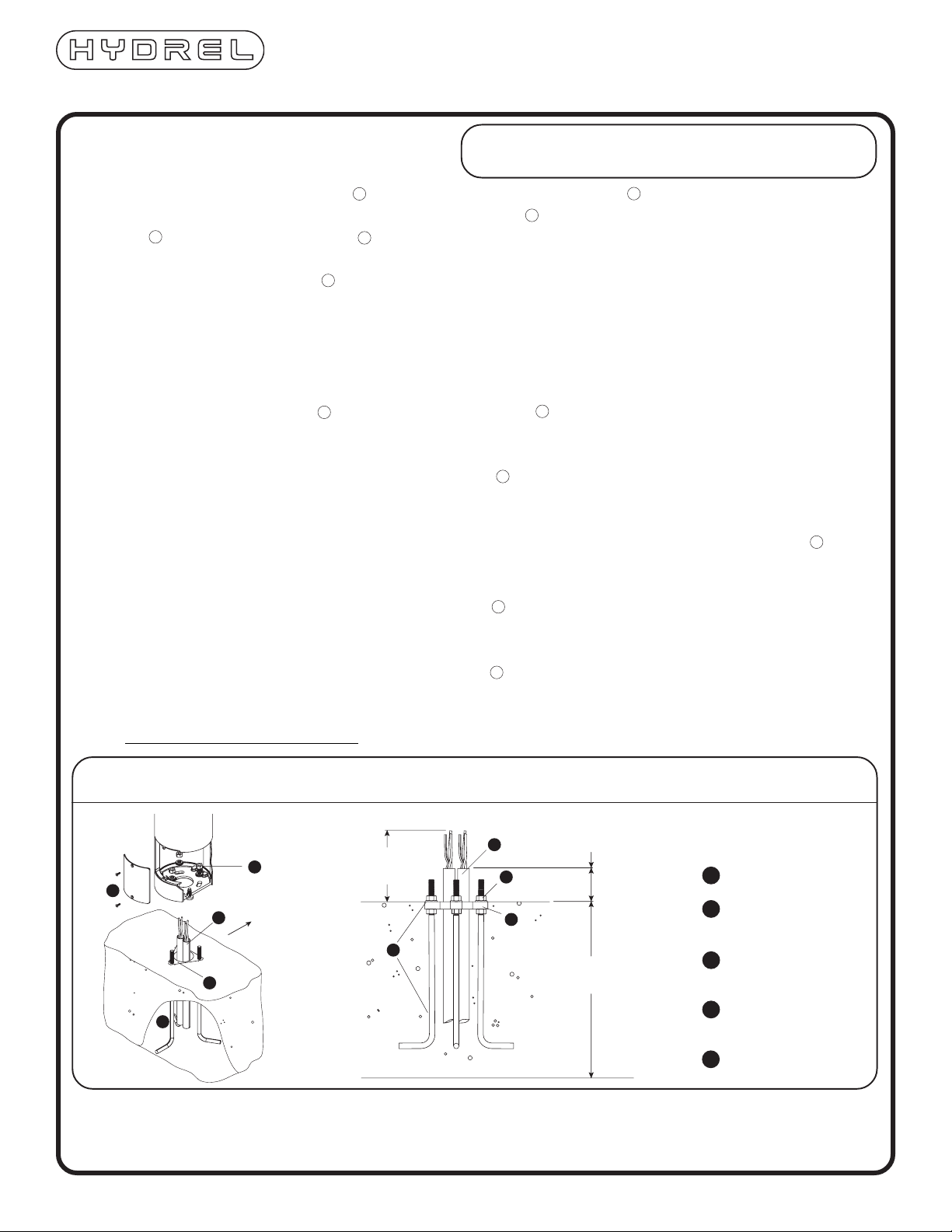

J-BOLT ANCHOR INSTALLATION
A
B
C
D
C
B
A
D
C
B
A
D
C
B
E
B
A
C
B
A
A
C
D
J-Bolt Assembly
Electrical Conduit
Stub-Out
Anchor
Template Bracket
Anchor Bolt
Top Fasteners
Access DoorE
E
Installation should be performed by a licensed
electrician in accordance with the National Electrical Code
and relevant local codes.

3100 BOLLARD
12881 Bradley Ave
Sylmar,CA91342
Phone: [phone]
Fax:[phone]
www.hydrel.com
©2006 Hydrel
Rev. 7/10/06
INS-3100_RD_J-BOLT_rev1
Installation should be performed by a licensed
electrician in accordance with the National Electrical Code
and relevant local codes.
NOTE: HYDREL RESERVES THE RIGHT TO MODIFY SPECIFICATION WITHOUT
NOTICE. Any dimension on this sheet is to be assumed as a reference
dimension: "Used for information purposes only. It does not govern
manufacturing or inspection requirements." (ANSI Y14.5-1973)
Access Door
Front
Pathway
Top View, Access Door on back side
Orient J-bolt anchor assembly as shown
Access Door
Front
Pathway
Top View, Access Door on front side
Orient J-bolt anchor assembly as shown
Access
Door
Front
Pathway
Top View, Access Door on right side
Orient J-bolt anchor assembly as shown
Access
Door
Front
Pathway
Top View, Access Door on left side
Orient J-bolt anchor assembly as shown
INSTALLATION INSTRUCTIONS
3110, 3120
