Hydrel 9300 Series User manual

12881 Bradley Ave
Sylmar,CA91342
Phone: [phone]
Fax:[phone]
www.hydrel.com
©2006 Hydrel
Rev. 07/26/06
INS-93 REV_0
NOTE: HYDREL RESERVES THE RIGHT TO MODIFY SPECIFICATION WITHOUT
NOTICE. Any dimension on this sheet is to be assumed as a reference
dimension: "Used for information purposes only. It does not govern
manufacturing or inspection requirements." (ANSI Y14.5-1973)
9300 SERIES
FLUSH WELL LIGHTS
INSTALLATION DIAGRAM
1. Install well flush with finish grade in EARTH OR CON-
CRETE ONLY.
2. Provide 6" of pea gravel at bottom of well for drainage.
3. Position j-box or combo box so that it is flush with finish
grade and interconnecting conduit enters under well.
4. Leave enough cord in well to pull lamp housing out for
re-lamping.
USE CORRECT LAMP TYPE AT RATED WATTAGE.
SEAL CONDUIT ENTRY WITH SUITABLE COMPOUND TO PREVENT
MOISTURE PENETRATION FROM THE SUPPLY CONDUIT SYSTEM.
USE SUITABLE THREAD SEALING COMPOUND WHEN CON-
NECTING CONDUIT.
THE FACTORY CONDUIT IS FOR INTERCONNECTING
THE LAMP HOUSING TO THE J-BOX.
5. Install correct lamp type at rated voltage.
6. Tighten j-box screws using a crisscross pattern to 50
inch pounds (minimum).
7. Remove debris from screw holes and under gasket, or
lamp housing will not seal properly.
8. Place lamp housing into the fixture well and position it.
9. Install grill and tighten set screws securing it to the well.
FLUSH WITH
FINISH GRADE IN
EARTH OR CON-
CRETE ONLY.
TO SUPPLY
FACTORY
CONDUIT
TEFLON TAPE
COUPLING
NYLON
WASHER FIXTURE
CORD
TO
LAMP
CORD SEAL BODY GROMMET
CORD SEAL NUT
EXPLODED VIEW CORD SEAL
1. Slip brass cord seal onto fixture cord and push
cord through the fixture well and conduit until
sufficient cord is in j-box for proper connections
to be made.
2. Thread brass cord seal into coupling at end of
supplied conduit. Tighten completely.
3. Use minimum of 3 wraps of teflon tape around
threads for water tightness.
4. Cord seal will act as a watertight connection and
strain relief.
CORD SEAL INSTALLATION DETAIL:
T
T
T
T
T
INSTALLATION INSTRUCTIONS Installation should be performed by a qualified
electrician in accordance with the National Electrical Code
and relevant local codes.
DISCONTINUED

12881 Bradley Ave
Sylmar,CA91342
Phone: [phone]
Fax:[phone]
www.hydrel.com
©2006 Hydrel
Rev. 07/26/06
INS-93 REV_0
NOTE: HYDREL RESERVES THE RIGHT TO MODIFY SPECIFICATION WITHOUT
NOTICE. Any dimension on this sheet is to be assumed as a reference
dimension: "Used for information purposes only. It does not govern
manufacturing or inspection requirements." (ANSI Y14.5-1973)
9300 SERIES

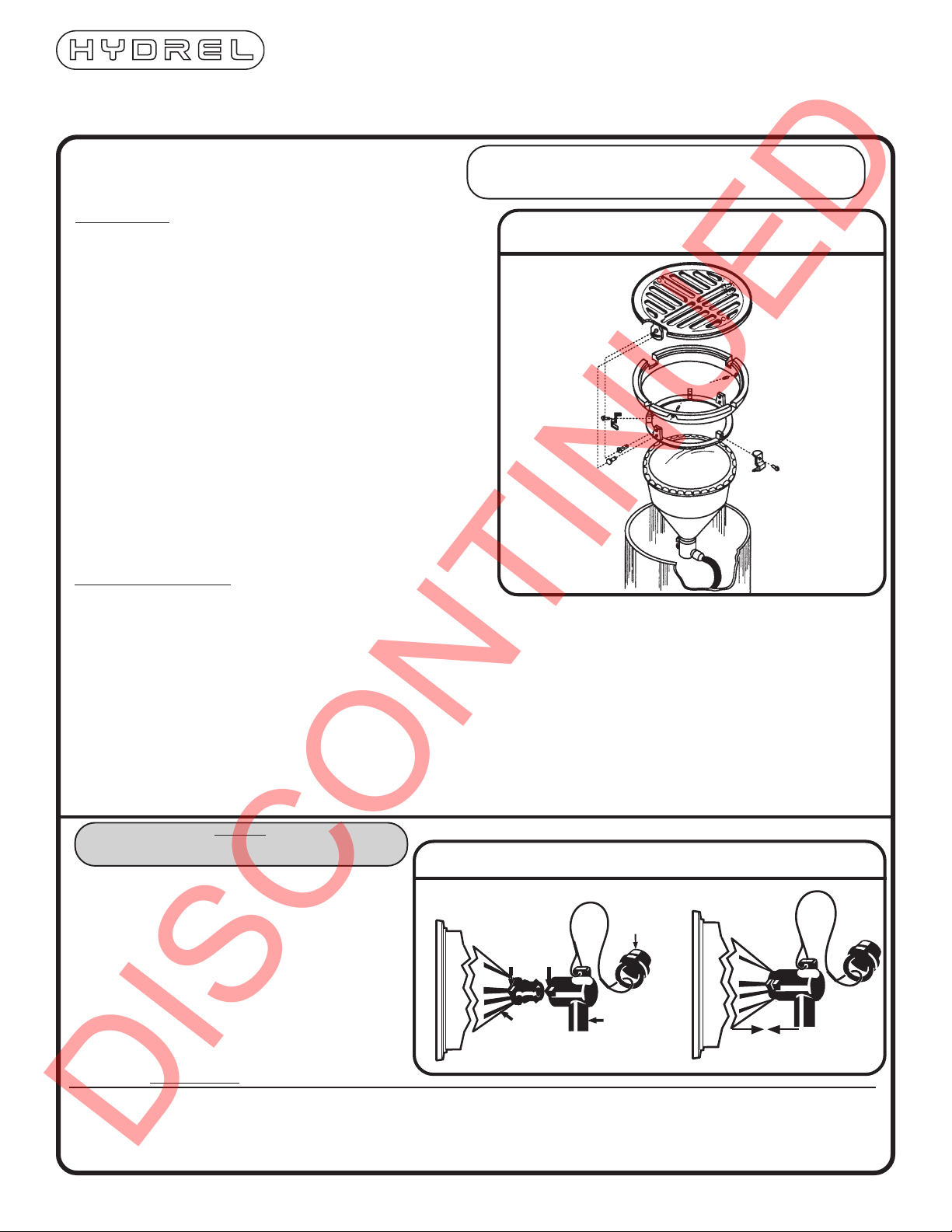

RE-LAMPING, MAINTENANCE AND AIMSET™ RECOMMENDATIONS
RELAMPING:
1. Make sure power to fixture is off.
2. Remove the grill and dismount the sealed lamp module from
the grate.
3. Unplug the lamp module and place the attached plug cover
into the connector.
4. When replacing the lamp use correct lamp type and rated
wattage.
5. Take the module to a clean dry place (to prevent condensa-
tion within the lamp module, it’s best to relamp in a dry
atmosphere, such as an air conditioned space.)
6. The lamp module is sealed by a clamp ring with a single
fastener. Loosen the ring for easy access to the lamp.
7. Replace the lamp, clean the lens, and replace the gasket.
8. Remove the protective plug from connector and reconnect
the module.
9. Remount the lamp module onto the grate and secure the
grate to the well.
10. Tighten set screws to secure.
MAINTENANCE TIPS:
1. Clean lens: Debris must be keep clear from top of fixture.
Excessive heat could occur that may harm fixture gasket or create a fire hazard.
2. Lenses may be soaked in white vinegar to remove lime build-up.
3. Remove any debris that might accumulate inside the well during operation or during the relamping process.
4. Replace gasket if it is cracked, torn, or badly depressed or worn.
AIMSET™
The AIMSET™ accessory allows relamping of the fixture without reaming. A machined ring is secured to the well via set
screws which allow a 360o rotation. The grate is indexed such that it will fit into a single position on the ring and is secured
with two fasteners. Aiming is accomplished by adjusting the lamp module to the desired angle and tightening a bolt and a
screw.
The AIMSET™ allows the installer to preset the beam angle and direction. Once set the fixture can be relamped while
retaining the original setting—a significant time saving and aiming accuracy convenience. Available in Aluminum and Bronze.
RE-LAMPING DIAGRAM
1. Check marking on lamp module with power cord
markings to ensure proper power connection.
2. Remove red temporary plug cover from lamp module.
(Lamp module connector is charged with electrical
compound. Be careful not to get dirt into compound.)
3. Unplug attached plug cover from power cord. Leave
cover attached for connector protector protection
during future relamps.
4. Align triangle tab on bottom of the lamp module
connector with the tab on the molded power cord.
Lightly push the connector & cord together until the
connection is seated. Then push firmly to seat the
connector. DO NOT TWIST.
CAUTION:
DO NOT CONNECT LAMP MODULE WHILE SYSTEM IS
ENERGIZED. TURN OFF POWER PRIOR TO LAMPING. MODULE CONNECTOR DETAIL
LAMP
MODULE
ALIGN TABS
POWER
PLUG
ATTACHED
PLUG
COVER
PUSH TO SEAT
INSTALLATION INSTRUCTIONS Installation should be performed by a qualified
electrician in accordance with the National Electrical Code
and relevant local codes.
DISCONTINUED
