HyperSynth HCARD-101 User manual

HCARD-101
rev 1.0
USER MANUAL
MEMORY CARD FOR KORG SYNTHESIZERS

Table Of Contents
Product Overview ...........................................................................................................................................................................................1
Installation Instructions...................................................................................................................................................................................1
Initial Configuration for Multi-Device Compatibility ........................................................................................................................................2
Splash Screen Overview (M1 Mode) ................................................................................................................................................................3
Main Menu Functions (M1 Mode) ...................................................................................................................................................................3
Bank Selection Menu (M1 Mode) ....................................................................................................................................................................4
Tools Menu (M1 Mode)...................................................................................................................................................................................4
Write Protect Menu .........................................................................................................................................................................5
Rename Bank Menu .........................................................................................................................................................................5
Copy Bank Menu ..............................................................................................................................................................................6

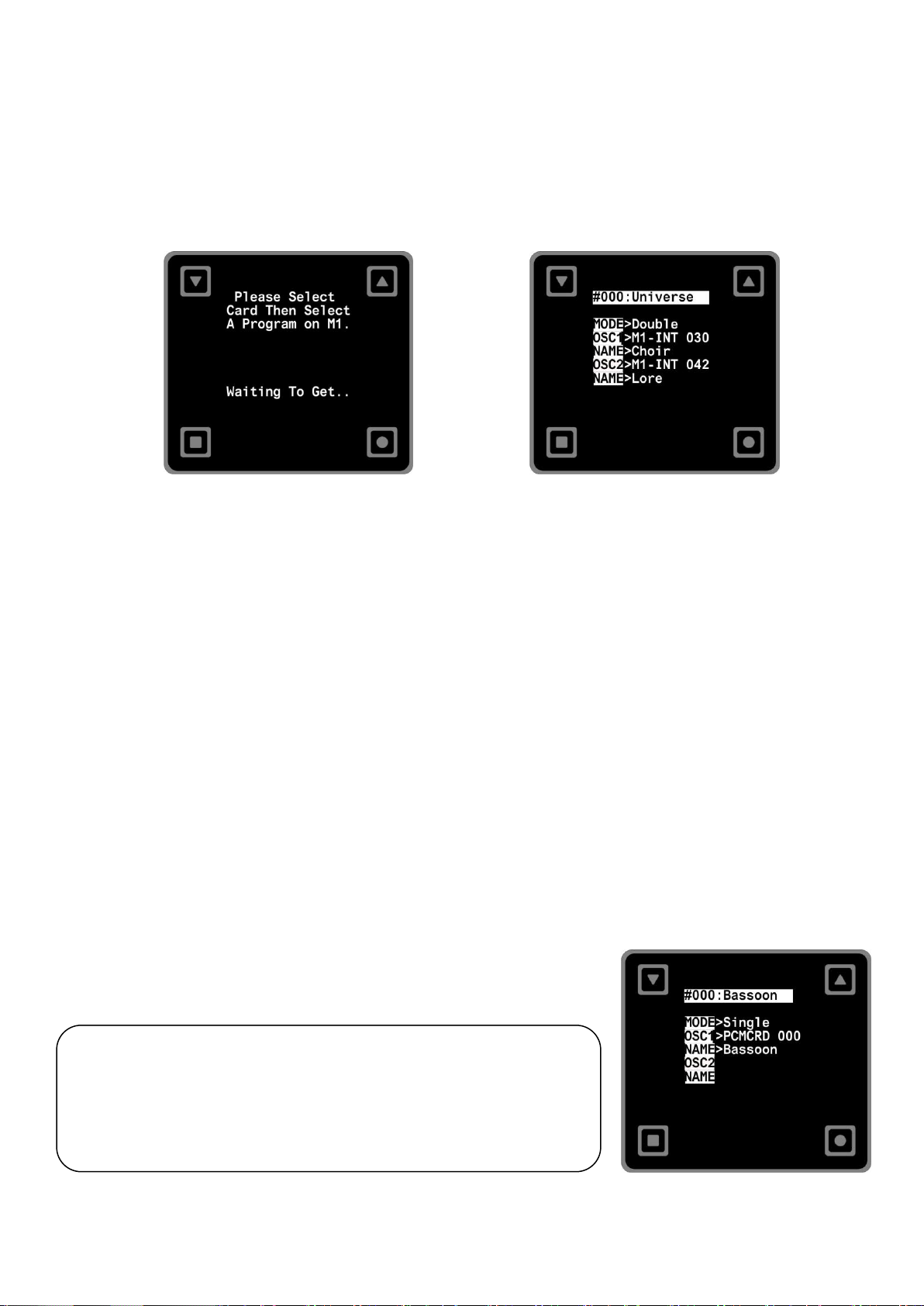

Program Capture..............................................................................................................................................................................7
Program Listing ................................................................................................................................................................................8
Sound Library for Korg M1/M1R/Tx Series ....................................................................................................................................................10
Splash Screen Overview (WS Mode) ..............................................................................................................................................................11
Main Menu Functions (WS Mode) .................................................................................................................................................................11
Bank Selection Menu (WS Mode) ..................................................................................................................................................................12
Tools Menu (WS Mode).................................................................................................................................................................................12
Write Protect Menu .......................................................................................................................................................................13
Renaming a Bank in Hcard-101 (WaveStation Mode)......................................................................................................................13
Copy Bank Menu ............................................................................................................................................................................14
Sound Library for Korg WaveStation and WS-A/D .........................................................................................................................................16

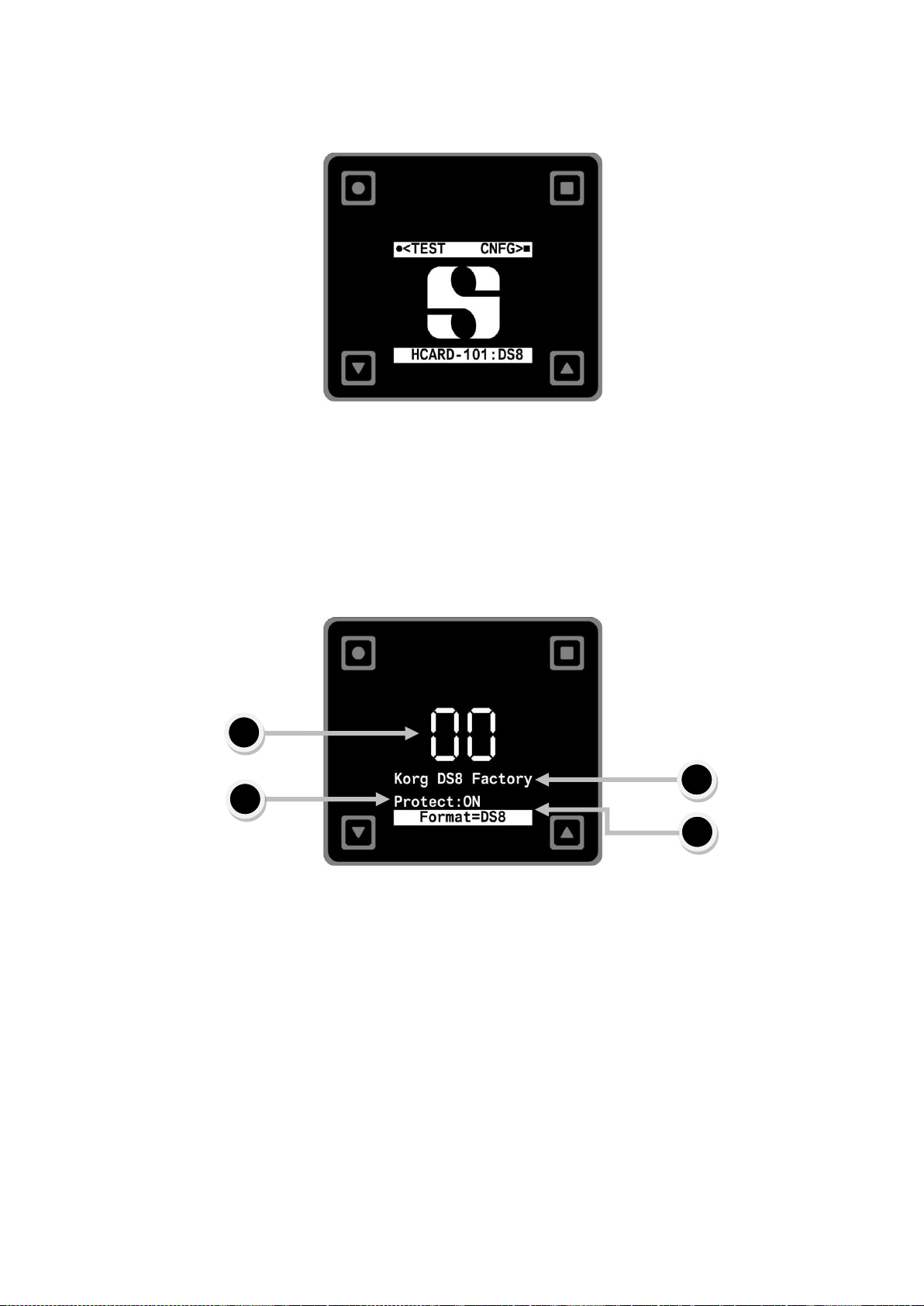

Splash Screen Overview (DS-8 MODE) ...........................................................................................................................................................17
Main Menu Functions (DS-8 MODE) ..............................................................................................................................................................17
Bank Selection Menu (DS-8 MODE) ...............................................................................................................................................................18
Tools Menu (DS-8 MODE)..............................................................................................................................................................................18
Write Protect Menu .......................................................................................................................................................................19
Renaming a Bank: ..........................................................................................................................................................................19
Copy Bank Menu ............................................................................................................................................................................20
Sound Library for Korg DS-8 ..........................................................................................................................................................................21
Splash Screen Overview (A1 Mode) ...............................................................................................................................................................22
Main Menu Functions (A1 MODE) .................................................................................................................................................................22
Bank Selection Menu (A1 MODE) ..................................................................................................................................................................23
Tools Menu (A1 MODE).................................................................................................................................................................................23
Write Protect Menu .......................................................................................................................................................................24
Rename Bank Menu .......................................................................................................................................................................24
Copy Bank Menu: ...........................................................................................................................................................................25
Sound Library for Korg A1..............................................................................................................................................................................26
Test Menu.....................................................................................................................................................................................................27
Technical Specification ..................................................................................................................................................................................28

HCARD-101................................................................................................................................................................................ HYPERSYNTH
1
Product Overview
Hcard-101 is an intelligent memory card with multi-bank and multi-device capabilities, purposefully tailored for use with Korg
M1, WaveStation, DS8, and A1 models. The Korg M1 synthesizer's voice memory is initially limited to 100 presets, which can be
upgraded to 200 presets (1 extra bank) by utilizing a Korg "MCR-03" RAM card. However, the availability of the Korg RAM card is
limited due to its discontinuation, rarity, and high cost. These factors collectively render it a less favorable choice for enthusiasts
in the modern era. The "Hcard-101" serves as a seamless replacement for the Korg "MCR-03". It boasts the capacity to store up
to 127 banks of data, all without concerns about battery lifespan and potential data loss.
Features:
Memory Capacity: Supports up to 126 banks, segmented as follows: (M1:64 banks, WS: 40 banks, DS8:24 banks, A1:16
banks)
Pre-Loaded Soundbanks: Comes with 73 pre-loaded soundbanks, including 57 from Korg ROM cards. Additionally, it
contains 11 Hypersynth categorized banks specifically for M1 and more.
Touch Pad Accessibility: Instantly switch between different banks using 4 touch pads.
Display: Features a 128x128 pixel OLED display (free angle).
Adaptive Display: Automatic rotation feature corrects display orientation if the card is inserted in reverse, especially
useful for rack-mount devices.
Enhanced Memory Protection: An independent "Memory Protect" option for each bank, offering protection without
locking the entire card.
Customization: Allows user-defined names for banks.
Quick Bank Navigation: Easily navigate between banks via the bank list menu.
Efficient Management: Use the "Bank Copy" function to duplicate banks without overwriting the internal memory of
the synth.
Battery-Free: Operates without the need for a battery.
Robust Build: CNC metal case sporting a scratch-resistant grey anodized finish.
Compatibility: Drop-in replacement for the Korg "MCR-03" RAM card.
Extensive Device Compatibility: Works seamlessly with Korg M1, M1-EX, M1R, M1R-EX, T1, T2, T3, WS, WS-EX,
WS-A/D, DS8, and A1.
M1 Dedicated Features:
Format Decoding: Displays the format of the selected bank on the main screen.(100prg/100cmb,
50prg/50cmb/4200seq, 7700seq)
Program Capturing: Presents valuable details about the chosen program, including its compatibility with M1/M1EX, or
any requirements for an external PCM card.
Program Listing: Showcases 8 program names simultaneously, allowing for quick access and browsing of desired
sounds.
Bank Info: Provides a comprehensive report highlighting the number of programs in the chosen bank that utilize M1
waveforms, M1EX waveforms, or External PCM card waveforms.
WS Dedicated Feature:
Dynamic Update: Automatically updates the card name on the Wavestation display upon selecting a new bank on the
Hcard.
Installation Instructions
1. Power Off: Ensure that your synthesizer is powered off before inserting the memory card.
2. Insert the Card: Locate the memory card slot on your synthesizer and gently insert the Hcard-101, making sure it is
securely in place.
3. Power On: Turn on your synthesizer. The device should automatically recognize the Hcard-101.

HCARD-101....................................................................................................................................................... KORG M1/M1R/Tx MODE
2
Initial Configuration for Multi-Device Compatibility
When you initially power up your device with the Hcard-101 inserted, it will automatically display a startup message for 4 seconds before
transitioning to the configuration menu. This step allows you to customize the Hcard-101 to your specific device, ensuring compatibility.
>
Within the configuration menu, start by using the [▼] and [▲] buttons to select your device. Once you've made your selection, press the [█]
button. At this stage, the Hcard will automatically restart and display a splash screen:
Selecting the Appropriate Manual Section
This manual is organized into four distinct sections, each dedicated to a specific Korg synthesizer or effect processor. For those using the digital
PDF version, simply click on the hyperlinks provided below to navigate to the relevant section. If you're referencing a printed copy, please note
the page numbers associated with your specific device model to find the information you need.
Korg M1/M1R/Tx..................................................................................................................................................Page 03-10
Korg WS/WS-A/D .................................................................................................................................................Page 11-16
Korg DS-8 ..............................................................................................................................................................Page 17-20
Korg A1 .................................................................................................................................................................Page 21-26
Startup Message
Config Menu
Note on Adaptive Display Feature:
For users of the Korg M1R or WS-A/D (Rack Mounted Unit), please be aware of the
adaptive display feature which rotates the screen. When this feature is active, the
functions of the square [█]and circle [●] buttons will be reversed. Apart from the
point mentioned above, all the content and details within this manual remain
consistent and identical for both the M1 and M1R, as well as the WS and WS-A/D
models.

HCARD-101....................................................................................................................................................... KORG M1/M1R/Tx MODE
3
Splash Screen Overview
[ ▼] &[ ▲]: Maintain the Hcard in the splash screen while displaying a logo animation.
[█] M1 or [●] M1R: Enter the Test Menu to perform diagnostic checks and ensure optimal functionality.
[●] M1 or [█] M1R: Navigate to the Config Menu.
Main Menu Functions
[𝟏]: This field shows the active bank number. For the M1, the range is from 00 to 63.
[𝟐]: This field shows the active bank name.
[𝟑]: This field indicates the protection status of the active bank.
[𝟒]: This field indicates the active bank format, Possible formats include: "100prg/100cmb"," 50p/50c/4200sq",and "7700-SEQ".
[ ▲]: Press to increase the active bank number by +1. Hold for 1 second to increase the bank number more rapidly by +10.
[ ▼]: Press to decrease the active bank number by -1. Hold for 1 second to decrease the bank number more rapidly by -10.
[█] M1 or [●] M1R: Access the tools menu.
[●] M1 or [█] M1R: Access the bank selection menu.
Splash Screen (M1 Mode)
Main Menu (M1 Mode)
1
2
3
4
Splash Screen (M1R Mode)

HCARD-101....................................................................................................................................................... KORG M1/M1R/Tx MODE
4
Bank Selection Menu
Bank selection menu, enabling you to navigate through and select from a list of sound banks, organized by their names.
[ ▼]: Navigate to the next item in the list. If held down for 1 second, the display will advance to the subsequent page.
[ ▲]: Navigate to the previous item in the list. If held down for 1 second, the display will return to the preceding page.
[█] M1 or [●] M1R: Exit to main menu.
[●] M1 or [█] M1R: Use this button to confirm your selection and load the highlighted bank.
Tools Menu
In the Tools Menu, you have the capability to explore and adjust various features and settings associated with the banks saved on your Hcard.
The navigation buttons on the left and right (▼and ▲) help you scroll through the menu options. The square button [█]serves exit to the
main menu, and circle button [●] opens the highlighted item (for M1R the function of these buttons are reversed).
Each entry in the tools menu is detailed on the following page of this manual.

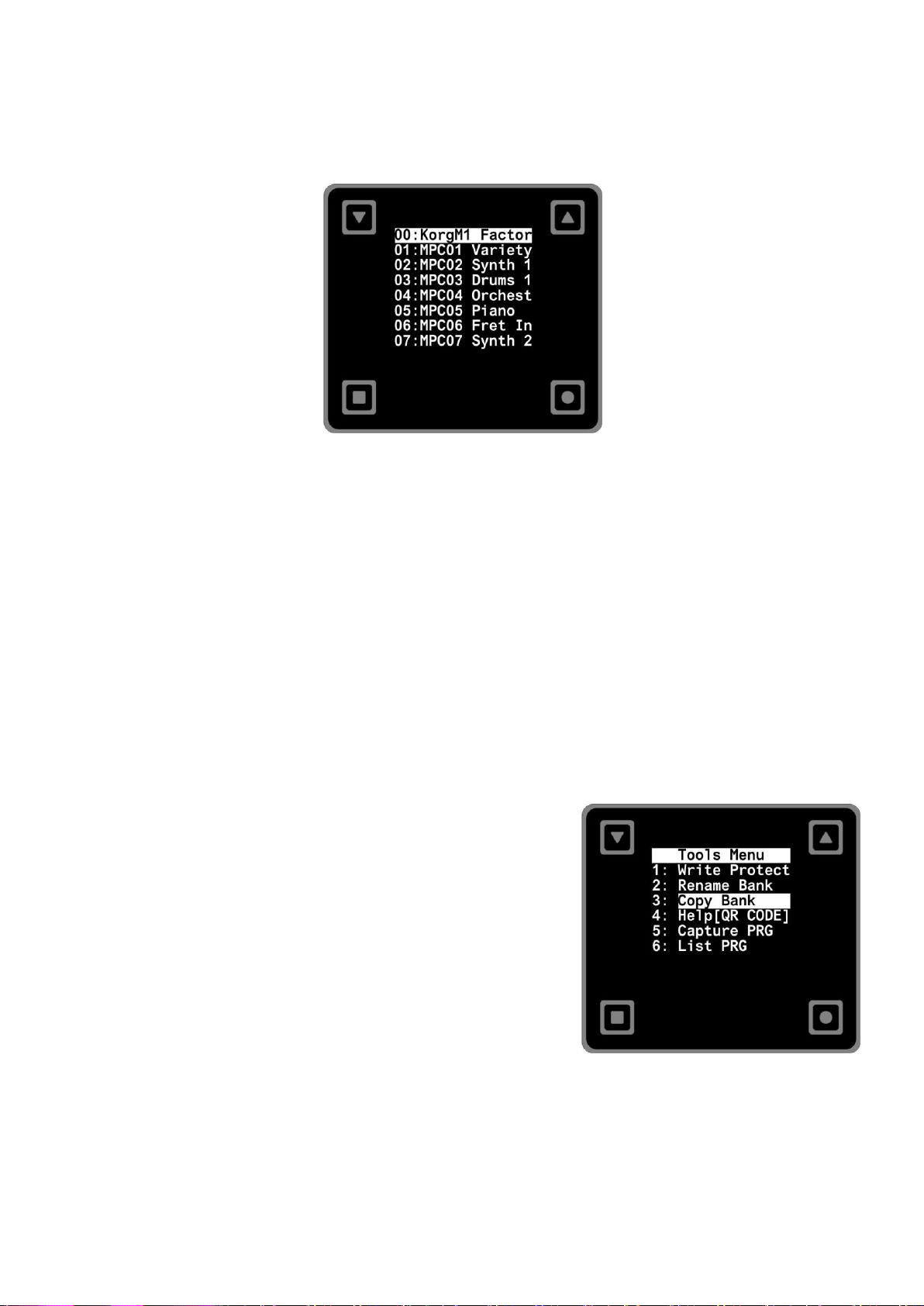

Bank Selection Menu (M1 Mode)
Tools Menu (M1 Mode)
1. Write Protect: This function allows you to secure a particular bank,
preventing any accidental changes or overwrites.
2. Rename Bank: Utilize this feature to give a custom name to a bank for
easy identification and retrieval. (Not functional for Korg Tx Series)
3. Copy Bank: This allows you to make a duplicate of a specific bank, which
can be useful when creating variations or backups.
4. Help[QR CODE]: It displays a QR code. By scanning this QR code with a
compatible device, such as a smartphone, you'll be directed to the PDF
version of this manual.
5. Capture PRG: Use this "capture" the current program settings and name.
(Not functional for Korg Tx Series)
6. List PRG: This option displays a list of all the programs stored in selected
the bank. (Not functional for Korg Series)

HCARD-101....................................................................................................................................................... KORG M1/M1R/Tx MODE
5
Write Protect Menu
Unlike vintage memory cards, the Hcard offers protection on a per-bank basis, rather than for the entire memory card. This flexibility allows
users to secure specific banks while leaving others available for modifications:
Title Bar: The topmost bar displays the menu name, "Protect Menu", indicating that you are in the protection settings area.
Bank XX: This shows the active bank number you are viewing or editing.
Protect: This displays the protection status of the selected bank. In the image, the protection is turned "ON", meaning changes can't
be made to the bank without disabling the protection first.
Bank Name: Below the protection status, the name of the bank is displayed. In the image, it's named "KorgM1 Factory".
[█] M1 or [●] M1R: This button allows you to exit the Protect Menu and return to the main screen.
[●] M1 or [█] M1R: This button lets you toggle the protection status of the bank. When "ON", the bank is protected from any
alterations. Switching it to "OFF" will allow modifications to the bank.
[ ▼] &[ ▲]: These triangle buttons allow you to scroll through different banks.
Rename Bank Menu
.
Write Protect Menu (M1 Mode)
The "Rename Menu" facilitates the renaming of specific banks in your Hcard,
offering a clear step-by-step process to ensure efficient and mistake-free
renaming. Given that the Hcard has a limited number of buttons, which are
already allocated to other functions, renaming must be carried out with the
assistance of the Korg M1 UI. When you access the Rename Menu of Hcard
and modify the name of program:00 through the M1, the Hcard captures this
name and assigns it to the active bank. Following this action, the contents of
the active bank are automatically reloaded to address any overwriting of
program:00.
Rename Bank Menu (M1 Mode)

HCARD-101....................................................................................................................................................... KORG M1/M1R/Tx MODE
6
Step-by-Step Renaming Instructions:
1. Ensure program:00 of the card is active on the M1.
2. On the M1, press the [Edit Prog] button, followed by the [9] button to access the Rename page.
3. Enter your new name then press [Write] button, followed by the [YES] button.
4. The bank name will be updated, and the Hcard will transition from the rename menu back to the main menu.

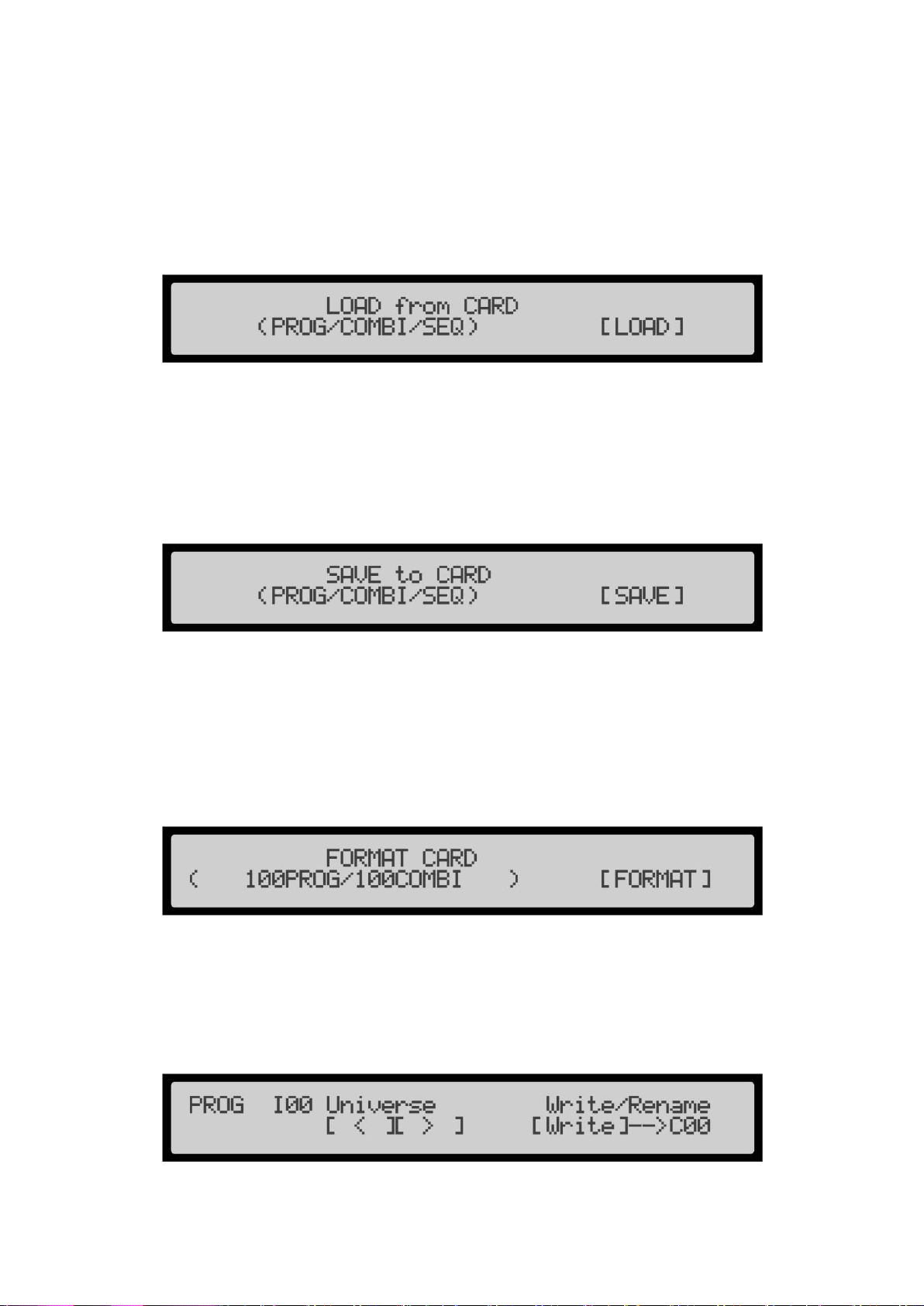

Korg M1/M1R Write/Rename Page
Copy Bank Menu
Copy bank function allows you to make a duplicate of a specific bank, which can be useful when creating variations or backups. This function
operates independently of the M1, ensuring there's no risk to the internal memory of your synthesizer.
Title Bar: The topmost bar displays the menu name, "Copy Bank Menu".
Source: This indicates the origin of the data you wish to copy. In the displayed instance, the source is set to bank number '00',
labeled as 'KorgM1 Factory'.
Target: Here you can determine where you'd like the source data to be copied to. The given example shows the target bank set to
'34', which is a 'User Bank'.
[ ▼] &[ ▲]: These triangle buttons allow you to scroll through different banks.
[█] M1 or [●] M1R: This button allows you to exit the menu without performing any copying action.
[●] M1 or [█] M1R: Selecting this will initiate the copying process, duplicating the contents from the source bank to the target bank.
Copy Bank Menu (M1 Mode)

HCARD-101....................................................................................................................................................... KORG M1/M1R/Tx MODE
7
Program Capture
The capture function allows users to instantly view specific details about a program, from its name and mode to the intricate details of its
oscillators. Upon selecting capture prg from the tools menu, a prompt appears, awaiting the capture of a new program. It's important to
mention that the currently active program cannot be captured directly. To proceed, you must either navigate to a different program using the
[up] and [down] buttons on the M1 or input a specific number via using [0] through [9] buttons.When you choose a new program on the M1,
the Hcard immediately presents the program details:
>
Program Number and Name: At the top, the program's identification number and name are prominently displayed. In this example, the program
number is "#000" and its name is "Universe".
Mode: This indicates the oscillator mode. In this instance, the mode is set to "Double", which suggests that this program uses two oscillators.
Available options for mode are: Single, Double and Drums.
OSC1> Type and Waveform Number: The type of the sound source for the first oscillator is mentioned. Available options for type are: M1-INT,
EX-INT, PCMCRD. Here, it's "M1-INT" and the waveform number associated with it is "030".
Name: The waveform name associated with this oscillator. In this example, it's "Choir".
OSC2> Type and Number: Similarly the type of sound source for the second oscillator is mentioned. Available options for type are: M1-INT, EX-INT,
PCMCRD. For this program, it's again "M1-INT", with the specific number being "042".
Name: The waveform name associated with this oscillator. Here, the sound is named "Lore".
Understanding Capture Function: "The Importance of Sound Source Compatibility"
The Korg M1 is equipped with a 4MB PCM waveform ROM, including 100 multisounds and 44 drum sounds. These 100 PCM waveforms can be
accessed via the program edit page, numbered from 00 to 99. Later, Korg introduced an upgrade for the Korg M1, named the M1-EX, which
expanded the PCM waveform to 8MB, incorporating waveform numbers from 100-189. If you load a program designed for M1-EX that
references M1-EX waveforms onto the original Korg M1, the system won't display an error message. Instead, the M1 OS will arbitrarily select
another waveform from its internal PCMs, possibly resulting in an inaccurate sound reproduction. A similar issue can arise if a program
requires an external PCM card and you haven't installed the specific card. By using the capture function, you can verify which PCM sound type
the loaded program references, ensuring compatibility with your hardware setup:
M1-INT: represents M1 Internal PCM (0-99).
EX-INT: indicates M1-EX PCM (100-189).
PCMCRD: denotes an external PCM Card.
Hcard Bank 04, PRG#0
Note: For programs that reference a PCM card, the Korg OS has a limitation and doesn't specify
which specific Korg PCM card is needed. As a result, the Hcard-101 displays 'PCMCRD' without
indicating the exact PCM card name. To streamline this, Hcard's soundbank follow Korg's MPC/MSC
ROM card numbering system, from 1 to 16. For example, when selecting bank 04: Korg MPC04
"Orchestra 1" on Hcard-101, it's recommended to insert the Korg MCS-04 ROM card into the M1 for
the desired sound output. However, waveform data will still be decoded even without the PCM
card, mapping MSC-01 to MSC-16 to Hcard Bank#00 through #16.
Wait Message (M1 Mode)
Capture Data (M1 Mode)

HCARD-101....................................................................................................................................................... KORG M1/M1R/Tx MODE
8
Program Listing
This menu showcases all programs within the chosen bank. When selecting 'List PRG' from the tools menu, a prompt appears, expecting a
program selection. It's crucial to note that the current active program cannot be directly accessed. To continue, navigate to another program
using the M1's [up] and [down] buttons or input a specific program number using the keypad with keys [0] to [9]. Once a new program is
selected on the M1, the Hcard instantly displays the active program's number/name followed by the next seven programs.
>
[ ▼] &[ ▲]: Use these triangle buttons to navigate between pages, with each page displaying 8 programs.
[█] M1 or [●] M1R: This button allows you to exit the menu.
[●] M1 or [█] M1R: Press this button to access the "Bank Information Menu".
Note: Along with the program names, the listing function also shows the PCM source of the programs with two characters at the end of line:
'empty' indicates M1 Internal, 'EX' represents M1-EX , 'DR' denotes Drumkit (Internal), and 'CR' signifies an external PCM card.
Bank Information Menu
In this menu, you can access a report detailing the number of programs in the active bank associated with M1 PCM, M1-EX PCM, or an external
PCM card.
[ ▼] &[ ▲]: Not functional in this menu.
[●] M1 or [█] M1R: Not functional in this menu.
[█] M1 or [●] M1R: Use this button to return to the previous page.
Wait Message (M1 Mode)
List of Programs (M1 Mode)
Bank Information Menu (M1 Mode)

HCARD-101....................................................................................................................................................... KORG M1/M1R/Tx MODE
9
How to Load a Full Bank from Hcard-101 to M1?
To load a bank into the M1 internal memory from Hcard-101, follow these steps on M1:
1. Backup your internal memory to prevent data loss.
2. Ensure the internal memory protection is disabled. Navigate using [Global] button followed by the [6] button.
3. Confirm that the format of the active Hcard's bank aligns with the M1 memory allocation.
4. On the M1, press [global] followed by the [8] button. Then, hit the [Load] button and confirm with [YES].
How to Save a Full Bank on Hcard-101?
To save a bank onto the Hcard-101, make sure the Hcard displays the Main menu then select one of the user banks from 34 to 63.
1. Ensure the protection for the active bank on Hcard is turned OFF.
2. Disable the card memory protection in the M1 global menu by pressing [Global] button followed by the [6] button.
3. Verify that the Hcard's active bank format corresponds with the M1's memory allocation.
4. On the M1, press [global] followed by the [9] button. Then, hit the [Save] button and confirm with [YES].
How to Reformat Hcard Banks?
Though the Hcard is pre-formatted from the factory, you can alter the format of the active bank. Ensure the Hcard is on the Main menu before
proceeding.
1. Ensure the protection for the active bank on Hcard is turned OFF.
2. Disable the card memory protection in the M1 global menu by pressing [Global] button followed by the [6] button.
3. On the M1, navigate through format page using : [global] > [9] > [+Page] buttons.
4. Choose the desired format type using [UP] & [Down] buttons. Subsequently, press the [FORMAT] button and validate with [YES].
How to Transfer a Single Program to/from Hcard-101?
Based on the mode you've chosen on M1 (either Internal or Card) and your intended action (INT>Card or Card>INT), follow these steps:
1. On the M1, press [EDIT PROG] button followed by the [9] button.
2. Choose the desired program location with [UP] & [Down] buttons. Next, press the [WRITE] button and validate with [YES].

HCARD-101....................................................................................................................................................... KORG M1/M1R/Tx MODE
10
Sound Library for Korg M1/M1R/Tx Series
Hcard-101 comes with 34 pre-loaded soundbanks, featuring many of the rarest Korg ROM cards and factory preload data for supported
synthesizers. On top of that, it includes 11 categorized banks specifically for M1, stamped with the HyperSynth signature. These banks offer
lots of programs, handpicked from thousands of available banks for the Korg M1. The layout of these soundbanks makes choosing sounds a
breeze. Pleaes pay attention to the following tips before using the soundbanks :
Banks #01 to #16: For optimal sound output , All Korg MPC banks within this range require Korg MSC PCM card with the same
numbering like (MPC-02 and MSC-02). Some sounds in these banks utilize the M1's internal PCM and can be used cautiously.
Banks #03 and #15: To achieve the correct sound output from these Drumkit banks, it's essential to load them into the internal
memory. This overwrites the drum kit data in the global menu. Due to a limitation in the Korg M1 OS, drum kits cannot be loaded
directly from the card. The drum mapping is saved in internal memory and is accessible through the global menu. Note that some
sounds within these banks are not drumkits and use the M1's internal PCM, so they should be used with care.
Banks #17 to #19: Best suited for the Korg M1-EX or T1/T2/T3 for optimal sound quality. However, certain sounds within these
banks utilize the M1's internal PCM and can be used cautiously.
Banks #20 and #21: These are factory preload songs for both the Korg M1 and M1-EX. To preview these songs correctly, you should
first load the respective factory preload banks for either the M1 or M1-EX; otherwise, the songs may not sound as intended.
Bank #22: A compilation of standard sounds, organized similarly to the General MIDI format.
Banks #23 to #33: These are HyperSynth's categorized banks, with each bank containing 100 programs. It's important to note that
these banks lack combinations and are filled with default ones.
Banks #34 to #63: These are reserved for user sound storage. While all banks can technically be overwritten when memory
protection is turned OFF, we recommend avoiding modifications to banks #00 to #33. If you format or overwrite these banks, then
restoration will be impossible."
#
Bank Name
#
Bank Name
#
Bank Name
00
Korg M1 Factory Preload
12
Korg MPC12 "Synth 3"
24
HyperSynth "Guitars"
01
Korg MPC01 "Variety"
13
Korg MPC13 "Ethnic 2"
25
HyperSynth "SynthBass"
02
Korg MPC02 "Synth 1"
14
Korg MPC14 "Sound Effects"
26
HyperSynth "Drums"
03
Korg MPC03 "Drums 1"
15
Korg MPC15 "Drums 2"
27
HyperSynth "Keys & Organs"
04
Korg MPC04 "Orchestra 1"
16
Korg MPC16 "Environment"
28
HyperSynth "Percussions"
05
Korg MPC05 "Piano"
17
Korg M1-EX Factory
29
HyperSynth "Effects"
06
Korg MPC06 "Fretted Instruments 1"
18
Korg T3 Factory A
30
HyperSynth "Strings"
07
Korg MPC07 "Synth 2"
19
Korg T3 Factory B
31
HyperSynth "Analog Emulations"
08
Korg MPC08 "Percussion"
20
Korg M1 SEQ
32
HyperSynth "Pads"
09
Korg MPC09 "Organ"
21
Korg M1-EX SEQ
33
HyperSynth "Winds"
10
Korg MPC10 "Ethnic 1"
22
General MIDI
34
User bank (34-63)
11
Korg MPC11 "Brass"
23
HyperSynth "Pianos"
Note Regarding Korg T1/T2/T3 Series
The Korg Tx series offers limited capability for accessing external memory cards. These synthesizers do not provide live access to the card.
Instead, you can only load an entire bank into the internal memory or save a full bank from the internal memory to the Hcard. Some functions
in the tools menu, such as Rename,Capture,and List, are not operational in Tx mode.

HCARD-101....................................................................................................................................................... KORG WS/WS-A/D MODE
11
Splash Screen Overview
[ ▼] &[ ▲]: Maintain the Hcard in the splash screen while displaying a logo animation.
[█] WS or [●] A/D: Enter the Test Menu to perform diagnostic checks and ensure optimal functionality.
[●] WS or [█] A/D: Navigate to the Config Menu.
Main Menu Functions
[𝟏]: This field shows the active bank number. For the WS, the range is from 00 to 39.
[𝟐]: This field shows the active bank name.
[𝟑]: This field indicates the protection status of the active bank.
[𝟒]: This field indicates the active bank format, Possible format is "WS".
[ ▲]: Press to increase the active bank number by +1. Hold for 1 second to increase the bank number more rapidly by +10.
[ ▼]: Press to decrease the active bank number by -1. Hold for 1 second to decrease the bank number more rapidly by -10.
[█] WS or [●] A/D: Access the tools menu.
[●] WS or [█] A/D: Access the bank selection menu.
Splash Screen (WS Mode)
Main Menu (WS Mode)
1
2
3
4
Splash Screen (WS-A/D Mode)

HCARD-101....................................................................................................................................................... KORG WS/WS-A/D MODE
12
Bank Selection Menu
Bank selection menu, enabling you to navigate through and select from a list of sound banks, organized by their names.
[ ▼]: Navigate to the next item in the list. If held down for 1 second, the display will advance to the subsequent page.
[ ▲]: Navigate to the previous item in the list. If held down for 1 second, the display will return to the preceding page.
[█] WS or [●] A/D: Exit to main menu.
[●] WS or [█] A/D: Use this button to confirm your selection and load the highlighted bank.
Tools Menu
In the Tools Menu, you have the capability to explore and adjust various features and settings associated with the banks saved on your Hcard.
The navigation buttons on the left and right (▼and ▲) help you scroll through the menu options. The square button [█]serves exit to the
main menu, and circle button [●] opens the highlighted item (for A/D the function of these buttons are reversed).
Each entry in the tools menu is detailed on the following page of this manual.
Bank Selection Menu (WS Mode)
Tools Menu (WS Mode)
1. Write Protect: This function allows you to secure a particular bank,
preventing any accidental changes or overwrites.
2. Rename Bank: You can use WS UI to rename any banks, this feature
is not functional in WS mode from Hcard directly.
3. Copy Bank: This allows you to make a duplicate of a specific bank,
which can be useful when creating variations or backups.
4. Help[QR CODE]: It displays a QR code. By scanning this QR code with
a compatible device, such as a smartphone, you'll be directed to the
PDF version of this manual.

HCARD-101....................................................................................................................................................... KORG WS/WS-A/D MODE
13
Write Protect Menu
Unlike vintage memory cards, the Hcard offers protection on a per-bank basis, rather than for the entire memory card. This flexibility allows
users to secure specific banks while leaving others available for modifications:
Title Bar: The topmost bar displays the menu name, "Protect Menu", indicating that you are in the protection settings area.
Bank XX: This shows the active bank number you are viewing or editing.
Protect: This displays the protection status of the selected bank. In the image, the protection is turned "ON", meaning changes can't
be made to the bank without disabling the protection first.
Bank Name: Below the protection status, the name of the bank is displayed. In the image, it's named "Internal ROM".
[█] WS or [●] A/D: This button allows you to exit the Protect Menu and return to the main screen.
[●] WS or [█] A/D: This button lets you toggle the protection status of the bank. When "ON", the bank is protected from any
alterations. Switching it to "OFF" will allow modifications to the bank.
[ ▼] &[ ▲]: These triangle buttons allow you to scroll through different banks.
Renaming a Bank in Hcard-101 (WaveStation Mode)
By default, the Korg WaveStation includes a feature that allows naming of external memory cards. This proves useful when interfacing with the Hcard UI. The
bank formats of the WS and Hcard are fully compatible. To rename, utilize the Korg WS UI; there's no need to navigate to the "Rename Bank" submenu from the
tools menu. On the Hcard, after selecting your desired bank from the main menu, continue the renaming process using the Korg WS UI. Any name assigned to
the card in WS will be reflected in the active bank on Hcard.
Write Protect Menu (WS Mode)
Rename Bank Message (WS Mode)
Step-by-Step Renaming Instructions:
1. On the Hcard, select the bank you wish to rename.
2. Make sure the protection for the active bank is set to OFF.
3. Ensure the card protection on the WS is deactivated. To verify, press the
[Global] button on the WS.
4. Within the WS global menu, press the [UTIL] button, then [NAME]. Input
the new name and press the [Write] button.
5. The bank name is now updated. Complete!

HCARD-101....................................................................................................................................................... KORG WS/WS-A/D MODE
14
Copy Bank Menu
Copy bank function allows you to make a duplicate of a specific bank, which can be useful when creating variations or backups. This function
operates independently of the WS, ensuring there's no risk to the internal memory of your synthesizer.
Title Bar: The topmost bar displays the menu name, "Copy Bank Menu".
Source: This indicates the origin of the data you wish to copy. In the displayed instance, the source is set to bank number '00',
labeled as 'Internal ROM'.
Target: Here you can determine where you'd like the source data to be copied to. The given example shows the target bank set to
'25', which is a 'User Bank'.
[ ▼] &[ ▲]: These triangle buttons allow you to scroll through different banks.
[█] WS or [●] A/D:This button allows you to exit the menu without performing any copying action.
[●] WS or [█] A/D: Selecting this will initiate the copying process, duplicating the contents from the source bank to the target bank
How to Load a Full Bank from Hcard-101 to WS?
To load a bank into the WS internal memory from Hcard-101, follow these steps on WS:
1. Backup your internal memory to prevent data loss.
2. Ensure the internal memory protection is disabled. To verify, press the [Global] button on the WS.
3. Within the WS global menu, press the [UTIL] button to navigate to Utilities page.
4. Within the Utilities page, select 'CARD' for the 'From' option and choose your preferred location, 'RAM1-3', for the 'To' option.
5. Depending on your goal, hit either the [COPY] or [MOVE] button.
6. The WS will display a confirmation message: 'BANK COPY FINISHED'.
WS Utilities Page
Copy Bank Menu (WS Mode)

HCARD-101....................................................................................................................................................... KORG WS/WS-A/D MODE
15
How to Save a Full Bank on Hcard-101 from WS?
To save a bank onto the Hcard-101, make sure the Hcard displays the Main menu then select one of the user banks from 25 to 39.
1. Ensure the protection for the active bank on Hcard is turned OFF.
2. Disable the card memory protection in the WS global menu by pressing [Global] button.
3. Within the WS global menu, press the [UTIL] button to navigate to Utilities page.
4. Within the Utilities page, choose your preferred location, 'RAM1-3 or Internal ROM', for the 'From' option then select 'CARD' for the
'To' option.
5. Depending on your goal, hit either the [COPY] or [MOVE] button.
6. The WS will display a confirmation message: 'BANK COPY FINISHED'.
WS Utilities Page
How to Reformat Hcard Banks via WS?
Though the Hcard is pre-formatted from the factory, you can reformat the active bank. Ensure the Hcard is on the Main menu before
proceeding.
1. Ensure the protection for the active bank on Hcard is turned OFF.
2. Disable the card memory protection in the M1 global menu by pressing [Global] button followed by the [6] button.
3. Within the WS global menu, press the [UTIL] button to navigate to Utilities page.
4. Within the Utilities page, press [FORMAT] button followed by [YES].
5. The WS will display a confirmation message: 'CARD FORMAT COMPLETED.
6. At this point, you also have the option to rename the CARD. If you choose not to rename, simply press the [CANCEL] button to return
to the previous page.
How to Transfer a Single Performance to/from Hcard-101?
Based on the bank mode you've chosen on WS (either Internal or Card) and your intended action (INT>Card or Card>INT), follow these steps:
1. On the WS main menu, press [EDIT] button followed by the [WRITE] button.
2. Choose the desired performance destination. Next, press the [EXECUTE] button . In this example performance#0 from card will be
stored in RAM1 at location 0.
WS Write Page

HCARD-101....................................................................................................................................................... KORG WS/WS-A/D MODE
16
Sound Library for Korg WaveStation and WS-A/D
Hcard-101 comes with 25 pre-loaded soundbanks, featuring many of the rarest Korg ROM cards and factory preload data for WaveStation.
Pleaes pay attention to the following tips before using the soundbanks :
Banks #01 to #04: Use these banks if you wish to reset your WS to its factory sounds. Ensure you copy these banks to the
synthesizer's memory locations RAM1, RAM2, and RAM3. Previewing these banks directly from Hcard, when your WS's internal
memory is loaded with different banks, may result in incorrect sound outputs. This is because the performances in these banks refer
to RAM1, RAM2, and RAM3, not the CARD itself.
Banks #05 to #24:You can freely preview these banks directly from the Hcard. If you wish to store these banks in the WS internal
memory and expect accurate sound playback without the Hcard, you must use the [MOVE] function in the WS utility menu instead of
[COPY]. Otherwise, the performance in the internal memory will reference the Hcard.
Banks #13 to #14:For optimal sound, these banks are best utilized with the WaveStation EX or WaveStation A/D version hardware.
Banks #16 to #18:For optimal sound output , these banks require Korg WSC-01, WSC-02 and WSC-03 PCM ROM cards.
Banks #25 to #39: These are reserved for user sound storage. While all banks can technically be overwritten when memory
protection is turned OFF, we recommend avoiding modifications to banks #00 to #24. If you format or overwrite these banks, then
restoration will be impossible."
#
Bank Name
#
Bank Name
#
Bank Name
00
Korg WS Internal ROM
09
Korg WPC-15 "Dance/Top 40"
18
Korg WPC-3S "Synth & Time Slice"
01
Korg WPC-00PI RAM1 factory preload
10
Korg WPC-16 "Wavestation Omnibus"
19
MCR03-WS "Legendary Prophet-VS Sounds"
02
Korg WPC-00PII RAM2 factory preload
11
Korg WPC-17 "Studio Collection"
20
MCR03-WS1 "Standard Synthesizer Sounds"
03
Korg WPC-00PIII RAM3EX factory preload
12
Korg WPC-18 "U.K. Modern"
21
MCR03-WS2 "Future Pad Sounds"
04
Korg WPC-0AD RAM3AD
13
Korg WPC-19ex "Film Textures"
22
MCR03-WS3 "Dancing Wavestation"
05
Korg WPC-11 "Performance 1"
14
Korg WPC-20ex "Song Factory"
23
MCR03-WS4 "Vocoder Effects & External"
06
Korg WPC-12 "Performance 2"
15
Korg WPC-J01 "Analog Freak"
24
MCR03 "Vector World"
07
Korg WPC-13 "Performance 3"
16
Korg WPC-1S "Piano"
25
User bank (25-39)
08
Korg WPC-14 "Analog & VS"
17
Korg WPC-2S "Drums & Percussion"

HCARD-101........................................................................................................................................................................ KORG DS-8 MODE
17
Splash Screen Overview
[ ▼] &[ ▲]: Maintain the Hcard in the splash screen while displaying a logo animation.
[●]: Enter the Test Menu to perform diagnostic checks and ensure optimal functionality.
[█]: Navigate to the Config Menu.
Main Menu Functions
[𝟏]: This field shows the active bank number. For the DS-8, the range is from 00 to 23.
[𝟐]: This field shows the active bank name.
[𝟑]: This field indicates the protection status of the active bank.
[𝟒]: This field indicates the active bank format, Possible format is "DS8".
[ ▲]: Press to increase the active bank number by +1. Hold for 1 second to increase the bank number more rapidly by +10.
[ ▼]: Press to decrease the active bank number by -1. Hold for 1 second to decrease the bank number more rapidly by -10.
[●]:Access the tools menu.
[█]: Access the bank selection menu.
Splash Screen (DS-8 Mode)
Main Menu (DS-8 Mode)
1
2
3
4

HCARD-101........................................................................................................................................................................ KORG DS-8 MODE
18
Bank Selection Menu
Bank selection menu, enabling you to navigate through and select from a list of sound banks, organized by their names.
[ ▼]: Navigate to the next item in the list. If held down for 1 second, the display will advance to the subsequent page.
[ ▲]: Navigate to the previous item in the list. If held down for 1 second, the display will return to the preceding page.
[●]: Exit to main menu.
[█]: Use this button to confirm your selection and load the highlighted bank.
Tools Menu
In the Tools Menu, you have the capability to explore and adjust various features and settings associated with the banks saved on your Hcard.
The navigation buttons on the left and right (▼and ▲) help you scroll through the menu options. The circle button [●] serves exit to the main
menu, and square button [█]opens the highlighted item.
Each entry in the tools menu is detailed on the following page of this manual.
Bank Selection Menu (DS-8 Mode)
Tools Menu (DS-8 Mode)
1. Write Protect: This function allows you to secure a particular bank,
preventing any accidental changes or overwrites.
2. Rename Bank: Not functional in DS-8 Mode.
3. Copy Bank: This allows you to make a duplicate of a specific bank,
which can be useful when creating variations or backups.
4. Help[QR CODE]: It displays a QR code. By scanning this QR code with
a compatible device, such as a smartphone, you'll be directed to the
PDF version of this manual.
