HyundaiVeloster
Asymmetric 1+2 door
concept design blends
utility with style and
individuality.
CatCh
the feeling
Move with the times.
But above all, move.
01
DesigneD
Style matters. It’s the outward
expression of how we feel. But
practicality matters too. Hyundai explores
just what can be done with both,
deliberately moving away from accepted
forms to deliver one that breaks new
ground: the Veloster.
02
ConneCteD
Staying connected matters.
The latest technological devices are
no longer peripheral to our lives,
they’re at the centre of it. Music and
phone calls, why be without them when
you take to the road?
03
engineereD
Engineering matters.You want
performance and you want efciency.
You want each and every element of a
car working in perfect harmony.
For all the places you have to go
and the things you want to do.

two influenCes
one Car
A new concept in a car would be one that combines
the style of a coupé with the functionality of a
hatchback.The Veloster is that concept made real.
A crossover utility vehicle with a unique, innovative
presence, it’s where dynamics meets practicality.

Panoramic sunroof
A panoramic sunroof perfectly suits the
energetic, active lifestyle of Veloster drivers,
letting in plenty of light and fresh air.
Chrome radiator grille
The distinctive Hyundai hexagonal-shaped
radiator grille presents a condent, bold,
dynamic face to the world.
The car’s lines are bold and
dynamic.The hexagonal
radiator grill and audacious
lamp design express
progression and modernity.
While the unique 1+2 door
conguration maximises
practicality, the sleek coupé
prole conveys sportiness and
a unique styling very different
from existing coupés and
hatchbacks.

an outline of ConfiDenCe anD robust moDernity
+
Urban driving gains an edge – something that strikes home with just one glance at the Veloster’s
prole. At the front, a short front overhang. Above, a rooine that slopes downwards from front to
back. Lower side character lines arc across the bodywork, while the front pillars are coloured black to
accentuate the sporty feel. Sleek toughness personied, this is a punchy, athletic coupé in the nest
tradition.

Contours that ebb anD flow to imprint
themselves on your ConsCiousness
Flowing and sculpted, the Veloster’s strong proportions convey a sense of
movement and balance. 18” wheels contribute to the strength and condence,
with muscular wheel arches to frame them perfectly. The eye is drawn naturally to the twin
exhaust, its tip nished in chrome and incorporated centrally in the rear bumper. With its
low stance – inherited from all the best coupés – the Veloster’s rear lights add to the uidity,
sportily curving with the bodywork.
Dynamic and bold,
to set the pulse racing.

04 05
01
06
0302
01
Asymmetry door
One on the driver’s side, two on the passenger side.
The Veloster’s door conguration sets it apart from the competition.
02
Engine start/stop button
The engine start/stop button is designed to
look like a cat’s eye, especially at night.
03
See-through speaker grille
The speaker grille has a wide, open weave, letting you
see the hightech sonic unit within.
04
Luggage space
Luggage space has been maximised, so you
can stow your gear with ease on your travels.
05
Hidden door handle
Hidden door handles ensure the smooth,
sleek bodywork is not interrupted.
06
Transmission panel
A real sporting touch is provided by the metal
bezel surrounding the gear stick housing.

stay in touCh,
at a touCh
Brand new music tracks – and the ones
you downloaded earlier – all displayed
on screen. Drag and drop, intuitive
functionality.The 7 inchTFT touch
screen, USB/AUX input, Audio/CD/RDS,
and steering wheel remote control, in
the Veloster, multimedia technology
nds its true home.

7inch touch screen display
Displaying information on a 7” LCD touch
screen, the multimedia system supports a
range of advanced applications and systems.
Bluetooth-handsfree
Integrated Bluetooth allows music to be
streamed and phone calls to be made and
received hands-free using any Bluetooth-
compatible external device.
First comes input: connect an
*iPhone or other external device
via USB, and a Bluetooth-enabled
mobile phone to make calls
hands-free.Then comes output:
sound reaches your ears via a
premium sound system with
speakers fore and aft. Of course,
the Veloster takes care of the visual
as well as the audible, with a high-
resolution 7” LCD screen showing
information in sharp detail.
*iPhone is a trademark of Apple inc.

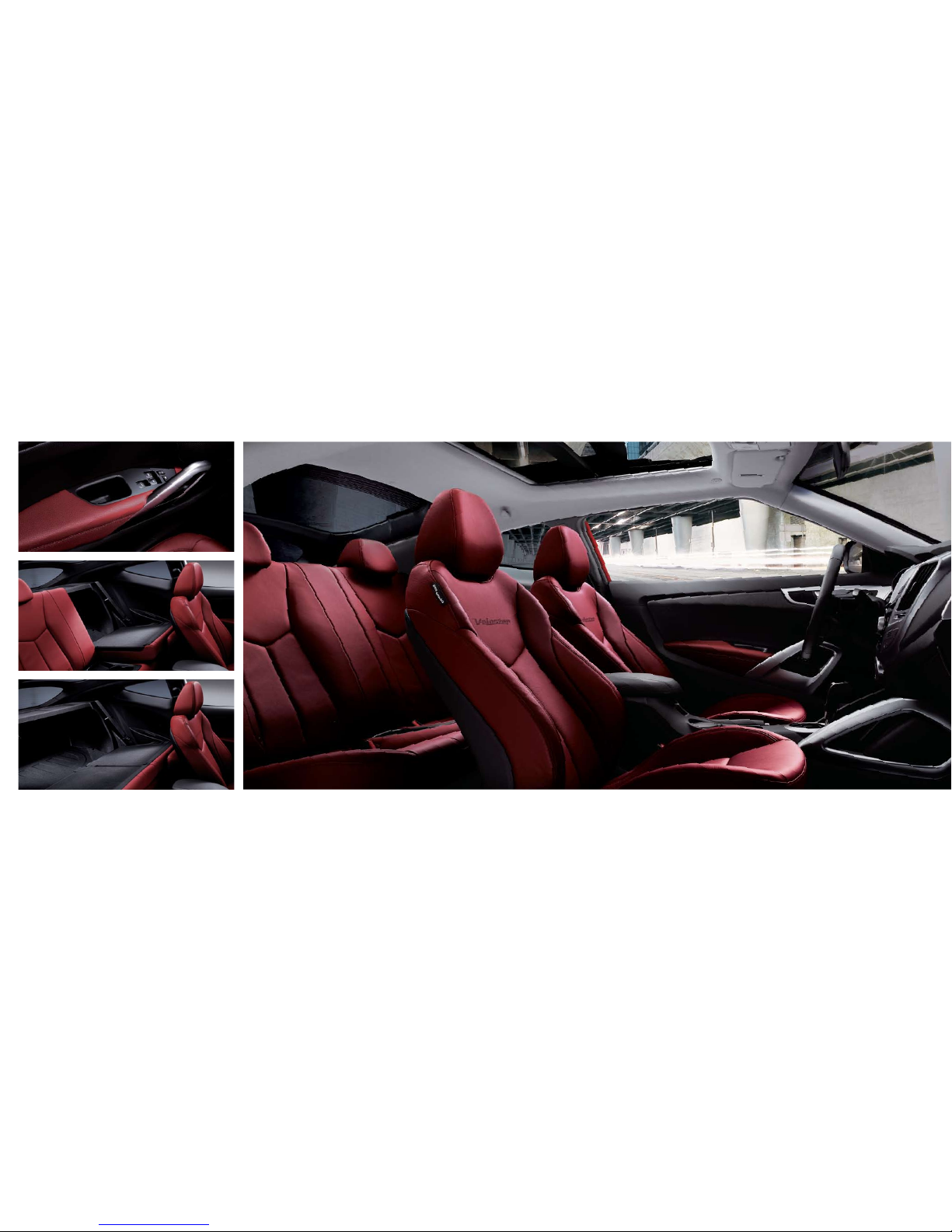

Seat variation
Folding rear seats, splitting in a 60:40 ratio, offer
plenty of luggage-carrying versatility, and make it
easy to carry unusual-shaped objects.
Power window controls
Includes convenient single touch
auto-up function and a power window
lock-out switch.

Swooping and curving to suggest a powerful sense of motion and freedom, the interior of the Veloster takes its
inspiration from a different kind of machine, but one steeped in the thrill of the open road: the motorbike. Sporty
and assertive, the robust design is completed by high-tech, stylishly designed elements that are picked out here
and there with high gloss black.
sporty anD DynamiC,
for the promise of
the roaD
Manual air conditioner
Manual air conditioning allows users to set
their preferred interior temperature by hand.
Full auto air conditioner
Just set the desired temperature and let the
system take care of the rest ensuring a
customized interior climate that is fully
comfortable.
Steering wheel remote control
Remote control switches on the steering
wheel let you effortlessly control the
multimedia functions, as well as auto cruise
control.
+
A fully accomplished, dynamic interior is all about the ne details. In the Veloster these include a driver seatbelt
extension guide, engine start/stop button, door grip handles, driver seat lumbar support, a choice of door trim packages
in either black, grey and red, and even Veloster logos printed on the front seats.
Supervision & conventional cluster
Dual-cylindered like the twin pipes of a motorbike exhaust, the speedy,
outdoor references follow through to the cluster.

+
Shaped like by the fuel tank of a motorbike, the centre fascia blends aesthetics
and functionality to perfect effect. Referencing Generation Y’s preference for
an outdoorsy, active lifestyle, the interior styling of the Veloster is robust and
purposeful, with details that emphasize the car’s fun-to-drive quality. Every
interior element delivers a feeling of toughness, from the bold centre fascia
to the metal-painted details around the centre fascia, gearstick, door handles,
air vents and supervision cluster.
AUX/USB/RCA cable
Users can connect an external device such as
a camcorder, using the cable that came with the
device and with simple USB connection.
Audio controls switch
The driver can control the audio system from
a switch on the left-hand spoke.
Premium sound system
The Autonet premium audio system,
features a central speaker, external amplier
and subwoofer.
7 inCh tft touCh sCreen
sounD anD multimeDia system
The switches and controls to access the Veloster’s convenient multimedia functions are
placed within easy reach on the centre console. A large, 7 inch LCD displays all information,
while users can easily plug in external devices thanks to USB connection.
Welcoming event
Output the display and sound
upon starting the car to show up
the application of AV specs.

the satisfaCtion
of Driving pleasure
Take the wheel of the Veloster and the
sensations that reach you from under
the bonnet tell you this is a car with
outstanding performance.
The handling is responsive and controlled,
the drive is reassuringly quiet, while the
suspension delivers a comfortable,
smooth ride.
Coupled with a standard six-speed manual
or dual clutch transmission, Hyundai’s
Gamma 1.6 GDi engine delivers extreme
fuel efciency with a whole new sensation
of sporty driving experience. The all-new
DCT (Dual ClutchTransmission), available
as an option, is like a manual transmission
that shifts automatically. You can feel and
even hear the gear shifting with a great
feedback and sound, but certainly there is
no shifting hassle.

However effective its engine,
a car’s performance can
be undone by factors such
as too much weight, poor
aerodynamics and inefcient
transmission. With the Veloster,
everything that determines
efciency has been examined
so that no one element holds
back another. A study in
how to push the barriers of
possibility.
Rear spoiler and wiper blade
A rear spoiler improves fuel efciency and
driving stability, while a at blade rear wiper
blends harmoniously.
Aerodynamics
With its low, coupé prole enhancing the
aerodynamics, the reduced drag lowers fuel
consumption.

on the one hanD, high effiCienCy
on the other, low fuel Consumption anD emissions
+
The Veloster’s engine Gamma 1.6 GDI delivers reduced fuel consumption and frugal emissions, essential properties
in our environmentally-conscious world.The engine built from solid aluminium blocks and feature ladder frame
construction, for less weight with more strength. A comprehensive range of noise-reduction techniques counteract the
effects of resonation, vibration and harshness, to offer a comfortable, quiet drive. Helping the drive still further is motor
driven power steering, providing better steering performance and fuel efciency, and cutting down on driver fatigue.
And because it’s just as important to have smooth efciency at low speeds as well as high, a highly durable,
maintenance-free timing chain minimises noise during idling and acceleration.
McPherson strut suspension
The front wheels are built using a McPherson strut, for improved handling and smoother driving.
Gamma 1.6 GDi engine
Lightweight, rigid and vibrationfree, the Gamma
1.6 GDi engine generates 140ps at 6,300 rpm.
Dual ClutchTransmission (DCT)
6-speed dual clutch transmission provides
improved driving quality, better fuel efciency,
reduced noise and prolonged durability. With
electronically controlled two seperate manual
gearboxes and clutches without a conventional
clutch pedal, you will feel that shifting gears is
be more quick and smooth without having any
lose of torque transmission.
Manual transmission
The 6-speed manual transmission is built with
a key and ball type synchromesh and optimised
gear tooth forms.

putting you first
A car has to be well built from every single perspective.That means paying as much attention to safety
as style and design. With a comprehensive airbag system as standard, the Veloster is fully equipped to
protect its occupants in case of accidents. Combine this with passive safety measures that come into
their own whenever the driving conditions demand, and reassurance is built in.
B Pillar impact management
For protection in a collision, the dash cross and
side members, roof structure and pillars are
made from reinforced sheet steel.
Electronic Stability Control (ESC)
Electronic Stability Control determines the brake pressure and engine output,
to bring the car safely under control and slow you down safely.
+
Also on the list of passive safety measures is aTraction Control System, which prevents wheel skid when you’re
starting, accelerating and driving up a steep hill. Superior braking power is delivered courtesy of 10” diameter brake
discs. And when you have to step on the brakes abruptly, a Brake Assist System shortens your stopping distance by
upping the braking power.
Front active headrests
If a car goes into the back of you, active
headrests in the front seats move up and
forward to help protect your head and neck.
Curtainwall airbag system
Front, side and curtain airbags deploy immediately in the event of a collision,
reducing the possibility of injuries.

To ensure you enjoy each and every mile for years to come, every Veloster comes with the 5YEAR TRIPLE CARE
service as standard.This warranty is designed to give you peace of mind for 5 years with unlimited mileage. We
even provide roadside assistance within the warranty period and perform a check on key elements of your car,
in addition to your main annual service.You’ll see, some things in life do come with a guarantee.

more of what matters.
Take a car that already refuses to conform and
push its design even further. Add more horsepower.
Tune the steering and suspension so that it’s razor
sharp, and nish things off with a simply stunning
paint nish. Then add one word: turbo.

turboCharging the spirit.
+
The Veloster Turbo is armed with a 186 ps 1.6 litre turbo charged GDi four-cylinder engine.
Along with instantaneous acceleration comes immaculately tuned suspension and
steering, for precise cornering, feedback and control. It’s an experience that also hits you
sonically: two large circular exhaust pipes coupled with a new intake manifold conveying
all the car’s power and performance in a throaty roar.
