Hyundai HM600BMC User manual

125MM ANGLE GRINDER
HM600BMC
INSTRUCTION MANUAL
Please keep this instruction manual for future reference

Table of Contents
Section Page
Declaration of conformity 1
Product specification 2
Power tool safety instructions 3 & 4
Know your angle grinder 5
Controls and operation 6
Fitting grinding disc 7
Carton contents 8
General information 9

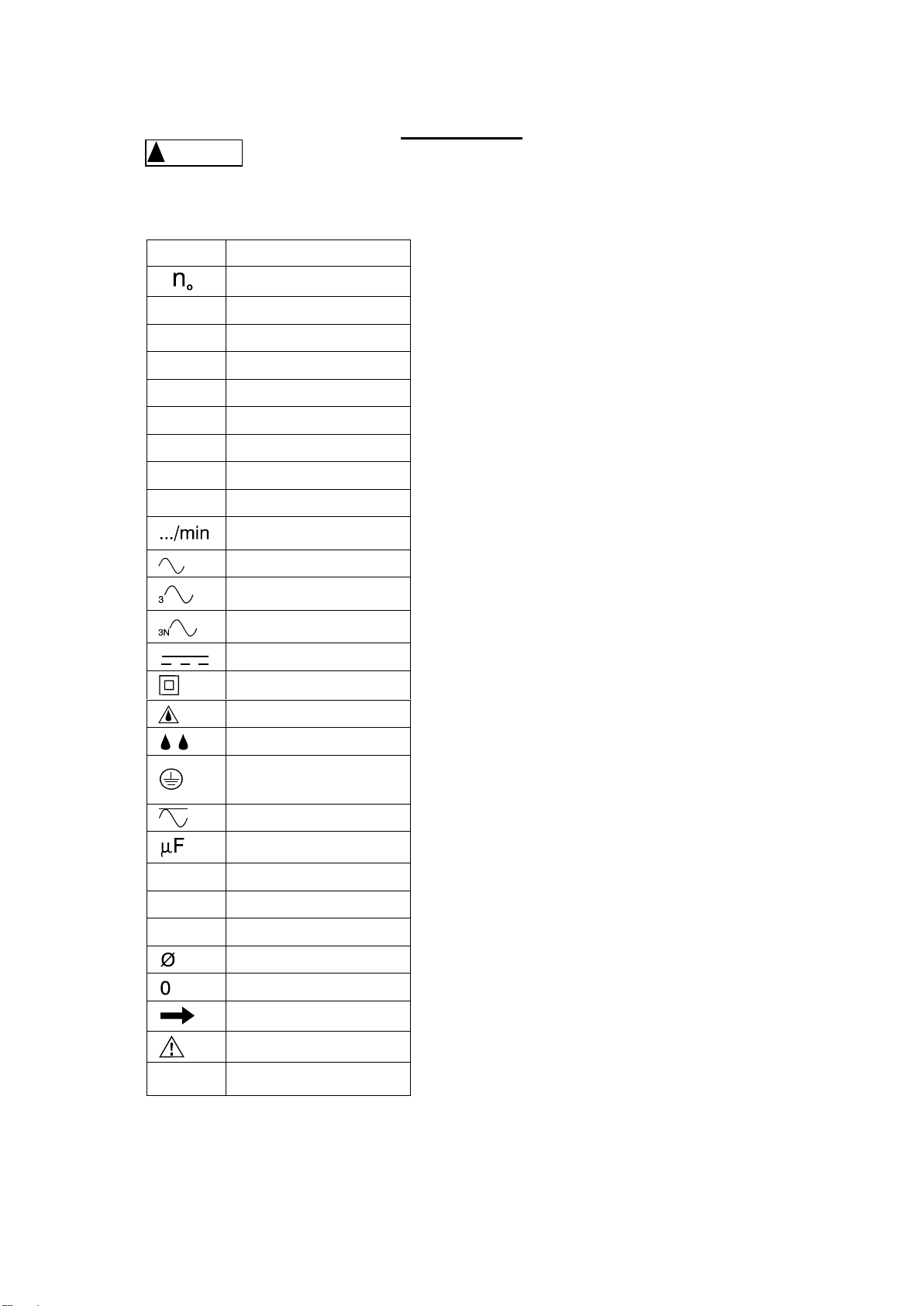

Symbols 10
Electrical information 11

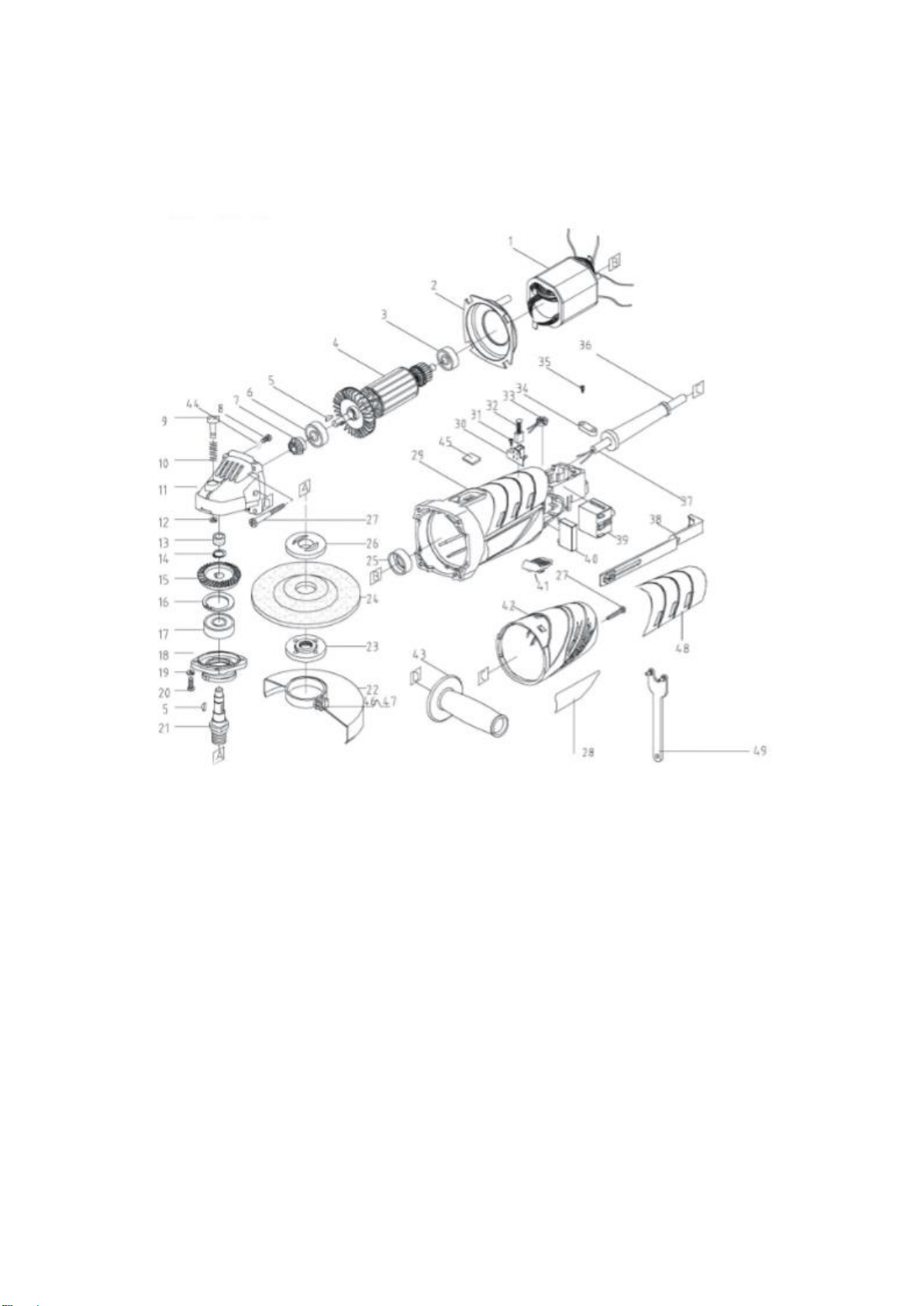

Parts Drawing 12

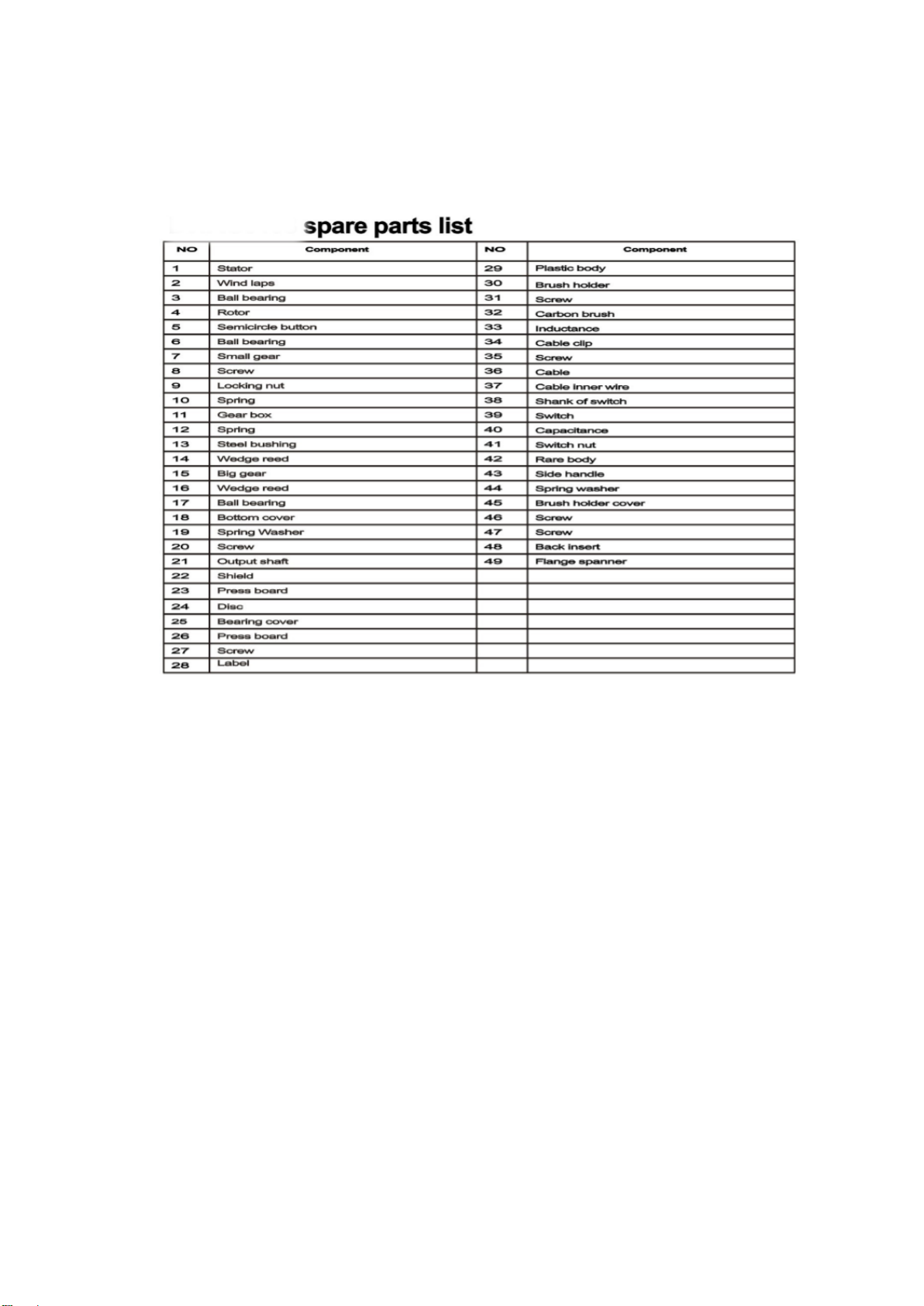

Parts list 13
Accessories.
1 - 4 ½”/115mm Grinding Disc.
1 - 4 ½”/115mm Cutting Disc
1 - 4 ½”/115mm Diamond cutting disc for masonry
1 - Outer flange
1 - Pin wrench
1 - Pair carbon brushes
Page 1

CAUTION.
Carefully read through this entire instruction manual before using your new
power tool. Take special care to heed the Cautions and Warnings
TECHNICAL DATA
We have made every effort to ensure accuracy of information in this manual at
time of going to print.
Specification
Angle grinder 4 1/2”/115mm Product
Voltage 230V- 50Hz
Input power 800w
No load speed 12000rpm
Disc diameter 41/2”/115mm
Disc bore diameter 22.2
Spindle thread M14
Protection class
Weight 1.9k
This tool is double insulated. There are two independent barriers of insulation to protect you from the
possibility of electric shock.
NOISE AND VIBRATION DATA
Typical weighted Vibration 2.5m/s²
A weighted sound pressure 83dB(A)
A weighted Sound power 98dB(A)
Sound pressure is over 85dB(A)
The sound intensity level for the operator may exceed 85dB(A) and sound protection measures are
necessary.
You must always wear the following if operating this power tool.
Wear goggles.
Wear ear defenders.
Wear a breathing mask.
Wear safety gloves
Wear safety shoes
Page 2

SAFETY INSTRUCTIONS
To use this tool properly, you must observe the safety regulations, the assembly instructions and the operating
instructions to be found in this manual. All persons who use and service the machine have to be acquainted with
this manual and must be informed about any potential hazards.
Children and infirm people must not use this tool. Children should be supervised at all times if they are in the area
in which the tool is being used. It is also imperative that you observe the accident prevention regulations in force in
your area. The same applies for general rules of occupational health and safety.
The manufacturer shall not be liable for any changes made to the tool nor damage resulting from such changes.
Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following
hazards may arise in connection with the tools construction and design:
Contact with disc
Kickback of work piece and parts of work piece.
Disc fracture.
Catapulting of disc pieces.
Damage to hearing if effective ear defenders are not worn.
Damage to the lungs if an effective dust mask is not worn.
Do not use discs that are damaged or cracked.
Always remove the plug from the mains socket before making any adjustments or maintenance, including
changing disc.
WARNING
When using electric power tools, basic safety precautions including the following, should always be followed to
reduce the risk of fire electric shock and personal injury. Also please read and heed the advice given in the
additional important safety instructions.
READ ALL THESE INSTRUCTIONS BEFORE OPERATING THIS PRODUCT AND SAVE THESE
INSTRUCTIONS.
1. Keep the work area clean and tidy. Cluttered work areas and benches invite accidents and invite injury.
2. Consider work area environment. Do not expose power tools to rain. Do not use power tools in damp or
wet locations. Keep the work area well lit. Do not use power tools where there is risk to cause fire or
explosion. Do not use power tools in the presence of flammable liquids or gases.
3. Guard against electric shock. Avoid body contact with earthed or grounded surfaces (e.g. pipes, radiators,
ranges, refrigerators).
4. Keep children and visitors away from the work area. All visitors and onlookers, especially children and
infirm persons should be kept well away from where you are working. Do not let others in the vicinity
make contact with the tool or extension cord?
5. Store idle tools. When not in use, tools should be stored in a dry, high or locked up place out of reach of
children.
6. Do not force the tool. The tool will do the job better and safer at the rate for which it was designed.
7. Use the right tool. Do not force small tools or attachments to do the job best handled by a heavier duty
tool. Do not use tools for purposes not intended; do not use circular saws to cut tree limbs or logs.
8. Dress correctly. Do not wear loose clothing or jewellery; they can be caught in moving parts. Rubber
gloves and non-slip footwear are recommended when working outdoors. Wear a protective hair covering
to contain long hair.
9. Use safety accessories. Safety glasses and ear defenders should always be worn. A face or dust mask is
also required.
10. Connect dust extraction equipment. If devices are provided for the connection of dust extraction and
collection facilities, ensure that these are connected and properly used.
11. Do not abuse the power cord. Never carry the tool by the cord or yank it to disconnect it from the socket.
Keep the cord away from heat, oil and sharp edges.
12. Secure the work piece. Use clamps or a vice to hold the work piece. It is safer than using your hand and it
frees both hands to operate the tool.
13. Do not overreach. Keep proper footing and balanced at all times.
14. Maintain and Look after your tools with care. Keep cutting tools clean and sharp for better and safer
performance. Follow the instructions for lubrication and accessory changes. Inspect tool cords
periodically and if damaged have it repaired by an authorized service facility. Inspect
extension cords periodically and replace, if damaged. Keep tool handles dry, clean and free
from oil and grease.
15. Disconnect tools. Switch off the power. Disconnect the plug from the power point before
servicing and when changing accessories such as blades, bits and cutters, and when the tool is
not in use.
16. Remove adjusting keys and wrenches. Form the habit of checking to see that the keys and
adjusting wrenches are removed from the tool before switching the tool on.
17. Avoid unintentional starting. Ensure that the switch is in the OFF position before plugging the
Page 3

18. tool to the power supply. Do not carry a plugged in tool.
19. with your finger on the switch
20. Use outdoor rated extension cords. When a tool is used outdoors, use only extension cords that
are intended for outdoor use and are so marked.
21. Stay alert. Watch what you are doing. Use common sense. Do not operate a power tool when
you are tired.
22. Check for damaged parts. Before using a tool, check that there are no damaged parts, if a part
is slightly damaged carefully determine if it will operate properly and perform its intended
function other wise replace. Check for alignment of moving parts binding of moving parts,
breakage of parts, free running of moving parts, proper mounting and any other conditions
that may affect the operation of the tool. A guard or other parts that are damaged should be
properly repaired or replaced by an authorised service centre, unless otherwise indicated in
this instruction manual. Defective switches must be replaced by authorised service facility. Do
not use the tool if the switch does not turn the tool on and off correctly.
23. Warning. The use of any accessory or attachment, other than those recommended in this
instruction manual, may present a risk of personal injury.
24. Have your tool repaired by a qualified person. This electric tool is in accordance with the
relevant safety requirements. Repairs should only be carried out by qualified persons using
original spare parts; otherwise this may result in considerable danger to the user.
25. Do not let the tool run unattended. Always wait until your power tool has come to a complete
stop before leaving it. Then turn off at mains and remove the plug from the power outlet.
WARNING
The use of an accessory or attachment, other than those recommended in this instruction manual may present a risk
of personal injury
The tool must be used only for its prescribed purpose any use other than those mentioned in this manual will be
considered a case of misuse. The user and not the manufacture shall be liable for any damage or injury resulting
from such cases of misuse.
ADDITION SAFETY RULES FOR ANGLE GRINDER
•Fully unwind cable drum extensions to avoid potential overheating.
•When an extension cable is required, you must ensure that it has the right ampere rating for your power tool and
is in safe electrical condition.
•Ensure your mains supply voltage is the same as your tool rating plate voltage.
•Always switch off before you put the angle grinder down.
•Keep the area free of tripping hazards.
•Do not let anyone under the age of 18 years operate this tool.
•Rags, cloths, cord, string and the like should never be left around the work area.
•If you are interrupted when operating the tool, complete the process and switch off before looking up.
•Periodically check that all the nuts, bolts and other fixings are properly tightened.
•Abrasive wheels shall be stored and handled with care in accordance with manufacturers instructions
•Do not store materials or equipment above a machine in such a way that they could fall into it.
•Do not use discs having a maximum permissible speed below the tool rated marked RPM.
•Inspect the grinding wheel before use, do not use chipped, cracked or otherwise defective products. Check the
disc before mounting it into the angle grinder. Check by striking it with a wooden handle whilst balancing the
disc on your finger. Listen to the sound it makes if it rings it is ok if it sounds dull it may be cracked and needs to
be replaced.
Ensure that mounted wheels and points are fitted in accordance with the manufacturer’s instructions.
•When the disc is installed, run it for at least a minute to ensure that it does not have a fault. It is always advisable
to stay out of the line of the disc when testing or in general use.
•Do not use a disc marked with a lower RPM than that of the no load speed shown on the rating plate.
•Use discs only of the prescribed diameter.
•Never try to operate the angle grinder without the guard in place.
Do not use separate reducing bushings or adaptors to adapt large hole abrasive wheels.
For tools intended to be fitted with threaded hole wheel, ensure that the thread in the wheel is long enough to
accept the spindle length;
Do not use cutting off wheel for side grinding.
Ensure that sparks resulting from use do not create a hazard e.g. do not hit persons, or ignite flammable
substances.
Ensure that ventilation openings are kept clear when working in dusty conditions. If it should become necessary
to clear dust, first disconnect the tool from the mains supply (use non metallic objects) and avoid damaging
internal parts.
If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly
qualified person in order to avoid hazard

Page 4
•Do not secure the angle grinder in a vice or work bench and use it as a static grinder. It leads to serious injury.
•Never apply excessive pressure to the disc it might shatter causing personal injury.
•Ensure the work piece to be ground or cut, is held tight in the vice or other clamping system.
•Always use both hands and ensure a good handgrip on the grinder before proceeding with any work
•Make sure that the disc is not in contact with the work surface when you start the grinder.
•Be careful not to damage the spindle or either of the disc flanges. Damage to these parts could result in disc
damage or breakage.
•Only use good quality grinding and cutting discs. Cheap or poor quality discs tend to glaze up which loads the
motor and can damage it. Use discs for their designated purpose only. For instance, do not use cutting discs for
grinding or metal wheels for masonry.
•Watch out for flying sparks. Hold the tool at an angle of approximately 15to 30to the work piece surface
when using discs.
•Let the disc do the grinding or cutting at a reasonable feed, as overloading will occur if too much pressure is
applied and the disc slows resulting in inefficient cutting and possible damage to the motor.
•When using the grinder, use safety equipment including safety goggles or shield, ear protection dust mask and
protective clothing including safety gloves.
Wear goggles
Wear ear defenders
Wear a breathing mask
Wear safety gloves
Wear safety shoes
UNPACKING
Due to modern production techniques, it is unlikely that your power tool is faulty or that a part is
Missing. If you find anything wrong do not operate the tool until the parts have been replaced or the
Fault has been rectified. Failure to do so could result in serious personal injury.

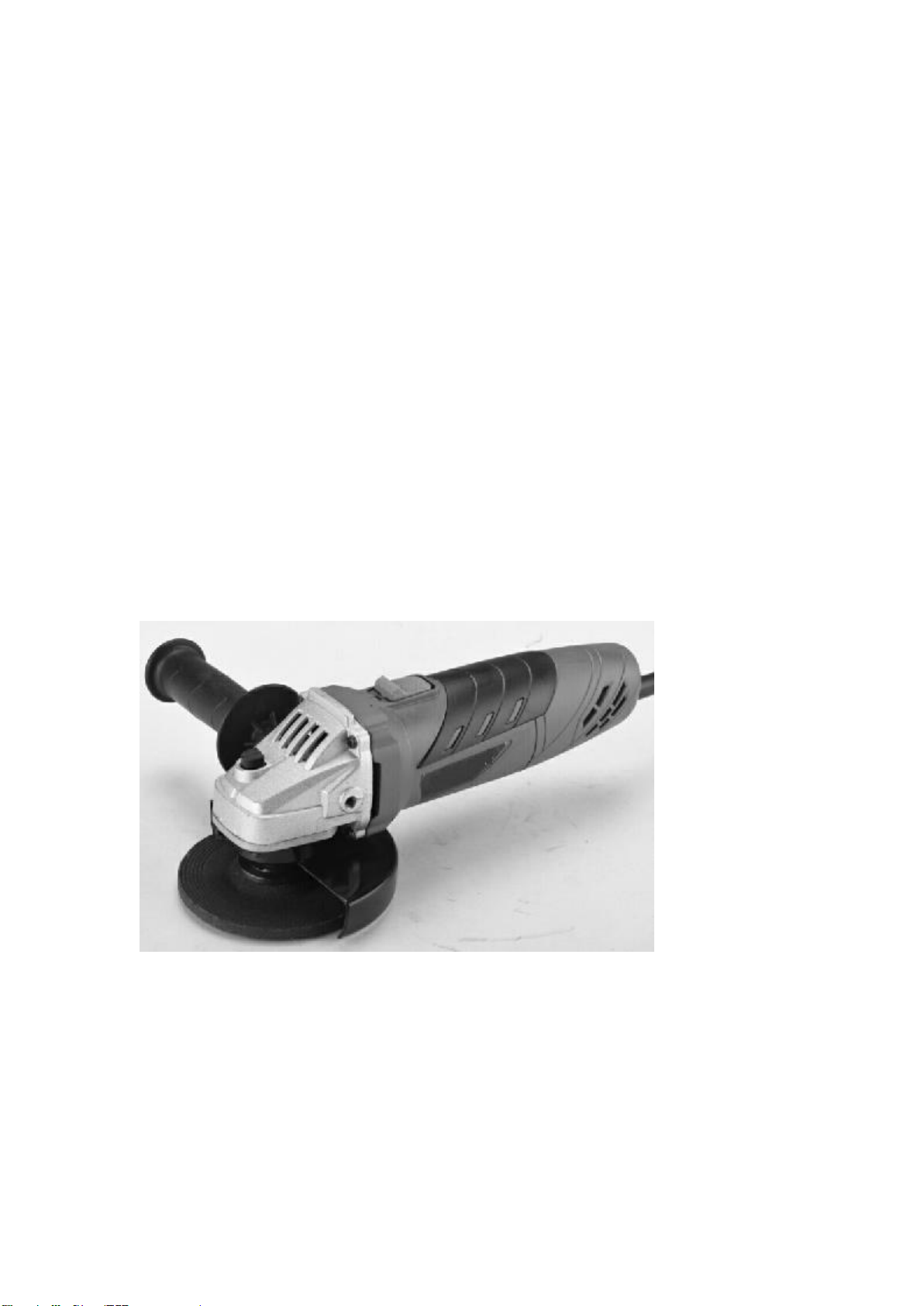

KNOW YOUR PRODUCT
Before using the angle grinder, familiarise yourself with all the operating features and safety
requirements.
Use the tool and accessories only for the application intended all other applications are expressly ruled
out.
Motor housing 7 Power cord
Spindle lock button 8 Pin wrench
Disc guard 9 Outer flange
Mounting points for handle 0 Inner flange
On/Off switch
Side handle
6 2 10 4 3 5 1 8 9 7
Page 5

CONTROLS
1/ Looking at the angle grinder from the top, the spindle lock (2) is located at the front top right hand
side.
2/ There are attachment points (4) for the handle (6) at either side of the front of the housing, Attach the
handle in the position that suits the planned operation.
3/ An arrow imprinted on the front housing indicates the direction of the rotation of the Disc.
4/ The on/off switch (5) is located on the top of the motor housing.
5/ The adjustable disc guard (3) is on the underside of the grinder as is the outer flange (9), grinding
disc (10)
Operation
This angle grinder can be used for polishing cutting and grinding.
1/ To start the grinder first ensure that the
work you are going to do has the right
disc for the job.
2/ When using cutting or grinding disc,
insure that the guard (3) and tools are
in good condition.
3/ Position the guard (3) when using disc so that it will deflect hot sparks away from operator.
4/ Plug the cord set into the mains outlet.
5/ Push the on/off switch (5) forward and up over the latching ramp to lock the switch on
7/ Allow the grinder to start and attain full speed before bringing the grinder to the work piece.
8/ When using cutting and grinding discs hold the grinder at 15to 30to the work surface moving
slowly
9/ Hold the grinder firmly while it is switched on and only apply gentle pressure to the workpiece
little more than the weight of the tool should be applied to give the best and most efficient material
removal. Forcing and excessive pressure can cause dangerous disc fracture or damage to the tool
10/Avoid flying sparks. And ensure they do not hit any inflammable materials, as they are very hot and
could cause personal injury or a fire.
11/Once you have finished the job you are doing, press the back of the switch (5) and lift it over the
latching ramp to stop the angle grinder.
12/If a person comes to you while you are operating the machine do not turn round or look up until
you have released the trigger and the machine has come to a stop and you have put the machine
down then you are safe to communicate with that person.
13/WARNING. The grinder continues for a few seconds after the trigger has been released, so be
careful when placing the tool down, make sure it has stopped.

Page 6
FITTING A GRINDING DISC
Caution. Switch off the grinder and disconnect 8/ Place the grinding disc onto the spindle with
it from the power point label facing the angle grinder.
The hole in the disc
1/ Turn the angle grinder should locate onto the
on to its back and spindle and fit firmly
press the spindle lock into the spigot section
button (2) of the inner flange.
9/ Screw the outer flange
2/ Rotate the spindle unit (9) with the protruding spigot section
until it locks. Facing the angle grinder. The spigot section
must locate with the hole in the grinding disc.
3/ Insert the pins of the
wrench (8) into the 10/ Hand tighten the outer
holes in the outer flange until the disc is
flange (9) and remove secure.
it and the old disc.
11/ Press the spindle lock
button (2) and tighten
the flange with the
wrench.
12/ Turn the new disc by hand, ensuring that it
is tightly secured and that it rotates fully and
does not wobble unduly.
4/ Do not remove the inner flange (11) 13/ Run the angle grinder under no load for at
least one minute to ensure the new disc is
In good condition. Make sure you are
5/ Select the type of disc needed for the job wearing all the safety items mentioned in
on hand. The Safety Rules and that you face the
grinder away from you.
6/ Clean the flanges and check the new disc.
CAUTION
7/ Holding the angle Do not use excessive force to clamp the
grinder with the spindle disc. It could crack and cause failure
facing upwards, check during use.
that the inner flange is
on the spindle and
correctly located.
The two-machined flat sections must face
The angle grinder and locate in the
Appropriate position on the spindle.
Page 7

GENERAL INFORMATION
FITTING A CUTTING DISC
1/ Use the same procedure as for the grinding disc except use the outer flange the other way round.
The spigot section should face away from the disc.
WARNING
Do not immerse the disc into any type of lubrication including water.
This angle grinder is designed as a dry grinder/cutter/polisher.
Failure to observe this warning could result in a fatal shock.
GENERAL INSPECTION
1/ Regularly check that all the fixing screws are tight, particularly the outer flange. They may vibrate
loose over time.
2/ The supply cord of the tool and any extension cord used should be checked frequently for damage
if damaged have the cord set replaced by an authorised service facility. Replace the extension cord
if necessary.
LUBRICATION
The grease in the gearbox will require replacement after extensive use of the tool, please refer to an
Authorised service agent to provide this service.
MAINTANCE
1/ Store the tool, instruction manual and accessories in a secure place. In this way you will always
have all the information and parts ready to hand.
2/ Keep the tool’s air vents unclogged and clean at all times.
3/ Remove dust and dirt regularly. Cleaning is best done with compressed air or a rag.
4/ Never use caustic agents to clean plastic parts.
CAUTION
Do not use cleaning agents to clean the plastic parts of the tool. A mild detergent on a damp cloth
Is recommended. Water must never come in contact with the tool.
Page 8

SYMBOLS
Some of the following symbols may be used on the tool. Please study them and learn their meaning.
Proper interpretation of these symbols will allow you to operate the tool better and safer.

Speed of normal load
no load speed
V
volts
A
amperes
Hz
hertz
W
watt
Kw
kilowatts
h
Hours
Min
minutes
s
seconds
Revolutions, oscillations or
reciprocations per minute
alternating current
three-phase alternating
current
three-phase alternating
current with neutral
direct current
class II construction
splash proof construction
watertight construction
protective earthing at
earthing terminal, Class I
tools
alternating or direct current
microfarads
Pa
pascals
l
litres
Kg
kilograms
Diameter
Off position
Arrow
Warning symbol
N/cm2
newtons per square
centimeter
SAVE THESE INSTRUCTIONS FOR REFERENCE
Page 9
WARNING
!

PARTS DIAGRAM
Page10

PARTS LIST
Page11
