User’s Manual
EN
STUMP GRINDER
HYTC150-2
2
SAFETY
GENERAL SAFETY NOTES
The operator of the machine is responsible for, and has a duty of care in making sure that the
machine is operated safely and in accordance with the instructions in this user manual. Keep the
manual safe and pass it on if the machine is loaned or sold to another user.
Please note the following safety points.
The machine should never be left it in a condition which would allow an untrained or unauthorised
person/s to operate this machine.
All due care and diligence should be taken by the operator for the safety of, and with regard to those
around whilst using the machine.
Some or all of the following - warning signs, symbols and/or PPE pictograms may appear throughout
this manual. You MUST adhere to their warnings. Failure to doso may result in personal injury to
yourself or those around you.
DANGER
Indicates a hazard, which, if not avoided, could result in serious injury or death.
WARNING
Indicates a hazard, which, if not avoided, could result in serious injury.
CAUTION
Indicates a hazard which, if not avoided, might result in minor or moderate injury.
NOTE
Indicates a situation that could easily result in equipment damage.
READ and keep the manual safe and pass it on if the machine is loaned or sold to another user. You
MUST fully read instructions to make sure you use and operate machine safely.

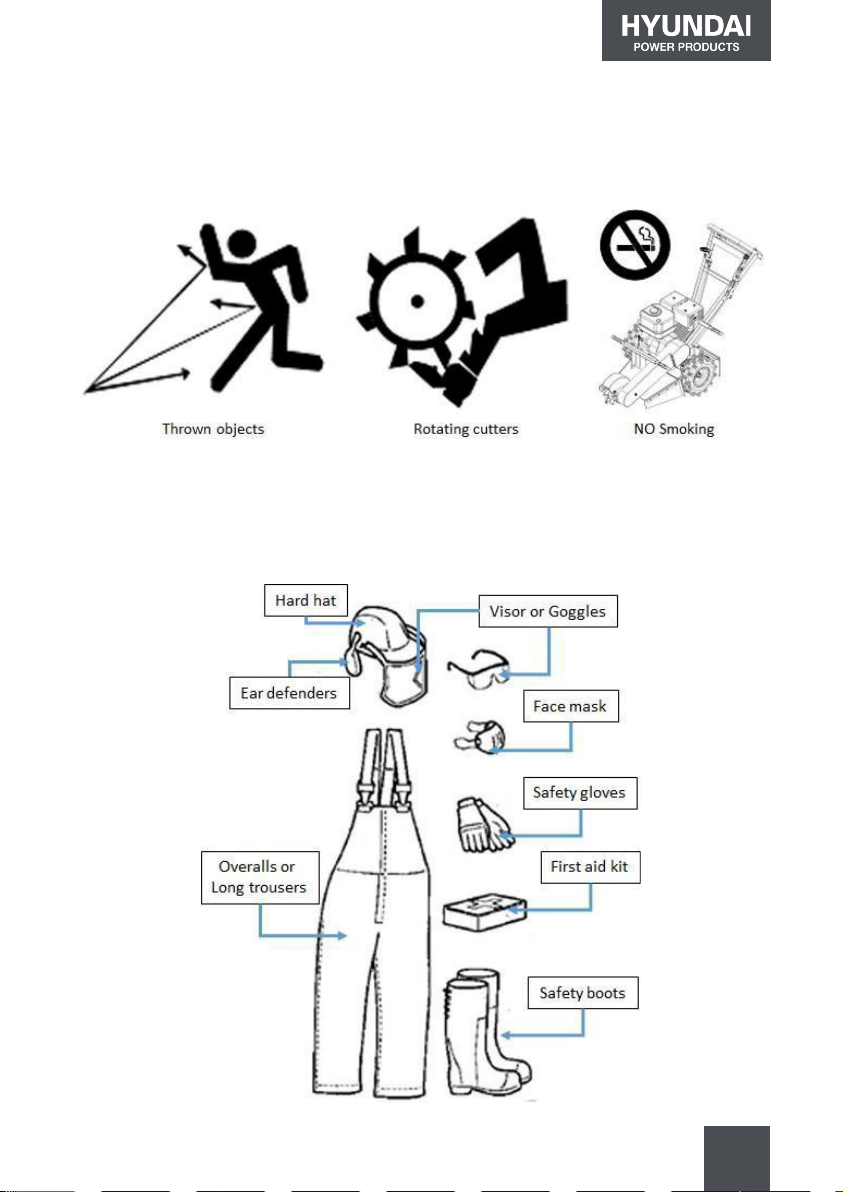

Appropriate Personal Protective Equipment (PPE), MUST be worn at all times when machine is in
use or being repaired.
3
Carbon monoxide is a colourless and odourless gas. Inhaling this gas can cause death as well as
serious long term health problems such as brain damage.
The symptoms of carbon monoxide poisoning can include but are not limited to the following;
Headaches, dizziness, nausea, breathlessness, collapsing or loss of consciousness.
Carbon monoxide poisoning symptoms are similar to u, food poisoning, viral infections and simply
tiredness. It is quite common for people to mistake this very dangerous poisoning for something
else.
To avoid carbon monoxide poisoning DO NOT use Petrol/Diesel powered equipment inside any of the
following; Home, garage, tent, camper van, mobile home, caravan or boat.
This list is not exhaustive and if you are in any doubt contact your dealer.
f you think you have or someone around you has been affected by carbon monoxide poisoning;
Get them fresh air immediately, by leaving the affected area or by opening doors and windows. If
safe and practical to do so make sure that the machine is turned off.
DO NOT enter a room you suspect of having carbon monoxide present – instead call the emergency
services.
Contact a doctor immediately or go to hospital - let them know that you suspect carbon monoxide
poisoning.
DO NOT use in an enclosed area or a moving vehicle
CARBON MONOXIDE (where applicable)
4
GENERAL FUEL SAFETY (where applicable)
CAUTION
ALL FUELS ARE FLAMMABLE
Fire hazard - keep fuel away from all sources of ignition for example heaters, lamps, sparks from
grinding or welding.
Pay attention when handling fuel. Petrol is ammable and the vapors are highly explosive.
Never remove the fuel cap or add fuel with the engine running. Stop the engine and allow to cool
before refueling. Never fuel machine indoors or in a conned space. DO NOT overll with petrol –
always leave a 15mm gap at the top of the fuel tank.
DO NOT smoke while adding fuel or around machine while operating.
Fill your engine with SAE10w-30/15w-40 engine oil before use or serious damage will occur.
Never refuel or store the machine in a place where there is open ame, spark or other forms of open
ames or ignition.
DO NOT attempt to start the engine if fuel is spilled. Wipe away the spillage and ensure all fuel has
dried before starting the machine.
ALWAYS make sure the fuel cap is securely tightened and replaced before starting.
If the fuel tank needs to be drained, it should be done outdoors and into an approved container.
DO NOT carry out hot work on tanks that have contained fuel it is extremely dangerous.
ALWAYS keep work area clean and tidy.
ALWAYS clean up all spills promptly using correct methods i.e. absorbent granules and a lidded bin.
ALWAYS dispose of waste fuels correctly.
5
FUELING/DE-FUELING (where applicable)
CAUTION
ALL FUELS ARE FLAMMABLE
ALWAYS fuel and defuel in a well-ventilated area outside of buildings.
ALWAYS wear correct, suitable and t for purpose Personal Protective Equipment (PPE), suggested
items are but not limited to safety gloves and overalls.
When fueling/de-fueling ALWAYS avoid inhaling fumes.
When de-fueling ALWAYS use a propriety fuel retriever.
ALWAYS carry fuel in the correct and clearly marked container.
ELECTRICAL SAFETY (where applicable).
Electricity can kill - NEVER work on LIVE/ENERGISED equipment.
Prior to carrying out any maintenance work you MUST Identify electrical isolation methods and
isolate all electrical supplies,
Prior to use and with all electrical supplies isolated You MUST check all electrical cables, plugs and
connections for the following;
Are intact and have no signs of damage, to include but not limited to bare wires, chafng, cuts and
loose wiring.
If there are any signs of damage, the damaged item MUST be taken out of service until the damage
has been repaired by an electrically competent person.
All trailing cables should be routed so as not to cause any kind of trip hazard.
NEVER work on or near electricity with wet hands, wet clothing, and wet gloves.
6
BATTERIES (where present).
Batteries present a risk if they become damaged by the possible leaking of electrolyte.This electrolyte
is an acid and can cause serious burn injuries. Care should be taken when working on or near them.
NOTE the electrolyte may be in liquid or gel form.
Should you come into contact with electrolyte you should;
Remove all clothing contaminated with electrolyte. If you cannot remove then saturate in water.
Get medical assistance as soon as possible. You must advise the medical staff of the type acid.
Lead/acid battery = dilute sulphuric acid
Nickel/cadmium = potassium hydroxide alkali electrolyte.
Use fresh running water to wash off excess electrolyte, continue this until medical assistance arrives.
Make sure that you do not wash the electrolyte to another partof the face or body.
If electrolyte comes into contact with eyes the electrolyte needs to be immediately washed away
with large amounts of water. Make sure that you do not wash the electrolyte to another part of the
face or body.
Gasses from charging batteries are highly ammable and great care should be taken to charge in
well ventilated areas.
There is an explosion risk if the battery terminals are short circuited, when connecting / 0dis-
connecting ALWAYS exercise great care so that the terminals or battery leads are NOT allowed to
touch and cause a spark. ALWAYS use suitable insulated tools.
VIBRATIONS (where applicable).
Prolonged use of hand held (operated) machines will cause the user to feel the effects of/from
vibrations. These vibrations can lead to white nger (Raynaud’s phenomenon) or carpal tunnel
syndrome. This condition reduces the ability of the hand to feel and regulate temperature, causing
numbness and heat sensations and may cause nerve damage and circulatory tissue death.
Not all factors that lead to white nger disease are known, but cold weather, smoking and other
diseases that affect blood vessels and blood circulation as well as large and long- lasting impact of
shocks are considered factors in the formation of white nger. Note the following to reduce the risk
the white nger and carpal tunnel syndrome:
7
Wear gloves and keep your hands warm
Take regular breaks
All of the above precautions may help reduce the risk of white nger disease but not rule out carpal
tunnel syndrome. Long-term and regular users are therefore recommended to observe the condition
of your hands and ngers. Seek medical attention immediately if any of the above symptoms should
occur.
NOISE (where applicable).
The operating noise of the machine can damage your hearing. Wear hearing protection such as
earplugs or ear defenders to protect your hearing. Long- termand regular users are advised to have
hearing checked regularly. Be especially vigilant and cautious when wearing hearing protection
because your ability to hear alarm warnings will be reduced.
Noise emissions for this equipment is unavoidable.Carry out noisy work at approved times and for
certain periods. Limit the working time to a minimum. For your personal protection and protection of
people working nearby it is also advisable for them to wear hearing protection.
See CERTIFICATE of CONFORMITY section for Outdoor Noise declaration of conformity.
MACHINE SPECIFIC SAFETY

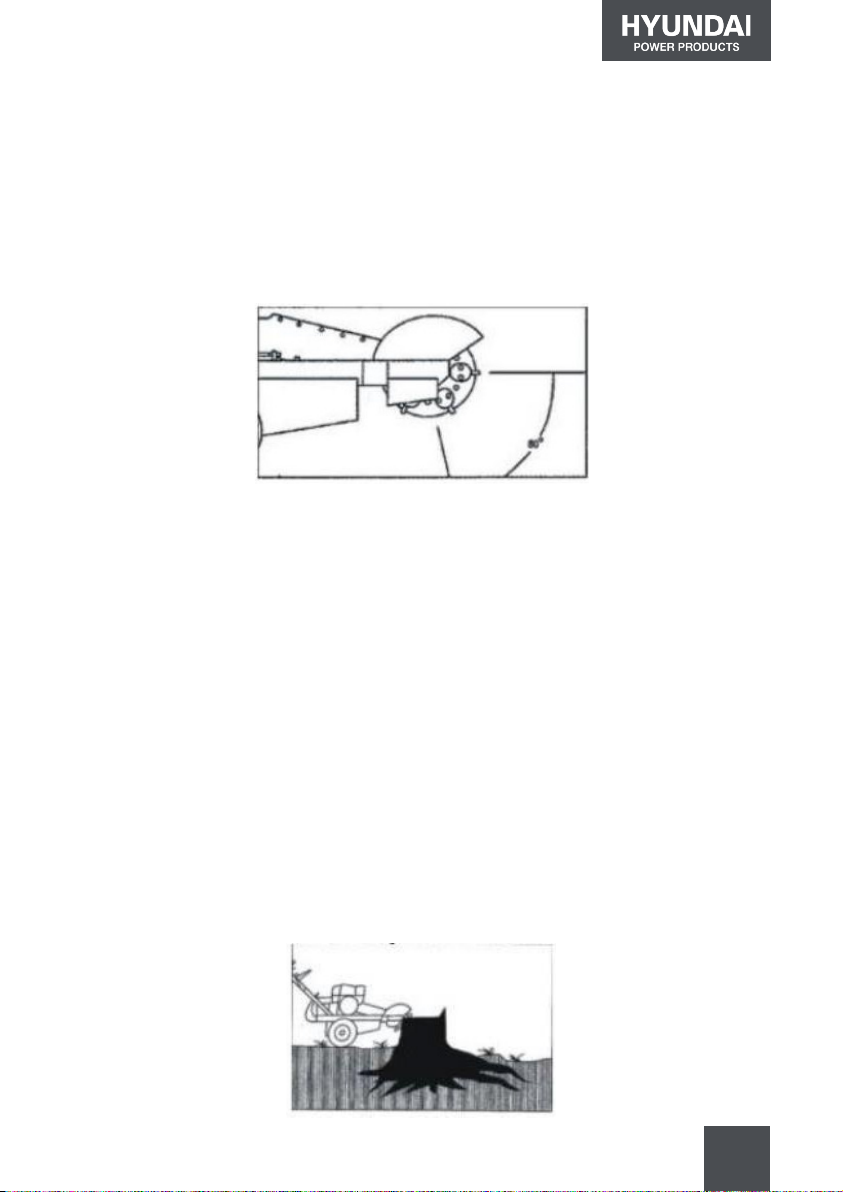

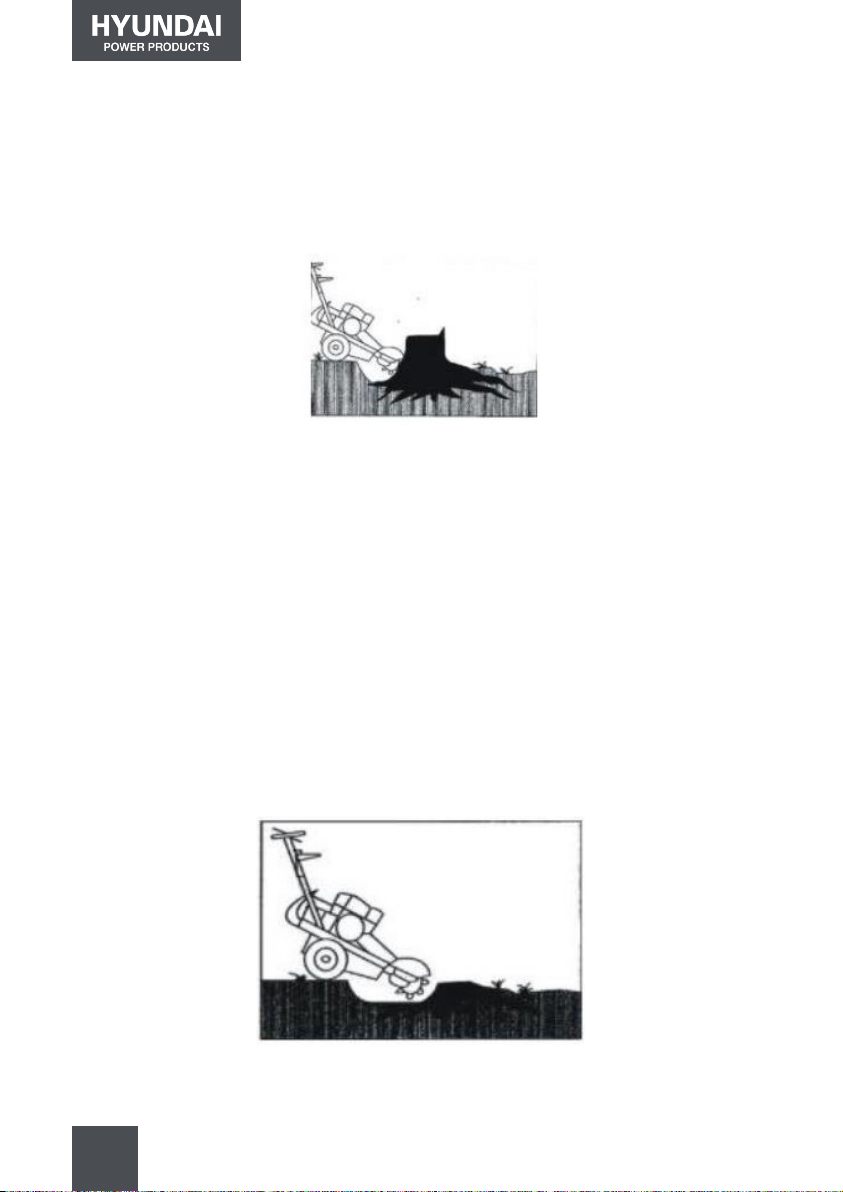

The stump grinder is only to be used to remove tree stumps. By moving the blade in sweeping
movements laterally over the top and front of the stump, you can gradually grind it away. Read the
SAFETY chapter before you use the machine for the rst time.
The object of this manual is to help you use your machine safely and to give you information about
how to maintain your machine. Please read the manual carefully before attempting to use the
machine.
If after reading the user manual you are still unsure about the safety risks associated with use of the
machine, you should not use the machine. Please contact your dealer for more information.
These safety instructions only address the basics for safe use. It would be impossible in the safety
instructions to describe all possible risk situations that could arise when using the machine.You can,
however, prevent accidents by always using common sense.
To obtain extra copies of the user manual, please contact your dealer.
USAGE RESTRICTIONS
The stump grinder can be dangerous if used incorrectly or without due care and can lead to serious
accidents, in the worst cases even fatal accidents. It is very important that you read this user manual
and understand the instructions before you attempt to use the machine.
8
Take regular breaks
All of the above precautions may help reduce the risk of white nger disease but not rule out carpal
tunnel syndrome. Long-term and regular users are therefore recommended to observe the condition
of your hands and ngers. Seek medical attention immediately if any of the above symptoms should
occur.
NOISE (where applicable).
The operating noise of the machine can damage your hearing. Wear hearing protection such as
earplugs or ear defenders to protect your hearing. Long- termand regular users are advised to have
hearing checked regularly. Be especially vigilant and cautious when wearing hearing protection
because your ability to hear alarm warnings will be reduced.
Noise emissions for this equipment is unavoidable.Carry out noisy work at approved times and for
certain periods. Limit the working time to a minimum. For your personal protection and protection of
people working nearby it is also advisable for them to wear hearing protection.
See CERTIFICATE of CONFORMITY section for Outdoor Noise declaration of conformity.
MACHINE SPECIFIC SAFETY
The stump grinder is only to be used to remove tree stumps. By moving the blade in sweeping
movements laterally over the top and front of the stump, you can gradually grind it away. Read the
SAFETY chapter before you use the machine for the rst time.
The object of this manual is to help you use your machine safely and to give you information about
how to maintain your machine. Please read the manual carefully before attempting to use the
machine.
If after reading the user manual you are still unsure about the safety risks associated with use of the
machine, you should not use the machine. Please contact your dealer for more information.
These safety instructions only address the basics for safe use. It would be impossible in the safety
instructions to describe all possible risk situations that could arise when using the machine.You can,
however, prevent accidents by always using common sense.
To obtain extra copies of the user manual, please contact your dealer.
USAGE RESTRICTIONS
The stump grinder can be dangerous if used incorrectly or without due care and can lead to serious
accidents, in the worst cases even fatal accidents. It is very important that you read this user manual
and understand the instructions before you attempt to use the machine.
9
Under no circumstances may the original design of the machine be modied without written
approval from the manufacturer. Such modications not only affect the performance and durability
of the machine but many even pose a safety risk for users and those in the vicinity. Unauthorised
modications to the design of the machine may absolve the manufacturer from liability for any
resulting personal injury or property damage. Modifying the machine without written approval from
the manufacturer may void the guarantee.
Follow all safety instructions. Failure may result in injury to yourself or others.
Accident prevention regulations, other general safety regulation, occupational safety rules and trafc
regulation must be followed without fail.
All users MUST be trained in use of the machine. The owner is responsible for training users.
You MUST use an authorised workshop for all service and repairs not described in this manual.
You MUST learn how to use the machine and its controls safely and learn to recognize the safely
labels.
Only use the machine for removing tree stumps it is not intended for any other use.
Check that the machine is in a serviceable condition prior to use.
Only use the machine in daylight or in other well-lit conditions. Keep the machine a safe distance
from holes or other irregularities in the ground. Pay attention to other all other possible risks.
Only allow the machine to be used by adults who are trained in its use.
NEVER allow children or persons not trained in the use of the machine to use or service it Local by-
laws may regulate the age of the user.
People and animals can distract you causing you to lose control of the machine. For this reason, you
should always concentrate and focus on the task at hand.
NEVER leave the machine unsupervised with the engine running. You MUST always disable machine
to stop others using it in your absence.
You MUST make sure that there is always another person in the safe vicinity of your work area so
that help is available should an emergency arise.
The machine is tested and approved only with the equipment originally provided or recommended
by the manufacturer.
10
The engine can become very hot. To avoid being burned, you must turn off the engine and wait until
all parts have sufciently cooled before touching the engine or exhaust.
Overexposure to vibration may lead circulatory or nerve damage, particularly in people who have
impaired circulation. Contact your doctor if you experience symptoms that could have been caused
by overexposure to vibration. Examples of common symptoms include numbness, pain, muscle
weakness, change of skin color or an uncomfortable feeling of tingling. These symptoms appear
most frequently in the ngers, hands or wrists.
NEVER use a stump grinder that is damaged or incorrectly adjusted. NEVER use the stump grinder
if any component is missing or if it is not properly assembled. ALWAYS check that the cutting tools
stop rotating when you fully reduce the throttle. If you nd yourself in a situation where you are not
sure what to do, you MUST always seek expert assistance. DO NOT try to solve any problem you are
not qualied to resolve.
Before starting work you MUST clear the work area of any unnecessary materials, rubbish etc. that
may cause the user to trip, slip or fall or the stump grinder to become entangled.
You MUST always wear appropriate personal protective equipment.
SAFETY NOTES
The user of this machine MUST be over 18 years of age.
The machine should be positioned on a rm and level surface
The user MUST wear safety gloves, ear-protection and safety goggles - not supplied with machine.
When working in a conned area, always make sure there is sufcient space around the machine to
reduce the risk of injury and there is good ventilation from exhaust fumes.
Only one person at a time should operate the machine.
Pieces jamming the feed hopper can only be removed safely when the engine has been stopped and
the spark plug HT lead disconnected.
NEVER leave the machine running whilst unattended.
Use only original parts for maintaining your stump grinder, otherwise the warranty will be void.
The stump grinder should ONLY be repaired by a skilled dealer / service-point.
When in operation the stump grinders noise will exceed 90 dB (A). Therefore all users and onlookers
must wear ear-protection.
11
Before use, make sure that the bolts on the blade and xed blade are tight. After the rst one hour
of use check that all nuts, bolts and xing are still secure.
Keep the working area clean and free from foreign objects.
DO NOT operate the stump grinder in the presence of ammable liquids, gas or dust.
Keep Children, bystanders and pets away whilst operating the stump grinder. Keep the area free of
all distractions.
Only responsible, properly instructed individuals should operate this machine.
Inexperienced operators must always be supervised by an experienced operator.
DO NOT expose the stump grinder to rain or wet conditions.
Stay alert, watch what you are doing and use common sense when operating the stump grinder. DO
NOT use a stump grinder while you are tired or under the inuence of drugs, alcohol or medications.
A moment of inattention while operating this machine may result in serious personal injury.
Use proper personal safety equipment. Always wear eye protection. Safety equipment such as dust
mask, nonslip safety boots, hard hat, gloves and hearing protection used for appropriate conditions
will reduce personal injuries.
Dress appropriately. DO NOT wear loose clothing or jewelry. Keep your hair, clothing and gloves away
from moving parts. Loose clothes, jewelry or long hair can get caught in moving parts.
Always wear earplugs or ear muffs to protect your ears.
Do not start the engine until the machine is in the cutting position next to the stump.
Do not overreach. Keep a secure footing and balance at all times. This enables better control of the
stump grinder in unexpected situations.
Check stumps to be removed for embedded nails, wire, metal fence posts and other metallic objects.
Also, check for rocks or other buried impediments which may be thrown dangerously or cause
unexpected machine movements when hit by the cutting wheel.
Make sure that all shields and guards are in place and are in good condition prior to operating the
machine. Check cutting wheel for damage or missing teeth and replace as necessary.
Ensure that everyone in the vicinity is aware of the danger zone associated with this machine (within
6m / 20’). You must avoid the danger zone at all times when the machine is in operation.
12
Make sure that no-one is working underneath or close to the machine before starting the engine or
beginning to move the machine. Make sure that the area is free of personnel.
Don’t make any alterations or modications to your stump grinder.
Check that there are no buried pipes or electrical cables in the area you intend to operate the
machine.
ASSEMBLING
13
14
OPERATION
ADDING OIL & PETROL TO THE ENGINE
Only ll the fuel to a level 15mm lower than the top of the fuel tank. DO NOT OVERFILL.
Use the dipstick to check the oil level. Use SAE10w30 or 15w40 engine oil. Fill to the correct level
before use.
The Engine is shipped without oil. Fill to the top of the oil ller neck before use. Operating the engine
with no oil or oil at low level will cause serious internal damage to the engine, this is not covered
under warranty
DO NOT use the machine on slopes greater than 10°.
DO NOT use the machine if you are tired, consumed alcohol, or if you are taking other drugs or
medication that can affect your vision, judgement or coordination.
NEVER use the machine indoors or in spaces lacking proper ventilation.
Make sure you have a proper foothold when using the machine, particularly when walking backwards
(which you should avoid). Walk, don’t run. NEVER work on wet grass. Poor traction may cause you
to slip, trip orfall.
Keep your hands and feet away from moving parts and working tools. DO NOT use your feet or other
parts of your body to gain greater bearing pressure against the stump.
Naked ames or sparks in the vicinity of the machine are strictly forbidden. Petrol is extremely
ammable and carelessness in handling can result in personal injury of re.
NEVER use a machine with a deective exhaust/mufer.
In very warm and dry climates, stump grinder operation will pose a greater risk of starting res.
Stop and inspect the equipment if you run over or into anything. If any damage has occurred you
MUST make all necessary repairs before starting work again.
15
Whatever happens, you should always park the machine on even ground, disengage the drive,
activate the parking brake, turn off the engine and wait until all moving parts have stopped before
leaving the machine.
Beware of thrown objects, rotating cutters, DO NOT smoke in the vicinity of the machine.
Always use approved protective clothing and approved protective equipment when using the
machine. Protective clothing and protective equipment cannot eliminate the risk of accident,
but wearing proper clothing and the correct equipment will reduce the degree of injury should
an accident occur. Ask your dealer about approved protective clothing and approved protective
equipment recommended.
16
STARTING PROCEDURE
START THE ENGINE
a) Lock travel wheel by pulling brake lever fully back
b) Turn fuel tap to ON
c) Turn engine ON/OFF switch to ON.
d) Make sure throttle is in slow speed position.
e) If the engine is cold, move the choke lever to the closed/start position.
f) Raise the cutter wheel 4 to 5 inches off the ground by pushing downwards on the handle bar, hold
it in that position.
g) Pull the starter rope lightly until resistance is felt then pull briskly. Do not allow the pull cord to
snap back, return it by hand to prevent damage to the starter. This may cause the cutter wheel to
rotate, keep everyone away.
h) When engine starts, or res, move the choke lever to the open/run position.
i) If the engine is cold, allow the engine to tick over (throttle set to slow speed) for a few minutes
before cutting, increase engine rpm to high speed setting before use. Please note that the centrifugal
clutch may slip which will cause excessive wear if the machine is used at speeds below half throttle.
REMOVING STUMPS
START THE ENGINE
Remove all loose pieces of wood, stones, wire and other debris from the area before beginning
stump removal.
Wind direction should be considered, as it inuences the direction in which dust and wood chips
are directed.
Dig away the earth and remove any stones near the tree stump that may interfere with your work.
Check that the ground is free of foreign objects, such as electrical cables, barbed wire, etc.
17
Cut or trim the stump as low to ground as required using a power saw.
Never operate the stump grinder after dark. There will not be adequate lighting for the operator to
use the machine safely.
Always allow a cold engine time to warm up before use.
For best results, only the portion of cutting wheel within the 80-degree area shown below should be
in contact with the stump.
Never leave controls when the cutting wheel is rotating and stop the engine when machine is left
unattended.
REMOVING STUMPS – OPERATION TIPS
Use smooth, comfortable side to side movements while operating, pivoting the arc on the locked
left hand wheel.
When it is desired to cut smaller roots, it may be more effective to do so before rather than after
cutting the main stump.
Should the chip build-up become excessive when cutting, stop the engine, wait for the cutting wheel
to stop rotating, retract the machine from the stump and rake away the chips.
In order to prevent the wheels becoming stuck in the hole. Move the grinder to the other side of the
stump to continue removal or by lling the hole with chips before continuing.
PREPARE THE GRINDER AT THE STUMP
Place the stump grinder into position with the cutting wheel near the top edge of the stump.
18
REMOVING ROOTS
Make sure the throttle is set to high speed, the cutter wheel will accelerate to cutting speed
Swing the cutting wheel to one side, then lower it into the nearest roots that are buried at the foot
of the stump.
Swing the cutting wheel before each sweep, until the roots are sufciently removed.
Raise the cutting wheel until the center of the cutting wheel is just above the top of the stump.
Allow the cutter wheel to stop, release the brake and reposition the machine.
Lock the brake again.
CUTTING THE FULL STUMP
Make sure the throttle is set to high speed. The cutter wheel will accelerate to cutting speed
Direct the cutter wheel against the stump, beginning with the nearest top corner of the stump, and
steadily sweep it across the stump left and right, cutting away 1/2 inch/ 13mm of wood with each
sweep.
Raise and lower the cutter wheel between sweeps by lowering and raising the control handle.
19
Roll the machine forward and back, by pushing and pulling on the control handle. To do this, release
the park brake. Relock it when the machine has been repositioned and continue cutting.
CONTINUE WITH FINAL ROOT REMOVAL
Cut the remaining roots as described 1.166 until satisfactorily removed
SHUTTING OFF THE GRINDER
When stopping the machine after normal operation. Lower engine speed to slow, and push the
emergency switch.
Set park brake before leaving the controls
Shut off the engine by turning the ON/OFF switch to OFF.
SHUTDOWN PROCEDURE
In consideration of your own safety and that of others, you should always use the following normal
shutdown procedures before departing from the controls for any reason including cleaning, servicing,
transporting or inspecting the stump grinder. Never deviate from this procedure unless so instructed
in this manual or in an emergency that requires it. A rotating cutting wheel is very dangerous. Stand
at controls and ensure that the cutting wheel comes to a complete stop before doing anything else.
Move the engine throttle to the slow position.
Push the emergency (on/off) switch to stop the engine.
Set park brake before leaving controls.
EMERGENCY SHUTDOWN PROCEDURE
Immediately push the emergency (on/off) switch to stop the engine.
Be sure to allow all moving parts to come to a complete stop.
Pull the brake lever to engage the brake.
Rectify the emergency situation and return to normal operation.
20
MAINTENANCE
WARNING
Always stop the engine and unplug the spark plug before doing any repairs or maintenance. Never
touch the rotating blade.
Check and maintain fuel level regularly, and check engine oil daily.
At regular intervals, check the tightness of all nuts, bolts and screws.
If the blade hits an obstacle check for damage and if the machine vibrates badly stop the machine
and take it to a service dealer.
CAUTION
Always refuel in a well-ventilated area with the engine off.
Whilst carrying out maintenance you must wear appropriate Personal Protective Equipment (PPE).
Suggested PPE Sturdy footwear, work gloves and long trousers.
CAUTION
NEVER use a “pressure washer” to clean your stump grinder. Water can penetrate areas of the
unit and cause damage to spindles, pulleys, bearings, or the engine.The use of pressure washers
will result in shortened life and reduce serviceability. Shut down the engine, wait for all moving
parts to come to a complete stop, remove H.T lead, and then wait for 5 minutes before performing
maintenance on the machine.
Table of contents
Other Hyundai Grinder manuals
