Hyundai kl22ns62 User manual

In case of smoke, strange noise or strange smell
from the unit:
Turn off the power switch immediately;
Disconnect the power plug from the power
outlet;
Contact your dealer or service centre. Never
attempt to make repairs yourself because this
could be dangerous.
High Voltage
Do not open
Risk of electronic shock, do not open.
Do not attempt to service this product yourself
as opening or removing covers may expose
you to dangerous voltage or other hazards.
Refer all servicing to qualified service personnel.
CAUTION
Important Safety Instructions
Important Safety Instructions and Maintenance
Never push objects of any kind into the set
through the cabinet slots as they may touch
dangerous voltage points or short-circuit parts that
could result in a fire or electric shock. Never spill
liquid of any kind on the set. Use special caution
in households where children are present. The
apparatus is not suitable for children under 3-year
to operate.
Power supply cords should be routed safety to
prevent life and property from dangerous with
damaged cord.
Mains plug is used as the disconnect device. It
shall remain readily operable and should not be
obstructed during intended use. To be completely
disconnected the apparatus from supply mains, the
mains plug of the apparatus shall be disconnected.
The apparatus shall be connected to a mains
socket outlet with a protective earthing connection.
To reduce the risk of fire or electric shock, do not
expose this product to rain or moisture.
The apparatus shall not be exposed to dripping
or splashing and no objects filled with liquids,
such as vases, shall be placed on the apparatus.
To avoid the fire, no naked flame source,
such as lighted candles, should be
placed on the apparatus.
1

Important Safety Instructions and Maintenance
Important Safety Instructions
Always turn the set off when it is not being used.
Unplug the apparatus from the AC outlet when it will
not be used for a long period of time. And when there
is a lightning, unplug the unit from the AC outlet
immediately. Never touch the antenna wire during
lightning.
An outside antenna system should not be located in
the vicinity of overhead power lines or other electric
light or power circuits, or where it can fall into such
power lines or circuits. When installing an outside
antenna system, extreme care should be taken to keep
from touching such power lines or circuits as contact
with them might be fatal.
Installation
The ventilation should not be impeded by covering the
ventilation opening with items, such as newspapers,
tablecloths, curtains, etc.
At least 10 cm space should be left around the
apparatus for sufficient ventilation.
The product should be situated away from heat
sources such as radiators,heat registers, stoves, or
other products (including amplifiers) that produce heat.
Place the apparatus in such a position that the screen
is not exposed to direct sunlight. It is best to have soft
indirect lighting while watching and avoid complete
dark environment and reflection from the screen as
these may cause eye fatigue.
Keep the product away from high magnetic field (i.e.
power-amplified power speaker) to avoid affecting the
tint;
2
Do not pull the plug out by the wire;
Never touch the plug with wet hands.
Excessive sound pressure from earphones and
headphones can cause hearing loss.

3

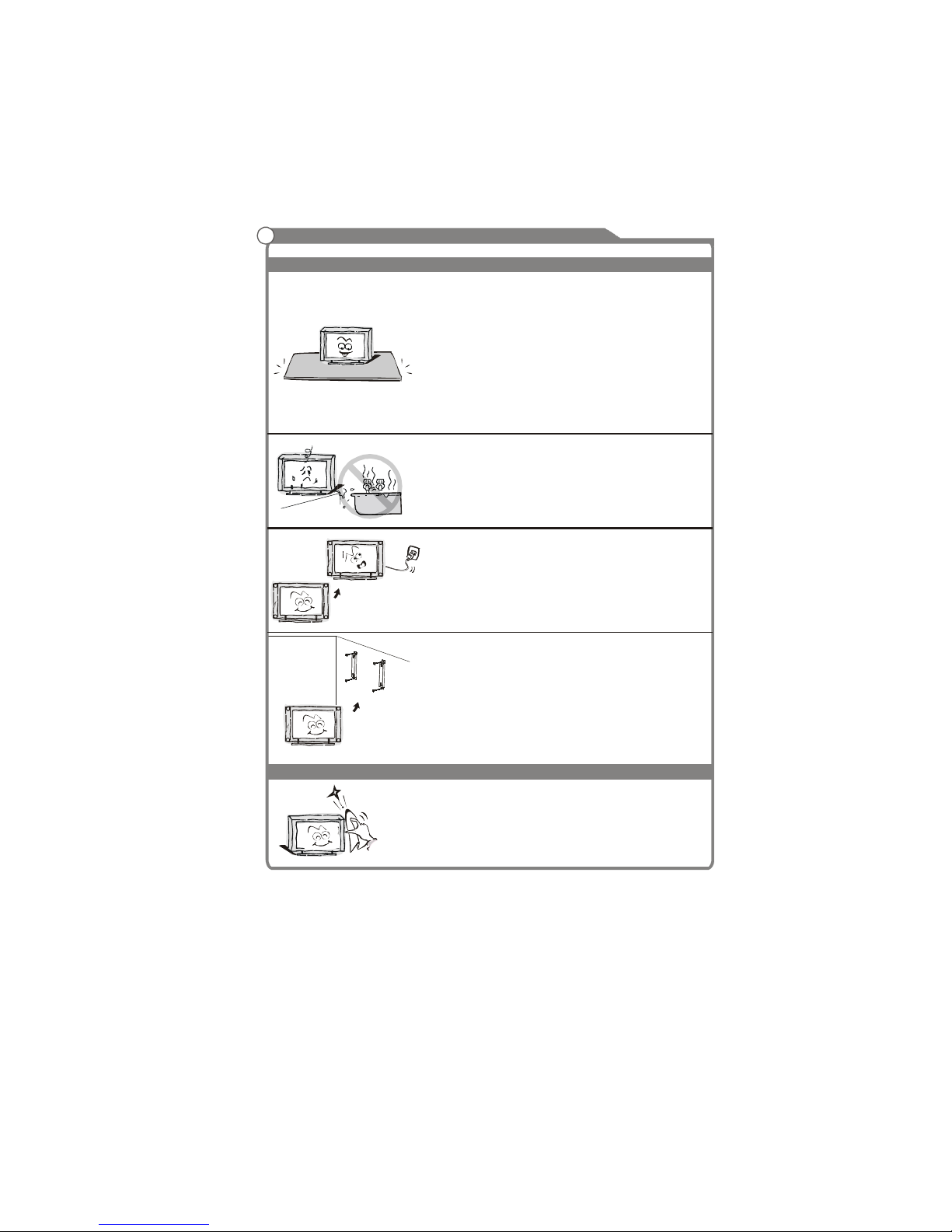

Important Safety Instructions and Maintenance
Installation
Do not place this apparatus near water, for example,
near a bath tub, wash bowl, kitchen sink, or laundry
tub; in a wet basement; or a swimming pool; and
the like;
Cleaning
When the TV being moved in from cold place, it needs
some right time for dew inside unit evaporating fully
before turn on the unit;
Unplug this apparatus from the AC outlet before
cleaning. Do not use liquid cleaners or aerosol
cleaners. Use a damp cloth for cleaning;
Do not place the set on an unstable cart, stand, table
or shelf. The set may fall, causing serious personal
injury as well as damage to the product. Use only with
the cart, stand, tripod, bracket, or table specified by
the manufacturer, or sold with the apparatus. An
appliance and cart combination should be moved with
care. Quick stops, excessive force, and uneven
surfaces may cause the appliance and cart
combination to overturn.
To prevent injury, this apparatus must be securely
attached to the floor/wall in accordance with the
installation instructions.
Move
For your protection, please read this instruction completely, and keep this manual for
future reference.

5
General description 5
Specifications and accessories 6
Overview 7
Basic operation 10

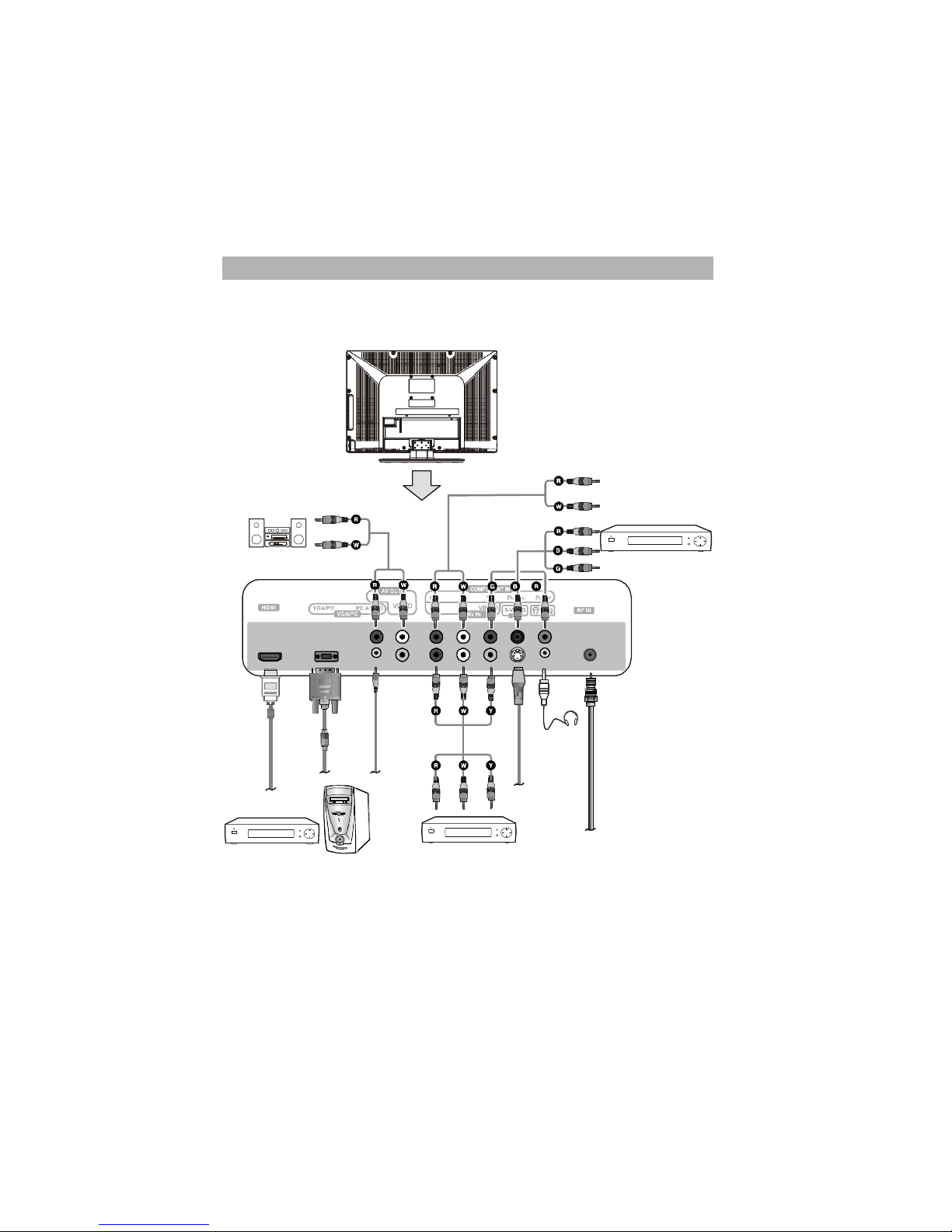

External connection 20
Trouble shooting 23
Picture defects and countermeasures 24
Basic operation
Contents

6
General description
Feature:
lZero X radiation complies to green environment protection requirement
lAuto tuning and fine tuning
lOne composite video input socket
lOne S-Video input socket
lOne PC VGA input socket
lOne YPbPr input socket
lOne HDMI input socket (HDMI 1.3)
lTwo audio input sockets
lHeadphones
lOne AV output socket
lNICAM
lMulti-language OSD
lProgrammable TV sleep timer
lNo-signal automatic power off function
l256 total channels to preset
lPC VGA mode: VGA, SVGA, XGA, WXGA
lYPbPr mode: 480i, 480P, 576i, 576P, 720P, 1080i, 1080P
lHDMI mode: 480P, 576P, 720P, 1080i, 1080P
Note:
1. In case of any design change,a notice will not be released.
2. The composite video output function only support TV and AV input.

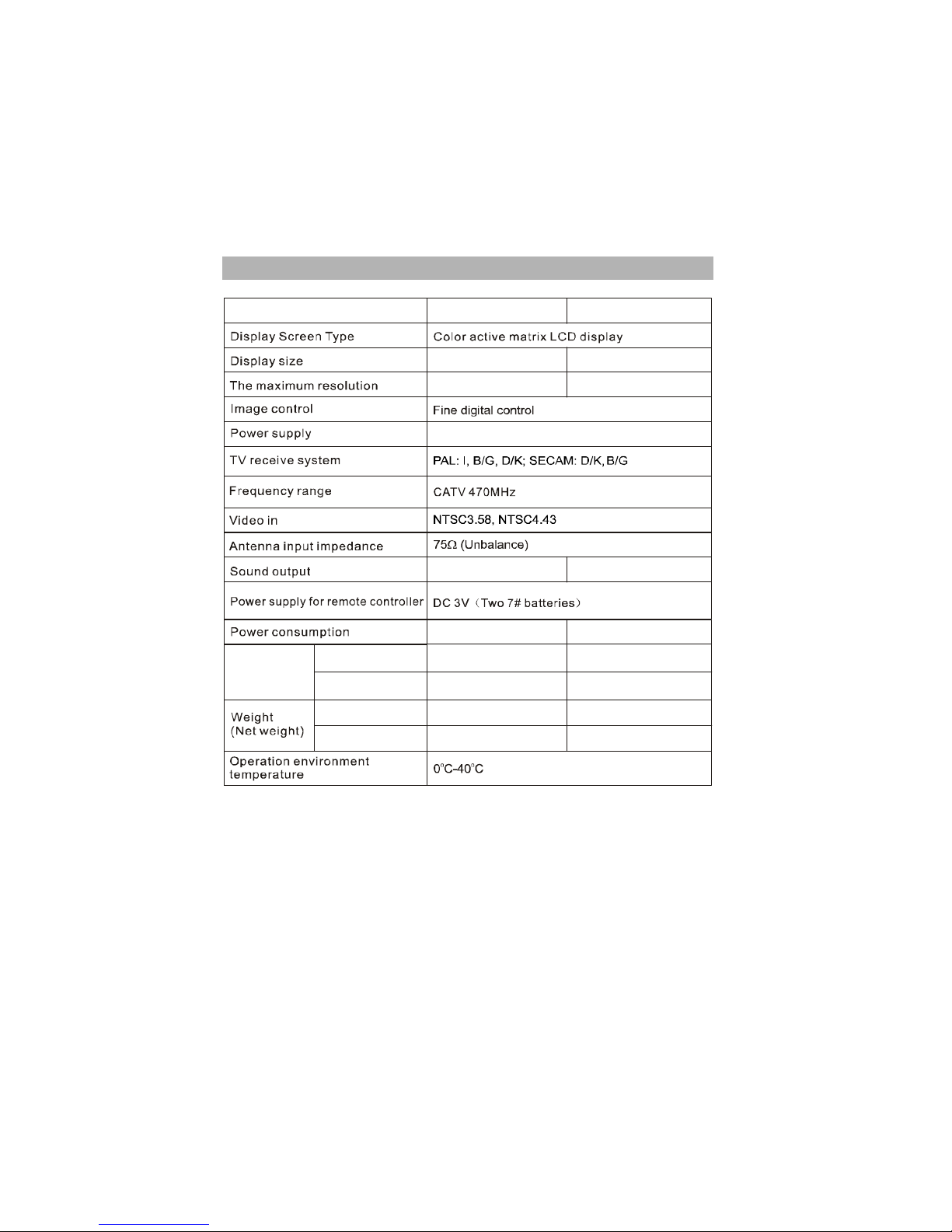

Specification

7
Specifications:
Accessories:
l User s manual l Remote control
l Wall-mounted accessories: Two wall-mounted brackets, four fixed screws
and four fixed sleeves.(Optional)
Note:
1.Due to TV may be used with different display screen, weight marked in this
user's manual or in packaging box are subject to change without notice.
2.The illustrations and on-screen displays in this user s manual are for
explanation purposes and may vary slightly from actual operations.In case of
any design change, a notice will not be released.
Specifications and accessories
1366X768
2WX2
36W
AC ~110-240V 50/60Hz
4.6 Kg
5.0 .JDescription KL19NS62 KL22NS62
19" Diagonal (max.) 22" Diagonal (max.)
1366X768
2WX2
50W
Dimensions
(LXWXH)
TV with stand
TV without stand
458X209X357mm
;;PP
530 209 393
458X77X318mm
;;PP
530 77 TV with stand
TV without stand 4.0 Kg
4.8 .J

8
Overview
1
. INPUT
Press this button to display the selected
signal source as main source.
5. MENU
Press this button to display OSD menu.
6. PROG /
Press these two buttons to select channel
or operate menu.
. Power switch
Press this button to turn TV on or off.
2. Power indicator
Blue: Normal playing status.
Red: Standby status.
3. IR remote sensor
Point remote control at this sensor to
conduct remote control.
4
7. VOL /
Press these two buttons to increase or
decrease the volume or operate menu.
8.
Press this button to enter standby mode
under normal play, and press this button
to enter normal play mode under standby
mode.
r s
r s
IR remote sensor
Power indicator
Power switch
Menu
Program up/down
Volume up/down
Standby
Input select

9
Overview
IN
AV AUDIO OUT
Audio out for external devices.
AV VIDEO OUT
Video out for external devices.
Y Pb/Cb P r/C r
Connect to YPbPr/YCbCr video.
Note: HDMI is supporting for DVI commutator.

10
Overview
Remote control
Loading batteries:
1) Remove the lid of the battery compartment.
2) Insert 2 size AAA batteries with polarities as indicated inside the compartment.
3) Replace the lid.
Note:
1) One loading of batteries will last 1 year under normal use.
2) If you don t intend to use the remote control for a long period of time, remove
them to avoid damage due to leakage.
3) Do not mix old and new batteries, or different types.
4) Don t throw the batteries into fire or water.
5) The batteries (battery pack or batteries installed) shall not be exposed to exces-
sive heat such as sunshine, fire or the like.
NICAM
POWER
LED
HDMI
RECALL
OK
PC
VOLUME UP
PROGRAM DOWN
ZOOM
INPUT
VOLUME DOWN
PROGRAM UP
TV
YPbPr
SOUND
DIGITAL BUTTONS
FREEZE
SLEEP
MUTE
NICAM
MENU
EXIT
ARROW BUTTONS

TV YPbPr PC HDMI
ZOOM
SOUND
INPUT
INFO RECALL
SLEEP
MENU
EXIT
INFO
OK

11
Basic operation
Remote control introduction
1. LED
Press any button, the led will light.
2. POWER
Press this button to switch to standby mode, and press it again to turn TV on.
3. TV
Switch to TV mode directly.
4.YPbPr
Switch to YPbPr mode directly.
5.PC
Switch to PC mode directly.
6. HDMI
Switch to HDMI mode directly.
7. INPUT
This button is used to switch among different sources.

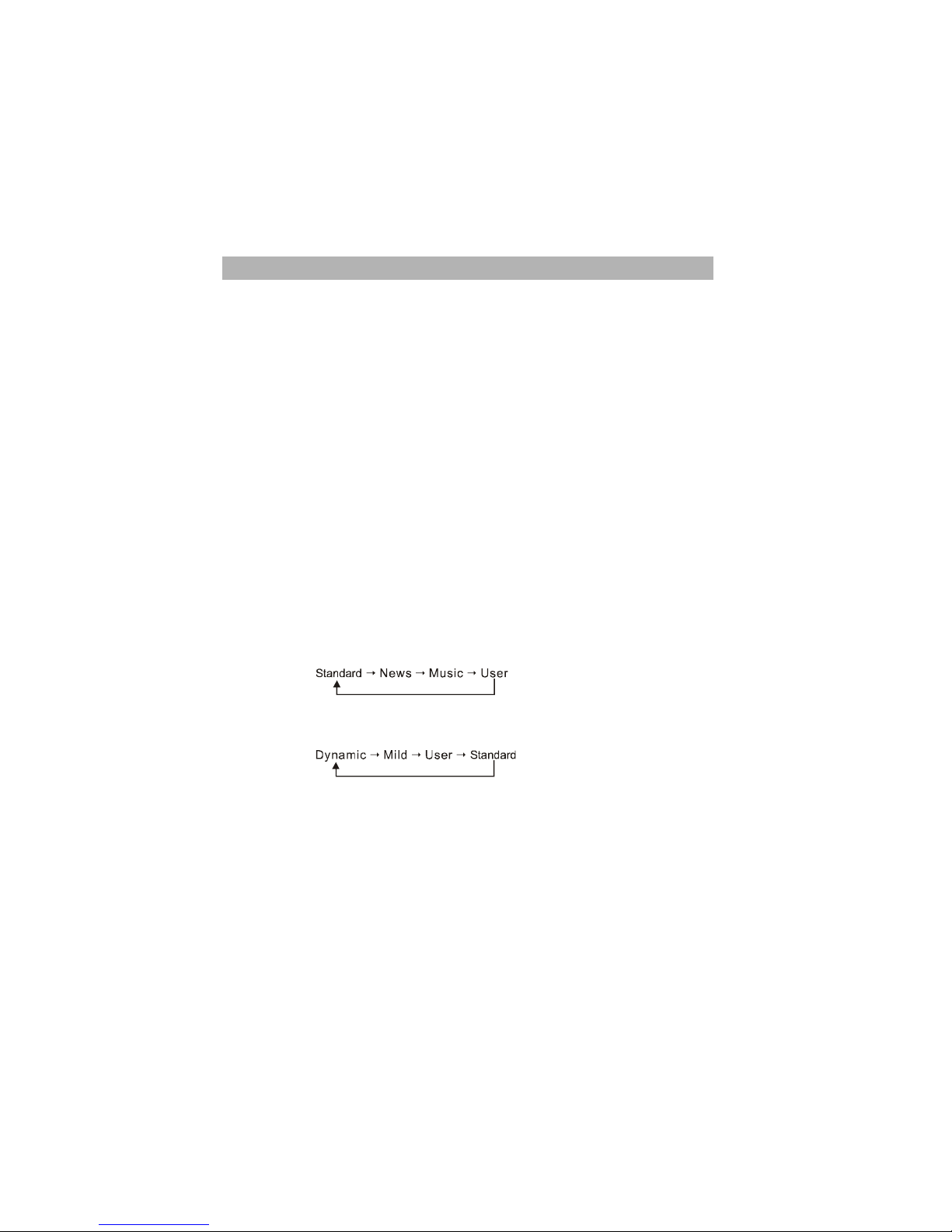

8. SOUND
This button is used to select the sound mode.
9. PICTURE
This button is used to adjust user picture mode, press this button repeatedly and
select one of four settings.
10. ZOOM
This button is used to set display window.
11. Digital buttons(0~9)
To select channel with digital buttons.
12. INFO
The button is used to display current channel information.
13. RECALL
To swap to the previous program you wanted from current program.
14. FREEZE
This function is no available for this model.

12
Basic operation (to be continued)
15. SLEEP
Press SLEEP button on the remote control, and press it again to select a time: 15
Min, 30Min, 45Min, 60Min, 90Min, 120Min. If you select OFF, the timer is closed.
The TV will turn to standby mode automatically when the preset time is up. Press
MENU button can exit the timer setting.
Note: The sleep timer you have set will be cancelled when the TV turns off or if a
power failure occurs.
16. NICAM
The button is used to set NICAM sound system.
17. MUTE
Press this button to shut off the sound , and press it again to restore TV sound.
18. VOLrand VOLs
Press these buttons to adjust TV volume.
19. PROGrand PROGs
Press these buttons to change channel upward or downward.
20. Arrow buttons ( )
To move cursor left/right/down/up.
21. OK
Validation key.
22. MENU
Press this button to display main menu or exit the menu.
23.EXIT
To exit current menu.
Note: POWER, VOLr/s, PROGr/s, MENU and INPUT on the remote control have
the same function as the ones on the side panel of the TV.

13

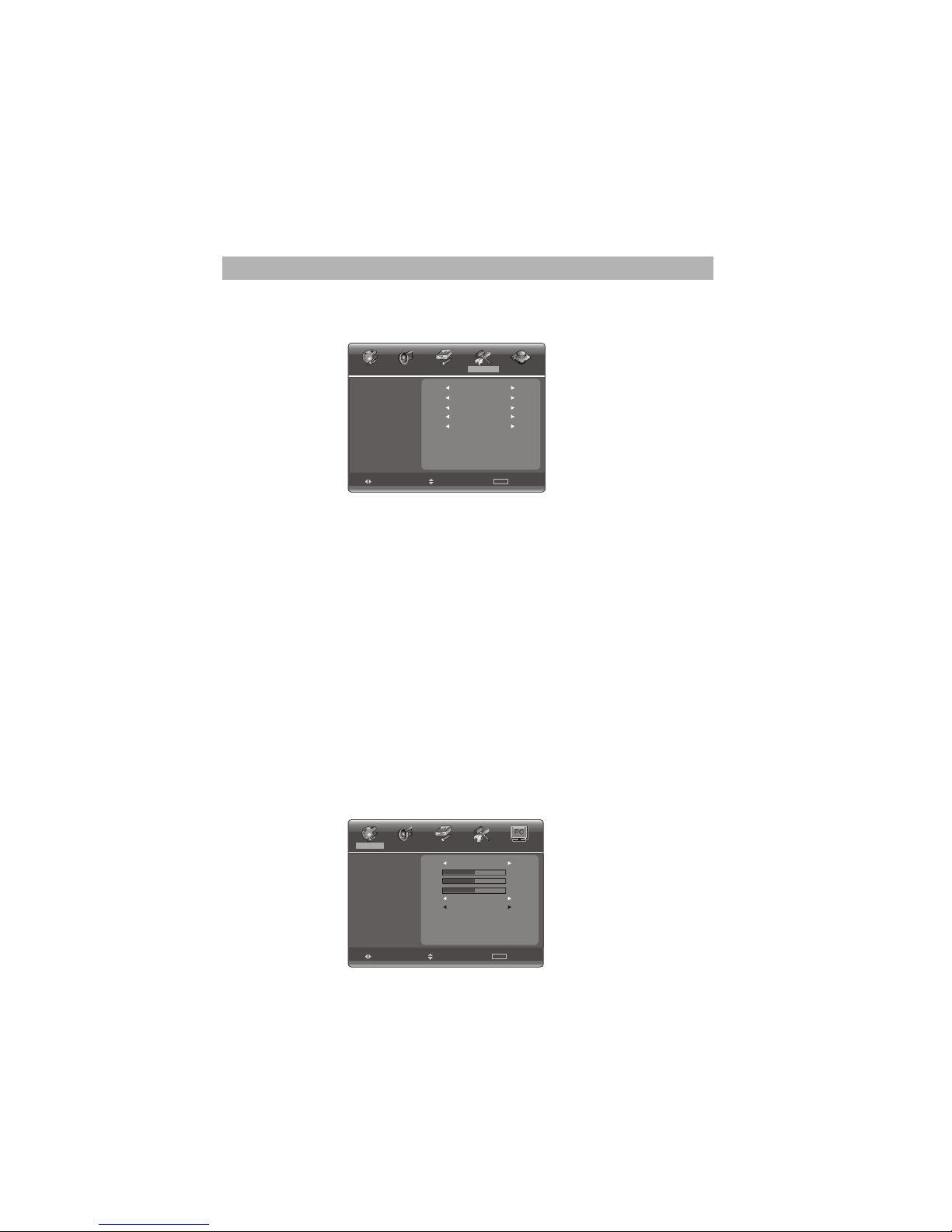

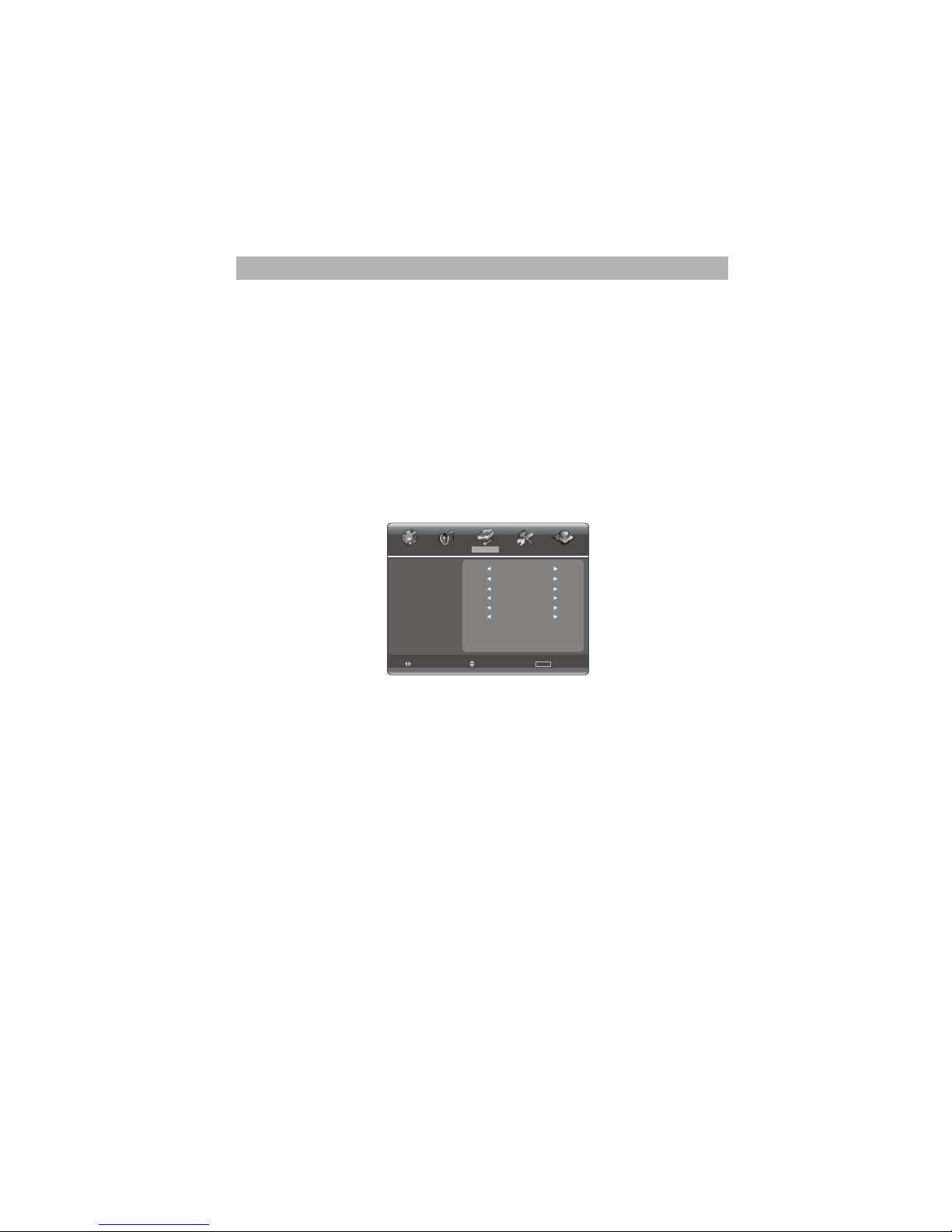

AUDIO
CHANNEL
FUNCTIONSETTING
ME NU
EXIT
SELECT
ADJUST
OFF
ALWAYSDURATION
HALFTONE
OSD POSITION
SCREEN SAVER
LANGUAGE ENGLISH
OFF
MID
Basic operation (to be continued)
Turning the TV On and Off
Press POWER button on the remote control
can switch the TV between on(blue light
indicator) and standby(red light indicator).It's
suggested that you can let the TV in standby
mode only for a shor time.If you won't use it
for a long time,please switch off the power
and pull out the plug.
Auto power-off
If NO SIGNAL SLEEP function is on,and no sig-
nal is sent to VGA channel,the TV would turn to
standby in 15 seconds. And 5 minutes for all
other channels.
Memorizing the Channels
Your TV can memorize all o f the available
ch annels. After the available channels are
memorized, use PROGr/sbutton to browse
channels.
Language select
Before using TV, you can set the language:
1) Press MENU button on the remote control, then
press t/uArrow button to select “Setting”menu
as follows:
Note: When you use OSD to adjust the TV, you should
notice: The function which displays in gray is
not available in current mode. If you press q/p
button to select an item, this function will be
skipped automatically.
NICAM
TV
YPbPr
PC HDMI
ZOOM
SOUND
INPUT
INFO
RECALL
SLEEP
MENU
EXIT
OK

14
Basic operation (to be continued)
2) Press p/qArrow button to enter the submenu and press t/uArrow button to
select the language you desire.
Selecting input source
Press INPUT button on the remote control, then you can select input sources as
follows:
setting TV color system
In order to meet the video format in your country, you can set the video format as
follows: Press q/pArrow button to select “Color System”under “Channel”menu,
and then press t/uArrow button to change video format as follows:
AUTO
setting TV sound system
Press MENU button on the remote control or TV side panel, and then press q/
pArrow button to select “Sound System”under the Channel menu, then press t/
uArrow button to select sound system as follows:
Tuner setup
Press MENU button on the remote control, then press t/uArrow button to select
“Channel”:
1) Channel
Press q/pArrow button to select “Channel”, you can see the current channel
number.
2) Color System
Press q/pArrow button to select “Color System”and press t/uArrow button
to select the right color system.
3) Sound System
Press q/pArrow button to select “Sound System”and press t/uArrow button
to select the right sound system.
AUDIO
CHANNEL
FUNCTIONSETTING
MENU
EX IT
SELECT
AD JUST
63 . 25M HZ
OFFSKIP
FINE TUNE
SOUND SYSTEM
COLOR SYSTEM
CHANNEL 1
AUTO
AUTO
MANUAL SCAN
SWAP
AUTO SCAN
TV AV S-VIDEO YPBPR HDMI VGA

15
Basic operation (to be continued)
4) SKIP
Press q/pArrow button to select “SKIP”, then press t/uArrow button to select
“On”or “Off”.
5) Fine Tune
In case of bad image or sound of TV program, you can use Fine Tune function
to obtain satisfying image or sound with operating steps as follows:
ii) Press q/pArrow button to select “Fine Tune”and press t/uArrow button to
conduct fine tuning from high frequency to low frequency or from low fre-
quency to high frequency till best picture or sound effect is obtained.
6) Auto Scan
Press q/pArrow button to select “Auto Scan”, then press t/uArrow button to
start auto search:
TV will tune automatically and all programs found will be saved. Please don t
interrupt it.
Note:
i) If you use the TV for the first time, you must use “Auto Scan”to search and
memorize all channels.
ii) If your TV is not in TV input state, you must switch it to TV state at first.
iii) If you want to stop the process of “Auto Scan”, just press MENU button to exit.
7) Manual Scan
Press q/pArrow button to select “Manual Scan”, and press t/uArrow button
to enter MANUAL SCAN menu, then press u button to search from low
frenquency to high,or tbutton to search from high to low.
AUTO SCAN
CH: 1 77.25MHZ
CH: 1 77.25MHZ0$18$/6&$1

16
Basic operation (to be continued)
8) SWAP
CURRENT CHANNEL,TARGET CHANNEL and EXCHANGE are used to swap
two programs' numbers.
a) Current Channel
Press t/uArrow button to adjust current channel number.
b) Target Channel
Press t/uArrow button to adjust target channel number.
c) Exchange
Presst/uArrow button to perform the exchange of channel number.
Adjusting the Picture
Press MENU button on the remote control, then press t/uArrowbutton to select
“Picture”menu.
1) Picture Mode
Press q/pArrow button to select “Picture Mode”, and press t/uArrow button
to adjust picture mode to your desire.
Note: “Brightness”,“Contrast”,“Saturation”, adjusting are only available in
user mode.
2) Adjusting the Brightness of picture
Press q/pArrow button to select “Brightness”, and press t/uArrow button to
adjust brightness to your desire.
PICTURE AUD IO
CH ANNEL
FUNCTIONSETTI NG
MENU
EXIT
SELECT
ADJUST
EXCHANGE
TARGET CHANNEL
CURRENT CHANNEL 1
1
AUDIO
CHANNEL
FUNCTIONSETTING
MENU
EXIT
SELECT
ADJUST
PICTURE MODE USER
16: 9
STANDARD
BRIGHTNESS
CONTRAST
SATURATION
SHARPNESS
BACKLIGHT
COLOR TEMP.
SCALE MODE
50
50
50
50
50
TINT
50

17
AUDIO
CHANNEL
FUNCTIONSETTING
MENU
EXIT
SELECT
ADJUST
SOUND MODE STANDARD
EQUALIZER
50
MONO
OFF
BALANCE
NICAM
50
AVL
3) Adjusting the Contrast of picture
Press q/pArrow button to select the “Contrast”, then press t/uArrow button to
set contrast to your desire.
4) Adjusting the Saturation of picture
Press q/pArrow button to select the “Saturation”, then press t/uArrow button
to set saturation to your desire.
5) Adjusting the Tint of picture
Press q/pArrow button to select the “Tint”, then press t/uArrow button to set
tint to your desire.
Note: Only available in NTSC.
6) Adjusting the Sharpness of picture
Press q/pArrow button to select the “Sharpness”, then press t/uArrow button
to set sharpness to your desire.
7) Adjusting the Backlight of picture
Press q/pArrow button to select the “Backlight”, then press t/uArrow button
to set backlight to your desire.
Note:Backlight function is only available for models with this function.
8) Adjusting the Color Temp of picture
Press q/pArrow button to select the “Color Temp”, then press t/uArrow
button to set color temperature to your desire.
9) Adjusting the Scale Mode of picture
Press q/pArrow button to select the “Scale Mode”, then press t/uArrow
button to set scale mode to your desire.
Note: It is useless under no signal mode.
Adjusting the Sound
Press MENU button on the remote control, then press t/uArrow button to select
“AUDIO ”menu.
1) Adjusting Sound Mode
Press q/pArrow button to select “Sound Mode”, use t/uArrow button to adjust
sound mode.
2) Adjusting Equalizer
Press q/pArrow button to select “EQUALIZER”, and press t/ubutton to enter
submenu, press q/pbutton to select a cirtain frenquency, and uset/ubutton
Basic operation (to be continued)

18
AUDIO
CHANNEL
FUNCTIONSETTING
MENU
EXIT
SELECT
ADJUST
ALWAYSDURATION
OSD POSITION
SCREEN SAVER
LANGUAGE ENGLISH
OFF
MID
OFF
HALFTONE
AUTO
COLOR SYSTEM
to adjust its value.
3) Adjusting Balance of sound
Press q/pArrow button to select “Balance”, use t/uArrow button to adjust
sound balance.
4) Adjust AVL mode
Press q/pArrow button to select “AVL”, use t/uArrow button to select “on”or
“off”.
5) Adjust NICAM of sound
Press q/pArrow button to select “NICAM”, use t/uArrow button to adjust to
your desired.
OSD Setup
Press MENU button on the remote control and press t/uArrow buttonto select
“Setting”menu.
1) OSD Language
Press q/pArrow button to select “LANGUAGE”and press t/uArrow button to
select language you desire.
2) Adjusting screen saver
Press q/pArrow button to select “SCREEN SAVER”, and press t/uArrow
button to select “OFF”, “BLACK”or “BLUE”.
3) Adjusting OSD Position
Press q/pArrow button to select “OSD POSITION”, and press t/uArrow button
to select “MID”,“LEFT TOP”,“LEFT BOTTOM”,“RIGHT TOP”or “RIGHT BOTTOM
”.
4) Adjusting Duration
You can select “ALWAYS”,“5s”,“10s”or “15s”.
5) OSD Halftone
Press q/pArrow button to select “HALFTONE”, press t/uArrow button to
select “ON”or “OFF”.
6) Selecting color system
You can select AUTO, PAL, SECAM, NTSC, NTSC443. But it s only available in AV
and SVIDEO.
Basic operation (to be continued)

19
Function setup
Press MENU button on the remote control, press t/uArrow button to select “Func
tion”menu.
1) DNR
Press t/uArrow button Adjusting DNR option, it can improve the picture
sharpness.
Note: DNR is only available in TV mode.
2) 3D DLC
3D DLC is to automatically detect distribution of inputted visual signal and adjust
to create optimum luminance.
Press t/uArrow button Adjusting 3D DLC option.
3) OPC
Press t/uArrow button Adjusting OPC option. it can optimiation power control.
4) Press q/pArrow button to select “NO SIGNAL SLEEP”, and press t/u button
to select “on”or “off”.
5) You can start a sleep timer by setting “SLEEP TIMER”a preset time: 15MIN, 30
MIN, 45MIN, 60MIN, 90MIN, 120MIN, when the time has passed, the TV will
turn to standby mode automatically, If you select OFF,the timer is closed.
VGAAdjust
1.Picture
When the TV is in VGA mode, press MENU button andt/uArrow button to select
“Picture”MENU.
Basic operation (to be continued)
AUDIO WINDOWFUNCTIONSETTING
MENU
EXIT
SELECT
ADJUST
PICTURE MODE USER
16:9
WARM
BRIGHTNESS
CONTRAST
BACKLIGHT
COLOR TEMP.
SCALE MODE
50
50
50
AUDIO
CHANNEL
FUNCTIONSETTING
MENU
EXIT
SELECT
ADJUST
DNR ON
OFF
OFF
NO SIGNAL SLEEP
SLEEPTIMER
OPC ON
3D DLC ON

20
Basic operation (to be continued)
The way to adjust Brightness, contrast, backlight, color temperature and scale
mode,please refer to “Adjusting the Picture”on Page15 -16.
Note: If the TV turn to standby mode for VGA non-signal state, then you input a signal
to VGA terminal, it will wake up to work.
2.Window
This TV supports no higher than 60Hz under VGA mode, so please set the re
fresh rate of PC to 60Hz. If the frequency is higher than 60Hz, the screen may
flicker. When the TV is in VGA mode, press MENU button on the remote control.
Press t/uArrow button to select “Window”.
1) Adjusting picture H-Position
Press q/pArrow button to select “H-Position”and press t/uArrow button to
set horizontal position of picture.
2) Adjusting picture V-Position
Press q/pArrow button to select “V-Position”and press t/uArrow button to set
vertical position of picture.
3) Adjusting Clock
When PC is connected to TV set because of the difference of PC parameter,you
should adjust the “Clock”item in “Window”menu until you get a good picture.
4) Adjusting Phase
When PC is connected to TV set because of the difference of PC parameter,you
should adjust the “phase”item in “Window”menu until you get a good picture.
5) Auto Adjust
If there are unexpected problems happened when you adjust the items, you can
select the “Auto Adjust”and press uArrow button, the TV set will resume the
original settings.
Note: Only “H-Position”and “V-Position”are available for Ypbpr mode.
AUDIO WINDOWFUNCTIONSETTING
MENU
EX IT
SELECT
ADJUST
PHASE
AUTO ADJUST
CLOCK
V-POSITION
H-POSITION
100
100
100
0
AUDIO WINDOWFUNCTIONSETTING
MENU
EX IT
SELECT
ADJUST
V-POSITION
H-POSITION
100
100

21
External connection
Note:
AV and S-Video share the same audio input sockets.
Connect the external equipment to the back panel of this television as shown in the following
figure:
D V D w i th c o mp o n en t
( Y, P b /C b , P r /C r )
D V D w i th HD M I C o m p ut er DV D w i th AV a n d S - V ID EO s o ck e t
A n te n n a
VGA HD M I P C au d io
S - Vi de o
H e ad p ho n e
Stereo system
IN
