Hyundai L19T User manual

FCC ID : PJIL19A0D061
REPORT NO. : HCT-F03-0504 HYUNDAI C–TECH
ATTACHMENT E.
-USER’S MANUAL -

NEXT
Type No. L19A0D061
User’s Guide

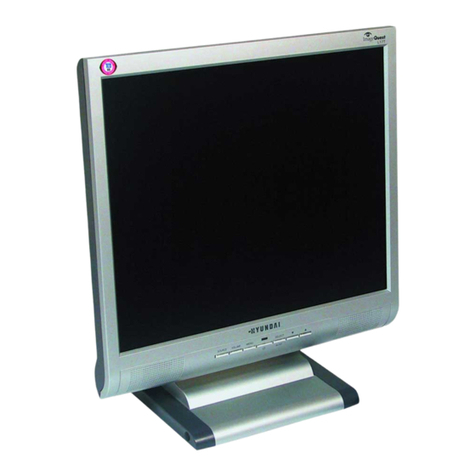

ImageQuest L19T
TFT LCD Color Monitior
Click
www.hyundaiQ.com

U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet of a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
BACK
NEXT

WE ImageQuest CO., LTD.
Ami-ri Bubal-Eub Ichon-Si Kyungki-Do
467-860 KOREA
declare under our sole responsibility that the product:
to which this declaration relates is in conformity with the
following standard(s) or other normative document(s)
following the provisions of the Low Voltage Directive 73/23/EEC,
93/68/EEC and the EMC Directive 89/336/EEC.
KOREA / April. 24, 2003 HONG KI, KIM
(Place and date of issue) (Name and signature of
authorized person)
DECLARATION OF CONFORMITY BACK
NEXT
Kind of equipment : COLOR MONITOR
Type-Designation : L19A0D061
Safety : EN 60950 : 2000
EMC : EN 55022 : 1998, EN 55024 : 1998
EN 61000-3-2 : 1995+A1 : 1998+A2 : 1998
EN 61000-3-3 : 1995
Accredited testlaboratory:
TÜV Rheinland
Am Grauen Stein
51105 Köln

L19T
19" TFT LCD Color Monitor
Contents 1. Introduction ...................................1/21
2. Safety Information ........................1/21
3. Installing the monitor ...................4/21
3-1. Packing List .........................................4/21
3-2. Selecting a suitable location ..............5/21
3-3. Connecting the monitor .....................5/21
3-4. Setting the refresh rate ......................8/21
Preset Timing Table ............................9/21
3-5. User’s Environment .............................9/21
BACK
NEXT
4. Adjusting the picture ..................12/21
4-1. Using the On Screen Display ...........13/21
4-2. Direct access buttons .......................13/21
4-3. OSD Adjustments .............................14/21
5. Display power management ......17/21
Reducing power consumption ..............17/21
6. Troubleshooting ..........................18/21
7. Specifications ..............................21/21

L19T
19" TFT LCD Color Monitor
1. Introduction
2. Safety Information
1/21
BACK
NEXT
This manual contains instructions for installing and operating ImageQuest L19T.
ImageQuest L19T is a highly ergonomic color display unit.
• 19" viewable SXGA LCD
• High quality screen re-scaling capability
• 100-240V AC input voltage
• VESA DPMS (Display Power Management Signaling)
• VESA DDC1/2B compatibility
• Advanced digital On-Screen-Display controls
• Fast and accurate auto adjustment
• Most advanced image scaling
• Supporting VESA Flat Panel Monitor Physical Mounting Interface
This Monitor has been engineered and manufactured to assure your safety.
You can prevent serious electrical shock and other hazards by keeping in mind
the following:
Do not place anything wet on the monitor or the power
cord. Never cover the ventilation openings with any
material and never touch them with metallic or
inflammable materials.

L19T
19" TFT LCD Color Monitor
2/21
BACK
NEXT
Avoid operating the monitor in extreme heat,
humidity or areas affected by dust.
Temperature : 5~35°C
Humidity : 30~80RH
Be sure to turn the monitor off before plugging the
power cord into the socket. Make sure that the power
cord and the other cords are securely and rightly
connected.
Overloaded AC outlets and extension cords are
dangerous, as are frayed power cords and broken
plugs, which may cause electric shock or fire. Call
your service technician for replacement.
Do not use sharp tools such as a pin or a pencil near
the monitor, as they may scratch the LCD surface.
Do not use a solvent, such as benzene, to clean the
monitor, as it will damage the LCD surface.

L19T
19" TFT LCD Color Monitor
Cleaning and Maintenance • To avoid risk of electric shock, do not disassemble the display unit cabinet. The
unit is not user-serviceable. Remember to unplug the display unit from the
power outlet before cleaning.
• Do not use alcohol (methyl, ethyl or isopropyl) or any strong dissolvent. Do not
use thinner or benzene, abrasive cleaners or compressed air.
• Do not wipe the screen with a cloth or sponge that could scratch the surface.
• To clean your antistatic screen, use water and a special microfiber screen
cleaning tissue used in optical lens cleaning, or lightly dampen a soft, clean
cloth with water or a mild detergent.
• If the instructions above do not help in removing stains, contact an authorized
service agent.
3/21
BACK
NEXT

L19T
19" TFT LCD Color Monitor
4/21
BACK
NEXT
The following items should be found in the packaging.
Above power cord can be changed upon different voltage areas. Please
contact your dealer if anything is missing or damaged.
Other power cord except the cord packed in the product or longer than 3m
may affect EMC of the product in operating condition.
3. Installing the
monitor
3-1. Packing List
!
UK
America/Canada
Japan
Australia
Korea
Europe
South Africa
Power Cord
Signal Cable
Audio Cable
Compact Disc

L19T
19" TFT LCD Color Monitor
5/21
BACK
NEXT
3-2. Selecting a suitable
location
3-3. Connecting the
monitor
•Place the monitor at least 30cm from other electrical or heat-emitting
equipment and allow at least 10cm on each side for ventilation.
•Place the monitor in a position where no light shines directly onto or is
reflected on the screen.
•To reduce eye strain, avoid installing the display unit against a bright
background such as a window.
•Position the monitor so that the top of the screen is no higher than eye level.
•Position the monitor directly in front of you at a comfortable reading distance
(around 45 to 90cm)
Before you start cabling your monitor, check that the
power is off on all units. To avoid any possibility of
electric shock, always connect your equipment to
properly earthed outlets.
1. Insert the other 15-pin signal cable connector into the 15-pin VGA connection
on your computer and screw it down.
2. Plug the power cord connection to connection on the monitor.
3. Plug the other end of the power cord to your computer's main supply or to a
100V-240V earthed electrical outlet.
4. Turn on the monitor using the power switch and check that the power LED is
on. If not, repeat steps 1,2,3 and 4 or refer to the Troubleshooting section of
this guide.
!!

L19T
19" TFT LCD Color Monitor
6/21
BACK
NEXT
5. Turn on the power to the computer. The picture will appear within about 10
seconds. Adjust the picture to obtain optimum picture quality. See section
Adjusting the picture in this guide for more information.

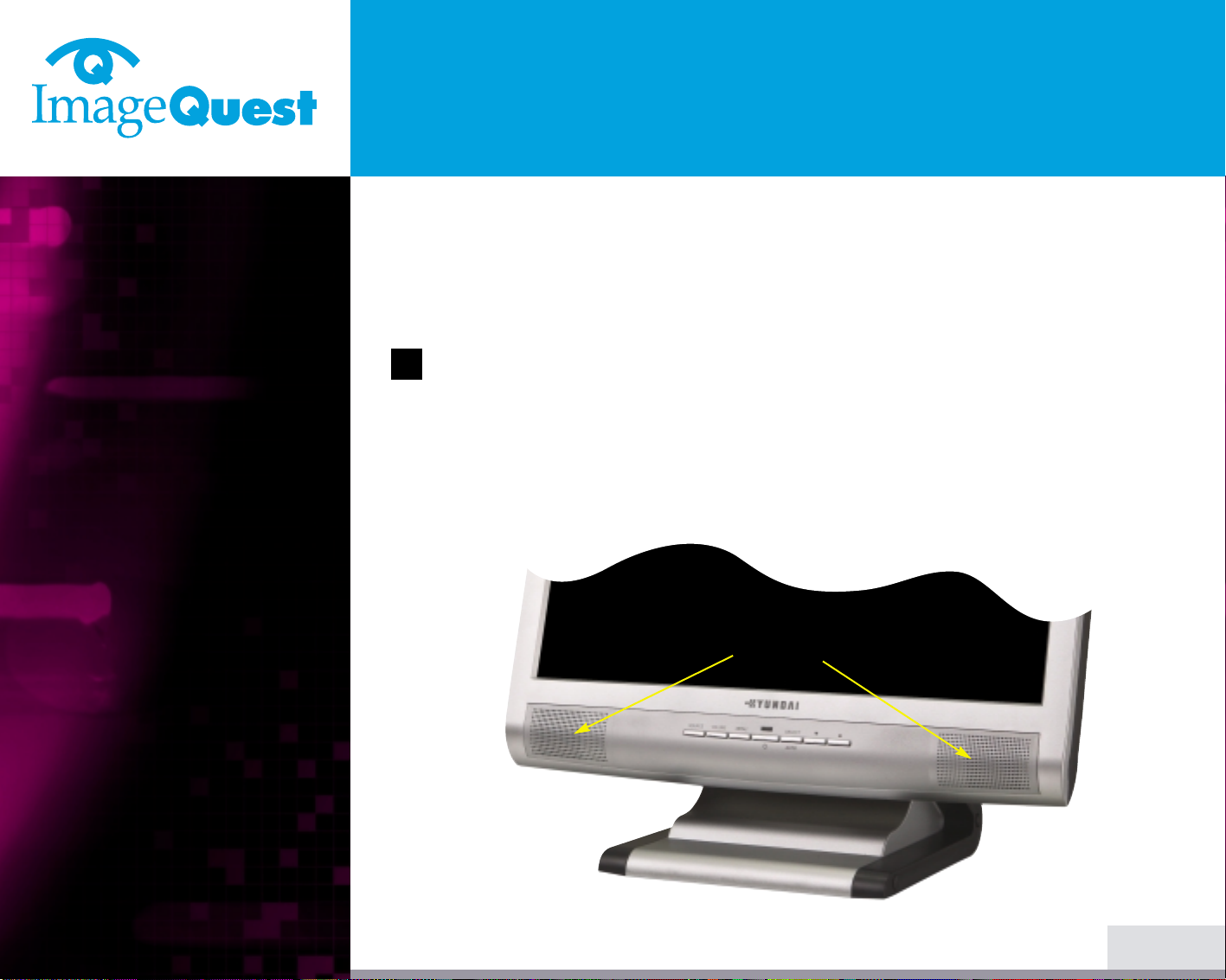

Speaker
L19T
19" TFT LCD Color Monitor
• Audio system
7/21
BACK
NEXT
!!
This monitor has an audio system including two micro loudspeakers. Each of two
micro loudspeakers has an 2Wrms (typ.) output power. This system also supports a
headphone output jack.
This system has been tuned to get a best tone quality which an audio input
level is under 300mVrms. if the input level is more than 600mVp-p, you must
tune down the audio input as the audio output tone may be distorted.
When this monitor is turned on, audio is always set up as off mode. Please use
AUDIO direct access button on the front cover or On Screen Display to put
audio on.

L19T
19" TFT LCD Color Monitor
8/21
BACK
NEXT
3-4. Setting the refresh
rate Follow the instructions below to set your refresh rate in Windows 98/ME/XP/2000.
1. Go to the configuration window(Start-Settings-Configuration window).
2. Double click on the ‘Display’icon.
3. Click on the ‘Settings’tab.
4. Click on the ‘Advanced’button.
5. Click on ‘Adapter’and select 60Hz from the list.
6. Click on ‘Apply’to accept the selected value.
Power Switch
LED Indicator

L19T
19" TFT LCD Color Monitor
Preset Timing Table If the signal from the system doesn't equal to the preset timing mode, adjust
the mode with reference to the user guide of videocard because the screen
may not be displayed.
The recommended setting is a resolution of 1280x1024 and a refresh rate of 60Hz.
9/21
BACK
NEXT
!
No.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
Resolution
720
x 400
640
x 480
640
x 480
800
x 600
800
x 600
800
x
600
800
x 600
832
x 624
1024
x 768
1024
x 768
1024
x 768
1152
x 864
1280
x 1024
1280
x 1024
Horizontal Frequency
31.5 KHz
31.5 KHz
37.5 KHz
35.2 KHz
37.9 KHz
48.1 KHz
46.9 KHz
49.7 KHz
48.4 KHz
56.5 KHz
60.0 KHz
67.5 KHz
63.9 KHz
80.0 KHz
Refresh rate
70 Hz
60 Hz
75 Hz
56 Hz
60 Hz
72 Hz
75 Hz
75 Hz
60 Hz
70 Hz
75 Hz
75 Hz
60 Hz
75 Hz

L19T
19" TFT LCD Color Monitor
3-5. User’s Environment
Kensington Security
(Locking) Slot
Recommended Ergonomic User’s Environment
•Viewing angle of the monitor should be between 0~20 degree.
•This display unit supports a Kensington-type security device to secure your
monitor. Kensington lock is not included.
•To purchase and install the Kensington locking device, please refer to the
following contact information.
* Kensington Technology Group
· Address : 2000 Alameda de las Pulgas 2F san mateo, California 94403-1289
· Tel : [phone] · Fax : [phone] · Web-site : www.kensington.com
10/21
BACK
NEXT
20o
Kensington
security slot

L19T
19" TFT LCD Color Monitor
VESA MOUNT’G•This display unit supports VESA FPMPMI standard for 75mmx75mm screw
mounting by giving 4 screw holes inside the base stand of the unit.
•For buying VESA Flat Panel Monitor Mounting Devices, please contact
following information.
* Ergotron, Inc.
· Address : Ergotron Europe Kuiperbergweg 50 1101 AG Amsterdam The Netherlands
· Tel : [phone] · Fax : [phone]· E-mail : [email protected]
11/21
BACK
NEXT
Desk Mount
Wall Mount

L19T
19" TFT LCD Color Monitor
4. Adjusting the picture
12/21
BACK
NEXT
You can adjust the screen display by using the buttons located below the
screen.
1280X1024
V:60.0/H:63.9

L19T
19" TFT LCD Color Monitor
13/21
BACK
NEXT
1. Push the MENU button to call the OSD to the screen. The resolution and
frequency are displayed at the top of the menu box for your information.
2. Push the or button to choose the item you want to adjust. The selected
item is highlighted.
3. Push the SELECT button to adjust the highlighted item.
4. Use the or button to adjust the selection.
5. Push the MENU button to return to the previous menu if you are in a submenu.
6. The display unit automatically saves the new settings in 1 second after your
last adjustments and the menu disappears. You can also push the MENU button
to make the menu disappear.
AUTO ADJUST
At first display a full screen such as Window's back ground.
Push the button SELECT(AUTO) to adjust the shape of screen
automatically.
VOLUME
Use the button VOLUME to select the volume adjustment.
Adjust with or button.
4-1. Using the On Screen
Display
4-2. Direct access buttons

L19T
19" TFT LCD Color Monitor
14/21
BACK
NEXT
4-3. OSD Adjustments The OSD adjustments available to you are listed below.
BRIGHTNESS
Adjust the brightness of the screen.
CONTRAST
Adjust the contrast of the screen.
COLOR CONTROL
Color temperature affects the tint of the image. With lower color
temperatures the image turns reddish and with higher temperatures
bluish.
There are three color settings available: Mode 1(a cool white), Mode 2(a
warm white) or USER. With the USER setting you can set individual values
for red, green and blue.
MISCELLANEOUS
RECALL
Recall the saved color data.
OSD TIMER
You can set the displayed time of OSD Menu window on the screen by
using this adjustment.
OSD POSITION
Adjust the OSD menu's horizontal or vertical position on the screen.

L19T
19" TFT LCD Color Monitor
15/21
BACK
NEXT
AUDIO
VOLUME
Adjust the audio volume level.
SOUND OFF
This menu is used to choose audio on or off.
TREBLE
Emphasize high frequency audio.
BASE
Emphasize low frequency audio.
AUTO ADJUST
You can adjust the shape of screen automatically at the full screen
pattern.
LANGUAGE
You can select the language in which adjustment menus are displayed.
The following languages are available : English, French, German, Italian,
Spanish, Swedish, Finnish, Danish, Portuguese and Dutch.
H/V. POSITION
H POSITION
Adjusts the horizontal position of the entire screen image.
V POSITION
Adjusts the vertical position of the entire screen image.
