Hyundai PD421 User manual

FCC ID : PJIP4200S001
ATTACHMENT E.
- USER’S MANUAL -
REPORTNO.:HCT-F03-0701 HYUNDAIC–TECH

Hyundai
Plasma Display
PD421
User’s Guide

1UIOM:M\MV\QWVMNNMK\ӧ
Image retention effect could be seen if still picture is continuously displayed for a
certain period of time as a feature of Plasma display panel.
To avoid this effect, use the product with reduced brightness and contrast especially
when a still image is displayed for long time. (example:contrast 75, brightness 50)
Once Image retention is created, change the mode into Video mode which displays
more motions. This can help to reduce Image retention effect but cannot completely
eliminate once it occurs. Especially, when a fixed pattern is frequently used, screen’s
brightness may be worsened. (For more details, see the page 25)
8Q`MT,MNMK\ӧ
Plasma panel is made of a group of refined pixels (cells). When the Panel has 99.9%
of pixels approved, that is normal product. Therefore, please do not think it is a
faulty product if some pixels of a panel flickers or off all the time.

U.S.A.
U.S.FEDERAL COMMUNICATIONS COMMISSION
RADIO FREQUENCY INTERFERENCE STATEMENT
INFORMATION TO THE USER
NOTE : This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful
interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet of a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for assistance.
Changes or modification not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Connecting of peripherals requires the use of grounded shielded signal cables.
BACK
NEXT

Safety Precautions ................................................... 1
Contents of the Package........................................... 3
Parts Names and Functions .................................... 5
Remote Control ........................................................ 7

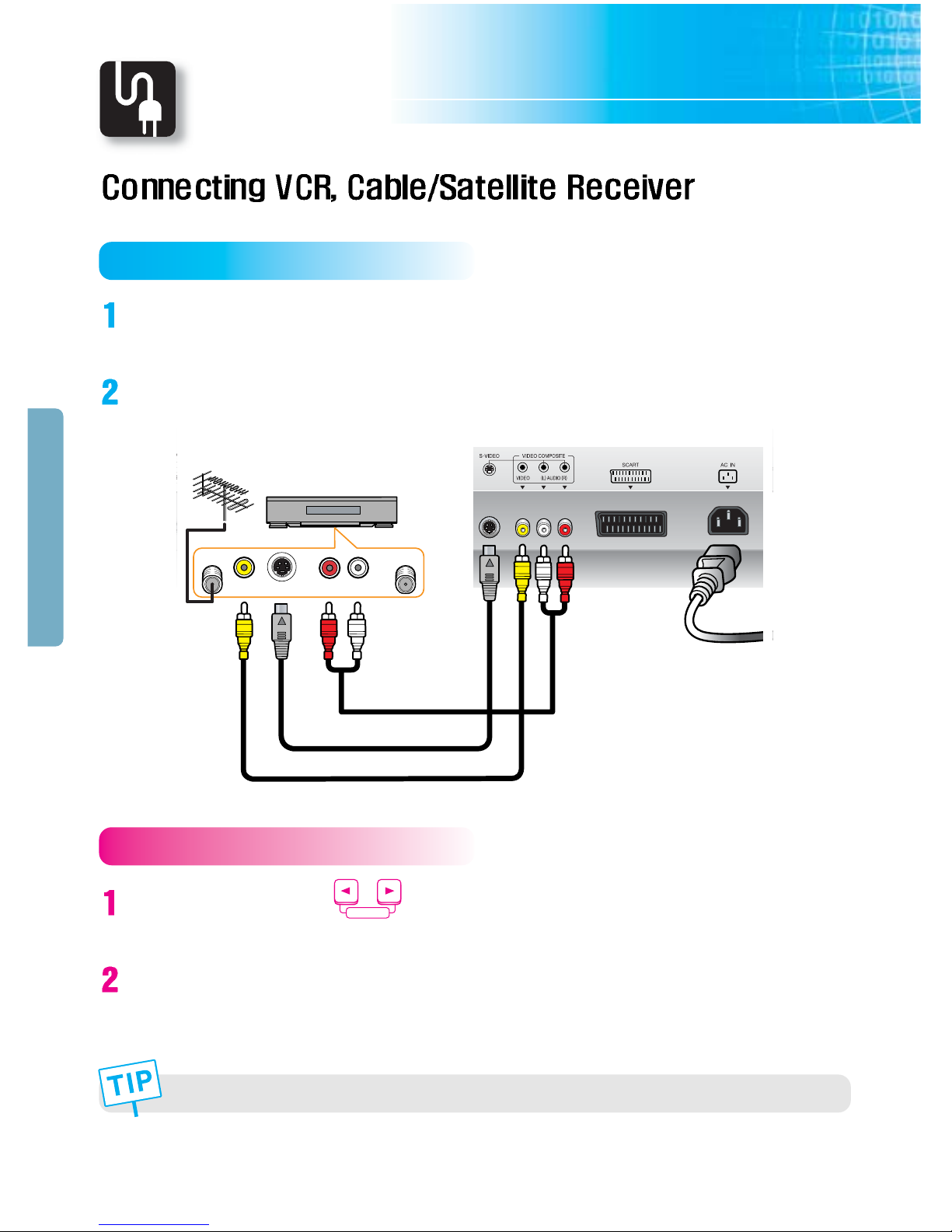

Connecting VCR, Cable/Satellite Receiver ............. 11

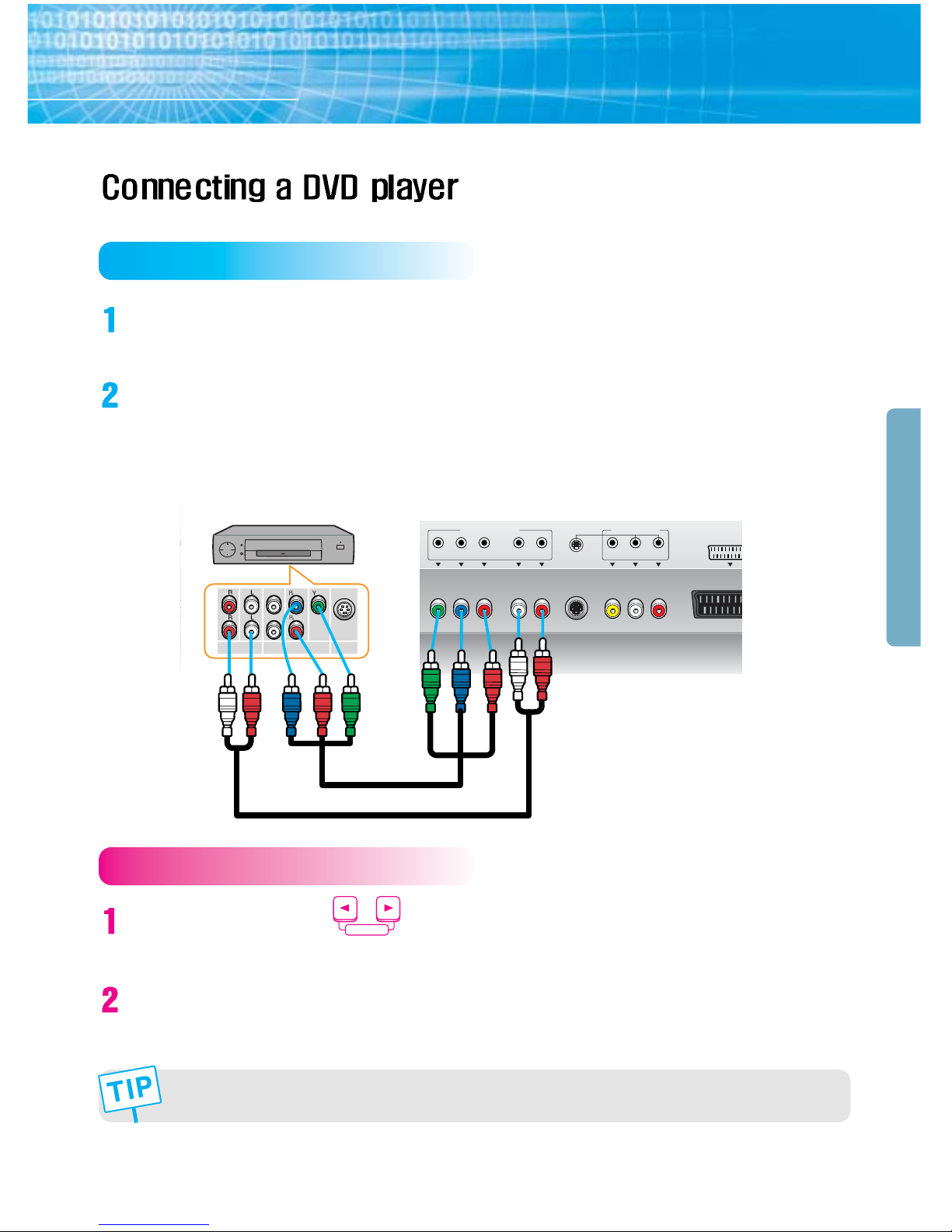

Connecting a DVD player ....................................... 12
Connecting DTV(Digital Broadcast) Receiver ........ 13
Connecting to a PC(DVI, D-SUB) .......................... 14
Resolutions Supported in PC ................................ 15
How To Select Picture Mode ................................. 17
How To Set the User Picture ................................ 18
How To Select Sound Mode .................................. 19
How To Set the User Sound ................................. 20
How To Select the Aspect Ratio ........................... 21
How To Select Color Temperature ........................ 23
How To Know the Picture Information .................. 24
How To Adjust Image ............................................25
How To Adjust Image(Under PC Input Mode) ...... 26
How To Set Key-Lock ............................................27
How To Set Multi-Screen ...................................... 28
Still Function .......................................................... 31
How To Set OSD(On Screen Display) .................. 32
How To Set the Clock ...........................................33
How To Set On Time/Off Time ............................. 34
How to Set Sleep/Run Time .................................. 35
Cleaning and Caring .............................................. 37
Troubleshooting ...................................................... 38
Product Specifications ............................................ 39

1
*);1+;
<PMKWV\MV\[WN\PQ[[MK\QWVIZMXZW^QLMLNWZ\PM[INM\aWN][MZ[IVL\PMQZXZWXMZ\a
8TMI[MZMIL\PMKWV\MV\[JMNWZM][QVO

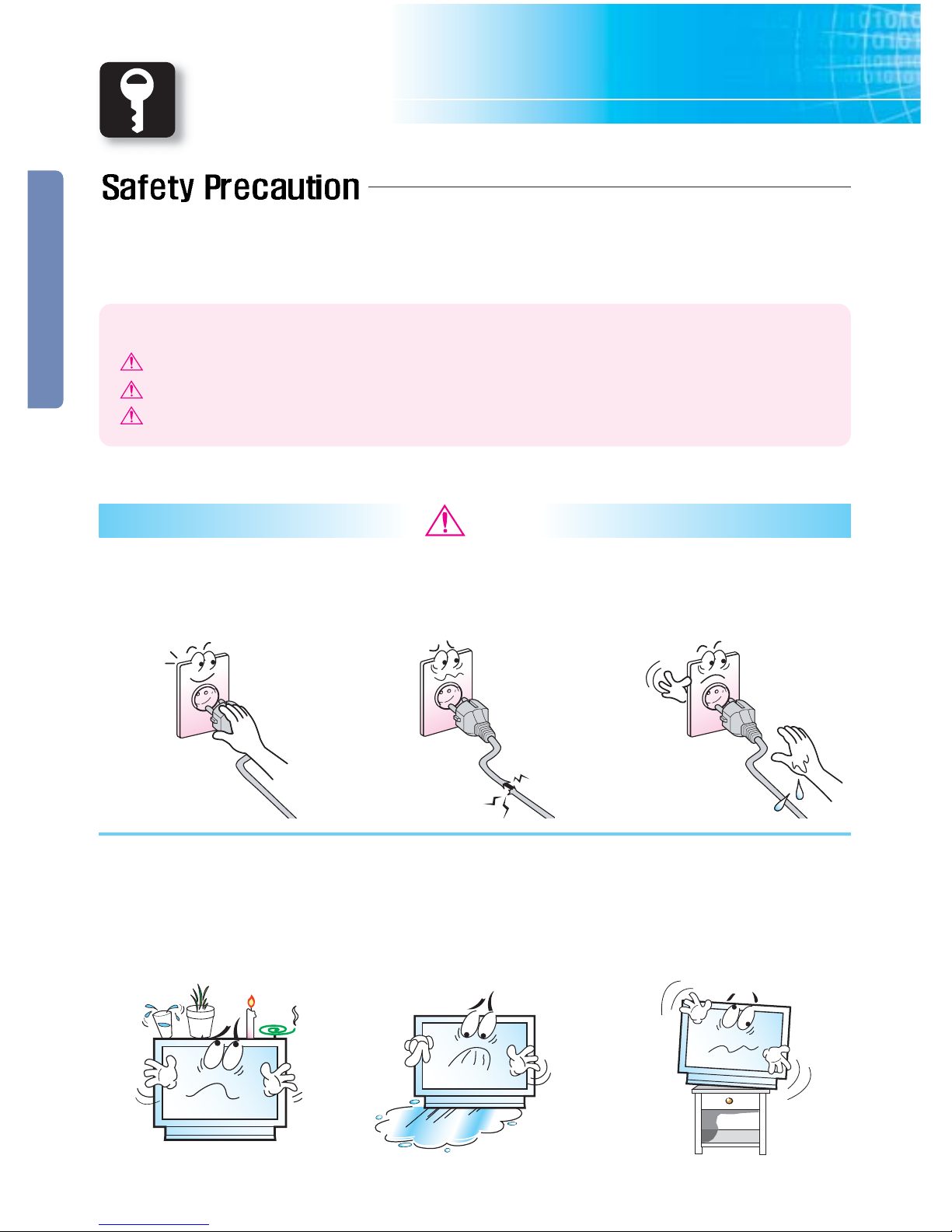

Safety instructions are divided into “warning”and “alert”. Their meanings are as follows.
This pictorial sign is used when a caution is needed on a potentially dangerous items and operations.
Warning
:When there is a possibility of serious injury or death upon violation of the displayed instruction.
Alert
:When there is a possibility of slight injury or product damage upon violation of the displayed instruction.
Firmly plus the power cord so
that it does not pull out.
- Unstable connection may cause fire.
Do not use damaged power cord
or plug, or loose outlet.
- They may cause electric shock or fire.
Never touch power plug with wet
hand.
- They may cause electrocution.
Do not put water bowl, vase,
candle, bug repellant smoke,
cigarette, small metal palette, or
heavy thing on a PDP.
- It may cause electric shock or fire and
also heavy things may cause injury when
it falls.
Do not install in a place where
there are oil, smoke, or humidity,
or where water is sprinkled or in
a car.
- They may cause electric shock or fire.
Do not install on an unstable place
or small support.
- If a child touch a PDP on such place while
playing, PDP may fall and injury the child.
?IZVQVO

HYUNDAI Plasma Display PD421
2
*);1+;

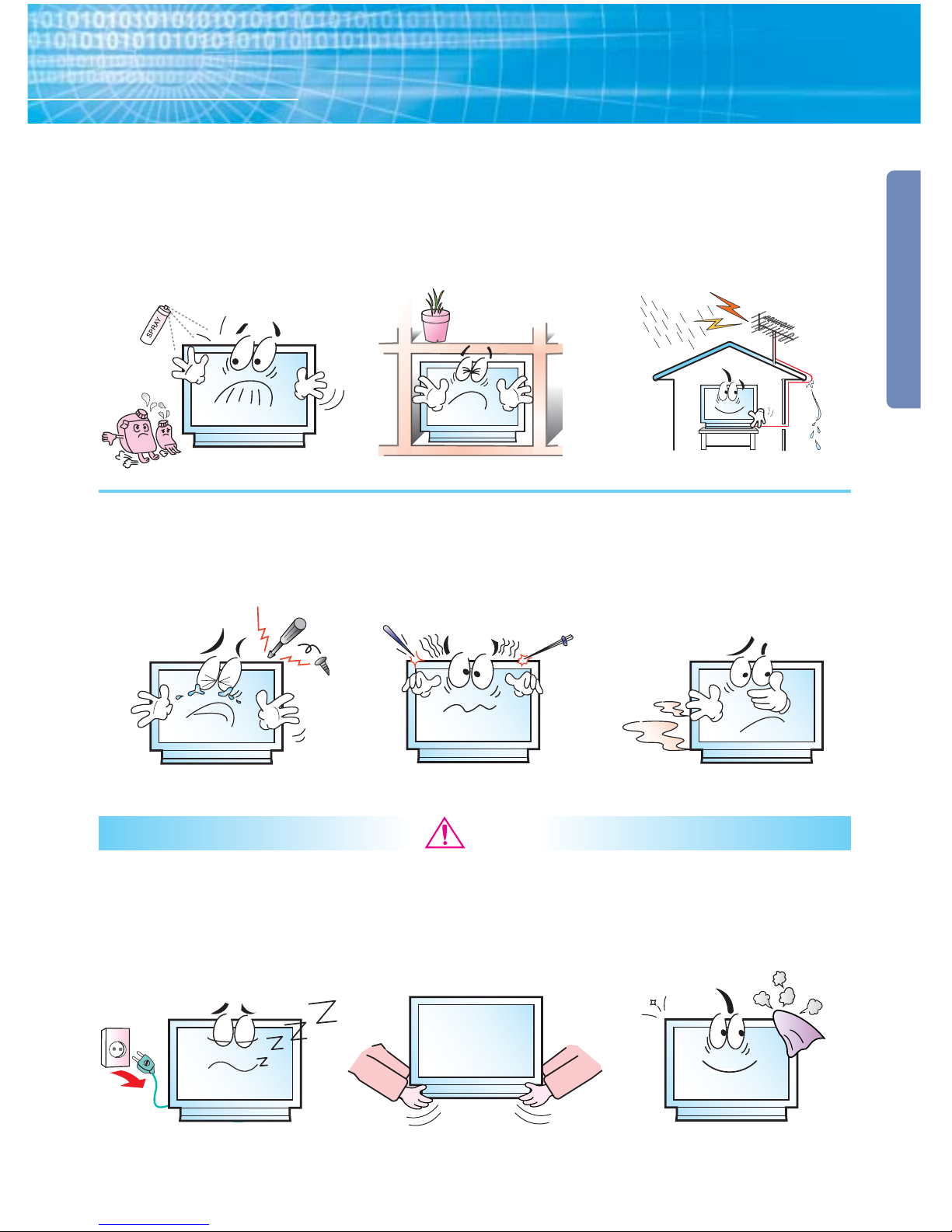

Do not use or store flammable
spray or inflammables in a place
near a PDP.
- They may cause explosion or fire.
Do not install a PDP in a
bookshelf, closet, or a place
where air is not well circulated.
- Fire may be caused due to the rise of
internal temperature.
Bend an antenna line downward on
a point where the line pass through
from outdoor to indoor so that
rainwater may not penetrate indoor.
- If raindrop gets into a PDP, fire or electric
shock may be caused.
Never separate, fix, or modify at
user’s discretion.
- When there is a need for fixing, call a
service center. Fire or electric shock
may be caused.
Do not put a metallic object like
chopstick, wire, or puncher or
inflammables like paper or a
match in a vent, headphone
jack, or AV jacks of PDP.
- Electric shock or fire may be caused.
When a PDP produces abnormal
noise, burning smell, or smoke,
unplug the PDP immediately and
call a service center.
- Electric shock or fire may be caused.
Unplug when you do not use your
PDP for long time.
- If dust is stacked on a PDP, electric shock
or fire may be caused from heat, fire, or
deterioration of insulation.
When moving a PDP, 2 or more
people are advised to carry it.
- Injury or damage may be caused when a
PDP falls.
Consult a service center or
customer service for inside cleaning
about once a year.
- When dust is collected inside a PDP for long
time, fire or malfunction may be caused.
?IZVQVO

3
*);1+;

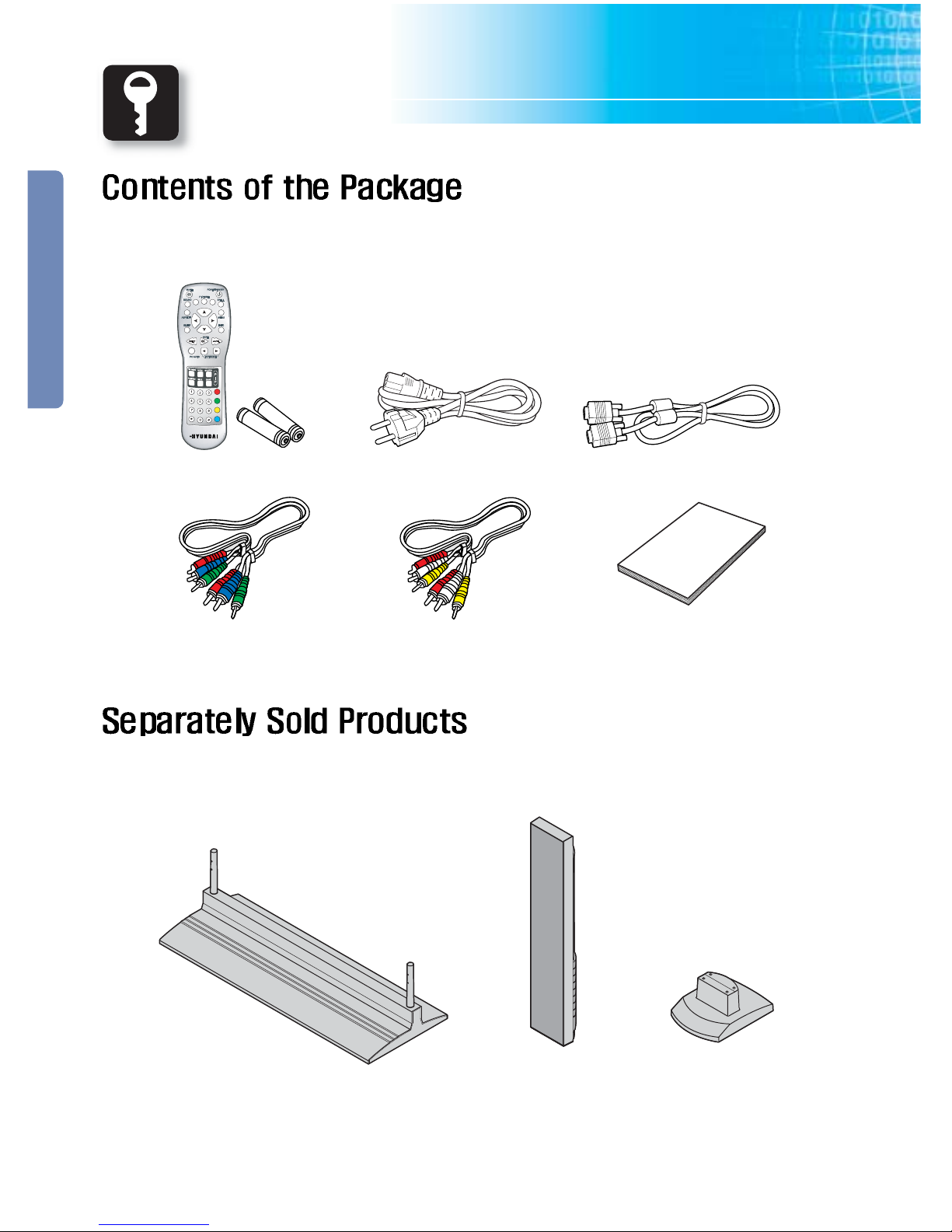

<WX]ZKPI[MILLQ\QWVITXIZ\[KWV[]T\ILQ[\ZQJ]\WZWZ[MTTQVOIOMV\
1NaW]_IV\\WX]ZKPI[M[MXIZI\MTa[WTLXZWL]K\[KWV[]T\I[MZ^QKMKMV\MZMTMK\ZWVQK[[PWX[WZXIZ\[[MTTMZ
:MUW\M+WV\ZWT*I\\MZQM[
>))
8+[QOVITKIJTM8W_MZKWZL
+WUXW[Q\M>QLMW)]LQWKIJTM+WUXWVMV\A8J8Z+IJTM
,M[S\aXM[XMISMZ,M[S\aXM[\IVL ,M[S\aXM[XMISMZ[\IVL
=[MZœ[/]QLM

HYUNDAI Plasma Display PD421
4
*);1+;
.Q`ML_ITTUW]V\NZIUM )LR][\IJTM_ITTUW]V\NZIUM
+MQTQVOUW]V\NZIUM ;^QLMWKIJTM
,>18+^QLMWLQOQ\ITKIJTM

5
*);1+;

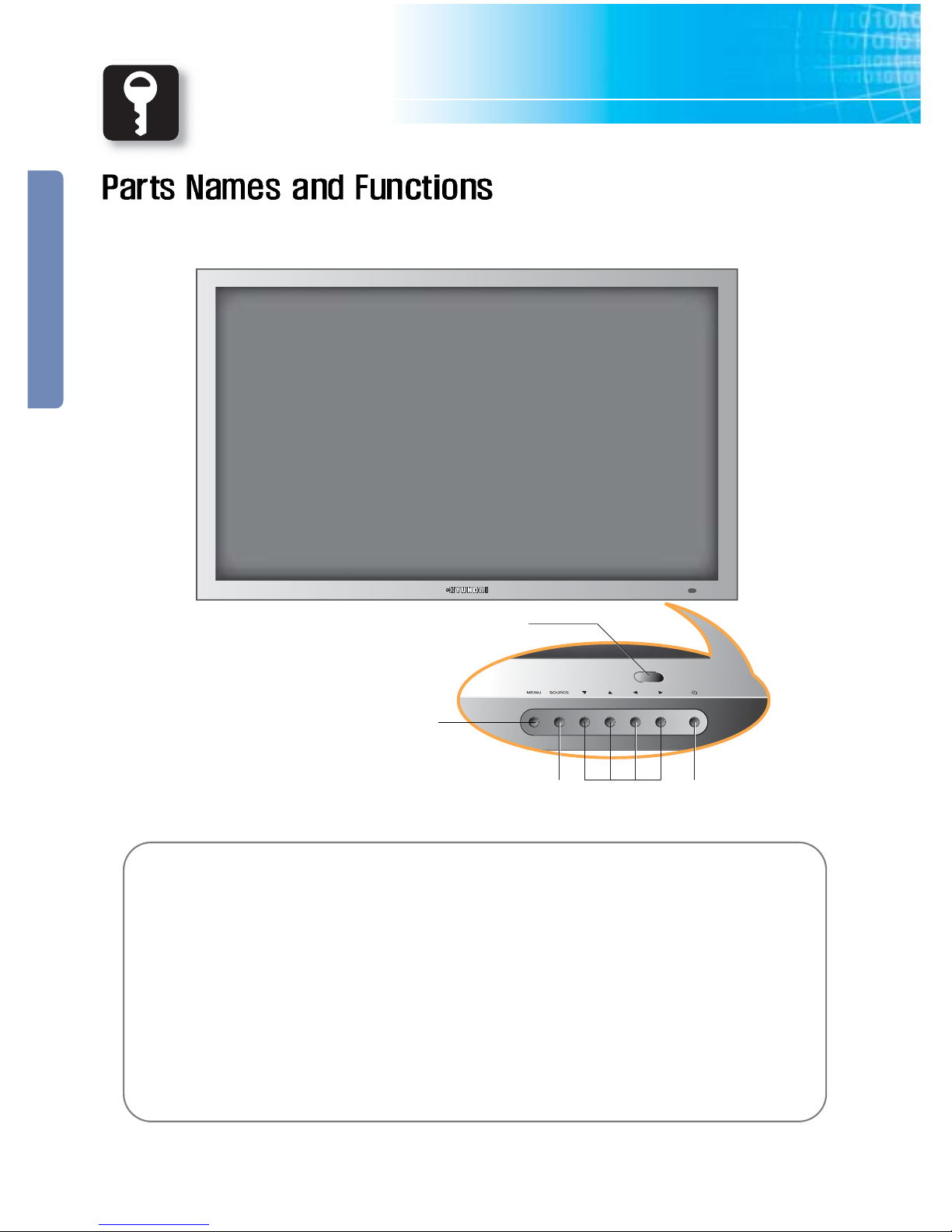

.ZWV\>QM_
 Remote
sensor and power LED.
Point the remote control toward here. It
displays standby or operation status.
 Menu
button
Use this button to display or exit from
menus.
 Source
button(Page 11~14)
Use this button to switch among inputs
connected to PDP.
PC, DVI, DTV, DVD, S-VIDEO, VIDEO,
SCART are sequentially chosen.
▲▼◀▶buttons
Use these buttons to select menu items
and to make adjustments.
When no menu is displayed, you can use
the ◀▶buttons to adjust the volume level.
Power
button:
Use this button to turn on or off a PDP




HYUNDAI Plasma Display PD421
6
:MIZ>QM_
        







*);1+;
 RS-232
input terminal
Connect to the RS-232 terminal
of a PC for the service check.
*For the control method using
this terminal, consult an
authorized Hyundai PDP dealer.
 Phone
Jack
Extend an RS-232 input.
❸ DVI
input terminal(Page 14)
Connect to the video output
terminal of a PC.
*Provided the PC has a digital
output terminal.
❹ PC
audio input terminal
Connect to the audio output
terminal of a PC.
 D-SUB
input terminal
Connect to the video output
terminal of a PC.
❻ Component
input terminal for
DTV(Page
13)
Connect to the Component
output terminal of DTV receiver
for Digital broadcast.
❼ Audio
input terminal for DTV
Connect to the audio output
terminal of DTV receiver.
❽ Component
input terminal for
DVD(Page
12)
Connect to the Component
output terminal of DVD player.
 Audio
input terminal for DVD
Connect to the audio output
terminal of DVD player.

SS--vviiddeeoo
iinnppuutt tteerrmmiinnaall((PPaaggee 1111))
Use this for the better video
quality than video input
terminal.
 Video
Composite input terminal
for
VCR
Connect to the Composite Video
output terminal of VCR or DVD
player.
 Audio
input terminal for VCR
Connect this when S-video or
Composite Video inputs.
 SCART
input terminal
For Composite Video inputs and
audio inputs used in the
European area.
 Power
input terminal
Power cord is connected here.
 Speaker
terminal
 Stand
assembly
 Speaker
assembly
 Carrying
handles
 Screw
hole for fixing on a wall

7
*);1+;
MUTEMUTE
SOUNDSOUND
ASPECTASPECT
SLEEPSLEEP
PCPC AUTAUTO
VOLVOL
MUTEMUTE
INFOINFO
MENUMENU
STILLSTILL
POWER/STPOWER/STANDBYANDBY
VOLVOL
P
OSIT
I
ON
PIP O
N
/OF
F
MO
DE
S
OURC
E
S
I
ZE
S
WA
P
P
I
P
INPUTINPUT SOURCESOURCE





















POWER/STANDBY
MUTE
SOUND
ASPECT
RATIO
SLEEP
VOL
PC
AUTO
MODE
PIP
ON/OFF
POSITION
NOT
USED


STILL
MENU
SELECT/ADJUST
INFO
MUTE
VOL
INPUT
SOURCE
SOURCE(MULTI
SCREEN)
SWAP
SIZE
MUTEMUTE
SOUNDSOUND
ASPECTASPECT
SLEEPSLEEP
PCPC AUTAUTO
VOLVOL
MUTEMUTE
INFOINFO
MENUMENU
STILLSTILL
POWER/STPOWER/STANDBYANDBY
VOLVOL
P
OSIT
I
ON
PIP O
N
/OF
F
MO
DE
S
OURC
E
S
I
ZE
S
WA
P
P
I
P
INPUTINPUT SOURCESOURCE

HYUNDAI Plasma Display PD421
8
*);1+;
8ZM[[IVLPWTLƆ XIZ\IVLX][P\WWXMVKW^MZ
1V[MZ\JI\\MZQM[_Q\PXZWXMZXWTIZQ\QM[WNIVL
=[M\PMZMUW\MKWV\ZWT_Q\PKW^MZKTW[ML
*I\\MZa\aXM">=5)):
POWER/STANDBY
Power ON and OFF the product.
STILL
Hold a picture.
MENU
Display or exit from menu.
SELECT/ADJUST
BUTTONS
Select or adjust each item of menu.
INFO
For the information such as picture mode,
resolution, and so forth.
MUTE
Make no sound.
VOL
Control volume.
INPUT
SOURCE
Select input wanted among inputs connected to PDP
SOURCE(MULTI
SCREEN)
Select input signals of Sub picture.
SWAP
Switch main picture and Sub picture.
SIZE
Change the size of Sub picture.
POSITION
Change the position of Sub picture.
PIP(PICTURE
IN PICTURE) ON/OFF
Watch more than one picture at once.
MODE
Multi picture or Dual picture is in use.
PC
AUTO
Automatically adjust setting according to the
frequency and resolution selected in a PC mode.
SLEEP
Turn off a PDP after a preset time.
ASPECT
RATIO
Change the size of picture.
SOUND
Select the status of sound.
PICTURE
Select a mode of picture.
The buttons are reserved for functions coming with
later models and do not currently operate.

Connecting VCR, Cable/Satellite Receiver ......................... 11
Connecting a DVD player ................................................... 12
Connecting DTV(Digital Broadcast) Receiver .....................13
Connecting to a PC(DVI, D-SUB) ...................................... 14
Resolutions Supported in PC ............................................. 15
HYUNDAI PLASMA DISPLAY

+WVVMK\QWV5M\PWL
Connect Video/S-Video cable between Video/S-Video output terminal of VCR or Cable/Satellite receiver
and Video/S-Video input terminal of PDP.
(Connect cables and terminal in the same colors)
Connect Audio cable (left:white color, right:red color) between Audio output terminal of VCR or
cable/satellite receiver and Audio input terminal of PDP.
(Connect cables and terminal in the same colors)
0W_\W?I\KP
Turn on the PDP and press of remote control to select either Video or S-video.
●You can select  PC  DVI  DTV  DVD  S-VIDEO  VIDEO  SCART  in order.
VCR play : Turn on the VCR and insert a tape and play it.
Cable/Satellite receiver play : Turn on the receiver and select a channel.
●Read a user manual of VCR, Cable/Satellite Receiver for more details.
=[M;^QLMWKIJTM[NWZJM\\MZXQK\]ZMY]ITQ\a
 Q ,<>ᇰዅ஡ቼၮഎ XX Q ,>,ᇰዅ஡ቼၮഎ Q
;=*ၮഎ A8J8Z Ⴚၗໜဨ Ⴚၗໜဨ 8JA8Z
)=,17 ;>1,-7 >1,-7
: 4
)6<7=< )6<16
VVCCRR//CCaabbllee
RReecceeiivveerr
VVIIDDEEOO
CCaabbllee
SS--VVIIDDEEOO
CCaabbllee
PPOOWWEERRCCaabbllee
AAUUDDIIOOCCaabbllee
11
+766-+<176;
INPUT SOURCE
SOURCEMODE PIP ON/OFF
SWAPSIZE POSITION

+WVVMK\QWV5M\PWL
Connect video cables(Y, Pb, Pr) between output terminals(Y, Pb, Pr) of DVD player and the input
terminals(Y, Pb, Pr) of Component(480i) on the rear of PDP.
(Connect cables and terminal in the same colors)
Connect Audio cable between Audio output terminal of DVD player and Audio input terminal for DVD Audio
on the rear of PDP.
(Connect cables and terminal in the same colors)
When DVD player supports the progressive scan(480p), connect to the Y, Pb, Pr input terminals for DTV
on the rear of PDP.
0W_\W_I\KP
Turn on the PDP and press of remote control to select DVD.
●You can select  PC  DVI  DTV  DVD  S-VIDEO  VIDEO  SCART  in order.
Turn on a DVD player and use it.
●Read the user manual of DVD player for more details.
7]\X]\\MZUQVITUIZSA8JIVL8ZWN,>,XTIaMZUIaJM_ZQ\\MVI[A*A:AA+J+Z
A8J8Z1\LMXMVL[WV,>,XTIaMZ
HYUNDAI Plasma Display PD421
12
+766-+<176;
,<>ၮഎ XX Q ,<>ᇰዅ஡ቼၮഎ XX Q
,;=*ၮഎၗໜဨ A8J8Z Ⴚၗໜဨ 8JA8Z
,>, +75876-6<  Q >1,-7 +7587;1<- ;>1,-7
4   )=,17    : >1,-7 4   )=,17    :
;+):<
)=,17 >1,-7 ;>1,-7 +75876-6<>1,-7
DDVVDD
PPllaayyeerr
AAUUDDIIOOCCaabbllee
INPUT SOURCE
SOURCEMODE PIP ON/OFF
SWAPSIZE POSITION
VVIIDDEEOO((YY,,
PPbb,, PPrr)) CCaabbllee

13
+766-+<176;
+WVVMK\QWV5M\PWL
Connect video cables(Y, Pb, Pr) between output terminals(Y, Pb, Pr) of DTV Receiver and the input
terminals(Y, Pb, Pr) of Component(480p/720p/1080i) on the rear of PDP. (Connect cables and terminal in
the same colors)
Connect Audio cable between Audio output terminal of DTV Receiver and Audio input terminal for DTV
Audio on the rear of PDP. (Connect cables and terminal in the same colors)
0W_\W?I\KP
Turn on the PDP and press of remote control to select DTV.
●You can select  PC  DVI  DTV  DVD  S-VIDEO  VIDEO  SCART  in order.
Turn on the DTV receiver and use it.
●Read the user manual for DTV receiver for more details.
<W_I\KPLQOQ\ITJZWILKI[\aW]PI^M\W[MXIZI\MTaX]ZKPI[MILQOQ\IT[M\\WXJW`IVLKWVVMK\Q\
\W8,8
INPUT SOURCE
SOURCEMODE PIP ON/OFF
SWAPSIZE POSITION
:/*8+ၮഎ@/):/*,<>ၮഎ XX Q ๗ಀ໏๗༺ဧ:;
,>1ၮഎ,1/1<)4 ,;=*ၮഎၮഎ ᆖഎ Ⴚၗໜဨ A8J8Z 8JA8Z ࿱ື
,<> +75876-6<  XX Q ,>, +75876-6<  Q
4   )=,17    : 4   )=,17    :
)=,17 >1,-7 ;>1,-7 +75876-6<>1,-7
AAUUDDIIOOCCaabbllee
VVIIDDEEOO((YY,,
PPbb,, PPrr)) CCaabbllee
DDTTVV
RReecceeiivveerr

HYUNDAI Plasma Display PD421
14
+766-+<176;
+WVVMK\QWV5M\PWL
Connect PC signal cable(15 pins D-sub) between output terminal of PC and the D-sub input terminal of
a PDP. In case of DVI(Digital) cable, connect it between output terminal for DVI(DIGITAL) of PC and
input terminal for DVI of PDP.
Connect Audio cable between Audio output terminal of PC and Audio input terminal for PC of PDP.
(Connect cables and terminal in the same colors)
?PMV=[QVO)[I8+5WVQ\WZ
Turn on the PDP and press of remote control to select PC.
●You can select  PC  DVI  DTV  DVD  S-VIDEO  VIDEO  SCART  in order.
Turn on the PC and use it. (Refer to page 15 on the back for the supported resolutions for PC)
●When using DVI, select DVI to press Source button.
,>1KIJTMXZW^QLM[JM\\MZXQK\]ZMY]ITQ\a
<PQ[XZWL]K\[]XXWZ\[XT]OIVLXTIaN]VK\QWV
?MZMKWUUMVL\PMIJW^MUM\PWLQN\PM[I\MTTQ\MZMKMQ^MZ[]XXWZ\[,<>[QOVIT
_Q\P,>1,QOQ\ITIVL,[]JXQVKIJTMNWZ\PMJM\\MZY]ITQ\aXQK\]ZM
INPUT SOURCE
SOURCEMODE PIP ON/OFF
SWAPSIZE POSITION
A8J8Z Ⴚၗໜဨ
:/*8+@/):/*,<> XX Q ,<> +75876-6<  :;
,>1,1/1<)4 ,;=* 168=< 7=<8=< 4   )=,17    :
AAUUDDIIOOCCaabbllee
DD--SSUUBB
CCaabbllee((1155ppiinn))
DDVVII
CCaabbllee((DDIIGGIITTAALL))

15
+766-+<176;
:M[WT]\QWV[;]XXWZ\MLQV8+
* Recommend Resolution is 800x600@60Hz
:M[WT]\QWV
31.47
37.86
31.47
37.86
37.50
43.27
31.47
37.88
48.08
46.88
53.67
49.72
48.36
60.02
68.68
>MZ\QKITNZMY]MVKa
70.09
85.08
59.94
72.80
75.00
85.01
70.08
60.32
72.18
75.00
85.06
74.55
60.00
75.03
85.00
`
`
`
`
`
` 
0WZQbWV\ITNZMY]MVKa

Connecting VCR, Cable/Satellite Receiver ......................... 11
Connecting a DVD player ................................................... 12
Connecting DTV(Digital Broadcast) Receiver .....................13
Connecting to a PC(DVI, D-SUB) ...................................... 14
Resolutions Supported in PC ............................................. 15
HYUNDAI PLASMA DISPLAY
