Hyundai HMTB80 User manual

1
2
armrest frame
2 hex bolts
M10×65
2 pieces of flat
washers 10
2 pieces of spring pads 10
2 pieces of hex nuts M10
1. Assemble the armrest frame to the armrest seat as shown in the figure and fasten it with bolts.
Armrest seat
Trailer body latch
Trailer body
R pin φ3×20×60
Resistance tiller
Type B pin 8×30
R pin φ2×9×38
Connection frame
2. Assemble the connecting frame to the opening of the trailer body and fix it with the trailer body latch and R pin φ3×20×60,
and then put the resistance tiller in the connecting frame knife box and use the B-type pin 8×30 and R pin φ2×9×38 to fix.
HMTB80 QUICK ASSEMBLY GUIDE

2 pieces of type B pin 10×45

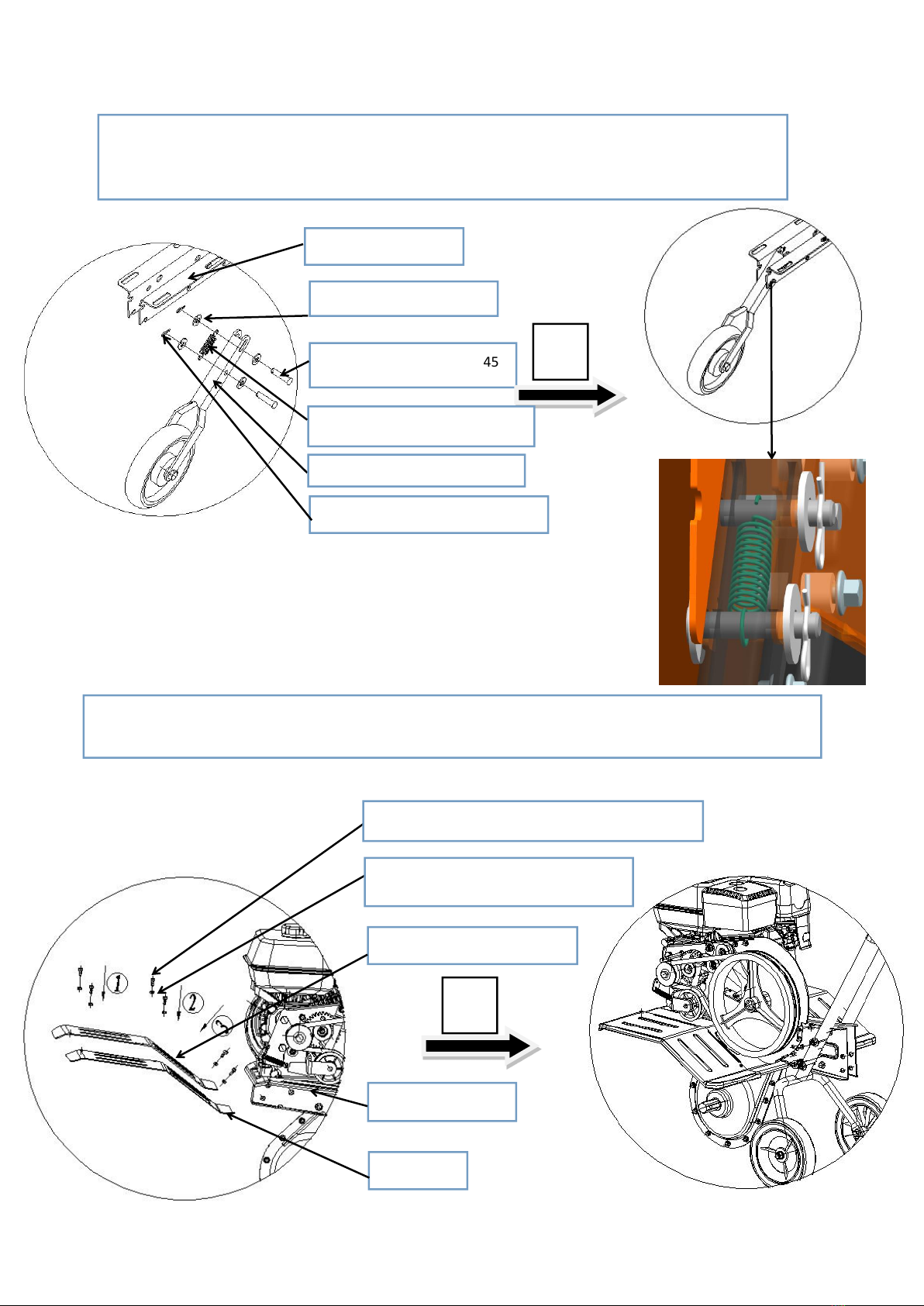

3. Place the walking wheel assembly and the walking wheel tension spring between the power
supports and use two B-type, two-piece B-type pin shafts 10×45, 4 large washers 10×2.5, and two
R pins φ2×9×38, fixed as shown in the figure.
Left fender
Inner fender
Right fender
3
4
4. Place the left and right fenders on the left and right sides of the inner fender as shown in the figure and
fix them with 6 flange bolts M5×12 and 6 hexagon flange nuts M5.
Power support
Walking wheel assembly
2 pieces of R pin φ2×9×38
Waling wheel tension spring
6 pieces of hexagon flange bolts M5×12
6 pieces of hexagon flange nuts M5
4 large washers X 2.5

5. Assemble the belt guard to the bottom of the belt guard and fix it with M5X12.
5
4 pieces of hexagon flange bolts M5×12
Belt guard
Belt guard bottom plate
Auxiliary cutter barrel
Assemble the cutter: As shown in the figure, install the blade on the main and auxiliary cutter barrels with bolts, and
finally connect the main and auxiliary cutter barrel pins with the R pin; follow the previous steps to install the tool
assembly, pay attention to the left and right tools The blades of the assembly correspond to each other.
Main cutter barrel
Type B pin 18×40
R pin φ2×9×38

Left cutter assembly
Right cutter assembly
