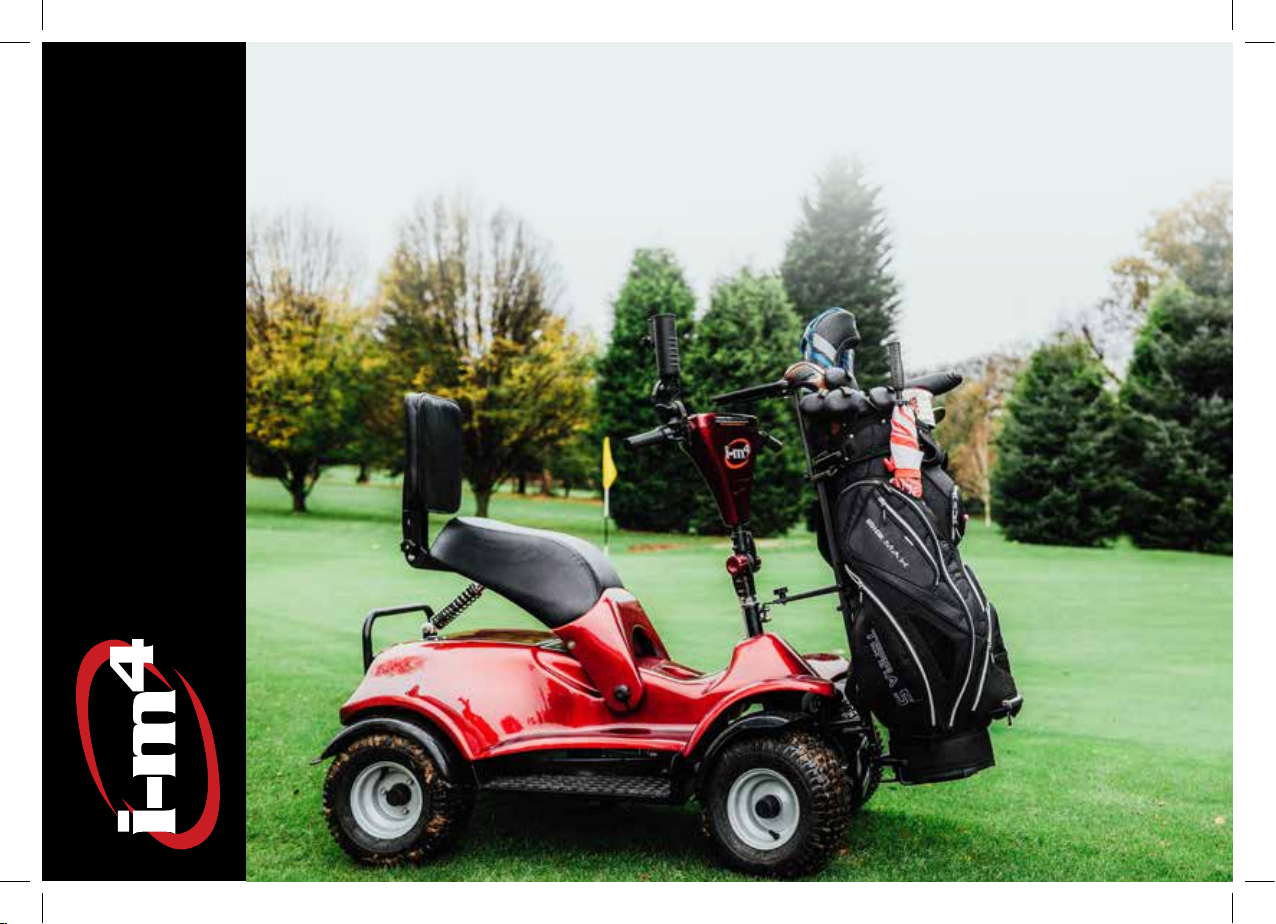

Golf Buggy

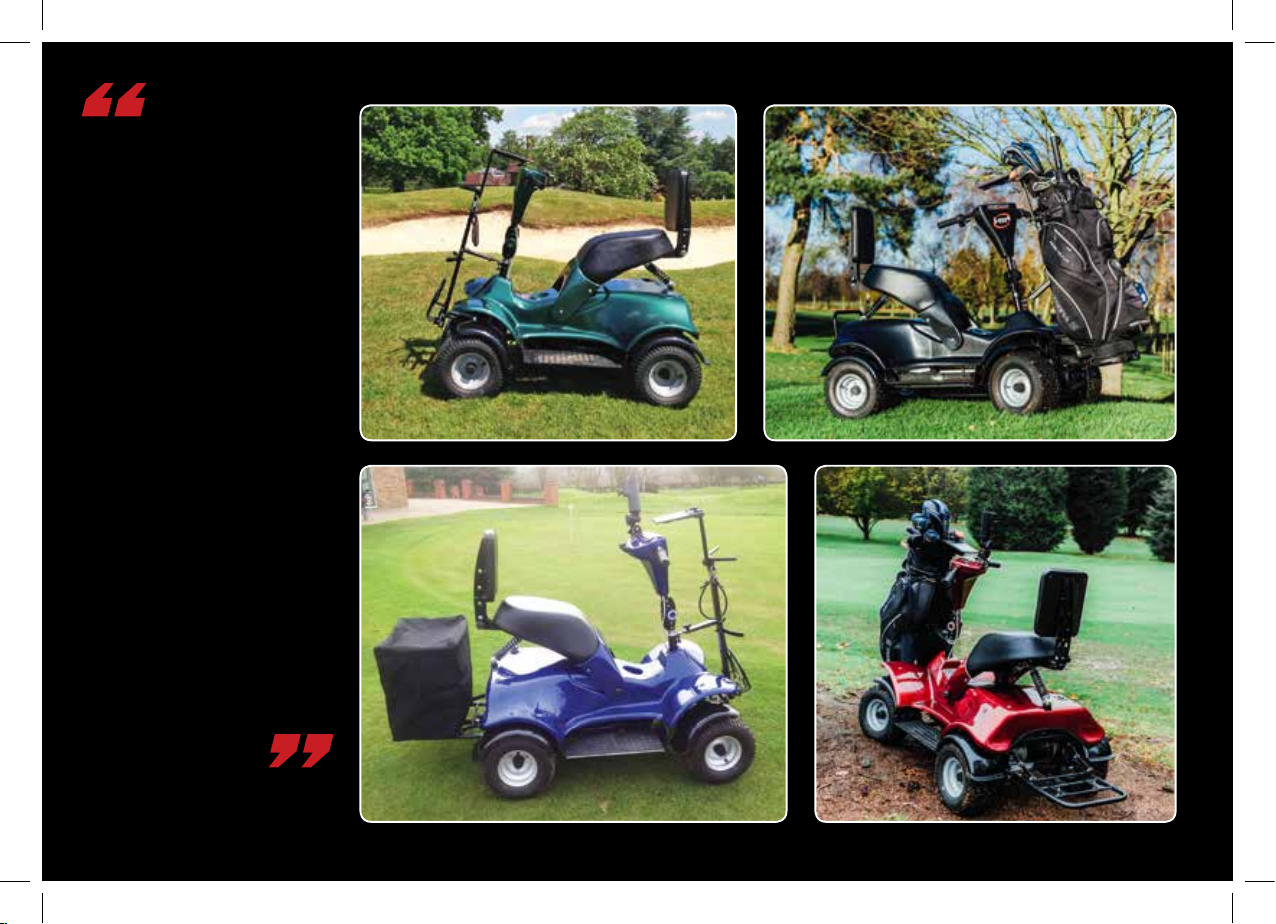

I’ve had four golf buggies over the years, 3
wheelers, 4 wheelers and power caddies. But
nothing touches the i-motion i-m4 buggy, solid sturdy
machine, easy to handle, easy to maintain and clean.
I’ve tried them all. The I-motion i-m4 is the best yet.
“
“
IM4 BROCHURE 2017.indd 4 05/01/2018 09:20

Dimensions
Length 49.5” (125.7cm) Width 32.5” (82.6cm)
Height 42” (106.7cm)
Height folded 31” (78.7cm)
With quick seat release seat system
25” (635cm), 27” (685cm) or 29” (736cm)
Minimal ground clearance 4.5” (11cm)
Performance
•One person seating capacity
•Carrying capacity 200kg
•Weight 178kg with batteries,
100kg without batteries
•Maximum speed 15-19km/h
(or can be programmed to
suit application)
•Slope climbing capacity
30 degrees
•Turning radius adjustable
up to <3m
•Forward & reverse
console mounted
Other Features
•Helix spring shock absorbers
•Tyres: 32.5cm x 15cm
4 ply tyres
•Japanese wheel bearings
•Electromagnetic braking
system
•Full range of optional
accessories available
•12v USB charging port
(optional)
Technical Specifications
Body & Chassis
•Steel frame construction
•Strong fibreglass body
•Rust protected powder coated steel work
•Easy battery access
•Range of colours available
Power
•Motor 36V 1200 watt permanent magnetism
•Sealed Lead Acid Gel batteries 12V 50 or 80 AH
(Lithium Batteries available at additional cost)
•Automatic pulse charger input
AC110V/240V Optional Output DC36V/5A/8A
•Throttle mounted speed switch
High (19Km/h) Low (6.4Km/h)
•Recharge time 6-8 hours
•Maximum travel distance 50Km
•CURTIS controller 1227-3402 DC36V/160A
•CURTIS connector
•Hall accelerator continuous
variable speed system

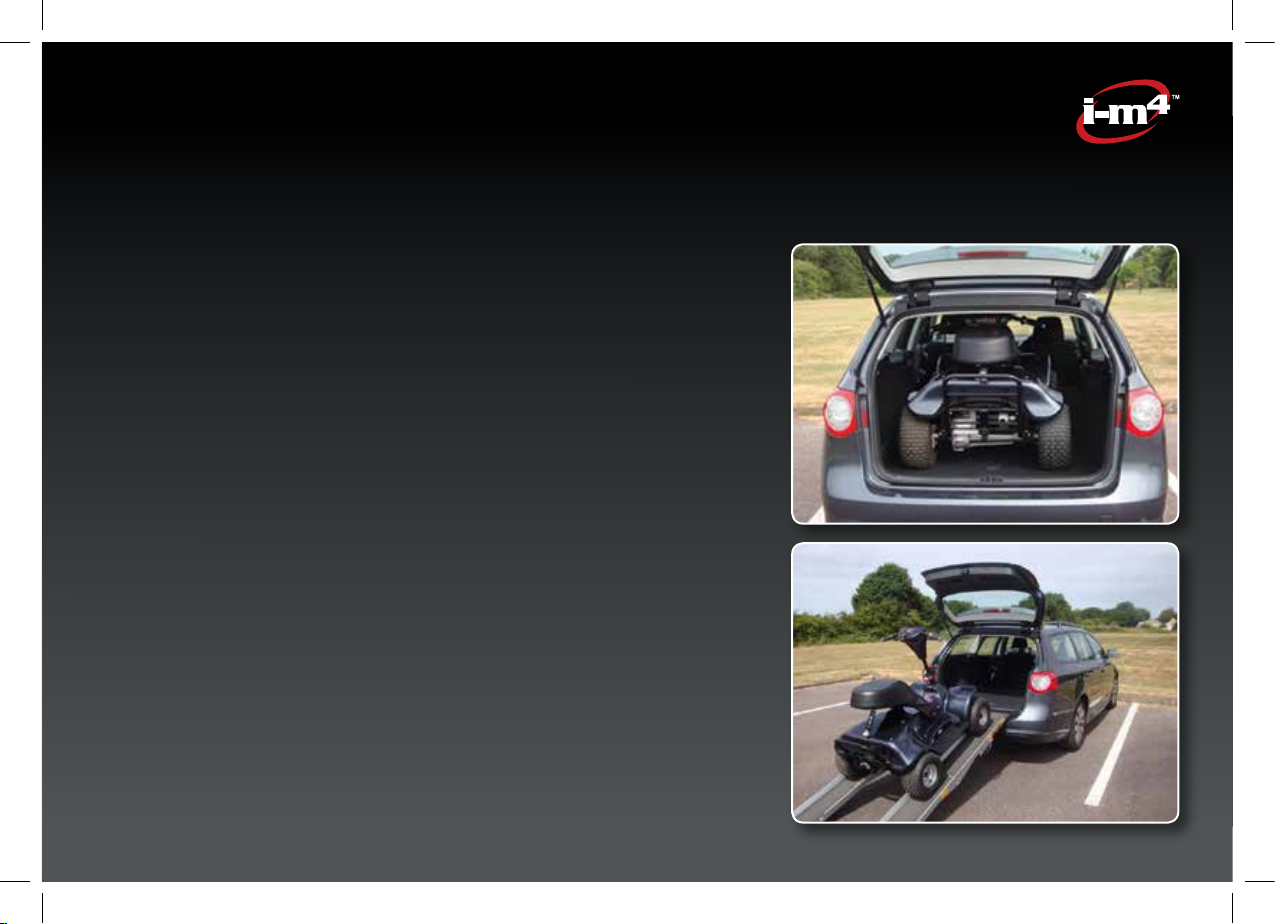

The i-m4 has foldable handlebars
to enable easy loading into the
boot of a car and a quick release
removable seat option if required.
IM4 BROCHURE 2017.indd 5 05/01/2018 09:20

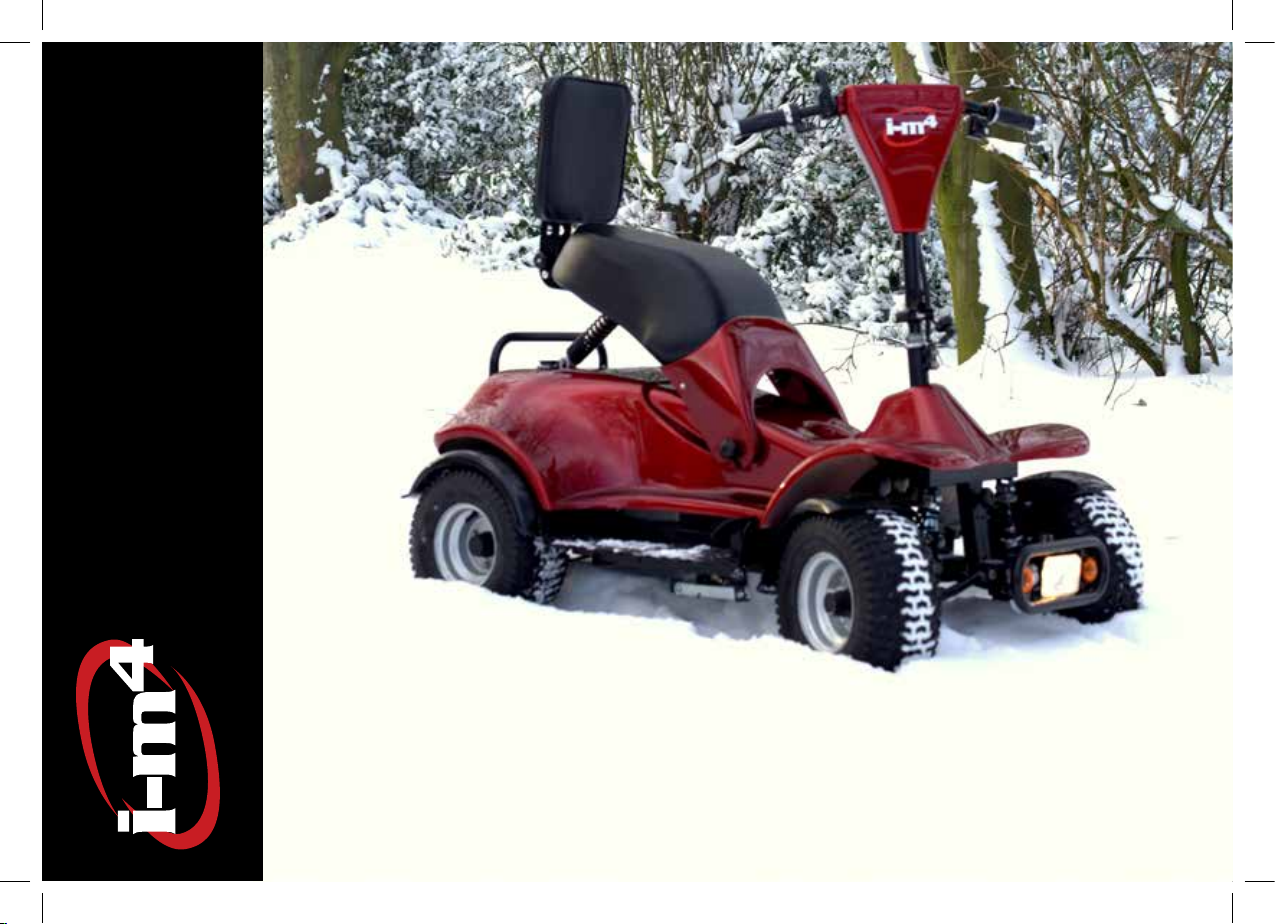

Roadster
I am fortunate enough to live close to my golf course, so I drive my buggy there, play my game and drive back. I have
to say it is one of the best investments I have made, the i-m4 has not only extended my golf live, (as I suffer with my knees)
but it has made golfing a more enjoyable sport for me. The i-m4 is everything a golf buggy should be? It drives exceptionally
well with a choice of two speeds, its balance is second to none (no stabilizers needed here) and with its front chassis
suspension aligned to its rear seat suspension it allows me to ride over the course without the discomfort of feeling every
bump on the course. Fantastic!!!
I would recommend the i-m4 single seat golf buggy to anyone who has issues with walking the course, but also if you want
to “feel” and “look” the part! Then I have to say the i-m4 is for any golfer.
“
“
Brian Raybone
IM4 BROCHURE 2017.indd 6 05/01/2018 09:20

Performance
•One person seating capacity
•Carrying capacity 200kg
•Weight 178kg with batteries, 100kg without batteries
•Maximum speed 12km/h
•Slope climbing capacity 30 degrees
•Turning radius adjustable up to <3m
•Forward & reverse console mounted
Other
Features
•Helix spring shock
absorbers
•Tyres: 32.5cm x 15cm
4 ply tyres
•Japanese wheel
bearings
•Electromagnetic braking
system
•Full range of optional
accessories available
Technical Specifications
Body & Chassis
•Front and rear headlights
•Front and rear indicator lights
•Steel frame construction
•Strong fibreglass body
•Rust protected powder coated steel work
•Easy battery access
•Range of colours available
Power
•Motor 36V 1200 watt permanent magnetism
•Sealed Lead Acid Gel batteries 12V 50 or 80 AH
(Lithium Batteries available at additional cost)
• Automatic pulse charger Input AC110V/240V
• Optional Output DC36V/5A/8A
•Throtlle mounted speed switch
High (19Km/h) Low (6.4Km/h)
•
Recharge time 6-8 hours
• Maximum travel distance 50km
• Curtis Controller 1227-3402 DC36V/160A
• Curtis Connector - Throttle controlled
•
Hall accelerator continuous variable speed system
Well I have just clocked up over
140 miles on my new “i-m4 single
seat golf buggy”, as you know I
bought my i-m4 golf because I had
an issue with my knee and it has
changed my golfing life.
“
“
My purchasing
experience with
you was first class
and your after
sales contact was
totally unexpected
but great to
hear from you in
person.
“
“
Dimensions
Length 49.5” (127.7cm)
Width 32.5” (82.6cm)
Height 42” (106.7cm)
Height folded 31” (78.7cm)
With quick seat release seat system
25” (635cm), 27” (685cm) or 29” (736cm)
Minimal ground clearance 4.5” (11cm)
IM4 BROCHURE 2017.indd 7 05/01/2018 09:20

Picture 1
Locate pivot arm into slot provided
on fixing angle. Attach to i-m4
and semi-fasten bakelite knob
provided.
Picture 3
Golf Bag Holder Assembly (Pre 2017 models) Golf Bag Holder Assembly (Post 2017 models)
Picture 2
locate bottom pivot arm into fixing
hole provided and semi-tighten
bakelite knob provided.
Picture 1
Picture 2
Picture 3
Tighten both top and bottom
bakelite knobs for firm fix.
Reverse process to remove.
Picture 1
Picture 3
Picture 2
Picture 4
Score Card Holder Assembly
Mount score card
holder bracket into
sleeve on back of
golf bag holder.
Remove hand
grenade pin to
remove bag holder
assembly
Press on score card
holder to supprting
bracket.
Fix using
bakelite
knob.
Fix using
bakelite
knob.
Golf Bag Holder
IM4 BROCHURE 2017.indd 8 05/01/2018 09:20

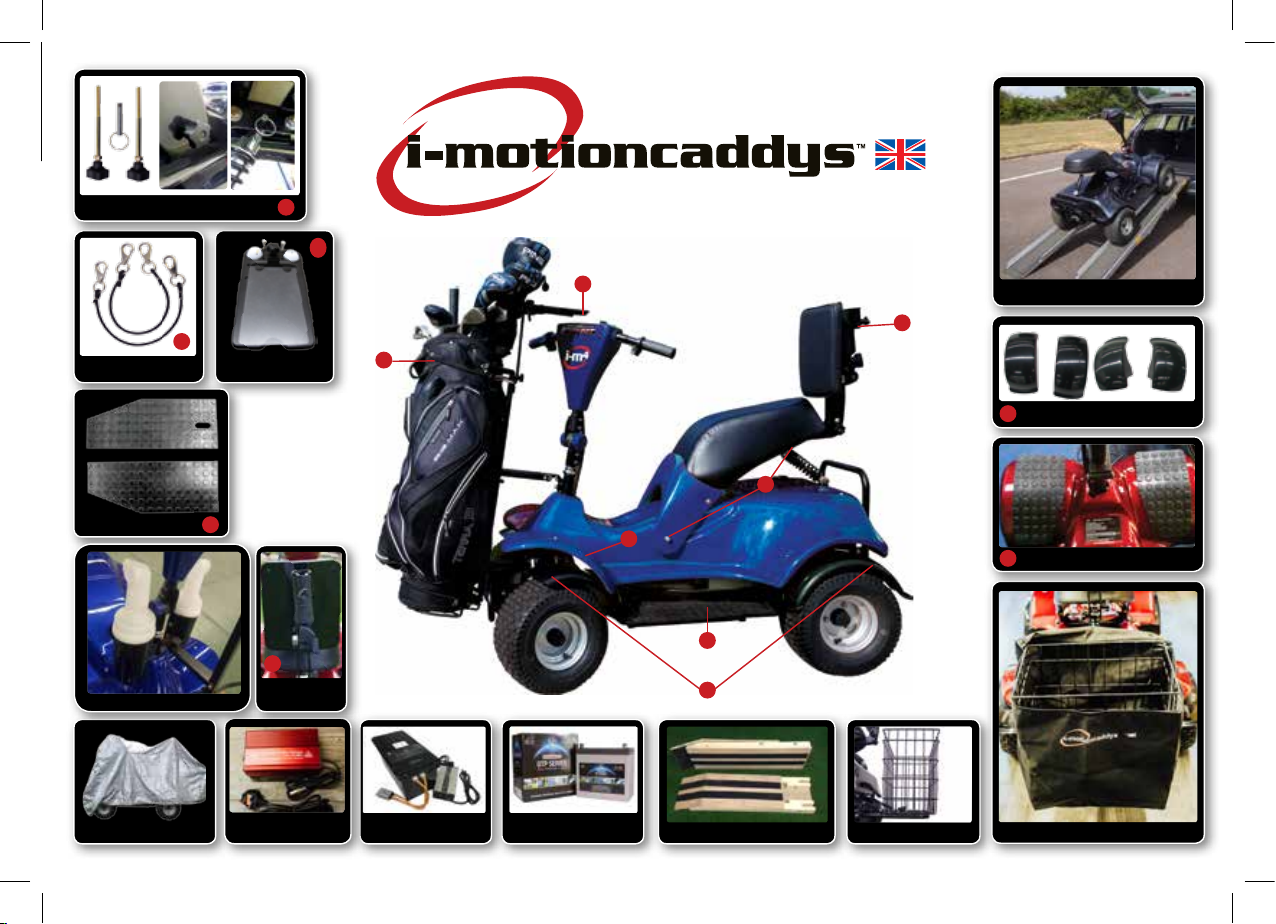

Accessories Range
Wooden Ramps
Weather Cover Rear Basket Weather Cover
Mudflap Kit
Fender Foot Mats
Rear Basket
36 Volt
Lithium Battery
50Ah or 80Ah
Gel Battery
Scorecard
Holder
3
7
7
Fold Up Aluminium Ramps
5
1
3
2
6
4
Foot Mats
5 or 8 Amp
Battery Charger
Golf Bag Strap
Sand Buckets
Umbrella
Holder
5
3
Quick Release Seat Kit 1
2
4
6
IM4 BROCHURE 2017.indd 9 05/01/2018 09:20

1
3 12
13
26
17
16
15
19 18
4
5
6
2

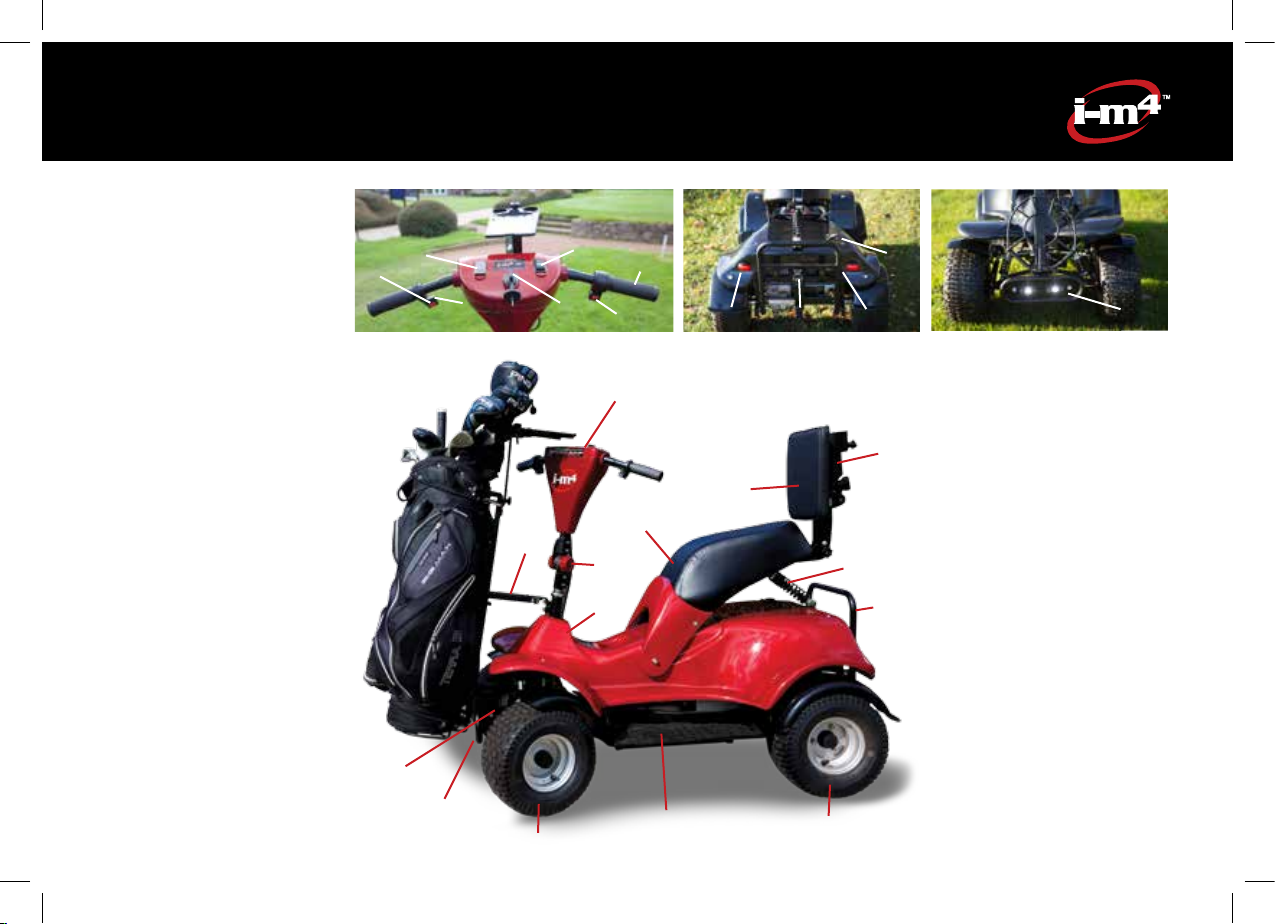

I-m4 Description
1) Control console
2) Golf bag holder
3) Handlebar release
dial
4) Body
5) Front suspension
6) Front bumper
7) Horn button
8) Battery power
indicator
9) (Forward/Reverse)
Direction switch
10) Accelerator throttle
11) Ignition
12) Seat suspension
spring
13) Rear carry bracket
14) Electromagnetic
brake handle
(Free wheel lever)
15) Rear tyre 18 p.s.i
16) Padded seat
including backrest
17) Seat assembly
18) Footplate & mats
19) Front tyre 18 p.s.i
20) Body release clasp
21) High/low speed
switch on throttle
22) Slide over battery
charger point cover
23) Roadster front
bumper light
cluster*
24) Rear lights and
indicators*
25) Light switch*
26) Umbrella Holder
*Additions to Roadster model only.
7
89
10
21
11 23
25
22
24 20 14
IM4 BROCHURE 2017.indd 10 05/01/2018 09:20

Operation
•Please remove the charger from the buggy
before turning the ignition key on.
•Turn ignition key on.
•Ensure charge indicator is sufficient.
•Press FWD to move forward.
•Press REV to move in reverse.
•Turn throttle anti-clockwise to increase speed.
•Release throttle to slow down or stop.
•When the throttle is released the back wheel
is locked automatically for parking on inclines
or declines.
Motor brake handle
•The electro-magnetic brake lever (free wheel
lever) can be found under the body attached
to the motor.
•Make sure the electro-magnetic brake lever is
in the vertical position
to engage the motor.
•Dis-engage the electro-magnetic brake lever
to free wheel the vehicle.
Battery discharging Point
•The battery charger socket is located under
the seat.
•Ensure the cover is replaced after charging.
Power display
•Running time will change according to ground conditions and
terrain.
•FULL CHARGE: LED light/bar is at the top
•MINIMAL CHARGE: LED light/bar is at the bottom
Seat
•The seat height can be adjusted to 3 positions using the bolts
at the top end of the suspension spring.
•Seat can have a quick-release system fitted to allow easier seat
removal. (see page 13)
Golf bag holder
•The golf bag holder is attached and detached using the lower
and upper bakelite knobs at the front of the buggy or hand
grenade pin and bottom bracket. (see page 13)

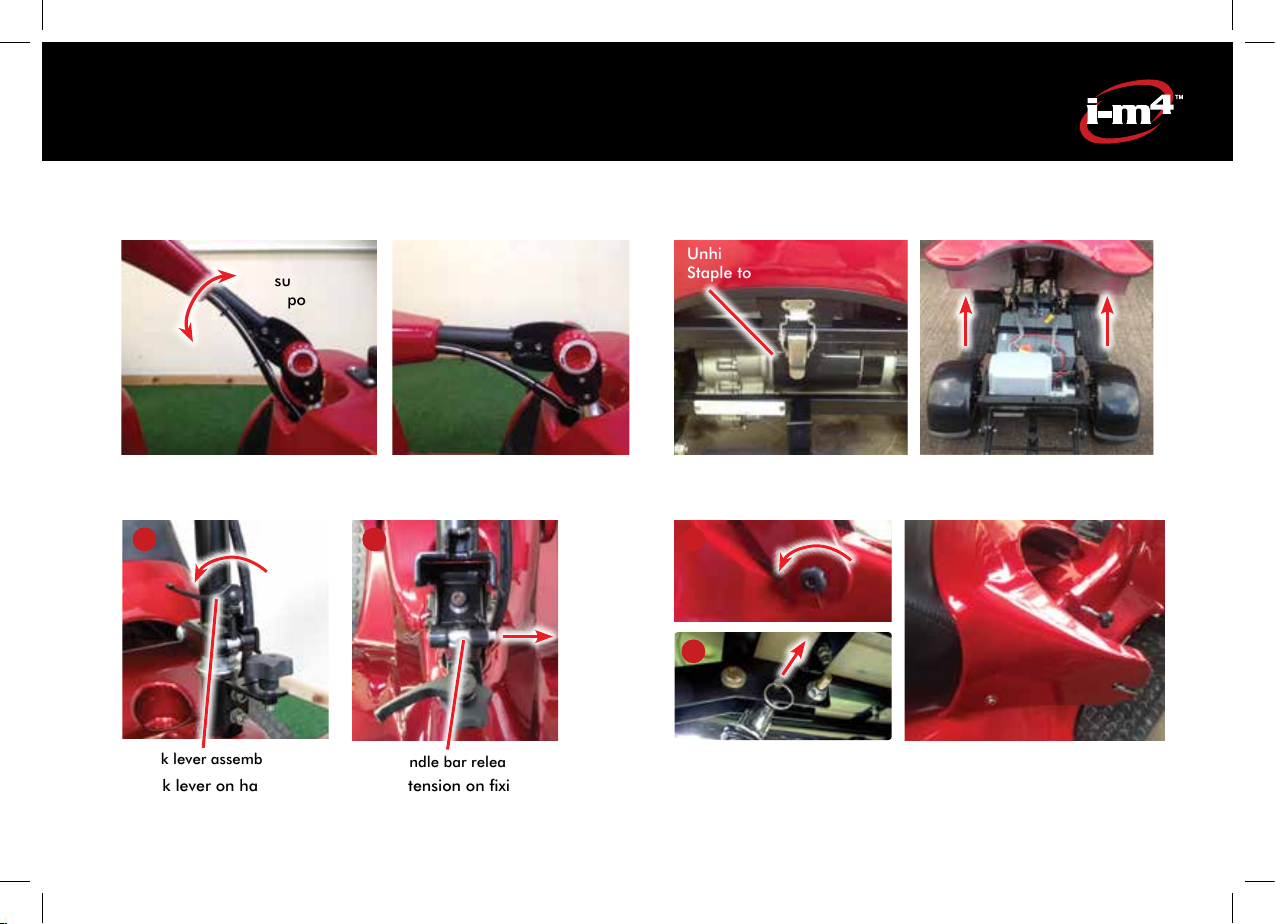

Rear fold down carrier
•To open: Release the bakelite bolt, fold down the rear bracket
and tighten the bakelite bolt.
•To close: Release the bakelite bolt, push up the rear bracket
and re-tighten the bakelite bolt.
To lift body
•Release the hasp and staple lever and lift
the body from back fender. (see page 13)
I-m4 Operation
IM4 BROCHURE 2017.indd 11 05/01/2018 09:20

Parts Inspection
Golf buggy After use clean any mud or debris from under the body either with a hand brush
or a light air hose. Only use a mild detergent with warm water for the exterior.
DO NOT use a high-pressure jet wash.
Steering system Ensure all parts are functioning properly.
Accelerator throttle handle Ensure the buggy moves when the throttle is
turned anti-clockwise and it stops when the throttle is released.
Battery power indicator Ensure the power has enough charge remaining before use.
Seat Ensure the seat is fixed properly.
Tyres Ensure the tyres are in good condition and that
they are at the recommended air pressure at all
times (18 p.s.i).
Wheels Check all nuts and bolts and ensure the wheel
nuts are tight and secure.
Batteries Recharge batteries after every use and check
the battery indicator is full before use.
Battery charger DO NOT leave the batteries on charge for long periods of time.
DO NOT leave the batteries standing without use for long periods of time.
DO NOT allow the battery charger to get wet.
Inspection & maintenance
Once Over service
Our service team now offer all i-m4 customers a “Back to Base” or “On-Site” ‘once-over’ service.
For more details or a quotation call 0121 359 3139 or email [email protected]
IM4 BROCHURE 2017.indd 12 05/01/2018 09:20

1Flick lever on handle over to release tension on fixing bolt.
2Pull down lever handle from top fixing bracket. Slide
lever to the left, releasing the holding bolt from the top
bracket therefore releasing the handlebars to fold down.
1Unscrew bakelite knobs either side until released from
plastic assembly.
2Pull out hand-grenade pin from the seat spring and
carefully lift off seat assembly.
Lever System (Pre 2017 models)
Dial System (Post 2017 models) Body Release
Seat Release
Lever handle bar release
Unlock lever assembly
Quick Release Guide
unlock turn
assembly
Adjust to
suit seating
position
Handlebar assembly fully
lowered for transport
Unhinge Hasp from
Staple to lift Body.
Lift Body to expose Chassis,
Batteries and Mechanics
1 12
2
IM4 BROCHURE 2017.indd 13 05/01/2018 09:20

Single seater golf and utility vehicle
The i-m4 golf buggy is like any other electrical or mechanical device. Cleaning, care and
inspection is a “must” which will result in longer life and extended reliability!
General care and inspection
After every use clean any mud or debris from under the body either with a hand brush or a light air hose.
Use a mild detergent and warm water for the exterior.
DO NOT use a high-pressure wash.
Check all bolt and nut connections are tight before use, especially the wheel nuts.
Check tyre pressure and maintain the recommended pressure at all times.
Recharge batteries after every use and check the battery indicator is full before use.
DO NOT allow the battery charger to get wet.
Let the i-m4 add to your golfing experience.
Troubleshooting / General Care
The buggy won’t start • Check the F/R Switch is not in the neutral position
• Check the key is in the on position
• Check the battery power indicator
• Check the batteries are connected properly
• Ensure the buggy is NOT in free wheel mode
Other • Contact your supplier
IM4 BROCHURE 2017.indd 14 05/01/2018 09:20

Safety Advice
Please read the following instructions carefully before using the i-m4 golf buggy.
• DO NOT use the throttle handle as a support when mounting the buggy.
• Turn off ignition when not in use.
• Leave buggy in neutral mode when not in use.
• The i-m4 golf buggy is designed to carry one person.
• The Golf buggy is NOT road legal. (See i-m4 roadster)
• Please use the throttle to decrease the speed when turning the buggy.
• Please use the throttle to increase the speed when climbing a hill.
• When driving the buggy take care in crowded areas, wet or slippery surfaces and tight gaps.
• Do not allow others to use the i-m4 buggy without your permission.
• Please do not stand up on the i-m4 buggy when in motion as you may lose your balance.
• Please do not lean side from side to side on the im4.
• Do not drive the i-m4 down hills backwards.
• Try to avoid pot holes or uneven paths.
• Keep the i-m4 buggy in a dry area or under cover when not in use.
• Do not use a mobile phone when driving the buggy.
• Do not get off the buggy until it has come to a complete stand still.
• The direction switch should not be changed when the buggy is moving.
• The Speed switch should not be changed when the buggy is moving.
IM4 BROCHURE 2017.indd 15 05/01/2018 09:20

87 New Town Row, Birmingham, West Midlands B6 4HG
Contact Roy: [phone] Head Office: [phone]
Email: [email protected] [email protected]
www.i-motioncaddys.com www.electric-golf-buggies.co.uk
IM4 BROCHURE 2017.indd 16 05/01/2018 09:20
