IAdea IAD18000 Instructions for use

IAD18000/
18001
10.1 HD Smart Signboard
IAdea Corporation
綠創科技
綠創科技綠創科技
綠創科技
18001
Hardware
User Manual
10.1 HD Smart Signboard
IAdea Corporation
User Manual

Warning:
Changes or modifications to this unit not e pressly approved by the party responsible for compliance could void
the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part
15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment
does cause harmful interference to radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the interference by one or more of the following
measures:


Reorient or relocate the receiving antenna.


Increase the separation between the equipment and receiver.


Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.


Consult the dealer or an e perienced radio/TV technician for help.
Adaptor with ferrite must be used with this equipment to ensure compliance with the Class B FCC limits.
Correct Disposal of this product. This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent possible harm to the environment or
human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse
of material resources. To return your used device, please use the return and collection systems or
contact the retailer where the product was purchased. They can take this product for environmental
safe recycling.
“FCC & CE RF Radiation E posure Statement Caution: To maintain compliance with the FCC & CE’s RF
e posure guidelines, place the product at least 20cm from nearby persons.”
The power consumption of the product in networked standby is 5.927W which all wired network ports are
connected and all wireless network ports are activated.
Adapter manufacturer: Asia Power Devices Inc.
Model No.: WB-18D12R
Input: 100-240V~50-60Hz0.5A Ma .
Output:

i
Contents
IAD18000/18001 Hardware User Manual 0
1. Introduction 1
1.1. Package contents 1
1.2. Physical view and features 1
1.3. Installation 3
1.4. System setup 4
1.5. onnect device to network 5
1.6. ontent Management 5
2. Technical Data 6
2.1. Specifications 6

1
1. Introduction
This document describes the
hardware
1.1. Package contents
1.2. Physical view
and features
Front View
Main
Unit
hardware
specification of the IAD18001.
and features
Power
adapter
with
Power
and
MicroSD
Table
Stand
Table
Stand
(
IA
D
18001
o
n
l
y
)

2
Rear View

3

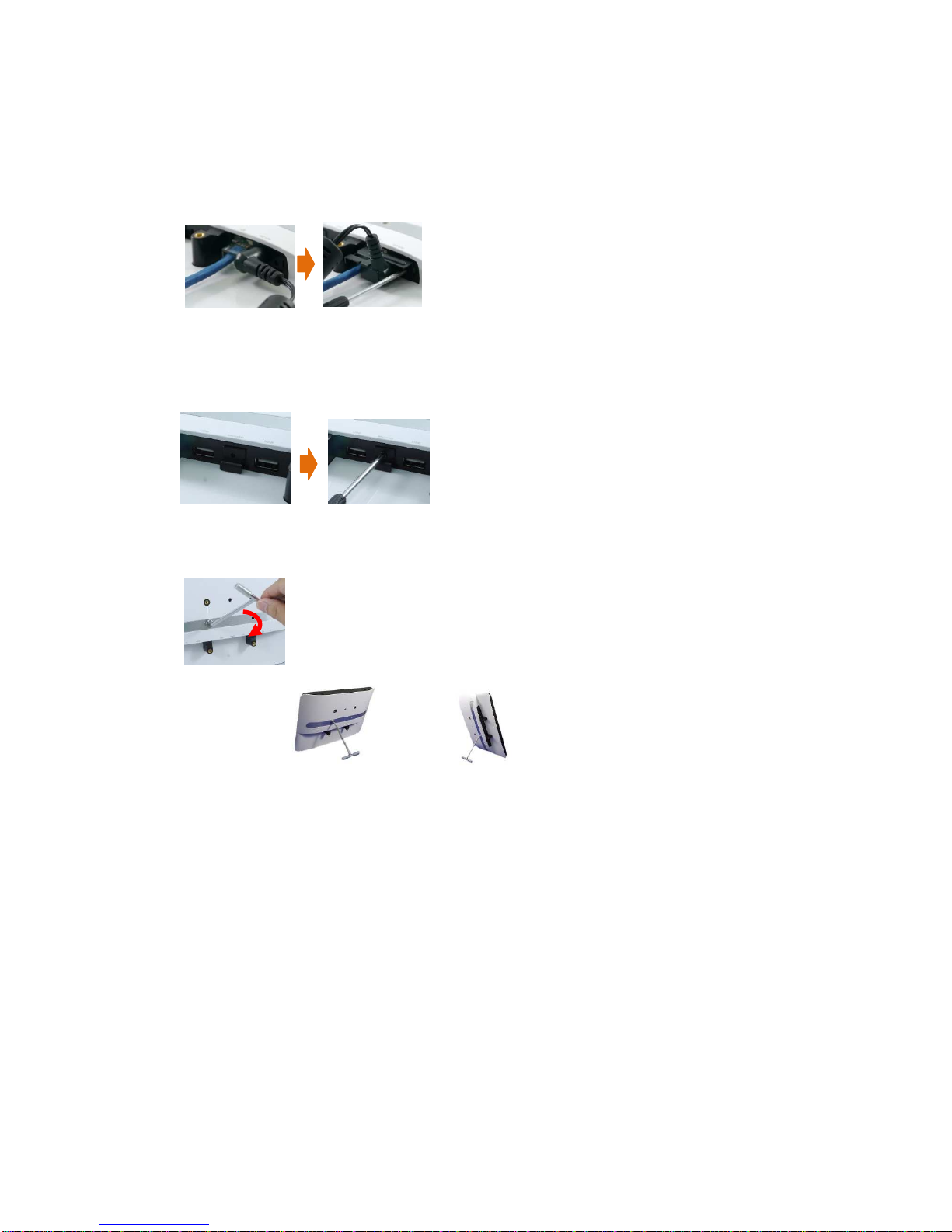

1.3. Installation
Securing the power and network cable
1 Insert power plug
2 Fasten bracket onto the socket
Securing Micro SD card
1 Insert SD card bracket
2 Fasten SD card bracket
Installing the table stand
1 Simply screw the supplied table stand into stand screw hole
Support landscape and portrait setup

4

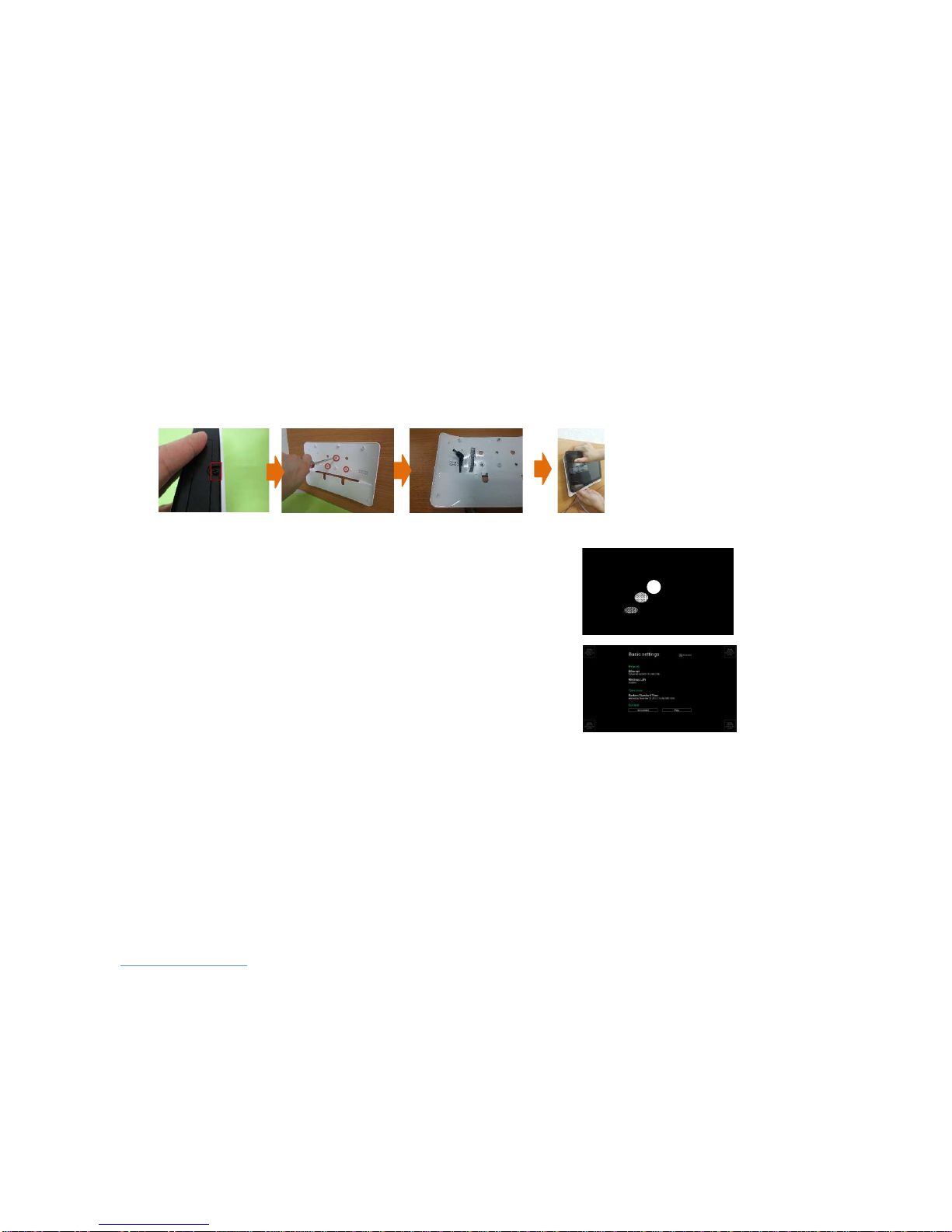

Mounting
IAD18001 is MIS-D75 compatible, the recommended screw is M4 x 4.5~5mm (excl. bracket thickness)
Mounting Option 1: [VESA mount]
Supporting VESA standard: VESA MIS-D75 (75*75mm)
Supporting screw: M4*4mm (exclude the mounting plate thickness)
Mounting Option 2: [Using back cover]
(power / SD card brackets MUST NOT installed while mount on back cover)
1 Release the back cover screw to release back cover
2 Install back cover : thread head height must not exceed 3mm
3 Route power and network cable from bottom as shown in photo
4 Plug power and network cable to signboard , and then install signboard with back cover carefully
1. . System setup
1 INSTALL the A power adapter
→ You should see the player boot up screen as shown in right
2 WAIT while player boots up
→ once you see “Basic settings” on screen, the unit is ready for content
update or menu configuration
3 PLUG IN a USB mouse to the unit’s USB port or configure by touch
screen(IAD18001 only)
4 Enter the corresponding configuration option by moving the mouse cursor over the configuration and click
on the option to enter (or tap on the configuration option for IAD18001)
→ find and set the correct time/date AND time zone.
IMPORTANT: time zone must be set correctly in the menu or via management software for scheduled playback
→ (OPTIONAL) Set a Password in the menus to prevent unauthorized changes.
IMPORTANT: Password will be asked while enter the setup menu during playback
5 Click Set content button to configure your signage appliance to the content service if needed
→ For advanced player configuration, such as static IP, display resolution, and firmware update, visit
www.digisignage.com for more information

5

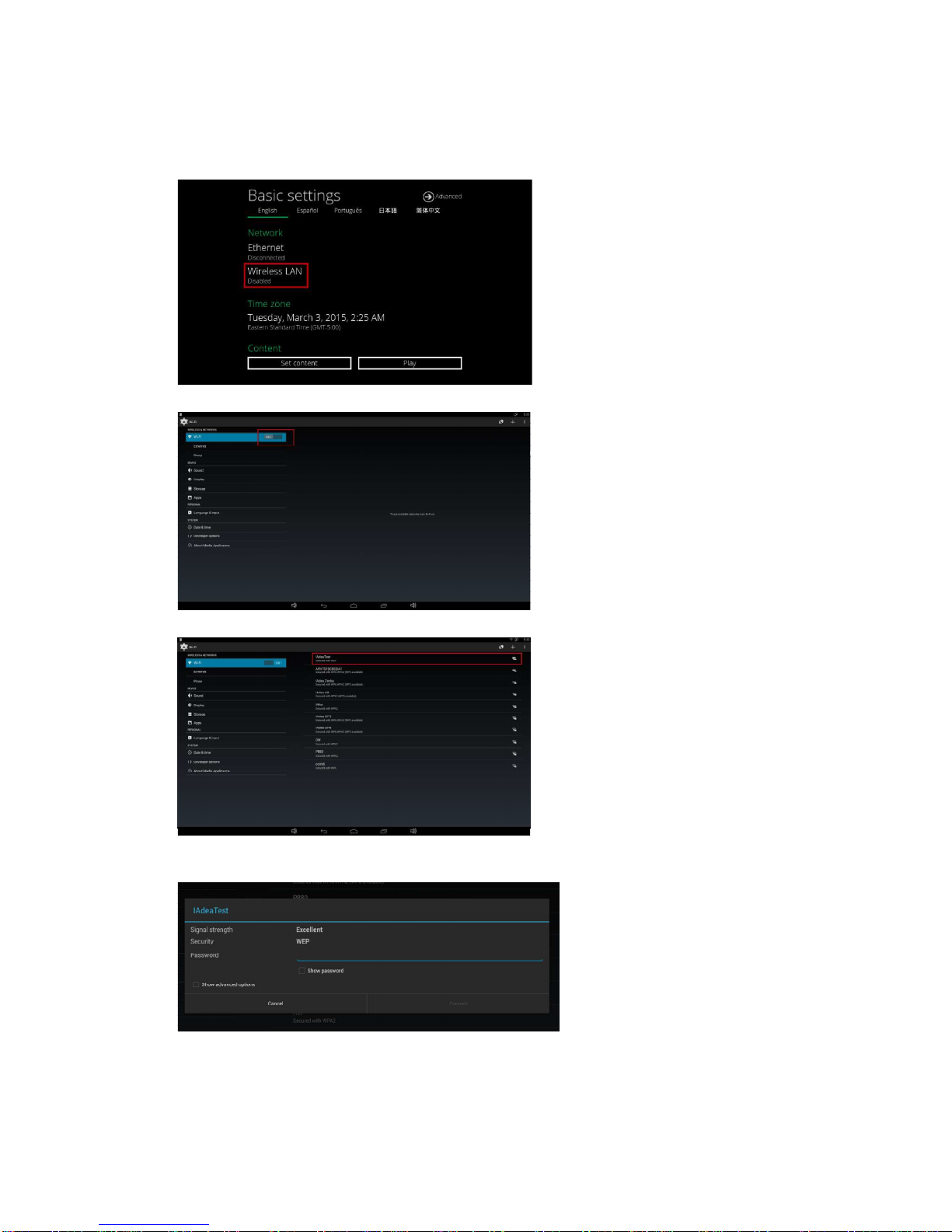

1.5. Connect device to network
1Click the Wireless LAN setting to launch the wireless configuration UI.
2Click the ON/OFF button as indicated below to turn ON Wireless interface (network).
3The player will scan for wireless signals nearby and available access points will be listed.
4Click on the network ID to connect. If the network requires authentication, you will be asked to provide a
password.
1.6. Content Management
Please consult the software documentation for information specific to your management solution.

6
2. Technical Data
2.1. Specifications
IAD18000/18001
Display
10.1” IPS panel
10 points multi-touch ( IAD18001 only )
Programming LED bar x 2 (IAD18001 only )
300 nits maximum brightness
1280x800 panel resolution
Viewing angle (H/V): 178/178
Built-in speaker 2W x 2
Video format support
H.264 (
up to
1080p,10Mbps)
V -1 (up to 1080p,10Mbps)
MPEG-4 ASP (up to 1080p,10Mbps)
MPEG-2 (up to 1080p,10Mbps)
POPAI Screen Media Standards : S6 to S12, E4,E7,E8
Image format support
JPEG,PNG up to 1920x1080
POPAI Screen Media Standards
: S1 to S3, E1 to E3
Audio codec support
MP3 up to 320Kbps
POPAI Screen Media Standards : S4, S5
Dynamic content
W3 HTML5 (HTML, SS, JavaScript)
W3 SMIL 3.0 instructions (sub-set)
Physical I/O connectors 3.5mm analog stereo audio out port
HDMI output port
USB 2.0 x 2
RJ45 Ethernet port
Micro SD card slot
D in
Micro USB for ADB
reserved expansion port
Local storage 8 GB eMM with Micro SD card expansion slot
Accessories Power adapter
Power and Micro SD card bracket
Table stand
Power requirement 12V 1.5A D
802.3af compliance PoE, power over Ethernet (IAD18001only )
Power consumption* 14.15 watts max
Environmental Operating temperature: 0 – 45° / 32 – 113° F
Storage Humidity: 10 – 85% @ 40° / 104° F non-condensing
Dimensions 260 x 162 x 28 mm (10.23 x 6.37 x 1.02 inches)
Weight 0.727kg
1.5lbs
Safety UL/ B certified A adapters
Certifications E/F
Warranty One-year limited parts & labor

7
About IAdea :
IAdea Corporation
3F, No. 21, Lane 168, Xing han Road
Taipei, Taiwan 114
Phone: [phone]
Fax: [phone]
Web ite: http://www.IAdea.com
Responsible Party in USA:
Legal Company Name IAdea America Corporation.
Addre 20 Fairbank , Suite 170, Irvine, CA 92618
Phone, Fax
+1
-
949
-
838
-
7026
Contact Per on Yung-T ai Wang
