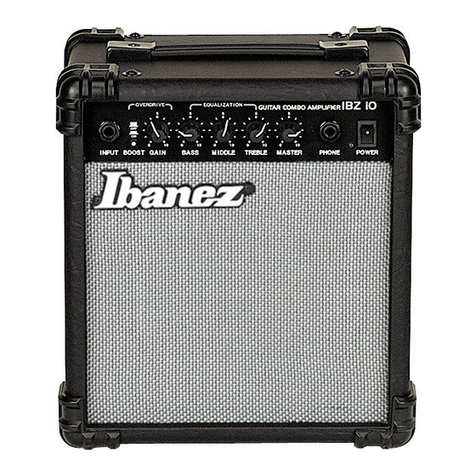

Ibanez IBZ10B User manual

ITEM NUMBER REMARK Q'TY
3200002 AA 01 OP AMP IC NJM 4558D U1,4 2
3200111 AA 01 POWER IC TDA2030A U3 1
3200112 AA 01 PCB ASSY 1
3200113 AA 01 ZENER DIODE 1N4744(15V/1W) D5,6 2
3200009 AA 01 RECTIFIER DIODE 1N4004 D1,2,3,4 4
3200115 AA 01 LED KLR114L LED15 1
3200116 AA 01 VOLUME POT VS16P1100C15 B5K VR3 1
3200017 AA 01 VOLUME POT VS16P1100C15A50K VR5 1
3200118 AA 01 VOLUME POT VS16P1100C15C50K VR4 1
3200119 AA 01 VOLUME POT VS16P1100 A100K VR1,2 2
3200014 AA 01 PHONE JACK W201S J1,2 2
3200121 AA 01 MO RESISTOR 220OHM 1W J R17 1
3200122 AA 01 MO RESISTOR 100OHM 1W J R19,20 2
3200123 AA 01 C.F. RESISTOR 1 OHM 1/4W R16 1
3200025 AA 01 C.F. RESISTOR 220 OHM 1/4W R6 1
3200026 AA 01 C.F. RESISTOR 1 KOHM 1/4W R14,21 2
3200027 AA 01 C.F. RESISTOR 2.2 KOHM 1/4W R1,18 2
3200033 AA 01 C.F. RESISTOR 10 KOHM 1/4W R13 1
3200128 AA 01 C.F. RESISTOR 15 KOHM 1/4W R9 1
3200129 AA 01 C.F. RESISTOR 18 KOHM 1/4W R15 1
3200036 AA 01 C.F. RESISTOR 47 KOHM 1/4W R3,4,7,10,11 5
3200039 AA 01 C.F. RESISTOR 100 KOHM 1/4W R22 1
3200041 AA 01 C.F. RESISTOR 1 MOHM 1/4W R2,8 2
3200133 AA 01 MYLAR CAP 102 50V J R2,8 2
3200134 AA 01 MYLAR CAP 103 50V J C1,7,11 3
3200135 AA 01 MYLAR CAP 104 100V J C6 1
3200136 AA 01 MYLAR CAP 224 50V J C15,16,17 3
3200137 AA 01 CERAMIC CAP 150 PF 50V C3 1
3200138 AA 01 CERAMIC CAP 180 PF 50V C8,10 2
3200139 AA 01 ELECTRO CAP 1UF 50V C2,5,12,22 4
3200140 AA 01 ELECTRO CAP 4.7UF 50V C9 1
3200141 AA 01 ELECTRO CAP 10UF 50V C14 1
3200142 AA 01 ELECTRO CAP 47UF 25V C20,21 2
3200143 AA 01 ELECTRO CAP 2200UF 25V C18,19 2
3200144 AA 01 FUSE CLIP FC-5S FUSE(TAP) 2
3200145 AA 01 FUSE 51M 125V 0.5A AC 100V/120V 1
3200146 AA 01 FUSE 5T 250V 0.25A AC 230V/240V 1
3200147 AA 01 SPEAKER PBS-10 SPEAKER 1
3200056 AA 01 SLIP ON RECEP. GP881191-2 TR,AC 2
3200057 AA 01 CONNECTOR(W) LW1143-03 CON1 1
3200150 AA 01 POWER TRANSFRMER 048032AC AC100V/120V 1
3200151 AA 01 POWER TRANSFRMER 048033YZ AC230V/240V 1
3200152 AA 01 AC CORD IBZ 100V KJP-252 6FT BLK AC100V : JAPAN CORD 1
3200153 AA 01 AC CORD IBZ 120V KJP-120 6FT BLK AC120V : USA OR CANADA 1
3200154 AA 01 AC CORD IBZ 230V KJP-160 6FT BLK AC230V : EUROPEAN AREA 1
3200155 AA 01 AC CORD IBZ 240V KJP-550 6FT BLK AC240V : AUSTRALIA 1
3200156 AA 01 CABINET ASS'Y PB 15T IBZ10B 1
3200157 AA 01 MAIN CHASSIS EGI1.0T 1
3200158 AA 01 FRONT PANEL PVC0.5T IBZ10B 1
3200159 AA 01 FRONT PANEL PVC0.5T IBZ3B 1
3200160 AA 01 CAUTION LABEL IBZ10B 1
3200161 AA 01 CAUTION LABEL IBZ3B 1
3200084 AA 01 CORNER IBZ10 BLACK 8
3200085 AA 01 FOOT ASS'Y 4
3200086 AA 01 HANDLE ASS'Y BLACK 196mm 1
3200087 AA 01 CONTROL KNOB BLACK+WHITE 5
3200089 AA 01 HEAT SINK AL 2.5T 1
3200167 AA 01 LOGO WHITE 1
DESCRIPTION
IBZ10B(IBZ3B) PARTS LIST

IBZ10B(IBZ3B) PARTS LIST
3200091 AA 01 PUSH KNOB 1
3200169 AA 01 INSTRUCTION MANUAL IBZ10B 1
3200093 AA 01 STAR WASHER DIA4 CHASSIS GND 1
3200094 AA 01 GND LABEL 1
3200172 AA 01 SPEAKER LABEL 1
3200096 AA 01 INNER CARTON DW1 IBZ10B 1
3200097 AA 01 INNER CARTON DW1 IBZ3B 1
3200098 AA 01 OUT CARTON DW1 IBZ10 1
3200100 AA 01 PAD DW1 IBZ 2
3200177 AA 01 SCREW1 TAPPING DIA4 X 10L,BH,BK CHASSIS GND:1,TRANSFORMER:2 3
3200102 AA 01 SCREW2 TAPPING DIA3X10 W/WASHER HEAT SINK+CHASSIS:2,PCB+HEAT SINK:2 4
3200103 AA 01 SCREW3 MACHING M3X10L,BH TR+HEAT SINK 2
3200104 AA 01 SCREW4 TAPPING DIA3.5X10,TH,BK CORNER 16
3200105 AA 01 SCREW5 TIPPING1 DIA4X25 W/WASHER CHASSIS 4
3200106 AA 01 SCREW6 MACHING M4X25,OV BK HANDLE 2
3200107 AA 01 SCREW7 TAPPING DIA2.6X10,OV,BK LOGO 2
3200108 AA 01 SCREW8 TAPPING DIA3.5X30,TH,BK BAFFLE 4
3200109 AA 01 SCREW9 TAPPING DIA3.5X25,TH,BK BACK COVER 2
