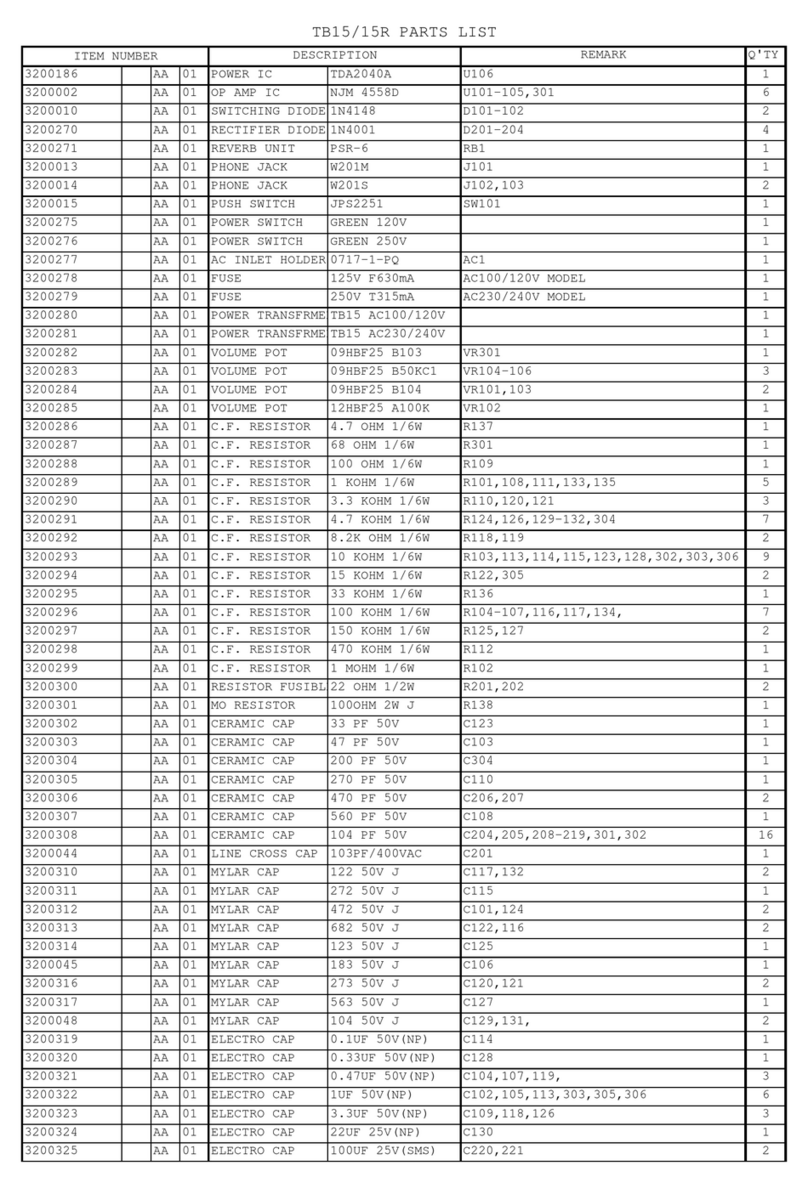

ITEM NUMBER REMARK Q'TY
32S00367 B5 01 PCB TB15R PCBTB15RXXXN 1
32S00368 B5 01 CF RESISTOR 4.7 RCF04R702JU7 1
32S00369 B5 01 CF RESISTOR 68 RCF068002JU7 1
32S00370 B5 01 CF RESISTOR 100 RCF010102JU7 1
32S00371 B5 01 CF RESISTOR 1K RCF010202JU7 5
32S00372 B5 01 CF RESISTOR 3.3K RCF033202JU7 3
32S00373 B5 01 CF RESISTOR 4.7K RCF047202JU7 6
32S00374 B5 01 CF RESISTOR 8.2K RCF082202JU7 2
32S00375 B5 01 CF RESISTOR 10K RCF010302JU7 7
32S00376 B5 01 CF RESISTOR 15K RCF015302JU7 2
32S00377 B5 01 CF RESISTOR 18K RCF018302JU7 1
32S00378 B5 01 CF RESISTOR 22K RCF022302JU7 2
32S00379 B5 01 CF RESISTOR 33K RCF033302JU7 1
32S00380 B5 01 CF RESISTOR 100K RCF010402JU7 7
32S00381 B5 01 CF RESISTOR 150K RCF015402JU7 2
32S00382 B5 01 CF RESISTOR 470K RCF047402JU7 1
32S00383 B5 01 CF RESISTOR 1M RCF010502JU7 1
32S00384 B5 01 MOF RESISTOR 220 RMO022020JFH 22OHMS 2W 2
32S00385 B5 01 MOF RESISTOR 100 RMO010120JFH 100OHMS 2W 1
32S00257 B5 01 JUMPPER 5MM JPW060XXX050 11
32S00026 B5 01 JUMPPER 10MM JPW060XXX100 11
32S00027 B5 01 JUMPPER 15MM JPW060XXX150 4
32S00389 B5 01 VOLUME POT B10K VRRE1FCPB10A VR301(REVERB) 1
32S00390 B5 01 VOLUME POT B50K VRRE1FCPB50C
VR104(BASS),VR105(TREBLE),VR106(MIDD
LE) 3
32S00391 B5 01 VOLUME POT B100K VRRE1FCPBA0A PCB
VR101(CLEAN VOLUME),VR103(OVER DRIVE
VOLUME) 2
32S00392 B5 01 VOLUME POT A100K VRRE2FCPAA0A PCB VR102(OVER DRIVE GAIN) DUAL 1
32S00393 B5 01 EL CAP 0.1UF CAE104FMLRBC 2
32S00394 B5 01 EL CAP 0.47UF CAE474FMLRBC 2
32S00032 B5 01 EL CAP 1UF CAE105FMLRBC 6
32S00396 B5 01 EL CAP 3.3UF CAE335FMLRBC 4
32S00034 B5 01 EL CAP 22UF CAE226DMLRBC 1
32S00398 B5 01 EL CAP 100UF CAE107DMLRBC 2
32S00399 B5 01 EL CAP 470UF CAE477DMLREH 2
32S00037 B5 01 EL CAP 2200UF CAE228DMLRGK 2
32S00401 B5 01 POLY CAP 0.0012U CPF122D10KGR 1
32S00402 B5 01 POLY CAP 0.0027U CPF272D10KGR 1
32S00403 B5 01 POLY CAP 0.0047U CPF472D10KGR 2
32S00404 B5 01 POLY CAP 0.0068U CPF682D10KGR 1
32S00151 B5 01 POLY CAP 0.01UF CPF103D10KGR 1
32S00406 B5 01 POLY CAP 0.012UF CPF123D10KGR 1
32S00040 B5 01 POLY CAP 0.018UF CPF183D10KGR 1
32S00408 B5 01 POLY CAP 0.027UF CPF273D10KGR 2
32S00409 B5 01 POLY CAP 0.033UF CPF333D10KGR 1
32S00041 B5 01 POLY CAP 0.1UF CPF104D10KGR 2
32S00411 B5 01 CERAMIC CAP 33PF CCR330D05KSC 1
32S00278 B5 01 CERAMIC CAP 47PF CCR470D05KSC 1
32S00413 B5 01 CERAMIC CAP 200P CCR201D05KEC 1
32S00414 B5 01 CERAMIC CAP 270P CCR271D05KEC 1
32S00415 B5 01 CERAMIC CAP 560P CCR561D05KEC 1
32S00416 B5 01 CERAMIC CAP 680P CCR681D05KEC 1
32S00417 B5 01 CERAMIC CAP 0.1U CCR104D05MUC 16
32S00418 B5 01 DIODE 1N4148 DID1N4148DHA 2
32S00419 B5 01 DIODE 1N4004 DID1N4004RHD 4
32S00053 B5 01 IC NJM4558DD IGCN4558DDAO 6
32S00421 B5 01 IC LM1875 IGCLM1875XBP 1
32S00422 B5 01 XH CONNECTOR 2PL WAF2Y02SHH04 2
32S00058 B5 01 3.96CONNECTOR WAF4Y03SHH01 FROM TRANSFORMER 1
32S00056 B5 01 DIA6.3 JACK MONO JKP6R3MOLA4N JK101,INPUT JACK 1
32S00057 B5 01 DIA6.3 JACK STRO JKP6R3STDA6O JK102(CD INPUT),JK103(PHONE JACK) 2
32S00059 B5 01 PUSH SWITCH LOCK SWP2PS01NL03 2P2T 1
32S00061 B5 01 205 CONNECT WIRE HSN20XX2802A 1
32S00428 B5 01 205 CONNECT WIRE HSN20XX2809A 1
32S00429 B5 01 WIRE BK 110MM ECWA180BB110 1
32S00430 B5 01 HEATSINK HSK-32 HSKE90204532 1
32S00063 B5 01 MICA SHEET TO220 SPTMGATO220X 1
32S00064 B5 01 TR INSLT PLATE PPTTWH203530 WASHER TW-4 1
32S00065 B5 01 SCREW NI M3 P0.5 MSRR30XR510N L10 1
32S00068 B5 01 TOOTH WASHER D3 WSRO0632R5WS 1
32S00067 B5 01 NUT M3 P0.5 NUTM30XPR5HS 1
DESCRIPTION
TB15/TB15R PARTS LIST

TB15/TB15R PARTS LIST
32S00436 B5 01 WIRE BK 60MM ECWA180BB060 1007 18AWG 5t+5t 60m.m. 1
32S00078 B5 01 SOLDERING PLATE SPTSDPXXTP-1 TP-1 1
32S00438 B5 01 CHASSIS TB15R STCTB-15RXZB 1
32S00439 B5 01 TRANSFORMER 100V TRMTB15RXXX0 1
32S00440 B5 01 TRANSFORMER 120V TRMTB15RXXXL 1
32S00441 B5 01 TRANSFORMER 230V TRMTB15RXXX3 1
32S00442 B5 01 TRANSFORMER 240V TRMTB15RXXX4 1
32S00074 B5 01 AC SOCKET ACS3QKPUM102 1
32S00094 B5 01 FUSE T0.5A/250V FUS520NFVR50 F1 230V/240V 2
32S00445 B5 01 FUSE F1A/250V FUS520NSV010 F1 100V/120V
32S00446 B5 01 WIRE CLAMP PPTCBESUKO01 1
32S00447 B5 01 REVERB 400MM REVN2GBMIGNA 1
32S00448 B5 01 POWER SWITCH SWRYGBG6NQ1F 4PIN GREEN 1
32S00073 B5 01 CERAMIC CAP0.01U CCR103A40ZYS 1
32S00075 B5 01 POWER CABLE TIE PPTSRBFTL7K8 1
32S00076 B5 01 KNOB RKN-20BK RKNBKWH18R20 7
32S00077 B5 01 PUSH KNOB BK PKNS050510B4 PKN-4 FOR PUSH SWITCH 1
32S00453 B5 01 187 PLUG HSN17171802A 1
32S00454 B5 01 187 PLUG BK HSN17171800A 1
32S00455 B5 01 187 CONNECT WIRE HSN17XX100DA YELLOW 1
32S00456 B5 01 PCB SPACER SPTBSS5XM310 1
32S00079 B5 01 SCREW BK M4 P0.7 MSRU40XR710B L10 2
32S00080 B5 01 SCREW NI M4 P0.7 MSRU40XR712N L12 2
32S00459 B5 01 SCREW M3 P0.5L6 MSRU30XR506B L6 5
32S00084 B5 01 TOOTH WASHER D4 WSRO0844R5WS 4
32S00068 B5 01 TOOTH WASHER D3 WSRO0632R5WS 3
32S00086 B5 01 WASHER10DX4.2DX1 WSRF104210WS 2
32S00081 B5 01 WASHER FOR VOLUME POT
32S00082 B5 01 NUT FOR VOLUME POT
32S00083 B5 01 NUT M4 P0.7 NUTM40XPR7HS 2
32S00078 B5 01 SOLDERING PLATE SPTSDPXXTP-1 TP-1 1
32S00087 B5 01 CABLE TIE PPTCBTN08025 3
32S00466 B5 01 LABEL GND LABWHBKAG001 1
32S00467 B5 01 SPONGE WHITE SPGWY0262613 2
32S00095 B5 01 SPEC LABEL LABWHORBF001 ORANGE 2
32S00469 B5 01 SPONGE BK EVA29001015A 290×10×1.5mm 1
32S00470 B5 01 CABINET TB15/15R BOXTB15RX651 1
32S00471 B5 01 SPEAKER TB15R SPKTB15RXX01 1
32S00472 B5 01 CORNER PCN-15 PCNPEXBK3015 PE/PCN-15 8
32S00473 B5 01 STRAP HANDLE HDP215P25802 HDP-2 1
32S00474 B5 01 HANDLE CLAMP HDCSTEKBLK01 HDP-1 2
32S00101 B5 01 RUBBER FOOT PPTRFT112001 RUB-1 4
32S00476 B5 01 POWER CODE JP PWCD-DBVTF3A 1
32S00102 B5 01 POWER CODE UL PWCA--DBSVT3A 120V 1
32S00478 B5 01 POWER CODE UK PWCE-DBH5V3A 1
32S00479 B5 01 POWER CODE PWCF-DBH5V3A 1
32S00480 B5 01 POWER CODE AUS PWCI-DBLTF3A 1
32S00108 B5 01 LOGO PLATE PLGBKSVIBN0C IBANEZ SILVER 1
32S00482 B5 01 SCREW BK M4 P0.7 MSRU40XR718B L18 4
32S00483 B5 01 SCREW BK M4 P0.7 MSRU40XR722B L22 2
32S00484 B5 01 SCREW BK M4 P0.7 MSRH40XR728B L28 6
32S00111 B5 01 TAPPING SCREW TSRS25X08WDB BK2.5×8 2
32S00486 B5 01 TAP SCREW 3.5X10 TSRH35X10WDB BK3.5×10 16
32S00487 B5 01 TAPPING SCREW TSRU35X28WDB BK3.5×28 12
32S00488 B5 01 TAPPING SCREW TSRU40X18WDB BK3.5×18 4
32S00116 B5 01 PLASTIC WASHER WSRP174530BP PWH-1 4
32S00490 B5 01 WASHER DIA14 BK WSRP1442R8BS 6
32S00491 B5 01 MANUAL TB15R ISTIBZTB15RA MANUAL TB15R 1
32S00118 B5 01 WARRANTY CARD JP GRTIBZIBZ10A 1
32S00493 B5 01 MODEL NO. LABEL LABWHBKBD039 TB15 JAPAN 2
32S00494 B5 01 MODEL NO. LABEL LABWHBKBD040 TB15R JAPAN
32S00495 B5 01 BAR CODE LABEL LABWHBKBC052 TB15R JAPAN 22
32S00496 B5 01 BAR CODE LABEL LABWHBKBC054 TB15R USA
32S00497 B5 01 SERIAL NO. LABEL LABWHBKBC051 TB15 JAPAN 22
32S00498 B5 01 SERIAL NO. LABEL LABWHBKBC053 TB15 USA
32S00499 B5 01 SERIAL NO. LABEL LABSVBKBA002 43
32S00500 B5 01 POLYBAG TB15 PEB318254737 1
32S00501 B5 01 COLOR BOX TB15R CCTTB15RIB01 1
32S00502 B5 01 SHIP BOX TB15R CTNTB15RIB01 100V/120V 1
32S00489 B5 01 SHIP BOX TB15R CTNTB15RIB03 230V/240V 1
32S00504 B5 01 PCB ASSEMBLY TB15/TB15R
