Iberspa READY2ENJOY User manual

Owner’s Manual
Guide d’utilisation
Manual de Funcionamiento
Manuale d’istruzione
ED October 2005 Rev.2

ENGLISH
WARNING: CHILDREN SHOULD NOT USE SPAS OR HOT TUBS WITHOUT ADULT
SUPERVISION.
AVERTISSEMENT: NE PAS LAISSER LES ENFANTS UTILISER UNE CUVE DE
RELAXATION SANS SURVEILANCE
WARNING: DO NOT USE SPAS OR HOT TUBS UNLESS ALL SUCTION GUARDS ARE
INSTALLED TO PREVENT BODY AND HAIR ENTRAPMENT.
AVERTISSEMENT: POUR EVITER QUE LES CHEVEUX OU UNE PARTIE DU CORPS
PUISSENT ETRE ASPIRES, NE PAS UTILISER UNE CUVE DE RELAXATION SI LES
GRILLES DE PRISE D’ASPIRATION NE SONT PAS TOUTES EN PLACE
WARNING: PEOPLE USING MEDICATIONS AND/OR HAVING AN ADVERSE MEDICAL
HISTORY SHOULD CONSULT A PHYSICIAN BEFORE USING A SPA OR HOT TUB.
AVERTISSEMENT: LES PERSONNES QUI PRENNENT DES MEDICAMENTS OU ONT DES
PROBLEMES DE SANTE DEVRAIENT CONSULTER UN MEDECIN AVANT D’UTILISER UNE
CUVE DE RELAXATION
WARNING: PEOPLE WITH INFECTIOUS DISEASES SHOULD NOT USE A SPA OR HOT
TUB.
AVERTISSEMENT: LES PERSONNES ATTEINTES DE MALADIES INFECTIEUSES NE
DEVRAIENT PAS UTILISER UNE CUVE DE RELAXATION
WARNING: TO AVOID INJURY, EXERCISE CARE WHEN ENTERING OR EXITING THE
SPA OR HOT TUB.
AVERTISSEMENT: POUR EVITER DES BLESSURES, USER DE PRUDENCE EN ENTRANT
DANS UNE CUVE DE RELAXATION ET SORTANT
WARNING: DO NOT USE DRUGS OR ALCOHOL BEFORE OR DURING THE USE OF A SPA
OR HOT TUB TO AVOID UNCONSCIOUSNESS AND POSSIBLE DROWNING.
AVERTISSEMENT: POUR EVITER L’EVANOUISSEMENT ET LA NOYADE EVENTUELLE,
NE PRENDRE NI ROGUE NI ALCOOL AVANT D’UTILISER UNE CUVE DE RELAXATION NI
QUAND ON S’Y TROUVE
WARNING: PREGNANT OR POSSIBLY PREGNANT WOMEN SHOULD CONSULT A
PHYSICIAN BEFORE USING A SPA OR HOT TUB.
AVERTISSEMENT: LES FEMMES ENCEINTES, QUE LEUR GROSSESSE SOIT
CONFIRMEE OU NON, DEVRAIENT CONSULTER UN MEDECIN AVANT D’UTILISER UNE
CUVE DE RELAXATION

ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
The following instructions are required to be printed by Underwriters Laboratory (U.L.)
as well as ETL Testing Laboratories, Inc. as a condition of their listing of this product.
They contain important safety information, and we strongly encourage you to read and
apply them.
1. When installing and using this electrical equipment, basic safety precautions should
always be followed, including the following:
A. READ AND FOLLOW ALL INSTRUCTIONS.
B. A green colored terminal or a terminal marked G, GR, Ground, Grounding, or the
ground symbol is located inside the supply terminal box or compartment. To
reduce the risk of electric shock, this terminal must be connected to the
grounding means provided in the electric supply service panel with a continuous
copper wire equivalent in size to the circuit conductors supplying this equipment.
C. At least two lugs marked “BONDING LUGS” are provided on the external surface
or on the inside of the supply terminal box or compart-ment. To reduce the risk
of electrical shock, connect the local common bonding grid in the area of the hot
tub or spa to these terminals with an insulated or bare copper conductor not
smaller than NO. 6 AWG.
D. Temperature Control of your Spa. To set desired temperature, push the up or
down heat button on the display. The display will flash current water
temperature set point. To raise set point, push up button for each additional
degree of water temperature to a maximum 104ºF (40ºC). Push the down
button to lower the water temperature set point.
2. WARNING -To reduce the risk of injury, do not permit children to use this product
unless they are closely supervised at all times.
3. A wire connector is provided on this unit to connect a minimum No. 8 AWG (8.4
mm2) solid copper conductor between this unit and any metal equipment, metal
enclosures of electrical equipment, metal water pipe, or conduit within 5 feet (1.5
m) of the unit.
4. DANGER -Risk of injury.
A. If supply cord is damaged it must be replaced by the manufacturer, its service
agent, or similarly qualified persons in order to avoid a hazard.
B. Do not bury cord.
C. Connect to a grounded, grounding type receptacle only.
5A. WARNING -For 120 volt versions: This appliance is provided with a ground-fault
circuit interrupter (located near the end of the power supply). With the unit
operating, push the test button. The unit should stop operating and the reset button
should pop out slightly. Push the reset button. The unit should now operate
normally. If the interrupter fails to operate in this manner, there is a ground current

ENGLISH
flowing, indicating the possibility of an electrical shock. Disconnect the plug from the
receptacle until the fault has been identified and corrected.
5B.WARNING -For 230 volt European version make sure the power cord is plugged
into a grounded RCB or RCCB protected circuit with a 3 mA trip level.
6. DANGER -Risk of Accidental Drowning. Extreme caution must be exercised to
prevent unauthorized access by children. To avoid accidents, ensure that children
cannot use this spa unless they are supervised at all times.
7. DANGER -Risk of Injury. The suction fittings in this spa are sized to match the
specific water flow created by the pump. Should the need arise to replace the
suction fittings or the pump, be sure thatthe flow rates are compatible.
8. WARNING -Never operate spa if the suction fittings are broken or missing. Never
replace a suction fitting with one rated less that the flow rate marked on the original
suction fitting.
9. DANGER -RISK OF ELECTRICAL SHOCK. Install at least 5 feet
(1.5 m) from all metal surfaces. A spa may be installed within 5 feet (1.5 m) of
metal surfaces if each metal surface is permanently connected by a minimum of #8
(SWG 8.4 mm2) or (# 6 in Canada) solid copper conductor attached to the bonding
lug on the Power Pack which is provided for this purpose.
10. DANGER -Risk of Electrical Shock. Do not permit any electrical appliance, such as
a light, telephone, radio, or television, within 5 feet of spa or hot tub.
11. WARNING -To reduce risk of injury:
A. The water in a spa or hot tub should never exceed 104°F (40°C). Water
temperatures between 100°F (38°C) and 104°F (40°C) are considered safe for a
healthy adult. Lower water temperatures are recommended for extended use
(exceeding 10 minutes) and for young children.
B. Since excessive water temperatures have a high potential for causing fetal
damage during the early months of pregnancy, pregnant or possible pregnant
women should limit spa or hot water temperatures to 100°F (38°C).
C.Before entering a spa or hot tub, the user should measure the water
temperature with an accurate thermometer, since the tolerance of water
temperature-regulating devices varies.
D. WARNING: The use of alcohol or drugs can greatly increase the risk of fatal
hyperthermia in hot tubs and spas.
E. Hyperthermia Warning!
The causes, symptoms, and effects of hyperthermia may be described as follows.
Hyperthermia occurs when the internal temperature of the body reaches a level
several degrees above the normal body temperature of
98.6ºF (37ºC). The symptoms of hyperthermia include drowsiness, lethargy, and
an increase in the internal temperature of the body. The effects of hyperthermia
include:

ENGLISH
(1) Unawareness of impending hazard;
(2) Failure to perceive heat;
(3) Failure to recognize the need to exit spa;
(4) Physical inability to exit spa;
(5) Fetal damage in pregnant women; and
(6) Unconsciousness and danger of drowning.
F. Persons suffering from obesity or with a medical history of heart disease, low or
high blood pressure, circulatory system problems, or diabetes should consult a
physician before using a spa or hot tub.
G. Persons using medication should consult a physician before using a hot tub
since some medication may affect heart rate, blood pressure, and circulation.
H. H.Water chemistry should be properly maintained as described in this manual to
prevent skin irritation.

ENGLISH
SAVE THESE INSTRUCTIONS
WARNINGS
1. Never use an extension cord to connect the Power Pack to a power source. The cord
could cause a voltage drop which may cause damage to the control and pump
motor.
2. Always operate Power Pack with the cord mounted GFCI in place and functional on
120 volt units. Failure to do so could result in a shock hazard.

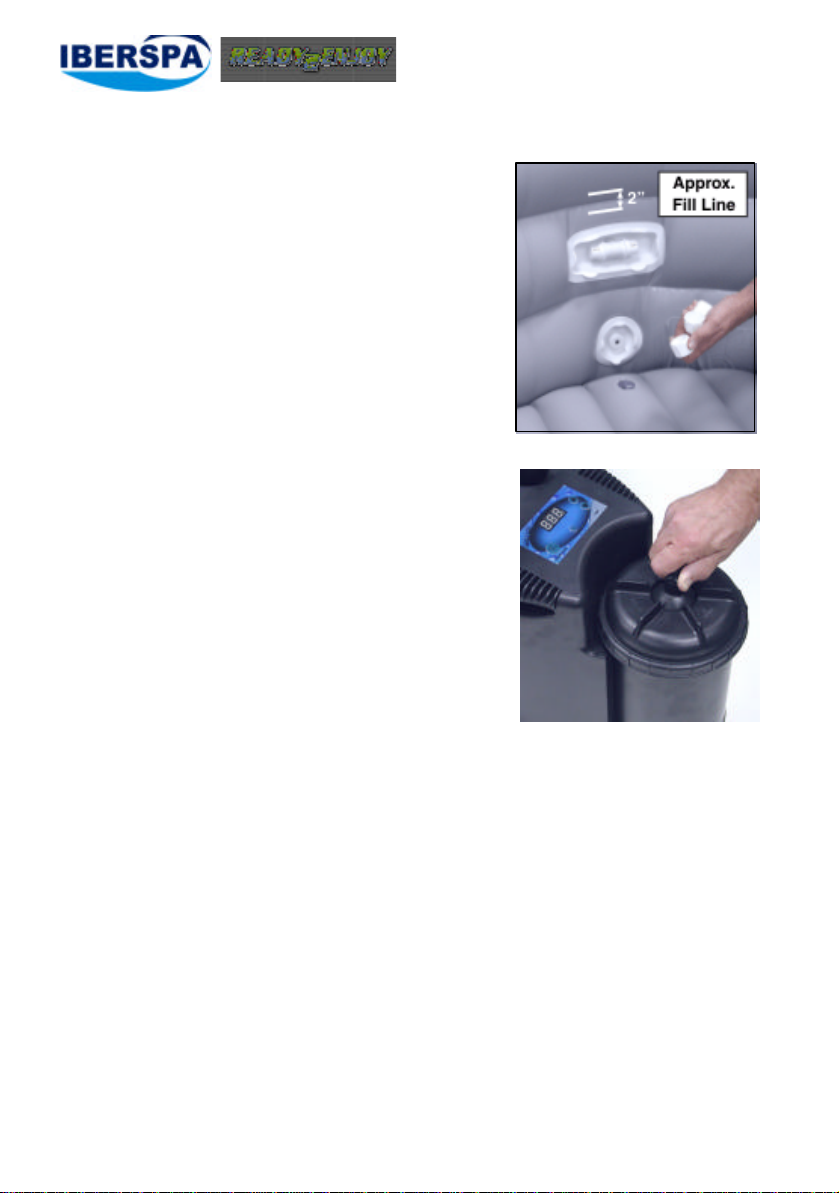

3. Always operate spa with sufficient water. Water level must be above suction inlets.
Insufficient water will cause pump failure and void warranty.
4. Maintain proper water pH (7.4 -7.6 is ideal). Failure to do so may cause damage to
vinyl liner, heater element, and damage will not be covered by warranty.
5. Install spa only on floors or areas that can withstand repeated water exposure.
Equipment failure as well as splashing, filling and draining will spill water. If located
in a multi-story building, care must be taken to protect the objects on the floors
below.
6. Install only on floors that can withstand the floor loading of your spa. If in doubt,
please consult an architect or engineer to determine the floor rating before filing.
See specifications.
7. Do not open Power Pack or the GFCI. Opening either component will void the
warranty.
8. When storing, always drain all water from tub, plumbing and Power Pack, especially
in freezing temperature as freeze damage is not covered by warranty.
9. Always maintain proper water sanitation with chemicals and routine cleaning. Warm
water is an ideal place for bacteria to thrive. It’s your sole responsibility to maintain
proper water sanitation. Read the sections on water chemistry and filter
maintenance.
10.Never add water to chemicals. Always add chemicals to water to avoid strong fumes
or violent reactions that may result in hazardous chemical spray.

ENGLISH
INSTALLATION
SITE PREPARATION
1. Structure: Your spa should always be installed on a structurally sound, relatively
smooth, and level surface.
2. Electrical: Your spa should be connected to a grounded outlet within eight feet of
the spa. For 120 V units, there should be easy access to the plug for periodic testing
of the cord mounted GFCI.
3. Bonding: A copper wire connector is located inside the spa power pack to permit
connection of a minimum No. 8 A.W.G. (No. 6 for Canada) solid copper bonding
conductor between any metal equipment, water pipe, or metal enclosures within 5
feet of the spa as required to comply with the National Electric Code, or local
requirements.
INDOOR INSTALLATION
Give special consideration to the following issues when installing your spa indoors.
1. Make sure the floor can support the total spa filled weight of 1480 pounds.
2. Install your spa on water resistant, non-slip floor. The floor should have a drain to
remove water splashed from the spa. Do not install the spa on carpet or other
material that will be damaged by moisture.
3. Take into consideration the room humidity which will exist due to high
temperatures. Providing natural or forced ventilation in the room will help maintain
comfort and minimize moisture damage to the surrounding environment.
4. Avoid installing the spa indoors on a second story above finished living space due to
the possibility of water and humidity damage.
5.Allow enough clearance around the spa for full access to the spa equipment for
service.
OUTDOOR INSTALLATION
Your spa may be installed on any level, smooth surface that is strong enough to support
the filled unit. Observe the following considerations when deciding where to place your
spa:
1. Make sure there are no sharp objects under the spa.
2. Do not install the spa on grass or dirt, as this will greatly increase the amount of
debris entering the spa. Stepping stones or a solid wood 8 ft x 8 ft square platform,
5 to 9 inches in height, will provide a sufficient area for installation.
3. Verify that there is adequate room to place the spa and permit safe access.
4. Check local code requirements for restrictions (fencing, enclosures, child proof
gates, etc.)

ENGLISH

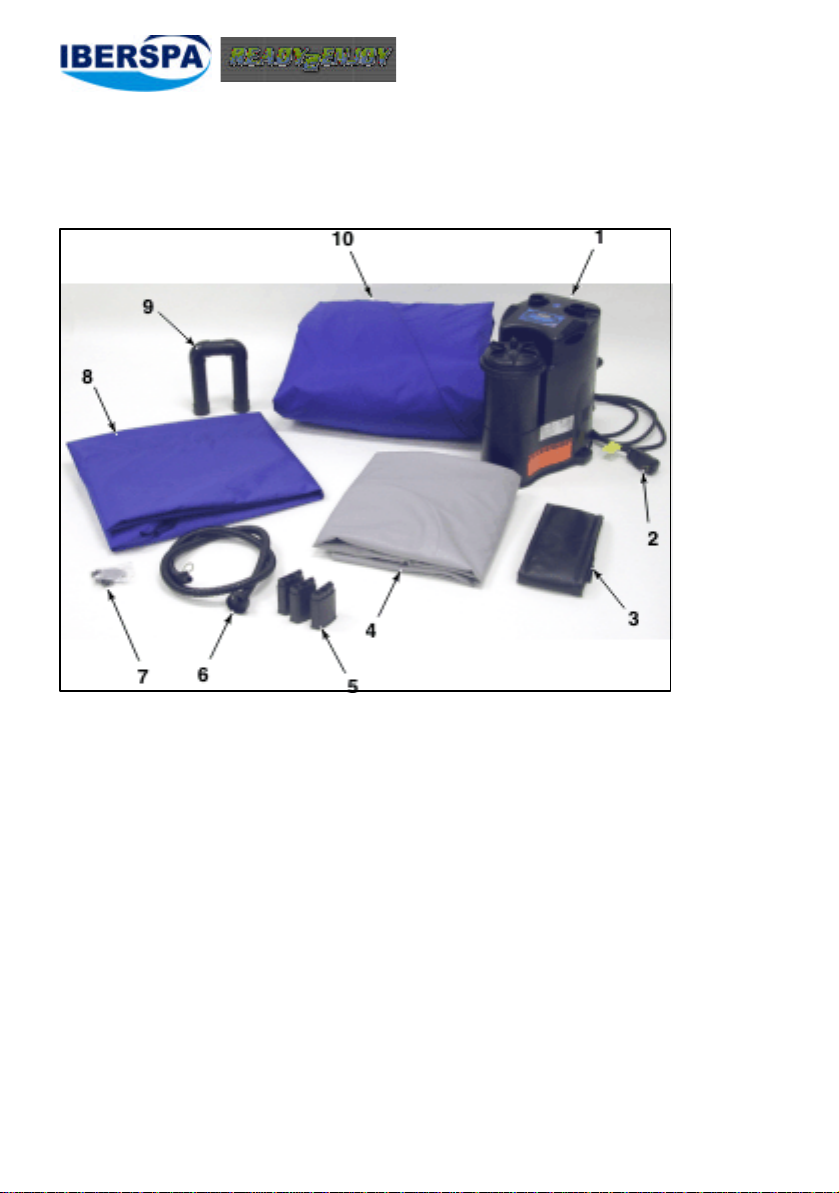

PACKAGE CONTENTS
Refer to the following picture and product checklist to verify that all parts of the
spa have been received and are undamaged. Report and missing or damaged
parts immediately.
1. Power Pack 6. Spa Inflation Hose
2. GFCI
(110 V models only) 7. Patch Kit and Cover Clip Keys
3. Vinyl Power Pack Connector
Cover 8. Top Spa Cover 9. Air Loop
4. Inflatable Bladder Cover
5. Power Pack Feet 10. Spa Liner with Outer Cover

ENGLISH
ASSEMBLY
1. Unfold the spa liner to lay flat.
2. Connect the inflation hose to the
blower exhaust fitting on the top
of the power pack.
The key lock pin must be inserted into the adapter of the
inflation hose fitting when inflating the spa. Failure to insert
the key lock pin may result in injury.
3. Insert the key lock pin into the inflation hose fitting on the top of the
power pack.
4. Plug the power pack into the electric outlet. Press the Turbo Wave On/Off
button to start the inflation.
NOTE: The power pack will make a rattling noise while the pump is
running with no water. This is normal. Do not run the power pack
without water for more than 15 minutes.
5. Inflate the three spa side tubes and the spa interior floor.
NOTE: Do not over inflate the lower tube. Over inflation may cause lack
of air flow and water action.

ENGLISH
6.When installing the caps on the inflation fittings, make sure the sealing flaps
on the fittings are not pulled out through the inflation fittings. This will prevent
the flaps from sealing properly, and may damage the inflation fittings.
7.Check the fit of the nylon outer cover on the spa. The openings in the side of
the nylon skin should be centered on the power pack connections. If not, let
some air out of the side tubes and adjust the nylon skin to center the power
pack fittings in the openings. Fill all side tubes until they are just firm.
8.Inflate the inflatable bladder cover. There are two inflation fittings on the
inflatable bladder cover. Pinch the transparent fill valves while filling the cover
to ensure good air flow through the valve.
NOTE: After inflating the spa and cover, unplug the power pack while
assembling and filling the spa with water.
9. Attach the three feet to the bottom of the power pack.
10. Line up the water connections on the back of the power pack with the
fittings on the side of the spa.
11. Remove the two labels from the bottom, large fitting of the spa. Make sure
the o-ring inside the fitting is in place.
12. Attach the bottom, large fitting on the back of the power pack to the
corresponding fitting on the spa, being careful not to cross-thread the
fitting. Make sure the o-ring inside the fitting is properly seated. Tighten
the nut hand-tight.

ENGLISH
13. Attach the middle and upper hose connections from the power pack to the
spa. Make sure the hose washers are in place and seated inside the
connections. Tighten the fittings hand-tight.
14. Loosen the set screws on the side of the air loop fittings. Insert the air
loop onto the blower connections on the top of the power pack until snug.
Tighten the set screws.
15. Wrap the five inch wide vinyl power pack connector cover around all three
connections between the power pack and the spa.

ENGLISH
FILLING THE SPA
1. Ensure the power pack is not plugged in.
2. Remove the protective caps from the suction
and discharge fittings inside the spa. Place
the caps in a safe location.
3. Using a garden hose, fill the spa to
approximately one inch above the top of the
second air chamber ring. Be careful not to
over fill the spa, or the spa may overflow
during use. Each average adult will raise the
water level in the spa approximately two
inches, and the turbo wave blower action will
raise water level an additional three to four
inches.
4. Bleed the air from the filter tank by turning
the small black knob on the top of the filter
tank counterclockwise. Allow the filter tank
to bleed for approximately one minute, or
until water drips from the fitting. Turn the
fitting clock-wise to close the bleed valve.
5. Plug the power pack into the electrical outlet.
The water pump will turn on and begin
pumping water. Water should flow from the small return nozzle on the
bottom inside wall of the spa behind the power pack. If water is not
flowing from the return nozzle, repeat the air bleeding instructions provided
in step 4. Unplug the power pack while bleeding air.
NOTE: If the air is not properly bled from the ilter tank, the water
pump will be air bound and no water will flow. This will prevent
the spa from heating, and the water will not be filtered. Make sure
water is flowing from the return nozzle before continuing.
6. Place the inflatable bladder cover on the spa. Make sure the cover is
centered on the Spa.
7. Place the top cover the spa and line up the eight cover locks.
8. Connect the eight clips to secure the cover in place. The clips may belocked
using the small keys provided in the patch kit.

ENGLISH
OPERATION
ŸTest the GFCI before each use. (Refer to the instructions
provided in the Maintenance section of this manual.)
ŸPlug into properly grounded receptacle.
ŸDo not use extension cords.
Temperature Control
1. During normal operation, the control
display on the top of the power pack
displays the current water temperature.
2. To set the desired water temperature,
press and release the up or down heat
button. The display will flash the desired
water temperature set point. To change
the set point, press the up or down button once for each degree of water
temperature, to a maximum of 104ºF (40ºC).
3. After a few seconds pass without pressing either heat button, the display
will return to the current water temperature. The spa will begin heating to
the desired water temperature at a rate of approximately 1 to 1-1/2
degrees F per hour.
4. The spa is made to hold the set temperature. Do not lower the
temperature set point after use. The heater will turn on and off
automatically to maintain the desired temperature.
5. In case of electric power interruption, the spa temperature set point will
default to 100ºF when electric power is restored.

ENGLISH
Turbo Operation
To turn the turbo wave pump on or off, push the on/off button. Look to see if
the spa blows bubbles uniformly all the way around the spa. If action seems to
fade as bubbles circle the spa and are weak on one side, then the lower air
chamber is over-inflated. Let some air out of the lower chamber to correct this.
The turbo wave pump will automatically shut off after 15 minutes of operation.
When the turbo wave blower system is activated, the blower pump is pumping
outside ambient air into the spa, creating much of the action in the spa. Some
cooling of the water will occur as the turbo wave blower operates. This is
normal and the heater will recover lost temperature after use. Remember, at
elevated temperatures, 15 minutes soaking time is considered safe.
The spa power pack contains a filter to help keep the water in the spa clean. If
the filter becomes dirty or clogged, water flow through the power pack will be
restricted. This may prevent the spa from heating up. Refer to the Maintenance
section of this manual for information on checking and cleaning the filter.
Cover
After use, place the cover on the spa. Lock the plastic clips in eight locations on
the outside of the spa.
Always leave the cover locked and in place when the spa is
not in use. The cover is not a replacement for adult
supervision. Always supervise young children in and around
water.
NOTE: The cover must be in place for the spa to heat up.

ENGLISH
MAINTENANCE
Vinyl Care -Interior
1. While the spa is empty, clean the spa interior with a mild soap solution to
remove any soil or stains on the vinyl. Rinse thoroughly before refilling the
spa. Do not use cleaning aids such as steel wool, metal brushes, or abrasive
cleansers such as Comet or Ajax.
2. Remove and clean the filter twice a month, or more often if necessary.
Vinyl Care -Exterior
Clean the exterior with a mild soap solution then rinse with clean water. Avoid
abrasive soaps or tools, or any solvents.
Recommended Water Chemistry
Purchase a water test kit from your dealer. Test the water chemistry after each
use of the spa, or no less than once a week. Avoid a low pH. Low pH will cause
wrinkles to form in the vinyl, may damage the heater, and will void your
warranty. The following are the recommended water chemistry ranges for your
spa.
pH ..........................................................7.4 -7.6
Total alkalinity..................................80 -120 ppm
Calcium hardness............................150 -250 ppm
Bromine residual....................................2 -3 ppm
Total dissolved solids ...................below 1500 ppm
NOTE: If a bromine feeder is used that requires holes to be punched in the
feeder, start with one hole punched at the top of the feeder and one hole
punched at the bottom. Place the feeder in the spa and test the water after two
days. If the bromine level has not increased to the ideal 2-3 ppm range, punch
another hole in the bottom of the feeder and retest after another two days.
Avoid punching too many holes in the bromine feeder, as this could cause over
bromination. This could bleach the vinyl, and will void your warranty.
If the bromine level in the spa reaches 5 ppm or higher, remove the bromine
feeder from the spa until the bromine level drops to the correct 2-3 ppm range.

ENGLISH
Adding Chemicals
1. Always activate the turbo wave blower when adding chemicals to the spa.
Add only one chemical at a time.
Failure to properly dissolve or dilute chemicals prior to
adding them to the spa may damage the spa vinyl surfaces
and will void your warranty.
2. When adding chemicals, dip a few gallons of water from the spa into a five
gallon bucket. Dissolve or dilute the chemicals in the bucket. Stir the
bucket until the chemicals are fully dissolved or diluted. With the turbo
wave blower turned on, slowly pour the bucket into the spa in the stream
of the water jets.
3. Do not use gas chlorination, chlorine tablets, ionizers, scents, salts, or
soaps without consulting your authorized dealer
Cleanliness
1. Drain and refill the spa every three months, or when the water becomes
cloudy and is not cleared by proper water chemistry.
2. Remove and clean your filter at least once a week. A dirty filter will prevent
water flow and may prevent the spa from heating.
Vinyl Repairs
If the vinyl is torn or punctured, repair it with the patch kit provided with your
spa. A secure, unnoticeable repair can usually be made. Additional vinyl pieces
may be obtained through your authorized dealer.
Cleaning the Filter
1. Unplug the power pack from the electrical
outlet.
2. Using the three caps provided, cap the
suction and discharge fittings on the inside
of the spa.
3. Open the air bleed fitting on the top of the
filter tank.

ENGLISH
4. Unscrew the retainer ring from the filter
housing and remove the filter housing
cover.
5. Lift the filter out of the filter housing.
Clean the filter with the spray from a
high pressure garden hose.
6. Place the filter back in the filter housing.
Make sure the filter is properly seated in
the housing and that the o-ring is
properly seated in the o-ring groove.
7. Install the filter housing cover and
secure with the retaining ring. Tighten
the retaining ring hand-tight. Do not
over tighten the retaining ring.
8. Remove the caps from the spa suction
and discharge fittings inside the spa.
9. Open the air bleed fitting on the top of
the filter housing. Leave the bleed fitting
open for one minute, or until water drips
from the bleed fitting. Close the bleed
fitting.
10. Plug the power pack into the electrical outlet.
11. Reset the desired temperature set point.

ENGLISH
SERVICE AND TROUBLESHOOTING
Your spa was designed to minimize service requirements. If you encounter
problems with your spa carefully go through the following steps.
Air Pump Blower
1. Turbo wave pump will not turn on:
A. Make sure the power pack is plugged into the electrical outlet, and that
there is power to the outlet. Plug another electrical item into the outlet
such as a hair dryer or lamp. If you do not have power, check the
breakers at the main electrical panel.
B. Test the GFCI per the instructions in the Maintenance section of this
manual. If the GFCI is faulty do not use the spa. Immediately call your
dealer or the factory for instructions. Do not bypass the GFCI. Do
not use the spa.
2. Turbo wave pump will not turn off: Call the factory for instructions.
Press the reset button on the GFCI. The light on the GFCI should turn on. If
the GFCI light does not turn on the GFCI is faulty. Do not use the spa.
Immediately contact your dealer or the factory for instructions.
3. Turbo wave pump blower trips the GFCI when you turn it on:
A. Take the air loop off the top of the power pack. Look down inside the
left fitting and see if water has collected inside the power pack.
B. If water has collected inside the power pack, disconnect the large fitting
connecting the power pack to the spa. Ensure the check valve in the
fitting is in place and working properly.
C. Using a hair dryer, direct the air into the right side of the power pack
for approximately five minutes or more. When the power pack seems
dry, try operating the turbo wave blower again. If the GFCI trips, return
the power pack to the manufacturer for repair.
4. Turbo wave pump makes a squealing noise: Do not continue running the
turbo wave pump. Contact the manufacturer for instructions.

ENGLISH
Leaks
1. The two small connections between the power pack and the spa are
leaking: Ensure the garden hose style washer inside each of these fittings
is still in place and undamaged. If the washers are in place and the
connection is still leaking, there may be a small piece of plastic behind the
hose washer. Remove the small piece of plastic with a utility knife or
needle-nose pliers.
2. Blower connection is leaking: If the large connection between the spa and
the power pack is leaking, ensure the o-ring inside the fitting is in place
and undamaged.
3. Plumbing or pressure switch is leaking: Look under the power pack. If
water is coming from underneath the power pack, then the plumbing or
pressure switch inside the power pack is leaking. Contact the factory for
instructions.
No Heat
1. Dirty filter: Clean the filter per the instructions provided in the Maintenance
section of this manual. If the filter is more than two months old, replace it.
After cleaning or replacing the filter, cover the spa, turn the temperature
set point all the way up, and leave the spa for 24 hours. If the spa still will
not heat, contact the manufacturer for instructions.
2. No circulation, water pump air bound: Unplug the power pack from the
electrical outlet. Bleed air from the filter tank by turning the bleed fitting on
the top of the filter tank counter-clockwise. After one minute, or when
water drips from the fitting, close the bleed fitting and plug in. If the water
pump still does not pump water, contact the manufacturer for instructions.
If the water pump becomes air bound again, check the o-ring on the top of
the filter tank. Refer to the filter changing instructions in the Maintenance
section of this manual. Replace the o-ring if necessary.
3. Bad power pack: Ensure power is available to the spa. Check the circuit
breaker at the main electrical panel. Connect another electrical appliance to
the plug used for the spa. If power is available to the spa, test the GFCI
using the instructions supplied in the Maintenance section. If the GFCI is
working properly and the power pack does not function, then the power
pack is bad. If the GFCI is not working properly, do not use the spa.
Immediately contact the manufacturer for instructions.

ENGLISH
Winterizing and Vacationing
If you are taking a vacation or leaving your spa unused for more than a week,
you should take a few simple precautions. Leave the spa covered with the
plastic clips locked. Leave the turbo wave pump off and set the temperature set
point low. This will allow the water pump and heaters to turn on occasionally to
filter the water and protect it from freezing. Upon returning, and before using
the spa, check the bromine and pH levels.
Storing Your Spa
The spa may be stored in its original box. Make sure all water is drained
from the spa and the power pack. We recommend the use of a wet/dry vacuum
to blow or suck all the water from the spa fittings and the power pack. Care
must be taken in cold weather as the vinyl will become stiff and brittle when the
temperature falls below 0ºF.
