ICG IC-IC2B1-01 User manual

ENG
MANUFACTURED BY:
Cy-Tech GmbH
Happurger Str. 86
90482 Nuremberg | Germany
[email protected]om
www.indoorcycling.com
Phone: +49(0)911 / 54 44 50
ENG
CAUTION!
READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE YOU START
USING THIS EQUIPMENT. PLEASE KEEP THIS MANUAL FOR FUTURE REFERENCE.
IMPROPER ASSEMBLY, USE OR MAINTENANCE CAN VOID THE WARRANTY TERMS.
Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com
IC2
MODEL NO: IC-IC2B1-01

Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com
ATTENTION
Warning labels on the IC2 indoor cycle must be replaced by warning labels
in your language during the assembly process.
A
A
1. Misuse of this machine may result in
serious injury.
2. Read user manual prior to use and
follow all warnings and instructions.
3. Replace label if damaged, illegible
or removed.
4. Keep children away.
5. Use only a solid, level surface.
6. Maximum user weight
is 130kg/287lbs.
7. Spinning pedals can cause injury.
8. This bike does not free-wheel.
9. Pedal speed should be reduced in
a controlled manner.
WARNING —
Use the stationary training equipment
in a supervised environment.

3
ENGPOR
ATTENTION
To download the owners manual in
your language, visit the IC2 support
section at: www.teamicg.com
Um das Handbuch in Ihrer Sprache
herunterzuladen, besuchen Sie bitte
den IC2 Support Bereich auf unserer
Webseite unter www.teamicg.com
Pour télécharger le manuel d‘utilisation
dans votre langue, consultez la section
Assistance IC2 sur: www.teamicg.com
Per scaricare il manuale nella vostra
lingua, visitate la sezione del supporto
per IC2 su: www.teamicg.com
Ga om de gebruiksaanwijzing in
uw taal te downloaden naar het IC2
supportgedeelte onder:
www.teamicg.com
Para descargarse el manual de usuario
en su idioma, por favor acceda a la
sección de soporte técnico de la bici IC2
en: www.teamicg.com
Para transferir o manual de utilizador no
seu idioma, visite a secção„Suporte“ da
IC2 em: www.teamicg.com
Besøg IC2 supportafsnittet www.
teamicg.com for at downloade
brugermanualen på dit sprog
Lataa omistajan käsikirja omalla
kielelläsi IC2-ohjeosiosta sivustolta:
www.teamicg.com
Du kan laste ned bruksanvisningen
på ditt eget språk ved å gå til IC2
støttesiden på: www.teamicg.com
Du kan hämta bruksanvisningen på ditt
språk under IC2-support på
www.teamicg.com
Aby pobrać podręcznik użytkowania w
swoim języku, należy wejść na zakładkę
IC2 support na stronie:
www.teamicg.com
Kullanıcı kılavuzunu kendi dilinizde
indirmek için www.teamicg.com
sayfasının IC2 deste bölümünü ziyaret
edebilirsiniz
在IC2的客户服务网站，您可以下载
各种语言的用户手册
www.teamicg.com
オーナーズマニュアルの各言語版
は、以下サイトの IC2 サポートペー
ジからダウンロードいただけます。
www.teamicg.com
IC2 지원 센터(www.teamicg.com)
에서 해당 언어 버전의 사용설명서를
다운로드할 수 있습니다..
EN
DE
FR
IT
NL
ES
PT
DK
FI
NO
SE
PL
TR
CN
JP
KR

Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com
TECHNICAL SPECIFICATIONS:
The ICG IC2 Bike is according to EN ISO 20957-1 and EN ISO 20957-10, a Class S product
for use in a controlled environment such as sports or tness facilities
under the supervision of a trainer.
TABLE OF CONTENTS
IMPORTANT PRECAUTIONS P.5-6
GETTING STARTED P.7
HOW TO ASSEMBLE THE INDOOR CYCLE P.8-10
INITIAL INSTALLATION CHECKS P.11-12
HOW TO ADJUST THE INDOOR CYCLE P.13-15
HOW TO OPERATE THE INDOOR CYCLE P.16
HOW TO MOVE THE INDOOR CYCLE P.16
PREVENTIVE MAINTENANCE P.17-21
MAINTENANCE ACTIVITY PLAN P.22
LIMITED WARRANTY P.23-24
SPARE PARTS P.25-26
CORPORATE OFFICES P.27
FOOT PRINT: 53 X 115 CM / 20.9 X 45.3 INCH
WEIGHT OF BIKE: 48 KG / 106 LBS
MAX SADDLE HEIGHT: 116 CM / 45,7 INCH
MAX HANDLEBAR HEIGHT: 119 CM / 47 INCH
MAX USER WEIGHT: 130 KG / 287 LBS

5
ENG
IMPORTANT
PRECAUTIONS
WARNING!
To reduce the risk of serious injury due to improper use of the
training equipment, carefully read and adhere to the following
important precautions and information before operating the bike.
1. It is the responsibility of the owner to ensure that all users
are informed of all warnings and precautions for proper use
of the training equipment and it is only authorized for use in
a supervised environment with qualied instructors.
2. Do not operate the training equipment until it has been properly
assembled and inspected as described in this manual.
3. Keep the training equipment away from moisture and dust. Do not place
the training equipment in a garage, covered patio, near water or pools.
Operating temperature of the training equipment has to be between
15°C~ 40°C Celsius (59°~104°F) at max. humidity of 65%.
4. Always place the training equipment on a stable, level surface.
If the training equipment is to be placed on a hardwood oor
or carpet, it is recommended to place a oor mat beneath
the bike, to protect the oor from becoming damaged.
5. The level of safety of the training equipment can only be guaranteed if it
is regularly checked for possible damage as well as wear and tear (e.g. xing
points, pedals, toe straps, etc.). Consult an authorized service provider or the
manufacturer to ensure the regular inspections are properly carried out.
6. Carry out all maintenance, care and service procedures as described
in this manual on a regular basis. Defective parts must be replaced
immediately, and the device must not be used until the repairs have been
carried out. Only use original parts from the manufacturer. Repairs must
only be carried out by from manufacturer authorized service technicians.
7. Unsupervised children should be kept away
from the training device at all times.

Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com
WARNING!
If you have pre-existing health problems or a disability, it is
recommended that you consult your physician, in order to
nd the training method which is best suited to you. Incorrect
or extensive training can result in serious health injuries.
The manufacturer expressly assumes no responsibility for
health risks, personal injury, property damage or consequential
damages sustained by or through the use of this device, unless
it is a case of consequential damage which can be traced
back to faulty material and/or manufacturing, and which
come under the responsibility of the manufacturer.
8. WARNING: The training equipment can be used by children
aged from 14 years and above and persons with lack of experience
and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the
hazards involved. Persons with reduced physical, sensory or mental
capabilities are prohibited from using the training equipment.
Children shall not play with the training equipment. Cleaning and user
maintenance shall not be made by children without supervision.
9. The training equipment must not be used by
persons exceeding weight of 287 lbs/130 kg.
10. Always wear appropriate tight-tting cycling or athletic attire and
sturdy shoes, preferably cycling shoes, while operating the bike. Unfastened
shoelaces may become caught in the drive system and lead to injury.
11. If you feel pain or dizziness while exercising, stop
immediately. It is recommended that you consult a doctor if
the pain does not subside for an extended period of time.
12. Only exercise within your physical limitations.
13. This stationary training equipment is not
suitable for high accuracy purposes.
IMPORTANT
PRECAUTIONS

7
ENGPOR
GETTING STARTED
DEAR CUSTOMER,
Congratulations for selecting the ICG IC2. The ICG indoor cycle oers an impressive array of
features designed to enhance cardiovascular tness, tone muscles, and develop endurance.
Whether users are beginners or experienced athletes, the ICG IC2 oers workouts that will help
users to reach their individual tness goals.
IMPORTANT: Read this manual carefully before assembling or using the indoor cycle. If you have
questions after reading this manual, please contact your local distributor or refer to the website
www.indoorcycling.com. Before reading further, please familiarize yourself with the parts that
are labeled in the drawing below.
YOU WILL FIND THE PRODUCTION CODE ON THE LEFT SIDE OF THE ICG IC2 WITHIN THE LOWER
RANGE OF THE FRAME. PLEASE REGISTER THESE IN SERVICING AND MAINTENANCE LISTS.
EMERGENCY BRAKE & RESISTANCE KNOB
SADDLE
T- LOCK HANDLE
ADJUSTMENT KNOB
PEDAL /TOE CLIP
CHAIN GUARD
MAINTENANCE COVER
HANDLEBAR
ADJUSTMENT KNOB
BRAKE PAD
FLYWHEEL
TRANSPORT WHEEL
LEVELLING FEET

Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com
HOW TO ASSEMBLE THE
INDOOR CYCLE
2X 17MM
1X 13MM 15MM PEDAL WRENCH
1X
5MM 2
PEOPLE
1. 2.
4.3.
ASSURE THAT PLASTIC GASKET IS PLACED BETWEEN
STABILIZER AND FRAME.
ASSURE THAT PLASTIC GASKET IS PLACED BETWEEN
STABILIZER AND FRAME. GASKET SHOULD NOT BE
VISIBLE ONCE ASSEMBLED.
ASSURE THAT BLACK RUBBER WASHER IS PLACED
BETWEEN UPPER FRAME AND BOLT/WASHER.
ASSURE THAT BLACK RUBBER WASHER IS PLACED
BETWEEN UPPER FRAME AND BOLT/WASHER.
7NM

9
ENGPOR
HOW TO ASSEMBLE THE
INDOOR CYCLE
WARNING!
Make sure the seat is xed properly in
a LEVEL HORIZONTAL position and
securely tigthend from both sides!
5. 6.
STOP MARK
2X 17MM
1X 13MM 5MM 2
PEOPLE
7.
1X
15MM
PEDAL WRENCH
25NM

Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com
HOW TO ASSEMBLE THE
INDOOR CYCLE
8. 9.
STOP MARK
STOP MARK
STOP MARK
2X 17MM
1X 13MM 15MM PEDAL WRENCH
1X
5MM 2
PEOPLE
11.
10.
WARNING!
Pedal marked Rinstalled on right crank (clockwise). Pedal marked Linstalled on left crank (counter-
clockwise) Pedals must be fastened with signicant strength to avoid loosening with use of the ICG IC2.
55NM
18NM

11
ENGPOR
INITIAL
INSTALLATION CHECKS
The cycle tune-up must be performed at initial installation of the ICG IC2 for
optimal performance and longevity. Please read and follow all instructions
below. If the ICG IC2 is not installed and tuned as described, components may
wear excessively and the ICG IC2 may become damaged. If you have questions
about the installation, please contact [email protected].
Note: Some maintenance procedures require acid-, silicone- and solvent free spray
lubricant (for example BRUNOX), and white lithium grease.
1. Make sure that the ICG IC2 is leveled. If the ICG IC2 rocks on the oor, turn the leveling feet
underneath the front and/or rear stabilizer until the rocking motion is elimina ted.
2. Verify emergency brake function to assure that emergency brake functions correctly.
3. Brake pad calibration: Turn resistance knob counterclockwise as far as possible (minimum
braking eect), verify that there is a slight separation of the brake pad from ywheel. Brake pad
should barely touch the ywheel when resistance knob is turned counter-clockwise as far as it
can go.
4. Apply spray lubricant to the brake pad using the lubrication holes on the plastic part or the
brake pad and externally on the felt pad. Make sure brake pad is thoroughly soaked from end
to end with lubricant spray. Then, wipe the excess o from the ywheel.
* Best Practice: Use a rellable spray bottle lled with non-aerosol acid-, silicone- and
solvent free spray lubricant purchased by the gallon (3.7 L) at the local hardware store.
5. Apply lithium grease to the threads on the lower end of the brake rod. First, turn the resistance
knob clockwise until it stops. Apply a small amount of white lithium grease to the threads on
the brake rod above the two lock nuts. Then, turn the resistance knob counter-clockwise
until it stops.

Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com
INITIAL
INSTALLATION CHECKS
6. Apply lithium grease on the metal threads of all the adjustment knobs.
7. Verify four (4) allen nuts on RS pulley for tightness. If loose, apply LocTite Threadlocker
Blue-243 and retighten.
8. Verify R and L crank arm allen bolts for tightness. If loose, apply LocTite Threadlocker
Blue-243 and retighten.
9. Verify belt tension. Check if belt drive is rmly tightened and does not slip while riding under
resistance load. In case that the belt slips, proceed using the adjustment technique as described
on page (18). Please note that a belt drive gear never shows slack. In case of adjustment do not
apply too much tension.
10. Wipe down bike frame with rag moistened with solvent free spray lubricant
11. Some parts of the ICG IC2 may become loose during shipment. Check crank arms, check all
exposed screws, bolts, and nuts, and make sure that they are properly tightened.
Allow a minimum safety distance away from the nearest equipment, objects or walls as
illustrated below.
CUSTOMER SERVICE
1. Provide basic maintenance instructions to client and direct them to detailed maintenance
instructions (page 14-19 )
2. Sign-o sheet provided to client to conrm explanation of maintenance procedures/manual
and verication of condition of bikes?
23.6“
(60cm)
23.6“
(60cm)
23.6“
(60cm)
23.6“
(60cm)

13
ENGPOR
HOW TO ADJUST THE
INDOOR CYCLE
The ICG IC2 can be adjusted for maximum comfort and exercise eectiveness. The instructions
below describe one approach to adjusting the ICG IC2 to ensure optimal user comfort and ideal
body positioning; you may choose to adjust the ICG IC2 cycle dierently.
PEDAL STRAP ADJUSTMENT:
Sit on the saddle and position your feet on the pedals, with the balls of your feet directly above
the spindles of the pedals (see the drawing below). Adjust the pedal straps so the toe clips
(cages) are snug but not too tight. Note: In the case of a bike being tted with combi-pedals, the
pedals feature toe clips on one surface and SPD cleats on the opposite surface. If desired, use the
shoe cleats with cycling shoes instead of the toe clips.
Do not adjust handlebar
height beyond the STOP
mark on the stem and
ensure the pop pin is fully
engaged
and securely tightened
WARNING!
Please avoid overtightening the pop pin adjustment knob as this may cause damages to the
vertical aluminum stems.
SADDLE HEIGHT ADJUSTMENT:
Sit on the saddle and slowly pedal until the right pedal is in the lowest position. Your knees
should be slightly bent without a dropping of the hips. To avoid hyper extending your knees,
make sure that your legs are not completely straight.
Do not adjust saddle
height beyond the STOP
mark on the stem and
ensure the pop pin is fully
engaged and securely
tightened

Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com
HOW TO ADJUST THE
INDOOR CYCLE

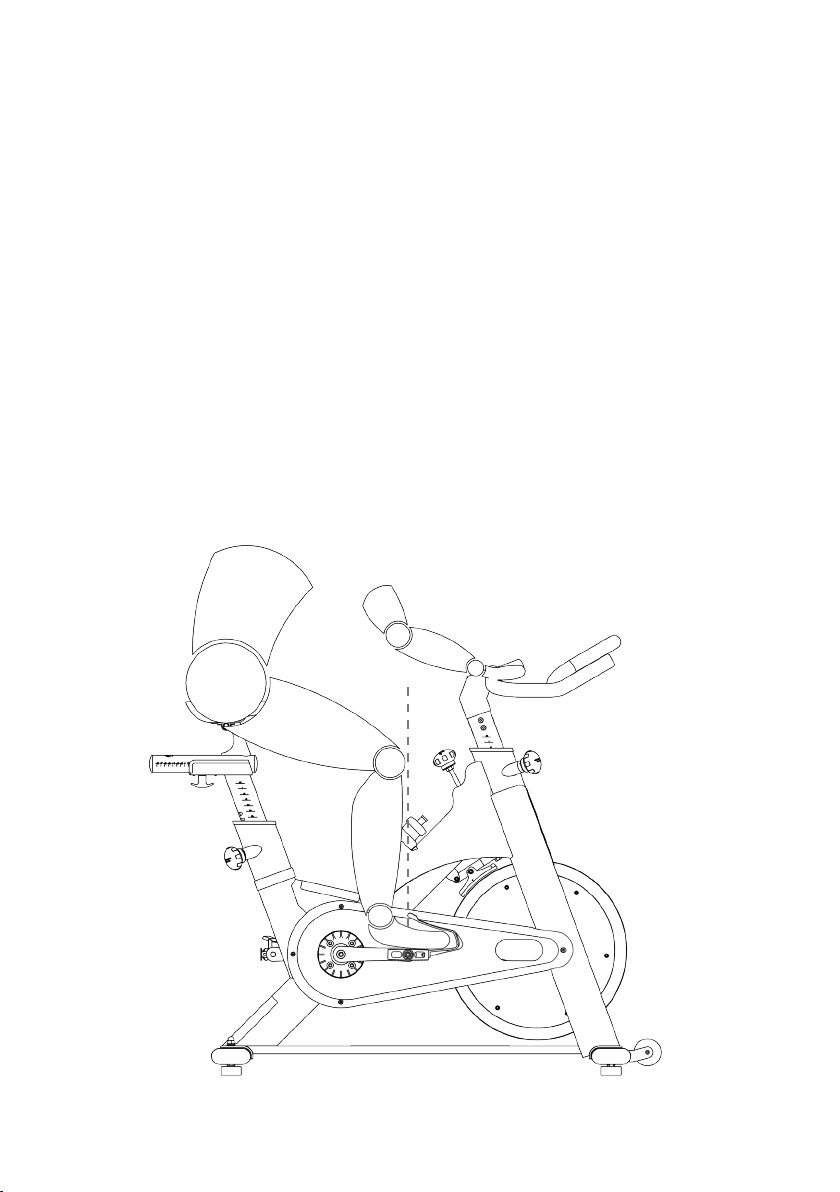

SADDLE HORIZONTAL ADJUSTMENT:
Proper horizontal adjustment of the saddle is very important in avoiding injury to the knees.
Sit on the saddle and move the pedals until the crank arms are in horizontal position.
Using your forward most leg as a marker, your kneecap should be directly above the center of
the pedal so that a straight line is created between knee and center of the pedal (see the dot-
ted line in image below). To adjust the horizontal position of the saddle, rst dismount the ICG
IC2. Next, loosen the rear adjustment knob, slide the saddle forward or backward as required,
and then retighten the knob.

15
ENGPOR
HOW TO ADJUST THE
INDOOR CYCLE
If your ICG IC2 is equipped with a regular 2 way handlebar. If the handlebar is too close to the
saddle, your breathing may feel restricted; if the handlebar is too far from the saddle, you may
experience back discomfort. To adjust the horizontal position to the handlebar, rst dismount
the ICG IC2.
Check for proper handlebar position by positioning your elbow so that it is touching the front
tip of the saddle at a 90 degree angle and checking that the ngertip of your middle nger is
touching the handlebar at the mid-point. If it is not as described then loosen the fore-aft T-lock
handle and slide the saddle slightly forward or backward until your middle nger is touching
the handlebar at the mid-point, and then retighten the handle. Changing your hand position
can change the angle of your back, neck, and arms. To minimize the stress on your muscles
during your workouts, change your hand position frequently.
HANDLEBAR ADJUSTMENT:
Begin with the top of the handlebar at relatively the same height or just slightly higher than
the top of the saddle (dotted horizontal line A in the drawing above) and at a neutral fore/
aft position (see dotted vertical line B in drawing above). If your knees touch the handle-
bars or if you experience back discomfort while pedalling for extended periods of time, the
height of the handlebars can be adjusted. First, dismount the ICG IC2. Next, turn the front
adjustment knob counter clockwise, slide the handlebar post up or down, and then re-tighten
the adjustment knob.
A.
B.

Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com
HOW TO OPERATE THE
INDOOR CYCLE
RESISTANCE ADJUSTMENT:
The preferred level of diculty in pedalling (resistance) can be regulated in ne increments by
use of the resistance knob. To increase the resistance, turn the resistance knob clockwise. To
decrease the resistance, turn the knob counter clockwise.
IMPORTANT: To stop the ywheel (wheel) while pedalling, push down on the red brake
knob. The ywheel should quickly come to a complete stop. Please make sure your shoes are
xed into the toe clip or in case cycling shoes are used your shoe cleat is connected to the
pedal binding while riding.
HOW TO MOVE THE ICG IC2:
Due to the weight of the ICG IC2, it is recommended that two persons move it. While one per-
son lifts the back of the ICG IC2, the second person rmly holds the handlebar and tips the ICG
IC2 forward until it rolls on the wheels. Carefully move the indoor cycle to the desired location
and then lower it. CAUTION: To reduce the risk of injury,
use extreme caution while moving the indoor cycle. Do not attempt to move it over
uneven surfaces and make sure a safety space of min 20 inch to the nearest
equipment is redeemed.
If the ICG IC2 rocks on the oor after
being set down, turn the levelling feet
(see diagram) underneath the front or
rear stabilizer until the rocking motion is
eliminated.
Important: Please do not unscrew the
levelling feet more then ½ inch! LEVELLING FEET
WARNING: Risk of injury. The ICG IC2 does not have a free moving flywheel (wheel); the pedals will continue to move
together with the flywheel until the flywheel stops. Reducing speed in a controlled manner is required.To stop the
flywheel immediately, push down the red break knob. Always pedal in a controlled manner and adjust your
desired cadence according to your own abilities.
PUSH THE RED KNOB DOWN = EMERGENCY STOP
RED RESISTANCE KNOB (TURN)
EMERGENCY BRAKE (PUSH)

17
ENGPOR
PREVENTIVE
MAINTENANCE
WARNING!
REGULAR MAINTENANCE MUST BE PERFORMED ON THE ICG IC2 FOR OPTIMAL
PERFORMANCE AND LONGEVITY.
Please read and follow all instructions below. If the ICG IC2 is not maintained as described,
components may wear excessively and the ICG IC2 may become damaged. Improper
maintenance will void the warranty terms. If you have questions about maintenance, contact
your local distributor or refer to www.indoorcycling.com
NOTE: MANY MAINTENANCE PROCEDURES REQUIRE LUBRICANT SPRAY.
MANUFACTURER RECOMMENDS FOR EXAMPLE BRUNOX OR A SIMILAR
SOLVENT- AND ACID FREE LUBRICANT.
DAILY MAINTENANCE:
1. Make sure that the ICG IC2 is leveled. If the ICG IC2 rocks on your oor, turn the levelling
feet underneath the front or rear stabilizer until the rocking motion is eliminated (see HOW TO
MOVE THE ICG IC2 on page 13).
2. After each user nishes exercising, the ICG IC2 should be disinfected and cleaned to
maintain a hygienic environment. First, apply a disinfectant spray to the handlebars and the
saddle. Using a lint-free cloth, dry the handlebars and the saddle. Next, apply a small amount
of disinfectant to a lint-free cloth and clean the adjustment knobs and the
adjustment handles. Avoid using strong detergents on the ICG IC2 frame.
WEEKLY MAINTENANCE:
1. Apply a small amount of the lubrication spray to a lint-free cloth, and thoroughly clean the
frame, the handlebar slider and seat sliders the ywheel and the plastic parts of the
ICG IC2.
2. For optimal performance of the resistance
system, and to minimize wear on the brake
pad, the acid-, silicone- and solvent free spray
lubricant should be applied to the brake pad
using the lubrication holes on the plastic
part of the brake pad. If fuzz or lint appears
on the brake pad, the brake pad has become
too dry-lubricant spray should be applied
more frequently. Make sure brake pad is
thoroughly soaked from end to end with
lubricant spray. Then, wipe the excess o.

Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com
PREVENTIVE
MAINTENANCE
BI-WEEKLY MAINTENANCE:
1. The ICG IC2 should not be used if the
emergency brake system is not working
properly. While sitting on the saddle and
pedalling, test the brake by pushing down
the brake knob. The ywheel should come to
a quick and complete stop.
2. To maintain the easy adjustability of
the saddle post, the saddle post should
be cleaned and lubricated. Turn the rear
adjustment knob counter clockwise and slide
the saddle post out of the frame. Apply a
small amount of lubricant spray to a lint-free
cloth, and clean the saddle post (A). Next,
apply a small amount of lubricant spray
inside of the rear frame sleeve. Then, reinsert
the saddle post into the frame and adjust it to
the desired height.
Next, loosen the rear lock handle and slide
the saddle carriage as far backward as
possible. Apply a small amount of lubricant
spray to a lint-free cloth, and clean the top
of the saddle slide (B). Then, slide the saddle
carriage as far forward as possible and clean
the top of the saddle slide. Finally, adjust the
saddle to the desired position.
A
B
1.
2.

19
ENGPOR
PREVENTIVE
MAINTENANCE
3. To maintain the easy adjustability of the
handlebar post, the handlebar post should
be cleaned and lubricated. First, turn the
front adjustment knob counter clockwise and
slide the handlebar post out of the frame.
Apply a small amount of lubricant spray to a
lint-free cloth, and clean the handlebar post
(A). Next, apply a small amount of lubricant
spray inside of the front frame sleeve.
Then, reinsert the handlebar post into the
frame
and adjust it to the desired height.
MONTHLY MAINTENANCE:
1. To maintain the smooth function of the
adjustment knobs controlling the handlebar
and saddle, the metal threads on the
adjustment knobs (A) must be lubricated.
1.
A
A
3.

Version 1.1 2021 IC-IC2B1-01 Copyright by Cy-Tech GmbH 2021 | www.indoorcycling.com
PREVENTIVE
MAINTENANCE
2. To maintain the easy adjustability of the
resistance system, the screw threads on the
lower end of the brake rod should be lubrica-
ted. First, turn the resistance knob clockwise
until it stops. Next, look under the right or
left side of the frame and locate the brake
rod (C). Apply a small amount of synthetic
grease (white lithium grease) to the thread on
the brake rod. Then, turn the resistance knob
counter-clockwise until it stops.
3. Some parts of the ICG IC2 may become
loose as a result of repeated use. Check
pedals, toe clips, and pedal straps, and make
sure that they are properly tightened. Next,
check all exposed screws, bolts, and nuts, and
make sure that they are properly tightened.
Finally, check the saddle to make sure that it
is not lose damaged.
4. The brake pad will become worn as a
result of repeated use. The ICG IC2 should not
be used if the emergency braking system is
not working properly (see page 13)! Should
you feel that the resistance system’s functions
are decient, it is essential to ne-tune the
resistance system before the bike is used
again! Please check the setting of the brake
system as follows: First turn the resistance
regulator on the brake system as far as it will
go to the left (minimum braking eect). If the
setting is correct, the brake pads should be
ush with the ywheel and barely touching
so that it’s possible to cycle with a hardly
noticeable amount of resistance. The brake
pad can be adjusted using a 10 mm wrench.
Next, check the brake pad for signs of wear. If
the brake pad does show signs of excessive
wear, thoroughly soak the brake pad with
lubricant spray using the 2 lubrication
holes (B), and then wipe the excess o.
C
2.
3.
4.
B
