ICI Caldaie GREENOx.e Series User manual

TECHNICAL MANUAL EN
The above picture is only for reference.
GREENOx.e
WITH THREE GAS PASSES
The above picture is only for reference.
GREENOx BT COND
LOW RETURN TEMPERATURE WITH CONDENSER
LOW NOx PRESSURISED
STEEL BOILERS

2
INDEX
1INTRODUCTION........................................................................................................................................ 3
2SAFETY WARNINGS ................................................................................................................................ 3
3GENERAL WARNINGS............................................................................................................................. 6
4TECHNICAL SPECIFICATIONS ............................................................................................................... 7
4.1 GREENOX.E 10 ÷ 70 BOILER............................................................................................................ 7
4.2 GREENOX.E 80 ÷ 300 BOILER.......................................................................................................... 9
4.3 GREENOX BT COND BOILER......................................................................................................... 11
5INSTALLATION....................................................................................................................................... 12
5.1 THERMAL PLANT ............................................................................................................................ 12
5.1.1 ROOM BOILER.......................................................................................................................... 12
5.1.2 FLUE .......................................................................................................................................... 12
5.2 HYDRAULIC CONNECTION ............................................................................................................ 13
5.2.1 SEALED HOT WATER HEATING SYSTEM WITH EXPANSION VESSEL.............................. 13
5.3 ELECTRICAL CONNECTION........................................................................................................... 14
5.4 OPTIONAL CONTROL PANEL......................................................................................................... 14
5.5 INSTALLATION OF GREENOX.E 80 ÷ 300 BOILER CONTROL PANEL ....................................... 15
5.6 DOOR................................................................................................................................................ 17
5.6.1 DOOR OPENING....................................................................................................................... 17

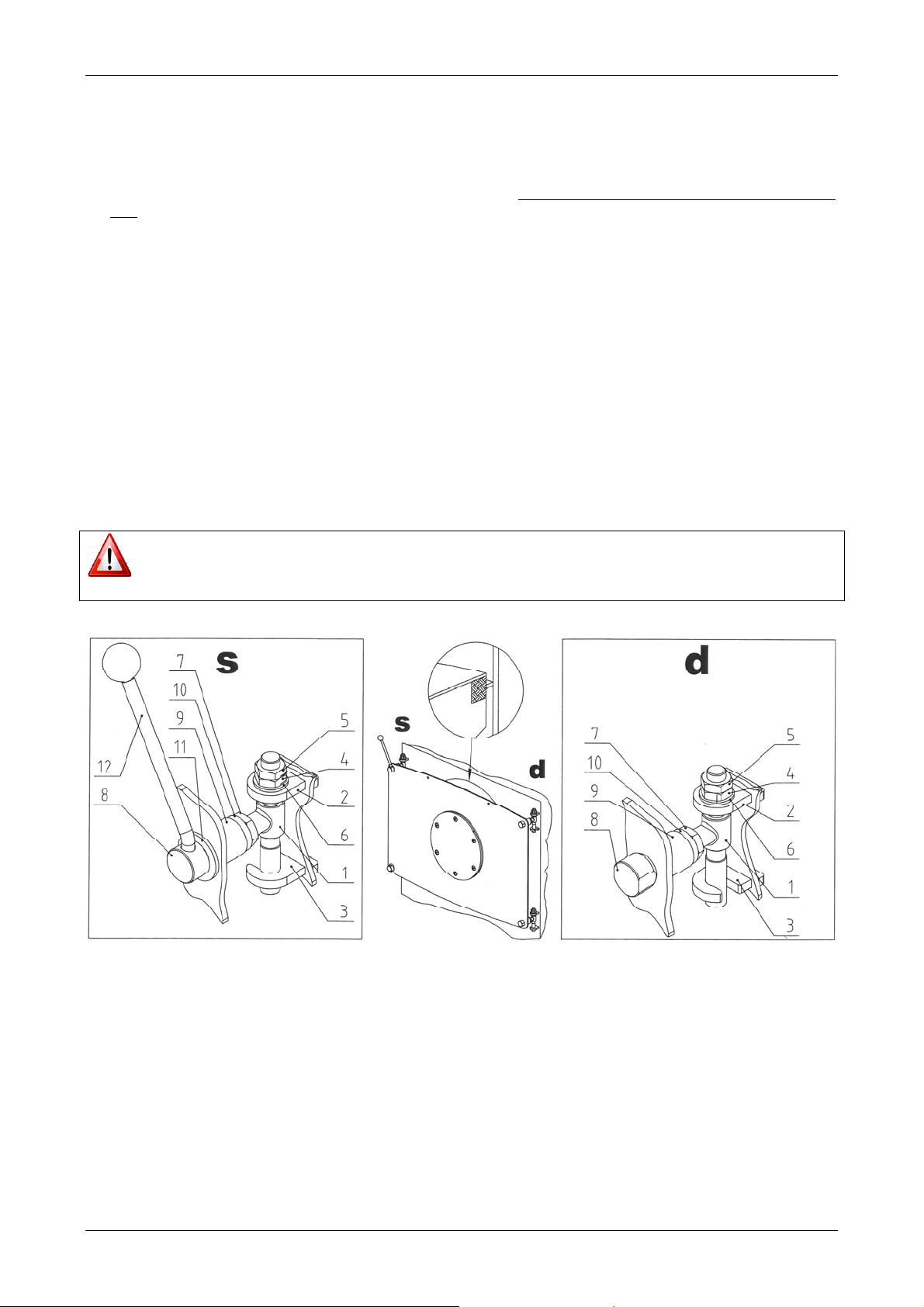

5.6.2 DOOR OPENING REVERSAL (TO THE RIGHT) ..................................................................... 17
5.6.3 DOOR ADJUSTMENT (OPENING ON THE RIGHT)................................................................ 18
5.7 BURNER CONNECTION.................................................................................................................. 19
6ASSEMBLY.............................................................................................................................................. 20
6.1 BOILER CASINGS AND CONTROL PANEL.................................................................................... 20
7START UP................................................................................................................................................ 24
7.1 PRELIMINARY CHECKS.................................................................................................................. 24
7.2 WATER TREATMENT ...................................................................................................................... 24
7.3 FILLING THE SYSTEM..................................................................................................................... 24
8OPERATION............................................................................................................................................ 25
8.1 OPERATING CHECKS ..................................................................................................................... 25
9MAINTENANCE....................................................................................................................................... 27
9.1 PREPARATION FOR INSPECTION AND MAINTENANCE............................................................. 27
9.2 ORDINARY ....................................................................................................................................... 28
10 QR Code.................................................................................................................................................. 29

3
1 INTRODUCTION
Dear Customer,
Thank you for having chosen our generator.
In your interests, we invite you to follow and observe the instructions in this manual to ensure the
highest level of efficiency and duration of the unit.
IMPORTANT: failure to observe the instructions in this manual will void the warranty condi-
tions.
2 SAFETY WARNINGS
IMPORTANT
For safety and for proper operation, carefully read this TECHNICAL MANUAL before installing and
starting the generator.
The manual is an integral and essential part of the generator and must accompany it from installation
until disposal. The generator must be used for the purpose for which it was strictly intended and any
liability by the Manufacturer for damages to people, animals or property due to lack of maintenance
or for improper use, is excluded.
Safety of the thermal power plant
For safety purposes, the qualified technical personnel in charge of running the system must consider the fol-
lowing requirements:
-Follow the accident prevention and environmental safety regulations in force.
-Ensure the generator installation in the thermal power plant complies with the standards in force.
-Ensure that the electrical and hydraulic system complies with the standards in force.
-Ensure that the boiler room complies with the standards in force and is sufficiently ventilated.
-Ensure that the boiler fumes are conveyed outside the thermal power plant through a flue compliant
with the standards in force.
-Ensure that the acidic condensation that may develop during system start-up, is evacuated outside
the thermal power plant after a neutralisation process in compliance with the standards in force.
-Ensure that there is no danger due to frost inside the thermal power plant.
System check
Before switching on the generator for the first time, a duly qualified technician must perform a check at the
central heating plant and update the system log once the check is over.
Periodic verifications
The generator must be periodically checked by a duly qualified technician (maintenance worker), who should
update the system log once the check is over.
Danger of explosion
Routine and extraordinary maintenance must be entrusted to professionally qualified personnel with the
purpose of promptly detecting any damage to the generator's pressurised body and the safety and control
accessories.
Danger deriving from the fuel
Sensing the presence of fuel in the thermal power plant, it is appropriate to follow the precautions below to
avoid the risk of explosions and fires:
-Do not smoke or cause sparks.
-Do not turn on lights or electrical devices in general (mobile phones).
-Open doors and windows.
-Close the fuel shut-off valve normally placed outside the thermal power plant.
-Disconnect the electrical power supply by using the switch normally placed outside the thermal power plant.

4
Danger of burns
During normal operation, the generator has hot parts that, upon accidental contact without suitable personal
protection, can cause serious burns. Potentially hot parts include:
-Accessories and valves connected to the generator.
-Door and smoke chamber.
Danger from fumes
An incorrect adjustment of the closing door or an insufficient draught in the flue can leave fumes inside the
thermal power plant, causing fatal intoxication deriving from carbon monoxide which, by its nature, is colour-
less and odourless. Therefore, ensure the generator is properly installed and adjusted and the presence of
ventilation openings in the thermal power plant are compliant with the regulations in force.
Repairs
Any generator repair must be carried out or authorised by the manufacturer in order to avoid risks to people
and property, as well as to prevent voiding the Warranty Conditions being . Generator maintenance must
be entrusted to competent personnel.
Spare parts
In order to ensure maximum safety and reliability, it is essential that all removable defective accessories and
parts are replaced with Original Spare Parts supplied by the Manufacturer.
ORIGINAL
SPARE
PARTS

5
GENERAL FEATURES
This steel boiler range features 3 gas passes with no flame inversion.
This design minimises the formation of nitrous oxides (NOx) caused by the high temperatures and long flame
stay times typical of traditional boiler furnaces.
Furthermore, the BT range boilers have been designed for low temperature operations (return at 35°C). For
this reason, a double tube and a special smokebox refractory protection are essential to maintain the high
temperature of parts in contact with combustion product, and without condensate production.
The boilers are classified as “high performance” boilers according to the regulations in force due to their extremely
high efficiency deriving from optimisation of heat exchange and complete insulation of the exposed surfaces.
The above picture is only for reference.

6
3 GENERAL WARNINGS
Each generator is provided with a manufacture plate that can be found in the envelope with the boiler
documents. The plate lists:
Serial number or identification code;
Rated thermal output in kcal/h and in kW;
Furnace thermal output in kcal/h and in kW;
Types of fuels that can be used;
Max operating pressure.
A manufacture certificate is also provided which certifies the hydraulic test positive performance.
The installation must be performed in compliance with the regulations in force by professionally qualified
personnel. The term “professionally qualified personnel” means persons with specific technical skills in the
sector of heating system components. Incorrect installation may cause damage to persons, animals or ob-
jects for which the manufacturer cannot be held responsible.
At the first start up, all regulation and control devices positioned on the control panel should be checked for
efficiency.
The guarantee shall be valid only upon compliance with the instruction given in this manual.
Our boilers have been built and tested in observance of EEC requirements and, as a consequence, CE-
marked. EEC directives are as follows:
Directive on Gas 2009/142/CE (Rif. EN 303)
Directive on Output 92/42/EEC
Directive on Electromagnetic Compatibility 2014/30/UE
Directive on Low Voltage 2014/35/UE
IMPORTANT: This boiler has been designed to heat hot water at a temperature less than the boiling tem-
perature at atmospheric pressure and must be connected to a heating plant and/or a domestic hot water
plant within the limits of its performance and output.

7
4 TECHNICAL SPECIFICATIONS
4.1 GREENOx.e 10 ÷ 70 BOILER
Characteristics
Efficiency 100%
(N.C.V.) Effic. 100% (stars) NG max flow rate G20 NG max flow rate G30 NG max flow rate G31 Max flow rate of flues Max fluid flow Min. fluid flow Efficiency at 30% (N.C.V.)
u.m. kW kcal/h kW kcal/h % % Stm³/h kg/h kg/h kg/h kg/h kg/h %
NOTE Medium Temp.
70°C
(Efficienty Dir.
92/42/CEE)
Medium Temp.
70°C
GREENOx.e 10
(3) 109 94.000 115 98.900 94,78 *** 12,17 9,03 8,93 181,33 9400 3760 95,70
GREENOx.e 12
(3) 120 103.000 126 108.360 95,24 *** 13,33 9,90 9,79 198,62 10300 4120 95,70
GREENOx.e 15
(3) 150 129.000 157 135.020 95,54 *** 16,61 12,33 12,20 247,49 12900 5160 96,05
GREENOx.e 20
(3) 200 172.000 210 180.600 95,24 *** 22,22 16,49 16,31 331,08 17200 6880 95,75
GREENOx.e 25
(3) 250 215.000 262 225.320 95,42 *** 27,72 20,58 20,35 413,03 21500 8600 95,95
GREENOx.e 30
(3) 300 258.000 315 270.900 95,24 *** 33,33 24,74 24,47 496,62 25800 10320 95,73
GREENOx.e 35
(3) 350 301.000 367 315.620 95,37 *** 38,84 28,82 28,51 578,72 30100 12040 95,90
GREENOx.e 40
(3) 420 361.000 441 379.260 95,24 - 46,67 34,64 34,26 695,38 36100 14440 95,76
GREENOx.e 47
(3) 470 404.000 493 423.980 95,33 - 52,17 38,72 38,30 777,33 40400 16160 95,80
GREENOx.e 60
(3) 600 516.000 630 541.800 95,24 - 66,67 49,48 48,94 993,38 51600 20640 95,77
GREENOx.e 70
(3) 700 602.000 734 631.240 95,37 - 77,67 57,65 57,02 1157,28 60200 24080 95,85
Medium Temp.
70°C
Heat output Heat input
(3) Door opening reversible
Characteristics
Pressure
losses
flue gas side
Heat losses
through
the chimney
Heat losses
through
the casing
Heat losses
with
burner off
Press.
losses
fluid side
Design
Pressure Capacity Total weight Electric supply Frequency Insulation class Electric power
mbar % % % °C °C °C % % % mbar bar l kg Volt ~ Hz IP W
GAS GASOIL HEAVY OIL GAS GASOIL HEAVY OIL (ΔT=12K)
With electr.
contr. (excluded
pump and burner)
Nat. gas Lpg Gasoil Heavy oil
GREENOx.e 10 1,2 4,72 0,50 0,10 138 137 137 11,0 13,5 14,0 19 5 296 615 230 50 IP40 20 X X X X
GREENOx.e 12 1,4 4,26 0,50 0,10 127 127 127 11,0 13,5 14,0 23 5 296 615 230 50 IP40 20 X X X X
GREENOx.e 15
2,5 3,96 0,50 0,10 120 120 120 11,0 13,5 14,0 35 5 296 615 230 50 IP40 20 X X X X
GREENOx.e 20 2,6 4,26 0,50 0,10 127 127 127 11,0 13,5 14,0 63 5 296 615 230 50 IP40 20 X X X X
GREENOx.e 25 2,5 4,08 0,50 0,10 122 123 122 11,0 13,5 14,0 34 5 412 735 230 50 IP40 20 X X X X
GREENOx.e 30 3,9 4,26 0,50 0,10 127 127 127 11,0 13,5 14,0 50 5 412 735 230 50 IP40 20 X X X X
GREENOx.e 35 3,9 4,13 0,50 0,10 124 124 124 11,0 13,5 14,0 29 5 505 850 230 50 IP40 20 X X X X
GREENOx.e 40 5,2 4,26 0,50 0,10 127 127 127 11,0 13,5 14,0 42 5 505 850 230 50 IP40 20 X X X X
GREENOx.e 47 4,6 4,17 0,50 0,10 125 125 124 11,0 13,5 14,0 53 5 738 1110 230 50 IP40 20 X X X X
GREENOx.e 60 4,9 4,26 0,50 0,10 127 127 127 11,0 13,5 14,0 35 5 863 1390 230 50 IP40 20 X X X X
GREENOx.e 70
5,6 4,13 0,50 0,10 124 124 124 11,0 13,5 14,0 48 5 863 1390 230 50 IP40 20 X X X X
Flue gas temp.
at boiler output
and air at 20 deg. C CO2 Fuel

8

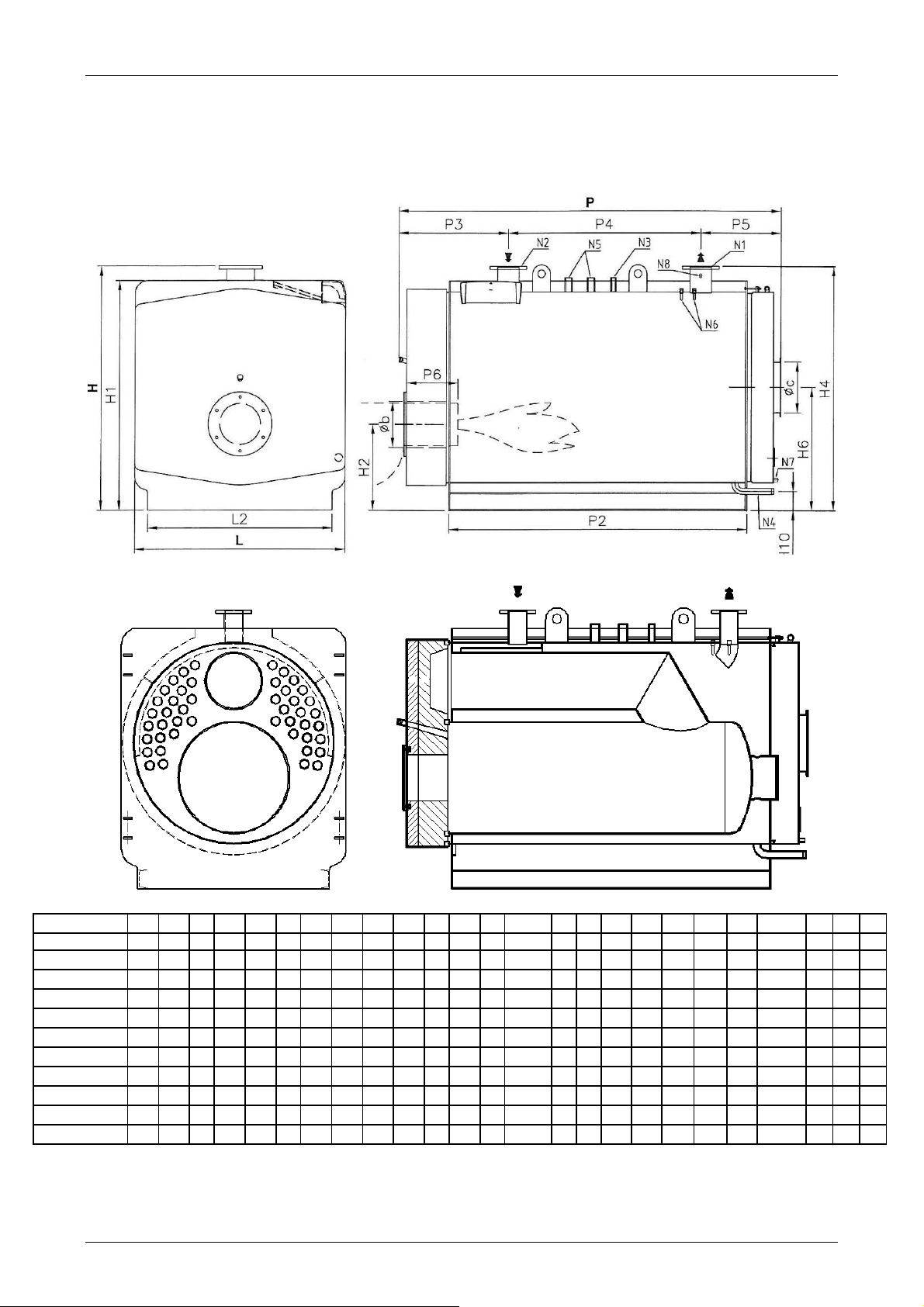

N1 Flow
N2 Return
N3 Fitting for instruments
N4 System filling/drainage
N5 Fitting for safety valves
N6 Bulb wells
N7 Boiler condensation drain
N8 Inspection well
Dimensions
H
H1 H2 H4 H6 H10
L
L2
P
P2 P3 P4 P5 P6 Øb Øc N1 N2 N1/N2 N3 N4 N5 N6 N7 N8
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm DN/in DN/in PN DN/in DN/in DN/in DN/in DN/in DN/in
GREENOx.e 10
1400 1225 374 1277 978 155 715 660 1735 1252 598 740 397 200-250 160 200 50 50 6 1" 1" 1” (1) 1/2" 1/2" 1/2"
GREENOx.e 12
1400 1225 374 1277 978 155 715 660 1735 1252 598 740 397 200-250 160 200 50 50 6 1" 1" 1” (1) 1/2" 1/2" 1/2"
GREENOx.e 15
1400 1225 374 1277 978 155 715 660 1735 1252 598 740 397 200-250 160 200 50 50 6 1" 1" 1” (1) 1/2" 1/2" 1/2"
GREENOx.e 20
1400 1225 374 1277 978 155 715 660 1735 1252 598 740 397 200-250 160 200 50 50 6 1" 1" 1” (1) 1/2" 1/2" 1/2"
GREENOx.e 25
1520 1345 410 1397 1082 155 755 700 1895 1412 598 900 397 200-250 170 250 65 65 6 1" 1" 1” (1) 1/2" 1/2" 1/2"
GREENOx.e 30
1520 1345 410 1397 1082 155 755 700 1895 1412 598 900 397 200-250 170 250 65 65 6 1" 1" 1” (1) 1/2" 1/2" 1/2"
GREENOx.e 35
1675 1500 460 1555 1210 155 800 745 1948 1462 651 900 397 200-250 225 250 80 80 6 1"1/4 1" 1”1/4 (1) 1/2" 1/2" 1/2"
GREENOx.e 40
1675 1500 460 1555 1210 155 800 745 1948 1462 651 900 397 200-250 225 250 80 80 6 1"1/4 1" 1”1/4 (1) 1/2" 1/2" 1/2"
GREENOx.e 47
1805 1630 495 1685 1340 155 875 820 2227 1744 698 1075 454 200-250 225 250 80 80 6 1"1/4 1" 1”1/4 (1) 1/2" 1/2" 1/2"
GREENOx.e 60
1925 1750 520 1802 1422 155 945 890 2228 1746 699 1100 429 200-250 225 250 100 100 6 1"1/4 1" 1”1/4 1/2" 1/2" 1/2"
GREENOx.e 70
1925 1750 520 1802 1422 155 945 890 2228 1746 699 1100 429 200-250 225 250 100 100 6 1"1/4 1" 1”1/4 1/2" 1/2" 1/2"
(1) One fitting only

9
4.2 GREENOx.e 80 ÷ 300 BOILER
Characteristics Efficiency 100%
(N.C.V.) NG max flow rate G20 NG max flow rate G30 NG max flow rate G31 Max flow rate of flues Max fluid flow Min. fluid flow Efficiency at
30%
kW kcal/h kW kcal/h % Stm³/h kg/h kg/h kg/h kg/h kg/h %
NOTE Medium Temp.
70°C
Medium Temp.
70°C
GREENOx.e 80 (3) 800 688.000 839 721.540 95,35 88,78 65,89 65,18 1322,82 68800 27520 95,88
GREENOx.e 90 (3) 900 774.000 944 811.840 95,34 99,89 74,14 73,34 1488,36 77400 30960 95,92
GREENOx.e 100 1000 860.000 1050 903.000 95,24 111,11 82,47 81,57 1655,54 86000 34400 95,76
GREENOx.e 120 1200 1.032.000 1259 1.082.740 95,31 133,23 98,88 97,81 1985,13 103200 41280 95,83
GREENOx.e 140 1400 1.204.000 1469 1.263.340 95,30 155,45 115,37 114,12 2316,21 120400 48160 95,84
GREENOx.e 170 1700 1.462.000 1784 1.534.240 95,29 188,78 140,11 138,59 2812,82 146200 58480 95,79
GREENOx.e 200 2000 1.720.000 2099 1.805.140 95,28 222,12 164,85 163,07 3309,59 172000 68800 95,79
GREENOx.e 230 2300 1.978.000 2415 2.076.900 95,24 255,56 189,67 187,62 3807,84 197800 79120 95,77
GREENOx.e 260 2600 2.236.000 2731 2.348.660 95,20 288,99 214,49 212,16 4305,95 223600 89440 95,80
GREENOx.e 300 3000 2.580.000 3150 2.709.000 95,24 333,33 247,40 244,72 4966,62 258000 103200 95,80
Medium Temp.
70°C
Heat output Heat input
(3) Door opening reversible
Characteristics
Pressure
losses
flue gas side
Heat losses
through
the chimney
Heat losses
through
the casing
Heat losses
with
burner off
Press.
losses
fluid side
Design
Pressure Capacity Total
weight Electric supply Frequency Insulation
class Electric power
mbar % % % °C °C °C % % % mbar bar l kg Volt ~ Hz IP W
GAS GASOIL HEAVY OIL GAS GASOIL HEAVY
OIL (ΔT=12K)
With electr.
contr. (excluded
pump and burner)
N a t. g a s Lpg Gasoil Heav
y
oil
GREENOx.e 80
2,8 4,15 0,50 0,10 124 124 124 11,0 13,5 14,0 63 5 1200 1970 230 50 IP40 20 X X X X
GREENOx.e 90
3,5 4,16 0,50 0,10 124 124 124 11,0 13,5 14,0 80 5 1200 1970 230 50 IP40 20 X X X X
GREENOx.e 100
2,6 4,26 0,50 0,10 127 127 127 11,0 13,5 14,0 40 5 1365 2760 230 50 IP40 20 X X X X
GREENOx.e 120
4,0 4,19 0,50 0,10 125 125 125 11,0 13,5 14,0 58 5 1365 2760 230 50 IP40 20 X X X X
GREENOx.e 140
5,5 4,20 0,50 0,10 125 125 125 11,0 13,5 14,0 38 5 1570 2995 230 50 IP40 20 X X X X
GREENOx.e 170
5,0 4,21 0,50 0,10 126 126 125 11,0 13,5 14,0 56 5 2300 4300 230 50 IP40 20 X X X X
GREENOx.e 200
7,0 4,22 0,50 0,10 126 126 126 11,0 13,5 14,0 78 5 2800 4850 230 50 IP40 20 X X X X
GREENOx.e 230
9,0 4,26 0,50 0,10 127 127 127 11,0 13,5 14,0 103 5 2800 4850 230 50 IP40 20 X X X X
GREENOx.e 260
9,0 4,30 0,50 0,10 128 128 127 11,0 13,5 14,0 42 5 3300 5950 230 50 IP40 20 X X X X
GREENOx.e 300
12,0 4,26 0,50 0,10 127 127 127 11,0 13,5 14,0 55 5 3300 5950 230 50 IP40 20 X X X X
Flue gas temp.
at boiler output
and air at 20 deg. C CO2 Fuel

10
N1 Flow
N2 Return
N3 Fitting for instruments
N4 System filling/drainage
N5 Fitting for safety valves
N6 Bulb wells
N7 Boiler condensation drain
N8 Inspection well
Dimensions
H
H1 H2 H4 H6 H10
L
L2
P
P2 P3 P4 P5 P6 Øb Øc N1 N2 N1/N2 N3 N4 N5 N6 N7 N8
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm DN/in DN/in PN DN/in DN/in DN/in DN/in DN/in DN/in
GREENOx.e 80
1712 1600 682 1712 895 210 1380 1180 2535 1970 748 1300 487 300-350 280 350 100 100 16 1" 1"1/4 1"1/2 1/2" 1/2" 1/2"
GREENOx.e 90
1712 1600 682 1712 895 210 1380 1180 2535 1970 748 1300 487 300-350 280 350 100 100 16 1" 1"1/4 1"1/2 1/2" 1/2" 1/2"
GREENOx.e 100
1764 1650 671 1764 890 150 1490 1290 2589 1972 800 1300 489 360-410 280 400 125 125 16 1" 1"1/4 1"1/2 1/2" 1/2" 1/2"
GREENOx.e 120
1764 1650 671 1764 890 150 1490 1290 2589 1972 800 1300 489 360-410 320 400 125 125 16 1" 1"1/4 1"1/2 1/2" 1/2" 1/2"
GREENOx.e 140
1764 1650 671 1764 890 150 1490 1290 2899 2282 850 1550 499 360-410 320 400 150 150 16 1" 1"1/4 1"1/2 1/2" 1/2" 1/2"
GREENOx.e 170
2065 1950 800 2065 1040 150 1800 1600 2966 2324 875 1500 591 360-410 360 400 150 150 16 1" 1"1/4 1"1/2 1/2" 1/2" 1/2"
GREENOx.e 200
2065 1950 800 2065 1040 150 1800 1600 3466 2824 875 2000 591 360-410 360 400 150 150 16 1"1/2 1"1/4 2" 1/2" 1/2" 1/2"
GREENOx.e 230
2065 1950 800 2065 1040 150 1800 1600 3466 2824 875 2000 591 360-410 360 400 150 150 16 1"1/2 1"1/4 2" 1/2" 1/2" 1/2"
GREENOx.e 260
2065 1950 800 2065 1040 150 1800 1600 3935 3324 875 2500 560 360-410 360 500 200 200 16 1"1/2 1"1/4 2" 1/2" 1/2" 1/2"
GREENOx.e 300
2065 1950 800 2065 1040 150 1800 1600 3935 3324 875 2500 560 360-410 360 500 200 200 16 1"1/2 1"1/4 2" 1/2" 1/2" 1/2"

11
4.3 GREENOx BT COND BOILER
N1 Boiler flow
N2 Boiler return
N3 Fitting for instruments
N4 Boiler drain
N5 Fitting for safety valves
N6 Bulbs wells
N8 Inspection well
N11 Condenser return temperature control
N12 Condenser flow
N13 Condenser return
N14 Condenser condensation drain
N16 Condenser drain
N17 Air vent fitting
N27 Condenser flow temperature control
Characteristics
NG max flow
rate G20 NG max flow rate G30 NG max flow rate G31 Max flow rate Max fluid flow Min. fluid flow Efficiency at 30%
kW kcal/h kW kcal/h kW kcal/h % % Stm³/h kg/h kg/h kg/h kg/h kg/h %
Medium
Temp.
Temp. flow/return
50/30°C
Medium Temp.
70°C
GREENOx BT COND 180
1646 1.415.520 1800 1.548.000 1674 1.440.000 98,30 107,50 177,19 131,51 130,08 2640,13 154800 61920 98,50
GREENOx BT COND 200
1829 1.572.800 2000 1.720.000 1860 1.600.000 98,30 107,50 196,87 146,12 144,53 2933,36 172000 68800 98,50
GREENOx BT COND 230
2103 1.808.720 2300 1.978.000 2140 1.840.000 98,30 107,50 226,41 168,04 166,21 3373,51 197800 79120 98,50
GREENOx BT COND 260
2377 2.044.640 2600 2.236.000 2419 2.080.000 98,30 107,50 255,94 189,95 187,90 3813,51 223600 89440 98,50
GREENOx BT COND 300
2743 2.359.200 3000 2.580.000 2791 2.400.000 98,30 107,50 295,31 219,18 216,80 4400,12 258000 103200 98,50
Heat output
Medium Temp.
70°C
Temp. flow/return
50/30°C
Efficiency 100%
(N.C.V.)
Heat input
Characteristics
Pressure
losses
flue gas side
Heat losses
through
the chimney
Heat losses
through
the casing
Heat losses with
burner off
Flue gas temp.
at boiler output
and air at 20 deg. C CO2 Condense
production Press. losses fluid side Design Pressure Capacity Cond.
capacity Total capacity Total weight Electric supply Frequency Insulation
class Electric power
mbar % % % °C % kg/h mbar bar l l l kg Volt ~ Hz IP W
For condensing
Temp. flow/return
50/30°C
For condensing
Temp. flow/return
50/30°C
For condensing
Temp. flow/return
50/30°C
GAS
For condensing
Temp. flow/return
50/30°C
GAS
For condensing
Temp. flow/return
50/30°C
Temp. flow/return
50/30°C (ΔT=12K)
With electr.
contr. (excluded
pump and burner)
N at. gas Lpg Gasoil
H eavy oil
GREENOx BT COND 180
5,0 1,50 0,50 0,10 50 10,5 419,9 105 5 2957 610 3567 6080 230 50 IP40 20 X X - -
GREENOx BT COND 200
6,0 1,50 0,50 0,10 50 10,5 466,6 130 5 2957 610 3567 6080 230 50 IP40 20 X X - -
GREENOx BT COND 230
7,5 1,50 0,50 0,10 50 10,5 536,6 172 5 2957 610 3567 6080 230 50 IP40 20 X X - -
GREENOx BT COND 260
7,0 1,50 0,50 0,10 50 10,5 606,6 69 5 3507 610 4117 6750 230 50 IP40 20 X X - -
GREENOx BT COND 300
9,0 1,50 0,50 0,10 50 10,5 699,9 93 5 3507 610 4117 6750 230 50 IP40 20 X X - -
Fuel
Dimensions
H
H1 H2 H4 H7 H8 H10
L
L2
P
P2 P3 P4 P5 P6 P7 Øb Øc N1 N2 N1/N2 N3 N4 N5 N6 N8 N11 N12 N13 N14 N16 N17 N27
mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm mm DN/in DN/in PN DN/in DN/in DN/in DN/in DN/in DN/in DN/in/mm DN/in in in DN/in in
GREENOx BT COND 180
2448 1950 800 2064 1040 206 155 1800 1600 4180 2824 850 2000 1330 360-410 2813 360 400 150 150 16 1" 1"1/4 1"1/2 1/2" 1/2" 1/2" 150 150 1" 1" 1" 1/2"
GREENOx BT COND 200
2448 1950 800 2064 1040 206 155 1800 1600 4180 2824 850 2000 1330 360-410 2813 360 400 150 150 16 1" 1"1/4 1"1/2 1/2" 1/2" 1/2" 150 150 1" 1" 1" 1/2"
GREENOx BT COND 230
2448 1950 800 2064 1040 206 155 1800 1600 4180 2824 850 2000 1330 360-410 2813 360 400 150 150 16 1" 1"1/4 1"1/2 1/2" 1/2" 1/2" 150 150 1" 1" 1" 1/2"
GREENOx BT COND 260
2554 1950 800 2064 1040 206 155 1800 1600 4680 3324 880 2500 1300 360-410 3282 360 400 200 200 16 1"1/2 1"1/4 2" 1/2" 1/2" 1/2" 200 200 1" 1" 1" 1/2"
GREENOx BT COND 300
2554 1950 800 2064 1040 206 155 1800 1600 4680 3324 880 2500 1300 360-410 3282 360 400 200 200 16 1"1/2 1"1/4 2" 1/2" 1/2" 1/2" 200 200 1" 1" 1" 1/2"

12
5 INSTALLATION
Before connecting the boiler, perform the following operations:
Thoroughly clean all the system pipes in order to remove any foreign matter that could affect correct op-
eration of the boiler;
Check that the flue has an adequate draught, that there is no narrowing of passages and that it is free
from debris; also check that other appliances do not discharge into the flue (unless designed to serve
several utilities). See the regulations in force.
5.1 THERMAL PLANT
5.1.1 ROOM BOILER
Current regulations must always be observed.
Premises in which boilers will be installed should be sufficiently ventilated and permit access for ordinary and
extraordinary maintenance operations.
5.1.2 FLUE
The smokestack must be dimensioned as to applicable regulations.

13
5.2 HYDRAULIC CONNECTION
5.2.1 SEALED HOT WATER HEATING SYSTEM WITH EXPANSION VESSEL
The generator must be provided with:
a - 1 safety valve
2 safety valves if output is (≥500.000 kcal/h)
b - Expansion vessel
c - Regulation thermostats
d - 1st safety thermostat
e - 2nd safety thermostat
f - Cut-off pressure switch
g - Well for control thermometer
h - Pressure gauge with flange for control pres-
sure gauge
i - Heat discharge valve or fuel on-off valve
N1 - Flow
N2 - Return
N3 - Instrument fitting
N4 - Lower fitting:
N4b expansion vessel fitting
N4c Filling/drain
N5 - Safety valve fitting (≥500.000 kcal/h: n. 2 valves)
N6 - Bulb wells (thermometer, pump consent ther-
mostat, regulation thermostat, safety thermostat)
N7 - Condensation recollection fitting
Ensure that the hydraulic pressure measured after the reduction valve on the supply pipe does not exceed
the operating pressure specified on the rating plate of the component (boiler, heater etc.).
As the water contained in the heating system increases in pressure during operation, ensure that its
maximum value does not exceed the maximum hydraulic pressure specified on the component rating
plate.
Ensure that the safety valve outlets of the boiler and hot water tank, if any, have been connected to an
exhaust funnel in order to prevent the valves from flooding the room if they open.
Ensure that the pipes of the water and heating system are not used as an earth connection for the
electrical system as this can seriously and very rapidly damage the pipes, boiler, heater and radiators.
Once the heating system has been filled, you are advised to close the supply cock and keep it closed so
that any leaks from the system will be identified by a drop in hydraulic pressure indicated on the system
pressure gauge.

14
5.3 ELECTRICAL CONNECTION
Electrical systems of thermal plants designed only for heating purposes must comply with numerous legal
regulations which apply in general as well as specifically to each application or fuel type.
5.4 OPTIONAL CONTROL PANEL
The control panel (optional) with the boilers is made of IP40 protection plastic material, and houses the
regulation and safety instruments:
KEY
1 NET WARNING LIGHT
2 1st BURNER SWITCH
4 CIRCULATOR SWITCH
7 BOILER THERMOMETER
8 1st ADJUSTMENT THERMOMETER
9 1st SAFETY THERMOSTAT
11 2nd ADJUSTMENT THERMOSTAT
The upper part of the control panel can be rotated to gain access to the terminal board and uncoil the ther-
mostat and thermometer capillaries. A copy of the wiring diagram is contained inside the control panel cover.
The regulation thermostats have an operating range from 60° to 100° and can be set by the user by means
of the front knob.
Safety thermostats has a fixed setting of 110°C and can be manually reset in accordance by law.
Circulator consent thermostat located inside the panel can be adjusted from 0°C to 90°C using a tool and
is factory-set at 50°C, while its differential deviation is 6°C. Thanks to this thermostat, the circulator is inac-
tive when the temperature is below 50°C to avoid dangerous exhaust condensation.
For correct installation, refer to the boiler casing assembly instructions.
WIRING DIAGRAM
Refer to the diagram supplied with the specific switchboard.

15
5.5 INSTALLATION OF GREENOx.e 80 ÷ 300 BOILER CONTROL PANEL
NOTE: the control panel picture is purely indicative as it may vary according to the type of panel installed.
a. Choose the side on which to install the control panel (RH or LH), remove the covers (1) and push in
the pre-cut opening (2).
b. Pick up the kit of the arm complete with bracket (3).
c. Open the control panel (4) and cut the preset window on the rear side.
d. Pass the bulbs (5) of thermostats and thermometer through the window and screw them in the
square pipe of the bracket and slide them in the protective tube through top openings until they reach
the wells (6). Lock them using the special locking springs.
e. Connect the cables of burner (7) to the control panel using a protective sheath and lock them with
the cable glands (8).
f. Secure the control panel to the bracket (3) using the kit supplied.
g. Use the two screws (9) and fasten the arm-control panel group to the top section of the boiler.
h. Assemble the covers (1).
1
1
2
3
4
5
6
7
8
9

16
The bracket provided, which is equipped with a 2-hole shaped plate, enables the user to mount the panels
with two inclinations, and hence to choose the position he/she prefers (see figures).
1
2
6
3
4
5
9

17
5.6 DOOR
5.6.1 DOOR OPENING
The door is adjusted in the factory with standard opening to the left (s) and with hinges on the right (d).
CAUTION: it is dangerous to unscrew the ring nuts (8d) on the side of the hinges to avoid
causing the door to detach, with possible serious damage to people and property.
5.6.2 DOOR OPENING REVERSAL (TO THE RIGHT)
Only for models listed in the Technical Data table
Proceed as follows to reverse the opening direction of the door:
Door with ferrules perforated on both sides
1. Screw the left perforated ferrules (8s) so that the door seal gasket is pressed in the same way as the
right part. Bring the conical washers (10s) of the left tie-rods close to the mechanical tubes (9s) of the
door and tighten the nuts (7s) using a suitable wrench.
2. On the right opening side, loosen the nuts (7d) and free the conical washers (10d) from the mechanical
tubes (9d) of the door.
Door with wrench ferrules, hinge side
IMPORTANT NOTE: In models equipped with wrench-adjustable ferrules (8d), these must always be
mounted on the hinges to prevent the door from being accidentally opened through the lever (12).
In this case, proceed as follows:
3. Proceed as indicated in point 1.
4. Cross-change the wrench ferrule of a hinge (8d) with the opposite perforated ferrule (8s), after loosening
the locking nuts on the tie rods and freeing the conical washers.
5. On the left hinge side, fasten the conical washer (9s) onto the door using the nut (10s).
6. Proceed with the other two ferrules following the procedure described in points 4 and 5.
CAUTION: When cross-changing ferrules, always make sure that the other two ferrules
are fastened, so that they hold the door.
7. Check the correct adjustment of the tie-rods and hinges ensuring that, during closure, the seal gasket is
evenly pressed in the centre on the whole circumference (see figure).
If necessary, adjust as described in the next par.

18
5.6.3 DOOR ADJUSTMENT (OPENING ON THE RIGHT)
Vertical adjustment
1. With the door ajar, loosen the counter-nuts (5s) of the hinge units.
2. Act on the adjustment nuts (4s) to lift or lower the door by centring the gasket on the stop plate (see fig-
ure), then block the counter-nuts (5s).
3. Close the door and centre the tie-rod (1d) on the mechanical tube (9d), proceeding as in point 2.
Horizontal adjustment
Close the door using the lever and check that there is equal distance on both sides, between the stop plate
and the band.
Otherwise, proceed as follows:
1. With the door ajar, loosen the locking nuts (7s) of the hinge units.
2. Act on the ferrule (8s) to adjust the distance depth-wise.
3. Screw the nuts (7s) and block the conical washers on the mechanical tubes.
Check the proper adjustment in depth ensuring that the door, manually pushed up to the stop plate, naturally
returns remaining ajar. This is to ensure the hinge side fume seal.
For any problems related to the reversal and adjustment of the door, we recommend contacting our
local Authorised Technical Assistance Centre.
IMPORTANT: Incorrect door adjustment with consequent damage to people and property
voids the warranty conditions.
OPENINGUNIT HINGEUNIT
KEY
1. Tie-rod with pin
2. Upper bracket
3. Lower bracket
4. Vertical adjustment nut
5. Locking counter nut
6. Vertical tie-rod plain washer
7. Horizontal locking nut
8. Perforated ferrule for opening (s)
Wrench ferrule for hinge (d)
9. Door mechanical tube
10. Conical centring washer
11. Opening lever washer
12. Opening lever

19
5.7 BURNER CONNECTION
Before installation you are advised to thoroughly clean the inside of all the fuel supply system pipes in order
to remove any foreign matter that could affect correct operation of the boiler. See technical specification ta-
bles and check the max pressure value inside the furnace. The value found on the table may also increase
by 20% if heavy oil is used instead of gas or light oil; furthermore the following checks should also be carried
out:
a) Check the internal and external seal of the fuel supply system;
b) Regulate the fuel flow according to the power required by the boiler;
c) Check that the boiler is fired by the correct type of fuel;
d) Check that the fuel supply pressure is within the values specified on the burner rating plate;
e) Check that the fuel supply system is sized for the maximum flow rate necessary for the boiler and that it
is provided with all control and safety devices provided for by the regulations referred to above;
In particular, when using gas:
f) Check that the supply pipe and the gas ramp comply with the regulations in force;
g) Check that all the gas connections are sealed;
h) Check that the boiler room vents are of sufficient size to ensure the air flow dictated by the regulations
referred to above and that they are in any case sufficient to obtain perfect combustion.
i) Check that the gas pipes are not used as earth connections for electrical appliances.
If the boiler is not going to be used for some time, close the fuel supply cock or cocks.
IMPORTANT: check that the gap between the burner draught tube and the mounting plate are prop-
erly filled with thermoinsulating material.
The thermoinsulating strip provided with the boiler must be wrapped around the mouthpiece for at least an
entire circumference of the flame radiation to protect the flange of the burner. Not that the ceramic insulation
is necessary to fill the gap until the insulation inside surface of the door.
The above picture is only for reference.
KEY:
1. Burner
2. Manhole
3. Thermoinsulating material
4. Flange
All details on the draught tube lenght (P6), the diameter of the burner hole (Øb) and the pressurization are included
in the par. Technical Specifications.
ATTENTION: when using oil or bio-gas for operation, the door must have ce-
ment insulation and special tie rods. Any alterations and/or lack of commu-
nication during the selling phase shall nullify the warranty conditions.
GREENOX BT COND:
ATTENTION: The boiler is designed for use with NATURAL GAS and
LPG. The use of other fuels will void the boiler warranty.

20
6 ASSEMBLY
6.1 BOILER CASINGS AND CONTROL PANEL
1) Wrap the fibreglass around the boiler body and use the supplied strap to secure it (see fig.).
DIAGRAM OF PLASTIC STRAP LOCKING
TO SECURE THE FIBREGLASS
TO THE BOILER SHELL
2) Prepare the staves by inserting the four stoppers, as shown in the figure.
