APEX 200
QUICK START GUIDE
Edit Text Outlines
IndustryIndustry
2
©Copyright 2021, Infrared Cameras, Inc. - All rights reserved. The
contents of this document may not be reproduced in whole or in parts
without the written consent of the copyright owner.
Printed in the United States of America.
2105 W. Cardinal Dr.
Beaumont, TX 77705
(866) 861-0788
www.infraredcameras.com
THE MANUFACTURER RESERVES THE RIGHT TO ALTER THE
SPECIFICATIONS OF THE PRODUCT WITHOUT PRIOR NOTIFICATION. THE
MANUFACTURER ALLOWS HIMSELF THE RIGHT TO MODIFY WITHOUT
ANY PRELIMINARY OPINION THE TECHNICAL SPECIFICATIONS OF THE
PRODUCT. THIS MANUAL MAY CONTAIN TECHNICAL INACCURACIES OR
TYPOGRAPHICAL ERRORS.
NOTICE ALL STATEMENTS, INFORMATION, AND RECOMMENDATIONS IN
THIS MANUAL ARE BELIEVED TO BE ACCURATE BUT ARE PRESENTED
WITHOUT WARRANTY OF ANY KIND. NOTWITHSTANDING ANY OTHER
WARRANTY HEREIN, ALL DOCUMENT FILES AND SOFTWARE ARE
PROVIDED “AS IS” WITH ALL FAULTS. ICI DISCLAIMS ALL WARRANTIES,
EXPRESSED OR IMPLIED, INCLUDING, WITHOUT LIMITATION, THOSE
OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE AND
NONINFRINGEMENT OR ARISING FROM A COURSE OF DEALING, USAGE,
OR TRADE PRACTICE.
THE SOFTWARE LICENSE AND LIMITED WARRANTY FOR THE
ACCOMPANYING PRODUCT ARE SET FORTH IN THE INFORMATION
PACKET THAT SHIPPED WITH THE PRODUCT AND ARE INCORPORATED
HEREIN BY THIS REFERENCE. IF YOU ARE UNABLE TO LOCATE THE
SOFTWARE LICENSE OR LIMITED WARRANTY, CONTACT YOUR ICI
REPRESENTATIVE FOR A COPY.
IN NO EVENT SHALL ICI BE LIABLE FOR ANY INDIRECT, SPECIAL,
CONSEQUENTIAL, OR INCIDENTAL DAMAGES, INCLUDING, WITHOUT
LIMITATION, LOST PROFITS OR LOSS OR DAMAGE TO DATA ARISING
OUT OF THE USE OR INABILITY TO USE THIS MANUAL, EVEN IF ICI HAS
BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES.
3
Package Includes
ENSURE ALL SYSTEM EQUIPMENT AND COMPONENT ITEMS ARE
PRESENT BEFORE BEGINNING INSTALLATION
APEX 200 Ethernet Cable POE Ethernet Cable
ST2.2 Screws x8
PoE Injector Power Adapter
Alignment GuidesM2 Screws x8
4
Option 1: Rear Housing Installation
A. B.
Place the rear facing
alignment guide on the
mounting position and drill
according to the markers
on the alignment guide.
Mount the device with four
M2 screws.
USE THE ALIGNMENT GUIDES TO DRILL HOLES FOR SETTING
DEVICE SCREWS.
THE THERMAL DEVICE WILL ACCUMULATE HEAT DURING
OPERATION. ICI RECOMMENDS MOUNTING THE THERMAL
DEVICE TO METALLIC OBJECTS AT ITS REAR HOUSING WHICH
CAN REDUCE DEVICE HEATING AS WELL AS DECREASE THE
TEMPERATURE DRIFT OF THE DETECTOR.
DO NOT USE TOO LONG SCREWS WHEN INSTALLING THE FRONT/
REAR MOUNTING BRACKET.USING SCREWS THAT ARE TOO LONG
MAY DAMAGE THE THERMAL CAMERA.
5
C.
E.
D.
F.
Align the 8-pin connector of
the POE Ethernet cable to the
8-pin receptor on the device;
then, plug in the cable.
Rotate the securing nut to the
right to lock cable in place.
Rotate the securing nut to the
left to unlock the cable.
ALIGN THE PINS BEFORE TRYING TO CONNECT THE POE
ETHERNET CABLE. DO NOT FORCE THE POE ETHERNET CABLE
ONTO THE DEVICE. FORCING THE CABLE ONTO THE DEVICE MAY
RESULT IN DAMAGE TO THE PINS.
ALTERNATIVELY, POWER CAN BE PROVIDED THROUGH THE 12-
PIN CONNECTOR VIA A 12-PIN CABLE (NOT PROVIDED).

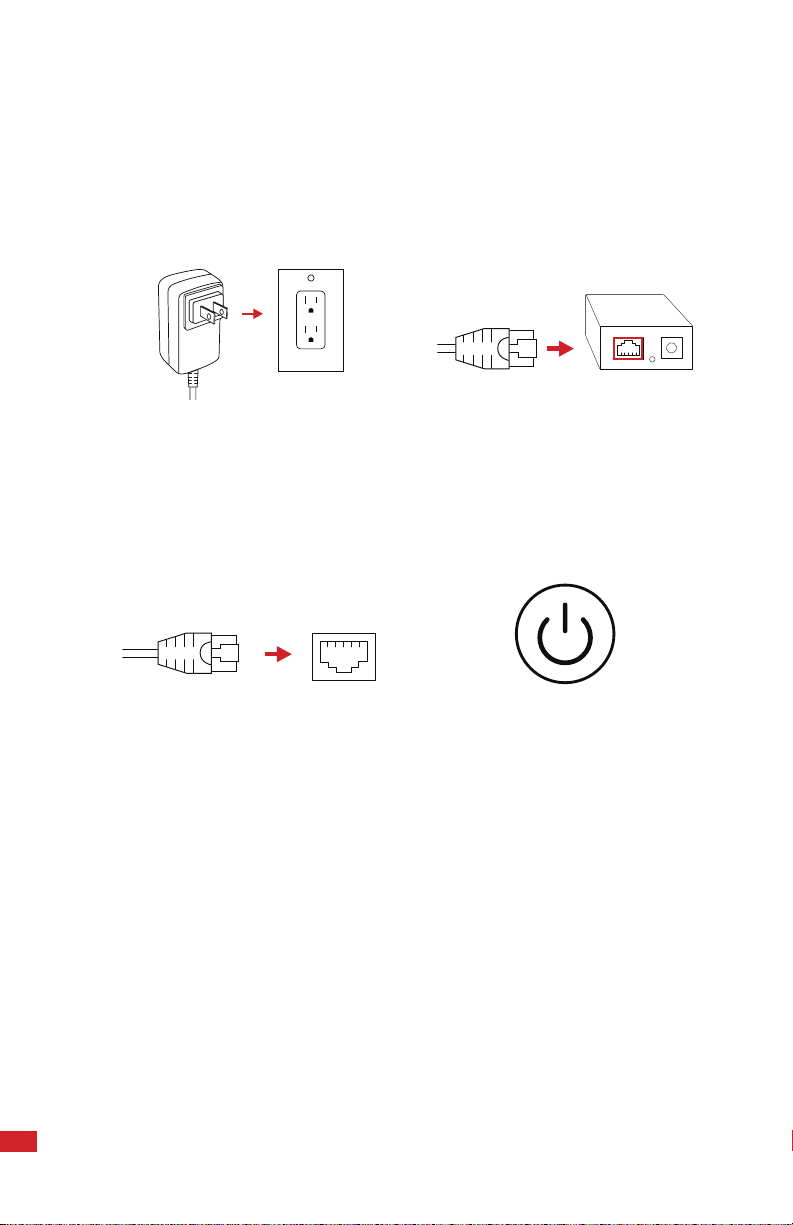

Plug the jack end of the
power adapter into the front
of the PoE injector.
Plug the Ethernet end of the
POE Ethernet cable into the
back of the PoE injector.
6
G.
Plug the power adapter into a
110/120V electrical outlet.
H.
I.
Plug one end of the Ethernet
cable into the front of the PoE
injector.
Plug the other end of the
Ethernet cable into the back
of the network router.
J.
K.
Power on device.
Connect to the device through
an Internet browser.
THE THERMAL IMAGER NEEDS SUFFICIENT WARM-UP TIME
FOR THE MOST ACCURATE TEMPERATURE MEASUREMENTS
AND BEST IMAGE QUALITY. THIS TIME CAN OFTEN VARY BY
ENVIRONMENTAL CONDITIONS. IT IS BEST TO WAIT A MINIMUM
OF 10 MINUTES FOR THE DEVICE TO COMPLETELY WARM-UP.
7
Option 2: Front Housing Installation
A. B.

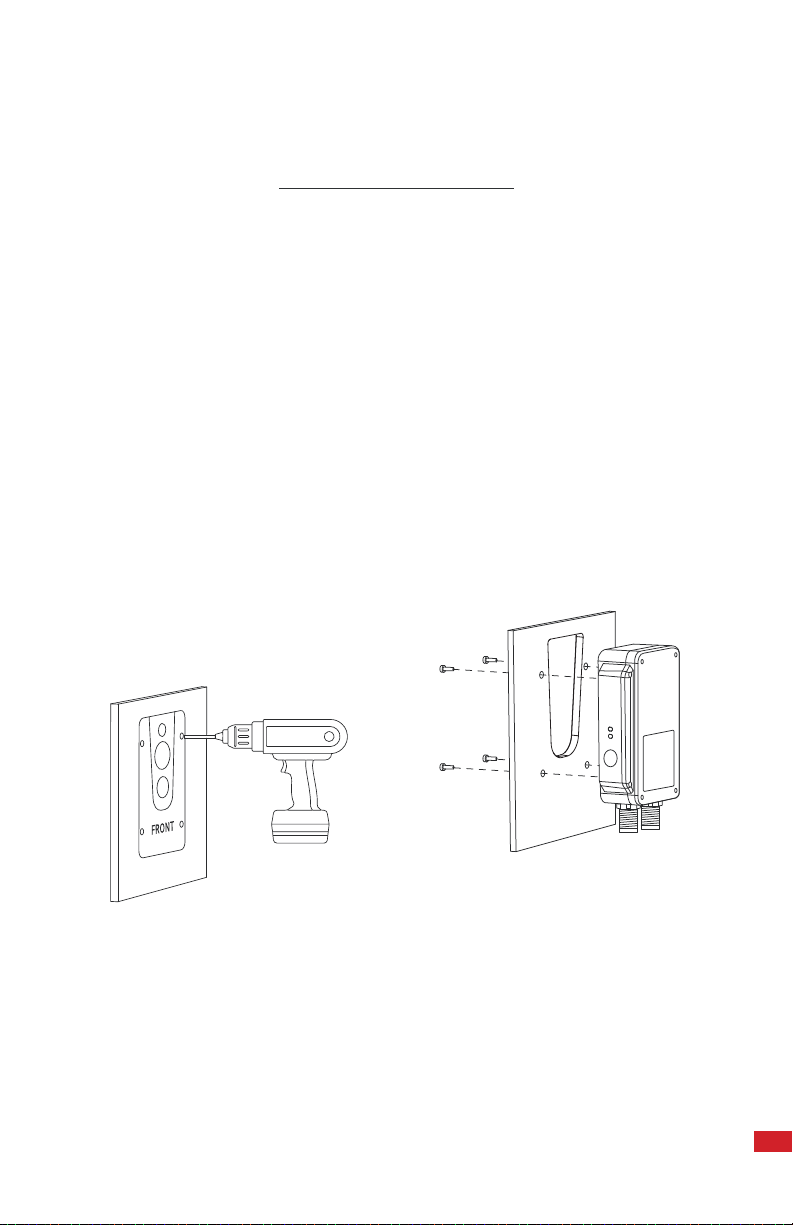

Place the front facing
alignment guide on the
mounting position and drill
according to the markers
on the alignment guide.
Mount the device with four
ST2.2 self-tapping screws.
USE THE ALIGNMENT GUIDES TO DRILL HOLES FOR SETTING
DEVICE SCREWS.
THE THERMAL DEVICE WILL ACCUMULATE HEAT DURING
OPERATION. ICI RECOMMENDS MOUNTING THE THERMAL
DEVICE TO METALLIC OBJECTS AT ITS REAR HOUSING WHICH
CAN REDUCE DEVICE HEATING AS WELL AS DECREASE THE
TEMPERATURE DRIFT OF THE DETECTOR.
DO NOT USE TOO LONG SCREWS WHEN INSTALLING THE FRONT/
REAR MOUNTING BRACKET.USING SCREWS THAT ARE TOO LONG
MAY DAMAGE THE THERMAL CAMERA.
8
C.
E.
D.
F.
Align the 8-pin connector of
the POE Ethernet cable to the
8-pin receptor on the device;
then, plug in the cable.
Rotate the securing nut to the
right to lock cable in place.
Rotate the securing nut to the
left to unlock the cable.
ALIGN THE PINS BEFORE TRYING TO CONNECT THE POE
ETHERNET CABLE. DO NOT FORCE THE POE ETHERNET CABLE
ONTO THE DEVICE. FORCING THE CABLE ONTO THE DEVICE MAY
RESULT IN DAMAGE TO THE PINS.
ALTERNATIVELY, POWER CAN BE PROVIDED THROUGH THE 12-
PIN CONNECTOR VIA A 12-PIN CABLE (NOT PROVIDED).
Plug the jack end of the
power adapter into the front
of the PoE injector.
Plug the Ethernet end of the
POE Ethernet cable into the
back of the PoE injector.
9
G.
Plug the power adapter into a
110/120V electrical outlet.
H.
I.
Plug one end of the Ethernet
cable into the front of the PoE
injector.
Plug the other end of the
Ethernet cable into the back
of the network router.
J.
K.
Power on device.
Connect to the device through
an Internet browser.
THE THERMAL IMAGER NEEDS SUFFICIENT WARM-UP TIME
FOR THE MOST ACCURATE TEMPERATURE MEASUREMENTS
AND BEST IMAGE QUALITY. THIS TIME CAN OFTEN VARY BY
ENVIRONMENTAL CONDITIONS. IT IS BEST TO WAIT A MINIMUM
OF 10 MINUTES FOR THE DEVICE TO COMPLETELY WARM-UP.
