Icidu NI-707547 User manual

MANUAL
NI-707547
Network repeAter
wIreLess 300N
300Mbps

First of all, let us thank you for purchasing the 300N wireless repeater. This wireless repeater
provides a simple way of extending the range of your existing wireless network. It’s ideal if your
wireless signal is limited by obstacles such as concrete walls. This repeater can also be used as
a Wireless Access Point or a Wireless Client Adapter, simply by adjusting the selection button.
- CoNteNts oF tHe pACkAGe
- teCHNICAL speCIFICAtIoNs
- AppLICAtIoNs
- HArdwAre INstALLAtIoN
- MAkING A CoNNeCtIoN
- wps (wI-FI proteCted setUp)
- Led INdICAtIoNs
- resettING tHe devICe
- GUArANtee
eNGLIsH
Network repeAter
wIreLess 300N
300Mbps

CoNteNts oF tHe pACkAGe
Check that all of the required components are present before starting the installation process.
The package should contain:
- 300N wireless repeater
- Manual
- CD with manuals in 13 languages and complete English language manual
Purchase tip: LAN cable
teCHNICAL speCIFICAtIoNs
- Configurable as a wireless repeater, wireless client or access point
- Low power consumption, 1.8W
- 802.11n wireless protocol
- Compatible with IEEE802.11g and IEE802.11b
- Supports WEP, WPA/WPA2, TKIP/AES encryption
- IEEE802.1x authentication
- 300 Mbps data transfer rate
- 2x Internal antennae (2T2R)
- Web-based configuration
- WPS
- On/off switch
- Operating system independent
AppLICAtIoNs
WIRELESS REPEATER
Extends the range of an existing wireless network. In repeater mode, the device will make
contact with an existing network and pass on the information from client to router. Share files
and internet connections at locations beyond the range of the router.
WIRELESS ACCESS POINT
Connect the repeater directly to a modem or router in order to add wireless network
functionality.
WIRELESS CLIENT
Connect network devices such as a PC or the newer generation of DVD players and TVs to an
existing network and use the additional internet functions.

HArdwAre INstALLAtIoN
Switch the device to the desired functionality:
AP – operates as a Wireless Access Point
Repeater – operates as a wireless repeater
Client - operates as a wireless network client
Connect the wireless repeater to the mains and switch it on using the on/off button.

MAkING A CoNNeCtIoN
WEB INTERFACE
We recommend logging in via the web interface in order to make use of the extended
configurations for the repeater. Connect the repeater to a PC or notebook using a LAN cable.
Make sure the computer is set to receive IP. (Automatically receive an IP address from a DHCP
server)

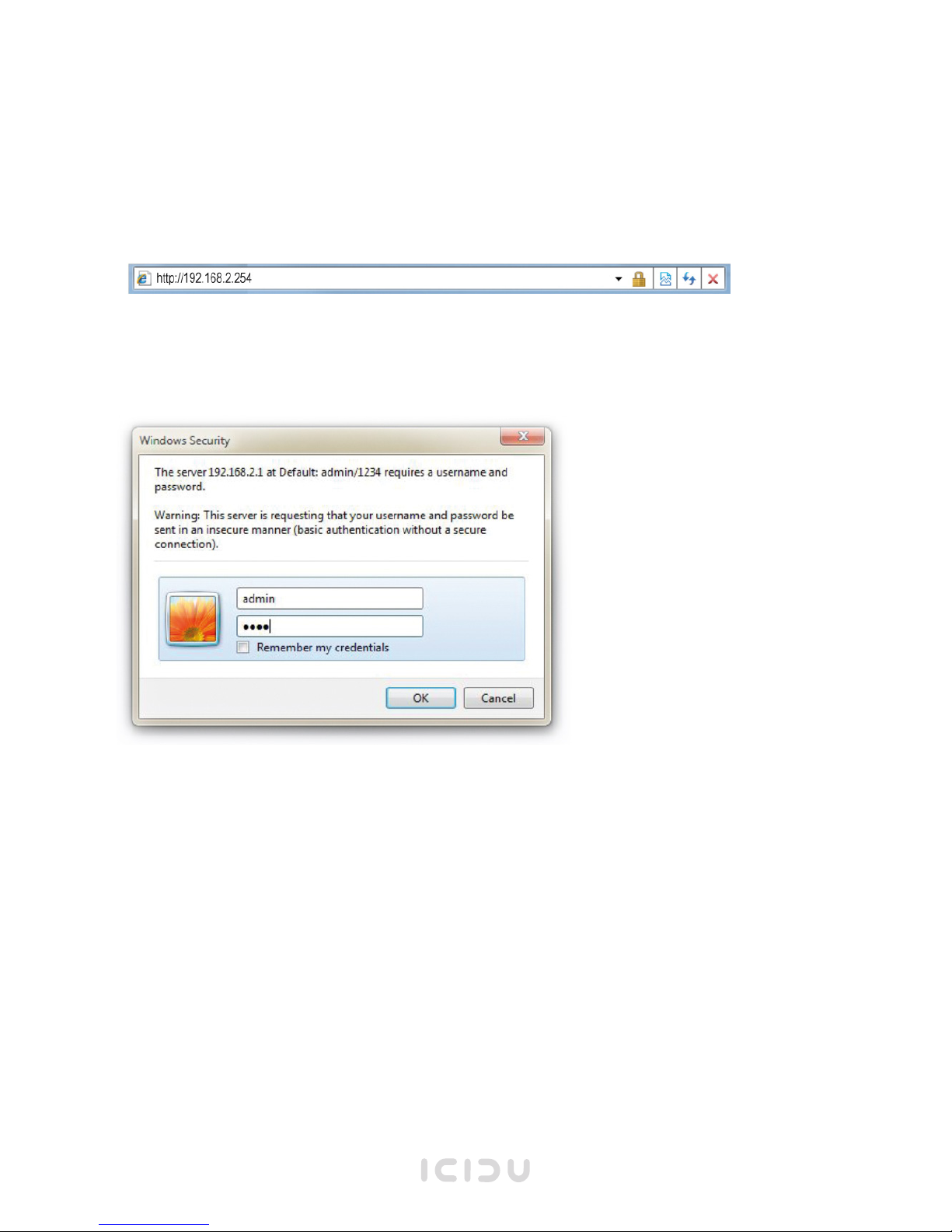

Open a web browser and type in ‘http://repeater’ or ‘192.168.2.254’ in the address box.
The repeater will ask for a user name and password.
User: admin
Password: 1234
When you click on “OK”, you will be taken to the quick setup of the wireless repeater.
Follow the instructions and settings on the screen. The quick setup may vary, depending on the
setting you selected for the wireless repeater.
When the repeater has been set in the desired mode, leave the device on for 5 minutes. The
repeater can then be switched off and plugged into the mains at a different location. The
settings will then remain the same.
For more comprehensive information, please read the complete English manual on the CD.

wps (wI-FI proteCted setUp)
Use the WPS button to connect to a wireless broadband router or access point.

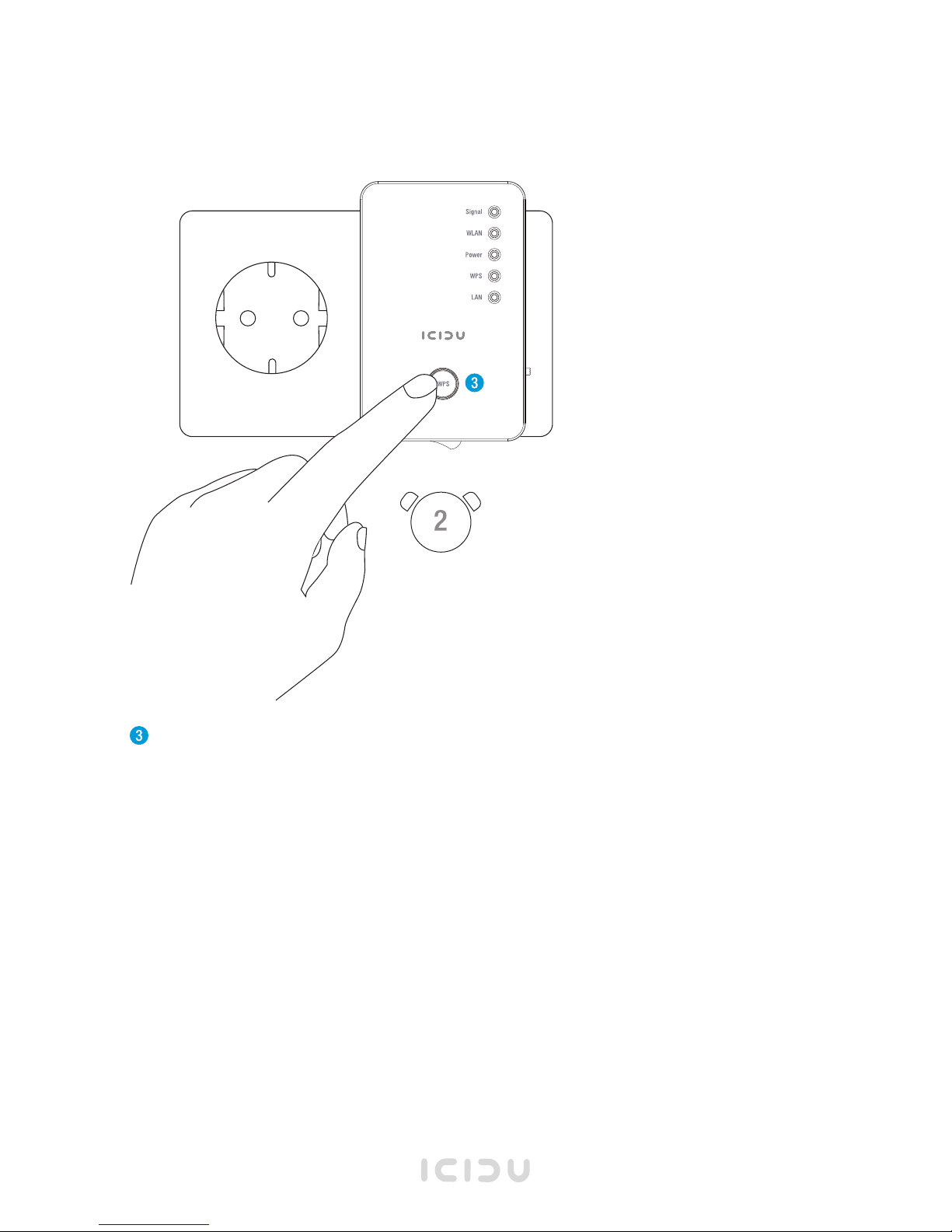

1) Press and hold the WPS button on the repeater for 2 seconds.
2) The ‘WPS’ LED starts to flash.
3) Press the WPS button on the router or access point to which you want to connect, within 2
minutes.
When the repeater has been set in the desired mode, leave the device on for 5 minutes.
The repeater can then be switched off and plugged into the mains at a different location.
The settings will then remain the same.
1

Led INdICAtIoNs
Signal
WLAN
Power
WPS
LAN
LED Colour LED status Description
Amber Constant Receiving a good signal ( strength 100%~50%)
Flashing Normal signal
Flashing slowly (50%~25%)
Poor signal
Flashing rapidly (<25%)
Off Out of range, not connected or LED off mode.
Green Flashing Connecting to a wireless router or access point,
wireless function is active. (sending or receiving data)
Off Wireless network is disabled or LED off mode.
Green Constant Equipment is switched on
In LED mode, only the Power LED will be on
Flashing Ready for “reset to factory settings”
Off Equipment is switched off
Green Constant When the WPS connection is successful, leave the
appliance on for 5 minutes.
Flashing WPS in use or waiting for another WPS appliance.
Off No WPS in use or LED off mode.
Green Constant LAN port is connected.
Flashing LAN port is active (data being exchanged).
Off LAN port not connected or LED off mode.

resettING tHe devICe
The wireless repeater can easily be reset to the factory settings.
To do this, press and hold the WPS button for 10 seconds. This will then restore the factory
settings.

Ce MArk wArNING
This is a class B product. In a domestic environment, this product may cause radio interference,
in which case the user may be required to take adequate measures.
NATIONAL RESTRICTIONS
This device is intended for home and office use in all EU countries (and other countries following
the EU directive 1999/5/EC) without any limitation except for the countries mentioned below:
COUNTRY RESTRICTION REASON/REMARK
Bulgaria None General authorization required for
outdoor use and public service
France Outdoor use limited to 10 Military Radiolocation use.
mW e.i.r.p. within the band Refarming of the 2.4 GHz band has
2454-2483.5 MHz been ongoing in recent years to
allow current relaxed regulation.
Full implementation planned 2012
Italy None If used outside of own premises,
general authorization is required
Luxembourg None General authorization required for
network and service supply(not for
spectrum)
Norway Implemented This subsection does not apply for
the geographical area within a
radius of 20 km from the centre of
Ny-Ålesund
Russian Federation None Only for indoor applications
Please don’t use the product outdoors in France
S’il vous plaît ne pas utiliser le produit à l’extérieur en France.

FCC stAteMeNt
This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is no guarantee that
interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/ TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions:
1) This device may not cause harmful interference.
2) This device must accept any interference received, including
interference that may cause undesired operation.
Any changes or modifications not expressly approved by the party responsible for compliance
could void the user’s authority to operate the equipment.
FCC rF rAdIAtIoN exposUre stAteMeNt:
This device has been tested for compliance with FCC RF Exposure (SAR) limits in the typical
laptop computer configuration and this device can be used in desktop or laptop computers.
This device cannot be used with handheld PDAs (personal digital assistants). This device and its
antenna must not be co-located or operated in conjunction with any other antenna or transmitter.
SAR measurements are based on a 5mm spacing from the body and that compliance is achieved
at that distance.

GUArANtee
There is a 10 year guarantee period for all items sold under the ICIDU name, unless otherwise
stated. We provide no support or guarantee for bundled software and rechargeable batteries.
The guarantee can only be honoured via the dealer from whom the item in question was
purchased.
Specifications may be altered without notice. All ICIDU products meet current European
standards and legislation on safety and the environment. Visit our website, www.icidu.com, for
further details.
ICIDU is a registered brand name. All other brand names and associated rights are and remain the property
of their lawful owners.
© Copyright 2011 ICIDU
All rights are expressly reserved
