Icom ID-RP4000V User manual

S-14309XZ-C1
Dec. 2006
DIGITAL VOICE REPEATER
id-rp4000v

This service manual describes the latest service information
for the ID-RP4000V DIGITAL VOICE REPEATER at the time
of publication.
NEVER connect the transceiver to an AC outlet or to a DC
power supply that uses more than 15 V. This will ruin the
transceiver.
DO NOT reverse the polarities of the power supply when
connecting the transceiver.
DO NOT apply an RF signal of more than 20 dBm (100 mW) to
the antenna connector. This could damage the transceiver’s
front end.
To upgrade quality, any electrical or mechanical parts and
internal circuits are subject to change without notice or
obligation.
Be sure to include the following four points when ordering
replacement parts:
1. 10-digit order numbers
2. Component part number and name
3. Equipment model name and unit name
4. Quantity required
<SAMPLE ORDER>
1110003491 S.IC TA31136FNG ID-RP4000V MAIN UNIT 5 pieces
8820001210 Screw 2438 screw ID-RP4000V Top cover 10 pieces
Addresses are provided on the inside back cover for your
convenience.
Icom, Icom Inc. and logo are registered trademarks of Icom Incorporated (Japan) in the United States, the United
Kingdom, Germany, France, Spain, Russia and/or other countries.
ORDERING PARTS
1. Make sure a problem is internal before disassembling
the transceiver.
2. DO NOT open the transceiver until the transceiver is
disconnected from its power source.
3. DO NOT force any of the variable components. Turn
them slowly and smoothly.
4. DO NOT short any circuits or electronic parts. An
insulated tuning tool MUST be used for all adjustments.
5. DO NOT keep power ON for a long time when the
transceiver is defective.
6. DO NOT transmit power into a signal generator or a
sweep generator.
7. ALWAYS connect a 50 dB to 60 dB attenuator between
the transceiver and a deviation meter or spectrum
analyzer when using such test equipment.
8. READ the instructions of test equipment thoroughly
before connecting equipment to the transceiver.
REPAIR NOTES
INTRODUCTION CAUTION

TABLE OF CONTENTS
SECTION 1 SPECIFICATIONS
SECTION 2 INSIDE VIEWS
SECTION 3 DISASSEMBLY INSTRUCTIONS
SECTION 4 PARTS LIST
SECTION 5 MECHANICAL PARTS
SECTION 6 SEMICONDUCTOR INFORMATION
SECTION 7 BOARD LAYOUTS
SECTION 8 BLOCK DIAGRAM
SECTION 9 VOLTAGE DIAGRAM

1 - 1
SECTION 1 SPECIFICATIONS
¤GENERAL
• Operating frequency range : Transmit 440–450 MHz
Receive 440–450 MHz
• Type of emission : F1D* (GMSK)
*F7W for system operation
• Transfer rate : 4.8 kbps
• Frequency resolutions : 5, 6.25 kHz
• Frequency stability : ±0.8 kHz (based on 25˚C)
• Usable temperature range : –10˚C to +50˚C; +14˚F to +122˚F
• Antenna connectors : Type-N (50 Ω)×2
• Power supply requirement : 13.8 V DC ±15% (Negative ground)
• Current drain : Transmit (High) Less than 7.0 A
(Low) Less than 3.0 A
Receive (Stand-by) Less than 0.7 A
• Dimensions (proj. not included) : 483(W)×88(H)×428(D) mm; 19(W)×315⁄32(H)×1627⁄32(D) in
• Weight (Approx.) : 7.5 kg; 16 lb 9 oz
¤TRANSMITTER
• Output power (at 13.8 V DC) : High 23–30 W
Low 2.0–3.0 W
• Modulation : GMSK
• Modulation system : Quadrature modulation (244.8 MHz)
• Occupied bandwidth : Less than 5.5 kHz
• Spurious emissions : Less than –60 dB
¤RECEIVER
• Receive system : Double-conversion superheterodyne system
• Intermediate frequencies : 1st 70.0 MHz
2nd 450 kHz
• Sensitivity (BER 1×10–2) : Less than –7 dBµ (0.45 µV)
• Selectivity (20 kHz offset) : More than 65 dB
• Spurious and image rejection : More than 70 dB
• Receive spurious : Less than 2 nW (–57 dBm)
All stated specifications are subject to change without notice or obligation.

SECTION 2 INSIDE VIEWS
2 - 1
REAR UNIT
REAR UNIT
FRONT UNIT
FRONT UNIT
CHASSIS UNIT
CHASSIS UNIT
REAR UNIT
FRONT UNIT
TX UNIT CHASSIS UNIT
CHASSIS UNIT
RX UNIT

2 - 1
RX RF amplifier
RX RF amplifier
(Q1: NE34018)
(Q1: NE34018)
1st VCO circuit
1st VCO circuit
RX 2nd mixer
RX 2nd mixer
(Q131: 3SK241)
(Q131: 3SK241)
2nd VCO circuit
2nd VCO circuit
RX 1st mixer
(IC71: µPC2721GV)
RX RF amplifier
(Q1: NE34018)
1st VCO circuit
RX 2nd mixer
(Q131: 3SK241)
2nd VCO circuit
Demodulator
(IC191: TA3116FNG)

2 - 1
Power switch circuit
Power switch circuit
Power amplifier
(IC1162: RA18H1213G1)
Fan drive circuit
Fan drive circuit
Fan drive circuit
Q1250: 2SB798
Q1251: 2SC4081
D1750: MA8082
APC amplifier*
(IC1250: TA75S01F)
TX mixer*
(IC960: µPC8163TB-E3)
TX RF amplifier
(IC1021: µPC1678G)
1st VCO circuit
2nd VCO circuit
Quadrature modulator*
(IC890: RF2485)

3 - 1

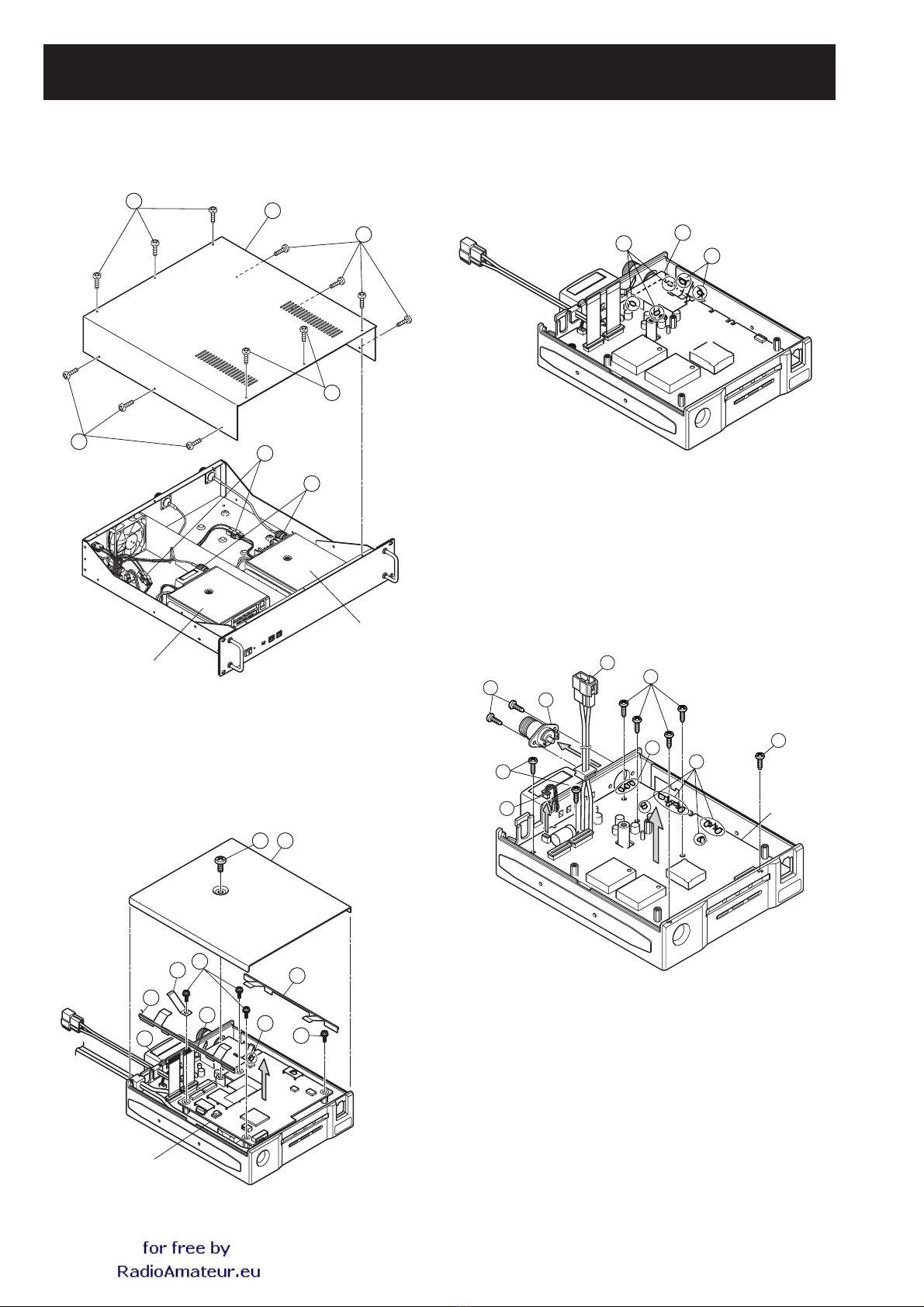

SECTION 3 DISASSEMBLY INSTRUCTION
• REMOVING THE COVER
1Unscrew 12 screws A, and remove the cover B.
2Disconnect 2 cables C, and disconnect 2 cables D.
TX unit
RX unit
A
A
AD
C
A
B
BC
A
LOGIC-T/R unit
A B
C
F
G
C
E
D
F
D
•REMOVING THE MAIN-T/R UNIT
1 Unsolder 2 points A. (MAIN-T unit only)
2 Unsolder 3 points B, and remove the ANT plate C.
•REMOVING THE LOGIC-T/R UNIT
1 Unscrew 1 screw A, and remove the cover B.
2 Remove 2 main shield plates C.
3 Disconnect 2 cables D, and unsolder 1 point E.
4 Unscrew 4 screws F, and remove the earth spring G.
5 Take off the LOGIC-T/R unit.
3 Unsolder 8 points D. (MAIN-T unit only)
4 Unsolder 3 points E.
5 Unscrew 2 screws F, and remove the ANT connector G.
6 Take off the cable Hfrom the chassis.
7 Disconnect the cable I. (MAIN-T unit only)
8 Unscrew 7 screws J, and take off the MAIN-T/R unit.
MAIN-T/R unit
H
E
J
D
J
J
F
G
I

4 - 1
SECTION 4 PARTS LIST
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[LOGIC-R UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
IC5 1180002391 S.REG S-812C33AMC-C2N-G T 49.9/4.1
IC6 1180001071 S.IC TA7805F (TE16L,Q) T 27.5/9.8
IC7 1110005440 S.IC NJM2374AM-TE1 T 4.7/13.3
IC9 1130010630 S.IC SN74AHCT541PWR T 96.4/30.8
IC10 1130007301 S.IC TC4W66FU (TE12L,F) B 19/21.5
IC11 1180002391 S.REG S-812C33AMC-C2N-G T 19.1/18
IC12 1190001340 S.IC M62334FP 600C T 49.2/57
IC13 1130006891 S.IC TC7S04FU (TE85R,F) T 29.7/26
IC14 1110005430 S.IC CMX589AD5 T 19.4/29.5
IC15 1110002861 S.IC TA75S393F (TE85R,F) B 08.5/40.1
IC16 1130007111 S.IC TC7W04FU (TE12L,F) B 68.8/29
IC17 1140008650 S.IC HN58X2464TI T 4.6/25.8
IC18 1130008361 S.IC TC7SHU04FU (TE85L,JF) T 7.2/45.6
IC19 1130008361 S.IC TC7SHU04FU (TE85L,JF) B 10.4/47.3
IC20 1190001340 S.IC M62334FP 600C T 49.2/44.2
IC21 1120002870 S.IC XCS20XL-4TQ144I T 27.3/51.6
IC22 1130007281 S.IC TC7S32FU (TE85R,F) B 68.9/41.2
IC23 1110005731 S.IC S-80928CNMC-G8Y-G B 90/51.6
IC24 1130008361 S.IC TC7SHU04FU (TE85L,JF) T 7/58.3
IC25 1130008361 S.IC TC7SHU04FU (TE85L,JF) B 8.2/60.2
IC26 1140010091 S.IC PD70F3102AGJ-33-8EU-A T 73.5/48.6
IC27 1130007281 S.IC TC7S32FU (TE85R,F) B 54.1/27.3
IC28 1130012051 S.IC FT232BL T 53.8/24.4
IC29 1130009570 S.IC BR93LC46F-WE2 T 66.8/23
IC33 1120002960 S.IC TC74AC541FT (EL) T 76.8/73
IC36 1120002830 S.IC NJM2125F-TE1 T 65.5/73.2
Q1 1590000430 S.TR DTC144EUA T106 T 39.1/16.4
Q2 1520000201 S.TR 2SB798-T2-AZ DK T 34.5/20.2
Q4 1590001400 S.TR XP1214 (TX) B 20.7/24.6
Q5 1590001400 S.TR XP1214 (TX) B 27.2/23
Q6 1590003500 S.TR DTC114YE TL B 45.2/9.2
Q7 1590000430 S.TR DTC144EUA T106 B 20.9/34
Q8 1530002280 S.TR 2SC4081 T106 S T 46/7.5
Q9 1520000201 S.TR 2SB798-T2-AZ DK B 71.3/14.5
Q10 1590000430 S.TR DTC144EUA T106 T 34/32
Q11 1590000430 S.TR DTC144EUA T106 B 11.2/35.7
Q12 1590000440 S.TR DTA143ZUA T106 B 93.7/38.5
Q13 1590003500 S.TR DTC114YE TL B 06.2/35.5
Q14 1590000430 S.TR DTC144EUA T106 B 58/22.5
D2 1790000671 S.DIO SB07-03C-TB-E T 10.8/6.9
D3 1750000550 S.DIO 1SS355 TE-17 T 43.4/9.4
D4 1790000671 S.DIO SB07-03C-TB-E T 15.7/17.6
D5 1790000671 S.DIO SB07-03C-TB-E T 41.9/13.3
D6 1750000550 S.DIO 1SS355 TE-17 B 11.4/40.1
D7 1730002280 S.ZEN MA8091-M (TX) B 110.1/47
D8 1730002280 S.ZEN MA8091-M (TX) T 110.8/36.1
D9 1750000841 S.VCP 1SV324 (TPH3,F) T 8.9/42
D11 1750000550 S.DIO 1SS355 TE-17 B 01.8/40.6
D12 1750000550 S.DIO 1SS355 TE-17 B 97.9/42.4
D13 1750000550 S.DIO 1SS355 TE-17 B 97.9/40.6
D15 1750000841 S.VCP 1SV324 (TPH3,F) T 9.1/61.6
D16 1790001240 S.DIO MA2S728-(TX) T 59.1/44.3
D17 1790001240 S.DIO MA2S728-(TX) T 58.9/46.8
X1 6050011240 S.XTL CR-708 (16.384 MHz) T 3.7/45.9
X2 6050011290 S.XTL CR-715 (6 MHz) T 79.8/30.1
X3 6050011700 S.XTL CR-760 (9.8304 MHz) T 3.7/58.4
X4 6050011290 S.XTL CR-715 (6 MHz) T 43.5/25.1
L1 6200003590 S.COL EXCCL3225U1 B 92.1/13
L2 6200003590 S.COL EXCCL3225U1 B 05.7/10.3
L3 6200003590 S.COL EXCCL3225U1 T 3.7/22.4
L4 6190001561 S.COL CDRH5D18NP-101NC T 10.7/18.5
L5 6190001561 S.COL CDRH5D18NP-101NC T 10.7/11.5
L6 6200002041 S.COL NLV25T-101J B 16.6/34.4
L7 6200005741 S.COL ELJRE 47NGFA B 3.6/31.7
L8 6200005741 S.COL ELJRE 47NGFA B 69.7/34.8
L9 6200005741 S.COL ELJRE 47NGFA B 105.5/44
L10 6200005741 S.COL ELJRE 47NGFA B 69.7/36.9
L11 6200005741 S.COL ELJRE 47NGFA B 55.7/37.5
L12 6200006991 S.COL ELJRE 56NGFA B 52.6/23.2
L15 6200002041 S.COL NLV25T-101J T 61.4/25.4
L16 6200005741 S.COL ELJRE 47NGFA T 61.5/23.5
R1 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 91.2/16.2
R3 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 96.8/13.7
R4 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 98.3/13.7
R5 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 99.8/13.7
S.=Surface mount
[LOGIC-R UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R7 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 02.8/13.7
R8 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 04.3/13.7
R10 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 07.3/13.7
R13 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 09.1/13.7
R14 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 80/13.7
R15 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 81.3/13.7
R16 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 82.6/13.7
R17 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 84/13.7
R21 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 86.2/17.5
R22 7030003590 S.RES ERJ3GEYJ 183 V (18 k) T 87.9/21
R23 7030003590 S.RES ERJ3GEYJ 183 V (18 k) T 86.2/21
R29 7030000420 S.RES MCR10EZHJ 2.2 k T 36.6/13.8
R30 7030000420 S.RES MCR10EZHJ 2.2 k T 36.6/11.9
R31 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 34.5/16.3
R32 7030000180 S.RES MCR10EZHJ 22 (220) T 33.2/13.8
R33 7030000180 S.RES MCR10EZHJ 22 (220) T 33.2/11.9
R34 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 94.3/18.4
R38 7030003510 S.RES ERJ3GEYJ 392 V (3.9 k) B 108/17.2
R40 7030003470 S.RES ERJ3GEYJ 182 V (1.8 k) T 83.4/15.9
R41 7030003590 S.RES ERJ3GEYJ 183 V (18 k) B 86.5/14.5
R51 7030003600 S.RES ERJ3GEYJ 223 V (22 k) T 5.3/18.9
R52 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) T 4/18.9
R53 7030000020 S.RES MCR10EZHJ 1 (010) B 4.3/10
R60 7030003530 S.RES ERJ3GEYJ 562 V (5.6 k) T 6.6/18.9
R61 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 48/9.7
R62 7030003470 S.RES ERJ3GEYJ 182 V (1.8 k) B 43.2/8.2
R63 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 29.7/23.8
R64 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 19.1/31.7
R65 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 19.1/30.5
R66 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 19.1/29.3
R67 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 19.1/28.1
R68 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 19.1/26.9
R69 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 25.4/25.1
R70 7030003620 S.RES ERJ3GEYJ 333 V (33 k) T 32/27.2
R71 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 31.4/29.6
R72 7030003750 S.RES ERJ3GEYJ 394 V (390 k) B 17.1/25.6
R73 7030009340 S.RES ERJ3GEYJ 275V (2.7 M) B 13.8/22.7
R90 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 45.2/10.7
R91 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 109.8/44
R94 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 14.2/23.3
R115 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 04.6/37.6
R116 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 104.6/39
R117 7030003500 S.RES ERJ3GEYJ 332 V (3.3 k) B 08.1/37.5
R126 7030003600 S.RES ERJ3GEYJ 223 V (22 k) B 09.2/34.5
R127 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 94.5/36.2
R128 7030003490 S.RES ERJ3GEYJ 272 V (2.7 k) B 04.5/34.2
R129 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 05.5/45.5
R130 7030003370 S.RES ERJ3GEYJ 271 V (270 ) T 7.2/50.1
R131 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 7.2/48.7
R132 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 10.5/50.8
R133 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 22.3/37.6
R134 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 66.3/41.2
R135 7030003570 S.RES ERJ3GEYJ 123 V (12 k) B 02.4/38.3
R136 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 00.9/38.3
R137 7030003570 S.RES ERJ3GEYJ 123 V (12 k) T 9.5/25.9
R138 7030003570 S.RES ERJ3GEYJ 123 V (12 k) T 5.2/28.9
R139 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 90.7/48.2
R140 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 9.1/49.4
R141 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 9.1/45.4
R142 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 13.2/44
R143 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 10.4/42.5
R145 7030003620 S.RES ERJ3GEYJ 333 V (33 k) B 66.2/35.5
R146 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 66.2/34
R148 7030003860 S.RES ERJ3GE JPW V T 68.5/30.1
R149 7030003340 S.RES ERJ3GEYJ 151 V (150 ) B 72.8/36.9
R150 7030003360 S.RES ERJ3GEYJ 221 V (220 ) B 92.2/48.2
R151 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 9.1/54.4
R152 7030003680 S.RES ERJ3GEYJ 104 V (100 k) T 9.1/58.4
R153 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 40.5/51.2
R154 7030003860 S.RES ERJ3GE JPW V T 57/40.9
R155 7030003800 S.RES ERJ3GEYJ 105 V (1 M) T 7/60.7
R156 7030003400 S.RES ERJ3GEYJ 471 V (470 ) T 7/62.2
R157 7030003440 S.RES ERJ3GEYJ 102 V (1 k) T 8.4/63.9
R158 7030003640 S.RES ERJ3GEYJ 473 V (47 k) T 40.8/59.3
R159 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 62.3/47
R160 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 62.5/49.3
R161 7030003510 S.RES ERJ3GEYJ 392 V (3.9 k) B 90/43.8
R162 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 8.2/56.5
R163 7030003320 S.RES ERJ3GEYJ 101 V (100 ) B 11.7/61.2
R164 7030003860 S.RES ERJ3GE JPW V T 37.7/63.5
R165 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) T 39.3/62.6
R167 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 58.8/57.3
R168 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 54.5/57.8
R169 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 54.5/56.4
R170 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 54.5/44.7

4 - 2
M.=Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
[LOGIC-R UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
R171 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 54.5/43.5
R172 7030003340 S.RES ERJ3GEYJ 151 V (150 ) B 56.5/25.9
R173 7030003640 S.RES ERJ3GEYJ 473 V (47 k) B 54/25.3
R174 7030003580 S.RES ERJ3GEYJ 153 V (15 k) B 51/26.5
R175 7030003550 S.RES ERJ3GEYJ 822 V (8.2 k) B 51/28
R176 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) T 53.3/18
R177 7030003400 S.RES ERJ3GEYJ 471 V (470 ) B 55.5/23.2
R178 7030003860 S.RES ERJ3GE JPW V B 52/21
R179 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 66.3/23.5
R180 7030003480 S.RES ERJ3GEYJ 222 V (2.2 k) B 69/23.5
R183 7030003680 S.RES ERJ3GEYJ 104 V (100 k) B 55.8/31.5
R184 7030003460 S.RES ERJ3GEYJ 152 V (1.5 k) T 57.5/16.1
R185 7030003200 S.RES ERJ3GEYJ 100 V (10 ) T 57.5/18.6
R186 7030003200 S.RES ERJ3GEYJ 100 V (10 ) T 57.5/17.4
R187 7030003560 S.RES ERJ3GEYJ 103 V (10 k) T 68.2/73
R188 7030003560 S.RES ERJ3GEYJ 103 V (10 k) B 28.5/35.7
R190 7030003320 S.RES ERJ3GEYJ 101 V (100 ) T 64.5/76
R192 7030003860 S.RES ERJ3GE JPW V T 65.8/30.1
R194 7030003860 S.RES ERJ3GE JPW V T 68.5/32.9
R195 7030003520 S.RES ERJ3GEYJ 472 V (4.7 k) B 51/32.2
R196 7030003440 S.RES ERJ3GEYJ 102 V (1 k) B 52.4/32.9
C1 4030006860 S.CER C1608 JB 1H 102K-T B 91.2/17.5
C3 4030006860 S.CER C1608 JB 1H 102K-T B 99.1/18.4
C4 4030011600 S.CER C1608 JB 1E 104K-T B 99.1/20.2
C5 4030011600 S.CER C1608 JB 1E 104K-T T 90.9/14.3
C6 4030007090 S.CER C1608 CH 1H 470J-T T 109.1/17.5
C13 4030006900 S.CER C1608 JB 1H 103K-T B 94.3/19.7
C15 4030006860 S.CER C1608 JB 1H 102K-T B 06.6/12.5
C16 4030007130 S.CER C1608 CH 1H 101J-T B 06.6/13.8
C19 4030007090 S.CER C1608 CH 1H 470J-T T 07.3/17.5
C21 4030007090 S.CER C1608 CH 1H 470J-T T 04.3/17.5
C22 4030006850 S.CER C1608 JB 1H 471K-T T 02.8/17.5
C24 4030007090 S.CER C1608 CH 1H 470J-T T 98.3/17.4
C25 4030007090 S.CER C1608 CH 1H 470J-T T 96.8/17.4
C26 4030007090 S.CER C1608 CH 1H 470J-T B 86.5/15.9
C27 4030011810 S.CER C1608 JB 1A 224K-T B 86.5/17.3
C28 4030006900 S.CER C1608 JB 1H 103K-T T 62.5/73.5
C29 4030007090 S.CER C1608 CH 1H 470J-T T 34/26.5
C30 4030007090 S.CER C1608 CH 1H 470J-T B 26.7/32.8
C41 4510008490 S.ELE EEE1CS100SR B 24.2/5.6
C42 4030011600 S.CER C1608 JB 1E 104K-T T 47.5/3.4
C43 4510008520 S.ELE EEE1CA470SP B 29.7/5.2
C44 4030011600 S.CER C1608 JB 1E 104K-T T 30.3/16.9
C45 4510008850 S.ELE EEE1CA101P B 10.5/5.9
C47 4030011600 S.CER C1608 JB 1E 104K-T T 95.4/35.7
C48 4030008890 S.CER C1608 JB 1H 273K-T B 29.5/24
C49 4030008890 S.CER C1608 JB 1H 273K-T B 25.1/20.8
C56 4030011600 S.CER C1608 JB 1E 104K-T T 49.7/7
C57 4550006250 S.TAN TEESVA 1A 106M8R T 48.6/10.7
C58 4510007130 S.ELE EEFCD 0J 470R T 16.9/10.6
C59 4030011600 S.CER C1608 JB 1E 104K-T T 27.2/16.4
C60 4510008520 S.ELE EEE1CA470SP B 18.7/5.1
C61 4030006850 S.CER C1608 JB 1H 471K-T T 27.2/17.6
C62 4030011600 S.CER C1608 JB 1E 104K-T T 21.4/15.2
C63 4030006850 S.CER C1608 JB 1H 471K-T T 6.1/7.7
C64 4550006250 S.TAN TEESVA 1A 106M8R T 28.5/19.4
C65 4030011600 S.CER C1608 JB 1E 104K-T T 27.7/21.8
C66 4030007000 S.CER C1608 CH 1H 090D-T T 31.4/30.9
C67 4030006900 S.CER C1608 JB 1H 103K-T T 27.2/24.5
C68 4030011600 S.CER C1608 JB 1E 104K-T T 26.2/27
C69 4030007130 S.CER C1608 CH 1H 101J-T B 25/23
C70 4030012600 S.CER C2012 JB 1A 105M-T B 27/31.2
C71 4030011600 S.CER C1608 JB 1E 104K-T B 26.8/29.6
C72 4030006860 S.CER C1608 JB 1H 102K-T B 12.5/35
C73 4030006860 S.CER C1608 JB 1H 102K-T B 12.5/33.8
C74 4550006050 S.TAN TEESVA 0J 106M8R T 45.7/15.4
C75 4030011600 S.CER C1608 JB 1E 104K-T T 21.5/19.7
C76 4550006730 S.TAN TEESVB2 0J 226M8R T 18.1/22.5
C77 4550006250 S.TAN TEESVA 1A 106M8R T 23.1/16
C78 4550006050 S.TAN TEESVA 0J 106M8R B 68.8/32.3
C80 4550006250 S.TAN TEESVA 1A 106M8R B 13.9/31.8
C81 4030011600 S.CER C1608 JB 1E 104K-T B 14.7/29.9
C82 4030011600 S.CER C1608 JB 1E 104K-T B 14.8/28.4
C84 4030007090 S.CER C1608 CH 1H 470J-T B 09.8/45.3
C85 4030006860 S.CER C1608 JB 1H 102K-T T 12.5/36.4
C86 4030006900 S.CER C1608 JB 1H 103K-T B 58.7/58.9
C87 4030006850 S.CER C1608 JB 1H 471K-T B 63.8/29.9
C88 4030007050 S.CER C1608 CH 1H 220J-T T 7.2/51.4
C89 4030009520 S.CER C1608 CH 1H 020B-T T 6.5/42
C90 4030007040 S.CER C1608 CH 1H 180J-T T 10.3/45.4
C91 4030011600 S.CER C1608 JB 1E 104K-T B 63.8/28.6
C92 4030011600 S.CER C1608 JB 1E 104K-T B 3.6/29.9
C93 4030006900 S.CER C1608 JB 1H 103K-T B 72.8/35.3
C94 4030006900 S.CER C1608 JB 1H 103K-T T 9.8/47.4
C95 4030006900 S.CER C1608 JB 1H 103K-T T 50.1/48
C96 4030011600 S.CER C1608 JB 1E 104K-T B 10.5/45.2
C97 4030006900 S.CER C1608 JB 1H 103K-T B 28.2/41.7
C98 4030006860 S.CER C1608 JB 1H 102K-T B 70.6/43.1
C99 4030008560 S.CER C1608 CH 1H 300J-T T 78.5/34.7
S.=Surface mount
[LOGIC-R UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
C100 4030008560 S.CER C1608 CH 1H 300J-T T 78.5/33.5
C101 4030006900 S.CER C1608 JB 1H 103K-T B 90.3/54.2
C102 4030006900 S.CER C1608 JB 1H 103K-T T 9.8/56.4
C103 4030007080 S.CER C1608 CH 1H 390J-T T 10.4/58.4
C105 4030011600 S.CER C1608 JB 1E 104K-T B 39/41.2
C106 4550006780 S.TAN TEESVB2 0J 476M8R B 40/38.7
C107 4030011600 S.CER C1608 JB 1E 104K-T T 59.6/40.9
C108 4030007090 S.CER C1608 CH 1H 470J-T B 58.7/41.5
C109 4030007040 S.CER C1608 CH 1H 180J-T T 5.5/63.4
C110 4030006900 S.CER C1608 JB 1H 103K-T B 8.2/58
C111 4030011600 S.CER C1608 JB 1E 104K-T B 15.1/63.2
C112 4030011600 S.CER C1608 JB 1E 104K-T T 14.6/53.6
C113 4030006900 S.CER C1608 JB 1H 103K-T T 27.6/65.1
C115 4030007090 S.CER C1608 CH 1H 470J-T B 87.2/49.4
C116 4030007090 S.CER C1608 CH 1H 470J-T T 88.6/53.6
C117 4030011600 S.CER C1608 JB 1E 104K-T T 14.1/41.1
C118 4030011600 S.CER C1608 JB 1E 104K-T B 93.1/65.9
C119 4030007090 S.CER C1608 CH 1H 470J-T B 57.2/27.7
C120 4030008560 S.CER C1608 CH 1H 300J-T T 48.1/24.8
C121 4030008560 S.CER C1608 CH 1H 300J-T T 46.9/24.8
C122 4030007090 S.CER C1608 CH 1H 470J-T B 63.6/64.2
C123 4030007090 S.CER C1608 CH 1H 470J-T B 86.6/55.3
C124 4030011600 S.CER C1608 JB 1E 104K-T B 93.2/64.4
C125 4030007090 S.CER C1608 CH 1H 470J-T B 50.9/25.1
C126 4030011600 S.CER C1608 JB 1E 104K-T B 55.5/22
C127 4030011600 S.CER C1608 JB 1E 104K-T B 63.5/23.5
C131 4030006900 S.CER C1608 JB 1H 103K-T B 53.9/32.9
C132 4550006250 S.TAN TEESVA 1A 106M8R B 58/33.8
C133 4030008900 S.CER C1608 JB 1H 333K-T T 54.3/16.7
C136 4030011600 S.CER C1608 JB 1E 104K-T T 67.4/76
C137 4030007130 S.CER C1608 CH 1H 101J-T T 60.5/22.2
C138 4030007050 S.CER C1608 CH 1H 220J-T B 99.5/12.2
C139 4030007050 S.CER C1608 CH 1H 220J-T B 98/12.2
C140 4030006860 S.CER C1608 JB 1H 102K-T B 55.8/34.3
C141 4550000460 S.TAN TEESVA 1C 105M8R B 95.1/21.5
C142 4550000460 S.TAN TEESVA 1C 105M8R B 102.8/17
C143 4550000460 S.TAN TEESVA 1C 105M8R B 81.4/13
C144 4550000460 S.TAN TEESVA 1C 105M8R T 84.1/21.8
C145 4510007400 S.ELE EEFCD 1C 8R2R T 11.6/2.8
J1 6510022710 S.CNR 30FLZ-SM1-TB T 100.6/5.5
J2 6510022710 S.CNR 30FLZ-SM1-TB T 78.8/5.5
J4 6510019271 S.CNR 52365-0671 T 08.4/40.2
J5 6510021431 S.CNR S8B-ZR-SM4A-TF (LF) (SN) T 95.6/75.4
J6 6510023861 S.CNR S9B-ZR-SM4A-TF (LF) (SN) B 95/5.7
W1 8900013161 CBL OPC-1313A
[LOGIC-T UNIT]
REF ORDER DESCRIPTION M. H/V
NO. NO.
LOCATION
IC1 1110005290 S.IC NJM2115V-TE1 B 28.3/49.1
IC2 1110005290 S.IC NJM2115V-TE1 B 28.1/61.1
IC3 1130007301 S.IC TC4W66FU (TE12L,F) B 103.5/20
IC4 1110005290 S.IC NJM2115V-TE1 B 28.1/71.3
IC5 1180002391 S.REG S-812C33AMC-C2N-G T 49.9/4.1
IC6 1180001071 S.IC TA7805F (TE16L,Q) T 27.5/9.8
IC7 1110005440 S.IC NJM2374AM-TE1 T 4.7/13.3
IC9 1130010630 S.IC SN74AHCT541PWR T 96.4/30.8
IC11 1180002391 S.REG S-812C33AMC-C2N-G T 18.9/18
IC12 1190001340 S.IC M62334FP 600C T 49.2/57
IC15 1110002861 S.IC TA75S393F (TE85R,F) B 08.5/40.1
IC16 1130007111 S.IC TC7W04FU (TE12L,F) B 68.8/29
IC17 1140008650 S.IC HN58X2464TI T 10.3/31.6
IC18 1130008361 S.IC TC7SHU04FU (TE85L,JF) T 7.2/45.6
IC19 1130008361 S.IC TC7SHU04FU (TE85L,JF) B 10.4/47.3
IC20 1190001340 S.IC M62334FP 600C T 49.2/44.1
IC21 1120002870 S.IC XCS20XL-4TQ144I T 27.3/51.6
IC22 1130007281 S.IC TC7S32FU (TE85R,F) B 68.9/41.2
IC23 1110005731 S.IC S-80928CNMC-G8Y-G B 90/51.6
IC24 1130008361 S.IC TC7SHU04FU (TE85L,JF) T 7/58.4
IC25 1130008361 S.IC TC7SHU04FU (TE85L,JF) B 8.2/60.2
IC26 1140010091 S.IC PD70F3102AGJ-33-8EU-A T 73.5/48.6
IC27 1130007281 S.IC TC7S32FU (TE85R,F) B 54.1/27.3
IC28 1130012051 S.IC FT232BL T 53.8/24.4
IC29 1130009570 S.IC BR93LC46F-WE2 T 66.8/23
IC33 1120002960 S.IC TC74AC541FT (EL) T 76.8/73
Q1 1590000430 S.TR DTC144EUA T106 T 39.1/16.4
Q2 1520000201 S.TR 2SB798-T2-AZ DK T 34.5/20.2
Q3 1590000430 S.TR DTC144EUA T106 B 104.2/23.1
Q6 1590003500 S.TR DTC114YE TL B 46.1/15.2
Q8 1530002280 S.TR 2SC4081 T106 S T 46.3/7.5
