Icom IC-A25N User manual

CONTENTS
SPECIFICATIONS ……………………………………………………………… 1-1a
ADJUSTMENT PROCEDURE ……………………………………… 4-1a to 4-6a
PARTS LIST …………………………………………………………… 5-1a to 5-19a
MECHANICAL PARTS ……………………………………………… 6-1a to 6-3a
BOARD L AYOUTS ………………………………………………………7-1a to 7-8a
SERVICE MANUAL
ADDENDUM
March 2019
|A25N/|A25C/|A25NE/|A25CE
NOTE: Use these amended pages as one addendum set.
Do not mix them up with the previous master pages.
Definitions
Replacement page The page to replace the original one.
Addendum page The page to be added to the original set.
Amended page The page to be added as change history, including corrections.
[VERSION LIST]
MODEL VERSION VERSION
NUMBER
VOR/
GPS Bluetooth WX
LOGIC
Unit
MAIN
Unit
LOGIC-1
Unit
MAIN-1
Unit
IC-A25N USA-01 #11 ✔ ✔ ✔ ✔ ✔ ‒ ‒
EXP-01 #12 ✔ ✔ ✔ ✔ ✔ ‒ ‒
IC-A25NE EUR-01 #13 ✔ ✔ ‒ ‒ ‒ ✔ ✔
AUS-01 #14 ✔ ✔ ‒ ‒ ‒ ✔ ✔
IC-A25N USA-02 #16*✔ ✔ ✔ ‒ ‒ ✔ ✔
EXP-02 #17*✔ ✔ ✔ ‒ ‒ ✔ ✔
IC-A25C USA-01 #21 ‒ ‒ ✔ ✔ ✔ ‒ ‒
EXP-01 #22 ‒ ‒ ✔ ✔ ✔ ‒ ‒
IC-A25CE EUR-01 #23 ‒ ‒ ‒ ‒ ‒ ✔ ✔
AUS-01 #24 ‒ ‒ ‒ ‒ ‒ ✔ ✔
IC-A25C EXP-02 #27*‒ ‒ ✔‒ ‒ ✔ ✔
USA-02 #31*‒ ‒ ✔ ✔ ✔ ‒ ‒
IC-A25CE EUR-02 #33*‒ ‒ ‒ ‒ ‒ ✔ ✔
AUS-02 #34*‒ ‒ ‒ ‒ ‒ ✔ ✔
IC-A25C USA-03 #36*‒ ‒ ✔‒ ‒ ✔ ✔
*Newly added versions.
✔Unit installed

(Replacement page)
SECTION 1 SPECIFICATIONS
1-1a
March 2019
IC-A25N IC-A25C IC-A25NE IC-A25CE
GENERAL
Frequency coverage (Unit: MHz) TX 118.000~136.99166
RX 108.000~
136.99166
118.000~
136.99166
108.000~
136.99166
118.000~
136.99166
WX 161.650~163.275 –
Channel spacing 25 kHz/8.33 kHz
Type of emission 6K00A3E/5K60A3E,
16K0G3E (WX) 6K80A3E/5K00A3E
Number of memory channels 300 channels
Usable temperature range –10°C~+60°C, +14°F~+140°F –20°C~+55°C
Frequency stability ±0.4 kHz ±1 ppm
Power supply 7.2 V DC standard or 11.0 V DC at the external DC jack
Current drain (at 7.2 V DC)*1
Transmit Less than 1.8 A
Receive (Maximum AF output) Less than 500 mA
(Standby) 90 mA typical
Antenna connector BNC (50 Ω)
Dimensions (projections not included) 58.9 (W)×148.4 (H)×31.8 (D) mm, 2.3(W)×5.8 (H)×1.3 (D) inches
Weight (approximate) 200 g, 7.1 oz (Without battery pack, battery case, and antenna)
TRANSMITTER
Modulation system Low level modulation
Output power (at 7.2 V DC) PEP 6.0 W
Carrier Wave 1.8 W
Modulation limiting 70~100% –
Modulation depth –85%
Spurious emissions More than 46 dB*2Less than –36 dBm*3
Audio harmonic distortion Less than 10% (at 60% Mod.) Less than 10%
(at 85% Mod. input level +3 dB)
Ham and noise ratio More than 35 dB –
Microphone impedance 150 Ω
RECEIVER
Receive system Double Conversion Superheterodyne
Intermediate frequencies 1st 46.35 MHz
2nd 450 kHz
Sensitivity*4COM Less than 0 dBμ (at 6 dB S/N) Less than 0 dBμ
(at 12 dB SINAD: with CCITT)
VOR Less than 0 dBμ
(at 6 dB S/N) –Less than 0 dBμ (at 6 dB S/N) –
WX Less than –8 dBμ
(at 12 dB SINAD) –
Audio output power More than 350 mW with 60% Mod. at 10% distortion into an 8 Ω load
Adjacent Channel rejection – More than 60 dB
Ham and noise More than 35 dB at 30% Mod. More than 40 dB at 90% Mod.
Spurious response rejection ratio
AM More than 60 dB More than 70 dB
FM (WX) More than 30 dB –
Squelch Sensitivity (threshold) COM/VOR Less than 0 dBμ
WX Less than –5 dBµ –
*1When GPS, Bluetooth, and backlight are OFF.
*2Except ±62.5 kHz from the operating frequency, in the AM mode, and ±20.825 kHz, in the AM narrow mode.
*330 MHz to 1 GHz, except ±1 MHz from the operating frequency.
*4The input signal strength level of this receive sensitivity is measured at the load end (PD).
Measurements made in accordance with FCC Part87 (IC-A25N and IC-A25C), or EN300 676 (IC-A25NE and IC-A25CE).
All stated specifications are typical and subject to change without notice or obligation.
The underlined parts have been updated from the previous version of the addendum, or the original page.

(Replacement page)
4-1a
SECTION 4 ADJUSTMENT PROCEDURE
March 2019
4-1 PREPARATION
■REQUIRED EQUIPMENT
EQUIPMENT SPECIFICATIONS EQUIPMENT SPECIFICATIONS
DC power supply Output voltage: 11 V
Current capacity: 5 A or more Programming software CS-A25 Programming software (Revision 1.0 or later)
Battery pack
BP-288 (Fully charged) Programming cable OPC-478UC
RF power meter
(50 Ω terminated)
Measuring range: 0.1~5 W
Frequency range: 100~300 MHz
SWR: Less than 1.2 : 1
Standard signal
generator (SSG)
Frequency range: 0.1~300 MHz
Output level: −20 dBμ to 90 dBμ
(−127 to −17 dBm)
Frequency counter Frequency range: 0.1~300 MHz
Frequency accuracy: ±1 ppm or better Audio generator (AG) Frequency range: 300~3000 Hz Output level: 1~500 mV
Modulation Analyzer Frequency range: 30~300 MHz
Measuring range: 0~100%
JIG cable See the illustration below.
AC millivoltmeter Measuring range: 10 mV to 10 V
Attenuator Power attenuation: 30~40 dB
Capacity: More than 10 W VOR tester
Frequency range: 108~118 MHz
Output level: −20 dBμ to 90 dBμ
(−127 to −17 dBm)

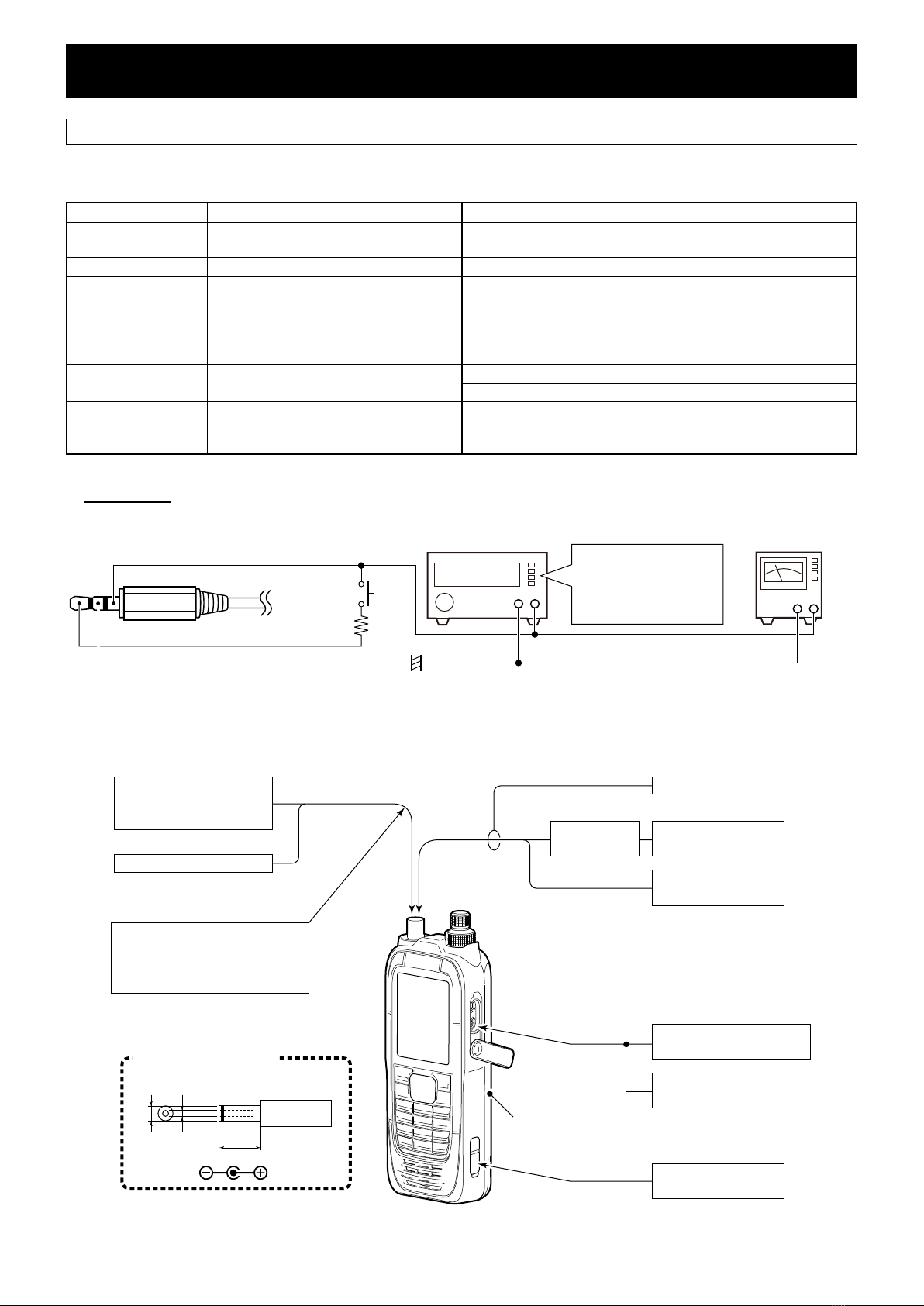

■JIG CABLE
3-conductor 2.5 mm (d) mm plug
(MIC)
(PTT)
(GND)
33 kΩ
+−
AC MILLIVOLTMETER
(10 mV to 10 V)
AUDIO GENERATOR
(300~3000 Hz/1~500 mV)
+−
PTT
SETTING:
Frequency: 1 kHz
Level: 200/20 mV
Waveform: Sine wave
4.7 µF
+
■CONNECTIONS
Standard signal generator
−20 dBμ to 90 dBμ
(−127 dBm to −17 dBm)
RF power meter
0.1~5 W
Frequency counter
AC millivoltmeter
10 mV to 10 V
VOR Tester
CAUTION!
DO NOT transmit while the SSG
or VOR tester is connected to the
antenna connector.
Battery pack
(Fully charged BP-288)
To [MIC]
Loose
coupling
To [DC 11V]
Modulation Analyzer
0~100%
Attenuator
30~40 dB
DC power supply
11 V/5 A or more
Audio generator
300~3000 Hz/1~500 mV
Used DC power plug
(for power supply connection)
Ø3.4
Ø1.35
(Unit: mm)9.5
The underlined parts have been updated from the previous version of the addendum, or the original page.

4-2a
(Replacement page)
March 2019
■ENTERING THE ADJUSTMENT MODE
1. Right click the CS-A25's icon on the desktop and select
the "Properties."
• The CS-A25 properties window appears.
2. Append " /Expert" to the end of the contents of the
Target field, and then click [OK].
• A space is necessary before slash.
Append “ /Expert,”
then click [OK].
3. Boot up the programming software, CS-A25.
4. Connect the transceiver and the PC using with the
OPC-478UC, and then turn the power ON.
5. Read the transceiver data into the PC.
6. Save the cloning data of the transceiver with the
programming software.
7. Set "Adjust Mode" in the "EXPERT" to "Enable."
Click
Select “Enable”
8. Write the data to the transceiver.
9. Turn the power OFF, and then disconnect the OPC-
478UC from the transceiver.
10. While holding down [F] and [CLR], turn ON the power.
• Enters to the adjustment mode.
While holding down
Turn the power ON
■ADJUSTMENT MODE SCREEN
Adjustment frequency
Adjustment item name
Adjustment item number
The underlined parts have been updated from the previous version of the addendum, or the original page.

4-3a
(Replacement page)
March 2019
■KEY ASSIGNMENTS FOR THE ADJUSTMENT
MODE
• Push [ ▲ ] to select the next adjustment item, push [ ▼ ] to
select the previous adjustment item.
• Rotate [DIAL] to set or modify the adjustment value.
• Push [ENT] to store the adjusted value, and select the
next adjustment item.
[ ▲ ]
[DIAL]
[
▼ ]
[ENT]
■WRITE THE CLONING DATA
After adjusting, write back save the cloning data.
The underlined parts have been updated from the previous version of the addendum, or the original page.

4-4a
(Replacement page)
March 2019
ADJUSTMENT
ADJUSTMENT
ITEM TRANSCEIVER'S
CONDITION OPER ATION VALUE
NO. NAME
REFERENCE
FREQUENCY
1000 REF • Frequency: 136.975 MHz
• Transmitting
• Connect the RF power meter to the
antenna connector.
• Loosely couple the frequency
counter to the antenna connector.
136.975 MHz
(±100 Hz)
TX OUTPUT
POWER
1013 BATT
PL
• Frequency: 118.000 MHz
• Transmitting
• Attach the fully charged battery
pack.
• Connect the RF power meter to the
antenna connector.
• No audio applied to [MIC].
1.8 W
(at 7.2 V) 2014 BATT
PM
• Frequency: 127.500 MHz
• Transmitting
3015 BATT
PH
• Frequency: 136.975 MHz
• Transmitting
TX OUTPUT
POWER
1016 EXT PL • Frequency: 118.000 MHz
• Transmitting
• Detach the battery pack.
• Connect the DC power supply to
[DC 11 V].
• While transmitting, adjust the power
supply voltage to 11.0 V.
• No audio applied to [MIC].
1.8 W
(at 11.0 V) 2017 EXT PM • Frequency: 127.500 MHz
• Transmitting
3018 EXT PH • Frequency: 136.975 MHz
• Transmitting
MODULATION
(at 7.2 V)
1019 BATT
25MML
• Frequency: 118.000 MHz
• Transmitting
• Disconnect the DC power supply.
• Attach the fully charged battery
pack.
• Connect the modulation analyzer to
the antenna connector, through the
attenuator, and set it to:
HPF: OFF
LPF: 20 kHz
De-emphasis: OFF
Detector: (P−P)/2
• Connect the audio generator to
[MIC], and set it to:
Frequency: 1 kHz
Level: 200 mV rms
Waveform: Sine wave
90% (±2%)
2020 BATT
25MMM
• Frequency: 127.500 MHz
• Transmitting
3021 BATT
25MMH
• Frequency: 136.975 MHz
• Transmitting
4022 BATT
8MML
• Frequency: 118.005 MHz
• Transmitting
USA, EXP:
80% (±2%)
EUR, AUS:
90% (±2%)
5023 BATT
8MMM
• Frequency: 127.505 MHz
• Transmitting
6024 BATT
MMH
• Frequency: 136.980 MHz
• Transmitting
7031 BATT
25NML
• Frequency: 118.000 MHz
• Transmitting
Set the audio generator to:
Level: 20 mV rms
30% (±5%)
8032 BATT
25NMM
• Frequency: 127.500 MHz
• Transmitting
9033 BATT
25NMH
• Frequency: 136.975 MHz
• Transmitting
10 034 BATT
8NML
• Frequency: 118.005 MHz
• Transmitting
11 035 BATT
8NMM
• Frequency: 127.505 MHz
• Transmitting
12 036 BATT
8NMH
• Frequency: 136.980 MHz
• Transmitting
The underlined parts have been updated from the previous version of the addendum, or the original page.
4-2 FREQUENCY AND TRANSMIT ADJUSTMENTS
1. Select an adjustment item by pushing [ ▲ ]/[ ▼ ].
2. Set or modify the adjustment value as specified by rotating [DIAL], and then push [ENT].

4-5a
(Replacement page)
March 2019
ADJUSTMENT
ADJUSTMENT
ITEM TRANSCEIVER'S
CONDITION OPER ATION VALUE
NO. NAME
MODULATION
(at 11.0 V)
1025 EXT
25MML
• Frequency: 118.000 MHz
• Transmitting
• Detach the battery pack.
• Connect the DC power supply to
[DC 11 V].
• While transmitting, adjust the power
supply voltage to 11.0 V.
• Connect the modulation analyzer to
the antenna connector, through the
attenuator, and set it to:
HPF: OFF
LPF: 20 kHz
De-emphasis: OFF
Detector: (P−P)/2
• Connect the audio generator to
[MIC], and set it to:
Frequency: 1 kHz
Level: 200 mV rms
Waveform: Sine wave
USA, EXP:
87% (±2%)
EUR, AUS:
90% (±2%)
2026 EXT
25MMM
• Frequency: 127.500 MHz
• Transmitting
3027 EXT
25MMH
• Frequency: 136.975 MHz
• Transmitting
4028 EXT
8MML
• Frequency: 118.005 MHz
• Transmitting
USA, EXP:
80% (±2%)
EUR, AUS:
90% (±2%)
5029 EXT
8MMM
• Frequency: 127.505 MHz
• Transmitting
6030 EXT
8MMH
• Frequency: 136.980 MHz
• Transmitting
7037 EXT
25NML
• Frequency: 118.000 MHz
• Transmitting
Set the audio generator to:
Level: 20 mV rms
30% (±5%)
8038 EXT
25NMM
• Frequency: 127.500 MHz
• Transmitting
9039 EXT
25NMH
• Frequency: 136.975 MHz
• Transmitting
10 040 EXT
8NML
• Frequency: 118.005 MHz
• Transmitting
11 041 EXT
8NMM
• Frequency: 127.505 MHz
• Transmitting
12 042 EXT
8NMH
• Frequency: 136.980 MHz
• Transmitting
The underlined parts have been updated from the previous version of the addendum, or the original page.
4-2 FREQUENCY AND TRANSMIT ADJUSTMENTS (CONTINUED)
1. Select an adjustment item by pushing [ ▲ ]/[ ▼ ].
2. Set or modify the adjustment value as specified by rotating [DIAL], and then push [ENT].

4-6a
(Replacement page)
March 2019
4-3 RECEIVE ADJUSTMENTS
1. Select an adjustment item by pushing [ ▲ ]/[ ▼ ].
2. Set or modify the adjustment value as specified by rotating [DIAL], and then push [ENT].
ADJUSTMENT
ADJUSTMENT
ITEM TRANSCEIVER'S
CONDITION OPER ATION VALUE
NO. NAME
RECEIVE
SENSITIVITY
- AM -
1044 BPF1 • Frequency:
IC-A25N: 108.025 MHz
IC-A25C: 118.025 MHz
• Receiving
Connect the SSG to the antenna
connector, and set it to:
Frequency:
IC-A25N: 108.025 MHz
IC-A25C: 118.025 MHz
Modulation: None
Level: +10 dBμ† (−97 dBm)
Push [ENT]
(Automatic
adjustment)
2045 BPF2 • Frequency: 127.500 MHz
• Receiving
Set the SSG to:
Frequency: 127.500 MHz
Level: +5 dBμ† (−102 dBm)
3046 BPF3 • Frequency: 136.975 MHz
• Receiving
Set the SSG to:
Frequency: 136.975 MHz
- FM - 4047 BPF4 • Frequency: 161.650 MHz
• Receiving
Set the SSG to:
Frequency: 161.650 MHz
5048 BPF5 • Frequency: 163.275 MHz
• Receiving
Set the SSG to:
Frequency: 163.275 MHz
SQUELCH
LEVEL
- Wide -
1050 WSO_S • Frequency: 118.025 MHz
• Receiving
Connect the SSG to the antenna
connector, and set it to:
Frequency: 118.025 MHz
Modulation: None
Level: −10 dBμ† (−117 dBm)
Push [ENT]
(Automatic
adjustment)
2051 WSC_S Set the SSG to:
Level: −13 dBμ† (−120 dBm)
3052 WSO_T Set the SSG to:
Level: +13 dBμ† (−94 dBm)
4053 WSC_T Set the SSG to:
Level: +10 dBμ† (−97 dBm)
- Narrow - 5054 NSO_S • Frequency: 118.030 MHz
• Receiving
Set the SSG to:
Level: −10 dBμ† (−117 dBm)
6055 NSC_S Set the SSG to:
Level: −13 dBμ† (−120 dBm)
7056 NSO_T Set the SSG to:
Level: +13 dBμ† (−94 dBm)
8057 NSC_T Set the SSG to:
Level: +10 dBμ† (−97 dBm)
- FM - 9058 SO_S • Frequency: 162.550 MHz
• Receiving
Set the SSG to:
Frequency: 162.550 MHz
Level: −10 dBμ† (−117 dBm)
10 059 SC_S Set the SSG to:
Level: −13 dBμ† (−120 dBm)
11 060 SO_T Set the SSG to:
Level: +13 dBμ† (−94 dBm)
12 061 SC_T Set the SSG to:
Level: +10 dBμ† (−97 dBm)
VOR 0°
(Only for IC-A25N)
1063 VOR0 • Frequency: 108.000 MHz
• Receiving
Connect the VOR tester to the
antenna connector, and set it to:
Frequency: 108.000 MHz
Level: +47 dBμ† (−60 dBm)
Modulation: 30 Hz 30%
9960 Hz 30%
Bearing: 0°
Push [ENT]
(Automatic
adjustment)
2nd LO
FREQUENCY
1066 LO • Frequency: 127.510 MHz
• Receiving
Connect the SSG to the antenna
connector, and set it to:
Frequency: 127.50833 MHz
Modulation: None
Level: +90 dBμ† (−17 dBm)
Push [ENT]
(Automatic
adjustment)
†The output level of the standard signal generator (SSG) is measured at the load end (PD).
The underlined parts have been updated from the previous version of the addendum, or the original page.

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
(Amended page)
REF
NO.
PART
NO. DESCRIPTION M. H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M. H/V
LOCATION
March 2019
5-1a
R65 7030016040 S.RES RMC1/16S-224JTH (220 k) [#11] B 9.2/6.6
7030016040 S.RES RMC1/16S-224JTH (220 k) [#12]
R66 7030016040 S.RES RMC1/16S-224JTH (220 k) [#11] B 9.2/5.7
7030016040 S.RES RMC1/16S-224JTH (220 k) [#12]
R67 7030015970 S.RES RMC1/16S-103JTH (10 k) [#11] B 5.9/10.2
7030015970 S.RES RMC1/16S-103JTH (10 k) [#12]
R68 7030016200 S.RES RMC1/16S-274JTH (270 k) [#11] B 5.9/11.8
7030016200 S.RES RMC1/16S-274JTH (270 k) [#12]
R69 7030016360 S.RES RMC1/16S-123JTH (12 k) [#11] B 2.8/14.3
7030016360 S.RES RMC1/16S-123JTH (12 k) [#12]
R72 7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#11] B 9.9/15.3
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#12]
R73 7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#11] B 21.7/24.9
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#12]
R74 7030016040 S.RES RMC1/16S-224JTH (220 k) [#11] B 21.7/24.0
7030016040 S.RES RMC1/16S-224JTH (220 k) [#12]
R75 7030016110 S.RES RMC1/16S-473JTH (47 k) [#11] B 23.7/24.0
7030016110 S.RES RMC1/16S-473JTH (47 k) [#12]
R76 7030016110 S.RES RMC1/16S-473JTH (47 k) [#11] B 22.7/26.4
7030016110 S.RES RMC1/16S-473JTH (47 k) [#12]
R77 7030016040 S.RES RMC1/16S-224JTH (220 k) [#11] B 24.8/25.0
7030016040 S.RES RMC1/16S-224JTH (220 k) [#12]
R78 7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#11] B 26.5/25.5
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#12]
R79 7030016120 S.RES RMC1/16S-682JTH (6.8 k) [#11] B 24.8/13.4
7030016120 S.RES RMC1/16S-682JTH (6.8 k) [#12]
R80 7030016030 S.RES RMC1/16S-154JTH (150 k) [#11] B 26.0/15.4
7030016030 S.RES RMC1/16S-154JTH (150 k) [#12]
R81 7030016290 S.RES RMC1/16S-222JTH (2.2 k) [#11] B 23.9/15.0
7030016290 S.RES RMC1/16S-222JTH (2.2 k) [#12]
R82 7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#11] B 26.4/13.3
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#12]
R83 7030016040 S.RES RMC1/16S-224JTH (220 k) [#11] B 22.4/15.3
7030016040 S.RES RMC1/16S-224JTH (220 k) [#12]
R84 7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#11] B 16.6/18.5
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#12]
R85 7030016360 S.RES RMC1/16S-123JTH (12 k) [#11] B 14.4/21.3
7030016360 S.RES RMC1/16S-123JTH (12 k) [#12]
R86 7030016560 S.RES RMC1/16SJPTH [#11] B 15.3/21.3
7030016560 S.RES RMC1/16SJPTH [#12]
R88 7030016000 S.RES RMC1/16S-823JTH (82 k) [#11] B 18.2/23.5
7030016000 S.RES RMC1/16S-823JTH (82 k) [#12]
R91 7030016100 S.RES RMC1/16S-334JTH (330 k) [#11] B 23.0/10.4
7030016100 S.RES RMC1/16S-334JTH (330 k) [#12]
R93 7030016070 S.RES RMC1/16S-474JTH (470 k) [#11] B 21.5/14.4
7030016070 S.RES RMC1/16S-474JTH (470 k) [#12]
R94 7030016450 S.RES RMC1/16S-824JTH (820 k) [#11] B 23.0/13.7
7030016450 S.RES RMC1/16S-824JTH (820 k) [#12]
R95 7030016090 S.RES RMC1/16S-223JTH (22 k) [#11] B 19.2/13.0
7030016090 S.RES RMC1/16S-223JTH (22 k) [#12]
R112 7030016320 S.RES RMC1/16S-225JTH (2.2 M) [#11] B 16.7/11.0
7030016320 S.RES RMC1/16S-225JTH (2.2 M) [#12]
R145 7030016060 S.RES RMC1/16S-105JTH (1 M) T 2.2/13.8
R146 7030016060 S.RES RMC1/16S-105JTH (1 M) T 2.7/14.8
R147 7030016060 S.RES RMC1/16S-105JTH (1 M) T 5.6/13.8
R148 7030016060 S.RES RMC1/16S-105JTH (1 M) T 4.1/9.3
R151 7510001661 S.THR NTCG16 4LH 473JT T 34.8/24.7
R152 7030008270 S.RES RR0510P-104-D (100 k) T 36.8/25.5
R558 7030016360 S.RES RMC1/16S-123JTH (12 k) [#11] B 21.5/9.8
7030016360 S.RES RMC1/16S-123JTH (12 k) [#12]
R595 7030015520 S.RES RMC1/16JPTP B 28.0/32.2
R856 7030015900 S.RES RMC1/16S-470JTH (47) [#11] B 19.2/88.3
7030015900 S.RES RMC1/16S-470JTH (47) [#12]
R857 7030016560 S.RES RMC1/16SJPTH [#11] B 18.8/85.4
7030016560 S.RES RMC1/16SJPTH [#12]
R858 7030016560 S.RES RMC1/16SJPTH [#11] B 21.5/79.2
7030016560 S.RES RMC1/16SJPTH [#12]
R859 7030016560 S.RES RMC1/16SJPTH [#11] B 28.7/86.5
7030016560 S.RES RMC1/16SJPTH [#12]
R860 7030016020 S.RES RMC1/16S-104JTH (100 k) [#11] B 28.7/87.4
7030016020 S.RES RMC1/16S-104JTH (100 k) [#12]
R861 7030016020 S.RES RMC1/16S-104JTH (100 k) [#11] B 29.7/97.1
7030016020 S.RES RMC1/16S-104JTH (100 k) [#12]
R862 7030016560 S.RES RMC1/16SJPTH [#11] B 28.9/98.0
7030016560 S.RES RMC1/16SJPTH [#12]
R863 7030016560 S.RES RMC1/16SJPTH [#11] T 22.8/16.1
7030016560 S.RES RMC1/16SJPTH [#12]
R864 7030016110 S.RES RMC1/16S-473JTH (47 k) [#11] B 40.1/16.4
7030016110 S.RES RMC1/16S-473JTH (47 k) [#12]
R865 7030016110 S.RES RMC1/16S-473JTH (47 k) [#11] B 38.5/15.3
7030016110 S.RES RMC1/16S-473JTH (47 k) [#12]
R866 7030016020 S.RES RMC1/16S-104JTH (100 k) [#11] T 21.9/17.9
7030016020 S.RES RMC1/16S-104JTH (100 k) [#12]
R867 7030016020 S.RES RMC1/16S-104JTH (100 k) [#11] B 40.1/12.9
7030016020 S.RES RMC1/16S-104JTH (100 k) [#12]
R868 7030016110 S.RES RMC1/16S-473JTH (47 k) [#11] B 40.1/14.1
7030016110 S.RES RMC1/16S-473JTH (47 k) [#12]
R869 7030016110 S.RES RMC1/16S-473JTH (47 k) [#11] B 40.1/15.3
7030016110 S.RES RMC1/16S-473JTH (47 k) [#12]
R871 7030015970 S.RES RMC1/16S-103JTH (10 k) [#11] B 36.3/11.8
7030015970 S.RES RMC1/16S-103JTH (10 k) [#12]
R873 7030016050 S.RES RMC1/16S-102JTH (1 k) [#11] B 38.7/8.4
7030016050 S.RES RMC1/16S-102JTH (1 k) [#12]
R874 7030016190 S.RES RMC1/16S-273JTH (27 k) [#11] B 39.0/2.4
7030016190 S.RES RMC1/16S-273JTH (27 k) [#12]
IC1 1190004712 S.IC HRM1016-010022 [#11] T 37.3/13.5
1190004712 S.IC HRM1016-010022 [#12]
IC11 1110003790 S.IC NJM2903V-TE1-#FMZB [#11] B 17.6/8.1
1110003790 S.IC NJM2903V-TE1-#FMZB [#12]
IC12 1110006470 S.IC LMV324IPWR [#11] B 24.1/19.7
1110006470 S.IC LMV324IPWR [#12]
IC13 1110006740 S.IC LMV358IPWR [#11] B 8.4/11.0
1110006740 S.IC LMV358IPWR [#12]
IC17 1190004620 S.IC GSU-141A-098A [#11] B 23.8/85.9
1190004620 S.IC GSU-141A-098A [#12]
IC27 1140018060 S.IC R5F52108BDLK B 31.0/52.9
IC30 1180004760 S.REG S-1200B33-M5T1U [#11] T 18.2/10.2
1180004760 S.REG S-1200B33-M5T1U [#12]
IC31 1180004760 S.REG S-1200B33-M5T1U [#11] B 32.5/96.5
1180004760 S.REG S-1200B33-M5T1U [#12]
IC32 1110006490 S.IC LMV321IDCKR [#11] B 38.6/5.1
1110006490 S.IC LMV321IDCKR [#12]
IC34 1180003570 S.REG NJM2830U1-33-TE1-#ZZZB B 39.7/44.0
IC35 1130014260 S.IC SN74LVC2GU04DCKR B 29.0/13.8
IC36 1130014260 S.IC SN74LVC2GU04DCKR B 40.9/31.9
IC37 1130016621 S.IC GT24C128B-2ZLI-TR B 31.3/68.1
IC38 1110007780 S.IC NJU7704F3-28A-TE1-#ZZZH B 22.4/67.7
IC39 1110007780 S.IC NJU7704F3-28A-TE1-#ZZZH
[#11] T 22.1/13.2
1110007780 S.IC NJU7704F3-28A-TE1-#ZZZH
[#12]
IC40 1180005110 S.REG NJM2836DL3-05-TE1 B 31.8/35.9
IC41 1180003460 S.REG NJM2831F05-TE1-#ZZZB B 29.1/64.5
Q3 1530004190 S.TRA L2SC4617ST1G B 24.9/72.7
Q5 1590004070 S.TRA LDTC144EET1G [#11] T 36.3/21.2
1590004070 S.TRA LDTC144EET1G [#12]
Q13 1530004140 S.TRA L2SC4081RT1G [#11] B 21.1/12.6
1530004140 S.TRA L2SC4081RT1G [#12]
Q15 1590004530 S.TRA DMG564050R [#11] B 24.9/29.6
1590004530 S.TRA DMG564050R [#12]
Q16 1590004070 S.TRA LDTC144EET1G [#11] B 40.5/11.3
1590004070 S.TRA LDTC144EET1G [#12]
Q17 1590004070 S.TRA LDTC144EET1G [#11] T 19.9/17.9
1590004070 S.TRA LDTC144EET1G [#12]
Q22 1530004000 S.TRA 2SC4738-GR (TE85LF) B 32.4/14.2
Q23 1510001100 S.TRA 2SA1832-GR (TE85RF) B 28.1/17.0
Q24 1510001100 S.TRA 2SA1832-GR (TE85RF) B 40.8/28.5
Q25 1560001730 S.FET RUE002N02 TL B 35.8/29.7
Q31 1510001100 S.TRA 2SA1832-GR (TE85RF) T 14.7/13.5
Q32 1510001100 S.TRA 2SA1832-GR (TE85RF) T 13.4/18.5
Q33 1590004070 S.TRA LDTC144EET1G T 17.2/7.4
Q34 1590004070 S.TRA LDTC144EET1G T 14.8/15.5
D1 1750001810 S.DIO L1SS400T1G T 5.4/19.4
D2 1750002220 S.DIO DA6J101K0R T 3.4/16.6
D4 1750001810 S.DIO L1SS400T1G [#21] T 3.9/12.1
1750001810 S.DIO L1SS400T1G [#22]
1750001810 S.DIO L1SS400T1G [#31]
D6 1750001810 S.DIO L1SS400T1G [#12] B 11.2/56.2
1750001810 S.DIO L1SS400T1G [#22]
D8 1750001810 S.DIO L1SS400T1G B 32.5/72.5
D16 1750001810 S.DIO L1SS400T1G [#11] B 13.2/6.8
1750001810 S.DIO L1SS400T1G [#12]
D17 1750001810 S.DIO L1SS400T1G [#11] B 17.5/12.6
1750001810 S.DIO L1SS400T1G [#12]
D18 1750001790 S.DIO 1SS390 TE61 B 40.7/57.6
D34 1750001810 S.DIO L1SS400T1G B 26.3/36.4
D35 1750001810 S.DIO L1SS400T1G B 45.0/44.6
D46 1750001810 S.DIO L1SS400T1G [#11] T 17.8/12.6
1750001810 S.DIO L1SS400T1G [#12]
D47 1750001810 S.DIO L1SS400T1G B 32.5/17.4
D48 1750001810 S.DIO L1SS400T1G B 36.0/28.1
X1 6050013790 S.XTA CR-981 (19.6608 MHz) B 39.7/53.9
R3 7030015910 S.RES RMC1/16S-101JTH (100) [#11] B 33.6/8.2
7030015910 S.RES RMC1/16S-101JTH (100) [#12]
R5 7030016020 S.RES RMC1/16S-104JTH (100 k) B 23.5/70.8
R16 7030016020 S.RES RMC1/16S-104JTH (100 k) B 22.6/70.8
R17 7030015970 S.RES RMC1/16S-103JTH (10 k) B 26.9/73.2
R18 7030015970 S.RES RMC1/16S-103JTH (10 k) B 28.3/71.6
R25 7030016160 S.RES RMC1/16S-820JTH (82) T 11.0/35.2
R26 7030016160 S.RES RMC1/16S-820JTH (82) T 22.0/35.2
R28 7030016560 S.RES RMC1/16SJPTH [#11] B 31.8/8.2
7030016560 S.RES RMC1/16SJPTH [#12]
R60 7030016340 S.RES RMC1/16S-393JTH (39 k) [#11] B 22.0/8.4
7030016340 S.RES RMC1/16S-393JTH (39 k) [#12]
R61 7030016110 S.RES RMC1/16S-473JTH (47 k) [#11] B 13.3/8.8
7030016110 S.RES RMC1/16S-473JTH (47 k) [#12]
R62 7030016020 S.RES RMC1/16S-104JTH (100 k) [#11] B 12.2/8.4
7030016020 S.RES RMC1/16S-104JTH (100 k) [#12]
R63 7030016330 S.RES RMC1/16S-153JTH (15 k) [#11] B 11.0/2.3
7030016330 S.RES RMC1/16S-153JTH (15 k) [#12]
R64 7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#11] B 4.5/9.2
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#12]
PARTS LIST
[LOGIC UNIT] (for #11, #12, #21, #22, and #31) [LOGIC UNIT] (for #11, #12, #21, #22, and #31)
The underlined parts have been updated from the previous version of the addendum, or the original page.

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
(Amended page)
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
March 2019
[LOGIC UNIT] (for #11, #12, #21, #22, and #31) [LOGIC UNIT] (for #11, #12, #21, #22, and #31)
5-2a
R875 7030016190 S.RES RMC1/16S-273JTH (27 k) [#11] B 40.8/4.3
7030016190 S.RES RMC1/16S-273JTH (27 k) [#12]
R876 7030016160 S.RES RMC1/16S-820JTH (82) T 33.0/35.2
R878 7030015920 S.RES RMC1/16S-221JTH (220) T 13.2/14.6
R879 7030016020 S.RES RMC1/16S-104JTH (100 k) [#11] B 41.3/5.5
7030016020 S.RES RMC1/16S-104JTH (100 k) [#12]
R881 7030016110 S.RES RMC1/16S-473JTH (47 k) B 27.9/18.5
R882 7030015970 S.RES RMC1/16S-103JTH (10 k) B 29.6/16.9
R883 7030016380 S.RES RMC1/16S-183JTH (18 k) B 30.9/17.3
R884 7030016360 S.RES RMC1/16S-123JTH (12 k) B 30.9/14.1
R885 7030015970 S.RES RMC1/16S-103JTH (10 k) B 39.2/28.6
R886 7030016380 S.RES RMC1/16S-183JTH (18 k) B 38.0/28.1
R887 7030016560 S.RES RMC1/16SJPTH B 38.0/30.2
R888 7030015970 S.RES RMC1/16S-103JTH (10 k) B 42.8/31.9
R901 7030014460 S.RES MCR006YZPJ 101 (100) B 30.3/43.5
R902 7030014460 S.RES MCR006YZPJ 101 (100) B 23.5/43.3
R903 7030014460 S.RES MCR006YZPJ 101 (100) B 30.2/61.4
R906 7030014460 S.RES MCR006YZPJ 101 (100) B 23.5/62.3
R907 7030014460 S.RES MCR006YZPJ 101 (100) B 39.2/50.1
R908 7030016060 S.RES RMC1/16S-105JTH (1 M) B 37.1/52.9
R909 7030016150 S.RES RMC1/16S-100JTH (10) B 35.8/53.0
R910 7030016360 S.RES RMC1/16S-123JTH (12 k) B 39.3/57.6
R911 7030016090 S.RES RMC1/16S-223JTH (22 k) B 39.3/56.7
R912 7030016360 S.RES RMC1/16S-123JTH (12 k) B 42.0/58.4
R913 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 26.0/67.7
R914 7030016020 S.RES RMC1/16S-104JTH (100 k) B 25.0/68.2
R917 7030016020 S.RES RMC1/16S-104JTH (100 k) T 24.1/21.2
R920 7030016020 S.RES RMC1/16S-104JTH (100 k) T 23.7/20.0
R925 7030015970 S.RES RMC1/16S-103JTH (10 k) B 44.4/52.9
R926 7030016560 S.RES RMC1/16SJPTH [#11] B 9.9/16.2
7030016560 S.RES RMC1/16SJPTH [#12]
R927 7030016560 S.RES RMC1/16SJPTH [#11] B 20.7/15.3
7030016560 S.RES RMC1/16SJPTH [#12]
R928 7030016560 S.RES RMC1/16SJPTH [#11] B 21.3/26.2
7030016560 S.RES RMC1/16SJPTH [#12]
R929 7030014460 S.RES MCR006YZPJ 101 (100) [#11] B 24.6/50.9
7030014460 S.RES MCR006YZPJ 101 (100) [#12]
R930 7030014460 S.RES MCR006YZPJ 101 (100) [#11] B 24.0/51.9
7030014460 S.RES MCR006YZPJ 101 (100) [#12]
R931 7030016020 S.RES RMC1/16S-104JTH (100 k) B 23.8/49.3
R932 7030016020 S.RES RMC1/16S-104JTH (100 k) B 23.4/50.5
R933 7030015970 S.RES RMC1/16S-103JTH (10 k) B 22.1/69.6
R934 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 26.0/69.8
R935 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 35.3/54.5
R937 7030016560 S.RES RMC1/16SJPTH B 30.3/27.6
R940 7030016020 S.RES RMC1/16S-104JTH (100 k) B 28.4/61.3
R943 7030016020 S.RES RMC1/16S-104JTH (100 k) B 35.6/44.1
R944 7030016020 S.RES RMC1/16S-104JTH (100 k) B 36.5/47.0
R945 7030016020 S.RES RMC1/16S-104JTH (100 k) [#11] B 19.2/86.6
7030016020 S.RES RMC1/16S-104JTH (100 k) [#12]
R946 7030016020 S.RES RMC1/16S-104JTH (100 k) [#11] B 20.3/79.6
7030016020 S.RES RMC1/16S-104JTH (100 k) [#12]
R947 7030016020 S.RES RMC1/16S-104JTH (100 k) [#11] T 15.9/9.8
7030016020 S.RES RMC1/16S-104JTH (100 k) [#12]
R949 7030016020 S.RES RMC1/16S-104JTH (100 k) T 21.1/21.2
R952 7030016020 S.RES RMC1/16S-104JTH (100 k) T 17.7/26.7
R962 7030016020 S.RES RMC1/16S-104JTH (100 k) [#11] B 39.1/7.1
7030016020 S.RES RMC1/16S-104JTH (100 k) [#12]
R963 7030016210 S.RES RMC1/16S-121JTH (120) T 13.2/16.2
R964 7030014400 S.RES MCR006YZPJ 100 (10) B 28.6/60.4
R965 7030014400 S.RES MCR006YZPJ 100 (10) B 30.9/59.6
R966 7030014400 S.RES MCR006YZPJ 100 (10) B 43.4/58.4
R967 7030014400 S.RES MCR006YZPJ 100 (10) B 34.7/47.9
R968 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/49.7
R969 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/51.8
R970 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/66.3
R971 7030014400 S.RES MCR006YZPJ 100 (10) B 25.0/66.8
R972 7030014400 S.RES MCR006YZPJ 100 (10) B 34.6/44.5
R973 7030014400 S.RES MCR006YZPJ 100 (10) B 35.6/47.1
R974 7030014400 S.RES MCR006YZPJ 100 (10) B 23.5/47.8
R975 7030014400 S.RES MCR006YZPJ 100 (10) B 29.3/47.9
R976 7030014400 S.RES MCR006YZPJ 100 (10) B 28.7/47.9
R977 7030014400 S.RES MCR006YZPJ 100 (10) B 27.5/47.9
R978 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/50.9
R979 7030014400 S.RES MCR006YZPJ 100 (10) B 33.0/44.0
R980 7030014400 S.RES MCR006YZPJ 100 (10) B 39.4/51.5
R981 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/48.8
R982 7030014400 S.RES MCR006YZPJ 100 (10) B 28.1/47.9
R983 7030014400 S.RES MCR006YZPJ 100 (10) B 26.3/47.9
R984 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/55.7
R985 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/50.6
R986 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/49.1
R987 7030014400 S.RES MCR006YZPJ 100 (10) B 33.1/47.9
R988 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/48.5
R989 7030014400 S.RES MCR006YZPJ 100 (10) B 32.3/47.9
R990 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/51.8
R991 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/53.0
R992 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/52.4
R993 7030014400 S.RES MCR006YZPJ 100 (10) B 33.5/46.2
R994 7030014400 S.RES MCR006YZPJ 100 (10) B 28.9/57.7
R995 7030014400 S.RES MCR006YZPJ 100 (10) B 23.7/58.8
R996 7030014400 S.RES MCR006YZPJ 100 (10) B 29.0/44.3
R997 7030014400 S.RES MCR006YZPJ 100 (10) B 28.4/43.5
R998 7030014400 S.RES MCR006YZPJ 100 (10) B 34.5/46.2
R999 7030014380 S.RES MCR006YZPJ 103 (10 k) B 31.3/42.9
R1000 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/42.5
R1001 7030014400 S.RES MCR006YZPJ 100 (10) B 26.7/42.5
R1002 7030014400 S.RES MCR006YZPJ 100 (10) B 26.9/47.9
R1003 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/50.0
R1004 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/47.9
R1005 7030014400 S.RES MCR006YZPJ 100 (10) B 32.7/46.2
R1006 7030014380 S.RES MCR006YZPJ 103 (10 k) B 31.5/47.9
R1007 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/47.2
R1008 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/49.4
R1009 7030014400 S.RES MCR006YZPJ 100 (10) B 35.1/46.2
R1010 7030014400 S.RES MCR006YZPJ 100 (10) B 33.9/47.9
R1011 7030014400 S.RES MCR006YZPJ 100 (10) B 31.9/46.2
R1012 7030014400 S.RES MCR006YZPJ 100 (10) B 35.5/57.6
R1013 7030014400 S.RES MCR006YZPJ 100 (10) B 34.7/57.9
R1014 7030014400 S.RES MCR006YZPJ 100 (10) B 33.8/57.9
R1015 7030014400 S.RES MCR006YZPJ 100 (10) B 32.2/57.7
R1016 7030014400 S.RES MCR006YZPJ 100 (10) B 31.6/57.7
R1017 7030014400 S.RES MCR006YZPJ 100 (10) B 31.0/57.7
R1018 7030014400 S.RES MCR006YZPJ 100 (10) B 29.5/57.7
R1019 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/58.1
R1020 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/57.5
R1021 7030014400 S.RES MCR006YZPJ 100 (10) B 35.0/59.5
R1022 7030014400 S.RES MCR006YZPJ 100 (10) B 32.2/59.5
R1023 7030014400 S.RES MCR006YZPJ 100 (10) B 31.6/59.6
R1024 7030014400 S.RES MCR006YZPJ 100 (10) B 30.1/58.8
R1025 7030014400 S.RES MCR006YZPJ 100 (10) B 28.0/57.3
R1026 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/56.9
R1027 7030014400 S.RES MCR006YZPJ 100 (10) B 37.7/58.5
R1028 7030014400 S.RES MCR006YZPJ 100 (10) B 34.3/59.5
R1029 7030014400 S.RES MCR006YZPJ 100 (10) B 33.2/60.1
R1030 7030014400 S.RES MCR006YZPJ 100 (10) B 28.5/62.4
R1031 7030014400 S.RES MCR006YZPJ 100 (10) B 44.3/55.4
R1032 7030014400 S.RES MCR006YZPJ 100 (10) B 36.8/57.8
R1033 7030014400 S.RES MCR006YZPJ 100 (10) B 34.3/61.9
R1034 7030014400 S.RES MCR006YZPJ 100 (10) B 31.6/62.0
R1035 7030014400 S.RES MCR006YZPJ 100 (10) B 30.4/57.7
R1036 7030014400 S.RES MCR006YZPJ 100 (10) B 20.6/63.1
R1037 7030014390 S.RES MCR006YZPJ 102 (1 k) B 24.1/56.3
R1038 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/55.1
R1039 7030014390 S.RES MCR006YZPJ 102 (1 k) B 26.0/54.7
R1040 7030014400 S.RES MCR006YZPJ 100 (10) B 44.9/55.4
R1041 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/54.3
R1042 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/53.9
R1043 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/53.5
R1044 7030014400 S.RES MCR006YZPJ 100 (10) B 20.7/68.3
R1045 7030014400 S.RES MCR006YZPJ 100 (10) B 43.9/52.0
R1046 7030014400 S.RES MCR006YZPJ 100 (10) B 23.5/61.7
R1047 7030014400 S.RES MCR006YZPJ 100 (10) B 44.0/51.4
R1050 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/46.6
R1053 7030015970 S.RES RMC1/16S-103JTH (10 k) T 14.7/11.9
R1054 7030015970 S.RES RMC1/16S-103JTH (10 k) T 15.0/18.6
R1055 7030015970 S.RES RMC1/16S-103JTH (10 k) T 15.0/10.2
R1056 7030015970 S.RES RMC1/16S-103JTH (10 k) T 14.6/17.0
R1057 7030016150 S.RES RMC1/16S-100JTH (10) B 41.0/40.6
R1059 7030016560 S.RES RMC1/16SJPTH [#11] B 29.7/96.2
7030016560 S.RES RMC1/16SJPTH [#12]
R1060 7030016560 S.RES RMC1/16SJPTH [#11] T 16.6/13.6
7030016560 S.RES RMC1/16SJPTH [#12]
R1061 7210003820 VAR TP76D1190E20-20.5F
-10KB-3699
R1062 7030016560 S.RES RMC1/16SJPTH B 40.3/89.6
R1063 7030015970 S.RES RMC1/16S-103JTH (10 k) [#11] T 21.8/15.1
7030015970 S.RES RMC1/16S-103JTH (10 k) [#12]
R1064 7030016560 S.RES RMC1/16SJPTH T 13.7/4.9
R1065 7030016560 S.RES RMC1/16SJPTH T 13.7/7.7
R1066 7030016560 S.RES RMC1/16SJPTH T 11.3/3.6
R1067 7030016560 S.RES RMC1/16SJPTH T 12.6/10.5
R1068 7030016560 S.RES RMC1/16SJPTH T 10.3/3.6
R1069 7030016560 S.RES RMC1/16SJPTH T 5.6/21.3
R1070 7030016560 S.RES RMC1/16SJPTH T 9.4/4.5
R1071 7030016560 S.RES RMC1/16SJPTH T 5.4/17.4
R1072 7030016560 S.RES RMC1/16SJPTH T 8.2/3.9
R1073 7030016560 S.RES RMC1/16SJPTH T 13.7/6.7
R1074 7030016020 S.RES RMC1/16S-104JTH (100 k) B 28.5/46.5
R1075 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/51.2
R1076 7030014400 S.RES MCR006YZPJ 100 (10) B 30.9/47.9
R1077 7030016560 S.RES RMC1/16SJPTH [#11] T 32.4/20.7
7030016560 S.RES RMC1/16SJPTH [#12]
R1078 7030016090 S.RES RMC1/16S-223JTH (22 k) B 30.9/16.4
R1079 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 38.0/29.0
R1081 7030016060 S.RES RMC1/16S-105JTH (1 M) B 33.5/63.6
R1082 7030016050 S.RES RMC1/16S-102JTH (1 k) B 36.6/42.0
R1083 7030016110 S.RES RMC1/16S-473JTH (47 k) B 23.2/46.4
R1084 7410001340 S.ARR EXB28V473JX B 25.3/45.0
R1085 7030014380 S.RES MCR006YZPJ 103 (10 k) [#21] B 45.2/50.3
7030014380 S.RES MCR006YZPJ 103 (10 k) [#22]
7030014380 S.RES MCR006YZPJ 103 (10 k) [#31]
R1086 7030014380 S.RES MCR006YZPJ 103 (10 k) [#21] B 45.2/51.4
7030014380 S.RES MCR006YZPJ 103 (10 k) [#22]
7030014380 S.RES MCR006YZPJ 103 (10 k) [#31]
R1087 7030016320 S.RES RMC1/16S-225JTH (2.2 M) B 33.2/64.8
R1088 7030016240 S.RES RMC1/16S-684JTH (680 k) B 31.9/64.1
R1089 7030016110 S.RES RMC1/16S-473JTH (47 k) B 25.2/63.3
R1090 7030016000 S.RES RMC1/16S-823JTH (82 k) [#11] B 5.4/18.4
7030016000 S.RES RMC1/16S-823JTH (82 k) [#12]
R1091 7030016040 S.RES RMC1/16S-224JTH (220 k) [#11] B 9.0/17.1
7030016040 S.RES RMC1/16S-224JTH (220 k) [#12]
R1092 7030016050 S.RES RMC1/16S-102JTH (1 k) [#11] B 42.4/8.0
7030016050 S.RES RMC1/16S-102JTH (1 k) [#12]
R1093 7030016410 S.RES RMC1/16S-561JTH (560) [#11] B 41.9/6.8
7030016410 S.RES RMC1/16S-561JTH (560) [#12]
R1097 7030016020 S.RES RMC1/16S-104JTH (100 k) B 28.9/15.6
R1098 7030016020 S.RES RMC1/16S-104JTH (100 k) B 40.5/30.0
C1 4030021240 S.CER C1005 JB 1C 105K-T [#11] T 23.6/17.9
4030021240 S.CER C1005 JB 1C 105K-T [#12]
C2 4030021240 S.CER C1005 JB 1C 105K-T [#11] T 24.1/16.5
4030021240 S.CER C1005 JB 1C 105K-T [#12]
The underlined parts have been updated from the previous version of the addendum, or the original page.

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
(Amended page)
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
March 2019
[LOGIC UNIT] (for #11, #12, #21, #22, and #31) [LOGIC UNIT] (for #11, #12, #21, #22, and #31)
5-3a
C5 4030021240 S.CER C1005 JB 1C 105K-T [#11] B 32.7/8.2
4030021240 S.CER C1005 JB 1C 105K-T [#12]
C6 4030021240 S.CER C1005 JB 1C 105K-T [#11] B 30.6/8.7
4030021240 S.CER C1005 JB 1C 105K-T [#12]
C7 4030021240 S.CER C1005 JB 1C 105K-T [#11] B 33.2/9.4
4030021240 S.CER C1005 JB 1C 105K-T [#12]
C8 4030023090 S.CER 0402B102K500CT B 24.7/70.4
C16 4030023090 S.CER 0402B102K500CT [#11] T 18.3/17.9
4030023090 S.CER 0402B102K500CT [#12]
C18 4030022640 S.CER 0402N101J500CT [#11] B 28.5/7.3
4030022640 S.CER 0402N101J500CT [#12]
C20 4030023090 S.CER 0402B102K500CT B 24.7/71.3
C21 4030022540 S.CER 0402N3R0B500CT [#11] B 27.6/7.3
4030022540 S.CER 0402N3R0B500CT [#12]
C22 4030023090 S.CER 0402B102K500CT B 27.4/72.0
C25 4030023010 S.CER 0402B104K160CT B 29.0/28.1
C31 4030023010 S.CER 0402B104K160CT B 25.7/34.5
C101 4030023090 S.CER 0402B102K500CT [#11] B 13.8/10.1
4030023090 S.CER 0402B102K500CT [#12]
C102 4030023200 S.CER 0402B471K500CT [#11] B 14.2/5.5
4030023200 S.CER 0402B471K500CT [#12]
C103 4030019560 S.CER GRM21BB31C106KE15L [#11] B 19.9/24.7
4030019560 S.CER GRM21BB31C106KE15L [#12]
C104 4030019560 S.CER GRM21BB31C106KE15L [#11] B 22.1/27.9
4030019560 S.CER GRM21BB31C106KE15L [#12]
C105 4030019560 S.CER GRM21BB31C106KE15L [#11] B 21.3/31.5
4030019560 S.CER GRM21BB31C106KE15L [#12]
C106 4030019560 S.CER GRM21BB31C106KE15L [#11] B 21.3/29.7
4030019560 S.CER GRM21BB31C106KE15L [#12]
C107 4030022940 S.CER 0402B104K100CT [#11] B 26.5/24.6
4030022940 S.CER 0402B104K100CT [#12]
C108 4030023090 S.CER 0402B102K500CT [#11] B 24.8/15.0
4030023090 S.CER 0402B102K500CT [#12]
C109 4030023090 S.CER 0402B102K500CT [#11] B 26.0/14.5
4030023090 S.CER 0402B102K500CT [#12]
C111 4550007300 S.TAN F931A335MAABMA [#11] B 14.4/24.7
4550007300 S.TAN F931A335MAABMA [#12]
C112 4550008210 S.TAN 267M3502 104MR [#11] B 20.3/20.1
4550008210 S.TAN 267M3502 104MR [#12]
C113 4550008210 S.TAN 267M3502 104MR [#11] B 18.2/20.1
4550008210 S.TAN 267M3502 104MR [#12]
C114 4550008210 S.TAN 267M3502 104MR [#11] B 8.0/2.0
4550008210 S.TAN 267M3502 104MR [#12]
C115 4550008210 S.TAN 267M3502 104MR [#11] B 8.0/4.1
4550008210 S.TAN 267M3502 104MR [#12]
C116 4030023090 S.CER 0402B102K500CT [#11] B 11.2/15.0
4030023090 S.CER 0402B102K500CT [#12]
C121 4030023030 S.CER 0402B103K250CT [#11] B 23.0/12.0
4030023030 S.CER 0402B103K250CT [#12]
C122 4030019560 S.CER GRM21BB31C106KE15L [#11] B 18.8/11.0
4030019560 S.CER GRM21BB31C106KE15L [#12]
C123 4030023090 S.CER 0402B102K500CT B 24.6/31.5
C125 4550007520 S.TAN F931A106MAABMA [#11] B 4.4/12.2
4550007520 S.TAN F931A106MAABMA [#12]
C155 4030023090 S.CER 0402B102K500CT T 11.8/2.4
C156 4030023090 S.CER 0402B102K500CT T 13.5/10.5
C157 4030023090 S.CER 0402B102K500CT T 13.7/4.0
C158 4030023090 S.CER 0402B102K500CT T 14.1/8.9
C159 4030023090 S.CER 0402B102K500CT T 9.9/2.4
C161 4030023090 S.CER 0402B102K500CT T 35.9/25.5
C600 4030023030 S.CER 0402B103K250CT [#11] B 21.5/10.8
4030023030 S.CER 0402B103K250CT [#12]
C629 4030023010 S.CER 0402B104K160CT [#11] B 24.8/26.6
4030023010 S.CER 0402B104K160CT [#12]
C630 4030022640 S.CER 0402N101J500CT [#11] B 19.3/90.9
4030022640 S.CER 0402N101J500CT [#12]
C631 4050000380 S.FEE NFM15PC104R1A3D [#11] B 18.2/89.2
4050000380 S.FEE NFM15PC104R1A3D [#12]
C632 4050000380 S.FEE NFM15PC104R1A3D [#11] B 33.6/94.1
4050000380 S.FEE NFM15PC104R1A3D [#12]
C633 4030019560 S.CER GRM21BB31C106KE15L [#11] B 33.7/92.4
4030019560 S.CER GRM21BB31C106KE15L [#12]
C634 4030023090 S.CER 0402B102K500CT [#11] B 32.6/94.0
4030023090 S.CER 0402B102K500CT [#12]
C637 4030023090 S.CER 0402B102K500CT [#11] B 28.7/88.4
4030023090 S.CER 0402B102K500CT [#12]
C638 4030023090 S.CER 0402B102K500CT [#11] B 19.2/84.1
4030023090 S.CER 0402B102K500CT [#12]
C639 4030023090 S.CER 0402B102K500CT [#11] B 22.5/79.2
4030023090 S.CER 0402B102K500CT [#12]
C640 4030023090 S.CER 0402B102K500CT [#11] B 29.9/87.9
4030023090 S.CER 0402B102K500CT [#12]
C641 4030023090 S.CER 0402B102K500CT [#11] B 18.3/84.1
4030023090 S.CER 0402B102K500CT [#12]
C642 4030023090 S.CER 0402B102K500CT [#11] B 19.6/78.7
4030023090 S.CER 0402B102K500CT [#12]
C643 4050000380 S.FEE NFM15PC104R1A3D [#11] T 20.1/13.2
4050000380 S.FEE NFM15PC104R1A3D [#12]
C645 4030021240 S.CER C1005 JB 1C 105K-T [#11] B 36.3/10.2
4030021240 S.CER C1005 JB 1C 105K-T [#12]
C648 4030022540 S.CER 0402N3R0B500CT [#11] T 25.0/16.5
4030022540 S.CER 0402N3R0B500CT [#12]
C649 4030022540 S.CER 0402N3R0B500CT [#11] T 23.6/18.8
4030022540 S.CER 0402N3R0B500CT [#12]
C650 4030023010 S.CER 0402B104K160CT [#11] B 40.4/5.5
4030023010 S.CER 0402B104K160CT [#12]
C651 4030019560 S.CER GRM21BB31C106KE15L [#11] B 36.7/7.1
4030019560 S.CER GRM21BB31C106KE15L [#12]
C652 4030022640 S.CER 0402N101J500CT [#11] B 39.0/3.3
4030022640 S.CER 0402N101J500CT [#12]
C653 4030023010 S.CER 0402B104K160CT [#11] B 42.2/5.1
4030023010 S.CER 0402B104K160CT [#12]
C654 4030023090 S.CER 0402B102K500CT B 41.3/89.6
C655 4030023090 S.CER 0402B102K500CT B 39.3/89.6
C656 4030023090 S.CER 0402B102K500CT B 38.3/89.7
C657 4030023090 S.CER 0402B102K500CT B 42.3/89.6
C659 4030023010 S.CER 0402B104K160CT B 28.6/10.3
C660 4030023010 S.CER 0402B104K160CT B 34.2/30.5
C661 4030019560 S.CER GRM21BB31C106KE15L B 43.4/44.6
C662 4030021520 S.CER GRM31CB31H106KA12L T 31.4/24.4
C663 4030021520 S.CER GRM31CB31H106KA12L T 32.4/28.2
C664 4030021520 S.CER GRM31CB31H106KA12L T 32.4/30.4
C666 4030023010 S.CER 0402B104K160CT T 33.3/22.3
C667 4030023010 S.CER 0402B104K160CT T 33.7/23.8
C669 4030022630 S.CER 0402N100C500CT B 37.1/54.5
C670 4030022520 S.CER 0402N1R0B500CT B 42.0/53.9
C671 4030022640 S.CER 0402N101J500CT B 42.1/56.8
C672 4030023010 S.CER 0402B104K160CT B 39.3/58.5
C674 4030023030 S.CER 0402B103K250CT B 26.9/68.8
C677 4030022940 S.CER 0402B104K100CT B 27.5/43.2
C678 4030023090 S.CER 0402B102K500CT B 31.5/41.9
C679 4030023090 S.CER 0402B102K500CT B 37.1/56.1
C680 4030023090 S.CER 0402B102K500CT B 36.2/56.2
C681 4030022940 S.CER 0402B104K100CT B 35.3/56.2
C682 4030023000 S.CER 0402B683K100CT B 22.8/65.8
C683 4030022940 S.CER 0402B104K100CT B 24.1/68.2
C684 4030023010 S.CER 0402B104K160CT B 36.2/54.5
C687 4030023010 S.CER 0402B104K160CT B 25.2/36.6
C688 4030019560 S.CER GRM21BB31C106KE15L B 23.8/36.4
C689 4030023090 S.CER 0402B102K500CT B 29.0/27.2
C693 4030022940 S.CER 0402B104K100CT T 16.4/15.5
C694 4030023090 S.CER 0402B102K500CT [#11] B 18.8/82.1
4030023090 S.CER 0402B102K500CT [#12]
C695 4030023010 S.CER 0402B104K160CT T 18.8/7.4
C696 4030023010 S.CER 0402B104K160CT T 15.9/11.4
C698 4030023010 S.CER 0402B104K160CT B 39.9/47.0
C699 4030023010 S.CER 0402B104K160CT B 43.2/42.2
C700 4030023090 S.CER 0402B102K500CT B 44.2/42.2
C701 4030023090 S.CER 0402B102K500CT B 25.7/33.6
C703 4030023000 S.CER 0402B683K100CT [#11] T 21.7/11.2
4030023000 S.CER 0402B683K100CT [#12]
C704 4030023090 S.CER 0402B102K500CT [#11] T 22.8/17.0
4030023090 S.CER 0402B102K500CT [#12]
C705 4030023090 S.CER 0402B102K500CT [#11] T 24.9/13.7
4030023090 S.CER 0402B102K500CT [#12]
C708 4030023090 S.CER 0402B102K500CT T 26.6/20.9
C709 4030021240 S.CER C1005 JB 1C 105K-T [#11] B 36.3/4.4
4030021240 S.CER C1005 JB 1C 105K-T [#12]
C711 4030023090 S.CER 0402B102K500CT B 39.1/33.8
C712 4030022920 S.CER 0402N820J500CT B 31.1/45.6
C713 4030022920 S.CER 0402N820J500CT B 24.5/42.4
C714 4030020000 S.CER C1005 JB 1A 105K-T B 31.3/65.3
C715 4030023820 S.CER 0603B104K250CT B 26.7/63.6
C716 4030023210 S.CER 0402B472K500CT B 34.1/64.8
C717 4030023210 S.CER 0402B472K500CT B 26.9/58.1
C718 4030023210 S.CER 0402B472K500CT B 31.5/27.6
C719 4030023210 S.CER 0402B472K500CT B 40.0/18.9
C720 4550008210 S.TAN 267M3502 104MR [#11] B 5.8/15.6
4550008210 S.TAN 267M3502 104MR [#12]
C721 4550008210 S.TAN 267M3502 104MR [#11] B 9.1/20.4
4550008210 S.TAN 267M3502 104MR [#12]
C722 4030021240 S.CER C1005 JB 1C 105K-T [#11] B 34.5/15.4
4030021240 S.CER C1005 JB 1C 105K-T [#12]
C723 4030021240 S.CER C1005 JB 1C 105K-T B 26.5/72.0
C724 4030023090 S.CER 0402B102K500CT B 35.9/58.6
J1 6510030220 S.CON 50RF-JMCS-G-1B-TF
(N) (LF) (SN) B 35.5/23.0
J2 6510031390 S.CON 15FXVL-RSM1-GAN-TF-1 (HF) T 9.4/7.9
J3 6510023480 S.CON AYU1-1P-02676-120-TF [#11] B 23.2/96.1
6510023480 S.CON AYU1-1P-02676-120-TF [#12]
J4 6510031380 S.CON 31FXVL-RSM1-GAN-TF-1 (HF) T 24.4/24.8
DS2 5040003550 S.LED NSSW208T T 13.8/35.5
DS3 5040003550 S.LED NSSW208T T 24.8/35.5
DS4 5040003550 S.LED NSSW208T T 35.8/35.5
DS5 5030004360 LCD TM128160D1CIWUGND
S23 2260003320 S.SWI SKRTLAE010 B 2.1/83.2
S24 2260003320 S.SWI SKRTLAE010 B 2.1/44.4
S25 2260003320 S.SWI SKRTLAE010 B 2.1/34.4
EP3 6910023920 S.BEA BLM15GA750SN1D [#11] B 38.5/16.4
6910023920 S.BEA BLM15GA750SN1D [#12]
EP4 6910023920 S.BEA BLM15GA750SN1D [#11] B 36.9/15.3
6910023920 S.BEA BLM15GA750SN1D [#12]
EP9 6910020610 S.BEA BLM15BD102SN1D [#11] B 18.4/90.9
6910020610 S.BEA BLM15BD102SN1D [#12]
EP10 6910020610 S.BEA BLM15BD102SN1D T 34.7/22.6
EP11 6910020610 S.BEA BLM15BD102SN1D T 30.8/20.7
EP12 6910020610 S.BEA BLM15BD102SN1D T 25.0/21.2
EP13 6910020610 S.BEA BLM15BD102SN1D T 17.7/28.7
EP14 6910020610 S.BEA BLM15BD102SN1D T 23.2/21.2
EP16 6910020610 S.BEA BLM15BD102SN1D T 17.7/27.8
EP19 6910020610 S.BEA BLM15BD102SN1D T 22.3/21.2
The underlined parts have been updated from the previous version of the addendum, or the original page.

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
(Amended page)
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
March 2019
[MAIN UNIT] (for #11, #12, #21, #22, and #31) [MAIN UNIT] (for #11, #12, #21, #22, and #31)
5-4a
IC1 1110007300 S.IC NJM2552V-TE1-#ZZZB B 35.6/72.6
IC2 1130009981 S.IC TC7W53FK (TE85LF) B 33.1/63.1
IC5 1130011760 S.IC CD4094BPWR B 39.9/44.3
IC14 1110006490 S.IC LMV321IDCKR T 7.7/69.0
IC22 1110006490 S.IC LMV321IDCKR B 23.9/64.7
IC24 1130007021 S.IC TC7S66FU (TE85LF) B 41.0/79.3
IC25 1110006490 S.IC LMV321IDCKR B 21.3/70.5
IC203 1130017460 S.IC AK1542A-L B 29.7/44.6
IC215 1110007630 S.IC NJM2783V-TE1-#ZZZH T 41.5/30.8
IC216 1110007291 S.IC AK2330P7-L T 24.7/60.1
IC219 1130007021 S.IC TC7S66FU (TE85LF) B 22.3/46.2
IC220 1110007291 S.IC AK2330P7-L T 28.4/37.4
IC221 1110008450 S.IC ISD8102SYI T&R B 30.6/26.5
IC222 1110008550 S.IC NJM2904CRB1-TE1-#HMZR B 24.9/59.2
IC223 1110008550 S.IC NJM2904CRB1-TE1-#HMZR B 9.9/30.9
IC224 1110008550 S.IC NJM2904CRB1-TE1-#HMZR B 10.0/25.6
IC225 1110008550 S.IC NJM2904CRB1-TE1-#HMZR B 10.0/21.1
IC226 1110008550 S.IC NJM2904CRB1-TE1-#HMZR B 10.0/15.8
IC228 1130009981 S.IC TC7W53FK (TE85LF) B 10.5/11.8
IC229 1110008680 S.IC NJU72341V-TE2-#UZZH T 38.6/39.5
IC231 1130009981 S.IC TC7W53FK (TE85LF) T 42.3/48.4
IC232 1110008550 S.IC NJM2904CRB1-TE1-#HMZR T 44.5/41.7
IC233 1110006490 S.IC LMV321IDCKR B 11.9/5.8
IC234 6910026630 S.DC XC9263B75DER-G B 30.6/8.3
IC235 1110008550 S.IC NJM2904CRB1-TE1-#HMZR T 17.6/15.9
IC238 1180004760 S.REG S-1200B33-M5T1U T 30.3/89.2
IC239 1180004420 S.REG NJM2830U1-08-TE1-#ZGZB T 10.4/18.2
IC240 1180005110 S.REG NJM2836DL3-05-TE1 T 29.3/96.4
IC241 1130007021 S.IC TC7S66FU (TE85LF) [#11] B 21.3/68.0
1130007021 S.IC TC7S66FU (TE85LF) [#12]
Q2 1560002350 S.FET RD12MVS1-T214 T 13.0/83.6
Q3 1560002420 S.FET RD01MUS2B-T513 T 12.3/74.7
Q4 1530004100 S.TRA MT3S20P (TE12LF) B 11.6/65.4
Q7 1520000201 S.TRA 2SB798-T1-AZ DK T 17.0/59.1
Q8 1590004410 S.TRA DMC501010R T 12.9/59.8
Q11 1580000731 S.FET 3SK293 (TE85LF) B 30.0/106.2
Q12 1580000731 S.FET 3SK293 (TE85LF) B 27.8/96.9
Q13 1530002381 S.TRA 2SC4215-Y (TE85LF) B 27.4/78.3
Q20 1590004300 S.TRA DRA9114T0L B 36.2/60.1
Q21 1590004100 S.TRA LDTC144TET1G B 29.3/61.3
Q25 1520000201 S.TRA 2SB798-T1-AZ DK T 44.2/113.7
Q26 1590004330 S.TRA DRC9114E0L T 31.5/105.3
Q28 1530003322 S.TRA 2SC5108-YLF B 11.3/53.4
Q29 1530003322 S.TRA 2SC5108-YLF B 12.4/48.4
Q33 1530002851 S.TRA 2SC4116-BL (TE85RF) B 6.2/52.5
Q35 1520000651 S.TRA 2SB1201S-TL-E T 16.1/26.9
Q36 1590004410 S.TRA DMC501010R B 20.9/26.1
Q50 1510001151 S.TRA L2SA1576AST1G B 42.5/115.6
Q52 1590004530 S.TRA DMG564050R T 37.5/27.8
Q53 1590004070 S.TRA LDTC144EET1G B 25.9/71.5
Q54 1590004050 S.TRA LDTA144EET1G T 33.8/68.6
Q57 1590004520 S.TRA DMA561030R B 13.6/45.6
Q58 1530004610 S.TRA 2SC5086-OLF T 17.7/47.5
Q59 1530004610 S.TRA 2SC5086-OLF T 10.6/46.9
Q60 1530003322 S.TRA 2SC5108-YLF T 14.3/49.3
Q62 1530004190 S.TRA L2SC4617ST1G B 43.4/71.2
Q66 1590004070 S.TRA LDTC144EET1G B 40.1/56.7
Q68 1590004070 S.TRA LDTC144EET1G B 43.0/82.9
Q212 1550000241 S.FET TPCF8107LF T 21.7/122.8
Q213 1550000241 S.FET TPCF8107LF T 24.6/122.1
Q215 1560000531 S.FET 2SK880-GR (TE85RF) B 22.5/41.6
Q216 1590004070 S.TRA LDTC144EET1G B 24.0/50.7
Q217 1590004070 S.TRA LDTC144EET1G B 15.6/43.9
Q218 1590004070 S.TRA LDTC144EET1G T 30.7/60.7
Q220 1590004070 S.TRA LDTC144EET1G T 18.7/7.2
Q223 1550000090 S.FET RSQ035P03TR T 32.2/11.4
Q224 1590004070 S.TRA LDTC144EET1G T 34.1/14.3
Q226 1590004070 S.TRA LDTC144EET1G B 39.7/20.3
Q232 1560001330 S.FET RSR025N03 T 36.5/23.0
Q233 1590004060 S.TRA LDTC114EET1G T 34.9/26.1
Q234 1520000651 S.TRA 2SB1201S-TL-E T 33.9/4.4
Q235 1530002280 S.TRA 2SC4081 T106 S T 25.9/12.9
Q236 1590004070 S.TRA LDTC144EET1G B 38.1/50.8
Q238 1590004070 S.TRA LDTC144EET1G B 29.2/15.5
Q239 1510000671 S.TRA 2SA1588-GR (TE85R F) T 24.4/7.6
Q240 1590004070 S.TRA LDTC144EET1G T 22.0/6.9
Q243 1590004070 S.TRA LDTC144EET1G T 31.6/71.6
Q245 1590004050 S.TRA LDTA144EET1G T 31.3/31.0
Q246 1590004070 S.TRA LDTC144EET1G T 33.5/31.0
D1 1750000581 S.DIO 1SV307 (TPH3F) T 5.4/19.4
D2 1750001800 S.DIO RB886CS T2RA T 13.2/102.7
D3 1750001800 S.DIO RB886CS T2RA T 12.4/99.6
D4 1750001800 S.DIO RB886CS T2RA T 13.2/103.8
D5 1750001800 S.DIO RB886CS T2RA T 5.1/12.1
D6 1750001790 S.DIO 1SS390 TE61 T 5.1/9.6
D8 1750000581 S.DIO 1SV307 (TPH3F) T 10.3/110.7
D11 1750001790 S.DIO 1SS390 TE61 T 27.8/85.7
D12 1750001790 S.DIO 1SS390 TE61 T 37.4/71.0
D13 1720000702 S.VAR 1SV305H3F B 19.9/103.3
D14 1790001622 S.DIO 1SV308L3F B 11.8/108.5
D15 1720000702 S.VAR 1SV305H3F B 31.2/102.2
D16 1720000702 S.VAR 1SV305H3F B 30.3/99.5
D17 1750001790 S.DIO 1SS390 TE61 B 13.7/55.8
D18 1750002170 S.DIO DB2S31400L B 29.6/64.6
D23 1790001980 S.DIO DA3S101F0L T 32.2/109.1
D24 1750001790 S.DIO 1SS390 TE61 T 33.7/67.0
D25 1750001790 S.DIO 1SS390 TE61 T 37.3/66.8
D27 1750001810 S.DIO L1SS400T1G T 37.2/110.1
D29 1790001622 S.DIO 1SV308L3F B 12.8/104.9
D30 1750001810 S.DIO L1SS400T1G T 34.3/17.6
D31 1750001810 S.DIO L1SS400T1G T 18.4/109.1
D36 1750001810 S.DIO L1SS400T1G B 42.2/112.7
D38 1750001771 S.VAR 1SV323H3F T 19.4/41.5
D40 1750002170 S.DIO DB2S31400L B 27.3/69.9
D44 1790001622 S.DIO 1SV308L3F B 13.2/102.3
D45 1750001771 S.VAR 1SV323H3F T 11.5/40.1
D46 1750001771 S.VAR 1SV323H3F T 12.2/38.0
D48 1750001771 S.VAR 1SV323H3F T 19.4/40.2
D49 1750001800 S.DIO RB886CS T2RA T 12.0/113.6
D50 1720000702 S.VAR 1SV305H3F B 28.0/105.4
D51 1750001800 S.DIO RB886CS T2RA T 12.0/112.5
D52 1750001810 S.DIO L1SS400T1G B 36.0/86.2
D55 1750001790 S.DIO 1SS390 TE61 B 28.9/80.3
D56 1750001790 S.DIO 1SS390 TE61 B 26.1/92.2
D57 1750001790 S.DIO 1SS390 TE61 B 27.1/81.3
D58 1750001790 S.DIO 1SS390 TE61 B 28.9/91.4
D59 1750001800 S.DIO RB886CS T2RA B 40.3/85.4
D62 1750002170 S.DIO DB2S31400L T 31.5/70.0
D66 1750000520 S.DIO DAN222TL T 31.3/62.7
D67 1750001810 S.DIO L1SS400T1G T 31.7/119.3
D68 1750001690 S.DIO RB050LA-40 T 27.9/119.4
D71 1730002830 S.ZEN DZ2J051M0L B 40.9/26.0
D72 1790002160 S.VAR TPD1E10B06DPYR B 42.3/96.4
D74 1750001800 S.DIO RB886CS T2RA T 44.8/37.5
D78 1750001810 S.DIO L1SS400T1G T 21.0/96.5
D80 1750001810 S.DIO L1SS400T1G T 26.9/11.0
D81 1750001810 S.DIO L1SS400T1G T 24.2/11.0
D82 1750001810 S.DIO L1SS400T1G T 14.2/19.1
D83 1750001810 S.DIO L1SS400T1G T 30.7/91.6
D85 1790002160 S.VAR TPD1E10B06DPYR T 28.2/122.1
D86 1790001622 S.DIO 1SV308L3F B 30.3/77.2
D87 1750001810 S.DIO L1SS400T1G T 24.2/9.8
D88 1750001810 S.DIO L1SS400T1G T 26.8/9.8
D89 1750001790 S.DIO 1SS390 TE61 [#11] T 36.5/68.6
1750001790 S.DIO 1SS390 TE61 [#12]
D90 1750001790 S.DIO 1SS390 TE61 [#11] T 30.4/85.7
1750001790 S.DIO 1SS390 TE61 [#12]
D91 1750001810 S.DIO L1SS400T1G T 33.2/70.8
D92 1750001810 S.DIO L1SS400T1G T 33.2/73.3
D93 1750002170 S.DIO DB2S31400L T 23.8/85.7
D94 1750002170 S.DIO DB2S31400L B 27.7/90.5
FI1 2030000970 S.MON FL-455 (46.35 MHz) B 23.4/86.8
FI2 2020002720 S.CER LTWC450D T 28.1/79.0
FI3 2030000860 S.MON FL-439 (46.350 MHz) B 30.2/85.7
FI4 2020002520 S.CER LTWC450H T 41.1/77.1
FI5 2020002770 S.CER LTUCG450C [#11] T 38.7/86.0
2020002770 S.CER LTUCG450C [#12]
X1 6070000300 S.DIS JTBM450CX24 T 42.1/63.4
X2 6050013940 S.XTA CR-994 (12.8 MHz) B 32.8/38.8
X203 6050013930 S.XTA CR-993 (15.3 MHz) B 42.5/65.4
L2 6200013110 S.COI 0.35-1.6-9TL 52.0N T 8.6/115.9
L3 6200013110 S.COI 0.35-1.6-9TL 52.0N T 6.2/111.0
L4 6200004480 S.COI MLF1608D R82K-T T 9.0/105.0
L5 6200012460 S.COI 0.30-1.7-8TL 54N T 9.8/101.2
L6 6200012850 S.COI 0.40-0.8-2TL 2.5N T 8.1/90.2
L7 6200013030 S.COI 0.35-1.6-6TL 31.0N T 15.5/88.5
L8 6200009280 S.COI LQW18AN27NG00D
(LQW1608A27NG00) T 11.0/78.0
L10 6200013800 S.COI MLK1005S39NJT T 15.4/77.8
L11 6200013790 S.COI MLK1005S47NJT T 15.5/71.2
L12 6200013780 S.COI MLK1005S56NJT B 15.5/66.5
L15 6200012460 S.COI 0.30-1.7-8TL 54N T 8.3/107.2
L18 6200009890 S.COI C2012C-82NG-A B 15.0/102.0
L21 6200009890 S.COI C2012C-82NG-A B 33.8/104.6
L22 6200009930 S.COI C2012C-68NG-A B 17.7/102.5
L23 6200009890 S.COI C2012C-82NG-A B 33.3/100.5
L24 6200011090 S.COI C2012C-R56J-A B 31.4/95.2
L25 6200004600 S.COI MLF1608D R15K-T B 27.6/75.6
L38 6200014760 S.COI MLK1005SR22JT B 13.0/54.6
L45 6200012910 S.COI 0.35-1.6-8TL 45.5N T 11.1/119.6
L46 6200012870 S.COI 0.30-1.4-5TR 23.5N T 10.6/94.2
L56 6200013760 S.COI MLK1005S82NJT B 8.4/61.7
L57 6200010540 S.COI C2012C-47NG-A T 17.2/40.9
L58 6200003550 S.COI MLF1608A 4R7K-T T 13.3/41.6
L63 6200011050 S.COI C2012C-R12G-A T 20.4/44.8
L64 6200011050 S.COI C2012C-R12G-A T 8.9/42.4
L67 6200013760 S.COI MLK1005S82NJT T 15.9/50.2
L69 6200009890 S.COI C2012C-82NG-A B 21.6/102.8
L71 6200003640 S.COI MLF1608E 100K-T T 8.8/40.2
L72 6200003640 S.COI MLF1608E 100K-T T 21.2/40.8
L85 6200004600 S.COI MLF1608D R15K-T B 43.8/77.3
L86 6200004590 S.COI MLF1608D R18K-T B 41.7/76.7
L87 6200003960 S.COI MLF1608A 1R0K-T B 45.0/74.5
L88 6200004590 S.COI MLF1608D R18K-T B 41.8/72.8
L91 6200003550 S.COI MLF1608A 4R7K-T T 15.4/40.9
L92 6200011050 S.COI C2012C-R12G-A T 9.2/38.4
L93 6200014370 S.COI MLF1005L 2R2K-T B 26.3/91.2
L94 6200014370 S.COI MLF1005L 2R2K-T B 25.3/81.3
L95 6200014370 S.COI MLF1005L 2R2K-T B 31.0/79.2
L96 6200014370 S.COI MLF1005L 2R2K-T B 32.4/91.3
L97 6200011650 S.COI LQW18AN68NG00D B 25.3/95.7
L99 6200014260 S.COI LQM2MPN2R2NG0L B 27.5/7.7
L100 6200014260 S.COI LQM2MPN2R2NG0L B 37.0/7.4
The underlined parts have been updated from the previous version of the addendum, or the original page.

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
(Amended page)
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
March 2019
[MAIN UNIT] (for #11, #12, #21, #22, and #31) [MAIN UNIT] (for #11, #12, #21, #22, and #31)
5-5a
R2 7030015780 S.RES RMC1/10-331JTP (330) T 12.3/107.0
R3 7030016090 S.RES RMC1/16S-223JTH (22 k) T 9.5/67.1
R4 7030015910 S.RES RMC1/16S-101JTH (100) T 9.9/66.2
R5 7030016020 S.RES RMC1/16S-104JTH (100 k) T 6.8/71.8
R7 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 14.6/104.2
R8 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 13.5/97.2
R9 7030015780 S.RES RMC1/10-331JTP (330) T 12.2/105.2
R10 7030015930 S.RES RMC1/16S-471JTH (470) T 6.0/74.2
R11 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 6.8/70.9
R12 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 9.0/70.9
R13 7030016090 S.RES RMC1/16S-223JTH (22 k) T 8.0/72.2
R14 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 6.5/81.4
R15 7030015910 S.RES RMC1/16S-101JTH (100) T 9.0/81.3
R16 7030015980 S.RES RMC1/16S-333JTH (33 k) T 7.8/82.1
R17 7030016110 S.RES RMC1/16S-473JTH (47 k) T 5.9/77.2
R18 7030015920 S.RES RMC1/16S-221JTH (220) T 8.7/74.6
R19 7510001461 S.THE NTCG16 3NH 471JT T 6.9/75.7
R20 7030015680 S.RES RMC1/10-150JTP (15) B 16.1/64.0
R21 7030016050 S.RES RMC1/16S-102JTH (1 k) B 7.7/63.9
R22 7030016050 S.RES RMC1/16S-102JTH (1 k) B 13.7/63.0
R23 7030016150 S.RES RMC1/16S-100JTH (10) B 7.0/65.3
R24 7030016170 S.RES RMC1/16S-560JTH (56) B 9.6/60.5
R25 7030016270 S.RES RMC1/16S-151JTH (150) B 11.0/59.4
R26 7030016170 S.RES RMC1/16S-560JTH (56) B 9.6/58.0
R27 7030016510 S.RES RMC1/16S-4R7JTH (4.7) T 15.5/72.8
R28 7030016080 S.RES RMC1/16S-822JTH (8.2 k) T 11.8/57.9
R29 7030015950 S.RES RMC1/16S-152JTH (1.5 k) T 10.1/58.8
R39 7030015970 S.RES RMC1/16S-103JTH (10 k) B 11.9/57.6
R40 7030016330 S.RES RMC1/16S-153JTH (15 k) T 10.1/57.9
R41 7030015930 S.RES RMC1/16S-471JTH (470) B 13.9/105.3
R43 7030016040 S.RES RMC1/16S-224JTH (220 k) B 19.9/100.5
R44 7030016000 S.RES RMC1/16S-823JTH (82 k) B 32.7/106.7
R45 7030016110 S.RES RMC1/16S-473JTH (47 k) B 31.8/106.7
R47 7030016500 S.RES RMC1/16S-562JTH (5.6 k) B 13.9/107.3
R48 7030016540 S.RES RMC1/16SK334FTH (330 k) B 36.2/106.7
R49 7030015900 S.RES RMC1/16S-470JTH (47) B 33.9/107.1
R51 7030016370 S.RES RMC1/16S-271JTH (270) B 30.5/103.9
R52 7030016050 S.RES RMC1/16S-102JTH (1 k) B 33.8/102.4
R53 7030015910 S.RES RMC1/16S-101JTH (100) B 10.0/107.4
R54 7030016040 S.RES RMC1/16S-224JTH (220 k) B 28.7/101.4
R58 7030016040 S.RES RMC1/16S-224JTH (220 k) B 29.6/98.5
R59 7030016030 S.RES RMC1/16S-154JTH (150 k) B 33.6/96.9
R60 7030015990 S.RES RMC1/16S-683JTH (68 k) B 33.6/98.0
R62 7030016390 S.RES RMC1/16S-184JTH (180 k) B 25.3/93.6
R63 7030015990 S.RES RMC1/16S-683JTH (68 k) B 23.2/93.8
R64 7030015910 S.RES RMC1/16S-101JTH (100) B 30.9/92.8
R65 7030016180 S.RES RMC1/16S-680JTH (68) B 26.4/94.7
R66 7030016050 S.RES RMC1/16S-102JTH (1 k) B 33.1/95.0
R67 7030016560 S.RES RMC1/16SJPTH B 33.9/106.2
R68 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 25.4/79.2
R69 7030016050 S.RES RMC1/16S-102JTH (1 k) B 26.0/75.2
R70 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 25.2/80.1
R71 7030016050 S.RES RMC1/16S-102JTH (1 k) T 40.4/67.8
R72 7030016220 S.RES RMC1/16S-563JTH (56 k) B 34.0/65.7
R73 7030015970 S.RES RMC1/16S-103JTH (10 k) B 29.9/68.1
R74 7030016150 S.RES RMC1/16S-100JTH (10) B 39.1/78.9
R75 7030016040 S.RES RMC1/16S-224JTH (220 k) B 40.6/81.2
R76 7030016020 S.RES RMC1/16S-104JTH (100 k) B 31.2/73.1
R77 7030016050 S.RES RMC1/16S-102JTH (1 k) B 34.0/68.1
R79 7030015970 S.RES RMC1/16S-103JTH (10 k) B 30.3/71.5
R80 7030016020 S.RES RMC1/16S-104JTH (100 k) B 28.2/71.8
R81 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 27.3/68.1
R82 7030016070 S.RES RMC1/16S-474JTH (470 k) B 30.8/70.2
R83 7030016090 S.RES RMC1/16S-223JTH (22 k) B 40.6/82.1
R87 7030015910 S.RES RMC1/16S-101JTH (100) T 41.7/68.3
R90 7030016040 S.RES RMC1/16S-224JTH (220 k) B 29.9/66.9
R94 7030016560 S.RES RMC1/16SJPTH B 29.9/70.2
R99 7030016110 S.RES RMC1/16S-473JTH (47 k) B 28.9/66.9
R100 7030016000 S.RES RMC1/16S-823JTH (82 k) B 27.7/66.4
R101 7030016100 S.RES RMC1/16S-334JTH (330 k) B 30.2/65.6
R102 7030016320 S.RES RMC1/16S-225JTH (2.2 M) B 30.2/63.3
R107 7030015780 S.RES RMC1/10-331JTP (330) T 37.0/106.9
R108 7030015690 S.RES RMC1/10-180JTP (18) T 33.5/106.5
R109 7030015970 S.RES RMC1/16S-103JTH (10 k) T 31.8/107.4
R111 7030015970 S.RES RMC1/16S-103JTH (10 k) B 9.6/57.1
R114 7030016370 S.RES RMC1/16S-271JTH (270) B 13.6/57.1
R115 7030016090 S.RES RMC1/16S-223JTH (22 k) B 13.0/53.7
R117 7030015920 S.RES RMC1/16S-221JTH (220) B 11.6/50.8
R118 7030016130 S.RES RMC1/16S-150JTH (15) T 10.7/50.7
R119 7030016050 S.RES RMC1/16S-102JTH (1 k) B 15.9/50.0
R120 7030016110 S.RES RMC1/16S-473JTH (47 k) B 13.1/50.2
R121 7030015910 S.RES RMC1/16S-101JTH (100) B 15.0/48.8
R122 7030016170 S.RES RMC1/16S-560JTH (56) B 26.7/41.0
R123 7030011000 S.RES RR0510P-392-D (3.9 k) T 20.9/47.3
R124 7030011000 S.RES RR0510P-392-D (3.9 k) T 8.8/46.3
R130 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 4.4/52.9
R134 7030015930 S.RES RMC1/16S-471JTH (470) B 23.6/44.2
R135 7030016480 S.RES RMC1/16S-821JTH (820) B 24.5/47.1
R140 7030016020 S.RES RMC1/16S-104JTH (100 k) B 29.7/23.2
R142 7030015640 S.RES RMC1/10JPTP T 18.5/31.3
R145 7030005820 S.RES RR0510P-103-D (10 k) B 21.0/27.9
R147 7030005950 S.RES RR0510P-123-D (12 k) B 19.8/28.3
R148 7030016050 S.RES RMC1/16S-102JTH (1 k) B 19.1/26.5
R150 7030016020 S.RES RMC1/16S-104JTH (100 k) B 21.6/23.4
R192 7030016740 S.RES RMC1/16SK474DTH (470 k) T 35.5/16.1
R193 7030016750 S.RES RMC1/16SK124DTH (120 k) T 34.7/19.6
R194 7030016740 S.RES RMC1/16SK474DTH (470 k) T 19.9/109.9
R195 7030016750 S.RES RMC1/16SK124DTH (120 k) T 17.3/109.4
R210 7030016560 S.RES RMC1/16SJPTH B 33.3/23.2
R211 7030016390 S.RES RMC1/16S-184JTH (180 k) B 28.0/58.0
R212 7030016110 S.RES RMC1/16S-473JTH (47 k) B 27.8/56.8
R213 7030016340 S.RES RMC1/16S-393JTH (39 k) B 29.6/56.6
R214 7030016450 S.RES RMC1/16S-824JTH (820 k) B 23.5/57.0
R219 7030015660 S.RES RMC1/10-2R7JTP (2.7) T 11.2/79.6
R220 7030015930 S.RES RMC1/16S-471JTH (470) B 40.8/117.2
R222 7030016040 S.RES RMC1/16S-224JTH (220 k) B 44.7/115.2
R223 7030015970 S.RES RMC1/16S-103JTH (10 k) B 42.3/113.8
R224 7030016330 S.RES RMC1/16S-153JTH (15 k) B 44.5/113.1
R225 7030015970 S.RES RMC1/16S-103JTH (10 k) B 37.7/26.3
R226 7030016090 S.RES RMC1/16S-223JTH (22 k) T 35.6/101.7
R227 7030016050 S.RES RMC1/16S-102JTH (1 k) T 39.4/44.1
R231 7030016560 S.RES RMC1/16SJPTH T 37.1/32.8
R252 7030016560 S.RES RMC1/16SJPTH B 25.5/44.4
R253 7030016490 S.RES RMC1/16S-391JTH (390) B 24.6/44.4
R254 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 10.9/44.2
R256 7030011920 S.RES RR0510P-561-D (560) T 20.9/48.6
R258 7030008340 S.RES RR0510P-182-D (1.8 k) T 17.8/46.1
R260 7030008340 S.RES RR0510P-182-D (1.8 k) T 8.7/47.2
R262 7030011920 S.RES RR0510P-561-D (560) T 14.0/44.7
R265 7030015930 S.RES RMC1/16S-471JTH (470) T 18.3/50.3
R266 7030015990 S.RES RMC1/16S-683JTH (68 k) T 17.1/49.3
R274 7030015930 S.RES RMC1/16S-471JTH (470) B 33.0/68.4
R283 7030016390 S.RES RMC1/16S-184JTH (180 k) B 29.6/57.5
R290 7030015900 S.RES RMC1/16S-470JTH (47) T 43.7/68.3
R293 7030016000 S.RES RMC1/16S-823JTH (82 k) B 35.2/106.7
R299 7030015640 S.RES RMC1/10JPTP T 17.2/79.6
R302 7030015970 S.RES RMC1/16S-103JTH (10 k) T 11.8/100.9
R303 7030015970 S.RES RMC1/16S-103JTH (10 k) T 13.2/101.6
R304 7030015970 S.RES RMC1/16S-103JTH (10 k) T 12.0/114.7
R305 7030016290 S.RES RMC1/16S-222JTH (2.2 k) T 13.6/113.0
R311 7030016040 S.RES RMC1/16S-224JTH (220 k) B 27.8/103.3
R313 7030015900 S.RES RMC1/16S-470JTH (47) B 10.3/51.4
R316 7030016090 S.RES RMC1/16S-223JTH (22 k) B 33.6/57.5
R317 7030016110 S.RES RMC1/16S-473JTH (47 k) B 31.5/56.6
R318 7030015970 S.RES RMC1/16S-103JTH (10 k) B 32.7/58.4
R319 7030016110 S.RES RMC1/16S-473JTH (47 k) B 33.6/56.6
R320 7030016300 S.RES RMC1/16S-332JTH (3.3 k) T 7.6/83.8
R321 7510001661 S.THR NTCG16 4LH 473JT T 7.4/85.2
R322 7030016190 S.RES RMC1/16S-273JTH (27 k) T 6.7/83.8
R323 7030016440 S.RES RMC1/16S-272JTH (2.7 k) T 6.4/82.5
R331 7030016050 S.RES RMC1/16S-102JTH (1 k) T 7.1/76.7
R333 7030016190 S.RES RMC1/16S-273JTH (27 k) T 8.5/77.5
R334 7030015970 S.RES RMC1/16S-103JTH (10 k) B 32.0/41.4
R338 7030016000 S.RES RMC1/16S-823JTH (82 k) T 9.2/119.6
R349 7030015640 S.RES RMC1/10JPTP B 39.6/88.5
R352 7030016270 S.RES RMC1/16S-151JTH (150) B 32.2/80.6
R353 7030016560 S.RES RMC1/16SJPTH B 31.2/90.8
R355 7030016240 S.RES RMC1/16S-684JTH (680 k) B 45.1/72.3
R357 7030016050 S.RES RMC1/16S-102JTH (1 k) B 45.1/78.7
R359 7030016050 S.RES RMC1/16S-102JTH (1 k) B 21.5/39.7
R361 7030016090 S.RES RMC1/16S-223JTH (22 k) B 27.0/82.6
R363 7030016090 S.RES RMC1/16S-223JTH (22 k) B 28.8/93.4
R366 7030015910 S.RES RMC1/16S-101JTH (100) B 23.5/81.7
R367 7030015910 S.RES RMC1/16S-101JTH (100) B 22.8/91.8
R368 7030015970 S.RES RMC1/16S-103JTH (10 k) B 14.7/54.7
R369 7030016050 S.RES RMC1/16S-102JTH (1 k) B 25.6/76.4
R370 7030016050 S.RES RMC1/16S-102JTH (1 k) B 12.2/102.0
R374 7030016330 S.RES RMC1/16S-153JTH (15 k) B 39.5/77.2
R375 7030016360 S.RES RMC1/16S-123JTH (12 k) T 27.1/87.2
R376 7030016330 S.RES RMC1/16S-153JTH (15 k) B 37.0/66.6
R377 7030016360 S.RES RMC1/16S-123JTH (12 k) T 39.4/71.7
R378 7030016270 S.RES RMC1/16S-151JTH (150) B 15.4/57.9
R379 7030016470 S.RES RMC1/16S-390JTH (39) B 14.5/57.9
R380 7030016270 S.RES RMC1/16S-151JTH (150) B 15.9/59.1
R381 7030016050 S.RES RMC1/16S-102JTH (1 k) B 29.0/73.1
R388 7030016360 S.RES RMC1/16S-123JTH (12 k) T 43.3/71.3
R389 7030016360 S.RES RMC1/16S-123JTH (12 k) T 28.5/69.3
R390 7030016050 S.RES RMC1/16S-102JTH (1 k) T 31.1/68.1
R391 7030016060 S.RES RMC1/16S-105JTH (1 M) B 33.3/36.5
R393 7030016450 S.RES RMC1/16S-824JTH (820 k) B 29.4/37.6
R394 7030016400 S.RES RMC1/16S-564JTH (560 k) B 30.8/37.0
R397 7030016560 S.RES RMC1/16SJPTH B 24.3/95.7
R398 7030016020 S.RES RMC1/16S-104JTH (100 k) B 26.5/66.3
R399 7030008270 S.RES RR0510P-104-D (100 k) B 21.1/65.4
R400 7030005840 S.RES RR0510P-473-D (47 k) B 23.7/62.4
R401 7030016560 S.RES RMC1/16SJPTH B 25.0/61.9
R405 7030015970 S.RES RMC1/16S-103JTH (10 k) B 42.8/79.0
R407 7030016110 S.RES RMC1/16S-473JTH (47 k) B 22.9/38.4
R417 7030016020 S.RES RMC1/16S-104JTH (100 k) B 40.6/39.5
R419 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 10.1/111.6
R426 7030015910 S.RES RMC1/16S-101JTH (100) B 24.1/73.7
R427 7030016060 S.RES RMC1/16S-105JTH (1 M) B 20.7/76.2
R428 7030016300 S.RES RMC1/16S-332JTH (3.3 k) B 23.2/70.8
R431 7030016560 S.RES RMC1/16SJPTH B 23.2/69.1
R432 7030016110 S.RES RMC1/16S-473JTH (47 k) T 41.2/71.7
R433 7030016110 S.RES RMC1/16S-473JTH (47 k) T 28.9/71.4
R434 7030015640 S.RES RMC1/10JPTP T 37.2/18.6
R443 7030016380 S.RES RMC1/16S-183JTH (18 k) T 35.3/102.9
R444 7030005830 S.RES RR0510P-223-D (22 k) B 26.9/42.3
R456 7030015910 S.RES RMC1/16S-101JTH (100) B 20.6/50.1
R457 7410001130 S.ARR EXB28V102JX B 30.7/48.5
R458 7030015970 S.RES RMC1/16S-103JTH (10 k) B 22.6/43.9
R459 7030015990 S.RES RMC1/16S-683JTH (68 k) B 32.9/46.4
R460 7030016250 S.RES RMC1/16S-220JTH (22) B 34.2/46.0
R461 7030016560 S.RES RMC1/16SJPTH B 35.3/37.5
R462 7410001140 S.ARR EXB28V104JX T 27.9/49.3
R463 7030015970 S.RES RMC1/16S-103JTH (10 k) B 21.1/49.1
R464 7030016000 S.RES RMC1/16S-823JTH (82 k) B 22.9/36.8
R465 7030015970 S.RES RMC1/16S-103JTH (10 k) B 42.4/68.8
R466 7030016560 S.RES RMC1/16SJPTH B 43.5/62.9
R467 7030015990 S.RES RMC1/16S-683JTH (68 k) B 40.5/63.0
R468 7030015930 S.RES RMC1/16S-471JTH (470) T 21.0/62.9
R469 7030016020 S.RES RMC1/16S-104JTH (100 k) T 21.8/57.4
R470 7030016560 S.RES RMC1/16SJPTH T 28.0/58.4
The underlined parts have been updated from the previous version of the addendum, or the original page.

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
(Amended page)
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
March 2019
[MAIN UNIT] (for #11, #12, #21, #22, and #31) [MAIN UNIT] (for #11, #12, #21, #22, and #31)
5-6a
R472 7030015930 S.RES RMC1/16S-471JTH (470) T 31.4/34.7
R473 7030016020 S.RES RMC1/16S-104JTH (100 k) T 26.4/41.2
R478 7030016560 S.RES RMC1/16SJPTH B 9.2/35.1
R479 7030016780 S.RES RMC1/16SK224DTH (220 k) B 8.0/34.5
R480 7030017390 S.RES RMC1/16SK184FTH (180 k) B 6.8/33.2
R481 7030008270 S.RES RR0510P-104-D (100 k) B 7.4/29.0
R482 7030008270 S.RES RR0510P-104-D (100 k) B 7.4/27.9
R483 7030008270 S.RES RR0510P-104-D (100 k) B 5.8/24.3
R484 7030008270 S.RES RR0510P-104-D (100 k) B 6.2/23.0
R485 7030008270 S.RES RR0510P-104-D (100 k) B 5.8/17.7
R486 7030008270 S.RES RR0510P-104-D (100 k) B 4.9/16.1
R487 7030016930 S.RES RMC1/16SK274DTH (270 k) B 10.1/35.1
R488 7030018520 S.RES RMC1/16SK564FTH (560 k) B 11.3/34.4
R489 7030016930 S.RES RMC1/16SK274DTH (270 k) B 12.1/33.2
R490 7030005850 S.RES RR0510P-563-D (56 k) B 13.9/29.9
R491 7030007610 S.RES RR0510P-683-D (68 k) B 12.4/27.6
R492 7030008270 S.RES RR0510P-104-D (100 k) B 13.9/25.4
R493 7030016750 S.RES RMC1/16SK124DTH (120 k) B 13.0/22.6
R494 7030016750 S.RES RMC1/16SK124DTH (120 k) B 13.0/21.0
R495 7030016750 S.RES RMC1/16SK124DTH (120 k) B 13.0/19.1
R497 7030015980 S.RES RMC1/16S-333JTH (33 k) B 12.1/8.8
R498 7030016400 S.RES RMC1/16S-564JTH (560 k) T 43.2/35.3
R499 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 43.3/36.2
R500 7030015980 S.RES RMC1/16S-333JTH (33 k) T 42.3/25.6
R501 7030016250 S.RES RMC1/16S-220JTH (22) T 34.6/34.6
R502 7030016560 S.RES RMC1/16SJPTH T 35.1/39.1
R503 7030016200 S.RES RMC1/16S-274JTH (270 k) T 21.2/125.0
R504 7030015970 S.RES RMC1/16S-103JTH (10 k) T 23.0/125.0
R505 7030016020 S.RES RMC1/16S-104JTH (100 k) T 33.0/121.1
R515 7030016020 S.RES RMC1/16S-104JTH (100 k) T 7.9/21.7
R519 7030012340 S.RES RR0510P-821-D B 26.6/14.8
R520 7030016750 S.RES RMC1/16SK124DTH (120 k) B 27.5/9.3
R521 7030016020 S.RES RMC1/16S-104JTH (100 k) T 32.2/13.7
R524 7030016560 S.RES RMC1/16SJPTH T 26.8/33.7
R526 7030016050 S.RES RMC1/16S-102JTH (1 k) B 13.5/8.4
R527 7030015980 S.RES RMC1/16S-333JTH (33 k) B 40.4/24.6
R528 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 37.7/23.0
R529 7030015910 S.RES RMC1/16S-101JTH (100) B 36.6/23.9
R530 7030016420 S.RES RMC1/16S-182JTH (1.8 k) B 19.9/24.3
R532 7030016560 S.RES RMC1/16SJPTH B 21.5/24.3
R537 7030015970 S.RES RMC1/16S-103JTH (10 k) T 23.2/99.3
R540 7030016330 S.RES RMC1/16S-153JTH (15 k) T 48.0/42.0
R541 7030016100 S.RES RMC1/16S-334JTH (330 k) T 48.0/40.1
R542 7030016050 S.RES RMC1/16S-102JTH (1 k) T 42.1/39.0
R543 7030016320 S.RES RMC1/16S-225JTH (2.2 M) T 44.7/38.6
R544 7030016220 S.RES RMC1/16S-563JTH (56 k) T 43.0/38.1
R545 7030016100 S.RES RMC1/16S-334JTH (330 k) T 46.6/37.5
R546 7030016060 S.RES RMC1/16S-105JTH (1 M) T 48.5/38.3
R548 7030016070 S.RES RMC1/16S-474JTH (470 k) T 34.9/28.5
R549 7030016220 S.RES RMC1/16S-563JTH (56 k) T 34.3/24.4
R550 7030016560 S.RES RMC1/16SJPTH T 32.5/36.7
R551 7030016560 S.RES RMC1/16SJPTH T 32.5/37.6
R552 7030016560 S.RES RMC1/16SJPTH T 32.0/38.7
R554 7030016560 S.RES RMC1/16SJPTH T 29.1/41.6
R555 7030016560 S.RES RMC1/16SJPTH T 26.7/64.0
R556 7030016560 S.RES RMC1/16SJPTH T 25.7/64.0
R558 7030016560 S.RES RMC1/16SJPTH T 23.5/63.6
R559 7030016560 S.RES RMC1/16SJPTH T 21.0/61.1
R561 7030016560 S.RES RMC1/16SJPTH T 27.7/62.1
R562 7030016560 S.RES RMC1/16SJPTH T 28.4/60.0
R563 7030016380 S.RES RMC1/16S-183JTH (18 k) B 10.0/8.0
R564 7030016020 S.RES RMC1/16S-104JTH (100 k) B 11.1/4.0
R565 7030016020 S.RES RMC1/16S-104JTH (100 k) B 9.6/5.0
R566 7030015980 S.RES RMC1/16S-333JTH (33 k) B 11.7/7.6
R568 7030016050 S.RES RMC1/16S-102JTH (1 k) B 13.3/7.5
R569 7030016020 S.RES RMC1/16S-104JTH (100 k) B 35.7/48.1
R571 7030006020 S.RES RR0510P-682-D (6.8 k) B 27.8/14.4
R572 7030016500 S.RES RMC1/16S-562JTH (5.6 k) T 15.4/12.2
R573 7030019630 S.RES RL1220S-1R8-F (1.8) T 20.3/10.6
R574 7030019630 S.RES RL1220S-1R8-F (1.8) T 22.0/10.6
R575 7030019630 S.RES RL1220S-1R8-F (1.8) T 27.5/7.6
R577 7030015940 S.RES RMC1/16S-681JTH (680) T 23.8/12.7
R578 7030015970 S.RES RMC1/16S-103JTH (10 k) T 24.6/14.7
R580 7030016050 S.RES RMC1/16S-102JTH (1 k) T 16.8/19.4
R581 7030015970 S.RES RMC1/16S-103JTH (10 k) T 21.1/18.5
R582 7030019580 S.RES RG1005P-104-B-T5 (100 k) T 29.8/12.2
R583 7030006020 S.RES RR0510P-682-D (6.8 k) T 30.0/13.8
R584 7030019580 S.RES RG1005P-104-B-T5 (100 k) T 30.4/15.0
R585 7030019600 S.RES RG1005P-103-B-T5 (10 k) T 14.3/16.6
R588 7030019630 S.RES RL1220S-1R8-F (1.8) T 28.3/5.1
R589 7030019600 S.RES RG1005P-103-B-T5 (10 k) T 15.6/18.3
R590 7030016050 S.RES RMC1/16S-102JTH (1 k) T 14.7/15.3
R591 7030016050 S.RES RMC1/16S-102JTH (1 k) T 16.3/11.7
R593 7030016560 S.RES RMC1/16SJPTH B 38.6/27.2
R594 7030016020 S.RES RMC1/16S-104JTH (100 k) T 46.1/44.8
R595 7030016020 S.RES RMC1/16S-104JTH (100 k) T 43.1/44.7
R596 7030016050 S.RES RMC1/16S-102JTH (1 k) B 21.7/57.4
R597 7030016060 S.RES RMC1/16S-105JTH (1 M) B 25.7/55.8
R600 7030016050 S.RES RMC1/16S-102JTH (1 k) B 35.5/51.8
R601 7030016560 S.RES RMC1/16SJPTH B 20.2/65.4
R602 7030016560 S.RES RMC1/16SJPTH T 22.1/98.4
R604 7030016560 S.RES RMC1/16SJPTH T 26.9/90.2
R605 7030016020 S.RES RMC1/16S-104JTH (100 k) B 38.9/7.7
R606 7520000241 S.POS PRF18BC471QB5RB T 14.8/79.1
R607 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 18.9/78.3
R608 7030016050 S.RES RMC1/16S-102JTH (1 k) T 20.3/6.8
R609 7030015970 S.RES RMC1/16S-103JTH (10 k) T 18.4/9.4
R610 7030015970 S.RES RMC1/16S-103JTH (10 k) T 18.1/10.7
R612 7030015910 S.RES RMC1/16S-101JTH (100) T 15.9/20.4
R613 7030016560 S.RES RMC1/16SJPTH T 21.7/118.8
R617 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 29.4/79.2
R619 7030016560 S.RES RMC1/16SJPTH B 9.3/61.7
R620 7030015910 S.RES RMC1/16S-101JTH (100) T 44.8/36.2
R621 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 15.4/18.4
R622 7030016110 S.RES RMC1/16S-473JTH (47 k) B 15.4/21.3
R623 7030016110 S.RES RMC1/16S-473JTH (47 k) B 10.2/28.3
R624 7030016110 S.RES RMC1/16S-473JTH (47 k) B 14.3/31.2
R626 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 6.0/16.1
R627 7030016110 S.RES RMC1/16S-473JTH (47 k) B 6.9/21.5
R629 7030016110 S.RES RMC1/16S-473JTH (47 k) B 6.9/25.6
R632 7030016110 S.RES RMC1/16S-473JTH (47 k) B 6.9/31.3
R635 7030015900 S.RES RMC1/16S-470JTH (47) B 7.5/67.2
R637 7030016020 S.RES RMC1/16S-104JTH (100 k) B 40.0/64.2
R638 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 31.9/77.7
R639 7030016050 S.RES RMC1/16S-102JTH (1 k) B 24.8/78.0
R642 7030015940 S.RES RMC1/16S-681JTH (680) T 23.3/13.9
R644 7030016020 S.RES RMC1/16S-104JTH (100 k) T 39.7/45.4
R645 7030016020 S.RES RMC1/16S-104JTH (100 k) T 39.7/47.0
R646 7030016020 S.RES RMC1/16S-104JTH (100 k) T 38.8/47.6
R647 7030016020 S.RES RMC1/16S-104JTH (100 k) T 37.9/47.6
R648 7030016020 S.RES RMC1/16S-104JTH (100 k) T 41.8/46.6
R649 7030016360 S.RES RMC1/16S-123JTH (12 k) [#11] T 32.3/85.4
7030016360 S.RES RMC1/16S-123JTH (12 k) [#12]
R650 7030016050 S.RES RMC1/16S-102JTH (1 k) T 31.1/69.0
R651 7030016560 S.RES RMC1/16SJPTH B 36.5/79.5
R652 7030016090 S.RES RMC1/16S-223JTH (22 k) B 21.2/72.2
R653 7030016050 S.RES RMC1/16S-102JTH (1 k) T 20.3/75.7
R654 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 23.9/79.2
R655 7030016030 S.RES RMC1/16S-154JTH (150 k) B 32.6/64.9
R656 7030016190 S.RES RMC1/16S-273JTH (27 k) B 27.3/61.1
R657 7030016040 S.RES RMC1/16S-224JTH (220 k) B 28.0/59.6
R658 7030015930 S.RES RMC1/16S-471JTH (470) B 15.4/105.8
R660 7030016020 S.RES RMC1/16S-104JTH (100 k) B 31.4/23.2
R662 7030016050 S.RES RMC1/16S-102JTH (1 k) T 39.1/23.0
R670 7030016360 S.RES RMC1/16S-123JTH (12 k) [#11] T 34.5/70.8
7030016360 S.RES RMC1/16S-123JTH (12 k) [#12]
R671 7030017740 S.RES RMC1/10-271JTP (270) T 35.2/106.7
R672 7030015900 S.RES RMC1/16S-470JTH (47) B 17.5/105.9
R673 7030015930 S.RES RMC1/16S-471JTH (470) B 22.4/80.0
R674 7030016460 S.RES RMC1/16S-181JTH (180) T 28.2/110.8
R677 7030015960 S.RES RMC1/16S-472JTH (4.7 k) T 32.5/46.6
R678 7030016020 S.RES RMC1/16S-104JTH (100 k) T 33.1/45.7
R679 7030010990 S.RES RR0510P-272-D (2.7 k) B 25.4/14.4
R680 7030016090 S.RES RMC1/16S-223JTH (22 k) B 33.6/29.6
C3 4030023580 S.CER 0603N220J500CT T 8.3/118.0
C4 4030023410 S.CER 0603N9R0D500CT T 9.6/113.8
C5 4030023620 S.CER 0603N270J500CT T 6.7/113.8
C6 4030023350 S.CER 0603N5R0B500CT T 8.3/112.0
C7 4030023580 S.CER 0603N220J500CT T 3.2/107.8
C8 4030023850 S.CER 0603B102K500CT T 5.1/107.0
C9 4030023850 S.CER 0603B102K500CT T 12.7/108.5
C10 4030023850 S.CER 0603B102K500CT T 9.0/103.8
C11 4030022610 S.CER 0402N0R3B500CT T 11.5/103.8
C13 4030023580 S.CER 0603N220J500CT T 7.1/102.6
C14 4030023580 S.CER 0603N220J500CT T 9.0/98.7
C15 4030022610 S.CER 0402N0R3B500CT T 11.2/98.5
C17 4030023200 S.CER 0402B471K500CT T 7.2/74.0
C19 4030023590 S.CER 0603N221J500CT T 9.0/97.5
C20 4030023090 S.CER 0402B102K500CT T 14.5/109.4
C23 4030023130 S.CER 0402B222K500CT T 9.2/71.8
C24 4030023010 S.CER 0402B104K160CT T 14.5/91.0
C25 4030023090 S.CER 0402B102K500CT T 8.5/83.8
C28 4030023030 S.CER 0402B103K250CT T 9.7/68.4
C29 4030023090 S.CER 0402B102K500CT B 14.7/63.0
C30 4030022880 S.CER 0402N560J500CT T 13.4/78.0
C31 4030023030 S.CER 0402B103K250CT T 17.6/75.9
C32 4030023090 S.CER 0402B102K500CT T 8.7/76.2
C33 4030023090 S.CER 0402B102K500CT B 14.4/61.7
C34 4030022630 S.CER 0402N100C500CT T 14.6/70.3
C35 4030022880 S.CER 0402N560J500CT T 15.5/69.4
C37 4550007360 S.TAN F931A226MBABMA T 19.6/69.7
C38 4030023090 S.CER 0402B102K500CT T 18.8/73.7
C39 4030022700 S.CER 0402N180J500CT B 6.0/64.3
C40 4030023090 S.CER 0402B102K500CT B 11.0/57.6
C48 4030023090 S.CER 0402B102K500CT T 19.9/57.6
C49 4550007390 S.TAN F931C225MAABMA T 10.4/56.3
C50 4030023820 S.CER 0603B104K250CT T 19.1/55.6
C51 4030023090 S.CER 0402B102K500CT T 10.1/59.7
C52 4030023010 S.CER 0402B104K160CT T 10.1/60.7
C53 4030023580 S.CER 0603N220J500CT T 3.2/106.3
C54 4030022740 S.CER 0402N220J500CT T 11.7/111.2
C56 4030023090 S.CER 0402B102K500CT T 12.9/110.7
C57 4030023090 S.CER 0402B102K500CT B 16.4/107.1
C58 4030023090 S.CER 0402B102K500CT B 12.7/107.1
C60 4030023090 S.CER 0402B102K500CT B 21.2/100.6
C61 4030023010 S.CER 0402B104K160CT B 24.0/92.5
C62 4030022700 S.CER 0402N180J500CT B 27.9/107.0
C63 4030023090 S.CER 0402B102K500CT B 11.0/109.9
C64 4030023090 S.CER 0402B102K500CT B 12.1/100.3
C65 4030023090 S.CER 0402B102K500CT B 37.1/106.7
C66 4030023010 S.CER 0402B104K160CT B 36.5/105.0
C67 4030023090 S.CER 0402B102K500CT B 34.7/102.6
C68 4030023090 S.CER 0402B102K500CT B 29.6/103.9
C69 4030020000 S.CER C1005 JB 1A 105K-T B 36.5/103.1
C71 4030022660 S.CER 0402N120J500CT B 17.0/104.1
C72 4030022520 S.CER 0402N1R0B500CT B 31.8/105.1
C73 4030022790 S.CER 0402N2R5B500CT B 32.9/102.4
C74 4030022720 S.CER 0402N1R5B500CT B 35.3/101.0
C75 4030023090 S.CER 0402B102K500CT B 29.6/102.3
C76 4030023090 S.CER 0402B102K500CT B 39.1/108.4
C77 4030022530 S.CER 0402N2R0B500CT B 33.6/98.9
C78 4030022700 S.CER 0402N180J500CT B 31.7/98.1
The underlined parts have been updated from the previous version of the addendum, or the original page.

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
(Amended page)
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
March 2019
[MAIN UNIT] (for #11, #12, #21, #22, and #31) [MAIN UNIT] (for #11, #12, #21, #22, and #31)
5-7a
C79 4030023090 S.CER 0402B102K500CT B 30.3/100.9
C80 4030023090 S.CER 0402B102K500CT B 24.4/93.7
C81 4030023090 S.CER 0402B102K500CT B 28.2/94.7
C82 4030023030 S.CER 0402B103K250CT B 32.9/92.6
C83 4030023090 S.CER 0402B102K500CT B 33.8/92.6
C84 4030023090 S.CER 0402B102K500CT B 33.8/93.8
C85 4030022700 S.CER 0402N180J500CT B 34.1/95.1
C86 4030022580 S.CER 0402N7R0C500CT B 20.1/85.3
C87 4030022560 S.CER 0402N5R0B500CT B 13.7/99.9
C88 4030023030 S.CER 0402B103K250CT B 25.7/78.0
C90 4030023090 S.CER 0402B102K500CT B 29.0/76.2
C91 4030022590 S.CER 0402N8R0C500CT B 38.5/67.7
C92 4030023020 S.CER 0402B473K160CT B 35.6/64.9
C93 4030023090 S.CER 0402B102K500CT B 31.7/67.9
C95 4030023030 S.CER 0402B103K250CT B 31.6/68.8
C97 4550007520 S.TAN F931A106MAABMA B 36.6/81.0
C98 4030022640 S.CER 0402N101J500CT B 29.1/71.8
C99 4030023030 S.CER 0402B103K250CT B 28.6/70.6
C100 4030023200 S.CER 0402B471K500CT B 29.9/69.0
C101 4030019560 S.CER GRM21BB31C106KE15L B 36.5/78.1
C102 4030023200 S.CER 0402B471K500CT B 28.6/69.3
C103 4030022540 S.CER 0402N3R0B500CT B 43.0/74.1
C104 4030023030 S.CER 0402B103K250CT B 37.0/68.2
C106 4030023010 S.CER 0402B104K160CT B 40.1/70.6
C107 4030020000 S.CER C1005 JB 1A 105K-T T 42.6/67.4
C110 4030023090 S.CER 0402B102K500CT B 36.5/104.1
C113 4030023010 S.CER 0402B104K160CT B 42.8/80.9
C115 4030023010 S.CER 0402B104K160CT B 29.3/63.3
C116 4030023090 S.CER 0402B102K500CT T 18.5/75.9
C117 4030023090 S.CER 0402B102K500CT T 19.5/80.9
C118 4030023030 S.CER 0402B103K250CT T 18.6/80.9
C121 4030019560 S.CER GRM21BB31C106KE15L T 35.3/110.2
C125 4030023030 S.CER 0402B103K250CT T 21.9/109.5
C126 4030023010 S.CER 0402B104K160CT T 26.6/122.4
C127 4030023090 S.CER 0402B102K500CT T 33.9/109.6
C130 4510009700 S.ELE EEEFK1C101P T 37.9/115.5
C150 4030022680 S.CER 0402N150J500CT B 11.0/55.0
C151 4030022600 S.CER 0402N9R0C500CT B 11.9/51.8
C152 4030023090 S.CER 0402B102K500CT B 14.6/53.8
C153 4030023090 S.CER 0402B102K500CT B 14.1/49.0
C155 4030022810 S.CER 0402N330J500CT T 12.5/50.7
C156 4030023090 S.CER 0402B102K500CT B 15.9/48.9
C168 4550007550 S.TAN F931V334MAABMA T 17.6/38.3
C169 4550007390 S.TAN F931C225MAABMA B 25.0/48.6
C170 4030022720 S.CER 0402N1R5B500CT T 19.2/42.6
C171 4030023090 S.CER 0402B102K500CT B 12.8/59.1
C172 4030023010 S.CER 0402B104K160CT B 8.3/52.0
C173 4550008160 S.TAN F931A226MAA B 7.7/55.0
C174 4030023010 S.CER 0402B104K160CT B 22.2/50.1
C176 4030023010 S.CER 0402B104K160CT T 16.4/109.4
C180 4030023010 S.CER 0402B104K160CT T 34.7/18.7
C187 4030023010 S.CER 0402B104K160CT B 17.0/25.9
C188 4030017480 S.CER C1608 JB 1A 474K-T B 18.0/26.4
C190 4030022750 S.CER 0402N221J500CT B 14.4/104.1
C191 4030023030 S.CER 0402B103K250CT B 31.5/103.5
C192 4030023090 S.CER 0402B102K500CT B 26.9/99.6
C193 4030023090 S.CER 0402B102K500CT B 26.8/98.7
C196 4030023010 S.CER 0402B104K160CT B 22.6/28.8
C197 4030023020 S.CER 0402B473K160CT B 27.3/62.2
C201 4030022840 S.CER 0402N390J500CT B 38.5/68.6
C202 4030023010 S.CER 0402B104K160CT B 15.0/6.8
C211 4030023330 S.CER 0603N4R0B500CT T 13.2/119.4
C212 4030023700 S.CER 0603N390J500CT T 6.7/96.3
C223 4030024520 S.CER C1005 JB 1C 474K-T B 33.3/21.5
C225 4030024050 S.CER 0603B473K500CT B 6.8/12.9
C229 4030023030 S.CER 0402B103K250CT T 44.6/68.8
C232 4030022530 S.CER 0402N2R0B500CT B 24.1/91.6
C235 4030020000 S.CER C1005 JB 1A 105K-T B 8.2/108.9
C237 4030023090 S.CER 0402B102K500CT B 40.8/118.2
C238 4550007270 S.TAN F931A475MAABMA T 38.5/120.9
C239 4030022980 S.CER 0402B473K100CT B 44.7/116.2
C240 4030023090 S.CER 0402B102K500CT B 40.3/116.3
C241 4030023090 S.CER 0402B102K500CT B 45.3/114.2
C242 4030023010 S.CER 0402B104K160CT B 37.7/24.7
C243 4030023090 S.CER 0402B102K500CT B 40.4/114.5
C245 4030023010 S.CER 0402B104K160CT T 35.3/103.8
C249 4030023090 S.CER 0402B102K500CT T 27.2/52.8
C274 4030023090 S.CER 0402B102K500CT B 36.2/84.6
C293 4030023090 S.CER 0402B102K500CT B 12.7/4.0
C294 4030020000 S.CER C1005 JB 1A 105K-T B 29.6/55.7
C296 4030023760 S.CER 0603N680J500CT T 9.2/87.2
C297 4030023530 S.CER 0603N181J500CT T 6.7/95.1
C301 4030023090 S.CER 0402B102K500CT B 13.1/43.6
C302 4030022810 S.CER 0402N330J500CT T 20.9/42.6
C306 4030023670 S.CER 0603N330J500CT T 16.7/45.0
C307 4030022570 S.CER 0402N6R0C500CT T 11.7/42.3
C308 4030023090 S.CER 0402B102K500CT B 11.8/44.2
C309 4030023090 S.CER 0402B102K500CT B 11.4/46.5
C310 4030023670 S.CER 0603N330J500CT T 19.5/48.0
C311 4030023790 S.CER 0603N820J500CT T 9.5/45.2
C312 4030023090 S.CER 0402B102K500CT T 16.4/46.3
C313 4030023090 S.CER 0402B102K500CT T 12.5/48.6
C315 4030023670 S.CER 0603N330J500CT T 12.2/45.2
C316 4030024490 S.CER 0402NR75B500CT T 16.3/48.4
C317 4030024490 S.CER 0402NR75B500CT T 12.4/49.7
C319 4030023090 S.CER 0402B102K500CT T 19.6/49.8
C321 4030023030 S.CER 0402B103K250CT B 36.1/68.2
C323 4030023030 S.CER 0402B103K250CT B 27.3/94.7
C327 4030023090 S.CER 0402B102K500CT B 28.7/103.3
C328 4030023090 S.CER 0402B102K500CT B 26.9/101.1
C329 4030022530 S.CER 0402N2R0B500CT B 21.2/104.9
C330 4030023030 S.CER 0402B103K250CT B 31.1/58.4
C331 4030023010 S.CER 0402B104K160CT B 12.5/10.2
C333 4030023090 S.CER 0402B102K500CT B 6.8/97.0
C335 4030023670 S.CER 0603N330J500CT T 12.9/46.4
C336 4030022860 S.CER 0402N470J500CT T 10.5/42.2
C338 4030023670 S.CER 0603N330J500CT T 18.6/44.4
C347 4030023010 S.CER 0402B104K160CT B 36.5/76.7
C349 4550007550 S.TAN F931V334MAABMA B 24.9/41.1
C350 4030022860 S.CER 0402N470J500CT T 16.7/75.9
C351 4030022750 S.CER 0402N221J500CT T 7.2/67.1
C352 4030023090 S.CER 0402B102K500CT T 9.2/72.7
C354 4030023090 S.CER 0402B102K500CT B 36.2/61.6
C355 4030021240 S.CER C1005 JB 1C 105K-T B 30.8/38.8
C356 4030023010 S.CER 0402B104K160CT B 40.1/72.5
C357 4030022980 S.CER 0402B473K100CT B 35.1/66.9
C361 4030022550 S.CER 0402N4R0B500CT B 30.3/81.1
C364 4030022540 S.CER 0402N3R0B500CT B 32.5/90.4
C365 4030022680 S.CER 0402N150J500CT B 33.5/84.2
C372 4030023090 S.CER 0402B102K500CT T 15.4/91.0
C373 4030023090 S.CER 0402B102K500CT T 11.1/66.7
C375 4030022610 S.CER 0402N0R3B500CT T 9.7/112.8
C376 4030023090 S.CER 0402B102K500CT B 32.9/50.0
C377 4030022620 S.CER 0402N0R5B500CT T 10.2/49.3
C379 4030023330 S.CER 0603N4R0B500CT T 16.8/43.8
C381 4030023090 S.CER 0402B102K500CT B 36.2/62.8
C383 4030023330 S.CER 0603N4R0B500CT T 11.4/43.6
C384 4030021520 S.CER GRM31CB31H106KA12L T 25.0/109.6
C385 4030021240 S.CER C1005 JB 1C 105K-T T 21.6/106.1
C386 4030022560 S.CER 0402N5R0B500CT T 11.7/41.2
C387 4030023090 S.CER 0402B102K500CT B 28.4/41.5
C388 4030023090 S.CER 0402B102K500CT T 20.3/90.4
C389 4030022560 S.CER 0402N5R0B500CT T 12.1/39.0
C390 4030023090 S.CER 0402B102K500CT B 32.8/76.8
C391 4030022900 S.CER 0402N680J500CT B 26.5/76.4
C392 4030023090 S.CER 0402B102K500CT B 23.6/75.2
C393 4030020000 S.CER C1005 JB 1A 105K-T B 24.7/76.4
C394 4030023030 S.CER 0402B103K250CT B 23.8/76.4
C395 4030023090 S.CER 0402B102K500CT B 15.9/54.2
C396 4030022660 S.CER 0402N120J500CT B 15.1/56.7
C397 4030022680 S.CER 0402N150J500CT B 16.2/60.5
C398 4030022860 S.CER 0402N470J500CT B 42.1/74.1
C399 4030022650 S.CER 0402N110J500CT B 42.8/75.6
C400 4030022640 S.CER 0402N101J500CT B 41.2/74.1
C401 4030022550 S.CER 0402N4R0B500CT B 41.2/75.5
C402 4030022880 S.CER 0402N560J500CT B 40.3/74.1
C403 4030023090 S.CER 0402B102K500CT B 33.0/43.9
C405 4030023090 S.CER 0402B102K500CT B 19.4/99.2
C407 4030020450 S.CER C1005 JB 0J 475M-T B 16.3/105.4
C418 4030023090 S.CER 0402B102K500CT T 40.3/12.6
C420 4030023090 S.CER 0402B102K500CT T 37.3/104.8
C429 4030022860 S.CER 0402N470J500CT T 16.4/91.0
C430 4030021240 S.CER C1005 JB 1C 105K-T B 22.7/78.8
C431 4030023090 S.CER 0402B102K500CT T 37.2/16.9
C432 4030023090 S.CER 0402B102K500CT B 38.1/106.7
C438 4030022630 S.CER 0402N100C500CT B 32.9/41.4
C439 4030022640 S.CER 0402N101J500CT B 43.7/69.2
C440 4030023090 S.CER 0402B102K500CT B 33.8/41.4
C441 4030020000 S.CER C1005 JB 1A 105K-T B 34.8/38.9
C443 4030023090 S.CER 0402B102K500CT B 23.1/39.7
C444 4030023010 S.CER 0402B104K160CT B 35.4/46.5
C445 4030021240 S.CER C1005 JB 1C 105K-T B 34.8/44.3
C446 4030023030 S.CER 0402B103K250CT B 45.1/79.6
C451 4030023010 S.CER 0402B104K160CT B 24.4/81.3
C458 4030023010 S.CER 0402B104K160CT B 29.9/91.1
C459 4030023010 S.CER 0402B104K160CT B 31.0/80.1
C460 4030023010 S.CER 0402B104K160CT B 40.0/75.8
C461 4030023010 S.CER 0402B104K160CT T 25.3/85.9
C462 4030023010 S.CER 0402B104K160CT T 38.2/72.1
C463 4030023010 S.CER 0402B104K160CT T 26.2/72.1
C464 4030023010 S.CER 0402B104K160CT T 44.5/71.7
C466 4030023010 S.CER 0402B104K160CT T 28.9/72.3
C467 4030023010 S.CER 0402B104K160CT T 42.1/71.7
C468 4030023010 S.CER 0402B104K160CT T 26.2/86.8
C469 4030023010 S.CER 0402B104K160CT B 26.7/84.2
C470 4030023010 S.CER 0402B104K160CT B 26.6/89.5
C471 4030023010 S.CER 0402B104K160CT B 33.7/90.8
C472 4030023010 S.CER 0402B104K160CT B 33.1/80.6
C473 4030022560 S.CER 0402N5R0B500CT B 41.6/70.4
C474 4030022570 S.CER 0402N6R0C500CT B 43.9/72.8
C475 4030022880 S.CER 0402N560J500CT B 41.3/71.7
C476 4030023090 S.CER 0402B102K500CT B 26.8/80.2
C477 4030023090 S.CER 0402B102K500CT B 29.7/94.7
C478 4030023030 S.CER 0402B103K250CT B 22.0/64.9
C479 4030023030 S.CER 0402B103K250CT B 24.9/62.8
C481 4030019560 S.CER GRM21BB31C106KE15L B 9.6/109.5
C484 4030023030 S.CER 0402B103K250CT B 8.7/52.9
C485 4030023090 S.CER 0402B102K500CT T 25.7/66.2
C486 4030023090 S.CER 0402B102K500CT T 26.7/66.2
C487 4030023090 S.CER 0402B102K500CT T 27.7/66.2
C488 4030019560 S.CER GRM21BB31C106KE15L B 9.5/106.0
C489 4030020000 S.CER C1005 JB 1A 105K-T B 24.2/72.3
C490 4030023010 S.CER 0402B104K160CT B 35.7/38.9
C491 4030023090 S.CER 0402B102K500CT B 31.5/57.5
C492 4030020450 S.CER C1005 JB 0J 475M-T T 28.9/70.5
C493 4030020450 S.CER C1005 JB 0J 475M-T T 40.3/71.7
C495 4030021520 S.CER GRM31CB31H106KA12L T 19.6/82.7
C496 4030021520 S.CER GRM31CB31H106KA12L T 21.3/107.7
C508 4030023090 S.CER 0402B102K500CT T 14.4/41.4
C509 4030023090 S.CER 0402B102K500CT T 13.9/38.5
C510 4030023090 S.CER 0402B102K500CT B 26.6/45.7
C511 4030022640 S.CER 0402N101J500CT B 29.4/40.4
C512 4030024500 S.CER C1005 JB 1C 224K-T B 30.3/40.4
C513 4030019560 S.CER GRM21BB31C106KE15L B 27.6/38.7
The underlined parts have been updated from the previous version of the addendum, or the original page.

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
(Amended page)
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
March 2019
[MAIN UNIT] (for #11, #12, #21, #22, and #31) [MAIN UNIT] (for #11, #12, #21, #22, and #31)
5-8a
C514 4030023010 S.CER 0402B104K160CT B 33.9/44.3
C515 4030023010 S.CER 0402B104K160CT B 32.4/48.1
C516 4030019560 S.CER GRM21BB31C106KE15L B 28.4/49.8
C517 4030023010 S.CER 0402B104K160CT B 29.9/38.8
C518 4030023090 S.CER 0402B102K500CT B 26.3/50.7
C519 4030023090 S.CER 0402B102K500CT B 28.7/47.7
C520 4030023090 S.CER 0402B102K500CT B 15.5/42.4
C521 4030023090 S.CER 0402B102K500CT B 16.4/47.7
C522 4030023090 S.CER 0402B102K500CT T 19.5/50.7
C523 4030023090 S.CER 0402B102K500CT B 21.9/38.5
C524 4030023090 S.CER 0402B102K500CT B 21.5/37.3
C525 4030023090 S.CER 0402B102K500CT B 44.1/67.8
C526 4030022630 S.CER 0402N100C500CT B 42.4/67.8
C527 4030021240 S.CER C1005 JB 1C 105K-T B 40.5/65.4
C528 4030023010 S.CER 0402B104K160CT B 39.6/65.4
C529 4030023010 S.CER 0402B104K160CT B 44.5/64.6
C530 4030021240 S.CER C1005 JB 1C 105K-T B 41.9/63.1
C531 4030023010 S.CER 0402B104K160CT T 21.0/62.0
C532 4030019560 S.CER GRM21BB31C106KE15L T 26.5/54.9
C533 4030023010 S.CER 0402B104K160CT T 24.8/54.9
C534 4030023090 S.CER 0402B102K500CT T 32.5/33.3
C535 4030023010 S.CER 0402B104K160CT T 24.8/36.0
C536 4030019560 S.CER GRM21BB31C106KE15L T 24.7/34.0
C537 4030023010 S.CER 0402B104K160CT T 30.5/33.8
C538 4520000020 S.NIO NOJC227M006RWJV T 30.3/26.1
C539 4030023090 S.CER 0402B102K500CT B 41.3/96.4
C541 4030021240 S.CER C1005 JB 1C 105K-T B 34.8/27.6
C542 4030023010 S.CER 0402B104K160CT B 34.5/23.2
C543 4030023090 S.CER 0402B102K500CT T 15.9/9.5
C544 4030023090 S.CER 0402B102K500CT T 13.0/6.6
C549 4030017810 S.CER C1608 CH 1H 102J-T B 5.6/31.1
C550 4030022910 S.CER 0402N681J500CT B 8.7/33.2
C551 4030018620 S.CER C1608 CH 1H 222J-T B 6.0/28.1
C552 4030022820 S.CER 0402N331J500CT B 9.0/28.0
C553 4030019570 S.CER C1608 CH 1H 332J-T B 5.6/19.4
C554 4030022670 S.CER 0402N121J500CT B 8.0/23.4
C555 4030022350 S.CER C1608 CH 1H 822JT B 5.5/14.7
C557 4030022930 S.CER 0402N821J500CT B 11.4/35.3
C558 4030022930 S.CER 0402N821J500CT B 13.0/31.7
C559 4030022690 S.CER 0402N151J500CT B 10.5/33.2
C560 4030020170 S.CER C1608 CH 1H 472J-T B 13.7/27.4
C561 4030022870 S.CER 0402N471J500CT B 11.2/28.3
C562 4030020940 S.CER C1608 CH 1H 392JT B 14.1/22.1
C563 4030022640 S.CER 0402N101J500CT B 12.1/23.2
C564 4030020160 S.CER C1608 CH 1H 103J-T B 14.1/19.1
C565 4030022680 S.CER 0402N150J500CT B 9.3/18.3
C566 4030021240 S.CER C1005 JB 1C 105K-T T 41.5/35.4
C567 4030021240 S.CER C1005 JB 1C 105K-T T 41.9/36.8
C568 4030021240 S.CER C1005 JB 1C 105K-T T 40.9/25.9
C569 4030023010 S.CER 0402B104K160CT T 42.6/26.5
C570 4030023010 S.CER 0402B104K160CT T 39.6/26.3
C571 4030019560 S.CER GRM21BB31C106KE15L T 35.0/37.1
C572 4030019560 S.CER GRM21BB31C106KE15L T 37.6/34.9
C573 4030023090 S.CER 0402B102K500CT T 9.1/21.3
C574 4030022900 S.CER 0402N680J500CT B 27.5/10.2
C577 4030021520 S.CER GRM31CB31H106KA12L B 21.7/9.3
C579 4030021520 S.CER GRM31CB31H106KA12L B 23.8/9.3
C580 4030021520 S.CER GRM31CB31H106KA12L B 34.9/6.7
C585 4030023010 S.CER 0402B104K160CT B 25.4/9.5
C586 4030023030 S.CER 0402B103K250CT B 26.3/9.5
C587 4030022870 S.CER 0402N471J500CT B 40.4/23.7
C588 4030022860 S.CER 0402N470J500CT B 41.6/21.9
C589 4030021240 S.CER C1005 JB 1C 105K-T B 39.1/22.5
C590 4030023090 S.CER 0402B102K500CT B 35.2/87.5
C591 4030022640 S.CER 0402N101J500CT B 36.9/88.1
C592 4030022640 S.CER 0402N101J500CT B 40.1/96.7
C593 4030023090 S.CER 0402B102K500CT B 41.5/94.8
C596 4030023090 S.CER 0402B102K500CT T 11.7/10.7
C597 4030023010 S.CER 0402B104K160CT B 26.6/26.3
C598 4030021240 S.CER C1005 JB 1C 105K-T B 25.7/26.3
C599 4030023090 S.CER 0402B102K500CT T 23.4/118.8
C602 4030023090 S.CER 0402B102K500CT T 21.2/120.6
C605 4030022640 S.CER 0402N101J500CT T 28.2/123.0
C608 4030019560 S.CER GRM21BB31C106KE15L B 21.2/29.9
C610 4030023090 S.CER 0402B102K500CT T 23.0/97.1
C612 4030019560 S.CER GRM21BB31C106KE15L T 27.8/91.6
C613 4030023090 S.CER 0402B102K500CT T 22.1/100.3
C614 4030023010 S.CER 0402B104K160CT T 25.7/92.4
C615 4030023010 S.CER 0402B104K160CT T 23.9/97.1
C616 4030023090 S.CER 0402B102K500CT T 24.8/92.4
C622 4030023060 S.CER 0402B183K250CT T 46.7/42.3
C623 4030023060 S.CER 0402B183K250CT T 46.7/40.7
C624 4030023010 S.CER 0402B104K160CT T 46.6/38.4
C627 4030023010 S.CER 0402B104K160CT B 10.8/9.2
C628 4030023010 S.CER 0402B104K160CT B 13.9/5.3
C629 4050000340 S.FEE NFM21PC224R1C3D B 32.9/6.7
C631 4030022560 S.CER 0402N5R0B500CT B 10.2/18.3
C632 4030022810 S.CER 0402N330J500CT B 7.6/17.6
C633 4030023010 S.CER 0402B104K160CT B 11.1/18.7
C634 4030023010 S.CER 0402B104K160CT B 13.0/24.2
C635 4030023010 S.CER 0402B104K160CT B 12.1/28.8
C636 4030023010 S.CER 0402B104K160CT B 13.1/15.0
C637 4030023010 S.CER 0402B104K160CT B 12.2/13.7
C638 4030023010 S.CER 0402B104K160CT B 25.5/57.0
C639 4030023090 S.CER 0402B102K500CT B 40.6/108.4
C640 4030023090 S.CER 0402B102K500CT B 45.6/104.3
C641 4030023010 S.CER 0402B104K160CT T 43.6/46.2
C642 4030023010 S.CER 0402B104K160CT T 47.9/39.2
C643 4030023010 S.CER 0402B104K160CT T 41.7/43.5
C644 4030023200 S.CER 0402B471K500CT T 48.0/41.1
C645 4030023010 S.CER 0402B104K160CT T 42.1/50.2
C646 4030019560 S.CER GRM21BB31C106KE15L T 32.8/91.3
C647 4030023010 S.CER 0402B104K160CT T 28.1/89.8
C648 4030023090 S.CER 0402B102K500CT B 12.2/60.3
C649 4030023090 S.CER 0402B102K500CT B 10.2/61.7
C650 4030023010 S.CER 0402B104K160CT T 19.8/15.8
C651 4030023010 S.CER 0402B104K160CT T 13.8/21.2
C652 4030023010 S.CER 0402B104K160CT T 11.7/15.2
C653 4030021240 S.CER C1005 JB 1C 105K-T T 22.0/97.1
C656 4030023090 S.CER 0402B102K500CT T 15.6/7.8
C660 4030023090 S.CER 0402B102K500CT B 6.6/67.2
C661 4030023010 S.CER 0402B104K160CT T 40.6/46.4
C662 4030023010 S.CER 0402B104K160CT T 41.2/44.9
C663 4030023010 S.CER 0402B104K160CT T 33.2/85.4
C664 4030023010 S.CER 0402B104K160CT B 36.5/41.7
C665 4030023070 S.CER 0402B223K250CT B 20.7/75.2
C666 4030023010 S.CER 0402B104K160CT T 34.3/22.5
C667 4030023090 S.CER 0402B102K500CT B 14.0/15.0
C668 4030023090 S.CER 0402B102K500CT B 12.0/18.7
C669 4030023090 S.CER 0402B102K500CT B 13.9/24.2
C670 4030023090 S.CER 0402B102K500CT B 13.0/29.4
C671 4030022640 S.CER 0402N101J500CT B 6.0/21.5
C672 4030022640 S.CER 0402N101J500CT B 6.9/16.1
C673 4030023090 S.CER 0402B102K500CT T 42.4/45.6
C674 4030023090 S.CER 0402B102K500CT T 16.1/22.4
C675 4030023090 S.CER 0402B102K500CT T 6.5/15.7
C676 4030023090 S.CER 0402B102K500CT T 19.3/79.5
C677 4030019560 S.CER GRM21BB31C106KE15L [#11] B 24.5/68.6
4030019560 S.CER GRM21BB31C106KE15L [#12]
C680 4030023010 S.CER 0402B104K160CT [#11] T 32.7/86.6
4030023010 S.CER 0402B104K160CT [#12]
C681 4030023010 S.CER 0402B104K160CT [#11] T 35.2/81.9
4030023010 S.CER 0402B104K160CT [#12]
C682 4030023010 S.CER 0402B104K160CT T 30.1/71.4
C683 4030023090 S.CER 0402B102K500CT B 43.1/94.4
C684 4030023090 S.CER 0402B102K500CT B 38.9/95.7
J1 6450000870 CON HEC2711-01-020
J2 6450000131 CON HSJ1102-018540
J4 6510021901 S.CON BM02B-ASRS-TF (LF) (SN) T 13.0/4.0
J5 6450001060 CON HSJ1493-01-010
J6 6510031230 S.CON 50P4.5-JMCS-G-TF (N) (1) T 35.7/54.3
MC1 7700003060 MIC F6027AP-SBC-462
S1 2260003640 SWI SKHLLCA010
EP3 6910014640 S.BEA MPZ2012S221A-T T 39.3/14.4
EP4 6910014640 S.BEA MPZ2012S221A-T T 19.5/121.0
EP5 6910014730 S.BEA MPZ2012S331A-T T 37.0/102.8
EP6 6910014730 S.BEA MPZ2012S331A-T B 40.2/110.9
EP7 6910014730 S.BEA MPZ2012S331A-T B 41.8/106.3
EP10 6910014730 S.BEA MPZ2012S331A-T T 13.9/8.6
EP11 6910014730 S.BEA MPZ2012S331A-T B 39.7/103.7
EP13 6910020610 S.BEA BLM15BD102SN1D T 15.7/47.5
EP14 6910020610 S.BEA BLM15BD102SN1D T 12.5/47.6
EP15 6910014640 S.BEA MPZ2012S221A-T T 39.7/18.7
EP16 6910014640 S.BEA MPZ2012S221A-T T 18.5/89.0
EP18 6910020610 S.BEA BLM15BD102SN1D T 27.7/56.8
EP19 6910020610 S.BEA BLM15BD102SN1D T 23.5/54.5
EP20 6910020610 S.BEA BLM15BD102SN1D T 26.6/42.9
EP21 6910020610 S.BEA BLM15BD102SN1D T 32.6/34.2
EP23 6910014730 S.BEA MPZ2012S331A-T T 12.2/8.6
EP24 6910014730 S.BEA MPZ2012S331A-T B 42.4/92.3
EP25 6910020610 S.BEA BLM15BD102SN1D B 36.5/87.2
EP26 6910020610 S.BEA BLM15BD102SN1D B 40.1/95.7
EP28 6910020610 S.BEA BLM15BD102SN1D T 26.9/110.8
EP29 6910014640 S.BEA MPZ2012S221A-T T 30.3/110.0
EP30 6910014640 S.BEA MPZ2012S221A-T B 34.9/10.9
EP31 6910020610 S.BEA BLM15BD102SN1D T 19.5/111.2
The underlined parts have been updated from the previous version of the addendum, or the original page.

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
(Amended page)
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
March 2019
[LOGIC-1 UNIT]
(for #13, #14, #16, #17, #23, #24, #27, #33, #34, and #36)
5-9a
IC1 1190004712 S.IC HRM1016-010022 [#13] T 37.3/13.5
1190004712 S.IC HRM1016-010022 [#14]
1190004712 S.IC HRM1016-010022 [#16]
1190004712 S.IC HRM1016-010022 [#17]
IC11 1110003790 S.IC NJM2903V-TE1-#FMZB [#13] B 17.6/8.1
1110003790 S.IC NJM2903V-TE1-#FMZB [#14]
1110003790 S.IC NJM2903V-TE1-#FMZB [#16]
1110003790 S.IC NJM2903V-TE1-#FMZB [#17]
IC12 1110006470 S.IC LMV324IPWR [#13] B 24.1/19.7
1110006470 S.IC LMV324IPWR [#14]
1110006470 S.IC LMV324IPWR [#16]
1110006470 S.IC LMV324IPWR [#17]
IC13 1110006740 S.IC LMV358IPWR [#13] B 8.4/11.0
1110006740 S.IC LMV358IPWR [#14]
1110006740 S.IC LMV358IPWR [#16]
1110006740 S.IC LMV358IPWR [#17]
IC17 1190004620 S.IC GSU-141A-098A [#13] B 23.8/85.9
1190004620 S.IC GSU-141A-098A [#14]
1190004620 S.IC GSU-141A-098A [#16]
1190004620 S.IC GSU-141A-098A [#17]
IC27 1140018060 S.IC R5F52108BDLK B 31.0/52.9
IC30 1180004760 S.REG S-1200B33-M5T1U [#13] T 18.2/10.2
1180004760 S.REG S-1200B33-M5T1U [#14]
1180004760 S.REG S-1200B33-M5T1U [#16]
1180004760 S.REG S-1200B33-M5T1U [#17]
IC31 1180004760 S.REG S-1200B33-M5T1U [#13] B 32.5/96.5
1180004760 S.REG S-1200B33-M5T1U [#14]
1180004760 S.REG S-1200B33-M5T1U [#16]
1180004760 S.REG S-1200B33-M5T1U [#17]
IC32 1110006490 S.IC LMV321IDCKR [#13] B 38.6/5.1
1110006490 S.IC LMV321IDCKR [#14]
1110006490 S.IC LMV321IDCKR [#16]
1110006490 S.IC LMV321IDCKR [#17]
IC34 1180003570 S.REG NJM2830U1-33-TE1-#ZZZB B 39.7/44.0
IC35 1130014260 S.IC SN74LVC2GU04DCKR B 29.0/13.8
IC36 1130014260 S.IC SN74LVC2GU04DCKR B 40.9/31.9
IC37 1130016621 S.IC GT24C128B-2ZLI-TR B 31.3/68.1
IC38 1110007780 S.IC NJU7704F3-28A-TE1-#ZZZH B 22.4/67.7
IC39 1110007780 S.IC NJU7704F3-28A-TE1
-#ZZZH [#13] T 22.1/13.2
1110007780 S.IC NJU7704F3-28A-TE1
-#ZZZH [#14]
1110007780 S.IC NJU7704F3-28A-TE1
-#ZZZH [#16]
1110007780 S.IC NJU7704F3-28A-TE1
-#ZZZH [#17]
IC40 1180005110 S.REG NJM2836DL3-05-TE1 B 31.8/35.9
IC41 1180003460 S.REG NJM2831F05-TE1-#ZZZB B 29.1/64.5
Q3 1530004190 S.TRA L2SC4617ST1G B 24.9/72.7
Q5 1590004070 S.TRA LDTC144EET1G [#13] T 36.3/21.2
1590004070 S.TRA LDTC144EET1G [#14]
1590004070 S.TRA LDTC144EET1G [#16]
1590004070 S.TRA LDTC144EET1G [#17]
Q13 1530004140 S.TRA L2SC4081RT1G [#13] B 21.1/12.6
1530004140 S.TRA L2SC4081RT1G [#14]
1530004140 S.TRA L2SC4081RT1G [#16]
1530004140 S.TRA L2SC4081RT1G [#17]
Q15 1590004530 S.TRA DMG564050R [#13] B 24.9/29.6
1590004530 S.TRA DMG564050R [#14]
1590004530 S.TRA DMG564050R [#16]
1590004530 S.TRA DMG564050R [#17]
Q16 1590004070 S.TRA LDTC144EET1G [#13] B 40.5/11.3
1590004070 S.TRA LDTC144EET1G [#14]
1590004070 S.TRA LDTC144EET1G [#16]
1590004070 S.TRA LDTC144EET1G [#17]
Q17 1590004070 S.TRA LDTC144EET1G [#13] T 19.9/17.9
1590004070 S.TRA LDTC144EET1G [#14]
1590004070 S.TRA LDTC144EET1G [#16]
1590004070 S.TRA LDTC144EET1G [#17]
Q22 1530004000 S.TRA 2SC4738-GR (TE85LF) B 32.4/14.2
Q23 1510001100 S.TRA 2SA1832-GR (TE85RF) B 28.1/17.0
Q24 1510001100 S.TRA 2SA1832-GR (TE85RF) B 40.8/28.5
Q25 1560001730 S.FET RUE002N02 TL B 35.8/29.7
Q31 1510001100 S.TRA 2SA1832-GR (TE85RF) T 14.7/13.5
Q32 1510001100 S.TRA 2SA1832-GR (TE85RF) T 13.4/18.5
Q33 1590004070 S.TRA LDTC144EET1G T 17.2/7.4
Q34 1590004070 S.TRA LDTC144EET1G T 14.8/15.5
D1 1750001810 S.DIO L1SS400T1G T 6.1/104.9
D2 1750002220 S.DIO DA6J101K0R T 3.4/16.6
D4 1750001810 S.DIO L1SS400T1G [#23] T 3.9/12.1
1750001810 S.DIO L1SS400T1G [#24]
1750001810 S.DIO L1SS400T1G [#27]
1750001810 S.DIO L1SS400T1G [#33]
1750001810 S.DIO L1SS400T1G [#34]
1750001810 S.DIO L1SS400T1G [#36]
D5 1750001810 S.DIO L1SS400T1G [#13] T 13.0/98.5
1750001810 S.DIO L1SS400T1G [#14]
1750001810 S.DIO L1SS400T1G [#23]
1750001810 S.DIO L1SS400T1G [#24]
1750001810 S.DIO L1SS400T1G [#33]
1750001810 S.DIO L1SS400T1G [#34]
D6 1750001810 S.DIO L1SS400T1G [#14] B 11.2/56.2
1750001810 S.DIO L1SS400T1G [#17]
1750001810 S.DIO L1SS400T1G [#24]
1750001810 S.DIO L1SS400T1G [#27]
1750001810 S.DIO L1SS400T1G [#34]
D7 1750001970 S.ZEN DZ2J082M0L B 29.4/73.2
D8 1750001810 S.DIO L1SS400T1G B 32.5/72.5
D16 1750001810 S.DIO L1SS400T1G [#13] B 13.2/6.8
1750001810 S.DIO L1SS400T1G [#14]
1750001810 S.DIO L1SS400T1G [#16]
1750001810 S.DIO L1SS400T1G [#17]
D17 1750001810 S.DIO L1SS400T1G [#13] B 17.5/12.6
1750001810 S.DIO L1SS400T1G [#14]
1750001810 S.DIO L1SS400T1G [#16]
1750001810 S.DIO L1SS400T1G [#17]
D18 1750001790 S.DIO 1SS390 TE61 B 40.7/57.6
D34 1750001810 S.DIO L1SS400T1G B 26.3/36.4
D35 1750001810 S.DIO L1SS400T1G B 45.0/44.6
D46 1750001810 S.DIO L1SS400T1G [#13] T 17.8/12.6
1750001810 S.DIO L1SS400T1G [#14]
1750001810 S.DIO L1SS400T1G [#16]
1750001810 S.DIO L1SS400T1G [#17]
D47 1750001810 S.DIO L1SS400T1G B 32.5/17.4
D48 1750001810 S.DIO L1SS400T1G B 36.0/28.1
X1 6050013790 S.XTA CR-981 (19.6608 MHz) B 39.7/53.9
R3 7030015910 S.RES RMC1/16S-101JTH (100) [#13] B 33.6/8.2
7030015910 S.RES RMC1/16S-101JTH (100) [#14]
7030015910 S.RES RMC1/16S-101JTH (100) [#16]
7030015910 S.RES RMC1/16S-101JTH (100) [#17]
R5 7030016020 S.RES RMC1/16S-104JTH (100 k) B 23.5/70.8
R16 7030016020 S.RES RMC1/16S-104JTH (100 k) B 22.6/70.8
R17 7030015970 S.RES RMC1/16S-103JTH (10 k) B 26.9/73.2
R18 7030015970 S.RES RMC1/16S-103JTH (10 k) B 28.3/71.6
R25 7030016160 S.RES RMC1/16S-820JTH (82) T 11.0/35.2
R26 7030016160 S.RES RMC1/16S-820JTH (82) T 22.0/35.2
R28 7030016560 S.RES RMC1/16SJPTH [#13] B 31.8/8.2
7030016560 S.RES RMC1/16SJPTH [#14]
7030016560 S.RES RMC1/16SJPTH [#16]
7030016560 S.RES RMC1/16SJPTH [#17]
R60 7030016340 S.RES RMC1/16S-393JTH (39 k) [#13] B 22.0/8.4
7030016340 S.RES RMC1/16S-393JTH (39 k) [#14]
7030016340 S.RES RMC1/16S-393JTH (39 k) [#16]
7030016340 S.RES RMC1/16S-393JTH (39 k) [#17]
R61 7030016110 S.RES RMC1/16S-473JTH (47 k) [#13] B 13.3/8.8
7030016110 S.RES RMC1/16S-473JTH (47 k) [#14]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#16]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#17]
R62 7030016020 S.RES RMC1/16S-104JTH (100 k) [#13] B 12.2/8.4
7030016020 S.RES RMC1/16S-104JTH (100 k) [#14]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#16]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#17]
R63 7030016330 S.RES RMC1/16S-153JTH (15 k) [#13] B 11.0/2.3
7030016330 S.RES RMC1/16S-153JTH (15 k) [#14]
7030016330 S.RES RMC1/16S-153JTH (15 k) [#16]
7030016330 S.RES RMC1/16S-153JTH (15 k) [#17]
R64 7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#13] B 4.5/9.2
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#14]
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#16]
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#17]
R65 7030016040 S.RES RMC1/16S-224JTH (220 k) [#13] B 9.2/6.6
7030016040 S.RES RMC1/16S-224JTH (220 k) [#14]
7030016040 S.RES RMC1/16S-224JTH (220 k) [#16]
7030016040 S.RES RMC1/16S-224JTH (220 k) [#17]
R66 7030016040 S.RES RMC1/16S-224JTH (220 k) [#13] B 9.2/5.7
7030016040 S.RES RMC1/16S-224JTH (220 k) [#14]
7030016040 S.RES RMC1/16S-224JTH (220 k) [#16]
7030016040 S.RES RMC1/16S-224JTH (220 k) [#17]
R67 7030015970 S.RES RMC1/16S-103JTH (10 k) [#13] B 5.9/10.2
7030015970 S.RES RMC1/16S-103JTH (10 k) [#14]
7030015970 S.RES RMC1/16S-103JTH (10 k) [#16]
7030015970 S.RES RMC1/16S-103JTH (10 k) [#17]
R68 7030016200 S.RES RMC1/16S-274JTH (270 k) [#13] B 5.9/11.8
7030016200 S.RES RMC1/16S-274JTH (270 k) [#14]
7030016200 S.RES RMC1/16S-274JTH (270 k) [#16]
7030016200 S.RES RMC1/16S-274JTH (270 k) [#17]
R69 7030016360 S.RES RMC1/16S-123JTH (12 k) [#13] B 2.8/14.3
7030016360 S.RES RMC1/16S-123JTH (12 k) [#14]
7030016360 S.RES RMC1/16S-123JTH (12 k) [#16]
7030016360 S.RES RMC1/16S-123JTH (12 k) [#17]
R72 7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#13] B 9.9/15.3
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#14]
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#16]
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#17]
R73 7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#13] B 21.7/24.9
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#14]
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#16]
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#17]
R74 7030016040 S.RES RMC1/16S-224JTH (220 k) [#13] B 21.7/24.0
7030016040 S.RES RMC1/16S-224JTH (220 k) [#14]
7030016040 S.RES RMC1/16S-224JTH (220 k) [#16]
7030016040 S.RES RMC1/16S-224JTH (220 k) [#17]
R75 7030016110 S.RES RMC1/16S-473JTH (47 k) [#13] B 23.7/24.0
7030016110 S.RES RMC1/16S-473JTH (47 k) [#14]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#16]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#17]
R76 7030016110 S.RES RMC1/16S-473JTH (47 k) [#13] B 22.7/26.4
7030016110 S.RES RMC1/16S-473JTH (47 k) [#14]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#16]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#17]
The underlined parts have been updated from the previous version of the addendum, or the original page.
[LOGIC-1 UNIT]
(for #13, #14, #16, #17, #23, #24, #27, #33, #34, and #36)

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
(Amended page)
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
March 2019
5-10a
R77 7030016040 S.RES RMC1/16S-224JTH (220 k) [#13] B 24.8/25.0
7030016040 S.RES RMC1/16S-224JTH (220 k) [#14]
7030016040 S.RES RMC1/16S-224JTH (220 k) [#16]
7030016040 S.RES RMC1/16S-224JTH (220 k) [#17]
R78 7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#13] B 26.5/25.5
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#14]
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#16]
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#17]
R79 7030016120 S.RES RMC1/16S-682JTH (6.8 k) [#13] B 24.8/13.4
7030016120 S.RES RMC1/16S-682JTH (6.8 k) [#14]
7030016120 S.RES RMC1/16S-682JTH (6.8 k) [#16]
7030016120 S.RES RMC1/16S-682JTH (6.8 k) [#17]
R80 7030016030 S.RES RMC1/16S-154JTH (150 k) [#13] B 26.0/15.4
7030016030 S.RES RMC1/16S-154JTH (150 k) [#14]
7030016030 S.RES RMC1/16S-154JTH (150 k) [#16]
7030016030 S.RES RMC1/16S-154JTH (150 k) [#17]
R81 7030016290 S.RES RMC1/16S-222JTH (2.2 k) [#13] B 23.9/15.0
7030016290 S.RES RMC1/16S-222JTH (2.2 k) [#14]
7030016290 S.RES RMC1/16S-222JTH (2.2 k) [#16]
7030016290 S.RES RMC1/16S-222JTH (2.2 k) [#17]
R82 7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#13] B 26.4/13.3
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#14]
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#16]
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#17]
R83 7030016040 S.RES RMC1/16S-224JTH (220 k) [#13] B 22.4/15.3
7030016040 S.RES RMC1/16S-224JTH (220 k) [#14]
7030016040 S.RES RMC1/16S-224JTH (220 k) [#16]
7030016040 S.RES RMC1/16S-224JTH (220 k) [#17]
R84 7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#13] B 16.6/18.5
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#14]
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#16]
7030015960 S.RES RMC1/16S-472JTH (4.7 k) [#17]
R85 7030016360 S.RES RMC1/16S-123JTH (12 k) [#13] B 14.4/21.3
7030016360 S.RES RMC1/16S-123JTH (12 k) [#14]
7030016360 S.RES RMC1/16S-123JTH (12 k) [#16]
7030016360 S.RES RMC1/16S-123JTH (12 k) [#17]
R86 7030016560 S.RES RMC1/16SJPTH [#13] B 15.3/21.3
7030016560 S.RES RMC1/16SJPTH [#14]
7030016560 S.RES RMC1/16SJPTH [#16]
7030016560 S.RES RMC1/16SJPTH [#17]
R88 7030016000 S.RES RMC1/16S-823JTH (82 k) [#13] B 18.2/23.5
7030016000 S.RES RMC1/16S-823JTH (82 k) [#14]
7030016000 S.RES RMC1/16S-823JTH (82 k) [#16]
7030016000 S.RES RMC1/16S-823JTH (82 k) [#17]
R91 7030016100 S.RES RMC1/16S-334JTH (330 k) [#13] B 23.0/10.4
7030016100 S.RES RMC1/16S-334JTH (330 k) [#14]
7030016100 S.RES RMC1/16S-334JTH (330 k) [#16]
7030016100 S.RES RMC1/16S-334JTH (330 k) [#17]
R93 7030016070 S.RES RMC1/16S-474JTH (470 k) [#13] B 21.5/14.4
7030016070 S.RES RMC1/16S-474JTH (470 k) [#14]
7030016070 S.RES RMC1/16S-474JTH (470 k) [#16]
7030016070 S.RES RMC1/16S-474JTH (470 k) [#17]
R94 7030016450 S.RES RMC1/16S-824JTH (820 k) [#13] B 23.0/13.7
7030016450 S.RES RMC1/16S-824JTH (820 k) [#14]
7030016450 S.RES RMC1/16S-824JTH (820 k) [#16]
7030016450 S.RES RMC1/16S-824JTH (820 k) [#17]
R95 7030016090 S.RES RMC1/16S-223JTH (22 k) [#13] B 19.2/13.0
7030016090 S.RES RMC1/16S-223JTH (22 k) [#14]
7030016090 S.RES RMC1/16S-223JTH (22 k) [#16]
7030016090 S.RES RMC1/16S-223JTH (22 k) [#17]
R112 7030016320 S.RES RMC1/16S-225JTH (2.2 M) [#13] B 16.7/11.0
7030016320 S.RES RMC1/16S-225JTH (2.2 M) [#14]
7030016320 S.RES RMC1/16S-225JTH (2.2 M) [#16]
7030016320 S.RES RMC1/16S-225JTH (2.2 M) [#17]
R145 7030016060 S.RES RMC1/16S-105JTH (1 M) T 2.2/13.8
R146 7030016060 S.RES RMC1/16S-105JTH (1 M) T 2.7/14.8
R147 7030016060 S.RES RMC1/16S-105JTH (1 M) T 5.6/13.8
R148 7030016060 S.RES RMC1/16S-105JTH (1 M) T 4.1/9.3
R151 7510001661 S.THR NTCG16 4LH 473JT T 34.8/24.7
R152 7030008270 S.RES RR0510P-104-D (100 k) T 36.8/25.5
R558 7030016360 S.RES RMC1/16S-123JTH (12 k) [#13] B 21.5/9.8
7030016360 S.RES RMC1/16S-123JTH (12 k) [#14]
7030016360 S.RES RMC1/16S-123JTH (12 k) [#16]
7030016360 S.RES RMC1/16S-123JTH (12 k) [#17]
R595 7030015520 S.RES RMC1/16JPTP B 28.0/32.2
R856 7030015900 S.RES RMC1/16S-470JTH (47) [#13] B 19.2/88.3
7030015900 S.RES RMC1/16S-470JTH (47) [#14]
7030015900 S.RES RMC1/16S-470JTH (47) [#16]
7030015900 S.RES RMC1/16S-470JTH (47) [#17]
R857 7030016560 S.RES RMC1/16SJPTH [#13] B 18.8/85.4
7030016560 S.RES RMC1/16SJPTH [#14]
7030016560 S.RES RMC1/16SJPTH [#16]
7030016560 S.RES RMC1/16SJPTH [#17]
R858 7030016560 S.RES RMC1/16SJPTH [#13] B 21.5/79.2
7030016560 S.RES RMC1/16SJPTH [#14]
7030016560 S.RES RMC1/16SJPTH [#16]
7030016560 S.RES RMC1/16SJPTH [#17]
R859 7030016560 S.RES RMC1/16SJPTH [#13] B 28.7/86.5
7030016560 S.RES RMC1/16SJPTH [#14]
7030016560 S.RES RMC1/16SJPTH [#16]
7030016560 S.RES RMC1/16SJPTH [#17]
R860 7030016020 S.RES RMC1/16S-104JTH (100 k) [#13] B 28.7/87.4
7030016020 S.RES RMC1/16S-104JTH (100 k) [#14]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#16]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#17]
R861 7030016020 S.RES RMC1/16S-104JTH (100 k) [#13] B 29.7/97.1
7030016020 S.RES RMC1/16S-104JTH (100 k) [#14]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#16]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#17]
R862 7030016560 S.RES RMC1/16SJPTH [#13] B 28.9/98.0
7030016560 S.RES RMC1/16SJPTH [#14]
7030016560 S.RES RMC1/16SJPTH [#16]
7030016560 S.RES RMC1/16SJPTH [#17]
R863 7030016560 S.RES RMC1/16SJPTH [#13] T 22.8/16.1
7030016560 S.RES RMC1/16SJPTH [#14]
7030016560 S.RES RMC1/16SJPTH [#16]
7030016560 S.RES RMC1/16SJPTH [#17]
R864 7030016110 S.RES RMC1/16S-473JTH (47 k) [#13] B 40.1/16.4
7030016110 S.RES RMC1/16S-473JTH (47 k) [#14]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#16]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#17]
R865 7030016110 S.RES RMC1/16S-473JTH (47 k) [#13] B 38.5/15.3
7030016110 S.RES RMC1/16S-473JTH (47 k) [#14]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#16]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#17]
R866 7030016020 S.RES RMC1/16S-104JTH (100 k) [#13] T 21.9/17.9
7030016020 S.RES RMC1/16S-104JTH (100 k) [#14]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#16]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#17]
R867 7030016020 S.RES RMC1/16S-104JTH (100 k) [#13] B 40.1/12.9
7030016020 S.RES RMC1/16S-104JTH (100 k) [#14]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#16]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#17]
R868 7030016110 S.RES RMC1/16S-473JTH (47 k) [#13] B 40.1/14.1
7030016110 S.RES RMC1/16S-473JTH (47 k) [#14]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#16]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#17]
R869 7030016110 S.RES RMC1/16S-473JTH (47 k) [#13] B 40.1/15.3
7030016110 S.RES RMC1/16S-473JTH (47 k) [#14]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#16]
7030016110 S.RES RMC1/16S-473JTH (47 k) [#17]
R871 7030015970 S.RES RMC1/16S-103JTH (10 k) [#13] B 36.3/11.8
7030015970 S.RES RMC1/16S-103JTH (10 k) [#14]
7030015970 S.RES RMC1/16S-103JTH (10 k) [#16]
7030015970 S.RES RMC1/16S-103JTH (10 k) [#17]
R873 7030016050 S.RES RMC1/16S-102JTH (1 k) [#13] B 38.7/8.4
7030016050 S.RES RMC1/16S-102JTH (1 k) [#14]
7030016050 S.RES RMC1/16S-102JTH (1 k) [#16]
7030016050 S.RES RMC1/16S-102JTH (1 k) [#17]
R874 7030016190 S.RES RMC1/16S-273JTH (27 k) [#13] B 39.0/2.4
7030016190 S.RES RMC1/16S-273JTH (27 k) [#14]
7030016190 S.RES RMC1/16S-273JTH (27 k) [#16]
7030016190 S.RES RMC1/16S-273JTH (27 k) [#17]
R875 7030016190 S.RES RMC1/16S-273JTH (27 k) [#13] B 40.8/4.3
7030016190 S.RES RMC1/16S-273JTH (27 k) [#14]
7030016190 S.RES RMC1/16S-273JTH (27 k) [#16]
7030016190 S.RES RMC1/16S-273JTH (27 k) [#17]
R876 7030016160 S.RES RMC1/16S-820JTH (82) T 33.0/35.2
R878 7030015920 S.RES RMC1/16S-221JTH (220) T 13.2/14.6
R879 7030016020 S.RES RMC1/16S-104JTH (100 k) [#13] B 41.3/5.5
7030016020 S.RES RMC1/16S-104JTH (100 k) [#14]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#16]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#17]
R881 7030016110 S.RES RMC1/16S-473JTH (47 k) B 27.9/18.5
R882 7030015970 S.RES RMC1/16S-103JTH (10 k) B 29.6/16.9
R883 7030016380 S.RES RMC1/16S-183JTH (18 k) B 30.9/17.3
R884 7030016360 S.RES RMC1/16S-123JTH (12 k) B 30.9/14.1
R885 7030015970 S.RES RMC1/16S-103JTH (10 k) B 39.2/28.6
R886 7030016380 S.RES RMC1/16S-183JTH (18 k) B 38.0/28.1
R887 7030016560 S.RES RMC1/16SJPTH B 38.0/30.2
R888 7030015970 S.RES RMC1/16S-103JTH (10 k) B 42.8/31.9
R901 7030014460 S.RES MCR006YZPJ 101 (100) B 30.3/43.5
R902 7030014460 S.RES MCR006YZPJ 101 (100) B 23.5/43.3
R903 7030014460 S.RES MCR006YZPJ 101 (100) B 30.2/61.4
R906 7030014460 S.RES MCR006YZPJ 101 (100) B 23.5/62.3
R907 7030014460 S.RES MCR006YZPJ 101 (100) B 39.2/50.1
R908 7030016060 S.RES RMC1/16S-105JTH (1 M) B 37.1/52.9
R909 7030016150 S.RES RMC1/16S-100JTH (10) B 35.8/53.0
R910 7030016360 S.RES RMC1/16S-123JTH (12 k) B 39.3/57.6
R911 7030016090 S.RES RMC1/16S-223JTH (22 k) B 39.3/56.7
R912 7030016360 S.RES RMC1/16S-123JTH (12 k) B 42.0/58.4
R913 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 26.0/67.7
R914 7030016020 S.RES RMC1/16S-104JTH (100 k) B 25.0/68.2
R917 7030016020 S.RES RMC1/16S-104JTH (100 k) T 24.1/21.2
R920 7030016020 S.RES RMC1/16S-104JTH (100 k) T 23.7/20.0
R925 7030015970 S.RES RMC1/16S-103JTH (10 k) B 44.4/52.9
R926 7030016560 S.RES RMC1/16SJPTH [#13] B 9.9/16.2
7030016560 S.RES RMC1/16SJPTH [#14]
7030016560 S.RES RMC1/16SJPTH [#16]
7030016560 S.RES RMC1/16SJPTH [#17]
R927 7030016560 S.RES RMC1/16SJPTH [#13] B 20.7/15.3
7030016560 S.RES RMC1/16SJPTH [#14]
7030016560 S.RES RMC1/16SJPTH [#16]
7030016560 S.RES RMC1/16SJPTH [#17]
R928 7030016560 S.RES RMC1/16SJPTH [#13] B 21.3/26.2
7030016560 S.RES RMC1/16SJPTH [#14]
7030016560 S.RES RMC1/16SJPTH [#16]
7030016560 S.RES RMC1/16SJPTH [#17]
R929 7030014460 S.RES MCR006YZPJ 101 (100) [#13] B 24.6/50.9
7030014460 S.RES MCR006YZPJ 101 (100) [#14]
7030014460 S.RES MCR006YZPJ 101 (100) [#16]
7030014460 S.RES MCR006YZPJ 101 (100) [#17]
R930 7030014460 S.RES MCR006YZPJ 101 (100) [#13] B 24.0/51.9
7030014460 S.RES MCR006YZPJ 101 (100) [#14]
7030014460 S.RES MCR006YZPJ 101 (100) [#16]
7030014460 S.RES MCR006YZPJ 101 (100) [#17]
R931 7030016020 S.RES RMC1/16S-104JTH (100 k) B 23.8/49.3
R932 7030016020 S.RES RMC1/16S-104JTH (100 k) B 23.4/50.5
R933 7030015970 S.RES RMC1/16S-103JTH (10 k) B 22.1/69.6
The underlined parts have been updated from the previous version of the addendum, or the original page.
[LOGIC-1 UNIT]
(for #13, #14, #16, #17, #23, #24, #27, #33, #34, and #36)
[LOGIC-1 UNIT]
(for #13, #14, #16, #17, #23, #24, #27, #33, #34, and #36)

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
(Amended page)
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
March 2019
5 -11a
R934 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 26.0/69.8
R935 7030015960 S.RES RMC1/16S-472JTH (4.7 k) B 35.3/54.5
R937 7030016560 S.RES RMC1/16SJPTH B 30.3/27.6
R940 7030016020 S.RES RMC1/16S-104JTH (100 k) B 28.4/61.3
R943 7030016020 S.RES RMC1/16S-104JTH (100 k) B 35.6/44.1
R944 7030016020 S.RES RMC1/16S-104JTH (100 k) B 36.5/47.0
R945 7030016020 S.RES RMC1/16S-104JTH (100 k) [#13] B 19.2/86.6
7030016020 S.RES RMC1/16S-104JTH (100 k) [#14]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#16]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#17]
R946 7030016020 S.RES RMC1/16S-104JTH (100 k) [#13] B 20.3/79.6
7030016020 S.RES RMC1/16S-104JTH (100 k) [#14]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#16]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#17]
R947 7030016020 S.RES RMC1/16S-104JTH (100 k) [#13] T 15.9/9.8
7030016020 S.RES RMC1/16S-104JTH (100 k) [#14]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#16]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#17]
R949 7030016020 S.RES RMC1/16S-104JTH (100 k) T 21.1/21.2
R952 7030016020 S.RES RMC1/16S-104JTH (100 k) T 17.7/26.7
R962 7030016020 S.RES RMC1/16S-104JTH (100 k) [#13] B 39.1/7.1
7030016020 S.RES RMC1/16S-104JTH (100 k) [#14]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#16]
7030016020 S.RES RMC1/16S-104JTH (100 k) [#17]
R963 7030016210 S.RES RMC1/16S-121JTH (120) T 13.2/16.2
R964 7030014400 S.RES MCR006YZPJ 100 (10) B 28.6/60.4
R965 7030014400 S.RES MCR006YZPJ 100 (10) B 30.9/59.6
R966 7030014400 S.RES MCR006YZPJ 100 (10) B 43.4/58.4
R967 7030014400 S.RES MCR006YZPJ 100 (10) B 34.7/47.9
R968 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/49.7
R969 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/51.8
R970 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/66.3
R971 7030014400 S.RES MCR006YZPJ 100 (10) B 25.0/66.8
R972 7030014400 S.RES MCR006YZPJ 100 (10) B 34.6/44.5
R973 7030014400 S.RES MCR006YZPJ 100 (10) B 35.6/47.1
R974 7030014400 S.RES MCR006YZPJ 100 (10) B 23.5/47.8
R975 7030014400 S.RES MCR006YZPJ 100 (10) B 29.3/47.9
R976 7030014400 S.RES MCR006YZPJ 100 (10) B 28.7/47.9
R977 7030014400 S.RES MCR006YZPJ 100 (10) B 27.5/47.9
R978 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/50.9
R979 7030014400 S.RES MCR006YZPJ 100 (10) B 33.0/44.0
R980 7030014400 S.RES MCR006YZPJ 100 (10) B 39.4/51.5
R981 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/48.8
R982 7030014400 S.RES MCR006YZPJ 100 (10) B 28.1/47.9
R983 7030014400 S.RES MCR006YZPJ 100 (10) B 26.3/47.9
R984 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/55.7
R985 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/50.6
R986 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/49.1
R987 7030014400 S.RES MCR006YZPJ 100 (10) B 33.1/47.9
R988 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/48.5
R989 7030014400 S.RES MCR006YZPJ 100 (10) B 32.3/47.9
R990 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/51.8
R991 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/53.0
R992 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/52.4
R993 7030014400 S.RES MCR006YZPJ 100 (10) B 33.5/46.2
R994 7030014400 S.RES MCR006YZPJ 100 (10) B 28.9/57.7
R995 7030014400 S.RES MCR006YZPJ 100 (10) B 23.7/58.8
R996 7030014400 S.RES MCR006YZPJ 100 (10) B 29.0/44.3
R997 7030014400 S.RES MCR006YZPJ 100 (10) B 28.4/43.5
R998 7030014400 S.RES MCR006YZPJ 100 (10) B 34.5/46.2
R999 7030014380 S.RES MCR006YZPJ 103 (10 k) B 31.3/42.9
R1000 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/42.5
R1001 7030014400 S.RES MCR006YZPJ 100 (10) B 26.7/42.5
R1002 7030014400 S.RES MCR006YZPJ 100 (10) B 26.9/47.9
R1003 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/50.0
R1004 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/47.9
R1005 7030014400 S.RES MCR006YZPJ 100 (10) B 32.7/46.2
R1006 7030014380 S.RES MCR006YZPJ 103 (10 k) B 31.5/47.9
R1007 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/47.2
R1008 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/49.4
R1009 7030014400 S.RES MCR006YZPJ 100 (10) B 35.1/46.2
R1010 7030014390 S.RES MCR006YZPJ 102 (1 k) B 33.9/47.9
R1011 7030014400 S.RES MCR006YZPJ 100 (10) B 32.0/46.2
R1012 7030014400 S.RES MCR006YZPJ 100 (10) B 35.5/57.6
R1013 7030014390 S.RES MCR006YZPJ 102 (1 k) B 34.7/57.9
R1014 7030014400 S.RES MCR006YZPJ 100 (10) B 33.8/57.9
R1015 7030014400 S.RES MCR006YZPJ 100 (10) B 32.2/57.7
R1016 7030014590 S.RES MCR006YLPJ 000 (JPW) B 31.6/57.7
R1017 7030014400 S.RES MCR006YZPJ 100 (10) B 31.0/57.7
R1018 7030014400 S.RES MCR006YZPJ 100 (10) B 29.5/57.7
R1019 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/58.1
R1020 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/57.5
R1021 7030014400 S.RES MCR006YZPJ 100 (10) B 35.0/59.5
R1022 7030014400 S.RES MCR006YZPJ 100 (10) B 32.2/59.5
R1023 7030014400 S.RES MCR006YZPJ 100 (10) B 31.6/59.6
R1024 7030014400 S.RES MCR006YZPJ 100 (10) B 30.1/58.8
R1025 7030014400 S.RES MCR006YZPJ 100 (10) B 28.0/57.3
R1026 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/56.9
R1027 7030014400 S.RES MCR006YZPJ 100 (10) B 37.7/58.5
R1028 7030014400 S.RES MCR006YZPJ 100 (10) B 34.3/59.5
R1029 7030014400 S.RES MCR006YZPJ 100 (10) B 33.2/60.1
R1030 7030014400 S.RES MCR006YZPJ 100 (10) B 28.5/62.4
R1031 7030014390 S.RES MCR006YZPJ 102 (1 k) B 44.3/55.4
R1032 7030014400 S.RES MCR006YZPJ 100 (10) B 36.8/57.8
R1033 7030014400 S.RES MCR006YZPJ 100 (10) B 34.3/61.9
R1034 7030014390 S.RES MCR006YZPJ 102 (1 k) B 31.6/62.0
R1035 7030014400 S.RES MCR006YZPJ 100 (10) B 30.4/57.7
R1036 7030014400 S.RES MCR006YZPJ 100 (10) B 20.6/63.1
R1037 7030014390 S.RES MCR006YZPJ 102 (1 k) B 24.1/56.3
R1038 7030014390 S.RES MCR006YZPJ 102 (1 k) B 24.1/55.1
R1039 7030014390 S.RES MCR006YZPJ 102 (1 k) B 26.0/54.7
R1040 7030014390 S.RES MCR006YZPJ 102 (1 k) B 44.9/55.4
R1041 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/54.5
R1042 7030014400 S.RES MCR006YZPJ 100 (10) B 26.0/53.9
R1043 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/53.5
R1044 7030014400 S.RES MCR006YZPJ 100 (10) B 20.7/68.3
R1045 7030014400 S.RES MCR006YZPJ 100 (10) B 43.9/52.0
R1046 7030014400 S.RES MCR006YZPJ 100 (10) B 23.5/61.7
R1047 7030014400 S.RES MCR006YZPJ 100 (10) B 44.0/51.4
R1050 7030014400 S.RES MCR006YZPJ 100 (10) B 24.1/46.6
R1053 7030015970 S.RES RMC1/16S-103JTH (10 k) T 14.7/11.9
R1054 7030015970 S.RES RMC1/16S-103JTH (10 k) T 15.0/18.6
R1055 7030015970 S.RES RMC1/16S-103JTH (10 k) T 15.0/10.2
R1056 7030015970 S.RES RMC1/16S-103JTH (10 k) T 14.6/17.0
R1057 7030016150 S.RES RMC1/16S-100JTH (10) B 41.0/40.6
R1059 7030016560 S.RES RMC1/16SJPTH [#13] B 29.7/96.2
7030016560 S.RES RMC1/16SJPTH [#14]
7030016560 S.RES RMC1/16SJPTH [#16]
7030016560 S.RES RMC1/16SJPTH [#17]
R1060 7030016560 S.RES RMC1/16SJPTH [#13] T 16.6/13.6
7030016560 S.RES RMC1/16SJPTH [#14]
7030016560 S.RES RMC1/16SJPTH [#16]
7030016560 S.RES RMC1/16SJPTH [#17]
R1061 7210003820 VAR TP76D1190E20-20.5F
-10KB-3699
R1062 7030016560 S.RES RMC1/16SJPTH B 40.3/89.6
R1063 7030015970 S.RES RMC1/16S-103JTH (10 k) [#13] T 21.8/15.1
7030015970 S.RES RMC1/16S-103JTH (10 k) [#14]
7030015970 S.RES RMC1/16S-103JTH (10 k) [#16]
7030015970 S.RES RMC1/16S-103JTH (10 k) [#17]
R1064 7030016560 S.RES RMC1/16SJPTH T 13.7/4.9
R1065 7030016560 S.RES RMC1/16SJPTH T 13.7/7.7
R1066 7030016560 S.RES RMC1/16SJPTH T 11.3/3.6
R1067 7030016560 S.RES RMC1/16SJPTH T 12.6/10.5
R1068 7030016560 S.RES RMC1/16SJPTH T 10.3/3.6
R1069 7030016560 S.RES RMC1/16SJPTH T 5.6/21.3
R1070 7030016560 S.RES RMC1/16SJPTH T 9.4/4.5
R1071 7030016560 S.RES RMC1/16SJPTH T 5.4/17.4
R1072 7030016560 S.RES RMC1/16SJPTH T 8.2/3.9
R1073 7030016560 S.RES RMC1/16SJPTH T 13.7/6.7
R1074 7030016020 S.RES RMC1/16S-104JTH (100 k) B 28.5/46.5
R1075 7030014400 S.RES MCR006YZPJ 100 (10) B 37.3/51.2
R1076 7030014400 S.RES MCR006YZPJ 100 (10) B 30.9/47.9
R1077 7030016560 S.RES RMC1/16SJPTH [#13] T 32.4/20.7
7030016560 S.RES RMC1/16SJPTH [#14]
7030016560 S.RES RMC1/16SJPTH [#16]
7030016560 S.RES RMC1/16SJPTH [#17]
R1078 7030016090 S.RES RMC1/16S-223JTH (22 k) B 30.9/16.4
R1079 7030016290 S.RES RMC1/16S-222JTH (2.2 k) B 38.0/29.0
R1081 7030016060 S.RES RMC1/16S-105JTH (1 M) B 33.5/63.6
R1082 7030016050 S.RES RMC1/16S-102JTH (1 k) B 36.6/42.0
R1083 7030016110 S.RES RMC1/16S-473JTH (47 k) B 23.2/46.4
R1084 7410001340 S.ARR EXB28V473JX B 25.3/45.0
R1085 7030014380 S.RES MCR006YZPJ 103 (10 k) [#23] B 45.2/50.3
7030014380 S.RES MCR006YZPJ 103 (10 k) [#24]
7030014380 S.RES MCR006YZPJ 103 (10 k) [#27]
7030014380 S.RES MCR006YZPJ 103 (10 k) [#33]
7030014380 S.RES MCR006YZPJ 103 (10 k) [#34]
7030014380 S.RES MCR006YZPJ 103 (10 k) [#36]
R1086 7030014380 S.RES MCR006YZPJ 103 (10 k) [#23] B 45.2/51.4
7030014380 S.RES MCR006YZPJ 103 (10 k) [#24]
7030014380 S.RES MCR006YZPJ 103 (10 k) [#27]
7030014380 S.RES MCR006YZPJ 103 (10 k) [#33]
7030014380 S.RES MCR006YZPJ 103 (10 k) [#34]
7030014380 S.RES MCR006YZPJ 103 (10 k) [#36]
R1087 7030016320 S.RES RMC1/16S-225JTH (2.2 M) B 33.2/64.8
R1088 7030016240 S.RES RMC1/16S-684JTH (680 k) B 31.9/64.1
R1089 7030016110 S.RES RMC1/16S-473JTH (47 k) B 25.2/63.3
R1090 7030016000 S.RES RMC1/16S-823JTH (82 k) [#13] B 5.4/18.4
7030016000 S.RES RMC1/16S-823JTH (82 k) [#14]
7030016000 S.RES RMC1/16S-823JTH (82 k) [#16]
7030016000 S.RES RMC1/16S-823JTH (82 k) [#17]
R1091 7030016040 S.RES RMC1/16S-224JTH (220 k) [#13] B 9.0/17.1
7030016040 S.RES RMC1/16S-224JTH (220 k) [#14]
7030016040 S.RES RMC1/16S-224JTH (220 k) [#16]
7030016040 S.RES RMC1/16S-224JTH (220 k) [#17]
R1092 7030016050 S.RES RMC1/16S-102JTH (1 k) [#13] B 42.4/8.0
7030016050 S.RES RMC1/16S-102JTH (1 k) [#14]
7030016050 S.RES RMC1/16S-102JTH (1 k) [#16]
7030016050 S.RES RMC1/16S-102JTH (1 k) [#17]
R1093 7030016410 S.RES RMC1/16S-561JTH (560) [#13] B 41.9/6.8
7030016410 S.RES RMC1/16S-561JTH (560) [#14]
7030016410 S.RES RMC1/16S-561JTH (560) [#16]
7030016410 S.RES RMC1/16S-561JTH (560) [#17]
R1097 7030016020 S.RES RMC1/16S-104JTH (100 k) B 28.9/15.6
R1098 7030016020 S.RES RMC1/16S-104JTH (100 k) B 40.5/30.0
C1 4030021240 S.CER C1005 JB 1C 105K-T [#13] T 23.6/17.9
4030021240 S.CER C1005 JB 1C 105K-T [#14]
4030021240 S.CER C1005 JB 1C 105K-T [#16]
4030021240 S.CER C1005 JB 1C 105K-T [#17]
C2 4030021240 S.CER C1005 JB 1C 105K-T [#13] T 24.1/16.5
4030021240 S.CER C1005 JB 1C 105K-T [#14]
4030021240 S.CER C1005 JB 1C 105K-T [#16]
4030021240 S.CER C1005 JB 1C 105K-T [#17]
C5 4030021240 S.CER C1005 JB 1C 105K-T [#13] B 32.7/8.2
4030021240 S.CER C1005 JB 1C 105K-T [#14]
4030021240 S.CER C1005 JB 1C 105K-T [#16]
4030021240 S.CER C1005 JB 1C 105K-T [#17]
The underlined parts have been updated from the previous version of the addendum, or the original page.
[LOGIC-1 UNIT]
(for #13, #14, #16, #17, #23, #24, #27, #33, #34, and #36)
[LOGIC-1 UNIT]
(for #13, #14, #16, #17, #23, #24, #27, #33, #34, and #36)

Eqv.= This component is equivalent to the REF No. component listed above,
and may be substituted on parts orders and repairs.
M.= Mounted side (T: Mounted on the Top side, B: Mounted on the Bottom side)
H/V LOCATION=See the BOARD LAYOUTS for details.
(Amended page)
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
REF
NO.
PART
NO. DESCRIPTION M.H/V
LOCATION
March 2019
5-12a
C6 4030021240 S.CER C1005 JB 1C 105K-T [#13] B 30.6/8.7
4030021240 S.CER C1005 JB 1C 105K-T [#14]
4030021240 S.CER C1005 JB 1C 105K-T [#16]
4030021240 S.CER C1005 JB 1C 105K-T [#17]
C7 4030021240 S.CER C1005 JB 1C 105K-T [#13] B 33.2/9.4
4030021240 S.CER C1005 JB 1C 105K-T [#14]
4030021240 S.CER C1005 JB 1C 105K-T [#16]
4030021240 S.CER C1005 JB 1C 105K-T [#17]
C8 4030023090 S.CER 0402B102K500CT B 24.7/70.4
C16 4030023090 S.CER 0402B102K500CT [#13] T 18.3/17.9
4030023090 S.CER 0402B102K500CT [#14]
4030023090 S.CER 0402B102K500CT [#16]
4030023090 S.CER 0402B102K500CT [#17]
C18 4030022640 S.CER 0402N101J500CT [#13] B 28.5/7.3
4030022640 S.CER 0402N101J500CT [#14]
4030022640 S.CER 0402N101J500CT [#16]
4030022640 S.CER 0402N101J500CT [#17]
C20 4030023090 S.CER 0402B102K500CT B 24.7/71.3
C21 4030022540 S.CER 0402N3R0B500CT [#13] B 27.6/7.3
4030022540 S.CER 0402N3R0B500CT [#14]
4030022540 S.CER 0402N3R0B500CT [#16]
4030022540 S.CER 0402N3R0B500CT [#17]
C22 4030023090 S.CER 0402B102K500CT B 27.4/72.0
C25 4030023010 S.CER 0402B104K160CT B 29.0/28.1
C31 4030023010 S.CER 0402B104K160CT B 25.7/34.5
C101 4030023090 S.CER 0402B102K500CT [#13] B 13.8/10.1
4030023090 S.CER 0402B102K500CT [#14]
4030023090 S.CER 0402B102K500CT [#16]
4030023090 S.CER 0402B102K500CT [#17]
C102 4030023200 S.CER 0402B471K500CT [#13] B 14.2/5.5
4030023200 S.CER 0402B471K500CT [#14]
4030023200 S.CER 0402B471K500CT [#16]
4030023200 S.CER 0402B471K500CT [#17]
C103 4030019560 S.CER GRM21BB31C106KE15L [#13] B 19.9/24.7
4030019560 S.CER GRM21BB31C106KE15L [#14]
4030019560 S.CER GRM21BB31C106KE15L [#16]
4030019560 S.CER GRM21BB31C106KE15L [#17]
C104 4030019560 S.CER GRM21BB31C106KE15L [#13] B 22.1/27.9
4030019560 S.CER GRM21BB31C106KE15L [#14]
4030019560 S.CER GRM21BB31C106KE15L [#16]
4030019560 S.CER GRM21BB31C106KE15L [#17]
C105 4030019560 S.CER GRM21BB31C106KE15L [#13] B 21.3/31.5
4030019560 S.CER GRM21BB31C106KE15L [#14]
4030019560 S.CER GRM21BB31C106KE15L [#16]
4030019560 S.CER GRM21BB31C106KE15L [#17]
C106 4030019560 S.CER GRM21BB31C106KE15L [#13] B 21.3/29.7
4030019560 S.CER GRM21BB31C106KE15L [#14]
4030019560 S.CER GRM21BB31C106KE15L [#16]
4030019560 S.CER GRM21BB31C106KE15L [#17]
C107 4030022940 S.CER 0402B104K100CT [#13] B 26.5/24.6
4030022940 S.CER 0402B104K100CT [#14]
4030022940 S.CER 0402B104K100CT [#16]
4030022940 S.CER 0402B104K100CT [#17]
C108 4030023090 S.CER 0402B102K500CT [#13] B 24.8/15.0
4030023090 S.CER 0402B102K500CT [#14]
4030023090 S.CER 0402B102K500CT [#16]
4030023090 S.CER 0402B102K500CT [#17]
C109 4030023090 S.CER 0402B102K500CT [#13] B 26.0/14.5
4030023090 S.CER 0402B102K500CT [#14]
4030023090 S.CER 0402B102K500CT [#16]
4030023090 S.CER 0402B102K500CT [#17]
C111 4550007300 S.TAN F931A335MAABMA [#13] B 14.4/24.7
4550007300 S.TAN F931A335MAABMA [#14]
4550007300 S.TAN F931A335MAABMA [#16]
4550007300 S.TAN F931A335MAABMA [#17]
C112 4550008210 S.TAN 267M3502 104MR [#13] B 20.3/20.1
4550008210 S.TAN 267M3502 104MR [#14]
4550008210 S.TAN 267M3502 104MR [#16]
4550008210 S.TAN 267M3502 104MR [#17]
C113 4550008210 S.TAN 267M3502 104MR [#13] B 18.2/20.1
4550008210 S.TAN 267M3502 104MR [#14]
4550008210 S.TAN 267M3502 104MR [#16]
4550008210 S.TAN 267M3502 104MR [#17]
C114 4550008210 S.TAN 267M3502 104MR [#13] B 8.0/2.0
4550008210 S.TAN 267M3502 104MR [#14]
4550008210 S.TAN 267M3502 104MR [#16]
4550008210 S.TAN 267M3502 104MR [#17]
C115 4550008210 S.TAN 267M3502 104MR [#13] B 8.0/4.1
4550008210 S.TAN 267M3502 104MR [#14]
4550008210 S.TAN 267M3502 104MR [#16]
4550008210 S.TAN 267M3502 104MR [#17]
C116 4030023090 S.CER 0402B102K500CT [#13] B 11.2/15.0
4030023090 S.CER 0402B102K500CT [#14]
4030023090 S.CER 0402B102K500CT [#16]
4030023090 S.CER 0402B102K500CT [#17]
C121 4030023030 S.CER 0402B103K250CT [#13] B 23.0/12.0
4030023030 S.CER 0402B103K250CT [#14]
4030023030 S.CER 0402B103K250CT [#16]
4030023030 S.CER 0402B103K250CT [#17]
C122 4030019560 S.CER GRM21BB31C106KE15L [#13] B 18.8/11.0
4030019560 S.CER GRM21BB31C106KE15L [#14]
4030019560 S.CER GRM21BB31C106KE15L [#16]
4030019560 S.CER GRM21BB31C106KE15L [#17]
C123 4030023090 S.CER 0402B102K500CT B 24.6/31.5
C125 4550007520 S.TAN F931A106MAABMA [#13] B 4.4/12.2
4550007520 S.TAN F931A106MAABMA [#14]
4550007520 S.TAN F931A106MAABMA [#16]
4550007520 S.TAN F931A106MAABMA [#17]
C155 4030023090 S.CER 0402B102K500CT T 11.8/2.4
C156 4030023090 S.CER 0402B102K500CT T 13.5/10.5
C157 4030023090 S.CER 0402B102K500CT T 13.7/4.0
C158 4030023090 S.CER 0402B102K500CT T 14.1/8.9
C159 4030023090 S.CER 0402B102K500CT T 9.9/2.4
C161 4030023090 S.CER 0402B102K500CT T 35.9/25.5
C600 4030023030 S.CER 0402B103K250CT [#13] B 21.5/10.8
4030023030 S.CER 0402B103K250CT [#14]
4030023030 S.CER 0402B103K250CT [#16]
4030023030 S.CER 0402B103K250CT [#17]
C629 4030023010 S.CER 0402B104K160CT [#13] B 24.8/26.6
4030023010 S.CER 0402B104K160CT [#14]
4030023010 S.CER 0402B104K160CT [#16]
4030023010 S.CER 0402B104K160CT [#17]
C630 4030022640 S.CER 0402N101J500CT [#13] B 19.3/90.9
4030022640 S.CER 0402N101J500CT [#14]
4030022640 S.CER 0402N101J500CT [#16]
4030022640 S.CER 0402N101J500CT [#17]
C631 4050000380 S.FEE NFM15PC104R1A3D [#13] B 18.2/89.2
4050000380 S.FEE NFM15PC104R1A3D [#14]
4050000380 S.FEE NFM15PC104R1A3D [#16]
4050000380 S.FEE NFM15PC104R1A3D [#17]
C632 4050000380 S.FEE NFM15PC104R1A3D [#13] B 33.6/94.1
4050000380 S.FEE NFM15PC104R1A3D [#14]
4050000380 S.FEE NFM15PC104R1A3D [#16]
4050000380 S.FEE NFM15PC104R1A3D [#17]
C633 4030019560 S.CER GRM21BB31C106KE15L [#13] B 33.7/92.4
4030019560 S.CER GRM21BB31C106KE15L [#14]
4030019560 S.CER GRM21BB31C106KE15L [#16]
4030019560 S.CER GRM21BB31C106KE15L [#17]
C634 4030023090 S.CER 0402B102K500CT [#13] B 32.6/94.0
4030023090 S.CER 0402B102K500CT [#14]
4030023090 S.CER 0402B102K500CT [#16]
4030023090 S.CER 0402B102K500CT [#17]
C637 4030023090 S.CER 0402B102K500CT [#13] B 28.7/88.4
4030023090 S.CER 0402B102K500CT [#14]
4030023090 S.CER 0402B102K500CT [#16]
4030023090 S.CER 0402B102K500CT [#17]
C638 4030023090 S.CER 0402B102K500CT [#13] B 19.2/84.1
4030023090 S.CER 0402B102K500CT [#14]
4030023090 S.CER 0402B102K500CT [#16]
4030023090 S.CER 0402B102K500CT [#17]
C639 4030023090 S.CER 0402B102K500CT [#13] B 22.5/79.2
4030023090 S.CER 0402B102K500CT [#14]
4030023090 S.CER 0402B102K500CT [#16]
4030023090 S.CER 0402B102K500CT [#17]
C640 4030023090 S.CER 0402B102K500CT [#13] B 29.9/87.9
4030023090 S.CER 0402B102K500CT [#14]
4030023090 S.CER 0402B102K500CT [#16]
4030023090 S.CER 0402B102K500CT [#17]
C641 4030023090 S.CER 0402B102K500CT [#13] B 18.3/84.1
4030023090 S.CER 0402B102K500CT [#14]
4030023090 S.CER 0402B102K500CT [#16]
4030023090 S.CER 0402B102K500CT [#17]
C642 4030023090 S.CER 0402B102K500CT [#13] B 19.6/78.7
4030023090 S.CER 0402B102K500CT [#14]
4030023090 S.CER 0402B102K500CT [#16]
4030023090 S.CER 0402B102K500CT [#17]
C643 4050000380 S.FEE NFM15PC104R1A3D [#13] T 20.1/13.2
4050000380 S.FEE NFM15PC104R1A3D [#14]
4050000380 S.FEE NFM15PC104R1A3D [#16]
4050000380 S.FEE NFM15PC104R1A3D [#17]
C645 4030021240 S.CER C1005 JB 1C 105K-T [#13] B 36.3/10.2
4030021240 S.CER C1005 JB 1C 105K-T [#14]
4030021240 S.CER C1005 JB 1C 105K-T [#16]
4030021240 S.CER C1005 JB 1C 105K-T [#17]
C648 4030022540 S.CER 0402N3R0B500CT [#13] T 25.0/16.5
4030022540 S.CER 0402N3R0B500CT [#14]
4030022540 S.CER 0402N3R0B500CT [#16]
4030022540 S.CER 0402N3R0B500CT [#17]
C649 4030022540 S.CER 0402N3R0B500CT [#13] T 23.6/18.8
4030022540 S.CER 0402N3R0B500CT [#14]
4030022540 S.CER 0402N3R0B500CT [#16]
4030022540 S.CER 0402N3R0B500CT [#17]
C650 4030023010 S.CER 0402B104K160CT [#13] B 40.4/5.5
4030023010 S.CER 0402B104K160CT [#14]
4030023010 S.CER 0402B104K160CT [#16]
4030023010 S.CER 0402B104K160CT [#17]
C651 4030019560 S.CER GRM21BB31C106KE15L [#13] B 36.7/7.1
4030019560 S.CER GRM21BB31C106KE15L [#14]
4030019560 S.CER GRM21BB31C106KE15L [#16]
4030019560 S.CER GRM21BB31C106KE15L [#17]
C652 4030022640 S.CER 0402N101J500CT [#13] B 39.0/3.3
4030022640 S.CER 0402N101J500CT [#14]
4030022640 S.CER 0402N101J500CT [#16]
4030022640 S.CER 0402N101J500CT [#17]
C653 4030023010 S.CER 0402B104K160CT [#13] B 42.2/5.1
4030023010 S.CER 0402B104K160CT [#14]
4030023010 S.CER 0402B104K160CT [#16]
4030023010 S.CER 0402B104K160CT [#17]
C654 4030023090 S.CER 0402B102K500CT B 41.3/89.6
C655 4030023090 S.CER 0402B102K500CT B 39.3/89.6
C656 4030023090 S.CER 0402B102K500CT B 38.3/89.7
C657 4030023090 S.CER 0402B102K500CT B 42.3/89.6
C659 4030023010 S.CER 0402B104K160CT B 28.6/10.3
C660 4030023010 S.CER 0402B104K160CT B 34.2/30.5
C661 4030019560 S.CER GRM21BB31C106KE15L B 43.4/44.6
C662 4030021520 S.CER GRM31CB31H106KA12L T 31.4/24.4
C663 4030021520 S.CER GRM31CB31H106KA12L T 32.4/28.2
C664 4030021520 S.CER GRM31CB31H106KA12L T 32.4/30.4
C666 4030023010 S.CER 0402B104K160CT T 33.3/22.3
C667 4030023010 S.CER 0402B104K160CT T 33.7/23.8
The underlined parts have been updated from the previous version of the addendum, or the original page.
[LOGIC-1 UNIT]
(for #13, #14, #16, #17, #23, #24, #27, #33, #34, and #36)
[LOGIC-1 UNIT]
(for #13, #14, #16, #17, #23, #24, #27, #33, #34, and #36)
