iComfort SAU1455-H User manual

1
SAU1455-H
INFRARED WOODEN SAUNA ROOM
SAUNA INFRAROUGE EN BOIS
USER MANUAL
MANUEL DE
L’UTILISATEUR
07m2_manuel_SAU1455-H_2009_10970.indd 1 4/7/09 4:38:44 PM

07m2_manuel_SAU1455-H_2009_10970.indd 2 4/7/09 4:38:44 PM

1
Thank you for purchasing this product. Please read this instruction manual carefully
before operating this sauna.
Please pay attention to the important safety warnings and keep this manual
for future use.
Note: EBI reserves the right to revise the design and description of this product
without notice.
CONTENTS
1. Safety warning ................................................................................................ 2
2. Environment.................................................................................................... 2
3. Restrictions..................................................................................................... 2
4. Maintenance................................................................................................... 3
5. Features and benefits...................................................................................... 3
6. Tips to use your icomfort sauna....................................................................... 4
7. Components ................................................................................................... 5
8. Installation...................................................................................................... 9
8. 1. Bottom panel........................................................................................... 9
8. 2. Back panel .............................................................................................. 9
8. 3. Left/right panel...................................................................................... 10
8. 4. Calf heater and bench ........................................................................... 11
8. 5. Front panel and door handles................................................................ 12
8. 6. Top panel............................................................................................... 13
8. 7. Connecting the cables on the top panel................................................. 14
8. 8. CD/radio player on the top panel........................................................... 15
8. 9. Put on the top cover on the top panel .................................................... 15
8. 10.Plug and enjoy....................................................................................... 15
9. Operation...................................................................................................... 16
10. CD/radio....................................................................................................... 17
10. 1.Radio..................................................................................................... 17
10. 2.CD player .............................................................................................. 17
10. 3.Clock feature ......................................................................................... 17
11. Troubleshooting............................................................................................. 18
11. 1.CD player............................................................................................... 18
11. 2.Sauna.................................................................................................... 18
11. 3.Control panel ........................................................................................ 19
12. Product specifications................................................................................... 19
13. Warranty ....................................................................................................... 20
FRANÇAIS................................................................................................21
07m2_manuel_SAU1455-H_2009_10970.indd 1 4/7/09 4:38:44 PM

2
SAFETY WARNING1.
This product is not recommended for children.•
Please operate this product according to the instructions in this manual.•
Use only accessories recommended by iComfort.•
This product is designed for indoor use only.•
Recommended use time is 60 minutes or less.•
Be careful with what you take inside of IR sauna with you. Some metals absorb•
infrared rays and can become extremely hot during a sauna session.
Please avoid use if the sauna is damaged and call your iComfort technician•
or dealer.
Use of this sauna under the influence of drugs or alcohol is not recommended.•
Do not use wet hands to pull the AC cord.•
In the event of a power failure disconnect the sauna.•
ENVIRONMENT2.
This sauna should be used indoors in a well ventilated, normally dry
and dust free environment.
RESTRICTIONS3.
People with osteoporosis, heart disease and heart pacemakers, pregnancies, injuries,
implants or any other health related issues should consult their doctor before
using this sauna.
Stop immediately the use of this sauna if you do not feel well and consult
your doctor.
07m2_manuel_SAU1455-H_2009_10970.indd 2 4/7/09 4:38:44 PM

3
MAINTENANCE4.
Your sauna does not require a lot of care. If necessary, you can wipe it down with•
water and a clean cloth. Do not use cleaning chemicals as these might release
vapors or gases which could potentially cause you health issues.
This product should only be maintained by iComfort certified technicians. Otherwise,•
EBI reserves the right to void the warranty.
Disconnect the power cord after use.•
Make sure the wall outlet is in good working order before use.•
We recommend using the iComfort sauna intermittently for no more than•
60 minutes at a time.
FEATURES AND BENEFITS5.
Turn any room into a personal oasis with iComfort infrared carbon film sauna. Increase
your core body temperature with soothing infrared carbon film heat and start your
journey towards a healthier lifestyle.
Sweat your troubles away as you stretch out in its spacious interior while listening to your
favorite soothing music through our CD/AM/FM stereo radio player.
iComfort Saunas are beautiful as well as functional and come in a number of convenient
sizes and shapes. All iComfort far infrared saunas are made with the highest quality
craftsmanship and include the latest carbon film heaters making them the sauna
of choice.
Each model is constructed with metal tongue and groove giving your sauna an elegant
look that will enhance any room. Their solid construction will ensure many years of home
wellness. iComfort far infrared saunas are ideal for optimal health and wellbeing. They
are beautifully made and specifically designed for the ultimate in safety, efficiency and
comfort. These finely crafted, non-toxic portable saunas are one of the best investments
you can make.
07m2_manuel_SAU1455-H_2009_10970.indd 3 4/7/09 4:38:44 PM

4
TIPS TO USE YOUR ICOMFORT SAUNA6.
It is recommended to wear minimal clothing in the sauna as some clothing materials
absorb the infrared rays and nullify its effectiveness.
After about a 10 minute warm-up period, the sauna is ready to use. You will feel the
heat being generated by the infrared emitters immediately.The wavelength of this heat
will allow the rays to penetrate your skin and heat your body beneath the skin surface.
Most people tend to sweat after about 20 minutes although this time shortens with
frequent sauna use.
It is recommended that you drink water before, during and after your sauna to make sure
you do not become dehydrated.
If you take a hot shower or bath before your sauna session, you may1.
perspire more.
To help regulate the ideal temperature inside the sauna you can use the movable2.
roof ventilation trap.This will evacuate heat faster.
Use one towel folded over several times for added cushioning.3.
To help relieve sore and tense muscles, massage the affected areas while in the4.
sauna to help heal faster.
To treat your ankles and feet more effectively, you can elevate them and move5.
them close to a heater to achieve a specific deep heating effect.
The peaceful and relaxed state rendered by a sauna session will help you to sleep6.
easier and better.
After the session is over, do not jump into the shower immediately. Since your7.
body was heated during the session it will continue to sweat even after the heaters
are off. Sit in the sauna with the door open and let the body sweat a little more
while it cools off. Once you feel comfortable enough, take a warm (or cool) shower
to rinse the perspiration off your body completely.
07m2_manuel_SAU1455-H_2009_10970.indd 4 4/7/09 4:38:44 PM

5
COMPONENTS7.
Front Panel
Product inside Product Inside
Control panel1.
Door handle3.
Safety glass door4.
Water bottle support table6.
Speaker7.
Ventilation trap8.
Bench panel9.
Roof lamp10.
Reading lamp11.
Temperature sensor12.
Carbon Fiber Side Heater13.
Backrest14.
Calf heater panel15.
Floor heater panel16.
07m2_manuel_SAU1455-H_2009_10970.indd 5 4/7/09 4:38:45 PM

6
Bottom Panel
Side Panels
Note: To distinguish the inside and outside of the side panels: The inside has the
heating elements and the outside does not.
Back Panel
07m2_manuel_SAU1455-H_2009_10970.indd 6 4/7/09 4:38:45 PM

7
Bench Panel
Calf Heater Panel
07m2_manuel_SAU1455-H_2009_10970.indd 7 4/7/09 4:38:46 PM

8
Top Panel Control Box
The control box is the control center of the iComfort sauna and is on the TOP PANEL..
TOP PANEL CONNECTORS
(to be passed through hole to get inside the sauna during the installation)
MARKING COMPONENT CONNECTION
POWER Power cord•
FUSE Fuse (15A)•
HT1, HT2, HT3, HT4 Heater power cord•
READING LAMP Reading lamp connector (reading lamp and roof lamp)•
CTRL Control panel•
BUZZER Buzzer connector•
TEMPSENSOR Temperature sensor•
ROOF LAMP Roof lamp connector•
07m2_manuel_SAU1455-H_2009_10970.indd 8 4/7/09 4:38:46 PM

9
INSTALLATION8.
Choose a good location to install the sauna room and assemble the sauna near where
it will be placed.
The AC WALL OUTLET must be easily accessible.1.
The location must be dry and leveled.2.
Take all the panels and sauna components out of the two boxes.3.
BOTTOM PANEL8. 1.
Place the bottom panel on the floor; make sure the bottom panel front side
is facing outward.
BACK PANEL8. 2.
Place the BACK PANEL with the heating elements facing inward on the bottom panel and
have someone to hold it.
07m2_manuel_SAU1455-H_2009_10970.indd 9 4/7/09 4:38:46 PM

10

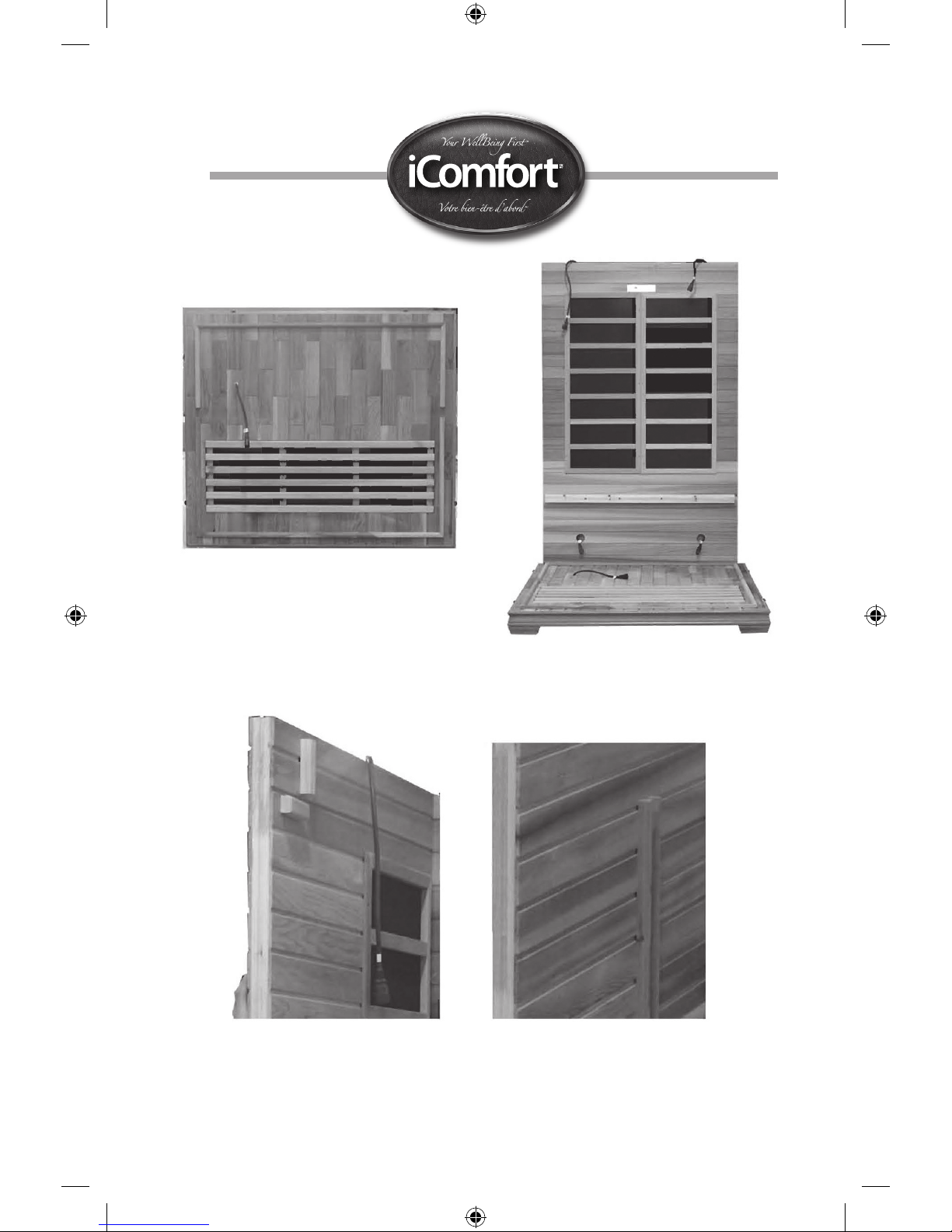

LEFT/RIGHT PANEL8. 3.
Place the left panel on top of the bottom panel on its left side (Image 1). Align the
tongues of the left lateral panel to the grooves of the back panel and insert them
together (you will have to lift slightly the panel). Place the right panel on top of the
bottom panel on its right side (Image 2). Align the tongues of the right lateral panel to
the grooves of the back panel and insert them together (you will have to lift slightly the
panel). Make sure the left and right panels are horizontally aligned with the back panel.
Image 1
Image 2
Image 3
Tongue and grooves on the side panels.
07m2_manuel_SAU1455-H_2009_10970.indd 10 4/7/09 4:38:46 PM

11
CALF HEATER AND BENCH8. 4.
Slide down the calf heater panel by lining up its sides with the vertical guides on each
side panel. The heater grid is facing outward (toward the front of the sauna). Push the
bench heater panel all the way down until it is touching the BOTTOM PANEL (Image 4).
Connect the floor heater connector on the left side with the back panel connector on the
left side (Image 5). Connect the floor heater connector on the right side with the back
panel connector on the right side (Image 6). Install the bench panel by sliding it over the
horizontal bench guides on the side panels. Push the bench all the way in until it can
touch the BACK PANEL (Image 7).
Image 4
Image 6
Image 5
Image 7
07m2_manuel_SAU1455-H_2009_10970.indd 11 4/7/09 4:38:47 PM

12
FRONT PANEL AND DOOR HANDLES8. 5.
Place the FRONT PANEL onto the recessed area on the BOTTOM PANEL. Align the tongues
on both sides of the front panel to the grooves of the side panels and insert them
together (you will have to lift slightly the front panel) (Image 8). Make sure the front and
side panels are horizontally aligned.
Install the front panel door handles with the provided screws. The finished door handle
goes outside. The unfinished handle goes inside.
Image 8
07m2_manuel_SAU1455-H_2009_10970.indd 12 4/7/09 4:38:47 PM

13
TOP PANEL8. 6.
Place the TOP PANEL so the CONTROL BOX is upside. The top panel roof lights must1.
face towards the front of the sauna facing down (Image 9).
NOTE: Be careful of the wires of the SIDE PANELS while you place the TOP PANEL. The
wires of the side, front and rear panels should align with the holes of the TOP PANEL in
order to pass them through to the TOP PANEL. Pass the wires through before lowering
completely the top panel. Failure to do so could damage the wires.
Lower the TOP PANEL into place and make sure all the edges are well in place.2.
Image 9
07m2_manuel_SAU1455-H_2009_10970.indd 13 4/7/09 4:38:47 PM

14
CONNECTING THE CABLES ON THE TOP PANEL8. 7.
Connect the AC cables on the TOP PANEL according to their respective marking.1.
(Image 11-14)
Connect the CTRL cable from the CONTROL BOX to the CTRL cable from the CONTROL2.
PANEL and then screw on. (Image 15)
Connect the buzzer. (Image 16)3.
NOTE: Do not connect the power cord from the TOP COVER in an AC wall outlet before
the installation is completely finished.
Image 11
Image 13
Image 15
Image 12
Image 14
Image 16
07m2_manuel_SAU1455-H_2009_10970.indd 14 4/7/09 4:38:48 PM

15
CD/RADIO PLAYER ON THE TOP PANEL8. 8.
Unscrew the lock strip on the top of the CD/Radio player on the TOP PANEL.
NOTE: We recommend closing the trap door of the player as soon as your music
selection is activated. This will protect the CD/Radio player from the intense heat
generated by the iComfort sauna heaters.
PUT ON THE TOP COVER ON THE TOP PANEL8. 9.
Take out the power cord from the round hole on the TOP COVER and then place the TOP
COVER gently onto the TOP PANEL, lower down and screw securely in place. Make sure
the antenna is reachable.
PLUG AND ENJOY8. 10.
Connect the sauna to the AC Wall outlet and place the sauna where you want it to be.
CONGRATULATIONS, your iComfort sauna is now installed!
CD/Radio trap door
07m2_manuel_SAU1455-H_2009_10970.indd 15 4/7/09 4:38:48 PM

16
OPERATION9.
Sauna Control Panel
Press POWER ON/OFF one time on the inside or outside control panel. POWER1.
light will go on. The TIMER display will flash the number 90 and the TEMPERATURE
display will flash the number 60.
Set up the heating time and temperature2.
Press the TIMER ’▲’ or ‘▼’ button to increase or decrease the heating time of the
iComfort sauna. If you press this button continuously for more than 2 seconds,
the TIMER setting will change rapidly. Press the TEMPERATURE ’▲’ or ‘▼’ button
to increase or decrease the desired temperature of the iComfort sauna. If you
press this button continuously for more than 2 seconds, the TEMPERATURE display
setting will change rapidly. If you stop pressing the TEMPERATURE button for more
than 5 seconds, both the time and temperature settings will be memorized for the
next sauna session. Once done, press the START/STOP HEATING button and your
sauna session will start.
Switch between °F and °C3.
Change the display between “°C” for Celsius and “°F” for Fahrenheit at your
convenience.
To stop heating4.
Press the START/STOP HEATING button. The heating elements will turn off.
lnternal reading lamp5.
Press the reading light ON/OFF button to turn on. Press again to turn off.
External lamp6.
Press on the external light ON/OFF button to turn on. Press again to turn off.
Note: When the environmental temperature is low, the heating time will take longer.
It is also possible the sauna temperature display is not able to reach its maximum
temperature. This is normal and does not in any way affect the performance of the
infrared heaters or their health benefits. The sauna temperature sensor only measures
the heat radiated by the heating elements. It does not measure the infrared heater’s
penetrating heat and this is where most of the health benefits are.
07m2_manuel_SAU1455-H_2009_10970.indd 16 4/7/09 4:38:48 PM

17
CD/RADIO10.
RADIO10. 1.
Open the trap door on the ceiling inside the sauna•
Press the PWR button of the CD/Radio.•
Press the BAND button to choose between AM/FM frequencies.•
Note: When you listen to the radio, you can take the antenna out of the top cover
to improve signal quality.
You can also press LOC/RPT to choose the receiving quality of far or near radio•
stations.
Turn the large tuning knob to select a radio station.•
Press the MO/lNT, to choose between mono and stereo sound.•
Press the EQ to adjust the tone quality (POP, CLS, ROC).•
The MUTE button will activate or deactivate the muting of the sound.•
Press LUD/RDM button to enhance bass frequencies at low volume.•
CD PLAYER10. 2.
Open the trap door on the ceiling inside the sauna.•
To play a CD, insert it in the player and press the “•
▲
/II’’ button.
Press ”
▲
/II” again to pause the music playback.
Press “• ” to move tracks forward or press “ ” to move tracks backwards.
Press VUP or VDN to adjust the volume.•
To adjust the balance of the sound, press the “SEL” button until the display•
indicates BAL. Press quickly on the VUP or VDN to balance the sound to the left
or to the right.
Press LOC/RPT button to repeat a CD music track.•
Press MO/lNT and each track will play for 1O seconds.•
Press the EQ to adjust the tone quality (POP, CLS, ROC).•
Press the MUTE/loud button to mute the CD player.•
Press LUD/RDM to enhance bass frequencies at low volume.•
CLOCK FEATURE10. 3.
The CLK button is to adjust the time feature. Press this button for 2 seconds until
the time display flashes.
Press “ ” to adjust the hour and press “ ” to adjust the minutes.
07m2_manuel_SAU1455-H_2009_10970.indd 17 4/7/09 4:38:48 PM

18
TROUBLESHOOTING11.
If your iComfort sauna doesn’t seem to be working correctly, please call the
iComfort customer service department at 1-866-967-7333 ext 227.
It will be our pleasure to help you!
CD PLAYER11. 1.
If you put a CD disk in the CD player, press”
▲
/II” and no sound comes out:
Check whether the disc is defective. If so, use another CD disc.1.
Press the volume control button “VOL+ “to increase the volume.2.
Please check whether the wires “SPK L/R” are well connected.3.
If you press the button “power” on the CD player and it does not power on:
Please check the control panel of the CD player if it is well installed.1.
Check if the power supply of the player is well connected.2.
SAUNA11. 2.
If you press the ‘LIGHT’ button on the control panel and the reading lamp does not open:
Disconnect the sauna.1.
Before you check the light, please feel if the light cover is hot,2.
Remove the TOP COVER of the sauna room.•
Screw off the cooper nuts on the lamp cover.•
Remove the lamp holder.•
Screw off the bulb gently.•
Replace a new bulb with the same voltage and wattage.•
Put the TOP COVER back on and fasten the clamps.•
07m2_manuel_SAU1455-H_2009_10970.indd 18 4/7/09 4:38:48 PM
