Iconia W510 User manual

Contents
English
Muut
kielet
poistettu
Suomi
Ver.01.01.03

- 1
ICONIA W510 / W511
User’s Manual

2 -
© 2012. All Rights Reserved.
ICONIA W510 / W511 User’s Manual
Model: W510
First issue: 6 November 2012

Table of contents - 3
TABLE OF CONTENTS
Safety and comfort 5
First things first 15
Your guides ...................................................... 15
Basic care and tips for using your
computer .......................................................... 15
Turning your computer on and off............. 15
Taking care of your computer ................... 16
Taking care of your AC adapter................ 17
Cleaning and servicing.............................. 17
Your Acer tablet PC tour 18
Tablet PC ......................................................... 18
Top view ................................................... 18
Bottom view ............................................. 19
Front view ................................................ 20
Back view ................................................. 21
Left/right views ........................................ 22
Installing a SIM card (only for selected
models) ............................................................ 23
Using the network connection................... 23
SIM card lock ............................................ 24
Removing the SIM card ............................ 24
Connect the tablet to the keyboard dock.......... 25
Secure the tablet to the keyboard
dock .......................................................... 25
Keyboard dock ................................................. 26
Front view ................................................ 26
Top view ................................................... 27
Left view.................................................... 28
Right view ................................................. 28
Bottom view ............................................. 29
Micro USB 30
HDMI Micro 31
Using the virtual keyboard 32
Wireless networks 34
Connecting to the Internet ............................... 34
Wireless networks ........................................... 34
Acer clear.fi 36
Navigating media and photos .......................... 36
Shared files .............................................. 37
Which devices are compatible? ............... 37
Playing to another device......................... 38
Screen orientation
and G-sensor 39
Power management 40
Saving power................................................... 40
Battery pack 43
Battery pack characteristics............................. 43
Charging the battery................................. 43
Optimizing battery life............................... 45
Checking the battery level........................ 45
Battery-low warning.................................. 45
Securing your computer 47
Using passwords ............................................. 47
Entering passwords.................................. 48
Frequently asked questions 49
Requesting service .......................................... 51
Tips and hints for using Windows 8................. 53

4 - Table of contents
Three concepts you might want to
keep in mind.............................................. 53
How do I access the charms?................... 53
How do I get to Start? ............................... 53
How do I jump between apps?.................. 54
How do I turn off my computer?................ 54
Why is there a new interface?................... 54
How do I unlock my computer?................. 54
How do I personalize my computer?......... 55
I want to use Windows in the way
that I'm used to - give me my
desktop back!............................................ 56
Where are my apps?................................. 56
What is a Microsoft ID (account)?............. 58
How do I add a favorite to Internet
Explorer?................................................... 58
How do I check for Windows
updates? ................................................... 59
Where can I get more information?........... 59
Troubleshooting ............................................... 60
Troubleshooting tips.................................. 60
Error messages........................................ 60
Recovering your system 62
Recovery from a supplied recovery DVD ........ 62
Recovery 63
Creating a recovery backup............................. 63
Creating a drivers and applications backup..... 66
Recovering your system .................................. 69
Reinstalling drivers and applications........ 70
Returning to an earlier system
snapshot................................................... 73
Returning your system to its factory
condition................................................... 74
Recovering from Windows ....................... 75
Recovering from a recovery backup ........ 79
BIOS utility 83
Boot sequence................................................. 83
Setting passwords ........................................... 83
Regulations and safety notices 84

Safety and comfort - 5
SAFETY AND COMFORT
SAFETY INSTRUCTIONS
Read these instructions carefully. Keep this document for future reference. Follow all
warnings and instructions marked on the product.
Turning the product off before cleaning
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or
aerosol cleaners. Use a damp cloth for cleaning.
WARNINGS
Accessing the power cord
Be sure that the power outlet you plug the power cord into is easily accessible and located
as close to the equipment operator as possible. When you need to disconnect power to
the equipment, be sure to unplug the power cord from the electrical outlet.
Disconnecting the power source
Observe the following guidelines when connecting and disconnecting power to the power
supply unit:
Install the power supply unit before connecting the power cord to the AC power outlet.
Unplug the power cord before removing the power supply unit from the computer.
If the system has multiple sources of power, disconnect power from the system by
unplugging all power cords from the power supplies.
Using electrical power
- This product should be operated from the type of power indicated on the marking
label. If you are not sure of the type of power available, consult your dealer or local
power company.
- Do not allow anything to rest on the power cord. Do not locate this product where
people will walk on the cord.

6 - Safety and comfort
- If an extension cord is used with this product, make sure that the total ampere rating
of the equipment plugged into the extension cord does not exceed the extension cord
ampere rating. Also, make sure that the total rating of all products plugged into the
wall outlet does not exceed the fuse rating.
- Do not overload a power outlet, strip or receptacle by plugging in too many devices.
The overall system load must not exceed 80% of the branch circuit rating. If power
strips are used, the load should not exceed 80% of the power strip's input rating.
- This product's AC adapter is equipped with a three-wire grounded plug. The plug only
fits in a grounded power outlet. Make sure the power outlet is properly grounded
before inserting the AC adapter plug. Do not insert the plug into a non-grounded
power outlet. Contact your electrician for details.
- Warning! The grounding pin is a safety feature. Using a power outlet that is not
properly grounded may result in electric shock and/or injury.
-Note: The grounding pin also provides good protection from unexpected noise
produced by other nearby electrical devices that may interfere with the performance
of this product.
- The system can be powered using a wide range of voltages; 100 to 120 or 220 to 240
V AC. The power cord included with the system meets the requirements for use in
the country/region where the system was purchased. Power cords for use in other
countries/regions must meet the requirements for that country/region. For more
information on power cord requirements, contact an authorized reseller or service
provider.
Protecting your hearing
- Warning! Permanent hearing loss may occur if earphones or
headphones are used at high volume for prolonged periods of time.
To protect your hearing, follow these instructions.
- Increase the volume gradually until you can hear clearly and comfortably.
- Do not increase the volume level after your ears have adjusted.
- Do not listen to music at high volumes for extended periods.

Safety and comfort - 7
- Do not increase the volume to block out noisy surroundings.
- Decrease the volume if you can't hear people speaking near you.
Bundled dummy cards
-Note: Information in this section may not apply to your computer.
Your computer shipped with plastic dummies installed in the card slots. Dummies protect
unused slots from dust, metal objects or other particles. Save the dummies for use when
no cards are in the slots.
General
- Do not use this product near water.
- Do not place this product on an unstable cart, stand or table. If the product falls, it
could be seriously damaged.
- Slots and openings are provided for ventilation to ensure reliable operation of the
product and to protect it from overheating. These openings must not be blocked or
covered. The openings should never be blocked by placing the product on a bed, sofa,
rug or other similar surface. This product should never be placed near or over a radiator
or heat register, or in a built-in installation unless proper ventilation is provided.
- Never push objects of any kind into this product through cabinet slots as they may
touch dangerous voltage points or short-out parts that could result in a fire or electric
shock. Never spill liquid of any kind onto or into the product.
- To avoid damage of internal components and to prevent battery leakage, do not
place the product on a vibrating surface.
- Never use it under sporting, exercising, or any vibrating environment which will
probably cause unexpected short current or damage rotor devices, HDD, Optical
drive, and even exposure risk from lithium battery pack.
- The bottom surface, areas around ventilation openings and AC adapter may get hot.
To avoid injury, ensure they do not come in contact with your skin or body.
- Your device and its enhancements may contain small parts. Keep them out of the
reach of small children.

8 - Safety and comfort
Product servicing
Do not attempt to service this product yourself, as opening or removing covers may
expose you to dangerous voltage points or other risks. Refer all servicing to qualified
service personnel.
Unplug this product from the wall outlet and refer servicing to qualified service personnel
when:
- The power cord or plug is damaged, cut or frayed.
- Liquid was spilled into the product.
- The product was exposed to rain or water.
- The product has been dropped or the case has been damaged.
- The product exhibits a distinct change in performance, indicating a need for service.
- The product does not operate normally after following the operating instructions.
-Note: Adjust only those controls that are covered by the operating instructions, since
improper adjustment of other controls may result in damage and will often require
extensive work by a qualified technician to restore the product to normal condition.
Guidelines for safe battery usage
This computer uses a Lithium-ion
or Lithium-polymer battery. Do not use it in a humid, wet
or corrosive environment. Do not put, store or leave your product in or near a heat source,
in a high temperature location, in strong direct sunlight, in a microwave oven or in a
pressurized container, and do not expose it to temperatures over 60° C (140° F). Failure
to follow these guidelines may cause the battery to leak acid, become hot, explode or
ignite and cause injury and/or damage.
Do not pierce, open or disassemble the battery. If the battery leaks and you come into
contact with the leaked fluids, rinse thoroughly with water and seek medical attention
immediately.
For safety reasons, and to prolong the lifetime of the battery, charging will not occur at
temperatures below 0° C (32° F) or above 40° C (104° F).

Safety and comfort - 9
The full performance of a new battery is achieved only after two or three complete charge
and discharge cycles. The battery can be charged and discharged hundreds of times, but
it will eventually wear out. When the operation time becomes noticeably shorter than
normal, refer to qualified service personnel. Use only the approved batteries, and
recharge your battery only with the approved chargers designated for this device.
Never use any charger or battery that is damaged.
The capacity and lifetime of the battery will be reduced if the battery is left in hot or cold
places, such as in a closed car in summer or winter. Always try to keep the battery
between 15°C and 25°C (59°F and 77°F). A device with a hot or cold battery may not work
temporarily, even when the battery is fully charged. Battery performance is especially
limited in temperatures well below freezing.
Do not dispose of batteries in a fire as they may explode. Batteries may also explode if
damaged. Dispose of batteries according to local regulations. Please recycle when
possible. Do not dispose as household waste.
-Note: Please refer to www.acer.com for battery shipping documents.
- Warning! Batteries may explode if not handled properly. Do not disassemble or
dispose of them in fire. Keep them away from children. Follow local regulations
when disposing of used batteries.
RADIO FREQUENCY INTERFERENCE
- Warning! For safety reasons, turn off all wireless or radio transmitting devices
when using your laptop under the following conditions. These devices may
include, but are not limited to: wireless LAN (WLAN), Bluetooth and/or 3G.
Remember to follow any special regulations in force in any area, and always switch off
your device when its use is prohibited or when it may cause interference or danger. Use
the device only in its normal operating positions. This device meets RF exposure
guidelines when used normally, and it and its antenna are positioned at least 1.5
centimeters (5/8 inch) away from your body. It should not contain metal and you should
position the device the above-stated distance from your body. To successfully transmit
data files or messages, this device requires a good quality connection to the network. In

10 - Safety and comfort
some cases, transmission of data files or messages may be delayed until such a
connection is available. Ensure that the above separation distance instructions are
followed until the transmission is completed. Parts of the device are magnetic. Metallic
materials may be attracted to the device, and persons with hearing aids should not hold
the device to the ear with the hearing aid. Do not place credit cards or other magnetic
storage media near the device, because information stored on them may be erased.
MEDICAL DEVICES
Operation of any radio transmitting equipment, including wireless phones, may interfere
with the functionality of inadequately protected medical devices. Consult a physician or
the manufacturer of the medical device to determine if they are adequately shielded from
external RF energy or if you have any questions. Switch off your device in health care
facilities when any regulations posted in these areas instruct you to do so. Hospitals or
health care facilities may be using equipment that could be sensitive to external RF
transmissions.
Pacemakers. Pacemaker manufacturers recommend that a minimum separation of 15.3
centimeters (6 inches) be maintained between wireless devices and a pacemaker to avoid
potential interference with the pacemaker. These recommendations are consistent with
the independent research by and recommendations of Wireless Technology Research.
Persons with pacemakers should do the following:
- Always keep the device more than 15.3 centimeters (6 inches) from the pacemaker
- Not carry the device near your pacemaker when the device is switched on.
If you suspect interference, switch off your device, and move it.
Hearing aids. Some digital wireless devices may interfere with some hearing aids. If
interference occurs, consult your service provider.
VEHICLES
RF signals may affect improperly installed or inadequately shielded electronic systems in
motor vehicles such as electronic fuel injection systems, electronic anti-skid (anti-lock)
braking systems, electronic speed control systems, and air bag systems. For more
information, check with the manufacturer, or its representative, of your vehicle or any

Safety and comfort - 11
equipment that has been added. Only qualified personnel should service the device, or
install the device in a vehicle. Faulty installation or service may be dangerous and may
invalidate any warranty that may apply to the device. Check regularly that all wireless
equipment in your vehicle is mounted and operating properly. Do not store or carry
flammable liquids, gases, or explosive materials in the same compartment as the device,
its parts, or enhancements. For vehicles equipped with an air bag, remember that air bags
inflate with great force. Do not place objects, including installed or portable wireless
equipment in the area over the air bag or in the air bag deployment area. If in-vehicle
wireless equipment is improperly installed, and the air bag inflates, serious injury could
result. Using your device while flying in aircraft is prohibited. Switch off your device before
boarding an aircraft. The use of wireless teledevices in an aircraft may be dangerous to
the operation of the aircraft, disrupt the wireless telephone network, and may be illegal.
POTENTIALLY EXPLOSIVE ENVIRONMENTS
Switch off your device when in any area with a potentially explosive atmosphere and obey
all signs and instructions. Potentially explosive atmospheres include areas where you
would normally be advised to turn off your vehicle engine. Sparks in such areas could
cause an explosion or fire resulting in bodily injury or even death. Switch off the device at
refueling points such as near gas pumps at service stations. Observe restrictions on the
use of radio equipment in fuel depots, storage, and distribution areas; chemical plants; or
where blasting operations are in progress. Areas with a potentially explosive atmosphere
are often, but not always, clearly marked. They include below deck on boats, chemical
transfer or storage facilities, vehicles using liquefied petroleum gas (such as propane or
butane), and areas where the air contains chemicals or particles such as grain, dust or
metal powders. Do not switch the computer on when wireless phone use is prohibited or
when it may cause interference or danger.
EMERGENCY CALLS
- Warning! You cannot make emergency calls through this device. To make an
emergency call you shall dial out through your mobile phone or other
telephone call system.

12 - Safety and comfort
DISPOSAL INSTRUCTIONS
Do not throw this electronic device into the trash when discarding. To minimize
pollution and ensure utmost protection of the global environment, please
recycle. For more information on the Waste from Electrical and Electronics
Equipment (WEEE) regulations, visit www.acer-group.com/public/
Sustainability/sustainability01.htm
TIPS AND INFORMATION FOR COMFORTABLE USE
Computer users may complain of eyestrain and headaches after prolonged use. Users
are also at risk of physical injury after long hours of working in front of a computer. Long
work periods, bad posture, poor work habits, stress, inadequate working conditions,
personal health and other factors greatly increase the risk of physical injury.
Incorrect computer usage may lead to carpal tunnel syndrome, tendonitis, tenosynovitis
or other musculoskeletal disorders. The following symptoms may appear in the hands,
wrists, arms, shoulders, neck or back:
- Numbness, or a burning or tingling sensation.
- Aching, soreness or tenderness.
- Pain, swelling or throbbing.
- Stiffness or tightness.
- Coldness or weakness.
If you have these symptoms, or any other recurring or persistent discomfort and/or pain
related to computer use, consult a physician immediately and inform your company's
health and safety department.
The following section provides tips for more comfortable computer use.
Finding your comfort zone
Find your comfort zone by adjusting the viewing angle of the monitor, using a footrest, or
raising your sitting height to achieve maximum comfort. Observe the following tips:
- Refrain from staying too long in one fixed posture.
- Avoid slouching forward and/or leaning backward.

Safety and comfort - 13
- Stand up and walk around regularly to remove the strain on your leg muscles.
- Take short rests to relax your neck and shoulders.
- Avoid tensing your muscles or shrugging your shoulders.
- Install the external display, keyboard and mouse properly and within comfortable
reach.
- If you view your monitor more than your documents, place the display at the center
of your desk to minimize neck strain.
Taking care of your vision
Long viewing hours, wearing incorrect glasses or contact lenses, glare, excessive room
lighting, poorly focused screens, very small typefaces and low-contrast displays could
stress your eyes. The following sections provide suggestions on how to reduce eyestrain.
Eyes
- Rest your eyes frequently.
- Give your eyes regular breaks by looking away from the monitor and focusing on a
distant point.
- Blink frequently to keep your eyes from drying out.
Display
- Keep your display clean.
- Keep your head at a higher level than the top edge of the display so your eyes point
downward when looking at the middle of the display.
- Adjust the display brightness and/or contrast to a comfortable level for enhanced text
readability and graphics clarity.
- Eliminate glare and reflections by:
placing your display in such a way that the side faces the window or any light source,
minimizing room light by using drapes, shades or blinds,
using a task light,
changing the display's viewing angle,

14 - Safety and comfort
using a glare-reduction filter,
using a display visor, such as a piece of cardboard extended from the display's top
front edge.
- Avoid adjusting your display to an awkward viewing angle.
- Avoid looking at bright light sources for extended periods of time.
Developing good work habits
The following work habits make computer use more relaxing and productive:
- Take short breaks regularly and often.
- Perform some stretching exercises.
- Breathe fresh air as often as possible.
- Exercise regularly and maintain a healthy body.
- Warning! We do not recommend using the computer on a couch or bed. If this
is unavoidable, work for only short periods, take breaks regularly, and do some
stretching exercises.
-Note: For more information, please refer to "Regulations and safety notices" on
page 84.
ENVIRONMENT
Temperature
- Operating: 5 °C to 35 °C
- Non-operating: -20 °C to 65 °C
Humidity (non-condensing)
- Operating: 20% to 80%
- Non-operating: 20% to 80%

First things first - 15
FIRST THINGS FIRST
We would like to thank you for making an Acer notebook your choice for
meeting your mobile computing needs.
Your guides
To help you use your Acer notebook, we have designed a set of guides:
First off, the setup poster helps you get started with setting up your
computer.
The Quick Guide introduces you to the basic features and functions of
your new computer. For more on how your computer can help you to be
more productive, please refer to the User’s Manual.This guide contains
detailed information on such subjects as system utilities, data recovery,
expansion options and troubleshooting. In addition it contains general
regulations and safety notices for your notebook. It is available from
Desktop; double-click the Help icon and click User’s Manual in the menu
that opens.
Basic care and tips for using your computer
Turning your computer on and off
To turn the power off, do any of the following:
• Use the Windows shutdown command: Press the Windows key + <C>,
click Settings > Power then click Shut Down.

16 - First things first
If you need to power down the computer for a short while, but don’t want
to completely shut it down, you can put it into Hibernate by pressing the
power button.
Note:If you cannot power off the computer normally, press and hold
the power button for more than four seconds to shut down the
computer. If you turn off the computer and want to turn it on again, wait
at least two seconds before powering up.
Taking care of your computer
Your computer will serve you well if you take care of it.
• Do not expose the computer to direct sunlight. Do not place it near
sources of heat, such as a radiator.
• Do not expose the computer to temperatures below 0º C (32º F) or
above 50º C (122º F).
• Do not subject the computer to magnetic fields.
• Do not expose the computer to rain or moisture.
• Do not spill water or any liquid on the computer.
• Do not subject the computer to heavy shock or vibration.
• Do not expose the computer to dust or dirt.
• Never place objects on top of the computer.
• Do not slam the computer display when you close it.
• Never place the computer on uneven surfaces.

First things first - 17
Taking care of your AC adapter
Here are some ways to take care of your AC adapter:
• Do not connect the adapter to any other device.
• Do not step on the power cord or place heavy objects on top of it.
Carefully route the power cord and any cables away from foot traffic.
• When unplugging the power cord, do not pull on the cord itself but pull
on the plug.
• The total ampere ratings of the equipment plugged in should not exceed
the ampere rating of the cord if you are using an extension cord. Also,
the total current rating of all equipment plugged into a single wall outlet
should not exceed the fuse rating.
Cleaning and servicing
When cleaning the computer, follow these steps:
1. Turn off the computer.
2. Disconnect the AC adapter.
3. Use a soft, moist cloth. Do not use liquid or aerosol cleaners.
If either of the following occurs:
• The computer has been dropped or the body has been damaged;
• The computer does not operate normally
Please refer to "Frequently asked questions" on page 49.

18 - Your Acer tablet PC tour
YOUR ACER TABLET PC TOUR
After setting up your computer as illustrated in the setup poster, let us
show you around your new Acer computer.
You can enter information into you new computer with the touchscreen.
Tablet PC

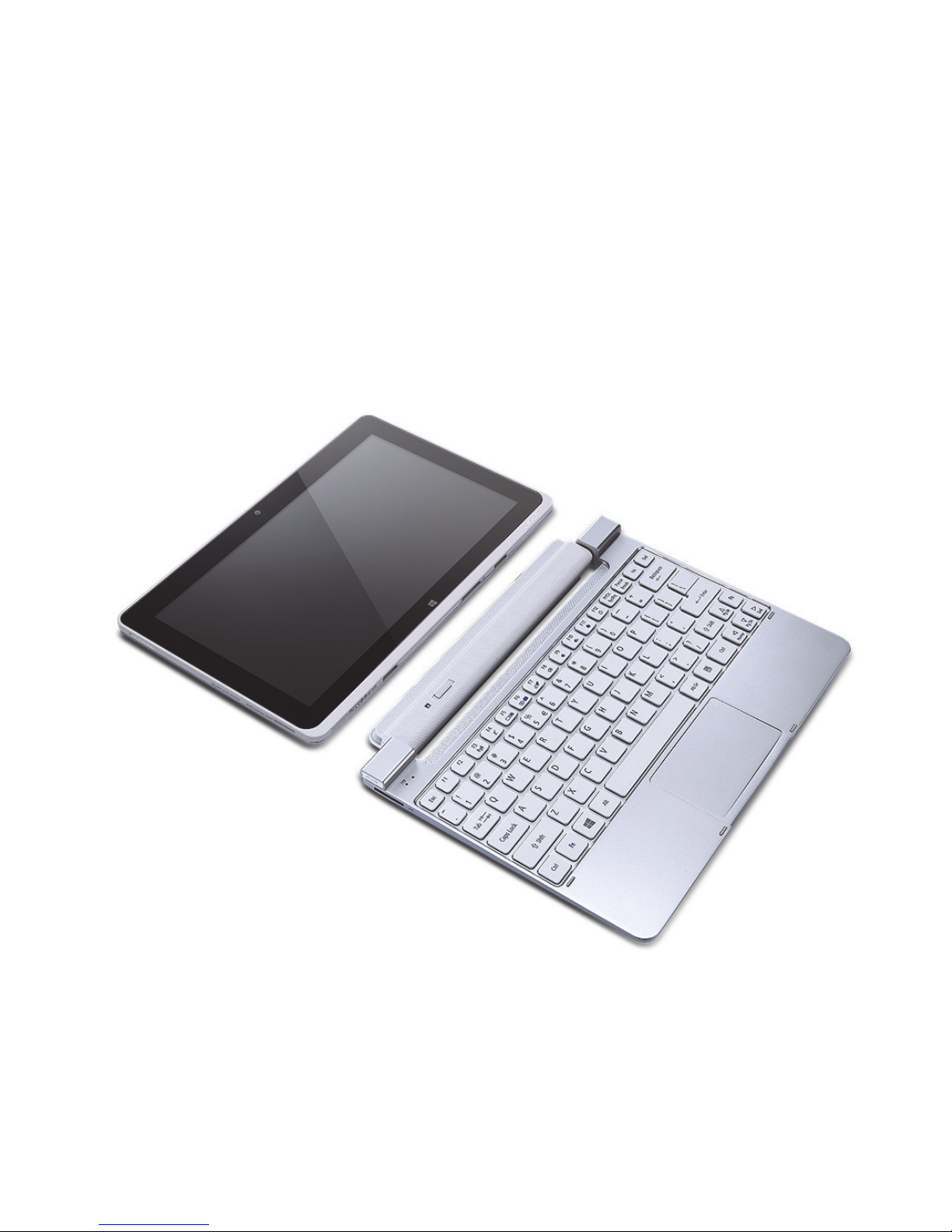

Your tablet computer has two components: the tablet and an optional
keyboard dock. The following images will show you both of these.

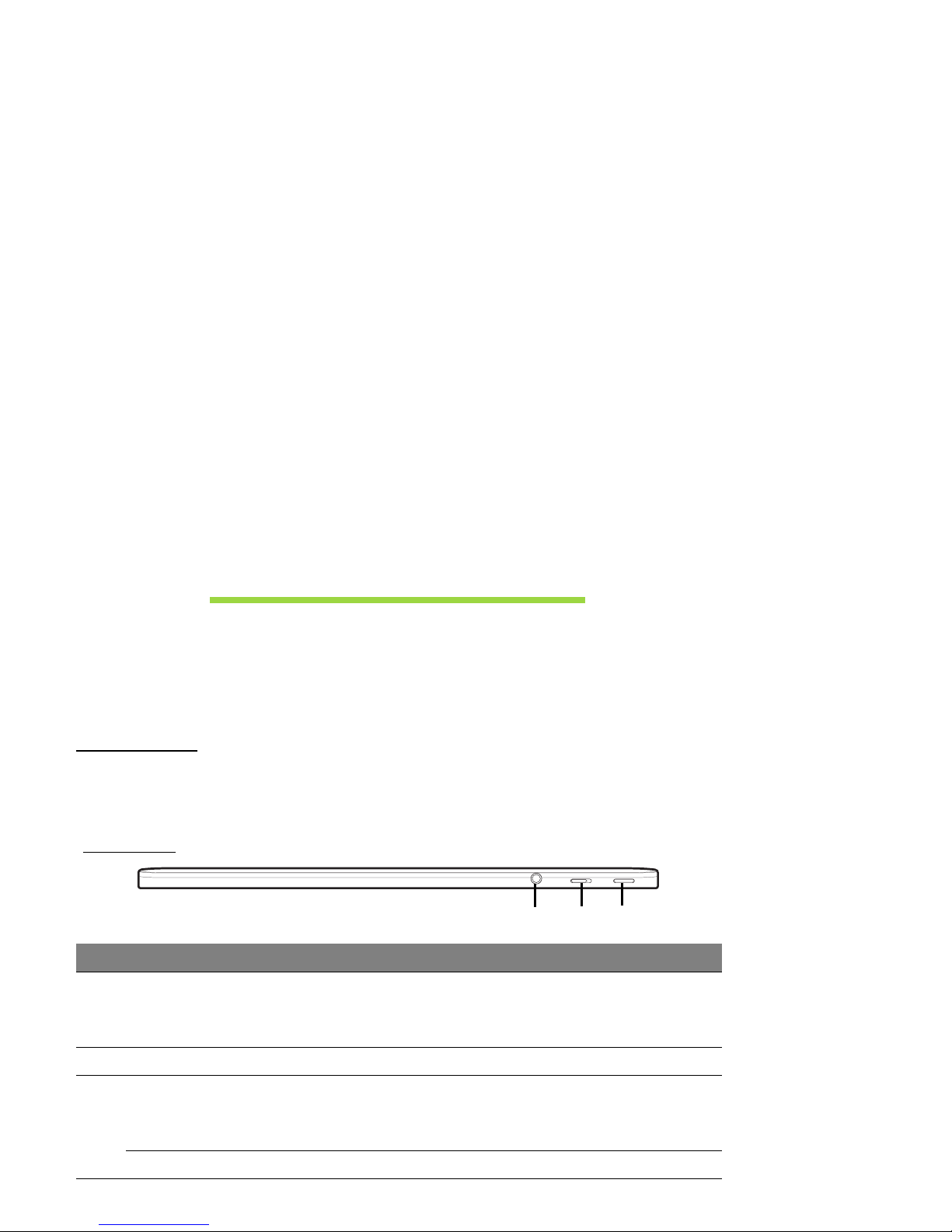

Top view
13
2
No. Item Description
1Headset/speaker
jack
Connects to audio devices
(e.g., speakers, headphones) or a headset with
microphone.
2Lock switch Locks the screen orientation.
3Power button
Press to turn the tablet on; press again to place
the tablet in Sleep mode. Press and hold to turn
the tablet off.
Battery LED Indicates the tablet's power status.
