ZT-2018/S
Quick Start
1 What’s in the Shipping Package?
The shipping package showed contain the following items:
2 Preparing the Device
1. Refer to Section 4. for details of how to configure the DIP switches of the ZT-2000 I/O
device.
2. Install the ZT Configuration Utility on your Host PC to configure the ZT-2000
coordinator. The utility can be founded on the CD in the
\Napdos\ZigBee\ZT_Series\Utility folder, or downloaded from:
http://ftp.icpdas.com/pub/cd/usbcd/napdos/zigbee/zt_series/utility
3. Power Supply: Connect a power supply using a voltage range of +10 ~+30 VDC
CD
ANT-124-05
Quick Start
ZT-2018/S
Device
CN-1824
+Vs
GND
+Vs
GND
If any of these items are missing or damaged, please contact your local distributor for more
information. Save the shipping materials and cartons in case you need to ship the module in the
future.

ICP DAS, ZT-2018/S Quick Start, Version 1.0.0 Page 2
Copyright ©2013 by ICP DAS Co., Ltd. All Rights Reserved.
3 Setting up the ZT-2000 I/O Device
3.1 Introduction to the Configuration
Parameters
A. The “ZB PID”parameter is the group identity for a ZigBee network, and must be
same for all devices in the same ZigBee network.
B. The “Node ID”parameter is the individual identity of the specific ZigBee module, and
must be unique for each device connected to the same ZigBee network.
C. The “ZB Channel”parameter indicates the radio frequency channel, and must be set
to the same value as other modules on the same ZigBee network.
ZB Channel
0x00
0x01
……
0x0F
Frequency (MHz)
2405
2410
……
2480
※ ZB channels 0x04, 0x09, 0x0E or 0x0F are recommended because they do not overlap with
Wi-Fi frequency band.
D. Protocol/Application Mode:
When implementing custom programs based on different protocols, the following
application mode(s) are recommended in order to ensure optimal performance.
User Program Protocol
ZT-2000 I/O
ZT-2550
ZT-2570
DCON
DCON
Transparent
Transparent
Modbus RTU
Modbus RTU
Transparent
Modbus Gateway
Transparent
Modbus Gateway
Modbus TCP
Modbus RTU
------
Modbus Gateway
00 01 02 03 04 05 06 07 08 09 0A 0B 0C 0D 0E 0F
802.11b/g
ZB Channel 1
802.11b/g
ZB Channel 6
802.11b/g
ZB Channel 11
802.11b/g ZB Channel (North America)
802.15.4 ZB Channel
2400
MHz
2485
MHz

ICP DAS, ZT-2018/S Quick Start, Version 1.0.0 Page 3
Copyright ©2013 by ICP DAS Co., Ltd. All Rights Reserved.
4 The Rotary Switch and DIP Switches
The configuration of the ZT-2018/S can be adjusted using a combination of the external
rotary switch and the DIP switches. The ZT-2000 device should only be rebooted once the
configuration is completed.
ZT-2018/S
Rotary Switch
0
(Software Config.)
1
2
3
……
F
Note
Address
*Note 1
01
02
03
……
0F
MSB = 0
Node ID
*Note 1
0x0001
0x0002
0x003
……
0x000F
0
1
2
3
……
F
Address
10
11
12
13
……
1F
MSB = 1
Node ID
0x0010
0x0011
0x0012
0x013
……
0x001F
*Note 1：The “Address”and “Node ID”are defined via the %AANNTTCCFF command. In software
configuration mode, the DIP switches for “Address”, “Data Format”and “Type Code”
are ignored and can also be set via the %AANNTTCCFF and $AA7CiRrr commands.
12345678910 11 12
Address LSB
(Node ID)
Address MSB
(Node ID)
Protocol
Checksum
ZB PID
ZB Channel
Type Code
ON
Data Format

ICP DAS, ZT-2018/S Quick Start, Version 1.0.0 Page 4
Copyright ©2013 by ICP DAS Co., Ltd. All Rights Reserved.
DIP Switch
Number
Item
Status
Description
1
Address MSB
OFF
Valid Address (Node ID) from 0x01 to 0x0F
ON
Valid Address (Node ID) from 0x10 to 0x1F
2
Protocol
OFF
DCON Protocol
ON
Modbus RTU Protocol
3
Checksum
OFF
Disabled (DCON Protocol Only)
ON
Enabled (DCON Protocol Only)
4
ZB PID
OFF
ZigBee Pan ID = 0x0000
ON
ZigBee Pan ID = 0x0001
5
ZB Channel
OFF
------
ON
0x08
6
OFF
------
ON
0x04
7
OFF
------
ON
0x02
8
OFF
------
ON
0x01
9
Data Format
OFF
Engineering Units Format
ON
Hexadecimed Format
Switch
Position
Type
Code
Switch
Position
Type
Code
Switch
Position
Type
Code
0x00
0x01
0x02
0x03
0x04
0x05
0x06
0x07

ICP DAS, ZT-2018/S Quick Start, Version 1.0.0 Page 5
Copyright ©2013 by ICP DAS Co., Ltd. All Rights Reserved.
5 Starting the ZT-2000 I/O Device
As the ZigBee network is controlled by the ZigBee Coordinator, the ZT-2550/ZT-2570
(ZigBee Coordinator) must be configured first. Refers to the documents shown below for full
details of how to configure these devices.
Once configuration of the ZigBee Coordinator has been completed, set the “Pan ID”and “RF
Channel”values for the ZT-2000 I/O device to the same values as the network and then
reboot the device.The module will automatically start to function on the ZigBee network using
the default protocol.
※Documents
http://ftp.icpdas.com.tw/pub/cd/usbcd/napdos/zigbee/zt_series/document/zt-255x/
http://ftp.icpdas.com.tw/pub/cd/usbcd/napdos/zigbee/zt_series/document/zt-257x/
※Configuration Utility (Used to configure the ZT-2000 I/O device Coordinator)
http://ftp.icpdas.com.tw/pub/cd/usbcd/napdos/zigbee/zt_series/utility/

ICP DAS, ZT-2018/S Quick Start, Version 1.0.0 Page 6
Copyright ©2013 by ICP DAS Co., Ltd. All Rights Reserved.
6 Examples
Configuring the ZT-2550/ZT-2570
Configuring the ZT-2000 I/O Device
Number
Item
Status
Description
1
Address MSB
OFF
Address/Node ID is 01 (Rorary Switch=1)
2
Protocol
ON
Use Modbus RTU Protocol
3
Checksum
OFF
Disabled
4
ZB PID
OFF
ZigBee Pan ID = 0x0000
5
ZB Channel
ON
0x08
ZigBee RF Channel = 0x0E
6
ON
0x04
7
ON
0x02
8
OFF
------
9
Data Format
OFF
Engineering Units Format
10
Type Code
OFF
AI Type Code = 0 (+/-15mV)
11
OFF
12
OFF
12345678910 11 12

ICP DAS, ZT-2018/S Quick Start, Version 1.0.0 Page 7
Copyright ©2013 by ICP DAS Co., Ltd. All Rights Reserved.
7 Communications Testing
Once the ZT-2000 I/O device has joined the ZigBee network, the signal quality can be
confirmed by monitoring the status of the ZigBee Net LED indicators. If the LED indicator
shows a steady light, communication with the ZT-2000 I/O device has been successfully
established for data acquisition and control.
ICP DAS also provides the “DCON Utility”, which can be used to simulate DCON/Modbus
communication. This software can alse be used to verify the device settings and ZigBee I/O
functions.
※The DCON Utility can be downloaded from:
http://ftp.icpdas.com/pub/cd/8000cd/napdos/driver/dcon_utility/
Simulating I/O channel operation via the DCON Utility
1. Launch the DCON Utility and select the appropriate COM Port settings to connect to the
ZigBee Coordinator (ZT-2550/ZT-2570).
2. Click the “Search”button to start searching for ZT-2000 I/O devices connected to the same
ZigBee network.
3. If any ZT-2000 I/O devices are found, they will be displayed in the device list windows.
Double-click the name of the module to start the operating platform.
1
2
3

ICP DAS, ZT-2018/S Quick Start, Version 1.0.0 Page 8
Copyright ©2013 by ICP DAS Co., Ltd. All Rights Reserved.
8 Troubleshooting
(1)Technical Support.
If you have any difficulties using your ZT-2000 series I/O device, please send a
description of the problem to [e-mail]
Include the following items in your email:
 A description or diagram of the current DIP switch positions.
 A copy of the configuration file for the ZT-2000 coordinator. This file can be obtained
using the procedure outlined below and should be attached to your email.

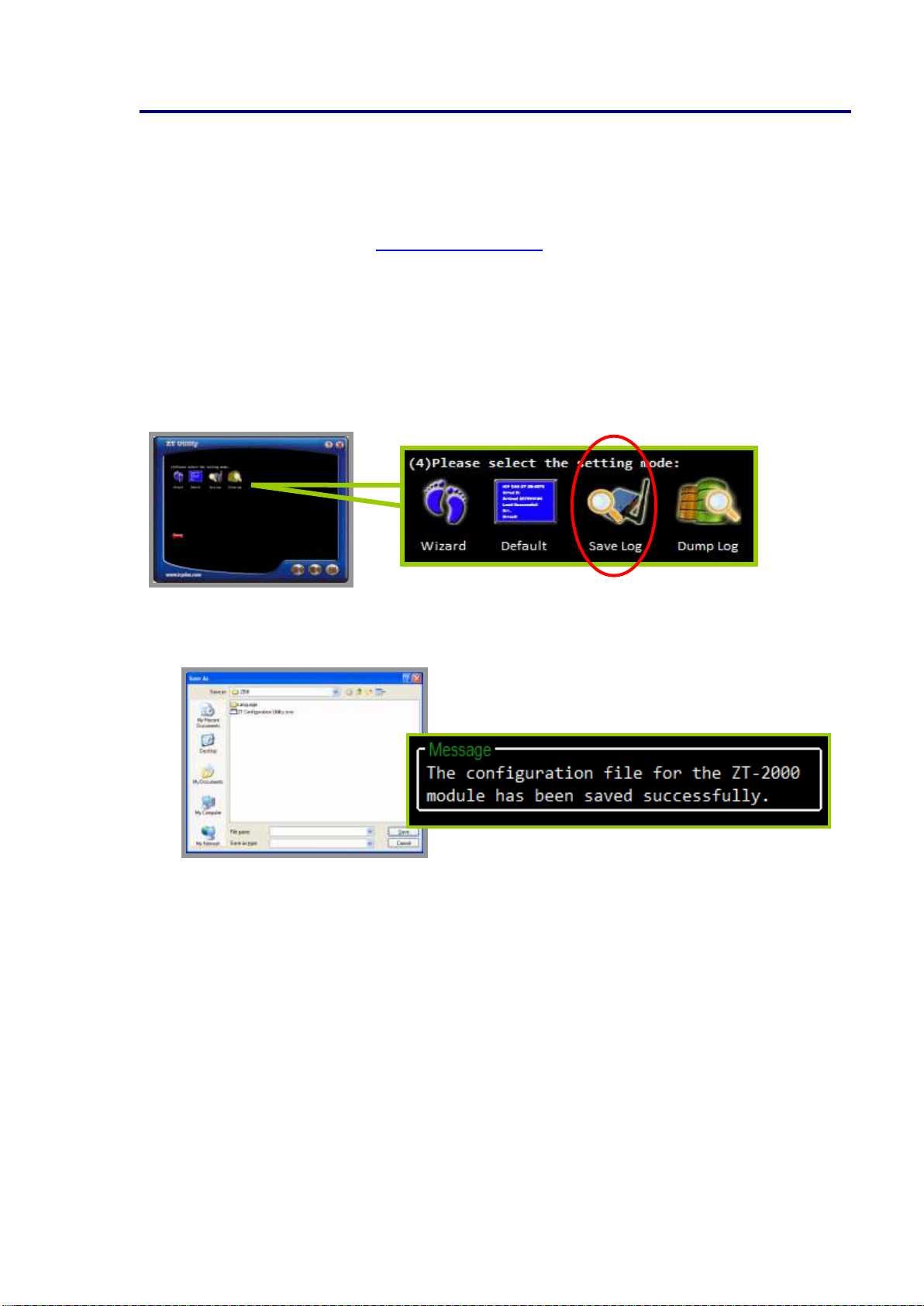

a. Set the DIP switch of the ZT-255x device to the [ZBSET] position then reboot the
device. Launch the ZT Configuration Utility and select [Save Log] icon to save the
configuration of the ZT-255x as a file.
b. After clicking the [Save Log] icon, enter the “File Name”and the “File Path”in the
Windows “Save”dialog box. Once the configuration has been successfully saved, the
following message will be displayed.
