iCAM-760D
7.37 MP Dual Lens Panoramic
Dome Network Camera
User’s Manual
Version 1.01

Warranty
All products manufactured by ICP DAS are under warranty regarding defective
materials for a period of one year, starting from the date of delivery to the original
purchaser.
Warning
ICP DAS CO., LTD. assumes no liability for damages consequent to the use of this
product. ICP DAS CO., LTD. reserves the right to change this manual at any time
without notice. The information furnished by ICP DAS CO., LTD. is believed to be
accurate and reliable. However, no responsibility is assumed by ICP DAS CO., LTD.
for its use, or for any infringements of patents or other rights of third parties resulting
from its use.
Copyright and Trademark Information
© Copyright 2017 by ICP DAS CO., LTD. All rights reserved worldwide.
Trademark of Other Companies
The names used for identification only maybe registered trademarks of their
respective companies.
License
The user can use, modify and backup this software on a single machine. The user
may not reproduce, transfer or distribute this software, or any copy, in whole or in part.
Technical Service:
Please contact local agent or email problem-report to [email protected] .
For more product information, please refer to www.icpdas.com .
Technique: Cony Yu; Translation & Edition: Eva Li; R&D Dept., ICP DAS CO., LTD.
Latest edited by: Eva Li; V. 1.0, 08/2017

Contents
iCAM-760D User’s Manual ICP DAS 3
Contents
Contents 3
Read Me First! 6
Important Notes ..................................................................................................................6
1Introduction 7
1.1 Hardware Overview......................................................................................................9
1.2 Specifications..............................................................................................................11
2Installation and Setup 14
2.1 Install Camera and Fix it on the Bracket ....................................................................14
2.2 Install microSD Card..................................................................................................16
2.3 Connecting Camera to Network .................................................................................17
2.4 Configuring Camera via CAM FINDER....................................................................18
2.4.1 Use CAM FINDER toAssign IPAddress ...................................................20
2.4.2 Open the Web-based UI of the Camera.......................................................23
3Live View UI Settings 26
3.1 Quick Access Buttons...............................................................................................28
3.2 Camera Live View UI Setting Tools .........................................................................29
4Setup 38
4.1 Video & Audio Setup................................................................................................39
4.1.1 Video Tab.....................................................................................................39
4.1.2 Stream Tab...................................................................................................46
4.1.3 Audio Tab....................................................................................................49
4.1.4 Privacy Mask Tab........................................................................................50
4.2 System Setup.............................................................................................................52
4.2.1 Information Tab...........................................................................................53
4.2.2 Time Tab......................................................................................................54
4.2.3 Security Tab.................................................................................................56
4.2.4 Maintenance Tab..........................................................................................58
4.2.5 System Log Tab...........................................................................................60
4.3 Network Setup ..........................................................................................................61
4.3.1 General Tab..................................................................................................62
4.3.2 DDNS Tab ...................................................................................................64
4.3.3 Multicast Tab...............................................................................................65
4.3.4 IP Filter Tab .................................................................................................66
4.3.5 WISE Tab ....................................................................................................67

Contents
iCAM-760D User’s Manual ICP DAS 4
4.4 Event Setup...............................................................................................................68
4.4.1 Motion Tab ..................................................................................................69
4.4.2 Video Tab.....................................................................................................71
4.4.3 Snapshot Tab ...............................................................................................76
4.4.4 GPIO Tab.....................................................................................................81
4.5 Local Storage Setup..................................................................................................82
4.5.1 Local Storage Tab........................................................................................83
4.5.2 Playback Tab................................................................................................84
4.6 Remote Storage Setup...............................................................................................85
4.6.1 Remote Storage Tab.....................................................................................85
5Appendix 86
5.1 Firmware Upgrade and Trouble Shooting...................................................................86
5.2 How to let camera to do Hardware Reset ...................................................................96

Read Me First!
iCAM-760D User’s Manual ICP DAS 5
Revision History
Doc. Version
Revision Description
Date
1.0
Initial Official Release:
1. For Chapter 1, add features, hardware picture and specifications.
2. Add Section 2.2 about how to install microSD card into the camera.
3. Add Section 4.3.5 WISE Tab for communicating the camera with the
WISE controller to perform a WISE Surveillance Solution.
4. For Chapter 3, the “ePTZ function”now can display in all 4 Display
Mode, modify the related descriptions.
5. For Chapter 1 to 5, modify its description for more detail and clear.
2017/08/10

Read Me First!
iCAM-760D User’s Manual ICP DAS 6
Read Me First!
Important Notes
This User Manual is intended for administrators and users of the iCAM-760D Dual Lens
Panoramic Dome Network Camera, including instructions for using and managing the camera
on your network. The use of surveillance devices may be prohibited by law in your country or
area. It is therefore the user’s responsibility to ensure that the operation of such devices is legal
before installing this unit for its intended use.
Before the Dome Network Camera is installed, carefully read and follow all the safety and
operating instructions to avoid damage due to faulty assembly and installation. This also
ensures that the device is used properly as intended.
Heed All Warnings
Do not drop or hit the device.
Sensitive electronics inside the camera are vulnerable to excessive impact.
Do not install the device under high temperature (less than 45C) environment.
Excessive heat could damage the equipment.
Do not cover device with any object or install it in a poorly ventilated vicinity.
Overheating could damage the camera.
Do not expose the device to rain or moisture. Do not touch the power connection with
wet hand.
Risk of short circuit, electric shock, or fire
Do not damage the power cord or leave it under pressure.
Risk of fire or circuit electric shock
To reduce the risk of electric shock or damage, do not remove the front or back cover.
There is no user-serviceable parts inside. Misusage, improper, or negligent handling could
damage the device. Refer to qualified service personnel from our distibutor/dealer for any
device related trouble shooting need.
Do not continue to operate the device if it appears to malfuntion.
Contact qualified service personnel from our distibutor/dealer for help.
Installation of the product should be made by qualified service personnel or system
installers from our distibutor/dealer.

Chapter 1
iCAM-760D User’s Manual ICP DAS Introduction 7
1 Introduction
iCAM-760D is a Dual Lens Panoramic Dome Network Camera featured with
7.37 Mega Pixel resolutions totally. Also this model has superior H.264-AVC
performance and rich functions.
iCAM-760D includes a D/N fish-eye lens for 360°panoramic wide angle view
without blind spot; and another D/N Fix-focal dual lens to view a wide/Tele
area. With independent eWDR both sensors could view in extremely bright or
dark environments. It is very suitable to install in public office, entrance,
transportation and shop without the need to install multiple cameras.
Base on this hardware’s video processing ability, iCAM-760D provides user
various 3840 x 1920 video layout including Original View, Double Broad View,
Triple View and Quad View. The ePTZ function, including preset point without
moving parts, can replace part of traditional PTZ camera and thus save lot of
traditional mechanical Pan/Tilt maintain cost.
Further functions include Auto Pan, Auto Patrol, two-way audio, DI/DO alarm
application and microSD / microSDHC / microSDXC 64 GB card support for
local storage application.
Features:
2 x 5 Megapixel Progressive CMOS Sensor
Smooth 15 fps@High 7.3 Megapixels Resolution (3840 x 1920)
H.264/MJPEG Dual Codec
1.05 mm non-liner Fisheye Lens + 6/8/12/16 mm Fixed-focal Lens
Removable IR Cut, Day & Night Function for Both Sensors
eWDR Image Enhancement for Extreme Lighting Condition (too
Bright/Dark)
Various Display Modes Selectable for Different Applications
ePTZ, Auto Pan, Auto Patrol Function on Fisheye Lens

Chapter 1
iCAM-760D User’s Manual ICP DAS 8 Introduction
Two-way Audio
Built-in microSD/microSDHC / microSDXC Card Slot for On Board
Storage
Weather-proof IP66-rated Outdoor Housing
Built-in 802.3af Compliant PoE
ONVIF 2.2 Compliant for interoperability

Chapter 1
iCAM-760D User’s Manual ICP DAS 9 Introduction
1.1 Hardware Overview
iCAM-760D iCAM-760D with outdoor 6" dome housing
Dimensions

Chapter 1
iCAM-760D User’s Manual ICP DAS 10 Introduction

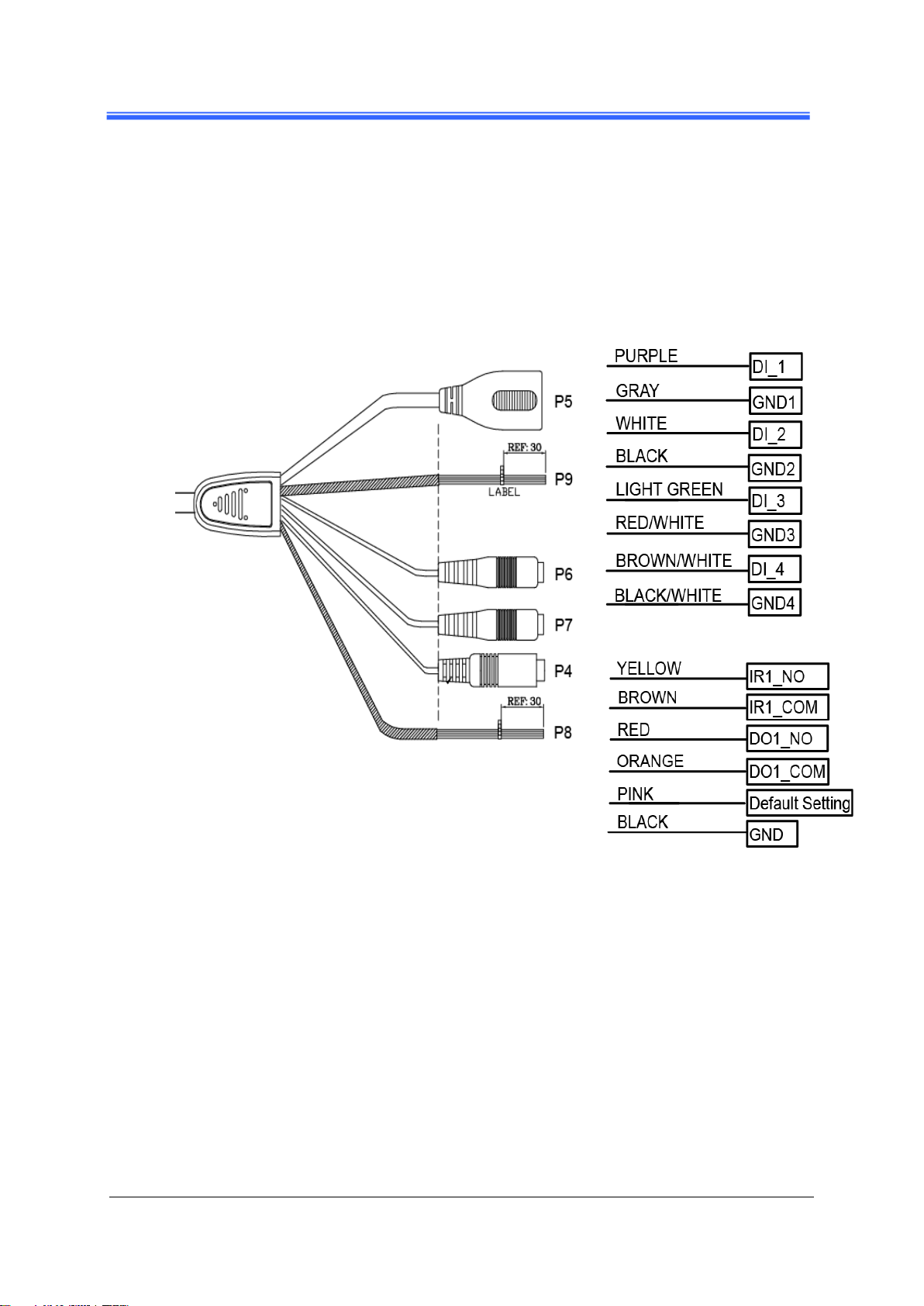

Cable Connections:
iCAM-760D provides some connections with outside devices. User can make the
connectors to support Audio, DC Jack or Terminal Block for GPIO (This model
does not support for IR board).
Please refer to following table of the pins definition respective.
GPIO
Ethernet (RJ45)
GPIO
Audio In Pink
Audio Out Green
DC Jack
GPIO P9
GPIO P8

Chapter 1
iCAM-760D User’s Manual ICP DAS 11 Introduction
1.2 Specifications
Model
iCAM-760D
System Information
CPU
Multimedia SoC (System-on-Chip)
NOR Flash
16 MB
RAM
512 MB
Camera Features
Image Sensor
1/2.5” Progressive CMOS sensor in 2592 x1944
Resolution
Maximum Resolution
7.37 MEGA: 3840x1920 @15fps
Fixed-Focal Lens Type
1/2.5”, f = 6/8/12/16 mm, F1.6, Fix-Iris,
Horizontal angle of view: 54°/ 41°/ 28°/ 22
Panoramic Lens Type
1/2.5”, f = 1.05 mm, F2.8 , Fix-Iris,
Angle of view: 186± 4° (D/H/V)
Shutter Time
1/100,000 to 1s
WDR Technology
eWDR Enhanced
Day/Night
Removable IR-cut filter for Day &Night Function
Minimum illumination
1.9 Lux @F2.8 (Color) ; 0.1 Lux @F2.8 (B/W)
External IR
Illuminators (optional)
Effective Range up to 10 meter, 60/120/180 Degree
IR
IP66 / 8W / DC12V
On-board Storage
Built-in microSD card slot,
support microSDHC/microSDXC 64GB or above
Video
Compression
H.264 / MJPEG
Display Mode
360° Source View + Fixed-focal View
180° Double Broad View + Fixed-focal View
180° Triple View + Fixed-focal View
Quad View + Fixed-focal View
Maximum Streams
Two simultaneous streams
Stream 1: 3840x1920@15fps
Stream 2: 480x240@15fps
S/N Ratio
Above 39 dB
Dynamic Range
100 dB

Chapter 1
iCAM-760D User’s Manual ICP DAS 12 Introduction
Model
iCAM-760D
Video Streaming
Adjustable resolution, quality and bitrate
Image Settings
Adjustable image size, quality and bitrate
Configurable brightness, saturation, exposure control,
sharpness, contrast, white balance, auto shutter
control,
auto gain control, noise reduction, EV luminance
control,
flip & mirror, privacy masks, time stamp, text overlay
Audio
Audio Capability
Audio input/output (full duplex)
Compression
G.711u
Interface
External microphone input
Network
Users
Live viewing for up to 10 clients
Protocols
HTTP, HTTPS, TCP/ IP, IPv4, UDP, SMTP, FTP, DHCP,
DDNS, NTP, DNS, ARP, RTSP, RTP, UPnP, ONVIF
(Profile S), Multicast
Protection
Multiple user access levels with password
protection, IP address filtering
Interface
10 Base-T/100 BaseTX Ethernet(RJ-45)
ONVIF
Ver.2.2 and above
Intelligent Video
Motion Detection
Ten-windows video motion detection
Alarm and Event
Alarm Triggers
Video motion detection, manual trigger, digital input,
periodical trigger, system boot, recording notification
Alarm Events
Event notification using digital output, HTTP, SMTP,
FTP and NAS server
File upload via HTTP, SMTP, FTP and NAS server
General
Connectors
RJ-45 cable connector for Network/PoE connection
Audio input / output
Digital input *4 / Digital output *1
LED Indicator
System power and status indicator
Power Input
PoE, IEEE 802.3af, Class1

Chapter 1
iCAM-760D User’s Manual ICP DAS 13 Introduction
Model
iCAM-760D
DC 12V
Power Consumption
9.6W
Dimensions
200x153.5mm
Weight
Net :1.9kg
Casing
Indoor IP54
Outdoor Weather-proof IP66-rated housing
Safety Certifications
CE, FCC Class B, LVD
Operating
Temperature
Starting : -10°C ~ 50°C
Working: -40°C ~ 50°C
Operating Humidity
10% ~ 80%
System Requirements
Operating System
Microsoft Windows 10/8/Vista/XP
Web Browser
Mozilla Firefox 7 ~ 52,
Internet Explorer 7 ~ 11
Other Players
VLC: 1.1.11 or above

Chapter 2
iCAM-760D User’s Manual ICP DAS Installation and Setup 14
2 Installation and Setup
2.1 Install Camera and Fix it on the Bracket
1. Please check if below components are all included in the box.
NO.
A-1
B-1
A-2
B-2
Quantity
3
4 / 4
3
1
Screws
2. Wall Mount & Ceiling Mount Installation
Step 1
Install the Bracket (B-2) by applying the Screw (B-1) * 4 pcs.
Step 2
Align and insert the 4 screw pins to the 4 anchor points of the bracket
correspondingly. Rotate clockwise to fix the camera.

Chapter 2
iCAM-760D User’s Manual ICP DAS 15 Installation and Setup
3. In-Ceiling Mount Installation.
Step 1
Loose the 4 screws of cover and remove the cover.
Step 2
Take Screw (A-1) * 3 pcs.
Insert each screw through the pan and then the Bracket (A-2).
Step 3
Concurrently squeeze the Bracket (A-2) * 3 pcs into the ceiling
mezzanine. Tighten the 3 screws to securely fasten the camera.
Finally, install the camera cover.

Chapter 2
iCAM-760D User’s Manual ICP DAS 16 Installation and Setup
2.2 Install microSD Card
The iCAM-760D built-in microSD card slot supports microSDHC / microSDXC 64 GB
or above for local storage application.
The user can prepare a microSD card to install into the camera via the following steps.
Step 1
Loose the 4 screws of cover, remove the cover, and find the microSD card
slot as the following picture.
Step 2
Insert the microSD card into the slot.
Finally, install the cover back to the camera.

Chapter 2
iCAM-760D User’s Manual ICP DAS 17 Installation and Setup
2.3 Connecting Camera to Network
1) Be sure that your PC or laptop has connected to your local Ethernet network.
2) Be sure that IP Camera has connected to your local networking via the LAN port
(RJ45) on the cable. For this PoE model, user can use PoE Switch as power supply.
3) Use CAM FINDER software utility in CD to set up the camera (see 2.4 Configuring
Camera via CAM FINDER), or directly set up the camera via the Microsoft IE
browser using the following default IP information:
IP: 192.168.255.2 (Default Username/Password: admin/admin)
Submask: 255.255.0.0
Gateway address: 192.168.0.1
DNS Server address: 8.8.8.8
iCAM-760D
PC/Notebook
①
②
PoE Switch
RJ45

Chapter 2
iCAM-760D User’s Manual ICP DAS 18 Installation and Setup
2.4 Configuring Camera via CAM FINDER
The user can configure iCAM by default IP address or via the software utility.
The default IP Address configuring: see 2.3 Connecting Camera to Network
The software utility CAM FINDER is in the attached Software Package CD.
The CAM FINDER is used to find and configure network cameras on the LAN.
This utility is useful for conveniently configuring the network settings of the
device, or for finding a device once the network settings have been modified.
The CAM FINDER programs are located in the Software iCAM CD provided
together with the device. Please insert the CD into the PC CD-ROM Drive, open
the folder “Software_Utility” and then “CAM FINDER”. Launch the CAM
FINDER setup file “setup.exe”and complete the installation step by step.
iCAM CD Path: \Software_Utility\Cam Finder\
The latest version of the CAM FINDER software program is available on the
iCAM product website:
http://wise.icpdas.com/products/iCAM.html
Or directly download from the following FTP path:
http://ftp.icpdas.com/pub/cd/iCAM/Software_Utility/Cam Finder/
NOTE
1. In order to ensure CAM FINDER utility has the best compatibility with
Camera, kindly please ask for distributor/dealer’s help to get the latest
version downloading.
2. In order to ensure Camera will be assigned IPAddress properly, please
confirm the following things.
Always consult your network administrator in order to avoid using a
previously assigned IP address.
Check if the Camera is powered on and correctly connected to the
network.
In order to connect to the Web-based user interface of the camera, the
host PC must be in the same subnet. For more information about
subnets, please consult your network administrator.

Chapter 2
iCAM-760D User’s Manual ICP DAS 19 Installation and Setup
Once CAM FINDER has been successfully installed on the PC/notebook,
double click the CAM FINDER icon on the Desktop of PC
or choose “Start＞All Programs＞CAM FINDER” path
to run the software.
The CAM FINDER window is showing as the following picture.
If want to change the software language, please click the right key of mouse on
the gray area and select the [Language] to choose one language from the
[Traditional Chinese], [English], [Spanish] and [Simplified Chinese].

Chapter 2
iCAM-760D User’s Manual ICP DAS 20 Installation and Setup
2.4.1 Use CAM FINDER to Assign IP Address
1. Click the [Device Search] to search the camera on the network.
2. Under your selected item, double-click the left Mouse button or Right-click
the Mouse button to open the Property Page of the [Single Device Setting].
