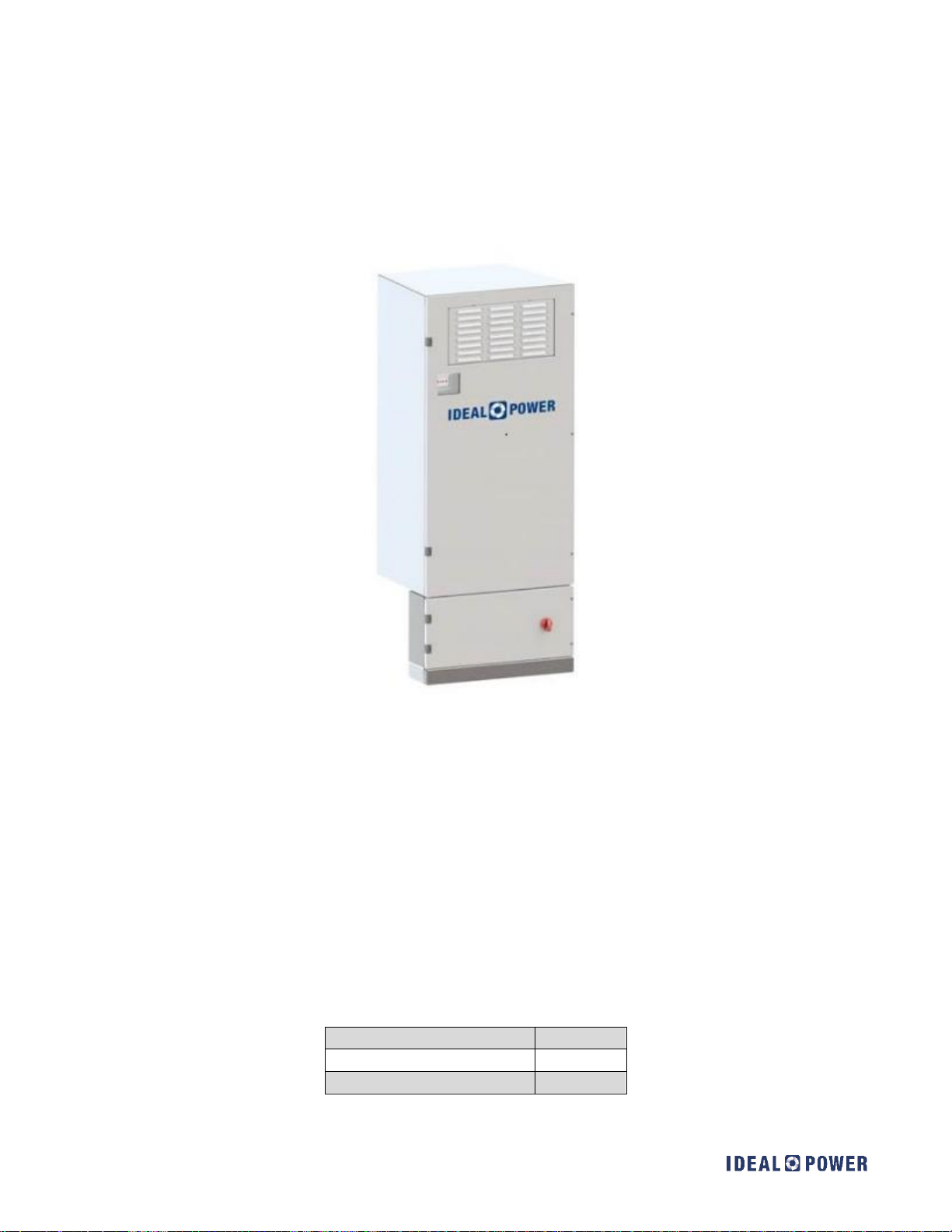

INSTALLATION & OPERATIONS MANUAL
SunDial™30 kW PV String Inverters
Product Models: 30PV, 30PVF, 30PV+S, 30PVF+S
Control Document Number: MAN-00117, Rev C

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 1of 31
Disclaimer
This document is provided “as is” and Ideal Power Inc. (IPWR) makes no
representations warranties, expressed or implied, with respect to the information
contained herein. IPWR has made reasonable efforts to ensure the accuracy of
information herein and at the time of publication. However, information is constantly
evolving and IPWR does not purport the information provided is correct, comprehensive
or exhaustive. This document is for informational purposes only. You should not act
upon information without consulting IPWR or its authorized distributors.
© Copyright 2017, Ideal Power Inc. All rights reserved. No parts of this document may
be reproduced in any form without the express written permission of IPWR. Ideal Power
Inc., and the Ideal Power logo are trademarks of Ideal Power Inc. All other trademarks
and service marks belong to their respective owners.

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 2of 31
Table of Contents
SECTION 1.0 INTRODUCTION AND PURPOSE.......................................................................................4
FCC COMPLIANCE .......................................................................................... ERROR!BOOKMARK NOT DEFINED.
RMA AND SERVICE CONTACT .......................................................................................................................... 5
SECTION 2.0 IMPORTANT SAFETY INSTRUCTIONS................................................................................6
SAFETY INSTRUCTIONS:ALL INSTALLATIONS ....................................................................................................... 6
SAFETY INSTRUCTIONS:BATTERY INSTALLATIONS ................................................................................................ 7
SAFETY INSTRUCTIONS:ADDITIONAL .................................................................................................................8
SAFETY INSTRUCTIONS: HANDLING ……………………………………………………………………………………………..………8
INTEGRATED SAFETY FEATURES........................................................................................................................ 9
GROUND FAULT DETECTION –GROUND REFERENCED PV COMBINER...................................................................10
GROUND FAULT DETECTION –FLOATING PV COMBINER.....................................................................................10
DC OVER/UNDER VOLTAGE FAULT DETECTION ................................................................................................10
AC CURRENT FAULT DETECTION ....................................................................................................................10
AC FREQUENCY AND VOLTAGE FAULT DETECTION.............................................................................................11
REGULATORY INFORMATION..........................................................................................................................11
SECTION 3.0 SYSTEM SPECIFICATIONS ..............................................................................................11
SECTION 4.0 UNPACKING AND MOUNTING THE INVERTER................................................................12
INVERTER MOUNTING ..................................................................................................................................13
CLEARANCES FOR INVERTER MOUNTING……………………………………………………………………………………………………..13
INVERTER REMOVAL AND PREPARATION FOR SHIPMENT ....................................................................................16
SECTION 5.0 AC AND DC TERMINALS - WIRING AND INSTALLATION...................................................16
INVERTER GROUND......................................................................................................................................17
AC WIRING ................................................................................................................................................17
AC EXTERNAL CIRCUIT PROTECTION AND DISCONNECT …………………………………………………………………………….……18
DC WIRING ................................................................................................................................................18
DC CONNECTION TERMINAL OVERVIEW ..........................................................................................................18
DC WIRING OPTIONS...................................................................................................................................19
COMBINER OVERVIEW…………………………………………………………………………………………………………………………….19
PV STRING INVERTER………………………………………………………………………………………………………………………….……21
CONTROL AND GRID WIRING …………………………………………………………………………………………………………………….21
BATTERY WIRING ………………………………………………………………………………………………………………………….……….21
DC3 (BATTERY)EXTERNAL CIRCUIT PROTECTION AND DISCONNECT………………………………………………………………...21
GROUND-REFERENCED COMBINER …………………………………………………………………………………………………………...21
FLOATING COMBINER……………………………………………………………………………………………………………………………..22
VERIFICATION OF ELECTRICAL CONNECTIONS....................................................................................................23
SECTION 6.0 OPERATING AND SHUTDOWN CONDITIONS ..................................................................24
SECTION 7.0 MAINTENANCE AND TROUBLESHOOTING......................................................................25
ANNUAL PREVENTIVE MAINTENANCE .............................................................................................................25
VERIFY PROPER AIRFLOW..............................................................................................................................26
POWER TERMINALS TORQUE CHECK ...............................................................................................................26

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 3of 31
COOLING SYSTEM INSPECTION .......................................................................................................................27
INVERTER TROUBLESHOOTING .......................................................................................................................27
CLEARING GFDI FAULTS-GROUND REFERENCED APPLICATIONS.......................................................................... 28
CLEARING GFDI FAULTS -FLOATING APPLICATIONS ..........................................................................................28
FRONT PANEL DISPLAY .................................................................................................................................28
INVERTER FAULT/STATUS CODES....................................................................................................................29
SECTION 8.0 FAULT OVERVIEW.........................................................................................................29
FAULT HANDLING ........................................................................................................................................29
FAULT LOGGING VIA MODBUS......................................................................................................................30
Table of Figures

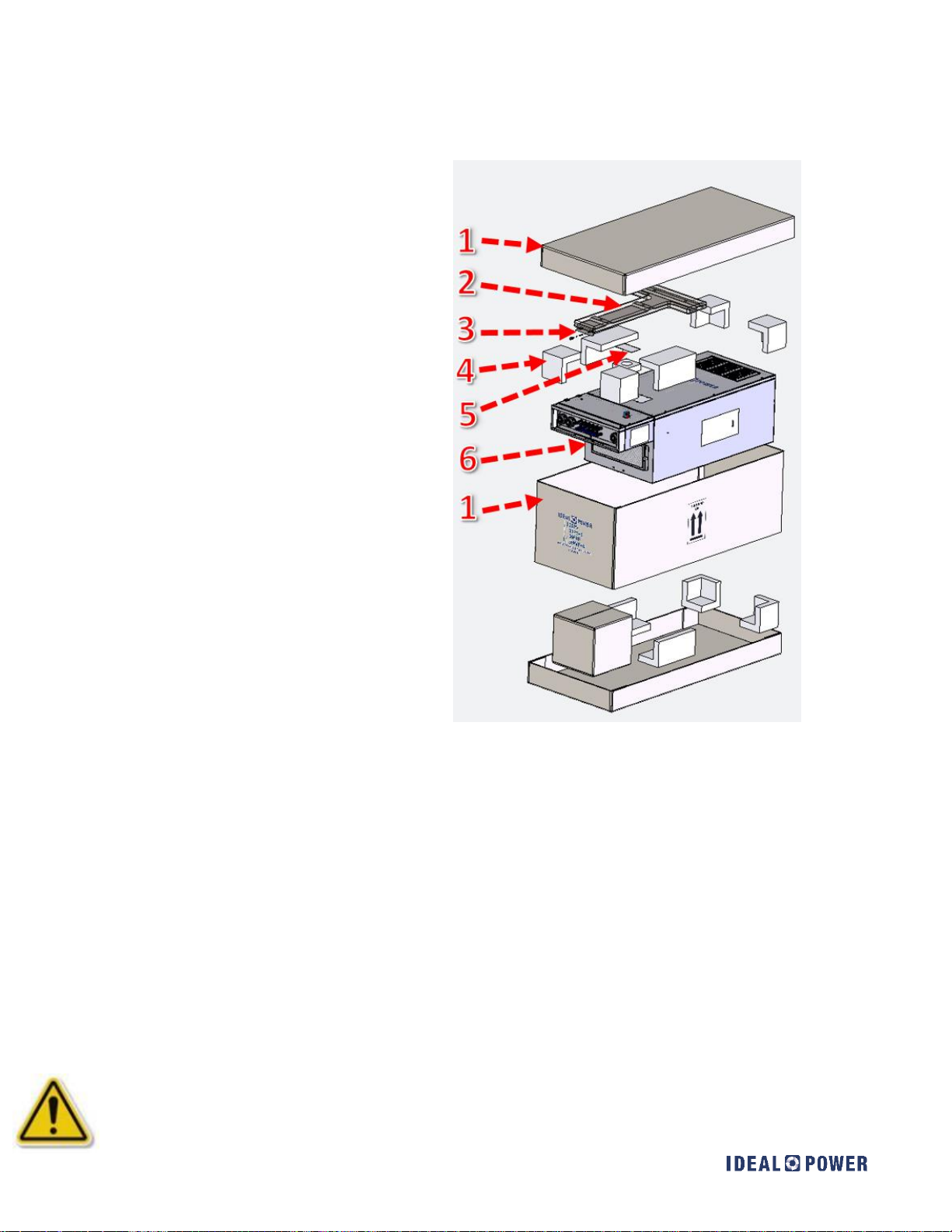

Figure 1: IPWR Approved Shipping Container………………………………………..……13
Figure 2: Enclosure Exterior …………………………………………………………………….…14
Figure 3: Door Clearance Guide……………………………………………………….……..….15
Figure 4: AC1 and DC2/DC3 Interconnect Boards….……………………………….…..17
Figure 5: Combiner Access Door………………………………………………….……….…….20
Figure 6: Bottom View of Combiner. …………………………………………………..…….20
Figure 7: Internal View of Ground Referenced Combiner……………….………....21
Figure 8: Internal View of Floating Combiner..………………………………………..…22
Figure 9: Front Panel LED…………..…………………………………………………………..….28
Table of Tables
Table 1: Inverter Safety Features…………………………………………………….……….….9
Table 2: Inverter Weight………………………………………………………………………….…14
Table 3: Terminal Tightening Torques …………………………………….……………...…17
Table 4: DC Wiring Nomenclature …..………………………………………………….…....18
Table 5: IEEE 1547.1 Default Voltage and Trip Time Ranges ……………………….25
Table 6: IEEE 1547.1 Default Frequency and Trip Time Ranges ……………….….25
Table 8: Fault Bit Mapping………………………………………………………..………….……30
Table 9: Fault Quick References Table…………………………………………..…….…….31

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 4of 31
Glossary of Terms
Acronym or Term
Full Expression
AWG
American Wire Gauge
CEC
California Energy Commission
CPU
Central Processing Unit
CSA
Canadian Standards Association
DMM
Digital Multi-Meter
FRU
Field Replaceable Unit
GFDI
Ground Fault Detection Current
IFM
Insulation Fault Measurement
IMI
Isolation Monitor Interrupter
Inverter
Ideal Power Inverter, 30PV, 30PV+S, 30PVF, 30PVF+
LED
Light Emitting Diode
MPPT
Maximum Power Point Tracking
PCB
Printed Circuit Board
PV
Photovoltaic
SECTION 1.0 Introduction and Purpose
The purpose of this manual is to describe the proper installation, operation, maintenance,
and troubleshooting of the Ideal Power (“IPWR”) SunDial™ 30PV 30kW 3-Phase
Commercial String Inverter, as well as the SunDial™Plus 30PV+S: 30kW 3-Phase
Commercial PV Inverter with Energy Storage.
The SunDial™includes an integrated PV Combiner and DC Disconnect, and is
available in the following product configurations:
•30PV: PV String Inverter with ground-referenced 6-String Combiner.
•30PVF: 30kW 3-Phase PV String Inverter with floating 6-String Combiner.
•30PV+S: 30kW 3-Phase PV String Inverter with grounded-referenced 6-String
Combiner, and factory installed energy storage port
•30PVF+S: 30kW 3-Phase PV String Inverter with floating 6-String Combiner, and
factory installed energy storage port
•+S Kit: a field upgrade kit. Will detailed in a separate installation document.

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 5of 31
The SunDial™Series utilizes a novel Link Transformer coupled with IPWR’s patented
Power Packet Switching Architecture (“PPSA”) to deliver full galvanic isolation between
the AC grid and the PV Array. This isolation also delivers versatility PV Array wiring
options; both floating and ground-referenced unipolar PV Array are supported. Select
the appropriate Combiner model (floating or grounded), to support your specific
application.
The power ports for the SunDial™ Series include:
•AC1: 3-Wire, 3-Phase unidirectional AC power output port.
•DC2: DC port dedicated to PV Arrays.
•DC3 (+S systems only): an auxiliary DC port dedicated to battery energy storage
systems.
RMA and Service Contact
Do not ship or return the Inverter without prior authorization from Ideal Power Inc.
A Return Material Authorization (RMA) number must first be obtained from Ideal Power’s
customer service department.
Use the following contact information for all technical support:
Mail
Ideal Power
4120 Freidrich Lane
Suite 100
Austin, TX 78744
Attn: Technical Support
Email & Phone
For technical support: [email protected]
For warranty claims: [e-mail]
512.264.1542
Online Warranty Registration
www.idealpower.com/customers

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 6of 31
SECTION 2.0 IMPORTANT SAFETY INSTRUCTIONS
Inverter models covered in this manual: 30PV; 30PVF; 30VPV +S; 30PVF+S.
SAVE THESE INSTRUCTIONS
This manual contains important instructions for the Ideal Power 30PV; 30PVF; 30PV
+S; 30PVF+S PV Inverters. All wiring must be in accordance with the National Electric
Code ANSI/NFPA 70.
The following safety notices are used in this manual:
Danger - Procedures or situations that require action to prevent personal
injury or damage to equipment.
Warning - Indicates a potentially hazardous situation that, if not avoided,
can result in serious injury or death.
Important information: Includes key information for the operation of this
equipment or specific instructions to maintain the warranty.
Safety Instructions: All Installations
Danger - This product includes Ground Fault Detection for both grounded and
ungrounded operation of PV systems. All instructions regarding the configuration of this
device must be followed. Failure to follow may result in injury, death, or damage to
equipment. All GFDI related information will be marked with the symbol below:
Danger –To avoid an electric shock, verify that the Inverter’s external AC and DC
Disconnects are open (off). A minimum wait time of five (5) minutes is required after

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 7of 31
opening AC and DC Disconnects to assure that the Inverter’s internal capacitors have
discharged to zero voltage before performing any work on the Inverter. Utilize lockout
procedures to insure that both AC and DC Disconnects remain in the off position during
all service periods.
Warning –This photovoltaic rapid shutdown equipment (RSE) does not perform all of
the functions of a rapid shutdown system (RSS). This RSE must be installed with other
equipment to form a complete RSS that meets the requirements of NEC (NFPA 70)
section 690.12 for controlled conductors outside the array. Other equipment installed in
or on this PV system may adversely affect the operation of the PVRSS. It is the
responsibility of the installer to ensure that the completed PV system meets the rapid
shut down functional requirements. This equipment must be installed according to the
manufacturer’s installation instructions.
Safety Instructions: Battery Installations
Danger –The Inverter enclosure contains exposed high voltage conductors. The
enclosure’s front access and Combiner doors must remain closed, except during
installation, commissioning, or maintenance by trained service personnel. Do not open
or remove either door if extreme moisture is present (rain, snow, or heavy dew).
Danger –To avoid an electric shock, verify that the Inverter’s external AC and DC
Disconnects are open (off). A minimum wait time of five (5) minutes is required after
opening AC and DC Disconnects to assure that the Inverter’s internal capacitors have
discharged to zero voltage before performing any work on the Inverter. Utilize lockout
procedures to insure that both AC and DC Disconnects remain in the off position during
all service periods.
Warning –These instructions DO NOT contain any information on the operation of
battery systems outside of this product. Refer the manufacturer for the battery system
for installation and servicing instructions.

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 8of 31
Safety Instructions: Additional
Danger –The Inverter enclosure contains exposed high voltage conductors. The
enclosure front access and Combiner doors must remain closed, except during
installation, commissioning, or maintenance by trained service personnel. Do not open
or remove either door if extreme moisture is present (rain, snow, or heavy dew).
Danger –Ensure that the equipment is adequately installed and grounded per this
manual and all applicable codes.
Danger –Do not leave foreign objects in the Inverter enclosure. Keep the area around
the enclosure clear of trash, debris, and other combustible materials.
Warning –Personnel Qualification: Inspections and operations requiring access to
lethal AC or DC voltages, should only be performed by qualified personnel.
Warning –All field wiring must conform to the codes set forth in the National Electric
Code ANSI/NFPA 70.
Warning –A separate AC and a separate DC disconnect must be installed with this
system.
Warning –Electrostatic Discharge (ESD) Damage: The Inverter contains ESD-
sensitive equipment. Failure to use ESD control measures while servicing the
equipment may result in component damage and void the warranty.
Warning –Service and maintain the Inverter in accordance with applicable Ideal Power
procedures. Discontinue Inverter use until all equipment defects and safety hazard have
been cured. Replace damaged warning and precautionary labels.
Safety Instructions: Handling
Warning –The SunDial™Inverter, with combiner, weighs approximately 150 pounds. It
is designed to be transported and wall-mounted by two people, without the use of lift or
power equipment. If lift or power equipment is used to move, or lift the Inverter, follow all
safety rules. Failure to do so could result in personal injury or equipment damage.

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 9of 31
Integrated Safety Features
The 30PV; 30PVF; 30PV+S; and the 30PVF+S incorporate the following safety
features:
Table 1: Inverter Safety Features
Feature
Action
Hinged Front and
Combiner Doors
Prevents access to hazardous AC and DC voltages and
protects internal circuitry.
Integrated fused 6-
string Combiner with
lockable DC
Disconnect
Prevents access to hazardous DC voltages and protects
internal circuitry. Fuses protect field PV wiring.
DC Ground Fault
Detection
Takes Inverter off-line when DC input ground fault is
detected on either the DC2 or DC3 Ports. Both GFDI
(ground referenced connection) and IMI (floating
connection) are supported.
DC Overcurrent and
Overvoltage Detection.
The Inverter will shut down immediately if DC input
voltages or currents are out of range.
PV Arc-Fault Detection
Both versions of the PV Combiner incorporate an integral
Arc-fault detection. The Inverter will shut down
immediately if such a fault is detected. This will require a
site visit to reset the Inverter.
AC Overcurrent and
over/under Voltage
Detection.
The Inverter will shut down immediately if AC input
voltages or currents are out of range.
AC Frequency Out of
Range
The Inverter will shut down immediately if the grid
frequency is out of range.
Anti-islanding
protection
The Inverter will shut down immediately after detecting
any of the AC faults described above. A five (5) minute
restart timer is implemented on all grid-fault events.

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 10 of 31
Ground Fault Detection –Ground Referenced PV Combiner (30PV / 30PV+S)
For ground referenced PV array connections, the negative leg of DC2 (PV) and the
negative leg of DC3 (Battery: +S systems only) are electrically common and referenced
to earth ground through a shared 1 A GFDI fuse to detect ground fault conditions. If
such conditions are detected, the Inverter is automatically taken off-line. The Inverter
will not attempt to restart until the fault condition is cleared, and AC Power is cycled.
If the ground fault detection fuse shared between DC2 and DC3 is blown as a result of a
fault event, it must be replaced in order for the Inverter to attempt restart. Faults are
indicated on the Front Panel Display, and are also available via the Modbus RTU or
Modbus TCP communication interfaces.
Ground Fault Detection –Floating PV Combiner (30PVF / 30PVF+S)
Floating PV Arrays and Batteries (+S option only) utilize an onboard “IMI” ground fault
detection scheme. This enables the Inverter to measure the conductors of the DC
Power source. If leakage to ground is present past the limits set in UL 1741 then the
unit will fault and prevent operation until the fault is cleared from the DC source(s).
Note that the negative legs of DC2 (PV Array) and DC3 (Battery: +S option only) are
electrically common, but remain floating, relative to earth ground.
•In the event of an “IMI” fault, the fault can only be cleared by cycling AC power to
the unit.
DC Over/Under Voltage Fault Detection
The Inverter also has DC over-voltage (default is 1000 Vdc) and DC under-voltage
(default is 100 Vdc) detection circuitry. If these limits are exceeded the Inverter will shut
down, or if commanded to make power, will not start. These default limits are easily
changed via the Modbus interface; however, they cannot be programmed above the
1000 Vdc factory maximum.
AC Current Fault Detection
The output voltage is synchronized to the AC utility line. The Inverter operates as a
current source following the grid voltage waveform (“voltage-following”). Should the
Inverter experience an AC current fault condition, it is automatically taken off line. The
Inverter is shipped from the factory with a default five (5) minute restart countdown
timer.

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 11 of 31
AC Frequency and Voltage Fault Detection
The quality of the power delivered to the utility line must meet or exceed the
requirements as specified in IEEE 1547a. If the utility frequency or voltage shifts outside
the regulatory specified limits, the Inverter will automatically detect the condition and
shutdown. The Inverter is shipped from the factory with a default five (5) minute restart
counter for AC over/under Frequency limit faults and AC over/under voltage limit faults.
Regulatory Information
The 30PV; 30PVF; 30PV +S; 30PVF+S PV Inverters are certified to the following
standards for the North American market:
•UL 1741: Standard for Battery Inverters, Inverters, Controllers, and
Interconnection System Equipment for Use with Distributed Energy Resources
•IEEE 1547a: Distributed Resources Interconnection and Interoperability with the
Grid
•UL 1998: Software in Programmable Components
SECTION 3.0 System Specifications
Maximum AC Input Voltage
528 Vac
Maximum DC Input Voltage
1000 Vdc
AC Operating Voltage Range
422 to 528 Vac
DC Operating Voltage Range
100 to 1000 Vdc
DC Maximum Input Current
60 A (10 A per PV
string)
DC Minimum Start-up Current
1 A
AC Maximum Input Current
44 A
AC Minimum Start-up Current
1 A
Output Power Factor Range
0.95 Leading to 0.95
Lagging
Operating Frequency Range
57 to 64 Hz
Nominal AC Output Voltage
480 Vac
Nominal DC Output Voltage
750 Vdc
Nominal Output Frequency
60 Hz
Maximum AC Continuous Output Power
29.99 kW
Maximum DC Continuous Power
30 kW
Maximum AC output overcurrent protection (software)
44 A RMS
Maximum DC output overcurrent protection
(software)
60 A

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 12 of 31
DC Charging Output Voltage Range
100 to 1000 Vdc
Utility Interconnection Voltage and Frequency Trip
Limits and Trip Times
UL 1547.1 Compliant,
see Tables 6 and 7.
Synchronization In-rush Current
4.4 A
Trip Time Accuracy
20 mS
Trip Limit Accuracy Voltage
6 volts
Trip Limit Accuracy Frequency
.05 hz
Temperature Range (full power operation)
-25 °C to 50 °C
Maximum Operating Temperature (output derated)
60 °C
Typical Efficiency
95%
Maximum Efficiency
95.5%
Tare Losses
15 W
External Power supply voltage range input to Inverter
18 to 26 Vdc
GFDI trip limit
1 A
IMI trip level
< 3.8 k Ohms to ground
Communication Interfaces
RS485 Modbus RTU-2W
/ Modbus TCP Over
Ethernet
NEMA rating
3R
Weight
Approximately 150 lbs.
SECTION 4.0 Unpacking and Mounting the Inverter
Two-man lift: Observe all safe practices while moving or mounting the Inverter. The
Inverter can be set safely on its back or vertical if properly supported until it’s ready to
be mounted.
Storage before installation: Store the Inverter in its original shipping container indoors in
a non-condensing environment between -40 °C to 85 °C.
Disposal of shipping material: Please adhere to all local recycling if you choose to
dispose of the shipping material.

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 13 of 31
Figure 1: IPWR Approved Shipping Container
1. Box
2. Mounting Bracket
3. Mounting Hardware
4. Foam
5. Customer Quick Link Card
6. Inverter
Inverter Mounting
The SunDial™, when installed on its wall mounting bracket, weighs approximately 160
pounds. External dimensions are 20.7” W x 51.1” H x 16.6” D. The SunDial™MUST
always be installed in a vertical upright position for final installation, as well as
evaluation purposes. Do not block cooling airflow to the bottom air intake filter, or the
exhaust output, which is located on the upper door face of the unit.
Clearances for Inverter Mounting:
1. Minimum bottom clearance requirement: Outdoors or Indoors: 18 inches above.
Violation of this clearance will void the warranty.
2. Minimum front clearance requirement: 36 inches from the front of the Inverter
must be clear of flammable materials or obstructions.
3. Minimum side clearance requirement: 4 inches from the left and right sides of the
Inverter must be observed. The product label must be clearly visible at all times.

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 14 of 31
Warning: The unit must be mounted upright and level for the closed loop liquid cooling
system to work correctly.
Figure 2: Enclosure Exterior
Step 1. Secure the wall mounting bracket to the desired surface using either a metal
Uni-strut type railing rated for the Inverters weight or a concrete wall. Ensure mounting
bracket is level within +/- 5 degree.
Step 2. Using a two-man lift procedure carefully lift the Inverter and set it on the
provided wall bracket.
Step 3. Secure the bottom two bolts located at the bottom plate of wall bracket to the
Inverter. Torque these to 40 inch-pounds.
Step 4. Confirm the Inverter is mounted level and that the minimum clearance has been
met.
Table 2: Inverter Weight
30PV /30PVF
˜150 lbs.
30PV+S / 30PVF+S
˜152 lbs.
Mounting Bracket
˜8 lbs.

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 15 of 31
Figure 3: Door Clearance Guide
The Inverter installation must allow for the front door to swing freely open for service
purposes. Although 90 and 180-degree swing angles are shown above, a minimum
swing angle of 135 degrees is required to ensure that access for initial system wiring
and ongoing maintenance of the unit is not compromised.

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 16 of 31
Inverter Removal and Preparation for Shipment
1. Open AC Disconnect.
2. Open DC Disconnect(s).
3. Wait five (5) minutes for capacitors to discharge.
4. Open the enclosure’s hinged access front cover.
5. Disconnect the AC and DC power cables.
6. Disconnect the Conduit connections.
7. Disconnect Modbus Interface cables, and other low-voltage cables.
8. Disconnect chassis ground connections.
9. Close the front cover.
10.Remove the Inverter from the wall mount bracket.
11.Package the Inverter in IPWR approved packaging (Double wall, B/C fluting box,
and foam packing).
SECTION 5.0 AC and DC Terminals - Wiring and Installation
Tools Required:
-To open enclosure and Combiner doors –3 mm Allen Wrench.
-To connect field AC and DC wiring –flat blade Screwdriver.
-To connect earth ground safety wiring - flat blade Screwdriver.
Danger –Do not remove or reconfigure the Inverter’s factory wiring. Contact Ideal
Power at [email protected].
Warning –Changing the Inverter’s DC jumper configuration as it was received from the
factory may result in unexpected or unsafe operation. DC jumper configuration must
match the approved field wiring configuration. Consult a certified professional before
changing the Inverter’s factory defaults. All ground-referenced and ungrounded
connections must be field wired to NEC NFPA 2015 standards.
Warning –All AC wire connections are to be made with UL listed 6-gauge wire rated for
600 Vac; 40 A. All wires shall be torqued to 45 inch-pounds.
Warning - The Inverter’s default configuration supports a 480 Vac line-to-line 60 Hz grid
connection.
Warning –Grounding the Inverter must be done using the provided ground lug.

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 17 of 31
Important information: - Ideal Power’s SunDial™ Inverters feature AC power
interfaces that are galvanically isolated from all DC source(s).
Figure 4: AC1 and DC2/DC3 Interconnect Boards (+S version shown)
Table 3: Terminal Tightening Torques
Terminal Block
Location
Wire Size / Torque
AC Compression Terminals:
T4,T5,T6
Bottom of AC1 Wiring
Interconnect Board
#4-6 AWG / 45 Inch-pound
DC Compression Terminals:
T5,T6,T7,T8,T9, T10
Bottom of DC2/DC3
Wiring Interconnect Board
#4-6 AWG / 45 Inch-pound
Ground Terminal
Below AC1 Wiring
Interconnect Board
#4-6 AWG / 45 Inch-pound
Inverter Ground
The Inverter has an Earth Ground compression terminal that supports up to 4-gauge
wire for ground connections. All terminations are made to bare wire, using a flat blade
screwdriver drive head. No crimping is required when making the ground connection.
AC Wiring
Connect the 3-480 Vac phase legs to terminals T4, T5, and T6; (Phase A, Phase B, and
Phase C), utilizing the compression terminals as described above. The order of the
phases is not critical as the Inverter will sense and follow the AC grid. All power is

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 18 of 31
made between the phase legs. No neutral connection is required, or provided on the
SunDial™Series. Torque all connections as outlined in Table 3.
AC External Circuit Protection and Disconnect
The SunDial™must be installed with external circuit protection. A 50A 3-Phase 3-wire
AC breaker, rated at 480 Vac is commonly used for such purposes. In some jurisdictions,
this circuit breaker may also be approved for use as a safety disconnect. However, Ideal
Power recommends that you confirm specific AC disconnect requirements with your local
Authority Having Jurisdiction (“AHJ”). Some utilities may require an external “red-handle”
lockable disconnect, in additional to the protection breaker.
DC Wiring
Table 4: DC Wiring Nomenclature
Terminal
Description
Used by 30PV /
30PVF
Used by 30PV+S /
30PVF+S
T7
+DC2*
YES
YES
T8
-DC2 (DC Common)*
YES
YES
T9
-DC3 (DC Common)
NO
YES
T10
+DC3
NO
YES
T5, T6
GFDI Sense
Internally
connected
Internally
connected
*Factory wired to Combiner output.
DC Connection Terminal Overview
•T7 is the positive PV connection for DC2. T8 is the negative PV connection for
DC2. These DC power connections are factory wired to the Combiner. Do not
disturb or change these connections.
•T10 is the positive battery connection for DC3. T9 is the negative battery
connection for DC3. These DC power connections are utilized by the 30PV+S /
30PVF+S only.
•GFDI sense inputs (T5, T6) are factory internally connected. Do not make a

Installation & Operations Manual SunDial™ Series PV Inverter
Product Models: 30PV; 30PVF; 30PV+S; 30PVF+S
MAN-00117, Rev C Page 19 of 31
connection to these terminals as this would interfere with the GFDI function.
•Note that the negative input for DC2 (T8: DC COM) and the negative input for
DC3 (T9: DC COM: +S option only) are wired together and are electrically
common behind the Filter Chokes installed on DC2 and DC3 (+S option only).
DC Wiring Options
The DC2 Port supports either ground-referenced monopolar, or floating PV connections,
depending upon the Combiner type selected.
•If a floating Combiner is selected, the battery connected to DC3 (30PVF+S only)
MUST also be floating, and cannot be referenced to earth ground.
•If a ground-referenced Combiner is selected, the battery connected to DC3
(30PV+S only) will be ground-referenced,.
•Note that there are configuration jumpers on the DC2/DC3 Interconnect Board.
These jumpers are factory configured to support either the floating, or ground-
referenced Combiner type. Do not disturb or change these connections.
•Note that the floating and ground-referenced Combiners are unique and different
equipment designs. They are not interchangeable.
Combiner Overview
Access to both the enclosure and the Combiner requires a 3 mm Allen Wrench. The
Combiner’s DC Disconnect must be in service position (facing left) to open the Combiner
door. The DC Disconnect is “ON” when facing up or down. For lockout purposes, the DC
Disconnect must face right. The Combiner and enclosure doors are both hinged on the
left side.
Both versions of the Combiner feature three 1-inch conduit fittings located on the
Combiner bottom access panel. The conduit fittings simplify the routing and termination
of AC1 and DC3 (+S option only) power cables, as well as low-voltage control
wiring. Once routed through the Combiner, the AC and DC power is terminated on the
AC1 and DC2/DC3 interconnect boards. Low-voltage control wiring is terminated to the
control board, located on the upper left side of the enclosure. Use the left-most Conduit
fitting, as well as the two cable-guides provided in the enclosure to route and contain low-
voltage wiring.
