IDEAL CONCEPT User manual

CONCEPT ACRYLIC
SHOWER BATH
Installation Instructions
Please pass on to user
4994 10/17
EE74200967
4994 Concept Shower Bath:Layout 1 02/10/2017 09:53 Page 1

380
270
1695/1495
695
540
(not
including
upstand)
30
400
100 100
490

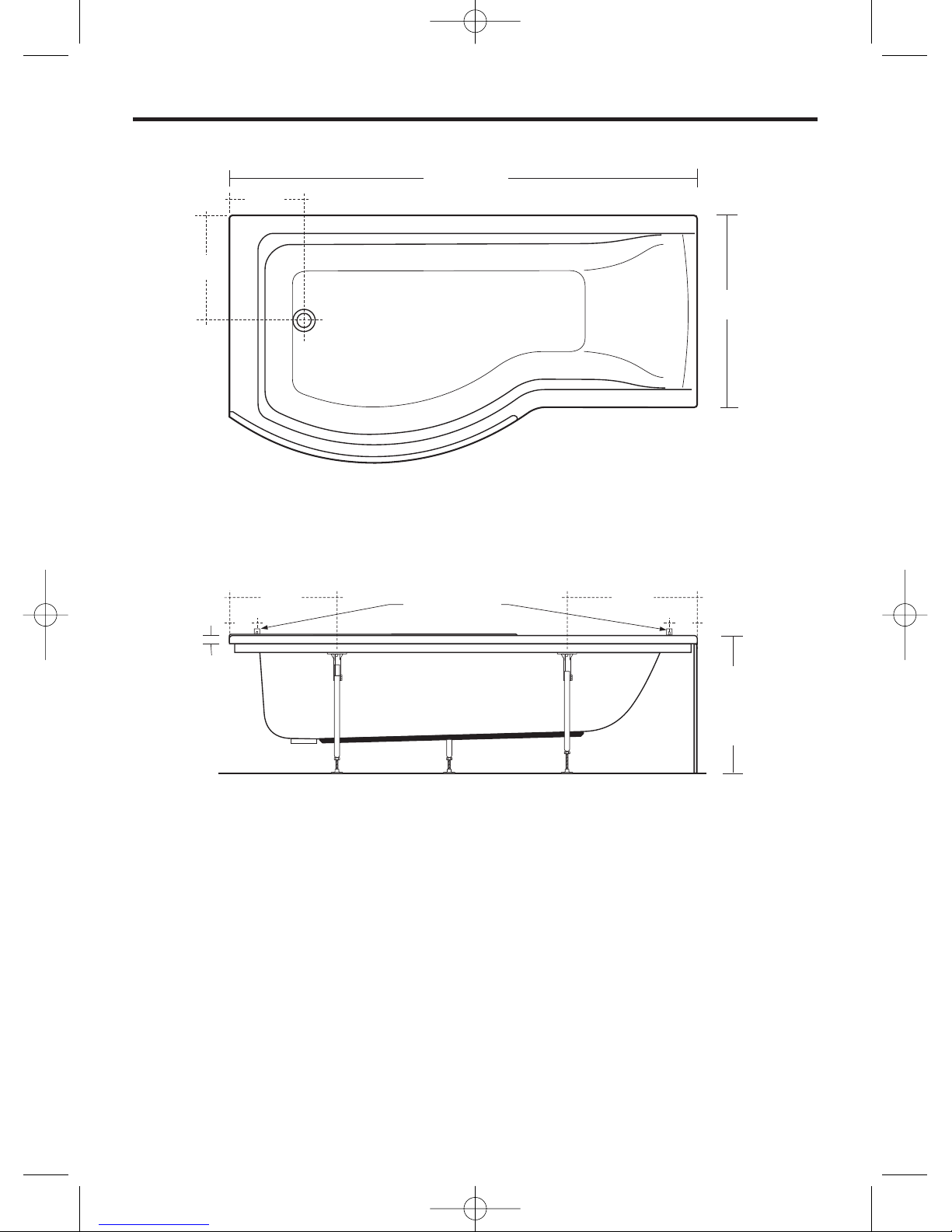

Plan View
Left hand bath shown
wall brackets
All dimensions shown in millimetres.
Dimensions shown may vary within permitted tolerances.
Fig. 1
CONCEPT ACRYLIC SHOWER BATH
4994 Concept Shower Bath:Layout 1 02/10/2017 09:53 Page 2

Fig. 2
CONCEPT ACRYLIC SHOWER BATH
4994 Concept Shower Bath:Layout 1 02/10/2017 09:54 Page 3

CONCEPT ACRYLIC SHOWER BATH
Fig. 3
4994 Concept Shower Bath:Layout 1 02/10/2017 09:54 Page 4

BATH CONDITION
Before commencing installation, carefully remove packaging/protective film and
check for damage. If damaged, report immediately to supplier.
The bath should be fully protected during the installation process.
INSTALLATION
1. Lay bath face down and remove legs and bags containing feet etc.
2. Locate leg adjusters, (Ref.F) on bath frame and mark positions for the fixing
screws. See Figure 1 for dimensions.
Pilot drill the holes (Ø 2mm) in the bath frame and fix leg adjusters to frame,
use screws (Ref. K).
3. Locate bath legs in leg adjusters ensuring that the orientation of the large leg is
correct and mark positions for the fixing screws on the base board. Pilot drill the
holes (Ø 2mm) in the base board, to a depth of 6mm maximum. Position legs in
leg adjusters and on base board and secure.
Use countersunk screws, (Ref. L) into the baseboard and pan head screws,
(Ref H) into the leg adjusters.
DO NOT OVER TIGHTEN.
4. Locate centre support bracket towards the centre of the baseboard, mark screw hole
positions, pilot drill holes (Ø 2mm) in base board to a depth of 6mm maximum and
secure bracket, use screws (Ref. J).
Fit the single support leg black end cap onto relevant block
(Fig. 5) using the supplied screw.
5. Fit panel clips to panel clip blocks.
The panel clips (Ref. T) must be located onto the wooden
blocks with the pan head screws supplied (Ref. W ), 29mm back
from the edge of the bath rim.
6. Fit the feet and adjust to give approximate floor to top of rim height required.
7. Turn bath over and drill for brassware if required. If the bath is to be installed
with a monoblock mixer a special hole (or holes) is required to accommodate
the mixer and will have to be cut by the installer in an appropriate position on
the rim of a no tap hole bath to suit the bathroom layout. Full details or a
template for cutting the hole (or holes) is supplied with monoblock fittings.
A template for cutting two tap holes in a no tap hole bath is supplied with
the bath.
Appropriate safety equipment/workwear should be used
The 4 black - No. 8 x 40 long countersunk crosshead self tapping screws
retaining the legs are NOT REQUIRED and should be discarded..
Fig. 4
CONCEPT ACRYLIC SHOWER BATH
4994 Concept Shower Bath:Layout 1 02/10/2017 09:54 Page 5

CONCEPT ACRYLIC SHOWER BATH
Ref. A
Ref. F
Ref. T
Ref. N
Ref. W
Ref. H
Ref. B
Ref. L
Ref. J
Ref. D
Ref. E
Ref. G
Ref. K
Ref. C
Encapsulated baseboard
Fig. 5
4994 Concept Shower Bath:Layout 1 02/10/2017 09:54 Page 6

CONCEPT ACRYLIC SHOWER BATH
8. Fit the two wall fixing brackets to bath frame as indicated in Fig. 6 and Fig. 1.
Pilot drill holes (Ø 2mm) in frame before fixing brackets.
9. Fit brassware.
10. Place bath into installation position and level bath, ensuring that the bath height is
correct, (510mm to trimmed edge for nominal height). Note: The bath can be installed
at a lower height, but this will reduce the space available for the waste to be fitted.
Also, the panel(s) will need to be reduced in height by cutting a strip from the bottom
edge. Reducing the panel height requires great care, therefore responsibility cannot
be accepted for any errors made.
11. Fix bath to wall.
12. Fix bath to floor and ensure that all nuts are tight. Trail fit the panel(s) to verify height
is correct. Note: Untrimmed panel fitment requires the height of 540mm (510mm to
trimmed edge of bath). Remember to allow for floor coverings.
Re-adjust if necessary.
Fit the single support leg to the black cap previously fastened. Ensure that the leg is
adjusted correctly to support the rim, but not forcing the rim upwards.
13. Connect services and check for leaks.

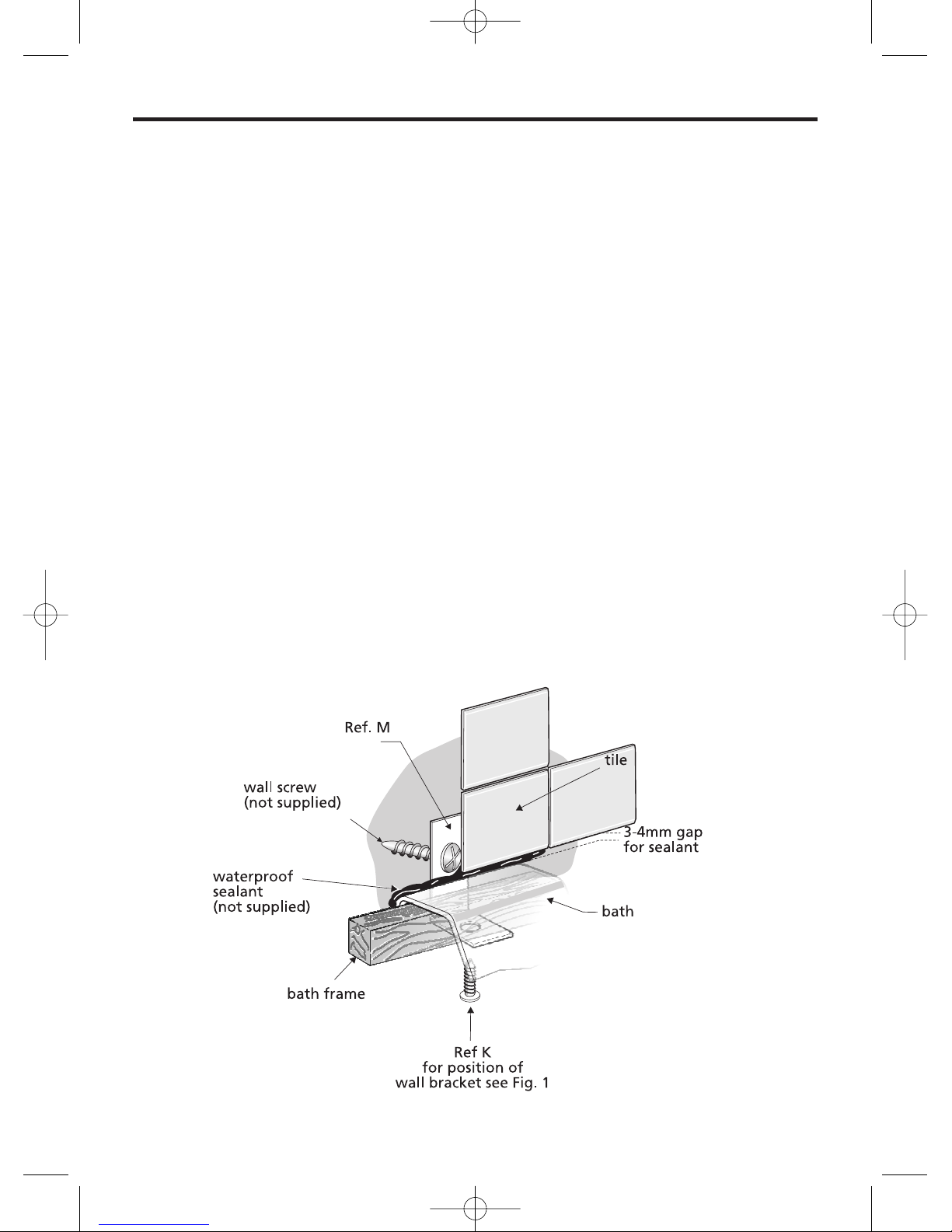

14. Tile down to the height of the bath rim leaving a 3-4mm gap for waterproof sealant,
see Fig. 6. An extruded sealing strip can be used for the bath to wall joint as an
alternative to waterproof sealant. Protect bath during tiling.
Fig. 6
4994 Concept Shower Bath:Layout 1 02/10/2017 09:54 Page 7

Fixing the bath panel
15. Pre fit front panel ensuring that the ends of the panel are vertical. Mark a line along the
front of the panel on the floor. Remove panel and fix the plastic panel clips (Ref. T)
onto the floor/wall(s) (Figure 7). The front of the block at the floor should be 3mm back
from the marked line.
Note: The front panel may touch the support leg
foot, (Ref. N), depending on its position. Remedy
this by removing a small amount of material from
the panel return.
16. Fit the end panel by using a wooden batten along
the floor for support and engaging the top of the
panel in front of the spring clips, (Ref. Y)
secured with screws (Ref. Z).
17. Fit front bath panel in position and press the
edges into the panel clips until fully engaged.
Note: Fit end panel before front panel. If the front
panel does not easily insert under the panel clips,
then release the screws by a quarter of a turn
and retry.
Note: if the front panel has had the returns trimmed
off, then the plastic panel clips will not grip the
panel base. In this instance, use wooden blocks
(not supplied) to secure the panel to the floor/wall.
Screws with cover caps are supplied for this
method of fixing.
CONCEPT ACRYLIC SHOWER BATH
Fig. 7
Fig. 8
4994 Concept Shower Bath:Layout 1 02/10/2017 09:54 Page 8

CONCEPT ACRYLIC SHOWER BATH
CARE OF BATH
This bath left our works in first class condition and the following points should be
noted;
TO AVOID DISAPPOINTMENT, PLEASE REMOVE THE PROTECTIVE FILM AND
INSPECT BEFORE INSTALLATION.
Responsibility will not be accepted for the installation of faulty baths.
Care of bath - for the installer:
Keep under cover in a clean, dry, weather-proof place.
Do not drop. Protect completely during and after installation (with clean felt etc.).
When making joint to waste, overflow etc. on this product, DO NOT use linseed
oil putty or similar based sealing compounds. Ensure rubber washers supplied
with waste fittings are located correctly to give watertight seal.
Test the fittings and then do not use the bath for any other purpose.
Please leave this leaflet for the end user to read.
WARNING
1. Filling. It is advisable always to run in some cold water before turning on
the hot tap.
2. Cleaning. The bath should always be cleaned immediately after use, preferably
whilst the water is running out and the bath is still warm. The film of insoluble soap
products, body fats and grime which will otherwise harden on the side of the bath is
easily removed at this stage. In hard water districts insoluble lime salts are deposited
below the waterline and under leaking taps. If this deposit is allowed to build up, it
becomes increasingly difficult to remove and looks unsightly. Prompt cleaning is again
the answer. Hot soapy water with a cloth should be used and the bath wiped dry.
3. Cleaners of a gritty or abrasive nature should never be used. Worn washers on
dripping taps should be replaced.
4. Chemicals. Acrylic has good resistance properties to acids and alkalis but should
not be allowed to come into contact with organic solvents such as dry cleaning agents
and paint strippers.
5. Removal of scratches. In the event of slight scratches in the bath surface a mild
abrasive, similar to metal polish, can be used to polish these out.
6. Burning cigarettes should not be allowed to come into contact with the surface of
this bath or damage may ensue.
4994 Concept Shower Bath:Layout 1 02/10/2017 09:54 Page 9

CONCEPT ACRYLIC SHOWER BATH
Product Guarantee
25 YEARS
Idealform Acrylic baths
10 YEARS
Shower enclosures and bath screens
5 YEARS
Valves and kits, bath panels
taps and mixers
This covers products in domestic use by the consumer and not commercial or
business use.
All Ideal Standard products must be installed, used and cared for in line
with our fixing instructions, local water byelaws and current water regulations.
Access should always be left for installation, service and repair.
Any relating costs are the responsibility of the owner/installer.
Guaranteed parts will be replaced if found faulty.
This guarantee does not cover general wear and tear.
Applies to the UK and Republic of Ireland only.
Proof of purchase will be required for any warranty claim.
4994 Concept Shower Bath:Layout 1 02/10/2017 09:54 Page 10

CONCEPT ACRYLIC SHOWER BATH
4994 Concept Shower Bath:Layout 1 02/10/2017 09:54 Page 11

We pursue a policy of continuing improvement in design
and performance of our products. The right is, therefore,
reserved to vary specifications without notice.
Ideal Standard (UK) Ltd. 4994 10/17
EE74200967
The Bathroom Works
National Avenue
Kingston upon Hull
HU5 4HS England
Telephone: [phone]
Telefax: [phone].
CUSTOMER CARE HELPLINE
0870 1296085
CUSTOMER CARE FAX LINE 01482 499611
email: [email protected]
CONCEPT ACRYLIC SHOWER BATH
